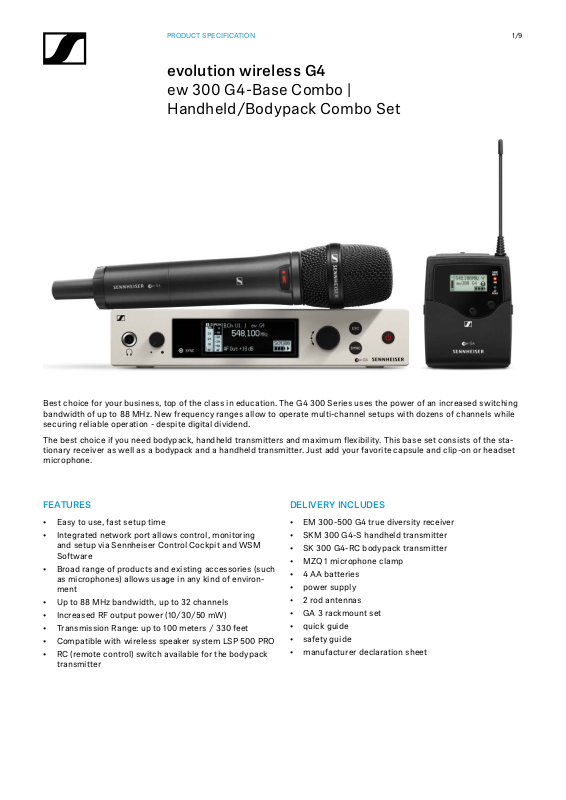

PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
1/9
Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching
bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while
securing reliable operation - despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset
microphone.
FEATURES
• Easy to use, fast setup time
• Integrated network port allows control, monitoring
and setup via Sennheiser Control Cockpit and WSM
Software
• Broad range of products and existing accessories (such
as microphones) allows usage in any kind of environment
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission Range: up to 100 meters / 330 feet
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack
transmitter
DELIVERY INCLUDES
• EM 300-500 G4 true diversity receiver
• SKM 300 G4-S handheld transmitter
• SK 300 G4-RC bodypack transmitter
• MZQ 1 microphone clamp
• 4 AA batteries
• power supply
• 2 rod antennas
• GA 3 rackmount set
• quick guide
• safety guide
• manufacturer declaration sheet
Page 2
SPECIFICATIONS
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
2/9
EM 300-500 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Receiving frequencies Max. 3520 receiving
frequencies, adjustable in
25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
6 frequency banks with
up to 32 programmable
channels
Switching bandwidth up to 88 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle True diversity
Sensitivity (with HDX, peak
deviation)
Adjacent channel selection Typically ≥ 75 dB
Intermodulation attenua-
tion
Blocking ≥ 75 dB
< 2.5 μV for 52 dBA
Typically ≥ 70 dB
eff S/N
Squelch 5 to 25 dBμV
in steps of 2 dB
Pilot tone squelch Can be switched off
Antenna inputs 2 BNC sockets
AF characteristics
Compander system Sennheiser HDX
EQ presets (switchable,
act on line and monitor
outputs)
Signal-to-noise ratio (1 mV,
peak deviation)
Total harmonic distortion
(THD)
AF output voltage (at peak
deviation, 1 kHz AF)
Setting range “AF Out” 48 dB (3 dB steps)
Overall device
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 350 mA
Dimensions Approx. 202 x 212 x 43 mm
Weight Approx. 980 g
Preset 1: Flat
Preset 2:
Low Cut (-3 dB at 180 Hz)
Preset 3:
Low Cut/High Boost
(-3 dB at 180 Hz,
+6 dB at 10 kHz)
Preset 4:
High Boost
(+6 dB at 10 kHz)
≥ 115 dBA
≤ 0.9 %
6.3 mm jack socket
(unbalanced): +12 dBu
XLR socket
(balanced): +18 dBu
CONNECTIONS
Page 3
SPECIFICATIONS
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
3/9
SKM 300 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Transmission frequencies Max. 3520 frequencies,
adjustable in 25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
6 frequency banks with
up to 32 programmable
channels
Switching bandwidth up to 88 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV,
peak deviation)
Total harmonic distortion
(THD)
Setting range for input
sensitivity
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
Nominal voltage 3 V battery /
Current consumption at nominal voltage:
Operating time Typically 8 h
Dimensions Approx. Ø 50 x 265 mm
Weight (incl. batteries) approx. 450 g
≥ 115 dBA
≤ 0.9 %
48 dB,
adjustable in 6 dB steps
BA 2015 accupack
2.4 V rechargeable battery
typ. 180 mA
with transmitter switched
off: ≤ 25 μA
Page 4
SPECIFICATIONS
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
4/9
SK 300 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Transmission frequencies Max. 3520 frequencies,
adjustable in 25 kHz steps
20 frequency banks, each
with up to 32 factory-pre-
set channels, no intermo-
dulation
6 frequency banks with
up to 32 programmable
channels
Switching bandwidth up to 88 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response Mic: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV,
peak deviation)
Total harmonic distortion
(THD)
Max. microphone/line
input voltage
Microphone/line input
impedance
Input capacitance Switchable
Setting range for input
sensitivity
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
Nominal voltage 3 V battery /
Current consumption at nominal voltage:
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
≥ 115 dBA
≤ 0.9 %
3 V
eff
40 kΩ, unbalanced / 1 MΩ
60 dB,
adjustable in 3 dB steps
BA 2015 accupack
2.4 V rechargeable battery
typ. 180 mA
with transmitter switched
off: ≤ 25 μA
Page 5

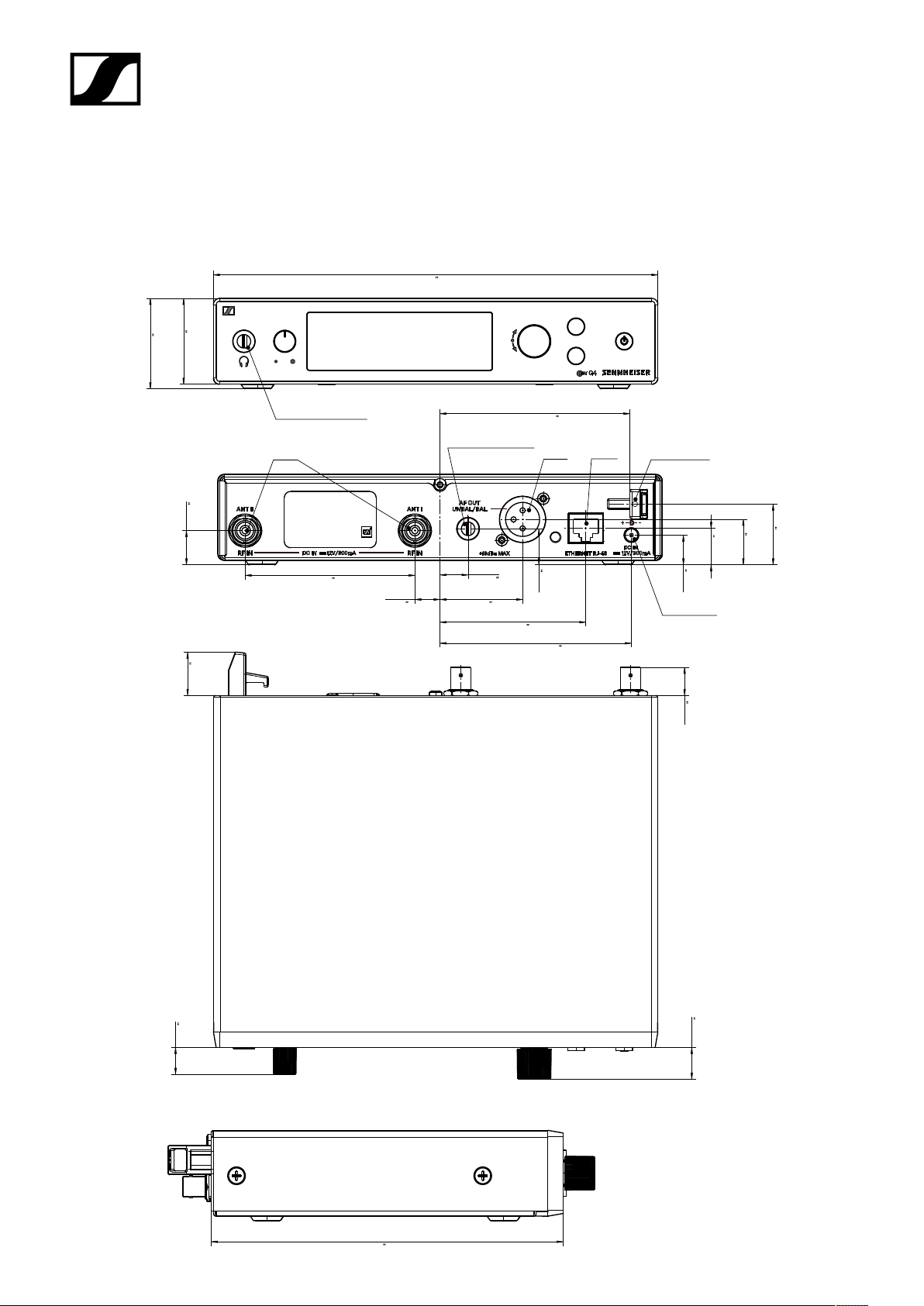

DIMENSIONS
6.61
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
5/9
EM 300-500 G4
1.7
43.2
212.1
8.35
41
1.61
6,35mm Klinke, stereo
6,35mm plug, stereo
6,35mm Klinke, stereo
BNC
0.64
16.35
81
3.19
20.7
0.81
12
0.47
6,35mm plug, stereo
13.4
0.53
39.4
1.55
69.6
2.74
90.6
3.57
17.2
91.35
3.6
0.68
XLR 3
RJ 45
Zugentlastung
Cable Grip
14.2
0.56
DC Power-Jack
29
1.14
21.7
0.85
17.4
0.69
0.53
13.42
15.1
0.5
12.8
0.59
168
Page 6

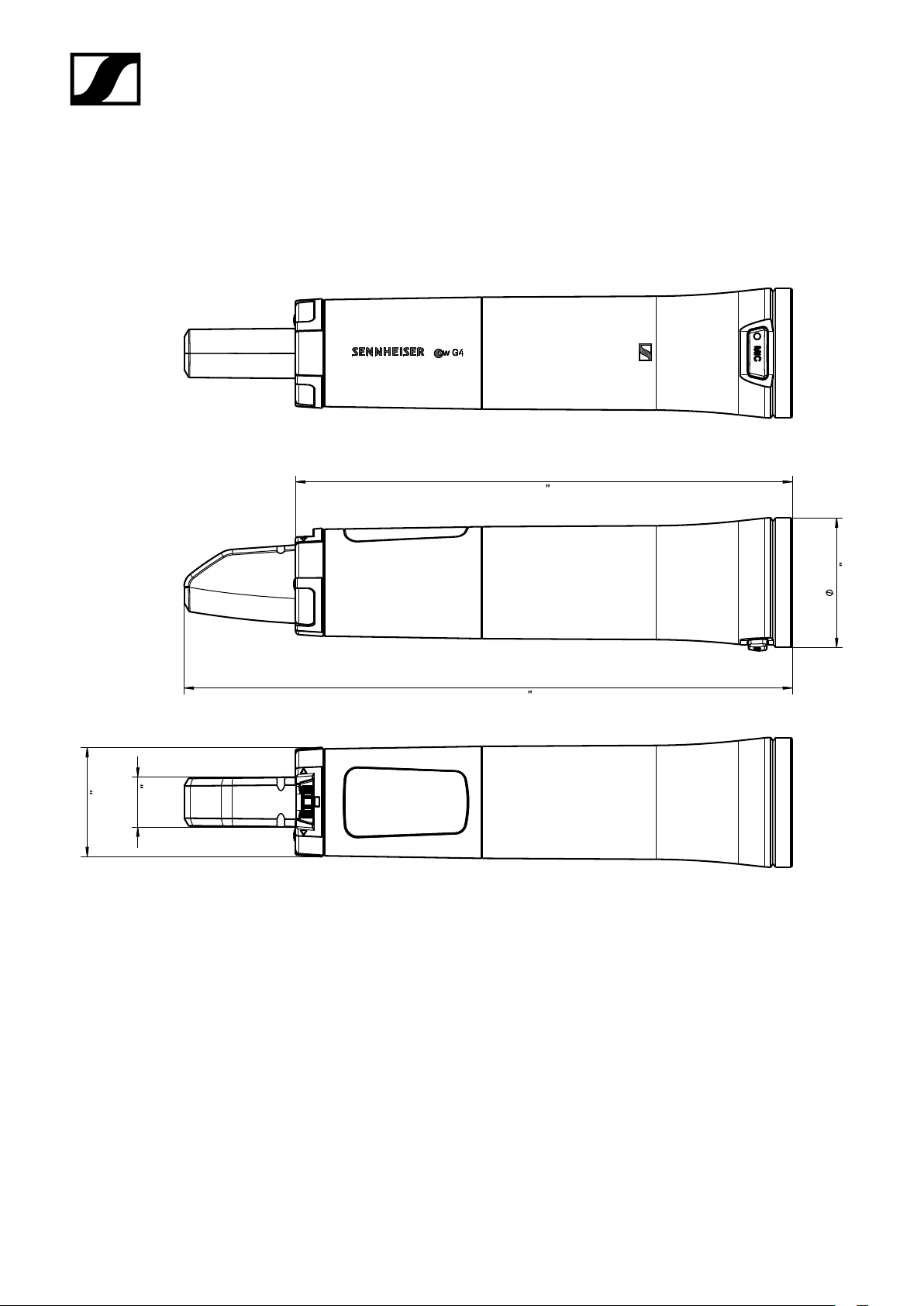

DIMENSIONS
SKM 300 G4
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
157.1
6.18
6/9
41
1.61
192.3
7.57
15.8
34.5
1.36
0.62
Page 7

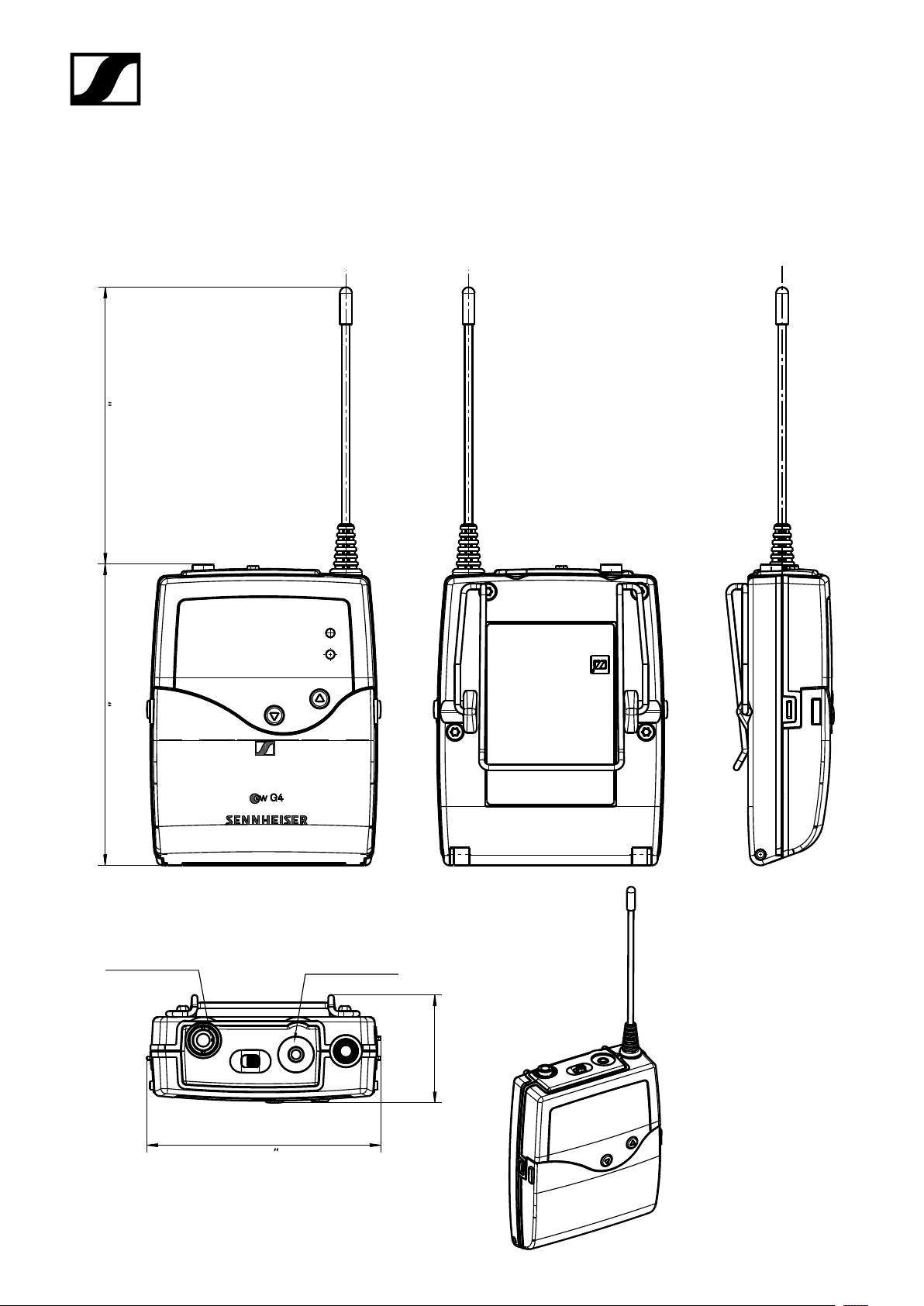

DIMENSIONS
SK 300 G4
120max.
4.72
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
7/9
84.3
3.32
3,5mm Klinke
3,5mm plug
2,5mm Klinke
2,5mm plug
30.14
65.4
2.57
Page 8
PRODUCT SPECIFICATION
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
PRODUCT VARIANTS
Made in Germany
ew 300 G4-Base SKM-S-RC-K+ 925 - 937.5 MHz Art. no. 507711
ew 300 G4-Base SKM-S-RC-GBw 606 - 678 MHz Art. no. 507712
ew 300 G4-Base SKM-S-RC-Gw 558 - 626 MHz Art. no. 507713
ew 300 G4-Base SKM-S-RC-Bw 626 - 698 MHz Art. no. 507714
ew 300 G4-Base SKM-S-RC-Cw 718 - 790 MHz Art. no. 507715
ew 300 G4-Base SKM-S-RC-Dw 790 - 865 MHz Art. no. 507716
ew 300 G4-Base SKM-S-RC-Aw+ 470 - 558 MHz Art. no. 508405
Assembled in USA
8/9
ew 300 G4-Base SKM-S-RC-AS 520 - 558 MHz Art. no. 508051
ew 300 G4-Base SKM-S-RC-JB 806 - 810 MHz Art. no. 508052
ew 300 G4-Base SKM-S-RC-Gw 558 - 626 MHz Art. no. 508053
ew 300 G4-Base SKM-S-RC-Bw 626 - 698 MHz Art. no. 508054
ew 300 G4-Base SKM-S-RC-Cw 718 - 790 MHz Art. no. 508055
ew 300 G4-Base SKM-S-RC-Dw 790 - 865 MHz Art. no. 508056
ew 300 G4-Base SKM-S-RC-Aw+ 470 - 558 MHz Art. no. 508426
ew 300 G4-Base SKM-S-RC-Gw1 558 - 608 MHz Art. no. 508447
ARCHITECT‘S SPECIFICATION
A wireless RF transmission system designed for presentation use and other applications where maximum speech intelligibility is required.
The system shall consist of a stationary receiver, a handheld transmitter and a bodypack transmitter.
The system shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz: 470 – 558
MHz, 520 – 558 MHz, 558 – 608 MHz, 558 – 626 MHz, 606 – 678 MHz, 626 – 698 MHz, 718 – 790 MHz, 790 – 865 MHz,
806 – 810 MHz, 925 – 937.5 MHz; receiving frequencies shall be 3520 per range and shall be tunable in 25 kHz steps. The
system shall feature 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32
user programmable frequencies.
The receiver shall be menu-driven with a backlit OLED display showing the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, pilot tone evaluation, muting function, and battery
status of the associated transmitter. An auto-lock feature shall be provided to prevent settings from being accidentally
altered. The receiver shall provide a sound check mode.
Some receiver parameters such as receiving frequency, receiver name and pilot tone setting shall be synchronizable with
the associated transmitter via an integrated infrared interface.
The receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced
¼“ (6.3 mm) audio output with a maximum output of +12 dBu. A headphone output with headphone volume control shall
be provided and shall utilize a ¼“ (6.3 mm) stereo jack socket. The receiver shall have an Ethernet port (RJ-45) for remote
network-based monitoring and control using the Sennheiser Control Cockpit or the Sennheiser Wireless System Manager
software. Two BNC-type input sockets shall be provided for connecting the antennas.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Squelch threshold shall be defeatable (off) or adjustable from 5 - 25
dBμV in steps of 2 dB.
The receiver shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity
shall be < 2 μV for 52 dBA eff S/N with HDX engaged at peak deviation. Adjacent channel rejection shall be ≥ 75 dB (typical). Intermodulation attenuation shall be ≥ 70 dB (typical); blocking shall be ≥ 75 dB. Four selectable equalizer presets
shall be provided: “Flat”, “Low Cut” (−3 dB at 180 Hz), “Low Cut/High Boost” (−3 dB at 180 Hz/+5.5 dB at 10 kHz) and
Page 9
PRODUCT SPECIFICATION
9/9
evolution wireless G4
ew 300 G4-Base Combo |
Handheld/Bodypack Combo Set
“High Boost” (+5.5 dB at 10 kHz). Signal-to-noise ratio at 1 mV and peak deviation shall be ≥ 115 dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %. The audio output level shall be adjustable within a 48 dB range in steps of 3 dB.
The receiver shall operate on 12 V power supplied from the NT 2-3 CW mains unit (for 100 – 240 V AC, 50/60 Hz). Power
consumption shall be 350 mA. The receiver shall have a rugged metal housing; dimensions shall be approximately 202 x
212 x 43 mm (7.95“ x 8.35“ x 1.69“). Weight shall be approximately 980 grams (2.16 lbs). Operating temperature shall range
from −10 °C to +55 °C (+14 °F to +131 °F).
The receiver shall be the Sennheiser EM 300-500 G4.
The handheld transmitter shall be menu-driven with a backlit LC display showing the current frequency, frequency bank
and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and
battery status. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
The handheld transmitter parameters shall be programmable in the handheld transmitter menu. Receiver parameters
such as receiving frequency, receiver name and pilot tone setting shall be synchronizable with the handheld transmitter
via an integrated infrared interface.
The handheld transmitter shall be equipped with a mute switch, which shall be switchable between “AF on/off”, “RF on/
off”, “Push to mute”, “Push to talk” and “Disabled” via the user interface.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Frequency stability shall be ≤ ±15 ppm. RF output power at 50 Ω shall
be switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).
The handheld transmitter shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch.
Audio frequency response shall range from 80 – 18,000 Hz. Signal-to-noise ratio at 1 mV and peak deviation shall be ≥ 115
dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %. Input sensitivity shall be adjustable within a 48 dB range in steps of
6 dB.
Power shall be supplied to the handheld transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage shall be 2.4 V, current consumption shall be typical 180 mA at nominal voltage; ≤ 25
μA when handheld transmitter is switched off. Operating time shall be typical 8 hours. The handheld transmitter shall
have a rugged metal housing; dimensions shall be approximately 50 mm (1.97“) in diameter and 265 mm (10.43“) in length.
Weight including the batteries shall be approximately 450 grams (0.99 lbs). Operating temperature shall range from −10
°C to +55 °C (+14 °F to +131 °F). A range of microphone heads shall be available for the handheld transmitter.
The handheld transmitter shall be the Sennheiser SKM 300 G4-S.
The bodypack transmitter shall be menu-driven with a backlit LC display showing the current frequency, frequency bank
and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and
battery status. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
The bodypack transmitter parameters shall either be configurable in the associated receiver’s menu and synchronized
with the bodypack transmitter via an integrated infrared interface or shall be programmable in the bodypack transmitter
menu.
The bodypack transmitter shall be equipped with a mute switch, which shall be switchable between “AF on/off”, “RF on/
off” and “Disabled” via the receiver’s user interface. A 2.5 mm jack socket shall be provided for connecting a Sennheiser
RMS 1 external mute switch. The settings for the external mute switch shall be switchable between “AF on/off”, “RF on/
off”, “Push to mute” and “Push to talk” via the user interface.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Frequency stability shall be ≤ ±15 ppm. RF output power at 50 Ω shall
be switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).
The bodypack transmitter shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch.
Audio frequency response shall range from 80 – 18,000 Hz (microphone) or 25 - 18,000 Hz (line). Signal-to-noise ratio at
1 mV and peak deviation shall be ≥ 115 dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %. Input sensitivity shall be
adjustable within a 60 dB range in steps of 3 dB.
Power shall be supplied to the bodypack transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage shall be 2.4 V, current consumption shall be typical 180 mA at nominal voltage; ≤ 25 μA
when bodypack transmitter is switched off. Operating time shall be typical 8 hours. The bodypack transmitter shall have
a rugged metal housing; dimensions shall be approximately 82 x 64 x 24 mm (3.23“ x 2.52“ x 0.94“). Weight including the
batteries shall be approximately 160 grams (5.64 oz). Operating temperature shall range from −10 °C to +55 °C (+14 °F to
+131 °F).
The bodypack transmitter shall be the Sennheiser SK 300 G4-RC.
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
Loading...
