Sennheiser EK 500 G4 Specifications

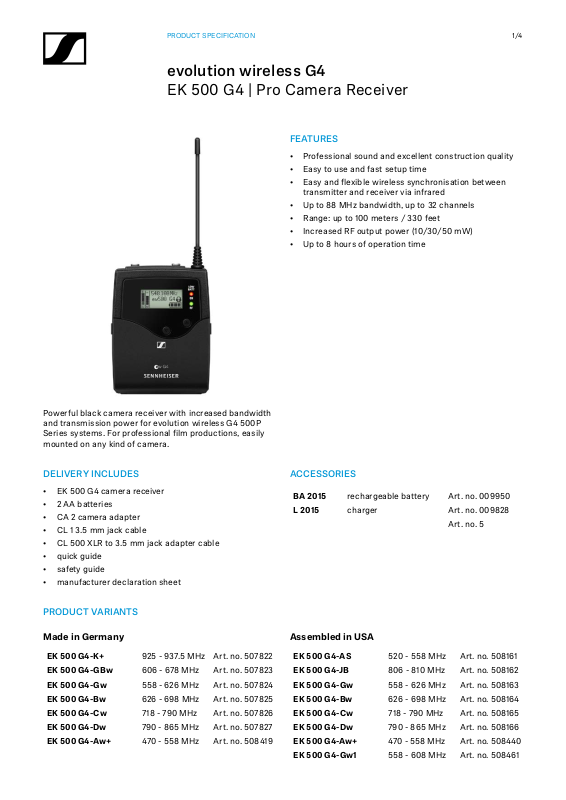

PRODUCT SPECIFICATION
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
FEATURES
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between
transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
1/4
Powerful black camera receiver with increased bandwidth
and transmission power for evolution wireless G4 500P
Series systems. For professional film productions, easily
mounted on any kind of camera.
DELIVERY INCLUDES
• EK 500 G4 camera receiver
• 2 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• quick guide
• safety guide
• manufacturer declaration sheet
PRODUCT VARIANTS
Made in Germany
EK 500 G4-K+ 925 - 937.5 MHz Art. no. 507822
EK 500 G4-GBw 606 - 678 MHz Art. no. 507823
EK 500 G4-Gw 558 - 626 MHz Art. no. 507824
EK 500 G4-Bw 626 - 698 MHz Art. no. 507825
EK 500 G4-Cw 718 - 790 MHz Art. no. 507826
EK 500 G4-Dw 790 - 865 MHz Art. no. 507827
EK 500 G4-Aw+ 470 - 558 MHz Art. no. 508419
ACCESSORIES
BA 2015 rechargeable battery Art. no. 009950
L 2015 charger Art. no. 009828
Art. no. 5
Assembled in USA
EK 500 G4-AS 520 - 558 MHz Art. no. 508161
EK 500 G4-JB 806 - 810 MHz Art. no. 508162
EK 500 G4-Gw 558 - 626 MHz Art. no. 508163
EK 500 G4-Bw 626 - 698 MHz Art. no. 508164
EK 500 G4-Cw 718 - 790 MHz Art. no. 508165
EK 500 G4-Dw 790 - 865 MHz Art. no. 508166
EK 500 G4-Aw+ 470 - 558 MHz Art. no. 508440
EK 500 G4-Gw1 558 - 608 MHz Art. no. 508461
SPECIFICATIONS
PRODUCT SPECIFICATION
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
2/4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Receiving frequencies Max. 3520 receiving
frequencies, adjustable in
25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
6 frequency banks with
up to 32 programmable
channels
Switching bandwidth up to 88 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle Adaptive diversity
Sensitivity (with HDX, peak
deviation)
Adjacent channel selection Typically ≥ 65 dB
Intermodulation attenua-
tion
Blocking ≥ 70 dB
Squelch low: 5 dBμV
< 1.6 μV for 52 dBA
Typically ≥ 65 dB
middle: 15 dBμV
high: 25 dBμV
eff S/N
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
Signal-to-noise ratio (1 mV,
peak deviation)
Total harmonic distortion
(THD)
AF output voltage (at peak
deviation, 1 kHz AF)
Adjustment range of audio
output level
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
Nominal voltage 3 V battery /
Current consumption at nominal voltage:
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 130 g
Line: ≥ 110 dBA
Phones: approx. 90 dBA
≤ 0.9 %
3.5 mm jack socket:
+17 dBu
(mono, unbalanced)
42 dB,
adjustable in steps of 6 dB
BA 2015 accupack
2.4 V rechargeable battery
typ. 140 mA
with receiver switched off:
≤ 25 μA
