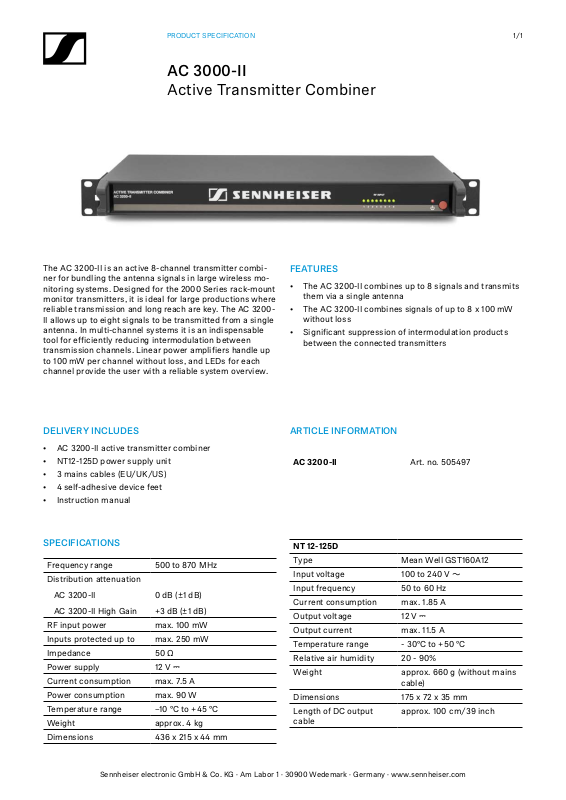

PRODUCT SPECIFICATION |
1/1 |
AC 3000-II
Active Transmitter Combiner
The AC 3200-II is an active 8-channel transmitter combiner for bundling the antenna signals in large wireless monitoring systems. Designed for the 2000 Series rack-mount monitor transmitters, it is ideal for large productions where reliable transmission and long reach are key. The AC 3200II allows up to eight signals to be transmitted from a single antenna. In multi-channel systems it is an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide the user with a reliable system overview.
FEATURES
•The AC 3200-II combines up to 8 signals and transmits them via a single antenna
•The AC 3200-II combines signals of up to 8 x 100 mW without loss
•Significant suppression of intermodulation products between the connected transmitters
DELIVERY INCLUDES |
ARTICLE INFORMATION |
•AC 3200-II active transmitter combiner
• |
NT12-125D power supply unit |
AC 3200-II |
Art. no. 505497 |
• 3 mains cables (EU/UK/US) |
|
|
|
• 4 self-adhesive device feet |
|
|
|
• |
Instruction manual |
|
|
SPECIFICATIONS
Frequency range |
500 to 870 MHz |
|
|
Distribution attenuation |
|
AC 3200-II |
0 dB (±1 dB) |
AC 3200-II High Gain |
+3 dB (±1 dB) |
|
|
RF input power |
max. 100 mW |
|
|
Inputs protected up to |
max. 250 mW |
|
|
Impedance |
50 Ω |
|
|
Power supply |
12 V |
|
|
Current consumption |
max. 7.5 A |
|
|
Power consumption |
max. 90 W |
|
|
Temperature range |
–10 °C to +45 °C |
|
|
Weight |
approx. 4 kg |
|
|
Dimensions |
436 x 215 x 44 mm |
|
|
NT 12-125D
Type |
Mean Well GST160A12 |
|
|
Input voltage |
100 to 240 V § |
Input frequency |
50 to 60 Hz |
|
|
Current consumption |
max. 1.85 A |
|
|
Output voltage |
12 V |
|
|
Output current |
max. 11.5 A |
|
|
Temperature range |
- 30°C to +50 °C |
|
|
Relative air humidity |
20 - 90% |
|
|
Weight |
approx. 660 g (without mains |
|
cable) |
Dimensions |
175 x 72 x 35 mm |
|
|
Length of DC output |
approx. 100 cm/39 inch |
cable |
|
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
