M EM B ER

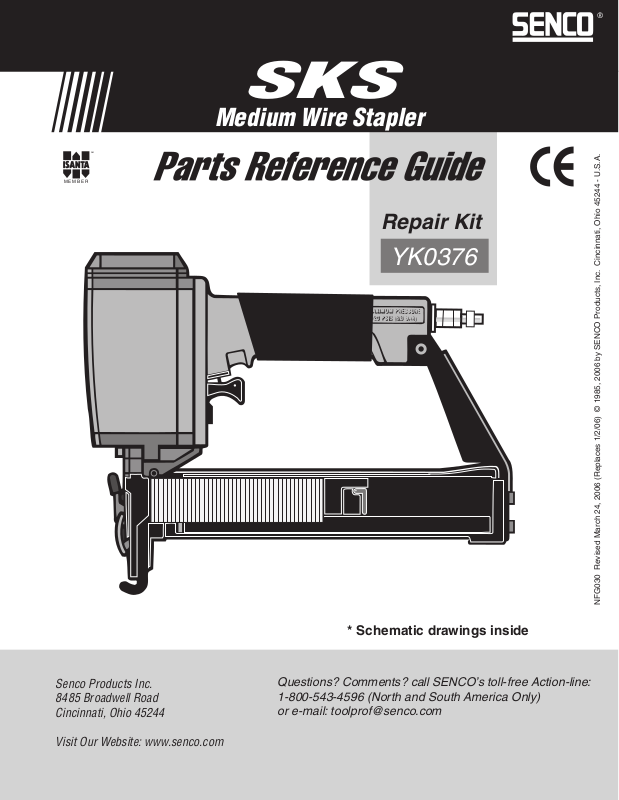

SKS

Medium Wire Stapler

Repair Kit

YK0376

Senco Products Inc. 8485 Broadwell Road Cincinnati, Ohio 45244

Visit Our Website: www.senco.com

* Schematic drawings inside

Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North and South America Only) or e-mail: toolprof@senco.com

Available Triggers

Single Sequential

Contact Actuation

HA0121

HA0122

BB0092 (US)

BC0138

KB0032

LB5046

LB0030

KA0001

AB0073

DANGER

LB0012

BF0140

BB0101

BA0118*

LB0077

LB0777

BF0013

BA0096

HC0054

BB0154 (EU)

300020N L12-L17 FC0071 GC0330 GB0304 GB0199 302020N L12-L17 FC0071 GC0330 GB0304 GB0199 300052N M12-M17 FC0073 GC0331 GB0305 GB0201 302052N M12-M17 FC0073 GC0331 GB0305 GB0201 300084N N12-N17 FC0075 GC0331 GB0305 GB0201 302084N N12-N17 FC0075 GC0331 GB0305 GB0201 302092N N12-N17 FC0075 GC0331 GB0305 GB0201

TOOL# A E F G H

300020N L12-L17 EC0178 EC0168 BF0070 302020N L12-L17 EC0178 EC0168 BF0070 300052N M12-M17 EC0135 EC0168 BF0069 302052N M12-M17 EC0135 EC0168 BF0069 300084N N12-N17 EC0136 EC0118 BF0068 302084N N12-N17 EC0136 EC0118 BF0068 302092N N12-N17 EC0136 EC0118 BF0068

TOOL# A B C D

* Does Not Include O-rings * No incluye sellos de gomas * Ohne Dichtringe * Joints exclus

LB0778

LB0018

CA0074*

HC0052

SKS

GC0444

GB0202

GB0198

KB5280

KB1484

KB3391

KB0022

KB0017

GC0323

KB0019

KB3327

FC0077

KB1546

KB0031

FC0067

FA0151

FC0078

KB3225

KB4186

HC0305

HC0058

KB1553

KB3057

3/8"

Body

1/4"

Body

Tru-Flate 1/4" NPT

Ind. Interchange 1/4" NPT

PC0479 4

PC0486

PC0468 4

PC0475

1/4"

Body

4 Recommended Plugs

3/8"

Body

Plugs shown smaller than actual size

ailable Plugs

(Not In

cluded

with

ool)

SKS

REPLACEMENT PARTS LIST • LISTA DE PARTES DE REPUESTO • ERSATSTEILE-LISTE • LISTE DE PIÈCES DE RECHANGE

PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION

AB0073 .................... MAIN BODY ASSEMBLY .................... ASAMBLE DE CARCASA .................................GEHÄUSE-ZUSAMMENBAU ................................ CORPS D'ASSEMBLÉE

BA0096 .................... VALVE ASSEMBLY ............................. ASAMBLE DE VALVULA ..................................VENTIL-ZUSAMMENBAU .................................... VALVE D'ASSEMBLÉE

BA0118 .................... CYLINDER ......................................... CILINDRO .......................................................ZYLINDER ........................................................... CYLINDRE

BB0101 .................... STOP ................................................. TOPE ..............................................................PUFFER ............................................................... ARRÊT

BB0092 .................... DEFLECTOR (US) .............................. DEFLECTOR ....................................................ABWEISER .......................................................... DÉFLECTEUR

BB0154 .................... DEFLECTOR (EU) ..............................DEFLECTOR ....................................................ABWEISER .......................................................... DÉFLECTEUR

BC0138 .................... MUFFLER ..........................................SILENCIADOR ................................................DÄMPFER ...........................................................SILENCIEUX

BF0013 ..................... SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

BF0068 ..................... SEAL (N) ...........................................SELLO (N) ......................................................DICHTUNG (N) ....................................................JOINT ( N)

BF0069 ..................... SEAL (M) ........................................... SELLO (M)......................................................DICHTUNG (M) ................................................... JOINT (M)

BF0070 ..................... SEAL (L) ............................................ SELLO (L) .......................................................DICHTUNG (L) .................................................... JOINT (L)

BF0140 ..................... RETAINER ......................................... JUNTA TÓRICA ...............................................SICHERUNGSRING ............................................. RETENUE

CA0074 .................... VALVE ASSEMBLY ............................. ASAMBLE DE VALVULA ..................................VENTIL-ZUSAMMENBAU .................................... VALVE D'ASSEMBLÉE

EC0118 ....................PISTON (N) .......................................PISTON (N) ....................................................KOLBEN (N) ........................................................ PISTON (N)

EC0135 ....................DRIVER, 3/16" CSK (M) ..................... PERCUSOR, 4.8mm Hundimiento (M) ...........TREIBER, 4,8mm Überlänge (M) ........................ COUTEAU, 4,8mm Noyer (M)

EC0136 ....................DRIVER, 3/16" CSK (N) .....................PERCUSOR, 4.8mm Hundimiento (N) ............TREIBER, 4,8mm Uberlänge (N) ......................... COUTEAU, 4,8mm Noyer (N)

EC0168 ....................PISTON (L&M) .................................. PISTON (L&M) ...............................................KOLBEN (L&M) ...................................................PISTON (L&M)

EC0178 ....................DRIVER, 3/16" CSK (L) ......................PERCUSOR, 4.8mm Hundimiento (L) ............TREIBER, 4,8mm Überlänge (L) ......................... COUTEAU, 4,8mm Noyer (L)

FA0151 ..................... LATCH ASSY. ..................................... ASAMBLE DE UÑETA ......................................VERSCHLUSS-ZUSAMMENBAU .........................DOIGT DE RETENUE

FC0067 ..................... FINGER GRIP ....................................AGARRADERO ................................................FINGERGRIFF ...................................................... GAINE EN CAOUTCHOUC

FC0071 ..................... GUIDE BODY (L12-L17) .................... PLACA DE NARIZ (L12-L17) ..........................KLAMMERFÜHRUNG (L12-L17) ......................... FRONT (L12-L17)

FC0073 ..................... GUIDE BODY (M12-M17) ..................PLACA DE NARIZ (M12-M17) ........................KLAMMERFÜHRUNG (M12-M17) ....................... FRONT (M12-M17)

FC0075 ..................... GUIDE BODY (N12-N17) ................... PLACA DE NARIZ (N12-N17)..........................KLAMMERFÜHRUNG (N12-N17) ........................ FRONT (N12-N17)

FC0077 ..................... PLATE ................................................PLACA ............................................................PLATTE ...............................................................PLAQUE

FC0078 ..................... DOOR ................................................ PUERTA ..........................................................ABDECKSCHIEBER ............................................. PORTE

GB0198 .................... DOOR ................................................PUERTA ..........................................................ABDECKSCHIEBER .............................................PORTE

GB0199 .................... RAIL (L) ............................................ CARRIL (L) .....................................................SCHIENE (L) .......................................................RAIL (L)

GB0201 .................... RAIL (M&N) ...................................... CARRIL (M&N) ...............................................SCHIENE (M&N) .................................................RAIL (M&N)

GB0202 .................... PIVOT ................................................ PIVOTE ...........................................................ACHSSTIFT .........................................................PIVOT

GB0304 .................... FEEDER ASSEMBLY (L) ..................... ENSEMBLAJE DEL ALIMENTADOR (L) ...........ROLLFEDER (L) ..................................................RESSORT DE POUSSOIR (L)

GB0305 .................... FEEDER ASSEMBLY (M&N) ..............ENSEMBLAJE DEL ALIMENTADOR (M&N) ....ROLLFEDER (M&N) ............................................ RESSORT DE POUSSOIR (M&N)

GC0323 .................... SUPPORT .......................................... SUPORTE .......................................................TRÄGER .............................................................. SUPPORT

GC0330 .................... FEEDER SHOE (L) ............................. ALIMENTADOR (L) .........................................KLAMMERSCHIEBER (L) .................................... POUSSOIR (L)

GC0331 .................... FEEDER SHOE (M&N) ....................... ALIMENTADOR (M&N) ...................................KLAMMERSCHIEBER (M&N) .............................. POUSSOIR (M&N)

GC0444 .................... FEEDER SHOE HANDLE ....................MANGO DE ALIMENTADOR ............................KLAMMERSCHIEBER HANDGRIFF ..................... POIGNÉE DE POUSSOIR

HA0121 .................... TRIGGER ASSEMBLY ........................ ASAMBLE DE GATILLO...................................AUSLÖSER-ZUSAMMENBAU .............................. GACHETTE D'ASSEMBLÉE

HA0122 .................... TRIGGER ASSEMBLY ........................ ASAMBLE DE GATILLO...................................AUSLÖSER-ZUSAMMENBAU .............................. GACHETTE D'ASSEMBLÉE

HC0052 .................... RETAINER ......................................... JUNTA TÓRICA ...............................................SICHERUNGSRING ............................................. RETENUE

HC0054 .................... BEARING ........................................... CAPA DEL COJINETE ......................................LAGER ................................................................ COUSSIN

HC0058 .................... COVER ..............................................CUBIERTA .......................................................ABDECKUNG ....................................................... PORTE

HC0305 .................... SAFETY ELEMENT ............................. SEGURO .........................................................SICHERHEITSVORRICHTUNG ............................ PALPEUR DE SÉCURITÉ

KA0001 .................... PIN ASSY. ..........................................ASAMBLE DE PASADOR ................................STIFT-ZUSAMMENBAU ....................................... FINNETTE D'ASSEMBLÉE

KB0017 .................... SCREW .............................................. TORNILLO ......................................................SCHRAUBE .........................................................VIS

KB0019 .................... SCREW .............................................. TORNILLO ......................................................SCHRAUBE .........................................................VIS

KB0022 .................... SCREW .............................................. TORNILLO ......................................................SCHRAUBE .........................................................VIS

KB0031 .................... SCREW .............................................. TORNILLO ......................................................SCHRAUBE .........................................................VIS

KB0032 .................... SCREW .............................................. TORNILLO ......................................................SCHRAUBE .........................................................VIS

KB1484 .................... NUT ................................................... TUERCA ..........................................................MUTTER ............................................................. ÉCROU

KB1546 .................... PIN .................................................... PASADOR .......................................................STIFT ..................................................................FINETTE

KB1553 .................... PIN .................................................... PASADOR .......................................................STIFT ..................................................................FINETTE

KB3057 .................... PIN .................................................... PASADOR .......................................................STIFT ..................................................................FINETTE

KB3225 .................... PIN .................................................... PASADOR .......................................................STIFT ..................................................................FINETTE

KB3327 .................... WASHER ........................................... ARANDELA .....................................................SCHEIBE .............................................................RONDELLE

KB3391 .................... WASHER ........................................... ARANDELA .....................................................SCHEIBE .............................................................RONDELLE

KB4133 .................... SPRING ............................................. MUELLE .........................................................FEDER ................................................................. RESSORT

KB5280 .................... SPRING ............................................. MUELLE .........................................................FEDER ................................................................. RESSORT

LB0012 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB0018 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB0030 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB0077 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB0777 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB0778 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

LB5046 ....................SEAL .................................................SELLO ............................................................DICHTUNG .......................................................... JOINT

Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only) or e-mail: toolprof@senco.com
