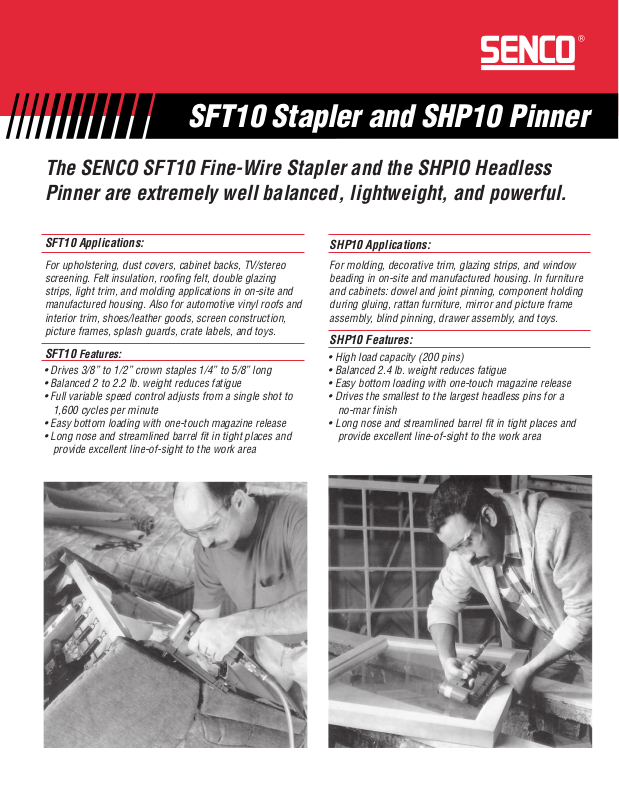

Senco SHPIO, SFT10 User Manual
SFT10 Stapler and SHP10 Pinner
The SENCO SFT10 Fine-Wire Stapler and the SHPIO Headless
Pinner are extremely well balanced, lightweight, and powerful.
SFT10 Applications:
For upholstering, dust covers, cabinet backs, TV/stereo
screening. Felt insulation, roofing felt, double glazing
strips, light trim, and molding applications in on-site and
manufactured housing. Also for automotive vinyl roofs and
interior trim, shoes/leather goods, screen construction,
picture frames, splash guards, crate labels, and toys.
SFT10
• Drives 3/8” to 1/2” crown staples 1/4” to 5/8” long
• Balanced 2 to 2.2 lb. weight reduces fatigue
• Full variable speed control adjusts from a single shot to
• Easy bottom loading with one-touch magazine release
• Long nose and streamlined barrel fit in tight places and
Features:
1,600 cycles per minute
provide excellent line-of-sight to the work area
SHP10 Applications:
For molding, decorative trim, glazing strips, and window
beading in on-site and manufactured housing. In furniture
and cabinets: dowel and joint pinning, component holding
during gluing, rattan furniture, mirror and picture frame
assembly, blind pinning, drawer assembly, and toys.
SHP10 Features:
• High load capacity (200 pins)
• Balanced 2.4 lb. weight reduces fatigue
• Easy bottom loading with one-touch magazine release
• Drives the smallest to the largest headless pins for a
no-mar finish
• Long nose and streamlined barrel fit in tight places and
provide excellent line-of-sight to the work area
SFT10 Stapler and SHP10 Pinner
SFT10 Tool Specifications:
Tool Weight: 2 lbs. (0.9 kg) to 2.2 lbs. (1 kg)
Height: 6-1/8” (155 mm)
Length: 8-5/8” (218 mm)
Width: 1-5/8” (41 mm)
Lip Length: 1” (25 mm)
Staple Capacity: 180
Operating Pressure: 75-100 p.s.i.g. (5.2-6.9 bar)
Hose Fitting: 1/4” NTP
SHP10 Tool Specifications:
Tool Weight: 2.4 lbs. (1 kg)
Height: 513/16 “ (148 mm)
Length: 8V (218 mm)
Width: 1-5/8” (41 mm)
Lip Length: 1/2” (13 mm)
Staple Capacity: 200 headless pins
Maximum Speed: 8 per second (cycles per second)
Operating Pressure: 75-100 p.s.i.g. (5.2-6.9 bar)
Hose Fitting: 114” NTP
SFT10 Fastener Specifications:
Width: .030
Thickness: .0215
Gauge: 22
The SFT10-B (480003 and 480006 Automatic) will drive these
1/2" (13 mm) crown staples:
Lengths
Inches 1/4 5/16” 3/8” 1/2”
Millimeters 6 8 1 0 13
Part No. B04 B05 B06 B08
The SFT1O-C (480001 and 480004 Automatic and 480007
long nose) 3/8” (10 mm) crown staples:
Lengths
Inches 1/4” 5/16” 3/8” 7/16” 1/2” 5/8”
Millimeters 6 8 10 11 13 16
Part No. C04 C05 C06 C07 C08 C10
SHP10 Fastener Specifications:
Gauge: 23,.025" (.64 mm)
Lengths
Part No. CZ08 CZJO C711
Inches 1/2” 5/8” 3 /4”
Millimeters 13 16 19
1/23
/4
5
CZ
5
7
/16
/16
5
3
1
1
/8
/8
/4
/2
C
/8
1
5
/2
/16
3
1
/8
/4
B
Note: A2” Long Nose
SFT10 is available
and is 7-15/16” in
