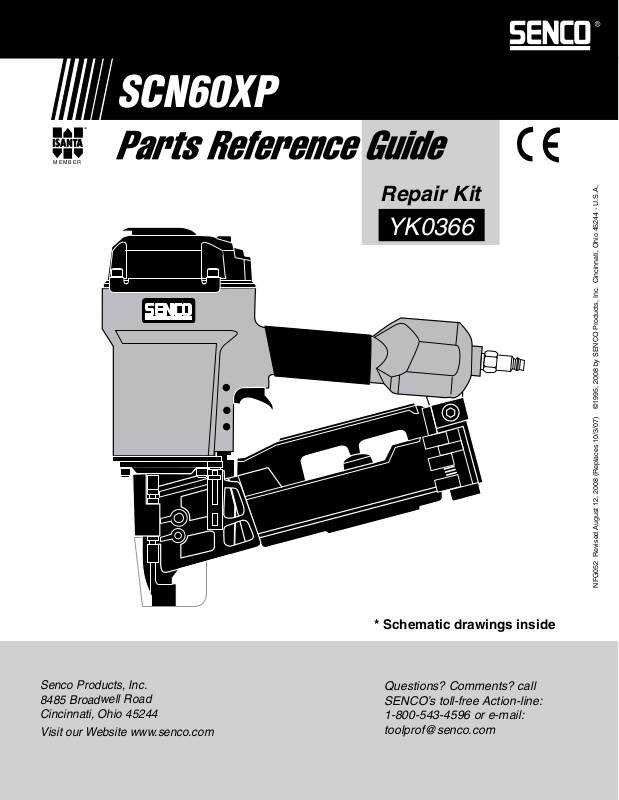

Senco SCN60 User Manual

MEMBER

SCN60XP

SM

Repair Kit

YK0366

Senco Products, Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244

Visit our Website www.senco.com

NFG052 Revised August 12, 2008 (Replaces 10/3/07) ©1995, 2008 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

* Schematic drawings inside

Questions? Comments? call
SENCO’s toll-free Action-line:
1-800-543-4596 or e-mail:
[e-mail]

SCN60XP

KB9773

BC0312

BF0168

AB0201

AC0141
with AB0092

AA0115

KB3255

LB0036

EBO279*

KB9752

LB0901

LB0018

LB0057

CF0003*

LB0057

KB4261

CA0087

LB0844

LB0847

LB0902

ModelTool #

520101N Contact Actuation
522001N Contact Actuation
520102N Single Sequential
522002N Single Sequential

* Does Not Include O-rings
* No incluye sellos de gomas
* Ohne Dichtringe
* Joints exclus

BB0186*

LB0768
LB0038

LB0909

BF0203

CF0015

BF0204

BC0283

KB9773

AB0082

BC0250*

LB0789

LB0086

BB0148

KB1566

LB0057

Available Triggers

KC0062

KC0027

KC0062

HC0148

HC0211

Contact Actuation

HC0149

KB4131

HC0211

KB3495

HA0093

KB3495

KC0027

HC0205

KC0062

KB4130

KC0027

HA0098

Single Sequential

SCN60XP

KB9796

FC0242

KB9753

KB9753

KB9752

KB3206

KB4215

GC0597

GC0602

GB0354 (US)

GB0364 (Euro)

KB9752

KB9756

GC0598

KB4236

KB4249

HB0242

HC0218

HF0032

HF0023

LB0042

HF0025

KB3206

GC0575

KB4220

FC0261

LB0012

FC0271

KB3256

FC0249
KB4221

KB1564

FC0276

HC0219

HF0023

GC0589

GB0347

Available Plugs

(Not Included with Tool)

1/4"

Body

Ind. Interchange 1/4" NPT

GC0601

GG0209

PC0479 4

NFG052 Revised August 12, 2008 (Replaces 10/3/07) ©1995, 2008 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

KB3205

FC0295

FC0247

KB4217

LB0788

FC0248

FC0256

KB3206

FC0260

KB4207

LB0056

PC0486

3/8"

Body

Ind. Interchange 1/4" NPT

PC0468 4

1/4"

Body

Tru-Flate 1/4" NPT

PC0474

3/8"

Body

Tru-Flate 1/4" NPT

4 Recommended Plugs

Plugs shown smaller than actual size

SCN60XP

REPLACEMENT PARTS LIST • LISTA DE PARTES DE REPUESTO • ERSATSTEILE-LISTE • LISTE DE PIÈCES DE RECHANGE

PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION

AA0115 ................... SEAL .................................................. SELLO ............................................................DICHTUNG .........................................................JOINT

AB0082 ....................MAINBODY ........................................CUERPO PRINCIPAL ...................................... GEHÄUSE ...........................................................CORPS

AB0201 ................... CAP ....................................................TAPA ...............................................................KAPPE ................................................................BOUCHON

AC0141 ................... SEAL (AB0092) ..................................SELLO ............................................................DICHTUNG .........................................................JOINT

BB0148 ................... STOP ..................................................TOPE ..............................................................PUFFER ..............................................................AMORTISSEUR

BC0250 ................... CYLINDER .........................................CILINDRO .......................................................ZYLINDER ..........................................................CYLINDRE

BB0186 ................... FIRING VALVE PISTON .......................PISTON........................................................... KOLBEN ..............................................................PISTON

BC0283 ................... RETAINER .......................................... JUNTA TÓRICA ..............................................SICHERUNGSRING............................................. RETENUE

BC0312 ................... BUSHING ...........................................CASQUILLO .................................................... HÜLSE ................................................................DOUILLE

BF0168 ................... DEFLECTOR ....................................... DESVIADOR ...................................................ABWEISER ......................................................... DÉFLECTEUR

BF0203 ................... SEAL ..................................................SELLO ............................................................DICHTUNG .........................................................JOINT

BF0204 .................... RETAINER .......................................... JUNTA TÓRICA .............................................. SICHERUNGSRING.............................................RETENUE

CA0087 ................... CORE ASSEMBLY ............................... ASAMBLE DE VÁLVULA ................................. VÁLVULA-ZUSAMMENBAU ................................ ENSEMBLE VALVE

CF0003 .................... HOUSING ........................................... ALOJAMIENTO ............................................... GEHÄUSE ...........................................................CORPS

CF0015 .................... VALVE ................................................ VÁLVULA ........................................................ VENTIL ............................................................... VALVE

EB0279 ................... PISTON ASSEMBLY ........................... ASAMBLE DE PISTON ....................................KOLBEN-ZUSAMMENBAU .................................. ENSEMBLE PISTON-COUTEAU

FC0242 .................... GUIDE ................................................GUÍA ............................................................... FÜHRUNG...........................................................GUIDE

FC0247 .................... STOP ..................................................TOPE ..............................................................PUFFER ..............................................................ARRÊT

FC0248 .................... PISTON ..............................................PISTON........................................................... KOLBEN ..............................................................PISTON

FC0249 .................... LATCH ................................................UÑETA ............................................................ VERSCHLUSS..................................................... DOIGT DE RETENUE

FC0256 .................... FEED PAWL ........................................ ALIMENTADOR ...............................................VORSCHIEBER ...................................................POUSSOIR

FC0260 .................... PIN ..................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE

FC0261 .................... PIN ..................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE

FC0271 .................... GUIDEBODY ....................................... PLACA DE NARIZ ........................................... NAGELFÜHRUNG ............................................... FRONT

FC0276 .................... DOOR ................................................. PUERTA .......................................................... ABDECKSCHIEBER ............................................. PORTE

FC0295 .................... CAP .................................................... TAPA ...............................................................KAPPE ................................................................ BOUCHON

GB0347 ................... MAGAZINE .........................................CARGADOR ....................................................MAGAZIN ...........................................................MAGASIN

GB0354 ................... MAGAZINE (US) ................................. CARGADOR .................................................... MAGAZIN ...........................................................MAGASIN

GB0364 ................... MAGAZINE (EURO) ............................CARGADOR ....................................................MAGAZIN ...........................................................MAGASIN

GC0575 ................... RETAINER .......................................... JUNTA TÓRICA ...............................................SICHERUNGSRING............................................. RETENUE

GC0589 ................... RETAINER .......................................... JUNTA TÓRICA ...............................................SICHERUNGSRING............................................. RETENUE

GC0597 ................... LOCK .................................................. CERRADURA .................................................. SICHERUNG ....................................................... BLOCAGE

GC0598 ................... HINGE ................................................GOZNE ............................................................SCHARNIER ....................................................... CHARNIÉRE

GC0601 ................... PIN .....................................................PASADOR ....................................................... STIFT .................................................................. GOUPILLE

GC0602 ................... PIN .....................................................PASADOR ....................................................... STIFT .................................................................. GOUPILLE

GG0209 ................... LABEL ................................................ ETIQUETA .......................................................AUFKLEBER ........................................................ ÉTIQUETTE

HA0093 ................... TRIGGER ............................................ GATILLO ......................................................... AUSLÖSER ......................................................... GACHETTE

HA0098 ................... TRIGGER ............................................ GATILLO ......................................................... AUSLÖSER ......................................................... GACHETTE

HB0242 ................... SAFETY ELEMENT .............................. SEGURO ......................................................... SICHERHEITSVORRICHTUNG ............................ PALPEUR DE SÉCURITÉ

HC0148 ................... TRIGGER ............................................ GATILLO ......................................................... AUSLÖSER ......................................................... GACHETTE

HC0149 ................... TRIGGER ............................................ GATILLO ......................................................... AUSLÖSER ......................................................... GACHETTE

HC0205 ................... GUIDE ................................................GUÍA ............................................................... FÜHRUNG...........................................................GUIDE

HC0211 ................... TRIGGER ............................................ GATILLO ......................................................... AUSLÖSER ......................................................... GACHETTE

HC0218 ...................

HC0219 ................... DUST COVER .....................................CUBIERTA .......................................................ABDECKUNG ...................................................... COUVERCLE

HF0023 ................... HOOK ................................................. SOPORTE ....................................................... TRÄGER .............................................................SUPPORT

HF0025 ................... COVER ...............................................CUBIERTA .......................................................ABDECKUNG ...................................................... PORTE

HF0032 ................... SAFETY ELEMENT ..............................SEGURO .........................................................SICHERHEITSVORRICHTUNG ............................PALPEUR DE SÉCURITÉ

KB1564 ................... PIN ..................................................... PASADOR .......................................................STIFT .................................................................. GOUPILLE

KB1566 ................... PIN ..................................................... PASADOR .......................................................STIFT .................................................................. GOUPILLE

KB3205 ................... RING .................................................. ANILLO ...........................................................REIFEN ............................................................... ANNEAU

KB3206 .................. RETAINER .......................................... JUNTA TÓRICA ..............................................SICHERUNGSRING............................................. RETENUE

KB3255 ................... SCREW ..............................................TORNILLO ......................................................SCHRAUBE ......................................................... VIS

KB3256 ................... SCREW ..............................................TORNILLO ......................................................SCHRAUBE ......................................................... VIS

KB3495 ................... PIN ..................................................... PASADOR .......................................................STIFT .................................................................. GOUPILLE

KB4130 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4131 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4207 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4215 .................. SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4217 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4220 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4221 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4236 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4249 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB4261 ................... SPRING .............................................. RESORTE........................................................FEDER ................................................................RESSORT

KB9752 ................... WASHER ............................................ RONDANA ......................................................SCHEIBE ............................................................. RONDELLE

KB9753 ................... NUT .................................................... TUERCA ..........................................................MUTTER .............................................................ÉCROU

KB9756 ................... SCREW ..............................................TORNILLO ......................................................SCHRAUBE ......................................................... VIS

KB9773 ................... SCREW ..............................................TORNILLO ......................................................SCHRAUBE ......................................................... VIS

KB9796 ................... SCREW ..............................................TORNILLO ......................................................SCHRAUBE ......................................................... VIS

KC0027 ................... PIN ..................................................... PASADOR .......................................................STIFT .................................................................. GOUPILLE

KC0062 ................... RETAINER .......................................... JUNTA TÓRICA ..............................................SICHERUNGSRING............................................. RETENUE

LB0012 .................. SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0018 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0036 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0038 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0042 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0056 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0057 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0086 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0768 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0788 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0789 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0844 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0847 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0849 ................... WASHER ............................................ RONDANA ...................................................... SCHEIBE ............................................................. RONDELLE

LB0901 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

LB0902 ................... SEAL ..................................................

LB0909 ................... SEAL .................................................. SELLO ............................................................ DICHTUNG ......................................................... JOINT

WHEEL ............................................... MANIVELA ......................................................RÄNDELSCHRAUBE ........................................... MOLETTE

SELLO ............................................................DICHTUNG ......................................................... JOINT

Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only) or e-mail: [e-mail]
