| Bluetooth Mic & Intercom
Bluetooth® Mic & Intercom
SENA www.sena.com User’s Guide
| Bluetooth Mic & Intercom
© 1998-2014 Sena Technologies Inc. All rights reserved.
Sena Technologies Inc. reserves the right to make any changes and improvements to its product without
prior notice.
Sena™ is a trademark of Sena Technologies Inc. or its subsidiaries in the USA and other countries.
SMH10™, SMH10R™, SMH5™, SMH5-FM™, SPH10™, EXPAND™, SPH10H™, SPH10H-FM™,
®
SPH10S™, SR10™, SR10i™, SM10™, GoPro
Pack™, Bluetooth Mic & Intercom™ are trademarks of
Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express
permission of Sena.
GoPro® is a registered trademark of Woodman Labs of San Mateo, California. Sena Technologies, Inc.
(“Sena”) is not affiliated with Woodman Labs. The Sena Bluetooth Pack for GoPro® is an after- market
accessory specially designed and manufactured by Sena Technologies, Inc. for the GoPro® Hero3
allowing for Bluetooth capabilities.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by
Sena is under license. Other trademarks and tradenames are those of their respective owners.
CONTENTS
1. INTRODUCTION
2. PACKAGE CONTENTS
3. GETTING STARTED
3.1 Installing the Bluetooth Mic & Intercom
3.1.1 Installing on the Armband
3.1.2 Installing on the Collar Clip
3.2 Connecting Your Headphones
3.3 Powering On/Off
3.4 Voice Prompt
3.5 Volume Adjustment
3.6 Using Internal/External Microphone
3.7 Function Priority
3.8 Charging
3.9 Low Battery Warning
3.10 Checking the Battery Level
3.10.1 LED Indicator
3.10.2 Voice Prompt Indicator
3.11 Fault Reset
4. BLUETOOTH MIC & INTERCOM CONFIGURATION SETTING
4.1 Mobile Phone Pairing
4.2 Multipoint Pairing
4.3 Phone Selective Pairing
4.4 Media Selective Pairing
4.5 Assigning Speed Dial
4.6 Enabling/Disabling Voice Prompts
4.7 Enabling/Disabling Sidetone
4.8 Auto Gain Control
4.9 Delete All Bluetooth Pairing Information
4.10 Reset to Factory Default Setting
4.11 Exit Voice Configuration Menu
5. PAIRING THE BLUETOOTH MIC & INTERCOM WITH BLUETOOTH DEVICES
5.1 Mobile Phone Pairing
5.2 Multipoint Pairing
| Bluetooth Mic & Intercom
5.3 Bluetooth Stereo Device Pairing

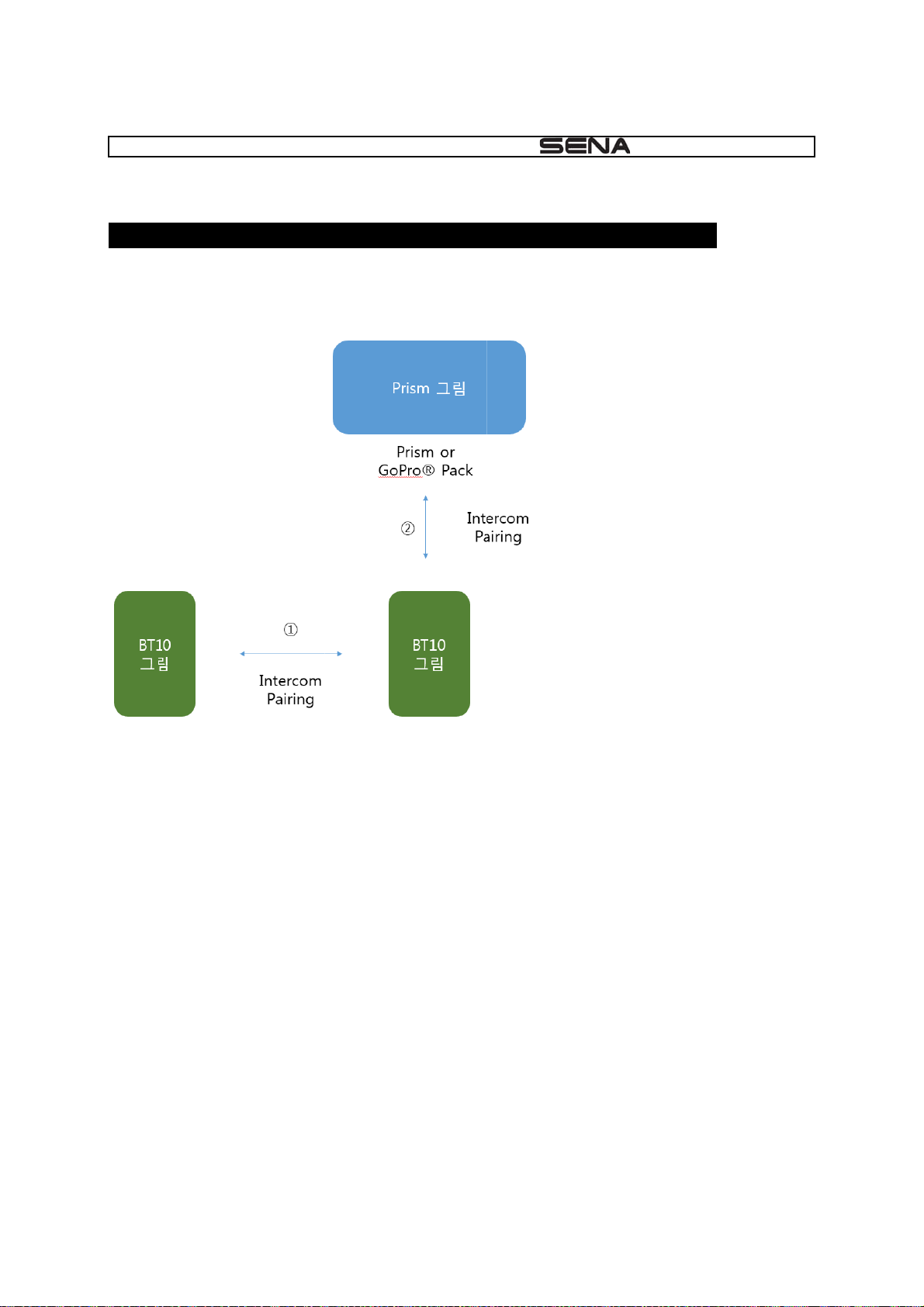

5.4 Pairing with the Bluetooth Pack for GoPro® or PRISM
6. PAIRING WITH SELECTIVE PROFILE: HFP OR A2DP STEREO
6.1 Phone Selective Pairing: HFP for Phone Call Only
6.2 Media Selective Pairing: A2DP Stereo Music Only
7. STEREO MUSIC
8. MOBILE PHONE CALL MAKING AND ANSWERING
8.1 Mobile Phone Call Making and Answering
8.2 Speed Dialing
9. INTERCOM
9.1 Pairing with Other Bluetooth Mic & Intercom for Intercom Conversation
9.2 Pairing with Other Sena Headset Models for Intercom Conversation
9.3 Two-way Intercom
9.3.1 Start and End Two-way Intercom
9.3.2 Intercom and Mobile Phone Call
9.4 Three-way Conference Intercom
9.4.1 Start Three-way Intercom
9.4.2 End Three-way Intercom
9.4.3 Three-way Conference Phone Call with Intercom Participant
9.5 Four-way Conference Intercom
9.5.1 Start Four-way Intercom
9.5.2 End Four-way Intercom
9.6 Intercom Failure
9.7 Intercom Reconnection

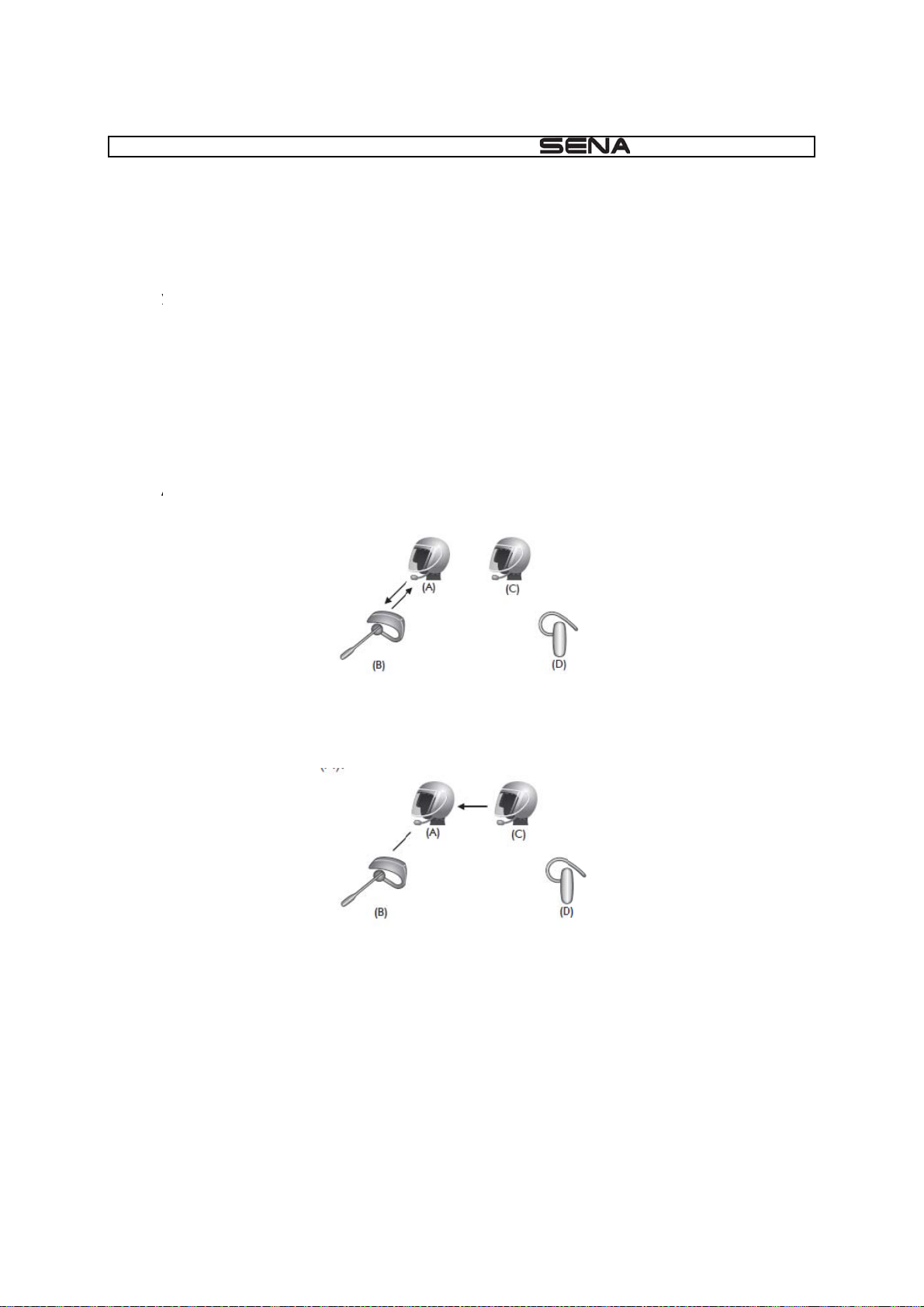

10. UNIVERSAL INTERCOM
10.1 Universal Intercom Pairing
10.2 Two-way Universal Intercom
10.3 Three-way Universal Intercom
10.4 Four-way Universal Intercom
10.4.1 Four-way Universal Intercom Case 1
10.4.2 Four-way Universal Intercom Case 2
11. MUSIC SHARING
12. FIRMWARE UPGRADE
13. SENA BLUETOOTH CONNECTION CASE STUDIES
14. OPERATION QUICK REFERENCE
CERTIFICATION AND SAFETY APPROVALS
FCC Compliance Statement
| Bluetooth Mic & Intercom
FCC RF Exposure Statement
FCC Caution
CE Declaration of Conformity
Industry Canada Statement
Bluetooth License
WEEE (Waste Electrical and Electronic Equipment )
SAFETY INFORMATION
Product Storage and Management
Product Use
Battery
PRODUCT WARRANTY AND DISCLAIMER
Limited Warranty
Warranty Exclusions
Reasons for Limited Liabilities
Limitation of Liability
Liabilities Disclaimer
Warranty Service
Free-of-charge Service
Charged Service
Return for Full Refund
| Bluetooth Mic & Intercom
| Bluetooth Mic & Intercom
1. INTRODUCTION
Thank you for choosing the Sena Bluetooth Mic & Intercom. The Sena Bluetooth Mic & Intercom is an
ultra-slim, light weight microphone that allows users to make an intercom call. It may function as a
microphone when paired with the Sena Bluetooth Action Camera or Sena Bluetooth Audio Pack for
GoPro®. It also works as a headset and intercom through the use of a pair of stetero headphones with a
built-in microphone that users may have. As a Bluetooth microphone and intercom, it allows for voice
recording to accompany videos as well as communicate with other Bluetooth intercom. The Sena
Bluetooth Mic & Intercom allows for up to a four-way conference and features voice prompts for ease of
use.
The Bluetooth Mic & Intercom is compliant with the Bluetooth 3.0 supporting the following profiles:
Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video
Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their
compatibility with the Bluetooth Mic.
Please read this user’s guide carefully before using the Bluetooth Mic. Also check www.sena.com for the
latest version of the user’s guide and additional information related to Sena Bluetooth products.
The Bluetooth Mic & Intercom features:
● Bluetooth microphone for Bluetooth-ready camera
● Ultra HD Voice Recording™ using Sena Bluetooth products
● Bluetooth intercom up to 500 meters (540 yards)*
● Four-way conference intercom
● Advanced Noise Control™
● Multipoint Bluetooth for dual mobile phone
● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players
● Bluetooth music playback control by AVRCP
● Bluetooth handsfree for Bluetooth mobile phones
● Voice prompts
● Crystal clear and natural sound quality
● Ultra-slim and feather light
● Durable, sweat and water resistant for active condition
● Up to 6 hours talk time, 6 days stand-by time
● Firmware upgradeable
| Bluetooth Mic & Intercom
* in open terrain
Key Specifications:
● Bluetooth 3.0
● Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile
(A2DP), Audio Video Remote Control Profile (AVRCP)
2. PACKAGE CONTENTS
| Bluetooth Mic & Intercom
Bluetooth Mic & Intercom
Armband
Collar Clip
c
n
E
s
s
h
s
n
e
G
h
t
n
d
o
t
T
o
d
m
r
o
o
h
o
I
u
y
e
a
b
t
e
M
d
h
Note:
The pa
a built-i
kage does
microphon
ot include s
for the inte
Micr
USB P
ereo headp
rcom functi
phone Win
wer & Data
ones. How
n.
dscreens
Cable
ver, it is op
| B
ional to use
luetooth Mic
stereo hea
& Intercom
phones wit
3. G
3.1 In
3.1.1 In
1. Attac
2. Wear
3. Adju
TTIN
talling t
talling on
the armba
the armban
t the directi
STAR
e Blueto
he Armban
d on the ba
on your ar
n of the mic
ED
th Mic &
ck of the Bl
.
ophone to
ntercom
etooth Mic
our mouth
long the gui
y rotating th
de rail.
Bluetooth
icrophone.
3.1.2 Installing on the Collar Clip
1. Attach the collar clip on the back of the Bluetooth Mic along the guide rail.
| Bluetooth Mic & Intercom
2. Attach the Bluetooth Mic on your collar by the clip.
3. Adjust the direction of the microphone to your mouth by rotating the Bluetooth Microphone.
3.2 Connecting Your Headphones
The Bluetooth Mic does not have internal speakers. By connecting stereo headphones that have a built-in
microphone into the Earbud Jack, you can make a phone call, have an intercom conversation or listen to
music.
| Bluetooth Mic & Intercom
Note:
● You can control all the functions of the Bluetooth Mic by your headphones if it has the controller for
an Android phone.
● You can play/pause the music, or start/end the intercom by your headphones if it has the controller
for an iPhone.
3.3 Powering On/Off
To power on the Bluetooth Mic, slide the Power Switch to on. The Blue and Red LEDs will turn on. To
power off, slide the Power Switch to off.
3.4 Voice Prompt
On the Bluetooth Mic, the voice prompt works as an essential feedback from your operation. Since the
Bluetooth Mic does not have built-in speakers, you must use headphones to hear the voice prompts. You
can hear voice messages and voice prompts when you operate the Bluetooth Mic such as when putting
the Bluetooth Mic into pairing mode or entering the “Configuration menu”. It is strongly recommended for
you to use headphones to proplerly set up the system.
3.5 Volume Adjustment
You can easily adjust the volume by tapping the (+) Button or the (-) Button. You will hear a beep when
the volume reaches maximum or minimum level. The volume is set and maintained independently at
different levels for each audio source even when you turn off and on the Bluetooth Mict. For example,
once you set the volume for a paired mobile phone, it will not change even if you adjust the volume when
| Bluetooth Mic & Intercom
you hear Bluetooth MP3 music. So you can always maintain the preferred optimum volume level for each
audio source.
3.6 Using Internal/External Microphone
(factory default: internal microphone)
Users may use either the built-in microphone of the Bluetooth Mic (internal microphone) or the
microphone of a connected pair of headphones (external microphone). According to the application, you
may use either ones by using the switching operation. Press the (-) Button for 3 seconds and then the
mode will be switched to the one for internal microphone or external microphone.
3.7 Function Priority
The Bluetooth Mic operates in the following order of priority:
(highest) Mobile phone,
Intercom,
Music sharing by Bluetooth stereo music,
(lowest) Bluetooth stereo music
A lower priority function is always interrupted by a higher priority function. For example, stereo music is
interrupted by an intercom call, and an intercom conversation is interrupted by an incoming mobile phone
call.
3.8 Charging
The charging LED beside the charging port turns on red while charging and turns blue when the
Bluetooth Mic is fully charged. It takes about 2.5 hours to be completely charged. You can use the
Bluetooth Mic while charging. It is especially helpful when you use a cigarette charger for a long road trip.
| Bluetooth Mic & Intercom
3.9 Low Battery Warning
When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-toned
triple beeps and a voice prompt, “Low battery”.
3.10 Checking the Battery Level
You can check the battery level in two different ways when the Bluetooth Mic is powering on.
3.10.1 LED Indicator
When the Bluetooth Mic is powering on, the red LED flashes rapidly indicating the battery level.
4 flashes = High, 70~100%
3 flashes = Medium, 30~70%
2 flashes = Low, 0~30%
3.10.2 Voice Prompt Indicator
When you power on the Bluetooth Mic, keep pressing the Center Button and the (+) Button
simultaneously for several seconds until you hear high toned triple beeps. Then you will hear voice
prompt indicating the battery level. However, if you release the buttons as soon as the Bluetooth Mic
turns on, you will not hear the voice prompt of battery level indicator.
3.11 Fault Reset
When the Bluetooth Mic is not working properly or is in faulty status for any reason, you may reset by
pushing the pin-hole reset button at the right side of the main unit. Insert a paper clip into the reset pin-
hole and press the reset button for a second with light pressure. The Bluetooth Mic will be switched off,
and you have to turn the system back on and try again. However, this will not restore the Bluetooth Mic to
factory default setting.
| Bluetooth Mic & Intercom
| Bluetooth Mic & Intercom

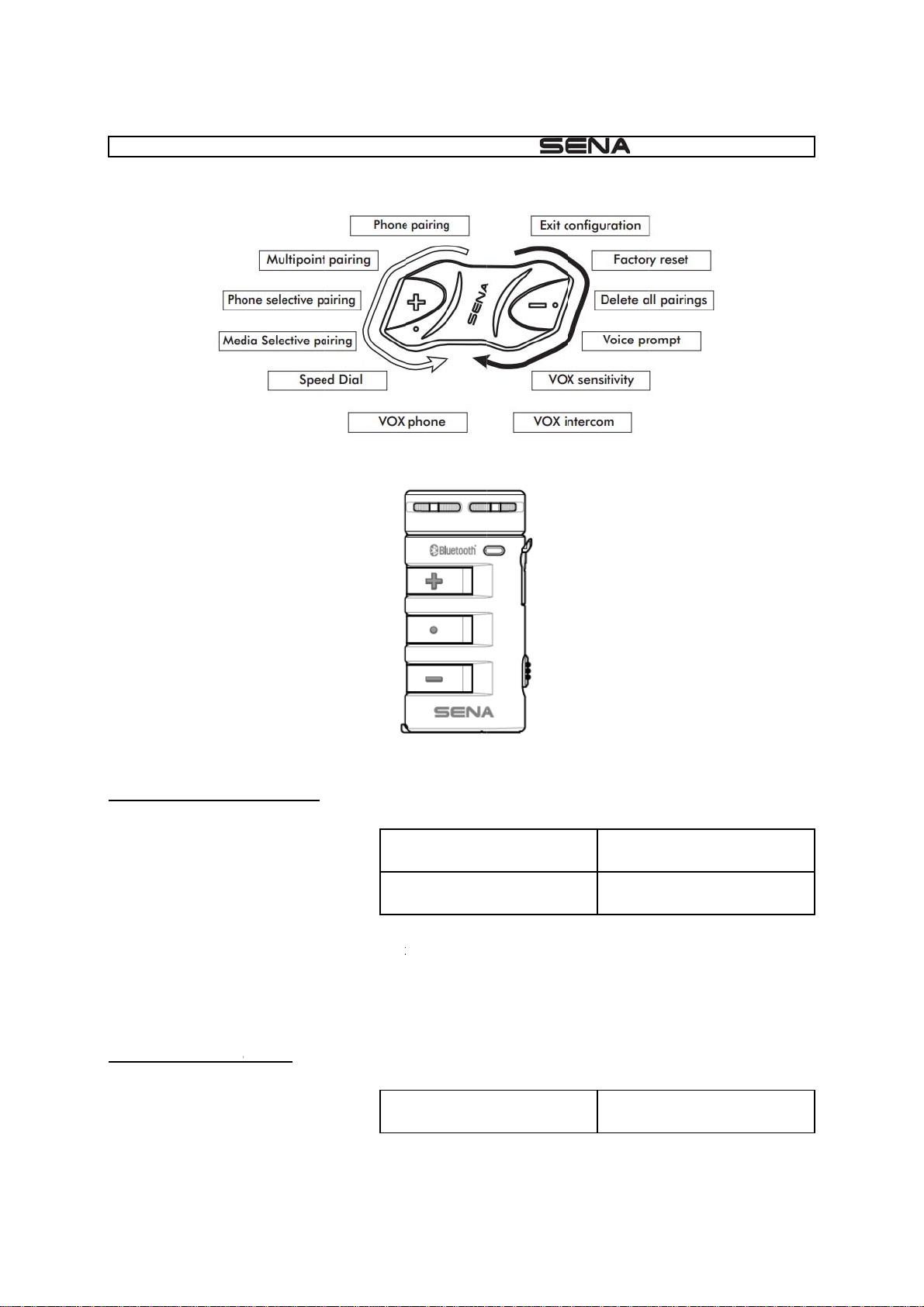

4. BLUETOOTH MIC & INTERCOM CONFIGURATION
SETTING
You can set the configuration of the Bluetooth Mic by the voice menu instruction as below.
1. To enter into voice configuration menu, press and hold the Center Button for 12 seconds until the
LED turns solid blue and you hear high toned double beeps. You will also hear a voice prompt
saying “Configuration menu”.
2. Tap the (+) Button or (-) Button to navigate between the menus. You will hear voice prompts for
each menu items as below.
3. You can enable the feature or execute the command by tapping the Center Button.
4. If you want to exit the configuration immediately, tap the (+) Button or (-) Button until you hear a
voice prompt saying “Exit configuration”, then tap the Center Button.
The voice prompt for each menu item is as below:
(1) Phone pairing
(2) Multipoint pairing
(3) Phone selective pairing
(4) Media selective pairing
(5) Speed dial
(6) Voice prompt
(7) Sidetone
(8) Delete all pairings
(9) Factory reset
(10) Exit configuration
Loading...
