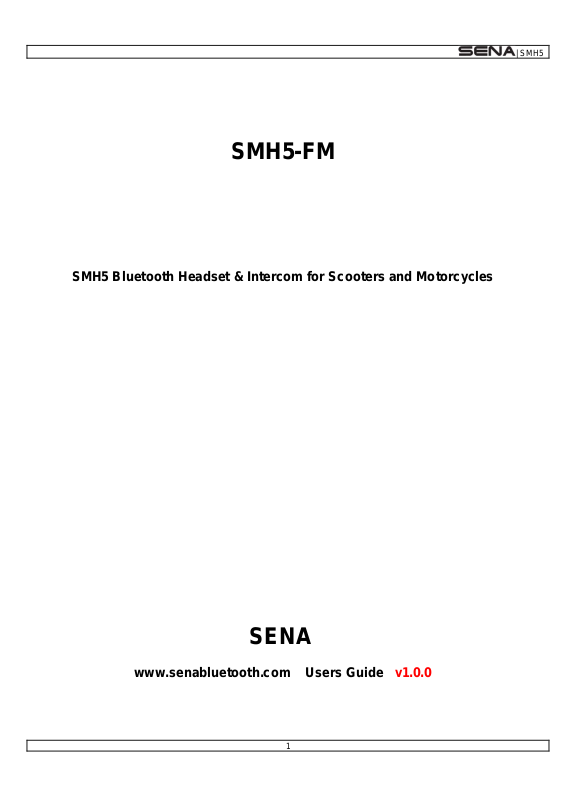

SENA TECHNOLOGIES SP06 User Manual

| SMH5

SMH5-FM

SMH5 Bluetooth Headset & Intercom for Scooters and Motorcycles

SENA

www.senabluetooth.com Users Guide v1.0.0

1

| SMH5

INTRODUCTION

Thank you for choosing the SENA SMH5, Bluetooth Stereo Headset and Intercom for motorcycles. With the SMH5, you
can call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by
Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders.

The SMH5 is compliant with the Bluetooth Specification v3.0 supporting the following profiles: Headset Profile, Hands­Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP).
Please check with the manufacturers of other devices to determine their compatibility with this headset.

Please read this user’s guide carefully before using the headset. Also check www.senabluetooth.com/support
latest version of the user’s guide and additional information related to SENA Bluetooth products.

The SMH5 features:

● Bluetooth hands-free for Bluetooth mobile phones

● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players

● Bluetooth stereo headset for Bluetooth GPS navigations

● Smart Multi-Point Bluetooth: Connect two HFP devices simultaneoulsy

● Multi-Pair Bluetooth Intercom for 4 persons

● Firmware Upgradeable

Key Specifications:

● Bluetooth v3.0, Class1

● Supporting profiles: Headset Profile, Hand-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP),

Audio Video Remote Control Profile (AVRCP)

for the

2

PACKAGE CONTENTS

Headset Main Unit

| SMH5

Phone Button

● Making and Answering a mobile phone call

● Entering into Mobile Phone Pairing Mode

● Entering into Bluetooth Audio Device Pairing Mode (MP3, GPS navigation)

● Entering into Voice Activated Phone Answering Setting Mode

Jog Dial

● Start and End an Intercom Conversation

● Volume adjustment by rotating

● Play and Pause Bluetooth MP3 player

● Track-forward and Track-back by rotating while pressing the button

● Entering into Intercom Pairing Mode

● Entering into Voice Activated Intercom Setting Mode

● Reject an incoming mobile phone call

● Call Transfer

3

USB Power Cable

Microphone Sponges

Velcro Pads

Hex Key (Allen Wrench)

| SMH5

4

| SMH5

POWERING ON/OFF AND CHARGING

To power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the
Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience.

Powering On

Press the Jog Dial and the Phone Button at the same time for about 1 second to power on. The blue LED turns on and
you will hear ascending beeps.

Powering Off

Just short press the Jog Dial and the Phone Button simultaneously, you don’t need to press and hold for a few seconds.
The red LED turns on for a while until it turns off completely and you will hear descending beeps.

Charging

The LED turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be
completely charged.

Low Battery Warning

When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-tone triple beeps.

5

| SMH5

PAIRING THE SMH5 WITH BLUETOOTH DEVICES

Before using the SMH5 Bluetooth headset with any of Bluetooth devices for the first time, you need to do the pairing
operation. It can be paired with Bluetooth mobile phones, Bluetooth audio devices such as MP3 or GPS, and with other
SMH5 Bluetooth headsets. This pairing operation is only required once for each Bluetooth device, and the headset will
remain paired with the devices and automatically connects to the paired devices again when they are within range.

Mobile Phone Pairing

1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and
you hear multiple beeps.

2. Search for Bluetooth devices on your mobile phone. The headset will be listed on your mobile phone as SMH5.
(Some mobile phone may not ask for the PIN number.)

3. Enter 0000 for the PIN

4. The headset can be paired as Handsfree or Headset. Handsfree profile is normally recommended for most mobile

phones. If it is paired as Headset, the buttons of the SMH5 may not work properly.

Bluetooth MP3 Player Pairing

1. The procedure is the same with the procedure of “Mobile Phone Pairing” except the SMH5 must be paired as Stereo
Headset.

2. If you use a Bluetooth mobile phone and a Bluetooth audio device at the same time, please make sure to pair as

Handsfree or as Headset with the mobile phone and to pair as Stereo Headset with the Bluetooth audio device.

Bluetooth GPS Navigation Pairing

1. You can listen to Bluetooth voice instructions from a Bluetooth GPS navigation.

2. The paring procedure is the same with the procedure of “Mobile Phone Pairing”, except the SMH5 could be paired as

either Headset or Stereo Headset depending on the Bluetooth GPS navigation.

3. Please refer to the manual of the Bluetooth GPS navigation for details.

6
