INTRODUCTION
Thank you for choosing the SENA SPH10, Bluetooth Stereo Headset and Intercom for
Outdoor Sports and Activities. With the SPH10, you can call hands-free on your Bluetooth
mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth
wirelessly, and have intercom conversations in full duplex with a passenger or other
motorcycle riders.
The SPH10 is compliant with the Bluetooth Specification v2.1+EDR supporting the follo wing
profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile
(A2DP), and Audio Video Remote Control Profile (AVRCP). Please check with the
manufacturers of other devices to determine their compatibility with this headset.
Please read this user’s guide carefully before using the headset. Also check
www.senabluetooth.com/support for the latest version of the user ’s guide and additional
information related to SENA Bluetooth products.
The SPH10 features:
Bluetooth hands-free for Bluetooth mobile phones
Bluetooth stereo headset for Bluetooth audio devices such as MP3 players
Bluetooth stereo headset for Bluetooth GPS navigations
*
Bluetooth Intercom up to 900 meters (980 yards)
Multi-Pair Bluetooth Intercom for 4 persons
Stereo music by 3.5mm audio cable
Firmware Upgradeable
Key Specifications:
Bluetooth v2.1+EDR, Class1
Supporting profiles: Headset Profile, Hand-Free Profile (HFP), Advanced Audio
Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP)
*
in open terrain
4
PACKAGE CONTENTS
Headset Main Unit
Jog Dial
Start and End an Intercom Conversation
Volume adjustment by rotating
Play and Pause Bluetooth MP3 player
Track-forward and Track-back by rotating
Entering into Intercom Pairing Mode
Entering into Voice Activated Intercom Setting
Reject an incoming mobile phone call
Call Transfer
Status LED
Phone Button
Making and Answering a mobile phone call
Entering into Mobile Phone Pairing Mode
Entering into Bluetooth Audio Device Pairing
Entering into Voice Activated Phone
while pressing the button
Mode
Mode (MP3, GPS navigation)
Answering Setting Mode
| SPH10
DC Power Charging & Firmware Upgrade Port
MP3 Jack
Microphone
5
| SPH10
WEARING THE SPH10

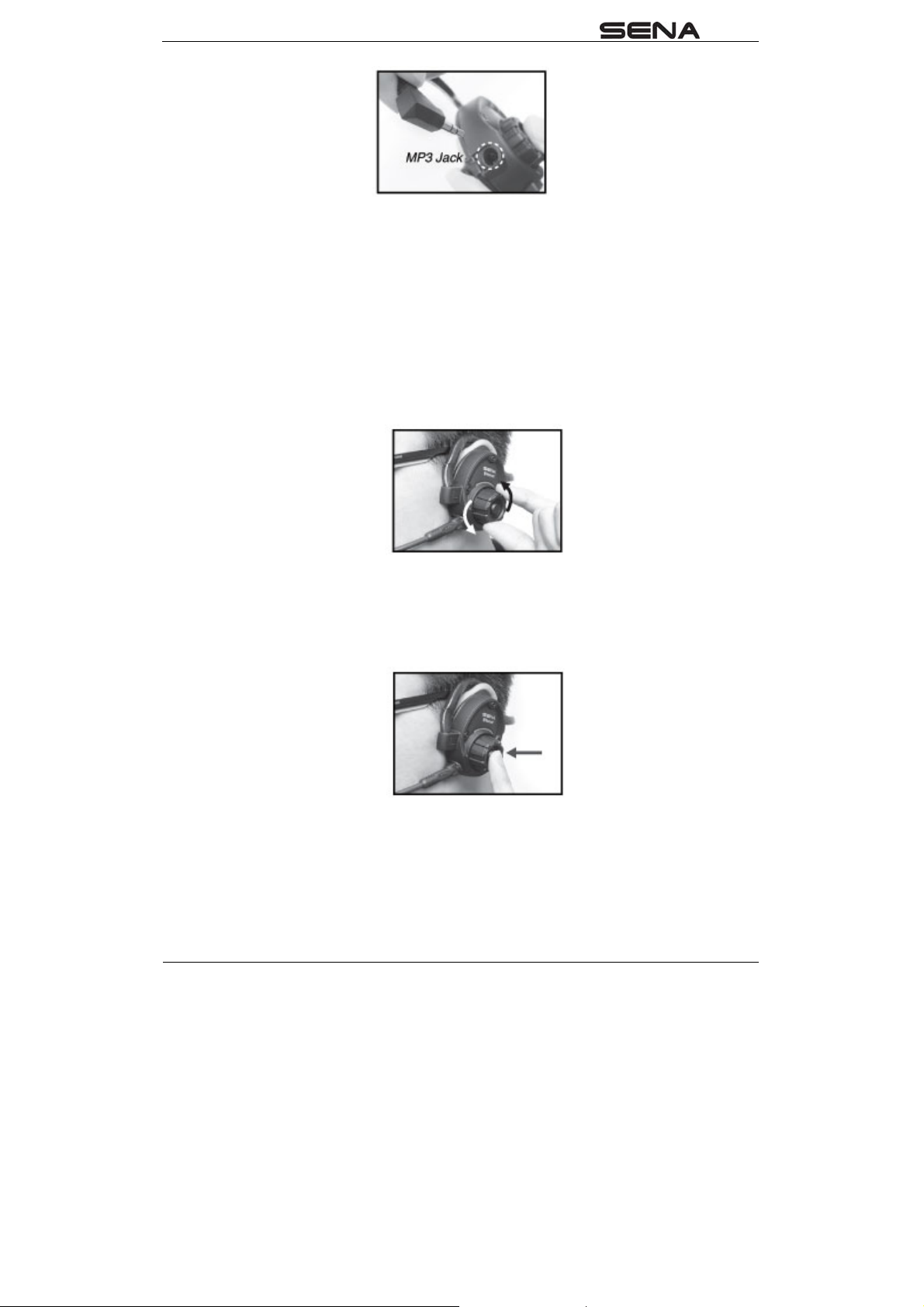

Microphone Installation
Two microphones are included in the package: a long-boom microphone for high noise
environment and a short microphone for indoor use.
Plug the microphone into the microphone port and turn clock wise until tightened. Adjust the
direction of the long-boom microphone so that the triangular mark on the microphone is
pointing towards your mouth.
Since SPH10 is mostly exposed on external environment where noise prevails, microphone
can be selected according to the noise level. For the highly noisy environment, boommicrophone is recommended allowing microphone to stay near user ’s mouth. For the lessnoisy environment, pin-type microphone is recommended to provide short-length one allo wing
users to move freely.
Using Chin Strap
You can use the chin strap to tighten the headset.
7
| SPH10
POWERING ON/OFF AND CHARGING
To power on and off the headset, you don’t need to press and hold any button for several
seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get
quick on-and-off convenience.
Powering On
Press the Jog Dial and the Phone Button at the same time for ab out 1 second to power on.
The blue LED turns on and you will hear ascending beeps.
Powering Off
Just short press the Jog Dial and the Phone Button simultaneously, you don’t need to press
and hold for a few seconds. The red LED turns on for a while until it turns off completely and
you will hear descending beeps.
Charging
The LED turns on red while charging, and turns to blue when the headset is fully charged. It
takes about 2.5 hours to be completely charged.
Low Battery Warning
When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear
mid-tone triple beeps.
8
| SPH10
PAIRING THE SPH10 WITH BLUETOOTH DEVICES
Before using the SPH10 Bluetooth headset with any of Bluetooth devices for the first time,
you need to do the pairing operation. It can be paired with Bluetooth mobile phones,
Bluetooth audio devices such as MP3 or GPS, and with other SPH10 Bluetooth headsets.
This pairing operation is only required once for each Bluetooth dev ice, and the headset will
remain paired with the devices and automatically connects to the paired devices again when
they are within range.
Mobile Phone Pairing
1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red
and blue alternately and you hear multiple beeps.
2. Search for Bluetooth devices on your mobile phone. The headset will be listed on your
mobile phone as SPH10.
3. Enter 0000 for the PIN
4. The headset can be paired as Handsfree or Headset. Handsfree profile is normally
recommended for most mobile phones. If it is paired as Headset, the buttons of the
SPH10 may not work properly.
Bluetooth MP3 Player Pairing
1. The procedure is the same with the procedure of “Mobile Phone Pairing”, except the
SPH10 must be paired as Stereo Headset.
2. If you use a Bluetooth mobile phone and a Bluetooth audio device at the same time,
please make sure to pair as Handsfree or as Headset with the mobile phone and to pai r
as Stereo Headset with the Bluetooth audio device.
Bluetooth GPS Navigation Pairing
1. You can listen to Bluetooth voice instructions from a Bluetooth GPS navigation.
2. The paring procedure is the same with the procedure of “Mobile Phone Pairing”, e xcept
the SPH10 could be paired as either Headset or Stereo Headset depending on the
Bluetooth GPS navigation.
3. Please refer to the manual of the Bluetooth GPS navigation for details.
9
| SPH10
PAIRING WITH SELECTIVE PROFILE: A2DP STEREO
OR HANDSFREE
If you have a MP3 stereo music phone such as a smartphone, sometimes you may need to
selectively use the SPH10 for A2DP stereo music only or for mobile phone hands-free only.
This instruction is for advanced users who want to pair the SPH10 to their smartphones only
with one selective profile: A2DP Stereo for music or HFP for phone call.
A2DP Stereo Music Only
1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red
and blue alternately and you hear multiple beeps.
2. Within 2 seconds, tap the Jog Dial again, then the LED turns to red flashing and the
beeps turn to double mid-tone beeps.
3. Search for Bluetooth devices on your smartphone. The headset will be listed on your
mobile phone as SPH10.
4. Enter 0000 for the PIN. Some smartphones may not ask for PIN.
HFP for Phone Call Only
1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red
and blue alternately and you hear multiple beeps.
2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue flashing and
the beeps turn to multiple mid-tone beeps.
3. Search for Bluetooth devices on your smartphone. The headset will be listed on your
mobile phone as SPH10.
4. Enter 0000 for the PIN. Some smartphones may not ask for PIN.
10
| SPH10
PAIRING WITH OTHER SPH10 HEADSETS FOR
INTERCOM CONVERSATION
The SPH10 can be paired with up to three other headsets for Bluetooth Intercom
conversation.
1. Turn on the two headsets (A and B) that you would like to pair with each other.
2. Press and hold the Jog Dial of the headset A for 5 seconds until red LED starts to flash
rapidly.
3. Press and hold the Jog Dial of the headset B for 5 seconds until red LED starts to flash
rapidly.
4. Simply tap the Jog Dial of any one of the two headset A or B (It doesn’t matter that you
choose A or B) and wait until the LEDs of both headsets turn to blue and intercom
connection is automatically established. (Headset A is paired with Headset B)

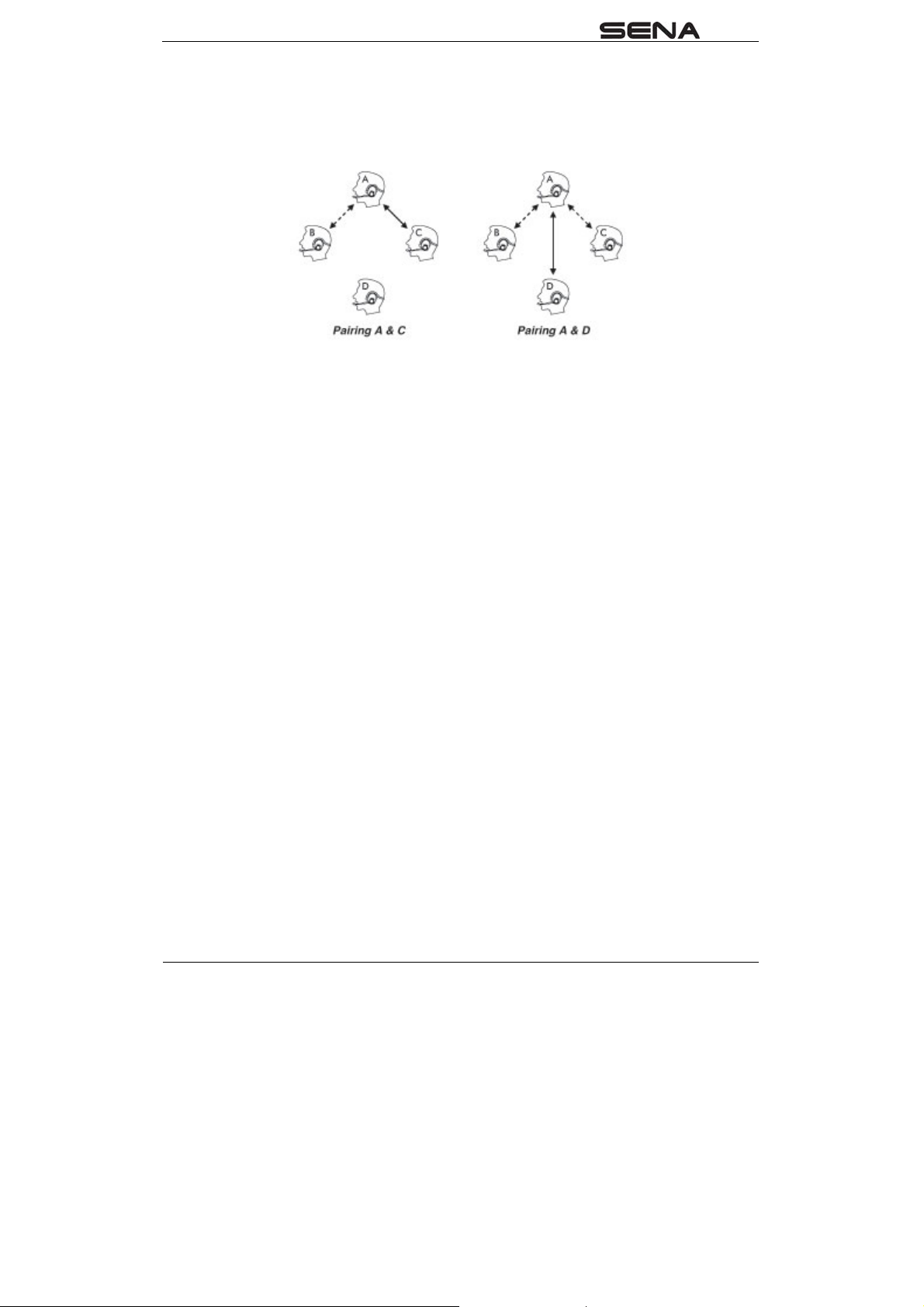

Pairing A & B
11
