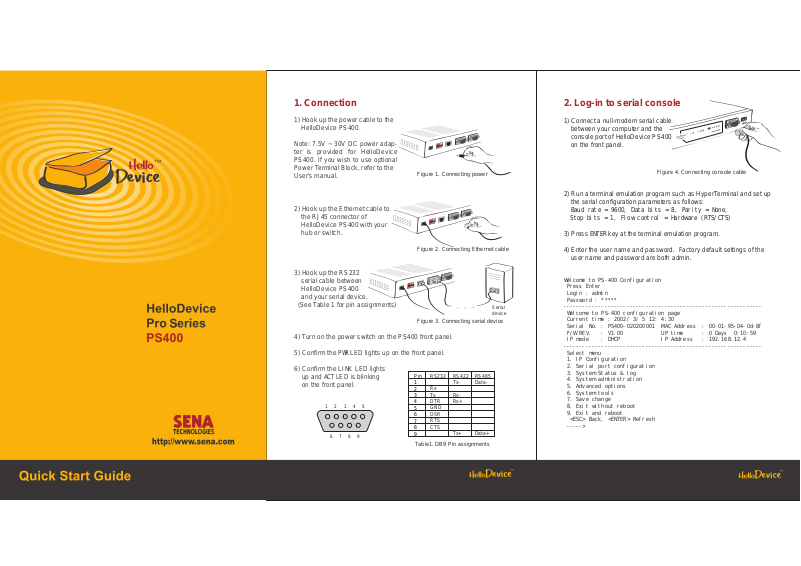

Sena HelloDevice Pro Series, HelloDevice Pro PS400 Quick Start Manual

1. Connection

1) Hook up the power cable to the
HelloDevice PS400.

Note: 7.5V ~ 30V DC power adap­ter is provided for HelloDevice
PS400. If you wish to use optional
Power Terminal Block, refer to the
User's manual.

2) Hook up the Ethernet cable to
the RJ45 connector of
HelloDevice PS400 with your
hub or switch.

3) Hook up the RS232
serial cable between
HelloDevice PS400
and your serial device.
(See Table 1 for pin assignments)

4) Turn on the power switch on the PS400 front panel.

5) Confirm the

6) Confirm the
up and

PWR

LED lights up on the front panel.

LI NK

ACT

LED lights

LED is blinking

on the front panel.

1 2 3 4 5

6 7 8 9

Figure 1. Connecting power

Figure 2. Connecting Ethernet cable

Figure 3. Connecting serial device

Pin

RS232

1

Rx

2

Tx

3

DTR

4

GND

5

DSR

6

RTS

7

CTS

8
9

Table1. DB9 Pin assignments

RS422
Tx-

Rx­Rx+

Tx+

RS485
Data-

Data+

Serial
device

2. Log-in to serial console

1) Connect a null-modem serial cable
between your computer and the
console port of HelloDevice PS400
on the front panel.

Figure 4. Connecting console cable

2) Run a terminal emulation program such as HyperTerminal and set up
the serial configuration parameters as follows:
Baud r at e = 9600, Dat a bi ts = 8, Par i t y = None,

St op bi t s = 1, Fl ow cont r ol = Har dwar e ( RTS/ CTS)

3) Press ENTER key at the terminal emulation program.

4) Enter the user name and password. Factory default settings of the
user name and password are both admin.

Wel come t o PS- 400 Conf i gur at i on
Pr ess Ent er
Logi n : admi n
Pas swor d : ** * **

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - ­ Wel come to PS- 400 c onf i gur at i on page
Cur r ent t i me : 2002/ 3/ 5 12: 4: 30
Ser i al No. : PS400- 020200001 MAC Address : 00- 01- 95- 04- 0d- 8f
F/ W REV. : V1. 00 UP ti me : 0 Days 0: 10: 59
I P mode : DHCP I P Address : 192. 168. 12. 4

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - ­ Sel ect menu

1. I P Conf i gur at i on

2. Ser i al por t conf i gur at i on

3. Sys tem St at us & l og

4. Sys tem admi ni s t r at i on

5. Advanced opt i ons

6. Sys tem t ool s

7. Save change

8. Exi t wi t hout r eboot

9. Exi t and r eboot
<ESC> Back, <ENTER> Ref r es h

- - - - - >

3. Assign IP address

Factory default IP mode setting of the PS400 is DH CP. If you are using
DHCP servers for your network environments, skip this chapter.

1) Select menu 1. I P Conf i gur at i on at the main menu.

2) Select submenu 1. I P mode. Change IP mode to stat i c I P.

3) Select submenu 2~6 to set IP configuration parameters according to
your network environment, i.e. I P addr es s, Subnet mask,
Def aul t gat ew ay, Pr i mar y DNS, Secondar y DNS.

4) Return to the main menu by press ESC key.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ I P conf i gur at i on

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ Sel ect menu

1. I P mode : DHCP
<ESC> Back, <ENTER> Ref r es h

- - - - - > 1
Sel ect mode ( 1 = St at i c I P, 2 = DHCP, 3 = PPPoE)

- - - - - > 1

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ I P conf i gur at i on

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ Sel ect menu

1. I P mode : s tat i c I P

2. I P addr ess : 192. 168. 12. 4

3. Subnet mas k : 255. 255. 0. 0

4. Def aul t gat eway : 192. 168. 1. 1

5. Pr i mar y DNS : 211. 172. 129. 198

6. Secondar y DNS : 211. 172. 129. 199
<ESC> Back, <ENTER> Ref r es h

- - - - - >

4. Serial port(s) configuration

1) Select the menu 2. Ser i al por t conf i gur at i on at the main
menu.

2) Select the serial port that will be hooked up with your serial device.

3) Select the submenu 1. Host mode conf i gur at i on, and set up the
host mode parameters according to your application.

4) Select the submenu

2. UA RT

, and set up the parameters as same as

those of your serial device.

5) Return to the main menu by press

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ Ser i al conf i gur at i on

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Por t # Mode Por t Des t i nat i on Type Set t i ngs Fl ow
1 TCP s 6000 N/ A RS232 9600- N-8- 1 RTS/ CTS
2 TCP s 6001 N/ A RS232 9600- N-8- 1 RTS/ CTS
3 TCP s 6002 N/ A RS232 9600- N-8- 1 RTS/ CTS
4 TCP s 6003 N/ A RS232 9600- N-8- 1 RTS/ CTS

Sel ect menu

1. por t #1 set t i ngs

2. por t #2 set t i ngs

3. por t #3 set t i ngs

4. por t #4 set t i ngs
<ESC> Back, <ENTER> Ref r es h

- - - - - > 1

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ Ser i al conf i gur at i on - - > por t #1

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ­ Sel ect menu

1. Host mode conf i gur at i on

2. UART Conf i gur at i on

3. Cr ypt ogr aphy Conf i gur at i on

4. Opt i on
<ESC> Back, <ENTER> Ref r es h

- - - - - >

ESC

key.

5. Apply changes

1) After finishing the serial port(s) configuration, return to the main menu
by pressing

2) Save changed values by selecting menu
main menu.

3) Reboot the HelloDevice PS400 by selecting menu

9. Exi t and r eboot

ESC

key several times.

.

7. Save changes

at the
