Semiconductor NC7SZ11 Datasheet
TinyLogic UHS Three-Input
AND Gate
NC7SZ11
Description
The NC7SZ11 is a single three−input AND Gate from
ON Semiconductor’s Ultra−High Speed Series of TinyLogic. The
device is fabricated with advanced CMOS technology to achieve
ultra−high speed with high output drive while maintaining low static
power dissipation over a broad V
specified to operate over the 1.65 V to 5.5 V V
inputs and output are high impedance when V
voltages up to 5.5 V independent of V
Features
• Ultra−High Speed: t
= 2.9 ns (Typical) into 50 pF at 5 V V
PD
• High Output Drive: ±24 mA at 3 V V
• Broad V
Operating Range: 1.65 V to 5.5 V
CC
• Power Down High Impedance Inputs / Outputs
• Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
• Proprietary Noise / EMI Reduction Circuitry
• Ultra−Small MicroPak™ Packages
• Space−Saving SC70 Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
IEEC / IEC
A
B
C
operating range. The device is
CC
operating range. The
CC
is 0 V. Inputs tolerate
CC
operating voltage.
CC
CC
&
Y
CC
www.onsemi.com
MARKING
DIAGRAMS
SIP6 1.45x1.0
CASE 127EB
Pin 1
SC−88
CASE 419B−02
E7, Z11 = Specific Device Code
KK = 2−Digit Lot Run Traceability Code
XY = 2−Digit Date Code Format
Z = Assembly Plant Code
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or position may
vary depending upon manufacturing location.
E7KK
XYZ
6
Z11M
G
1
G

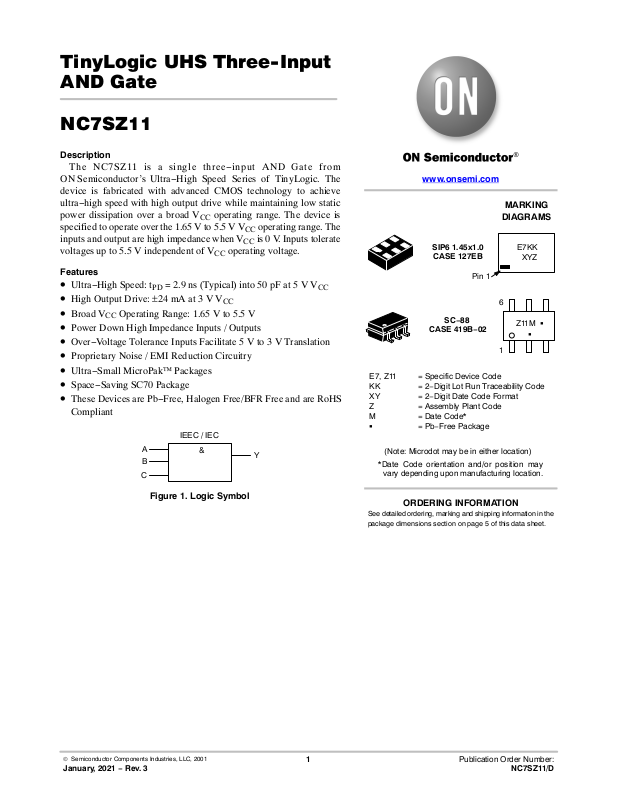

Figure 1. Logic Symbol
© Semiconductor Components Industries, LLC, 2001
January, 2021 − Rev. 3
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 5 of this data sheet.
1 Publication Order Number:
NC7SZ11/D
Pin Configurations
NC7SZ11
1
AC
2
GND V
BY
3
6
5
CC
4
Figure 2. SC70 (Top View)
(Top View) AAA
Pin One
AAA represents Product Code Top Mark − see ordering code.
NOTE: Orientation of Top Mark determines Pin One location.
Read the Top Product Code Mark left to right, Pin One
is the lower left pin (see diagram).
Figure 3. Pin 1 Orientation
A 1 6 C
GND 2 5 V
B 3 4 Y
CC
Figure 4. MicroPak (Top Through View)
PIN DEFINITIONS
Pin # SC70 Pin # MicroPak Name Description
1 1 A Input
2 2 GND Ground
3 3 B Input
4 4 Y Output
5 5 V
6 6 C Input
CC
Supply Voltage
FUNCTION TABLE (Y = ABC)
Inputs
A B C Y
X X L L
X L X L
L X X L
H H H H
H = HIGH Logic Level
L = LOW Logic Level
X = Either LOW or HIGH Logic Level
Output
www.onsemi.com
2
NC7SZ11
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Min Max Unit
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
ICC or I
T
STG
T
J
T
L
P
D
ESD
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
Supply Voltage −0.5 6.5 V
DC Input Voltage −0.5 6.5 V
DC Output Voltage −0.5 6.5 V
DC Input Diode Current VIN < 0 V − −50 mA
DC Output Diode Current V
< 0 V − −50 mA
OUT
DC Output Current − ±50 mA
DC VCC or Ground Current − ±50 mA
GND
Storage Temperature Range −65 +150 °C
Junction Temperature Under Bias − +150 °C
Junction Lead Temperature (Soldering, 10 Seconds) − +260 °C
Power Dissipation in Still Air
SC−88A − 332
MicroPak−6 − 812
Human Body Model, JESD22−A114 − 4000
Charge Device Model, JESD22−C101 − 2000
mW
V
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Conditions Min Max Unit
V
CC
Supply Voltage Operating 1.65 5.50
Supply Voltage Data Retention 1.50 5.50
V
V
OUT
T
tr, t
IN
Input Voltage 0 5.5 V
Output Voltage 0 V
Operating Temperature −40 +85 °C
A
Input Rise and Fall Times
f
VCC at 1.8 V, 2.5 V ±0.2 V 0 20
CC
VCC at 3.3 V ±0.3 V 0 10
V
at 5.0 V ±0.5 V 0 5
CC
q
JA
Thermal Resistance
SC−88A − 377
MicroPak−6 − 154
Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond
the Recommended Operating Ranges limits may affect device reliability.
1. Unused inputs must be held HIGH or LOW. They may not float.
V
V
ns/V
°C/W
www.onsemi.com
3
