Seiko 7T32 User Manual

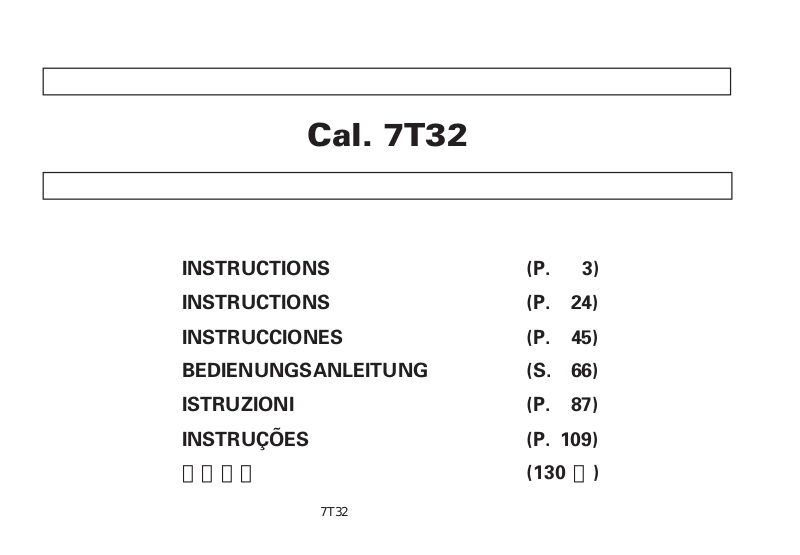

Cal. 7T32

INSTRUCTIONS (P. 3)
INSTRUCTIONS (P. 24)
INSTRUCCIONES (P. 45)
BEDIENUNGSANLEITUNG (S. 66)
ISTRUZIONI (P. 87)
INSTRUÇÕES (P. 109)
用法説明 (130 頁)

7T32

You are now the proud owner of a SEIKO Analogue Quartz Watch Cal. 7T32. For best results,
please read the instructions in this booklet carefully before using your SEIKO Analogue Quartz
Watch. Please keep this manual handy for ready reference.

Vous voici l’heureux propriétaire d’une montre quartz analogique SEIKO Cal. 7T32. Pour obtenir

English

d’excellentes performances de cet article SEIKO, veuillez lire attentivement cette brochure que
vous conserverez pour toute référence ultérieure.

Enhorabuena por su adquisición de un reloj SEIKO analógico de cuarzo Cal. 7T32. Para óptimo
resultado, lea detenidamente las instrucciones de este folleto antes de usar el reloj. Guarde este
manual para consulta posterior.

Sie sind jetzt Besitzer einer SEIKO Analog-Quarzuhr Kal. 7T32. Bitte lesen Sie diese Bedienungsan­leitung vor Verwendung der Uhr sorgfältig durch und heben Sie sie gut auf.

Siete ora in possesso di un orologio SEIKO Analogico al Quarzo Cal. 7T32. Per ottenere i migliori
possibili risultati dal Vostro orologio, leggere attentamente le istruzioni di questo manuale prima
di utilizzare il Vostro orologio SEIKO analogico al quarzo. Conservare poi il manuale stesso per
ogni qualsiasi eventuale futuro riferimento.

Você pode sentir-se orgulhoso de possuir um Relógio SEIKO Quartz Análogo Cal. 7T32. Para obter
os melhores resultados, leia atentamente as instruções contidas neste opúsculo antes de usar o
seu Relógio SEIKO Quartz Análogo. Queira conservar este manual para referências futuras.

2

CONTENTS

Page

FEATURES .................................................................................................................. 4

DISPLAY AND CROWNS/BUTTONS .......................................................................... 5

DATE SETTING ........................................................................................................... 6

TIME SETTING ............................................................................................................ 7

ALARM ....................................................................................................................... 8

STOPWATCH .............................................................................................................. 11

TACHYMETER ............................................................................................................ 14

ADJUSTING THE HAND POSITION ............................................................................ 16

RESETTING THE BUILT-IN IC ..................................................................................... 17

BATTERY LIFE INDICATOR ........................................................................................ 18

BATTERY CHANGE ..................................................................................................... 18

TO PRESERVE THE QUALITY OF YOUR WATCH ...................................................... 19

SPECIFICATIONS ........................................................................................................ 23

ENGLISH

English

3

English

FEATURES

TIME/CALENDAR STOPWATCH

●

Hour & minute hands with small
second hand

●

Date displayed in numerals

SEIKO ANALOGUE QUARTZ

Cal. 7T32

●

Measures up to 30 minutes in 1/5
second increments.

●

Can measure repeatedly up to 6
hours.

ALARM

●

Can be set on a 12-hour basis
with small alarm hands.

4

TACHYMETER

●

For models with tachymeter scale

DISPLAY AND CROWNS/BUTTONS

There are three buttons and two crowns.

B

30

5

25

Hour hand

(MAIN TIME)

Second hand
(MAIN TIME)

20

10

MIN

.

12

1

11

2

10

3

9

ALARM

8

4

7

5

6

English

STOPWATCH 1/5 second handSTOPWATCH minute hand

Minute hand
(MAIN TIME)

A

a b c

CROWN 1

Date

a b c

C

CROWN 2

ALARM hour hand ALARM minute hand

a: Normal position b: First click c: Second click

5

DATE SETTING

Date

1

1

➠

CROWN 1

3

2

English

➡

➠

➠

4

NOTES

1 Do not set the date between 9:00 p.m. and 3:00 a.m. Otherwise, the date may not

change properly.

* If it is necessary to set the date during that time period, first change the time to any time outside

this period, set the date and then reset the correct time.

2 It is necessary to adjust the date at the end of February and 30-day months.

6

CROWN 1

1

Pull out to

▼

2

Turn clockwise until the date for
the previous day appears.

▼

3

Pull out to
until the desired date appears.

▼

4

Push back in to

first click

second click

.

and turn

normal position

.

TIME SETTING

2

CROWN 1

Pull out to

1

Second hand is at the 12 o’clock
position.

▼

Turn to set Hour and Minute

2

hands.

▼

Push back in to

3

in accordance with a time signal.

second click

normal position

Hour hand

60

15

45

30

Second hand

Minute hand

1

➠

➠

3

CROWN 1

NOTES

1 When setting Hour hand, check that AM/PM is correctly set.

* The watch is so designed that the date changes once in 24 hours. Turn the hands past the 12

o’clock marker to determine whether the watch is set for the A.M. or P.M. period. If the date
changes, the time is set for the A.M. period. If the date does not change, the time is set for

the P.M. period.

2 When setting Minute hand, advance it 4 to 5 minutes ahead of the desired time and

then turn it back to the exact minute.

English

when

7

ALARM

● Alarm time is set on a 12-hour basis.

● ALARM hands move independently of MAIN TIME hands.

English

ALARM SETTING

1 Adjustment of ALARM hands

• After the main time is adjusted, follow the procedure below, and then set the
alarm.

*The following procedure is necessary only after the main time is adjusted.

11

10

9

ALARM

8

7

12

1

2

3

4

5

6

3

Minute hand
(MAIN TIME)

ALARM
minute hand

1

➠

➠

2

CROWN 2

CROWN 2

1

Pull out to

▼

2

Turn clockwise or counterclockwise
to set ALARM hands to the current
time (MAIN TIME).

▼

3

Push back in to

▼

second click

normal position

8

Hour hand

(MAIN TIME)

ALARM

hour hand

.

.

2 Alarm time setting

*Once ALARM hands are adjusted to the main time, alarm time setting can be made only by

following the procedure below.

English

CROWN 2

Pull out to

first click

.

▼

C

12

1

11

2

10

3

9

ALARM

8

7

C

6

➠

4

5

➠

CROWN 2

▼

CROWN 2

Press to set ALARM hands to
the desired alarm time.

Push back in to

.

tion

normal posi-

NOTES

1 When setting ALARM minute hand to the current time in , advance it 4 to 5

2

minutes ahead of the desired time and then turn it back to the exact minute.

2 Alarm hands move quickly if Button C is kept pressed.
3 If CROWN 2 is pulled out to first click within 1 minute after being pushed back in

to normal position in

3

, the alarm sounds.

9

ALARM ENGAGEMENT/DISENGAGEMENT

• Alarm engagement • Alarm disengagement

English

Pull out to

first click

.

CROWN 2CROWN 2

Push back in to

position

.

normal

Designated

alarm time

12

1

11

2

10

3

9

ALARM

8

4

7

5

6

[Alarm engaged]

➠

Current time

[Alarm disengaged]

12

1

11

2

10

3

9

ALARM

8

4

7

5

6

NOTES

1 Alarm rings at the designated time for 20 seconds.

* To stop it manually, press Button A, B or C, or push CROWN 2 back in to normal position.

2 If CROWN 2 is pulled out to second click, the designated alarm time is canceled

with a warning beep.

* In that case, set ALARM hands to MAIN TIME again, push CROWN 2 back in to normal position,

and then, pull it out to first click and set the desired alarm time again. However, if CROWN 2
is pushed back in to normal position before the warning beep stops, the designated alarm time

10

will not be canceled.

➠

STOPWATCH

● Stopwatch measures up to 30 minutes in 1/5 second increments.

● After 30 minutes, it will start counting again from “0” repeatedly up to 6 hours.

STOPWATCH OPERATION

STOPWATCH
minute hand

B

STOPWATCH

1/5 second hand

30

5

25

20

MIN.

A

10

CROWN 1

CROWN 2

•

Before using the stopwatch:

•

Check that CROWNS 1 and 2
are set at normal position.

•

Press Button B to reset STOP-
WATCH hands to “0” position.

* If the hands do not return to “0”

position, follow the procedure in
“ADJUSTING THE HAND POSI­TION” (page 16).

English

11

BA

1 Standard measurement

English

2 Accumulated elapsed time measurement

A

START RESTART

* Restart and stop of stopwatch can be repeated by pressing Button A.

3 Split time measurement

A

START

12

* Measurement and release of split time can be repeated by pressing Button B.

AAAB

▼

STOP RESET

▼

BBAB

SPLIT

AAB

START STOP RESET

▼

▼

SPLIT

RELEASE

▼

○○○

○○○

▼

STOP

▼

STOP

▼

▼

▼

RESET

4 Measurement of two competitors

English

A

START RESET

NOTES

1 If CROWN 1 is pulled out to second click, STOPWATCH hands are reset to “0”

position.

2 If CROWN 2 is pulled out to first or second click, STOPWATCH hands are reset to

“0” position.

3 When stopwatch has been reset and Button A is pressed before the hands reach

“0” position, stopwatch still starts counting when Button A is pressed.

▼

BA B

FINISH TIME

OF 1ST

COMPETITOR

▼

2ND

COMPETITOR

FINISHES

▼

FINISH TIME

OF 2ND

COMPETITOR

B

▼

13

TACHYMETER
(for models with tachymeter scale on the dial)

English

To measure the hourly average speed of a vehicle

Use the stopwatch to determine

1

how many seconds it takes to go
1 km or 1 mile.

2

Tachymeter scale indicated by
STOPWATCH second hand gives
the average speed per hour.

* Tachymeter scale can be used only when the time required is less than 60 seconds.

Ex. 2: If the measuring distance is extended to 2 km or miles or shortened to 0.5 km or miles

and STOPWATCH second hand indicates “90” on tachymeter scale:

“90” (tachymeter scale figure) x 2 (km or mile) = 180 km/h or mph
“90” (tachymeter scale figure) x 0.5 (km or mile) = 45 km/h or mph

14

Ex. 1Ex. 1

STOPWATCH

second hand:

40 seconds

Tachymeter scale: “90”

“90” (tachymeter scale figure) x 1 (km or mile)
= 90 km/h or mph

30

5

25

20

10

MIN.

To measure the hourly rate of operation

English

Use the stopwatch to measure

1

Ex. 1Ex. 1

the time required to complete 1
job.

2

Tachymeter scale indicated by
STOPWATCH second hand gives
the average number of jobs ac­complished per hour.

“180” (tachymeter scale figure) x 1 job
= 180 jobs/hour

Ex. 2: If 15 jobs are completed in 20 seconds:

“180” (tachymeter scale figure) x 15 jobs = 2700 jobs/hour

30

5

25

20

10

MIN.

STOPWATCH
second hand:
20 seconds

Tachymeter scale: “180”

15

ADJUSTING THE HAND POSITION

● If STOPWATCH hands will not return to the 12 o’clock position when the stopwatch is

reset or when the battery is replaced with a new one, follow the procedure below.

English

CROWN 1

BA

30

5

25

20

10

MIN.

➠

➠

CROWN 1

▼

A

▼

B

▼

CROWN 1

NOTES

1 Hands move quickly if the respective buttons are kept pressed.
2 After adjusting the hand position, set the main time.

16

Pull out to

second click

.

Press repeatedly to reset
STOPWATCH minute hand to
the 12 o’clock position.

Press repeatedly to reset
STOPWATCH second hand to
the 12 o’clock position.

Push back in to

tion

.

normal posi-

RESETTING THE BUILT-IN IC

● In case any of the hands should move improperly, follow the procedure below to adjust

the hand movement.

English

BA

30

5

25

20

10

MIN.

➠

➠

CROWN 1

CROWN 1

Pull out to

▼

AND Press simultaneously.

A

B

▼

CROWN 1

Push back in to

tion

.

second click

normal posi-

.

NOTE

Before using the watch again, be sure to adjust the position of STOPWATCH hands and
set the main time and alarm.

17

BATTERY LIFE INDICATOR

● When the battery nears its end, the small second hand moves at two-second intervals

instead of normal one-second intervals to indicate that the battery needs to be replaced

English

with a new one.

* If the alarm is used while the second hand is moving at two-second intervals, the watch

may stop operating. Therefore, if you see the second hand moving at two-second intervals,
replace the battery with a new one as soon as possible.

BATTERY CHANGE

2

Years

CAUTION

Do not remove the battery from the watch. If it is necessary to take out the
battery, keep it out of the reach of children. If a child swallows it, consult a
doctor immediately.

18

The miniature battery which powers your watch should last approximately
2 years. However, because the battery is inserted at the factory to check
the function and performance of the watch, its actual life once in your
possession may be less than the specified period. When the battery
expires, be sure to replace it as soon as possible to prevent any malfunction.
For battery replacement, we recommend that you contact an AUTHORIZED
SEIKO DEALER and request SEIKO SR927W battery.

TO PRESERVE THE QUALITY OF YOUR WATCH

■ WATER RESISTANCE

Indication on

case back

No indication

Condition

of use

Degree
of water
resistance*

Non-water

resistant

Accidental

contact with

water such
as rain and

splashes

No No No No

Swimming,

yachting and

taking a
shower

Taking a bath

and shallow

diving

Scuba

diving**

and

saturation

diving

English

WATER

RESISTANT

WATER

RESISTANT

5 BAR

WATER

RESISTANT

10/15/20 BAR

3 bar

5 bar

10/15/20 bar

Yes No No No

Yes Yes No No

Yes Yes Yes No

19

● Non-water resistant

• If the watch becomes wet, have it
checked by an AUTHORIZED SEIKO

English

DEALER or SERVICE CENTER.

● Water resistant 5/10/15/20 bar

• Before using in water, be sure the
crowns are pushed in completely.

5 bar WR

• Do not operate the crowns and buttons
when the watch is wet or in water.
If used in sea water, rinse the watch in

10/15/20

bar WR

fresh water and dry it completely.

• When taking a shower with the water resistant 5
bar watch, or taking a bath with the water resistant
10, 15 or 20 bar watch, be sure to observe the
following:
* Do not operate the crowns or push the buttons

when the watch is wet with soapy water or
shampoo.

* If the watch is left in warm water, a slight time

loss or gain may be caused. This condition,
however, will be corrected when the watch

20

returns to normal temperature.

* Pressure in bar is a test

pressure and should not be
considered as corresponding
to actual diving depth since
swimming movement tends
to increase the pressure at a
given depth. Care should
also be taken on diving into
water.

** We recommend that you

wear a SEIKO Diver’s Watch
for scuba diving.

■ TEMPERATURES

Your watch works with stable

+60°C

accuracy within a temperature

-10°C

range of 5°C and 35°C (41°F
and 95°F).

Temperatures over 60°C (140°F) may cause
battery leakage or shorten the battery life.
Do not leave your watch in very low
temperatures below –10°C␣ (+14°F) for a
long time since the cold may cause a slight
time loss or gain.
However, the above conditions will be
corrected when the watch returns to
normal temperature.

■ SHOCKS & VIBRATION

Light activities will not affect
your watch, but be careful not
to drop your watch or hit it
against hard surfaces, as this
may cause damage.

■ MAGNETISM

Your watch will be adversely
affected by strong magnetism.
Keep it away from close contact

S

N

with magnetic objects.

■ CARE OF CASE AND BRACELET

To prevent possible rusting of
the case and bracelet caused
by dust, moisture and
perspiration, wipe them
periodically with a soft dry cloth.

■ PERIODIC CHECK

It is recommended that the
watch be checked once every

2 - 3

Years

SEIKO DEALER or SERVICE CENTER to
ensure that the case, crowns, buttons,
gasket and crystal seal remain intact.

2 to 3 years. Have your watch
checked by an AUTHORIZED

English

21

■ CHEMICALS

Be careful not to expose the

English

cosmetic spray, detergents, adhesives or
paints. Otherwise, the case, bracelet, etc.
may become discolored, deteriorated or
damaged.

watch to solvents (e.g., alcohol
and gasoline), mercury (i.e.,
from a broken thermometer),

■ PRECAUTION REGARDING

CASE BACK PROTECTIVE FILM

If your watch has a protective
film and/or a sticker on the case
back, be sure to peel them off

Otherwise, perspiration getting in under
them may rust the case back.

22

before using your watch.

SPECIFICATIONS

1 Frequency of crystal oscillator ................ 32,768 Hz (Hz = Hertz ... Cycles per second)

2 Loss/gain (monthly rate) ......................... Less than 15 seconds at normal temperature

range (5°C ~ 35°C) (41°F ~ 95°F)

3 Accuracy of alarm ................................... ±1 minute

4 Operational temperature range .............. –10°C ~ +60°C (14°F ~ 140°F)

5 Driving system ....................................... Step motor, 4 pieces

6 Display system

Time ................................................. Three hands (Hour, minute and small second

hands)

Date .................................................. Displayed in numerals.

Stopwatch ........................................ Minute and 1/5 second hands

The stopwatch can measure up to 30 minutes

in 1/5 seconds.

Alarm ................................................ Small hour and minute hands

The alarm is set on a 12-hour basis.

7 Battery .................................................... SEIKO SR927W, 1 piece

8 IC (Integrated Circuit) ............................. C-MOS-LSI

* The specifications are subject to change without prior notice for product improvement.

English

23
