7KG CLOTHES
DRYER
INSTRUCTION
MANUAL
MODEL: SC-70AU6DR
Please read this manual carefully before using, and keep it for future reference.
CONTENTS
General Safety 4
Product Overview 8
Getting Started 10
Wall Mounting Instructions 11
Instructions 15
Operation 16
Other Useful Information 17
FAQS 18
Specifications 19
Customer Helpline 20
GENERAL SAFETY INSTRUCTIONS
IMPORTANT INFORMATION
Read this manual thoroughly before you start using the Clothes Dryers.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol or the words
DANGER, WARNING or CAUTION. These words will be used to alert you of
potential hazards that and injure you and others. Following these instruction will
tell you how to reduce the chance of injury and the possible dangers if
instructions aren’t followed.
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage
to the cord may cause a short circuit, fire and/or electric shock.
Contact our support centre on 1300 296 699 for advice
• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point. After turning the device o, wait at least 2
minutes before turning the appliance back on again.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
WARNING
Make sure your home is fitted with a residual current device (Safety Switch).
4
GENERAL SAFETY INSTRUCTIONS (Cont.)
To reduce risk of fire, electric shock or injury, always follow these basic precautions
and accident prevention measures when using this appliance, including the below:
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on 1300 296 699 for advice.
• While installing the appliance make sure that the power cord is not bent
or flattened.
• Install appliance on a flat level and stable ground.
• Do not install appliance in a tight fitted cabinet.
• Do not install appliance near other heat sources such as radiators, heaters or
direct sunlight.
• If not wall mounted, be sure that the appliance is not placed on any soft
materials such as plastics or foams.
WARNING
Make sure that transport packaging is removed from the rear of the dryer. Do not
overload the dryer with too many clothes.
5
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly.
• Do not block any ventilation openings. Ensure that vents are not covered
by anything.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• Only load items that are suitable for the clothes dryer.
• Do not place any open source flames on the dryer such as candles, etc..
• The door/window will be hot after a long cycle, be sure not to touch the window
and to keep children away from the appliance.
• Never stop the clothes dryer before the cycle finishes, the last stage of the cycle
is a drying mode without heat to ensure items are left at a temperature that will
not damage them.
• The only part that can be changed is the filter, other than this nothing else in the
dryer contains user serviceable parts. Do not open, disasseble or try to repair the
appliance yourself. Only have this appliance serviced by a qualified technician.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
WARNING
Never try to repair, modify or replace any part of the appliance, unless this manual
says you can do so. All other servicing is to be done by a qualified technician, or
contact our support centre on 1300 296 699 for advice.
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
CAUTION
ITEMS BELOW ARE NOT SUITABLE FOR DRYING. IT CAN CAUSE FIRE IN
THE APPLIANCE OR EXTENSIVE DAMAGE. DO NOT PLACE FOLLOWING
IN THE APPLIANCE
• Items containing rubber or foam like rubber or any other similar
textured materials.
• Items that are spotted or soaked with cooking oil or any other flammable items.
These other items include kerosene, stain removers, dry-cleaning solvents,
alcohol, petrol, turpentine, waxes, hair care products, wax removers.
• Washing the items vigoursly beforehand in hot water with extra detergent will
reduce, but not completely eliminate the hazard.
• Undergarments that contain metal reinforcements (such as underwire bras).
Plastic articles such shower caps and waterproof bibs.
• Rubber-backed articles, clothes with foam rubber pads, pillows, galoshes and
rubber coated tennis shoes.
• Fabric softeners or similar products unless recommended by product
manufacturer for use in a clothes dryer.
• WARNING: Never stop a dryer before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
CAUTION
• Do not use the tumble dryer if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the dryer.
• Do not allow lint to accumulate around the tumble dryer. Clean the Lint Trap and
Filter after every use.
• Enough ventilation has to be provided to avoid the backflow of gases into the
room from appliances burning other fuels including open fires.
• Remove all objects from pockets such as lighters and matches.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should first
be washed in hot water with extra detergent - this will reduce, but not eliminate
the hazard.
This symbol alerts you to take care as oil-aected items can ignite,
especially when exposed to heat, such as in a clothes dryer. The items
become warm, causing an oxidation reaction in the oil. Oxidation causes
heat. If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-aected items can prevent heat
from escaping and so it will create a fire hazard.
7
PRODUCT OVERVIEW

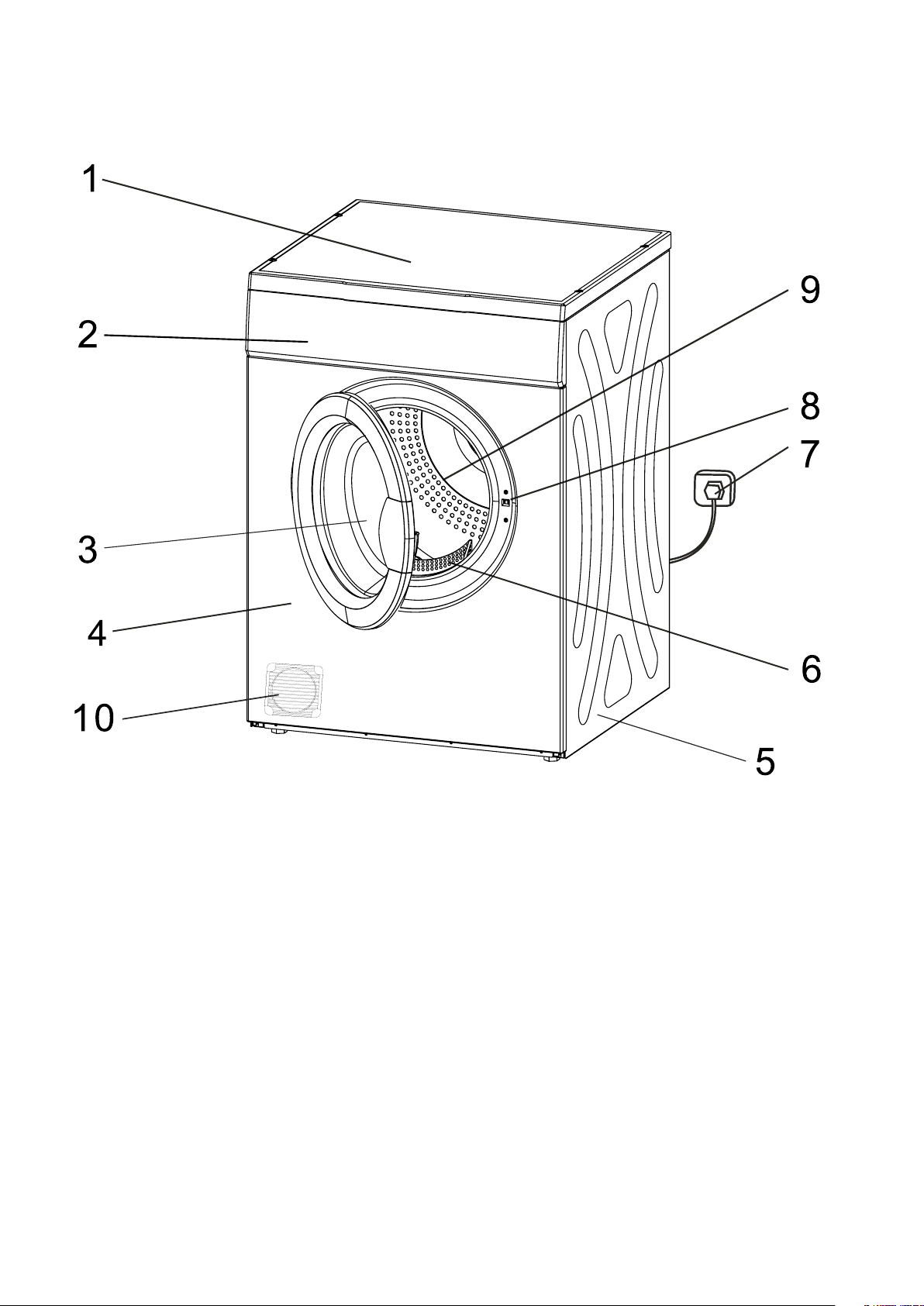

1. Top Board 2. Control Panel 3. Door
4. Front Panel 5. Side Panel 6. Filter
7. Power Plug 8. Switch 9. Tumbling Box
10. Front Vent
8
PRODUCT OVERVIEW (Cont.)
CONTROL PANEL
1. On/Off Button: Turn on/off the power supply.
2. Start/Pause: To start the selected ry program or pause while
in operation.
3. Program Button: Repeatedly press this button to select desired program.
4. Dryness Level: Select between Extra, Standard or Less.
5. Anti-Crease: Press to turn on Anti-Crease funciton.
Child Lock Function: Press and hold “Program” and “Dryness Level” for 3 seconds
to activate Child Lock.
NOTE: Make sure to clean the filter, cabinet and inner tube after every cycle.
9
GETTING STARTED
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
INSTALLATION
• This clothes dryer can be installed on the floor (as supplied), or wall mounted.
• This appliance can not be installed behind a lockable door, sliding or a door
with a hinge on the opposite of the clothes dryer. In all ways that full opening of
clothes dryer door is strictly not allowed.
• Make sure that all electrical connections are made by qualified technicians and
all instructions in this manual are observed.
• Place the dryer in a dry, well ventilated area, away heat and direct sunlight.
• Exhaust air must not be discharged into the flue which is used for exhausting
fumes from appliances burning gas or other fuels.
• Make sure to allow 10cm of spacing behind the dryer to the wall.
LEVELLING THE APPLIANCE
• Make sure to position the dryer is on a level and stable ground. If the floor
is uneven you can adjust the feet by twisting it as if to screw in the feet to the
product, either clockwise or counter-clockwise to adjust the feet up or down
until appliance is completely level.
NOTE: The Dryer will not work correctly unless it is positioned perfectly level.
• Do not install the dryer in a place that can easily be reached by rain
• Do not place the back of the dryer near curtains.
• Do not place the dryer near gas or flammable areas.
10
GETTING STARTED (Cont.)
WALL MOUNTING INSTRUCTIONS
• If wall mounting above a washing machine make sure there is enough room for
the lid to open.
• Allows 5-10cm ontop of the dryer for ease of installation if you are installing the
appliance near the ceiling.
• If you are installing the dryer above shoulder height then it has to be installed
upside down for ease of use and reach.
• If wall mounting dryer onto a plasterboard wall, make sure the brackets are
securely fitted to a timer stud, if the space between the studs is too wide,
fit a slat between the studs.
WARNING: Only install this appliance with 2 people to lift the dryer, we strongly
reccomend this to prevent injury or damage to the product.
The below instruction will guide you on the measurements needed to drill the
holes, the positioning of the hooks and support parts.
1. Fix the position of the below horizontal guidance drawing, make sure to draw
a horizontal line with a level and make sure the screw holes do not overlap with
nearby power outlets or taps.
2.Remove the adhesive paper from the back of the positioning paper and
paste the positioning paper to the wall.
Wall mounting instructions continue onto next page.
11
GETTING STARTED (Cont.)
4. According to the guidance drawings you have positioned on the wall.
Drill 4 holes (Ø14mm) within the specified holes on the positioning paper.
Ensure the holes are drilled 60mm in depth.
4x Expansion Screws
5. Now that you have drilled the holes, use the 4x Expansion Screws bolts
provided and 2 hooks (upper part) to screw into the holes.
By doing this, first hammer in the 4 bolts and tube into the drilled holes, make sure
to attach 1 nut to each bolt, To prevent the thread being damaged, dont expose
the end-thread of the bolt
12
GETTING STARTED (Cont.)
6. After the bolts are hammered into the wall, remove the nuts and expose
the bolts. Place a suitably sized auxiliary tube over the bolt and hammer the tube
until the anchor tube is completely flush with the wall surface.
7. Remove the hooks from the accessory kit and attach to the bolts with
a socket or a wench.
Wall mounting instructions continue onto next page.
13
GETTING STARTED (Cont.)
7. Place the unpackaged clothes dryer on the floor.
Remove the existing two screws at the back of the appliance with a Phillips
head screwdriver (Diagram A). Thread the screws through the holes in the
standoffs and then fasten them into the original screw holes.
2 x Standoffs
Diagram A
8. Now that you have placed the standoffs on the back of the dryer, make sure
with 2 people (including you) that you lift the appliance onto the hook. Make
sure the hooks are placed into the long holes on the appliance that are located at
the back, left and right side.
14
INSTRUCTIONS
CAUTION!
Make sure you read all safety precaution in this manual that cause a hazard if
placed in the clothes dryer.
LOADING THE DRYER
• Before loading the dryer, check that none of the clothes you are inserting into
the dryer have any symbols anywhere on them. These symbbols indicate that
there are not suitable for clothes drying.
• Make sure none of the items you are putting into the dryer have no combustible
materials or foreign objects (such as coins, hair pins or lighters). Be sure to
empty pockets of everything before putting into the dryer.
• Clean the filter before each use and make sure its properly back in palce.
• To avoid items getting tangled in the dryer which can reduce drying
performance, please insert items into the dryer one at a time.
• Turn items with cippers inside out and fasten buckles, as this will help to reduce
impact noise with items hitting the drum while spinning.
• Make sure to check items for stains before inserting into the dryer, as drying
can permenantly set stains.
• As you dry large blankets or sheets from time to time open the dryer door take
out the blanket or sheet and give it a shake then place back into the dryer. This
will help larger items with drying process.
WARNING: Do not overload the dryer, maximum amount of items that can be
dried in one load is 7kg.
• Make sure only items that have been washed and are still we are placed in
the dryer, no items that are dry are to be placed in.
• Be sure when closing the dryer door that not items are jammed in the door.
• Do not add items to the dryer while it is operating.
15
OPERATION
DRYING CLOTHES
CLOTHING
TYPE
APPROXIMATE
HUMIDITY
CAPACITY
(KG)
PROGRAMS
DRYNESS
80%~90% 7 Cotton Extra
COTTON
7 / 3.5 Cotton Standard
60%-70%
7 Cotton Less
70% 7 / 3.5 Mix Extra
Mix
60% 7 / 3.5 Mix Standard
50% 3.5 Synthetic Extra
Synthetic
40% 3.5 Synthetic Standard
Cotton - 1 1 Hr -
LEVEL
NOTE
According to
the type and
capacity of
the clothing,
select the
most suitable
program and
dryness level.
Drying times is affected by many different factors, such as the type of materials
used in the clothing, bulkiness of the items and how full the dryer is, etc...
Cotton + Extra Dryness level is used for the energy efficiency program.
ERROR CODES
ERROR
CODE
E1
DESCRIPTION CRITERIA
Over Tempera
ture
NTC or PCB
fault
ACTION AFTER
FAULT
Stop the
program and
go to fault
FAILURE
INDICATION
LED Slow
Flashing
state
LED Slow
and Standard
Flashing
LED Fast
Flashing
E3
E4
Temperature
Sensor Error
Temperature
Sensor Error
Temperature
Sensor is open
or PCB Fault
Temperature
Sensor is open
or PCB Fault
Stop the
program and
go to fault
state
Stop the
program and
go to fault
state
16
OTHER USEFUL INFORMATION
CLEANING THE FILTER
1. Clean the lint filter before each use. Remove it by pulling it straight up and
unbolt the filter.
2.The lint filter is located in the door opening, remove the lint filter.
3.When you remvoe the filter by squeezing the sides, and use a damp cloth to
wipe the filter. Be careful not to damage the filter.
Make sure to dry the filter in the sun before inserting back into the dryer.
17
FAQS
TROUBLESHOOTINTING GUIDE
Use the below list to identify if your clothes dryer is having any issues and to
identify and solve any problems. If you cannot solve the problem, contact our call
centre on 1300 296 699.
PROBLEM POSSIBLE CAUSE SOLUTION
No response from
buttons
The drum is not
turning
The load did not
dry correctly
The Dryer isnt
starting
Power plug
inserted correctly?
Is the door closed correctly?
Is the power plug firmly
connected?
Does the power socket have power?
Too much washing in the dryer?
Were the items added mid
drying cycle?
Has the washing been twisted while
drying?
No power?
Is the power plug in correctly?
Is the door closed?
Have you selected a program?
Is the power switched on at the wall?
Ensure that the power plug
is firmly connecting into the
power socket.
Close the door.
Insert the plug correctly.
Check with another
appliance to see if power is
running to socket.
Check and clean the filters
Reduce the amount of
washing in the dryer.
Untwist the items and dry
them for a little longer.
Check and try again when
the power is back.
Insert the power plug firmly.
Closed the door correctly.
Set a drying program.
Switch on power at the wall.
18
SPECIFICATIONS
Dimensions 595 x 555 x 840 mm
Weight 35kg
Rated Input Power 220-240V ~ 50Hz 2000W
Rated Volume of Dryer 7kg (dry clothes)
Ambient Temperature +5˚C ~ +35˚C
NOTE: The rated capacity is maximum capacity, make sure that the dry clothes
which are loaded in to the appliance do not exceed the rated capacity each time.
19
CUSTOMER HELPLINE:
1300 296 699
DISTRIBUTED BY:
Ayonz Pty Ltd
20
Loading...
