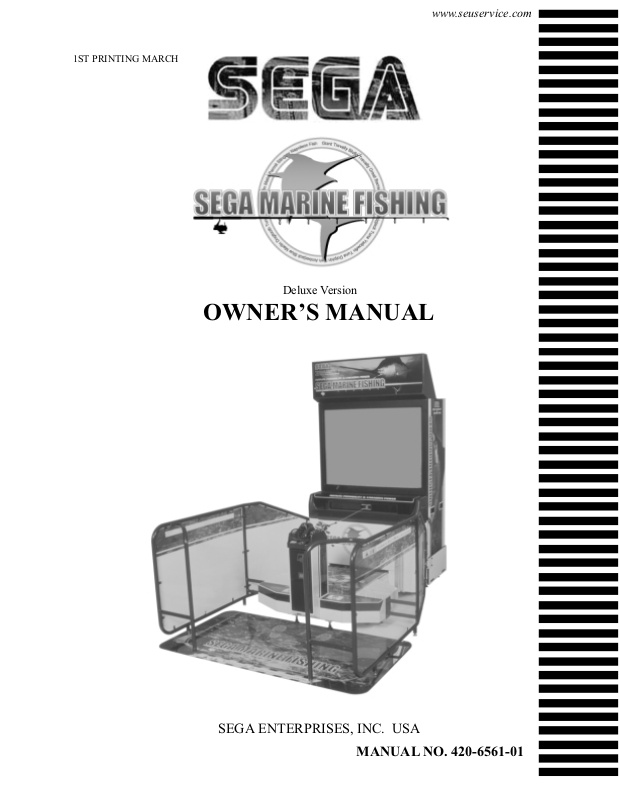

Sega MARINE FISHING User Manual
1ST PRINTING MARCH
www.seuservice.com
Deluxe Version
OWNER’S MANUAL
SEGA ENTERPRISES, INC. USA
MANUAL NO. 420-6561-01
VISIT OUR WEBSITE!
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain the safety:
To ensure the safe usage of the product, be sure to read the following before using the product. The following
instructions are intended for the users, operators and the personnel in charge of the operation of the product.
After carefully reading and sufficiently understanding the warning displays and cautions, handle the product
appropriately. Be sure to keep this manual nearby the product or elsewhere convenient for referring to it
when necessary.
Herein, explanations which require special attention are enclosed with dual lines. Depending on the potentially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to understand the
contents of the displays before reading the text.
Indicates that mishandling the
product by disregarding this
warning will cause a potentially
hazardous situation which can
result in death or serious injury.
For the sage usage of the product, the following pictographs are used:
Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment, this
display is attached to places where the Owner’s Manual and or Service Manual should be referred
to.
Perform work in accordance with the instructions herein stated.
Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to
perform work as per the instructions can cause accidents. In the case where only those who have technical expertise should perform the work to avoid hazardous situation, the instructions herein state that the
serviceman should perform such work.
Be sure to turn off power before working on the machine.
To prevent electric shock, be sure to turn off power before starting the work in which the worker touches
the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual
herein always states to that effect.
Indicates that mishandling the product
by disregarding this caution will cause
a slight hazardous situation which can
result in personal injury and or material
damage.
Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord
with earth is used).
This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Terminal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the
Control equipment, ensure that the Earth Wire is firmly connected to the Control equipment.
Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.
This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not
equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.
Be sure to use fuses which meet the specified rating. (only for the machines which use fuses).
Using fuses exceeding the specified rating can cause a fire and electric shock.
Specification changes (removal of equipment, conversion and addition) not designated by SEGA
are not allowed.
The parts of the product include warning labels for safety, covers for personal protection, etc. It is very
hazardous to operate the product by removing parts and or modifying the circuits. Should doors, lids
and protective parts be damaged or lost, refrain from operating the product, and contact where the
product was purchased from or the office herein stated. SEGA shall not be held responsible for any
accidents, compensation for damage to a third party, resulting from the specifications not designated by
SEGA.
Ensure that the product meets the requirements of appropriate Electrical Specifications.
Before installing the product, check for Electrical Specifications. SEGA products have a nameplate on
which Electrical Specifications are described. Ensure that the product is compatible with the power
supply voltage and frequency requirements of the location. Using any Electrical Specifications different
from the designated Specifications can cause a fire and electric shock.
Install and operate the product in places where appropriate lighting is available, allowing warning
labels to be clearly read.
To ensure safety for the customers, labels and printed instructions describing potentially hazardous
situation are applied to places where accidents can be caused. Ensure that where the product is operated
has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again immediately. Please place an order with where the product was purchased from or the office herein stated.
When handling the Monitor, be very careful. (Applies only to the product w/monitor.)
Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some
portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be
performed only be those technical personnel who have knowledge of electricity and technical expertise.
Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)
Do not operate the product leaving on-screen flickering or blurring as it is. Using the product with the
monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the customers.
When transporting or reselling this product, be sure to attach this manual to the product.
In the case where commercially available monitors and printers are used in this product, only the
contents relating to this product are explained herein. Some commercially available equipment has
functions and reactions not stated in this manual. Read this manual together with the specific Instruction Manual of such equipment.
•
Descriptions herein contained may be subject to improvement changes without notice.
•
The contents described herein are fully prepared with due care. However, should any question arise or
errors be found, please contact SEGA.
INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before
turning on power, check the following points to ensure that the product has been transported in a satisfactory status.
Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
Are Casters and Adjusters, damaged?
Do the power supply voltage and frequency requirements meet with those of the location?
Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,
connector connections can not be made accurately. Do not insert connectors forcibly.
Do power cords have cuts and dents?
Do the fuses used meet specified rating? Is the Circuit Protector in an energized status?
Are all accessories available?
Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be firmly closed?
TABLE OF CONTENTS
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS
INTRODUCTION OF THE OWNER’S MANUAL
1. HANDLING PRECAUTIONS ..........................................................................................
2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ...................................
3. OPERATION .....................................................................................................................
4. NAME OF PARTS .............................................................................................................
5. ACCESSORIES .................................................................................................................
6. ASSEMBLING AND PRECAUTIONS............................................................................
7. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE ........................
8. CONTENTS OF GAME ....................................................................................................
9. EXPLANATION OF TEST AND DATA DISPLAY .........................................................
9 - 1 SWITCH UNIT AND COIN METER ............................................................
9 - 2 SYSTEM TEST MODE ..................................................................................
9 - 3 GAME TEST MODE ......................................................................................
10. MAINTENANCE OF MECHANISM UNIT....................................................................
10 - 1 LINE REPLACEMENT.................................................................................
10 - 2 REPLACING THE REEL’S SWITCH & VOLUME ...................................
10 - 3 ADJUSTING & REPLACING THE TENSION VOLUME .........................
10 - 4 GREASING ...................................................................................................
10 - 5 REPLACING THE ASSY ROD ....................................................................
11. COIN SELECTOR ...........................................................................................................
12. PROJECTOR........ ...........................................................................................................
12 - 1 CLEANING THE SCREEN..........................................................................
12 - 2 ADJUSTMENT OF TOSHIBA PROJECTOR ..............................................
12 - 3 ADJUSTMENT OF MITSUBISHI PROJECTOR ........................................
13. REPLACING THE FLOURESCENT LAMP ..................................................................
14. PERIODIC INSPECTION TABLE ..................................................................................
15. TROUBLESHOOTING ....................................................................................................
16. GAME BOARD ................................................................................................................
16 - 1 REMOVING THE GAME BOARD ..............................................................
16 - 2 COMPOSITION OF GAME BOARD ...........................................................
17. DESIGN RELATED PARTS ............................................................................................
18. PARTS LIST .....................................................................................................................
19. WIRE COLOR CODE TABE ...........................................................................................
20. WIRING DIAGRAM ........................................................................................................
1
2 - 3
4 - 8
9
10 - 12
13 - 31
32 - 33
34 - 41
42 - 52
43
44
44 - 52
53 - 64
54 - 56
56
57
58
59 - 60
61 - 64
65 - 78
65
66 - 75
76 - 78
79
80
81 - 85
86 - 88
86 - 87
88
89
90 - 153
154
155 - 160
SPECIFICATIONS
Installation Space : 1,692 mm (W) X 2,745 mm (D)
(66.6 in. X 108.1 in.)
Height : 2,290 mm (90.2 in.)
Weight : Approx. 374 kg. (824.5 lbs.)
Power, maximum current : 490 W 5.39 A (AC 110V 50 Hz AREA)
480 W 5.24 A (AC 110V 60 Hz AREA)
485 W 4.83 A (AC 120V 60 Hz AREA)
495 W 2.73 A (AC 220V 50 Hz AREA)
475 W 2.62 A (AC 220V 60 Hz AREA)
430 W 2.62 A (AC 230V 50 Hz AREA)
415 W 2.54 A (AC 230V 60 Hz AREA)
425 W 2.51 A (AC 240V 50 Hz AREA)
410 W 2.44 A (AC 240V 60 Hz AREA)
For TAIWAN (MITSUBISHI PROJECTION DISPLAY TYPE)
Power, current : 460 W 5.25 A (MAX.)
265 W 3.15 A (MIN.)
For TAIWAN (TOSHIBA PROJECTION DISPLAY TYPE)
Power, current : 475 W 5.50 A (MAX.)
285 W 3.25 A (MIN.)
MONITOR : 50 TYPE PROJECTION DISPLAY
INTRODUCTION OF THE OWNERS MANUAL
This Owner's Manual is intended to provide detailed descriptions together with all
the necessary information covering the general operation of electronic assemblies,
electromechanicals, servicing control, spare parts, etc. as regards the product,
MARINE FISHING DX TYPE.
This manual is intended for the owners, personnel and managers in charge of
operation of the product. Operate the product after carefully reading and sufficiently
understanding the instructions. If the product fails to function satisfactorily, nontechnical personnel should under no circumstances touch the internal system. Please
contact where the product was purchased from.
Use of this product is unlikely to cause physical injuries or damages to property. However,
where special attention is required this is indicated by a thick line, the word "IMPORTANT"
and its sign in this manual.
STOP
Indicates that mishandling the product by disregarding this display can cause the
product's intrinsic performance not to be obtained, resulting in malfunctioning.
IMPORTANT
SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE
45133 Industrial Drive, Fremont, California 94538, U.S.A.
Phone : (415) 701-6580
Fax : (415) 701-6594
DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN
Non-technical personnel who do not have technical knowledge and expertise should
refrain from performing such work that this manual requires the location's
maintenance man or a serviceman to carry out, or work which is not explained in
this manual. Failing to comply with this instruction can cause a severe accident
such as electric shock.
Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the
location's maintenance man or the serviceman. It is instructed herein that particularly hazardous
work should be performed by the serviceman who has technical expertise and knowledge.
The location's maintenance man and serviceman are herein defined as follows:
"Location's Maintenance Man" :
Those who have experience in the maintenance of amusement equipment and vending machines,
etc., and also participate in the servicing and control of the equipment through such routine work
as equipment assembly and installation, servicing and inspections, replacement of units and
consumables, etc. within the Amusement Facilities and or locations under the management of the
Owner and Owner's Operators of the product.
Activities of Location's Maintenance Man :
Assembly & installation, servicing & inspections, and replacement of units & consumables as
regards amusement equipment, vending machines, etc.
Serviceman :
Those who participate in the designing, manufacturing, inspections and maintenance service of
the equipment at an amusement equipment manufacturer.
Those who have technical expertise equivalent to that of technical high school graduates as regards electricity, electronics and or mechanical engineering, and daily take part in the servicing &
control and repair of amusement equipment.
Serviceman's Activities :
Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of
amusement equipment and vending machines.
LISTED
U
®
L
5K92
AMUSEMENT MACHINE
1. HANDLING PRECAUTIONS
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine.
Before performing work, be sure to turn power off. Performing the work
without turning power off can cause an electric shock or short circuit. In the
case work should be performed in the status of power on, this manual always
states to that effect.
To avoid electric shock or short circuit, do not plug in or unplug quickly.
To avoid electric shock, do not plug in or unplug with a wet hand.
Do not expose Power Cords and Earth Wires on the surface, (floor, passage,
etc.). If exposed, the Power Cords and Earth Wires are susceptible to damage.
Damaged cords and wires can cause electric shock or short circuit.
To avoid causing a fire or electric shock, do not put things on or damage
Power Cords.
When or after installing the product, do not unnecessarily pull the power cord.
If damaged, the power cord can cause a fire or electric shock.
In case the power cord is damaged, ask for replacement through where the
product was purchased from or the office herein stated. Using the cord as is
damaged can cause fire, electric shock or leakage.
Be sure to perform grounding appropriately. Inappropriate grounding can
cause an electric shock.
Be sure to use fuses meeting specified rating. Using fuses exceeding the
specified rating can cause a fire or electric shock.
Completely make connector connections for IC BD and others. Insufficient
insertion can cause an electric shock.
Specification changes, removal of equipment, conversion and/or addition, not
designated by SEGA are not permitted.
• Failure to observe this may cause a fire or an electric shock. Non-compliance
with this instruction can have a bad influence upon physical conditions of the
players or the lookers-on, or result in injury during play.
• SEGA shall not be held responsible for damage, compensation for damage to
a third party, caused by specification changes not designated by SEGA.
Be sure to perform periodic maintenance inspections herein stated.
STOP
For the IC board circuit inspections, only the logic tester is allowed. The use
The Projector is employed for this machine. The Projector's screen is
IMPORTANT
of a multiple-purpose tester is not permitted, so be careful in this regard.
susceptible to damage, therefore, be very careful when cleaning the screen.
For details, refer to PROJECTOR.
1
www.seuservice.com
2. PRECAUTIONS CONCERNING INSTALLATION
LOCATION
This product is an indoor game machine. Do not install it outside. Even indoors,
avoid installing in places mentioned below so as not to cause a fire, electric shock,
injury and or malfunctioning.
Places subject to rain or water leakage, or places subject to high humidity in
the proximity of an indoor swimming pool and or shower, etc.
Places subject to direct sunlight, or places subject to high temperatures in the
proximity of heating units, etc.
Places filled with inflammable gas or vicinity of highly inflammable/volatile
chemicals or hazardous matter.
Dusty places.
Sloped surfaces.
Places subject to any type of violent impact.
Vicinity of anti-disaster facilities such as fire exits and fire extinguishers.
The operating (ambient) temperature range is from 5 C° to 40 C°.
Only in the case a projector is employed, the temperature range is from 5 C°
to 30 C°.
LIMITATIONS OF USAGE REQUIREMENTS
Be sure to check the Electrical Specifications.
Ensure that this product is compatible with the location's power supply,
voltage and frequency requirements.
A plate describing Electrical Specifications is attached to the product.
Non-compliance with the Electrical Specifications can cause a fire and
electric shock.
This product requires the Breaker and Earth Mechanisms as part of the
location facilities. Using them in a manner not independent can cause a fire
and electric shock.
Ensure that the indoor wiring for the power supply is rated at 15A or higher
(AC single phase 100 ~ 120V area), and 7A or higher (AC 220 ~ 240V area).
Non-compliance with the Electrical Specifications can cause a fire and
electric shock.
Be sure to independently use the power supply equipped with the Earth
Leakage Breaker. Using a power supply without the Earth Leakage Breaker
can cause an outbreak of fire when earth leakage occurs.
Putting many loads on one electrical outlet can cause generation of heat and a
fire resulting from overload.
When using an extension cord, ensure that the cord is rated at 15A or higher
(AC 100 ~ 120V area) and 7A or higher (AC 220 ~ 240V area). Using a cord
rated lower than the specified rating can cause a fire and electric shock.
www.seuservice.com
2
OPERATION AREA
0
0
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
For the operation of this machine, secure a minimum area of 2m (W) X 3m
(D). In order to prevent injury resulting from the falling down accident
during game play, be sure to secure the minimum area for operation.
Be sure to provide sufficient space so as to allow this product's ventilation fan
to function efficiently. To avoid machine malfunctioning and a fire, do not
place any obstacles near the ventilation opening.
SEGA shall not be held responsible for damage, compensation for damage to
a third party, resulting from the failure to observe this instruction.
STOP
For transporting the machine into the location's building, the minimum necessary
dimensions of the opening (of doors, etc.) are 1.2m(W) and 1.7m(H).
IMPORTANT
Electric current consumption
MAX. 5.39 A (AC 110V 50 Hz)
MAX. 5.24 A (AC 110V 60 Hz)
MAX. 4.83 A (AC 120V 60 Hz)
MAX. 2.73 A (AC 220V 50 Hz)
MAX. 2.62 A (AC 220V 60 Hz)
MAX. 2.62 A (AC 230V 50 Hz)
MAX. 2.54 A (AC 230V 60 Hz)
MAX. 2.51 A (AC 240V 50 Hz)
MAX. 2.44 A (AC 240V 60 Hz)
(For TAIWAN)
MAX. 5.25 A (MITSUBISHI PTV)
MAX. 5.50 A (TOSHIBA PTV)
23456789012345678901234567890121234567890123456789
23456789012345678901234567890121234567890123456789
10cm
3 m
2 m
FIG. 2
3
www.seuservice.com
3. OPERATION
3
PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and
manner of the visitors and players.
In order to avoid accidents, check the following before starting the operation:
To ensure maximum safety for the players and the customers, ensure that
where the product is operated has sufficient lighting to allow any warnings to
be read. Operation under insufficient lighting can cause bodily contact with
each other, hitting accident, and or trouble between customers.
Be sure to perform appropriate adjustment of the monitor (projector). For
operation of this machine, do not leave monitor's flickering or deviation as is.
Failure to observe this can have a bad influence upon the players' or the
customers' physical conditions.
It is suggested to ensure a space allowing the players who feel sick while
playing the game to take a rest.
Check if all of the adjusters are in contact with the surface. If they are not, the
Cabinet can move and cause an accident.
www.seuservice.com
23456789012345678901234567890121234567890123456789012
Ensure that all of the
Adjusters are in contact
with the floor.
4
Do not put any heavy item on this product. Placing any heavy item on the
product can cause a falling down accident or parts damage.
Do not climb on the product. Climbing on the product can cause falling down
accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are damaged or
omitted.
To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product.
Flower vases, flowerpots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
To avoid injury, be sure to provide sufficient space by considering the
potentially crowded situation at the installation location. Insufficient
installation space can cause making bodily contact with each other, hitting
accidents, and or trouble between customers.
Be sure to install the mat and the fence before beginning the operation. The mat
and the fence are a key part to avoid accidents. Failure to observe this can cause
the player to come into contact with, or hit, the others and result in injury and
trouble.
FENCE
MAT
The mat and the fence are a key part to avoid accidents. If they are damaged,
immediately replace them with new ones.
5
www.seuservice.com
Check the rod controller for
scratch or damage before
beginning the operation.
Scratched or damaged rod
controller can cause the player to
be injured, or its broken pieces
can cause the lookers-on to be
injured. If they are scratched or
damaged, therefore, immediately
replace them with new ones.
STOP
Clean the rod controller regularly as the player directly touches it. Wring the
soft clothes soaked in water or diluted neutral detergent, and use them to wipe
the stain off. Do not use solvent (alcohol, benzene, thinner, etc.), polisher, and
IMPORTANT
bleacher for cleaning because these can attack the surfaces.
Prepare wet tissues or the alike during the operation so that the players can
play comfortably.
PRECAUTIONS TO BE HEEDED DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and
manner of the visitors and players.
To avoid injury and accidents, those who fall under the following categories
are not allowed to play the game.
• Those who need assistance such as the use of an apparatus when walking.
• Those who have high blood pressure or a heart problem.
• Those who have experienced muscle convulsion or loss of consciousness when
playing video game, etc.
• Those who have a trouble in the neck and or spinal cord.
• Pregnant women or those who are in the likelihood of pregnancy.
• Persons susceptible to motion sickness.
• Persons whose act runs counter to the product's warning displays.
A player who has never been adversely affected by light stimulus might
experience dizziness or headache depending on his physical condition when
playing the game. Especially, small children can be subject to those
conditions. Caution guardians of small children to keep watch on their
children during play.
Instruct those who feel sick during play to have a medical examination.
To avoid injury resulting from falling down and electric shock due to spilled
drinks, instruct the player not to place heavy items or drinks on the product.
To avoid electric shock and short circuit, do not allow customers to put hands
and fingers or extraneous matter in the openings of the product or small
openings in or around the doors.
www.seuservice.com
6
To avoid falling down and injury resulting from falling down, immediately
stop the customer's leaning against or climbing on the product, etc.
To avoid electric shock and short circuit, do not allow the customers to
unplug the power plug without a justifiable reason.
Immediately stop such violent acts as hitting and kicking the product. Such
violent acts can cause parts damage or falling down, resulting in injury due to
fragments and falling down.
Instruct those who wear high-heeled shoes
to refrain from playing the game by
explaining that playing game with highheeled shoes is very likely to cause
potentially hazardous situation.
Caution the player not to take hold of the
line. Failure to observe this can cause
injury.
Lookers-on are not allowed to lean
over the fence or put his hand
inside. Failure to observe this can
cause injury or trouble between the
customers.
Use care so that the
lookers-on do not enter
inside the mat. Failure to
observe this can cause an
accident.
7
www.seuservice.com
Caution the player to
keep his/her face
away from the rod
controller. Failure to
observe this can cause
injury if the line or
the rod is broken.
Instruct the person(s)
who has a disorder
with hands or arms to
refrain from playing
the game by
explaining that
playing the game may
cause the worsening
of his condition.
Caution the player to play with holding the rod controller alone. The rod
controller held by two or more players can cause them to come into contact
with, or hit, each others and result in injury and trouble.
Instruct the guardian to watch his/her children. Children cannot detect danger.
Children can carelessly approach the player and come into contact with, or
hit, him/her, resulting in injury and trouble. Children can carelessly touch and
drop the unused rod controller, resulting in injury in the head.
www.seuservice.com
8
4. NAME OF PARTS
ROD CONTROLLER
FENCE L
COIN CHUTE DOOR
CHASSIS
BILLBOARD
PTV
FRONT DOOR
PTV BASE
CASH BOX DOOR
CAUTION MAT
LID
FIG. 4 a OVERVIEW
TABLE 4
Width X Length X Height Weight
PTV 1,140mm(W) X 554mm(D) X 1,672mm(H)
FENCE R
AC UNIT
FIG. 4 b SIDE VIEW
(TOSHIBA)110kg
(MITSUBISHI)105kg
PTV BASE 1,172mm(W) X 571mm(D) X 363mm(H) 28kg
BILLBOARD 1,140mm(W) X 400mm(D) X 400mm(H) 19kg
FENCE 362mm(W) X 2,122mm(D) X 978mm(H) 24kg
CHASSIS 1,155mm(W) X 1,481mm(D) X 971mm(H) 169kg
When assembled 1,692mm(W) X 2,745mm(D) X 2,290mm(H) 374kg
9
www.seuservice.com
5. ACCESSORIES
When transporting the machine, make sure that the following parts are supplied.
TABLE 5 ACCESSORIES
DESCRIPTION OWNERS MANUAL
Part No. (Qty.)
420-6561-01 (1)
Note
Figures
If Part No. has no description, the Number has not been
registered or can not be registered. Such a part may not
be obtainable even if the customer desires to purchase it.
Therefore, ensure that the part is in safekeeping with you.
SERVICE MANUAL NAOMI ENG
420-6455-01 (1)
INSTRUCTION MANUAL FOR THE GAME BOARD
AC Cable (Power Cord)
600-6724
600-6729
600-6618 (1) OTHERS
600-6619-01 (1) HONG KONG
600-6695 (1) USA
Used for installation,
see 4 of Section 6.
(1) TAIWAN
WIRE HARN EARTH W/LUG
M6
600-6664-02 (1)
For TAIWAN.
Used for installation,
see 4 of Section 6.
KEY MASTER
220-5576 (2)
For opening/closing
the doors
KEY
(2)
For the CASHBOX DOOR
The Keys are inside the Coin
Chute Door at the time of
shipment from the factory.
CORD CLAMP
280-5009-01 (1)
Used for securing the
power cord.
see 4 of Section 6.
POP FRONT MFS
429-0683-01 (1)
see 8 of Section 6.
www.seuservice.com
POP SIDE MFS
429-0684 (2)
see 8 of Section 6.
10
LINE
BSS-0001 (2)
Spare, see 10-1.
ROD
BSS-3022Y (1)
Spare, see 10-5.
VOL CONT B-5K OHM
220-537
220-5484
(1)
Spare, see 10-3.
TOSHIBA
Remote Controller used for
adjustment of the projector.
See Section 12.
200-5536(1)
POSITION
ADJUST
P
SET
PIC-ADJ
RESET
SELECT
TEST MODE WRITING
RBG
MITSUBISHI
Remote Controller used for
adjustment of the projector.
See Section 12.
200-5532(1)
R / B
TEST
1
89
G-MUTE
R-MUTE
--
MITSUBISHI
One of the above 2 types of
Remote Controllers is used for the
Projector.
The Remote Controller is attached to the Projector at the
time of shipment.
CARTON BOX
601-10532 (1)
Used for transporting the
Game Board.
Refer to Next Page.
ENTER
B-MUTE
+
POWER
R / G / B
10
FUSE 2.5A 250V
514-5086-2500 (1)
Spare, see Section 15.
NAOMI
C
H
E
C
K
S
ID
E
NAOMI
11
www.seuservice.com
HOW TO USE THE CARTON BOX
STOP
When requesting for the replacement/repair of this product's Game Board
(NAOMI BOARD), follow the instructions below. Transporting the Game Board
in an undesignated status is unacceptable. An erroneous handling can cause parts
IMPORTANT
damage.
• Put the Game Board in the Carton Box together with the Shield Case. Do not
• By paying careful attention to the following Figure and the direction shown
• When putting the Shield Case in the Carton Box, do not remove Leg Brackets.
• The projected portions of the packing material is intended for cushioning.
unnecessarily disassemble nor remove parts.
by on-Carton-Box printing, put the Shield Case in the Carton Box.
Therefore, do not bend the projected portions.
"CHECK SIDE" Display
NAOMI
C
H
EC
K
S
ID
E
I
M
O
A
N
FILTER BOARD
NAOMI
CHECK SIDE
I
M
O
A
N
Projected portions of
the packing material.
Fold the packing material in the sequential order of the numbers shown in the Figure, enfold
the Shield Case and put it in the Carton Box. Positioning the Shield Case upside down or
packing in the manner different from what is shown in this Figure can cause the Game Board
and other parts to be damaged.
www.seuservice.com
12
6. ASSEMBLING AND PRECAUTIONS
Perform the assembly work by following the procedure herein stated. Failing
to comply with the instructions can cause an electric shock.
Assembling should be performed as per this manual. Since this is a complex
machine, erroneous assembling can cause an electric shock or damage to the
machine resulting in not functioning as per specified performance.
When assembling, be sure to perform the work by plural persons. Depending
on the assembly work, there are some cases in which performing the work by
a single person can cause personal injury or parts damage.
When carrying out the assembly work, follow the procedure in the following 8-item sequence:
ASSEMBLING THE PTV
1
ASSEMBLING THE CHASSIS
2
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
3
REMOVING THE SHIPPING ROPE
4
POWER SUPPLY, AND EARTH CONNECTION
5
TURNING POWER ON
6
ASSEMBLING CHECK
7
ATTACH THE POP
8
When assembling, make sure that tools such as a Phillips type screwdriver, wrench, socket
wrench, ratchet handle, and the master key are available.
24mm
Phillips type screwdriver
WRENCH (width across flats:24mm)
SOCKET WRENCH,(width across flats:13mm)
RATCHET HANDLE
13
Master key
www.seuservice.com
ASSEMBLING THE PTV
1
Installing the Billboard by one person is difficult. Be sure to use plural
persons to perform work safely and accurately.
When mounting the PTV on the PTV Base, be sure to perform the work by 4
or more persons. Executing the work by 3 or less persons can cause injury or
parts damage.
To perform work safely and securely, be sure to prepare a step which is in a
secure and stable condition. Using an unstable step can cause a violent falling
down accidents.
1
By using the specified screws, secure the 2 Mask Holders to the Projection Display ceiling.
2
Insert the TV Mask from the underside as shown and secure with a total of 6 screws.
Insert the Billboard Connector to the Ceiling Terminal Board of the Projection Display.
3
4
Insert the Billboard from the front as shown and secure with 2 screws.
5
Mount the assembled PTV on the PTV Base. After mounting, bring the PTV to the rear of the
PTV Base. Be sure to perform this work by 4 or more persons.
6
Secure the PTV Bracket with 4 screws.
www.seuservice.com
14
Connect the Connectors.
BILLBOARD
Screw (2)
M5 X 16,black,
w/flat washer
Screw (4)
M5 X 20,w/flat &
spring washers
TV MASK
PTV
FLAT HEAD SCREW (2 each)
M4 X 12
MASK HOLDER
TRUSS SCREW (2)
M5 X 25,flat washer used.
TRUSS SCREW (2 each)
M5 X 25
PTV BASE
FIG. 6. 1 a
PTV BRACKET
15
www.seuservice.com
For performing work, use 3 or more
workers. Be sure to prepare a step.
For performing work, use 4 or more
workers.
FIG. 6. 1 b
FIG. 6. 1 c
www.seuservice.com
16
2
ASSEMBLING THE CHASSIS
Be sure to connect connectors securely. Incomplete connector connection can
cause electric shock accident.
Use care so as not to damage wirings. Damaged wiring can cause electric
shock or short circuit accident.
STOP
Playing game without securing the wiring can cause the line to get tangled with
the wiring. Be sure to secure the wiring with clamp.
IMPORTANT
Insert the 3 connectors
1
(2 connectors for USA) of
Chassis to the corresponding
3 connectors of PTV.
By using care so as not to
2
pinch the wiring, tightly join
the Chassis and PTV.
Open the Front Door with
3
the Master Key.
FRONT DOOR
UNLOCK.
PHOTO 6. 2 b
17
PHOTO 6. 2 a
www.seuservice.com
Secure with the 2 hexagon bolts by using care so as not to damage the wiring.
4
HEXAGON BOLT (2)
M8 X 35,
w/spring washer,flat washer used.
PHOTO 6. 2 c
Secure the 2 Joint Brackets with a total of 8 hexagon bolts.
5
www.seuservice.com
JOINT BRACKET
(both sides)
HEXAGON BOLT (4 each)
M8 X 20, w/spring washer,
flat washer used.
PHOTO 6. 2 d
18
Perform wiring between the PTV and the chassis. Insert the power cord connector and the video
6
signal wire connector, each from the chassis, to the corresponding connectors of the connector
panel located on the PTV front.
Insertion angle for both the connectors is predetermined. Inserting the connector in a forcible
manner will damage the connector. Check for the correct insertion angle and then insert the
connector. The video signal wire connector is provided with the fixing screws at its both ends.
Firmly tighten them after inserting the connector.
Connect the Connector.
The photograph shows the Mitsubishi PTV connector panel.
Connector arrangement with the Toshiba PTV may be different
from this photograph.
PHOTO 6. 2 e
Wires may be longer than necessary to correspond to both the Mitsubishi PTV and the Toshiba
7
PTV. After wiring, use the clamps to hold the wires. Failure to observe this can cause the line
and the wires to wind around each other.
19
www.seuservice.com
INSTALLING THE FENCE
1
Take out the 4 screws and remove the lid.
TRUSS SCREW (4)
M4 X 25, flat washer used.
PHOTO 6. 2 f
LID
www.seuservice.com
20
2
Take out the 4 screws and remove the 2 Side Lids.
SCREW (2 each)
M4 X 12, w/flat washer
SIDE LID
PHOTO 6. 2 g
3
As shown, insert the Fence onto the side of the Chassis and secure with 2 hexagon nuts and 8
hexagon bolts from outside. Similarly install to the opposite side.
PHOTO 6. 2 h
21
HEXAGON (2 each)
M8, flat & spring washers used.
www.seuservice.com
HEXAGON BOLT (4 each)
M8 X 20, w/spring washer,
flat washer used.
PHOTO 6. 2 i
www.seuservice.com
HEXAGON BOLT (4 each)
M8 X 35, w/spring washer,
flat washer used.
PHOTO 6. 2 j
22
3
7
7
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Make sure that all of the adjusters are in contact with the floor. If they are not, the
cabinet can move and cause an accident.
This product has 8 casters (4 for PTV, 4 for Chassis) and 16 Adjusters (4 for PTV, 6 for
Chassis, and 6 for Fence). (FIG. 6. 3a) When the installation position is determined, cause the
adjusters to come into contact with the floor directly, make adjustments in a manner so that the
casters will be raised approximately 5mm. from the floor and make sure that the machine
position is level.
Move the machine to the
1
installation position.
To ensure the safe operation of the
product, provide sufficient space
by adequately keeping the product
away from wall surfaces and other
cabinets.
Insert the CAUTION MAT
2
underneath the Chassis.
ADJUSTER
Lower the Adjusters for both sides
3
CASTER
of the Tower to the CAUTION
MAT marks. By using a wrench,
make adjustments in the height of
FIG. 6. 3 a BOTTOM VIEW
adjusters to ensure that the
machine's position is level.
ADJUSTER
CASTER
FASTEN UPWARD.
Approx.5mm
FIG. 6. 3 b ADJUSTER
FIG. 6. 3 c
Refer to this Fig. (Scale:1/100)
for the layout of the place of
installation.
2345678901234567890123456789012123456
2345678901234567890123456789012123456
FIG. 6. 3 d
Be sure to provide space as shown between
the Air Vent and the wall surface.
23
ADJUSTER
10cm
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
