Page 1
SM-400MC User’s Manual
Outdoor/Indoor Wired Dome Camera
with Night Vision
Page 2
© Copyright 2013
This manual is furnished under license and may be used or copied only in
accordance with the terms of such license. Except as permitted by such license,
no part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or any means, electronic, mechanical, recording, or
otherwise, including translation to another language or format, without the
prior written permission of SecurityMan. The content of this manual is furnished
for informational use only, is subject to change without notice, and should not
be construed as a commitment by SecurityMan. SecurityMan Inc assumes no
responsibility or liability for any errors or inaccuracies that may appear in this book.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device should not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Warranty
SecurityMan Inc warrants that this product will be free from defects in title,
materials and manufacturing workmanship for one year or otherwise specified
on the product packaging. This limited warranty shall commence from the date
of purchase. SecurityMan products warranty is not transferable and is limited
to the original purchaser. If the product is found to be defective then, as your
sole remedy and as the manufacturer’s only obligation, SecurityMan will repair
or replace the product. This warranty shall not apply to products that have been
subjected to abuse, misuse, abnormal electrical or environmental conditions, normal
wear and tear, or any condition other than what can be considered normal use.
Page 3
Warranty Disclaimers
SecurityMan Inc, makes no other warranties, express, implied or otherwise,
regarding this product, and specifically disclaims any warranty for merchantability
or fitness for a particular purpose. The exclusion of implied warranties is not
permitted in some states and the exclusions specified herein may not apply to you.
This warranty provides you with specific legal rights. There may be other rights
that you have which vary from state to state.
Limitation of Liability
The liability of SecurityMan Inc, arising from this warranty and sale shall be limited
to a refund of the purchase price. In no event shall SecurityMan be liable for costs
of procurement of substitute products or services, or for any lost profits, or for any
consequential, incidental, direct or indirect damages, however caused and on any
theory of liability, arising from this warranty and sale. These limitations shall apply
not withstanding any failure of essential purpose of any limited remedy.
For Tech Support Call: 888-977-3777
SecurityMan
4601 E. Airport Drive
Ontario, CA, 91761, USA
Tel: 909-230-6668
Fax: 909-230-6889
Email: [email protected]
Website: www.securitymaninc.com
Copyright 2013 by SecurityMan v1.0
Page 4
Table of Contents
Introduction
Package Contents
Features
Camera Installation
Wiring Setup
Night Vision
Specifications
1
1
2
2
4
5
6
Page 5
1
Introduction
Thank you for purchasing the SM-400MC wired camera kit. The
SecurityMan SM-400MC is an outdoor/indoor dome color camera
with night vision. It is designed as a professional security camera for
deterring unwanted intruders. Its robust stylistic design makes this
a weather-proof camera, night vision up to 35ft of distance in total
darkness providing your home or business with the ultimate protection.
Best of all, this camera can be mixed in with the SecurityMan SM-2100
dummy camera to increase security presence anywhere with just a
fraction of the cost.
Package Contents
1 x AC Adapter
(DC 12V/500mA)
3 x Dry Wall Screws
1 x SM-400MC
1 x 100ft BNC VP
(video/power) cable
User’s Manual2 x Warning stickers
Page 6
(a)
(b)
2
Features
• Do-it-yourself (D.I.Y.) easy to setup wired camera kit
• Robust, weather-proof color dome camera, good for
both outdoor and indoor
• Conveys strong security presence due to its stylistic
dome design
• Built-in IR LEDs for night vision up to 35ft (B/W)
• Ceiling or wall mountable
• Adjustable camera body
Camera Installation
1. Choose whether to mount the camera on the ceiling shown in
figure (a) or wall-mount shown in figure (b)
2. Secure the mounting bracket with the 3 screws provided.
Page 7

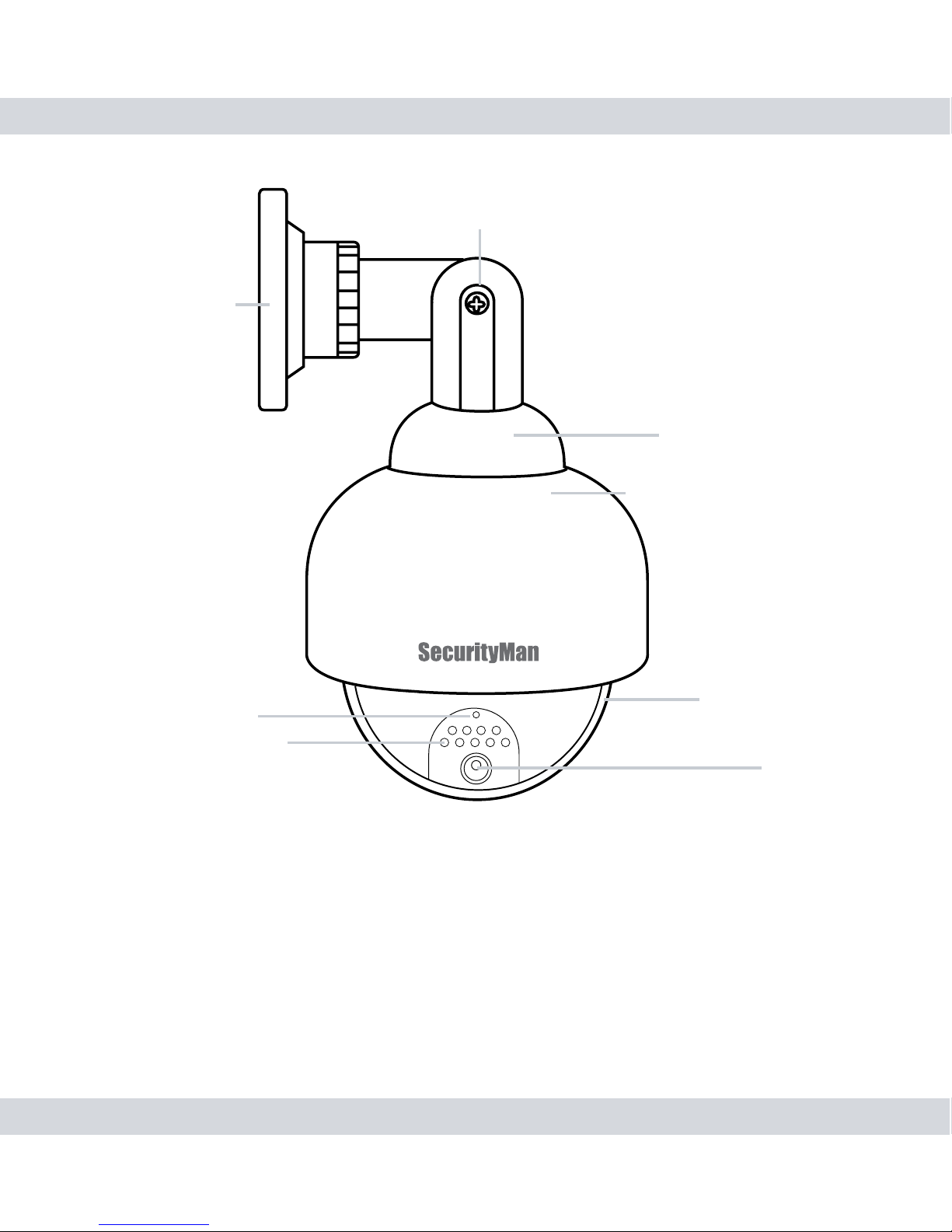

(c)
Mounting Base
Adjustment Point (UP/Down)
Pan Adjustment Point
(Left/Right)
Dome Camera Casing
Camera Cover
Night Vision LEDs
Light Sensor
Camera
3
3. Adjust the cameras vertical angle by loosening the Adjustment Point
screw for Up/Down rotation as shown in figure (c).
4. Finally, adjust the horizontal angle or Pan Adjustment Point by
turning the dome Left or Right, see figure (c).
Page 8

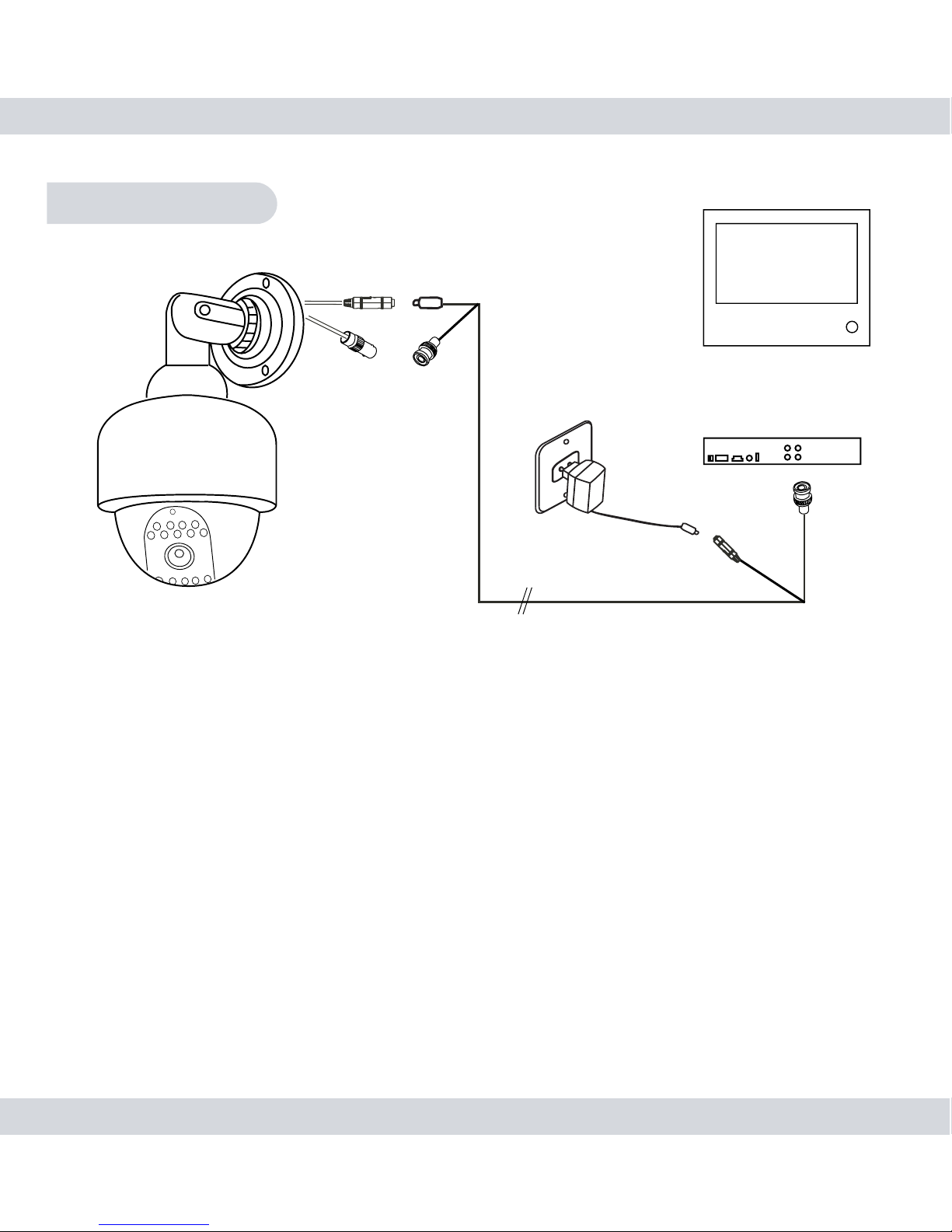

(d)
SM-400MC
DVR UNIT
MONITOR
100ft VP Cable
OR
4
Wiring Setup
1. Power connection: connect one end of the 100ft VP (video/power)
receptacle to the camera’s power input socket, connect the A/C
adapter (12VDC, 500mA) to the other end of the 100ft VP cable. Then
connect the power adapter to an electrical power outlet as illustrated
in figure (d).
2. Video connection: connect one end of the 100ft VP cable to the
camera’s BNC video input of the camera and the other end to an open
BNC port of a DVR or monitor. Attach a BNC-to-RCA converter
(converter not included) to the end of the BNC cable if the camera is
connected to a TV that is not equipped with BNC connections, and
plug the RCA connection into the TV’s video IN port.
NOTE: If connected to a TV/monitor change the TV/monitor auxiliary to
the right video input mode, ie. VIDEO1, VIDEO2, INPUT1, INPUT2, LINE1,
LINE2, etc.
Page 9

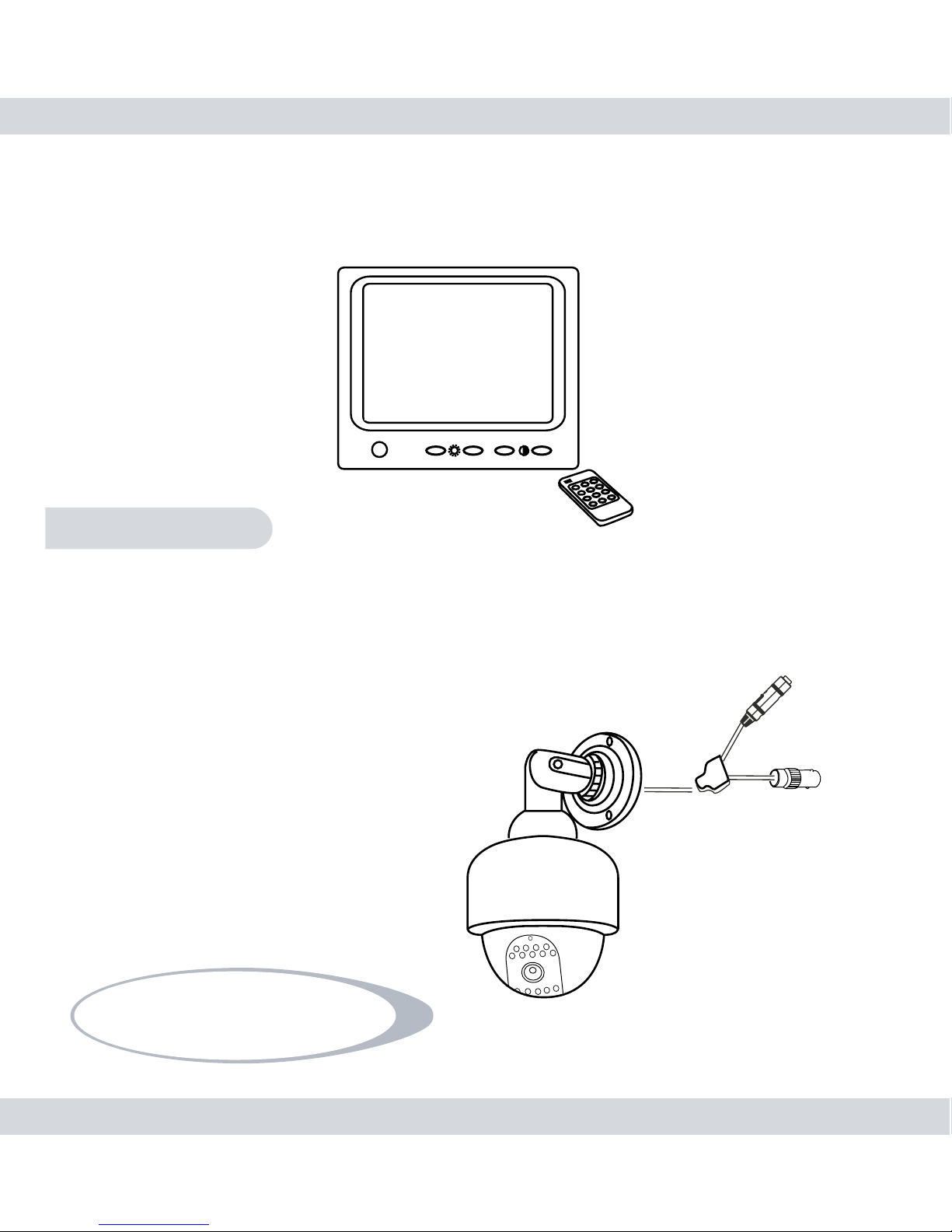

Up to 35ft of night vision
Infrared LEDs
5
3. Adjust brightness, contrast, hue, saturation, and color of the
TV/monitor to perfection.
Night Vision
The built-in infrared LEDs provide up to 35ft of night vision for 24-hour
surveillance. The IR LEDs are automatically activated when the amount
of light is not adequate to capture a good image. While in night vision
mode the picture will become black and white or monochrome.
Page 10
6
Specifications
Image sensor
Horizontal resolution
Effective pixels
Weather-proof
Backlight
Focal length
Viewing angle
Number of IR LEDs
IR range
Min. illumination
Video output
Microphone
Signal/Noise ratio
Operating temperature
Operating humidity
Power consumption
Power supply
Dimensions (D x L)
Weight (G.W)
1/4” CMOS Color
400 TV Lines
500(H)*480(V) NTSC
IP45
Yes
6mm
35 Degree
18 LEDs
Up to 35ft
0.5lux (IR off), 0lux (IR on)
1.0Vp-p/75 Ω (composite)
No
>48dB
-10° C ~ 50°C /14°F ~ 122° F
98%, RH≤95
300mA
DC 12V/500mA (positive inside)
Camera: 5” x 6.25”
Camera and bracket: 5” x 10.5”
4.6lb
