Page 1
SecurityMan
®
Network Edition
4CH Triplex Digital Video Recorder
User's Manual
NDVR-04
SecurityMan
®
Page 2
2
© Copyright 2005
This manual is furnished under license and may be used or copied only in accordance with the terms of such license.
Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or any
means, electronic, mechanical, recording, or otherwise, including translation to another language or format, without the prior written permission of Part.
The content of this manual is furnished for informational use only, is subject to change without Notice, and should not be construed as a commitment
by SecurityMan Inc,. SecurityMan Inc,. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
Operation of this equipment in a residential area is likely to cause interference in which case the user at his or her own risk and expense will be
required to correct the interference.
Declaration of Conformity
SecurityMan declares that the DVR-04 conforms to the following standards, in accordance with the provisions of the EC Directive 89/366/EEC: EN
55022 (CISPR 22:1985), Class A.
Warranty
SecurityMan Inc,. warrants that this product will be free from defects in title, materials and manufacturing workmanship for one year from the date of
the purchase. If the product is found to be defective then, as your sole remedy and as the manufacturer ’s only obligation, SecurityMan will repair or
replace the product.
This warranty is exclusive and is limited to DVR-04. This warranty shall not apply to products that have been subjected to abuse, misuse, abnormal
electrical or environmental conditions, or any condition other than what can be considered normal use.
Warranty Disclaimers
SecurityMan Inc,. makes no other warranties, express, implied or otherwise, regarding the DVR-04, and specifically disclaims any warranty for merchantability or fitness for a particular purpose.
The exclusion of implied warranties is not permitted in some states and the exclusions specified herein may not apply to you. This warranty provides
you with specific legal rights. There may be other rights that you have which vary from state to state.
Limitation of Liability
The liability of SecurityMan Inc,. arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be
liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages,
however caused and on any theory of liability, arising from this warranty and sale. These limitations shall apply not with standing any failure of essential purpose of any limited remedy.
For Customer Service: 888-977-3777
Copyright
SecurityMan
4601 E. Airport Drive, Ontario, CA 91761, USA
Tel: 888-977-3777 Tel: 909-230-6668 Fax: 909-230-6889
Email: [email protected]
Website: http://www.securitymaninc.com
Copyright 2006 by SecurityMan v1.5F
Page 3
Contents
3
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front Panel Key Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Panel Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 DVR Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Output Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Input Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sensor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alarm Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Full Screen or Quad Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zoom Mode (Display Enlargement) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIP (Picture in Picture) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freeze Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watermark Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playback Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rec Start/Stop Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Event List Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time/Date Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 On Screen Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time/Date Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDD Format Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Sequence Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Play Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Buzzer sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Password Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
New password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Name Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRI/CON Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Boundary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Background. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Record set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .....
Sensor Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Schedule Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
7
7
7
8
8
9
9
9
9
10
10
11
11
11
12
12
12
13
13
13
14
14
14
15
15
16
16
17
17
17
18
18
18
19
19
20
21
22
Page 4
4
Contents
5 Network Viewer Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

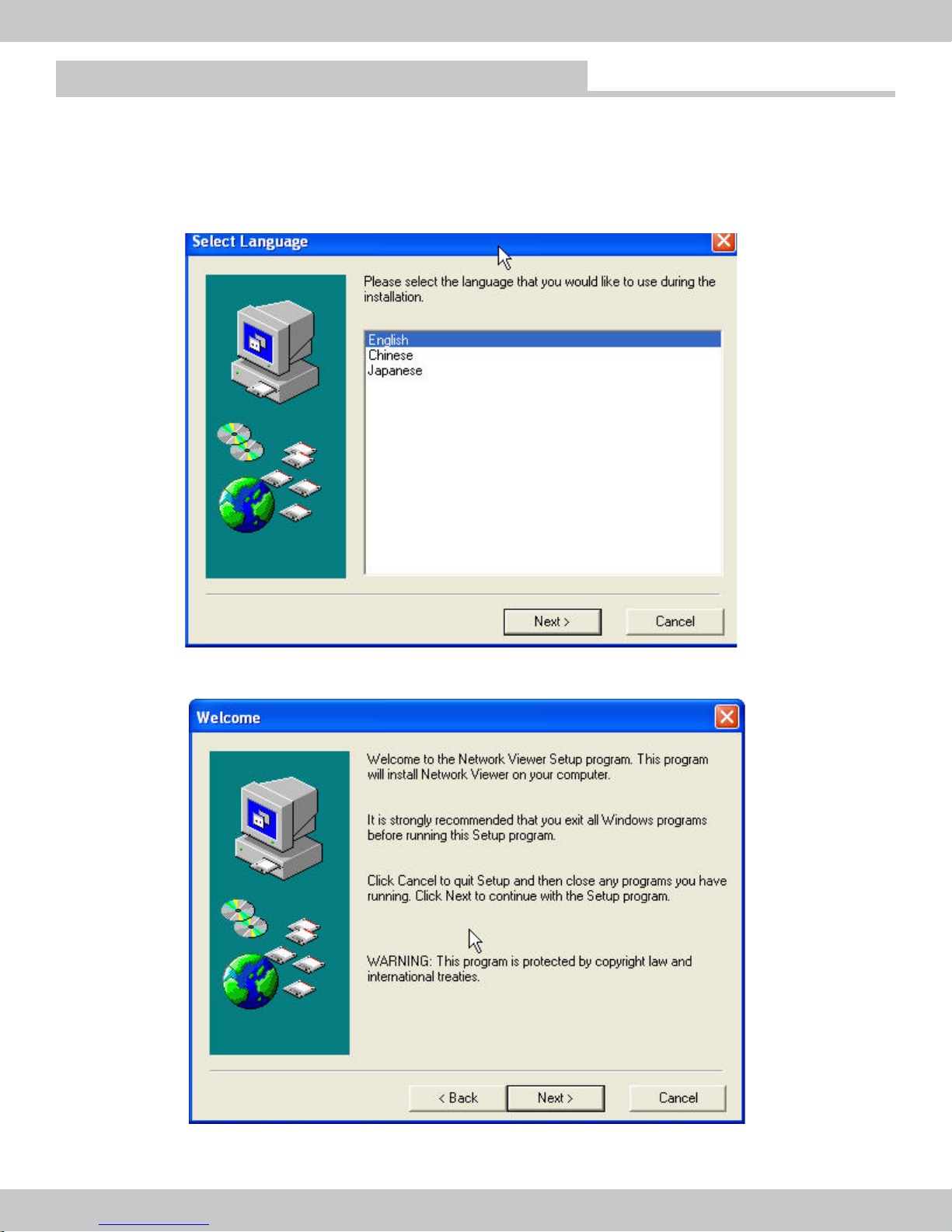

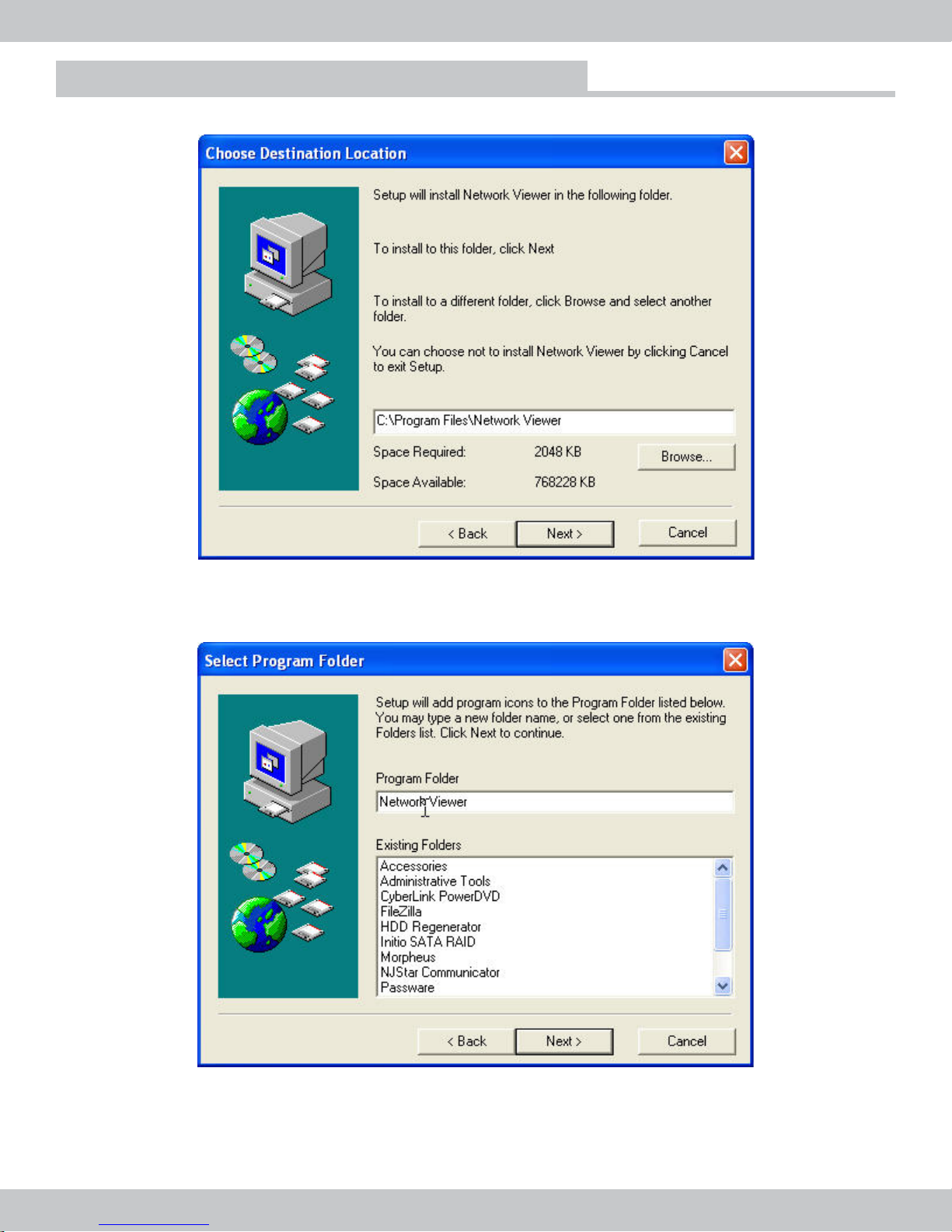

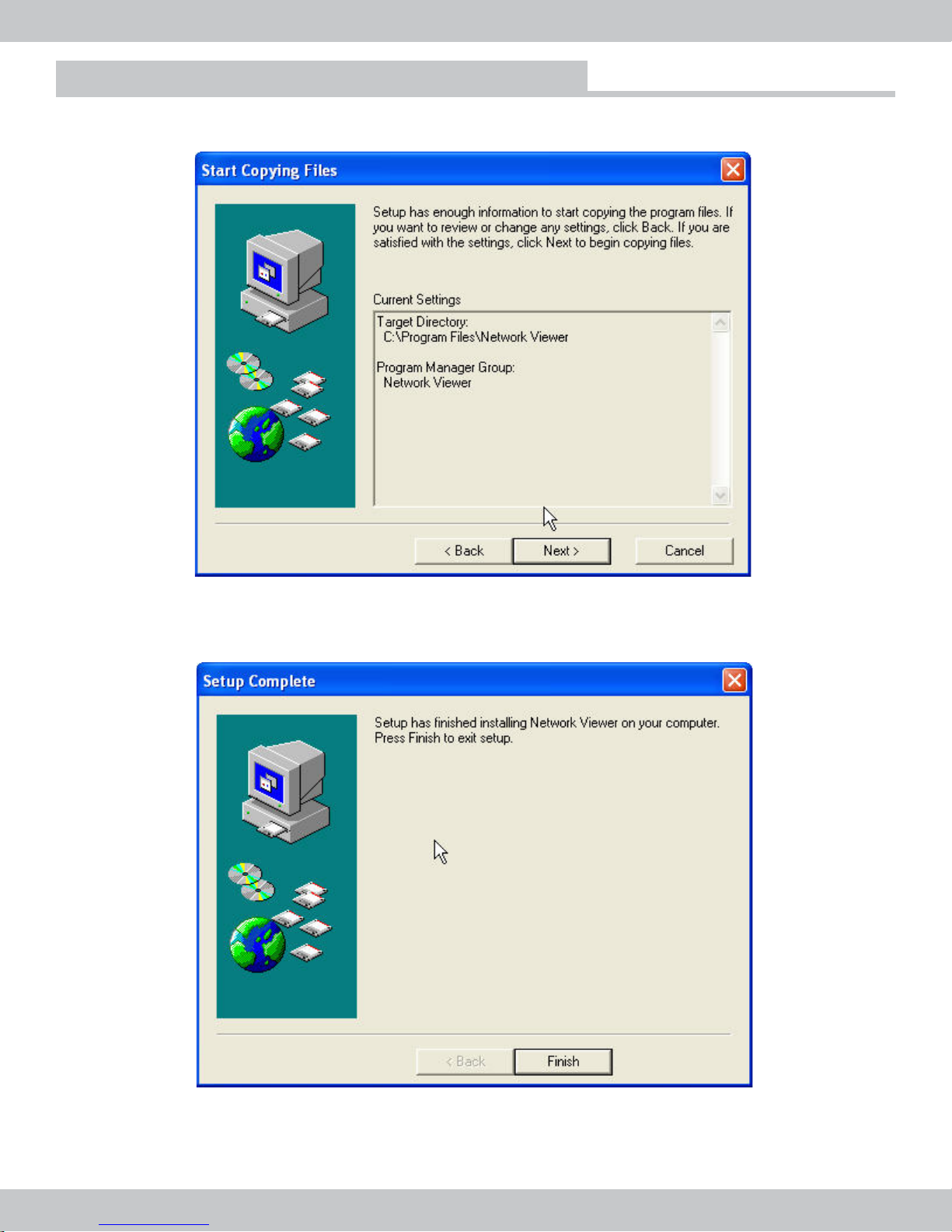

To Install Network View
e
r. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

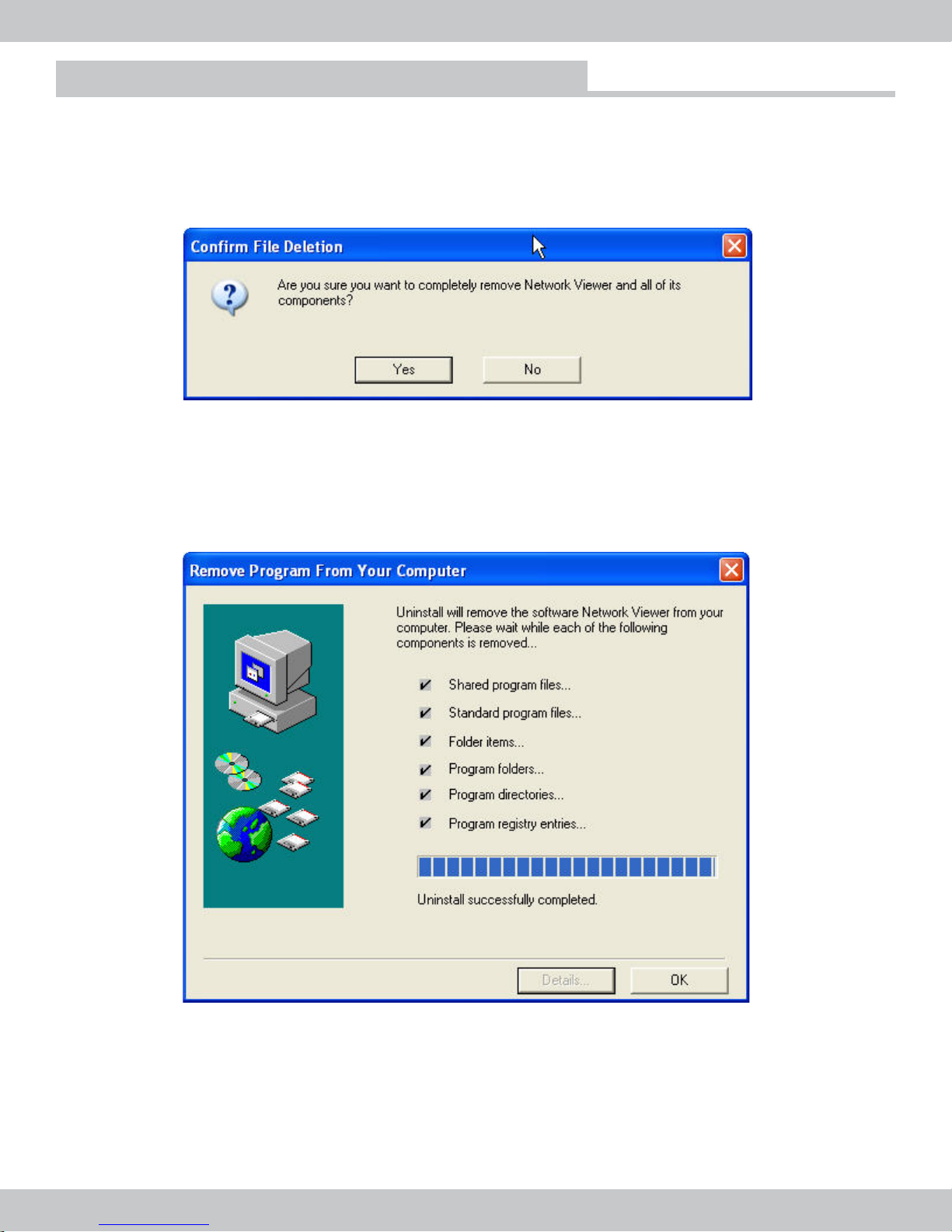

To Uninstal
l . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

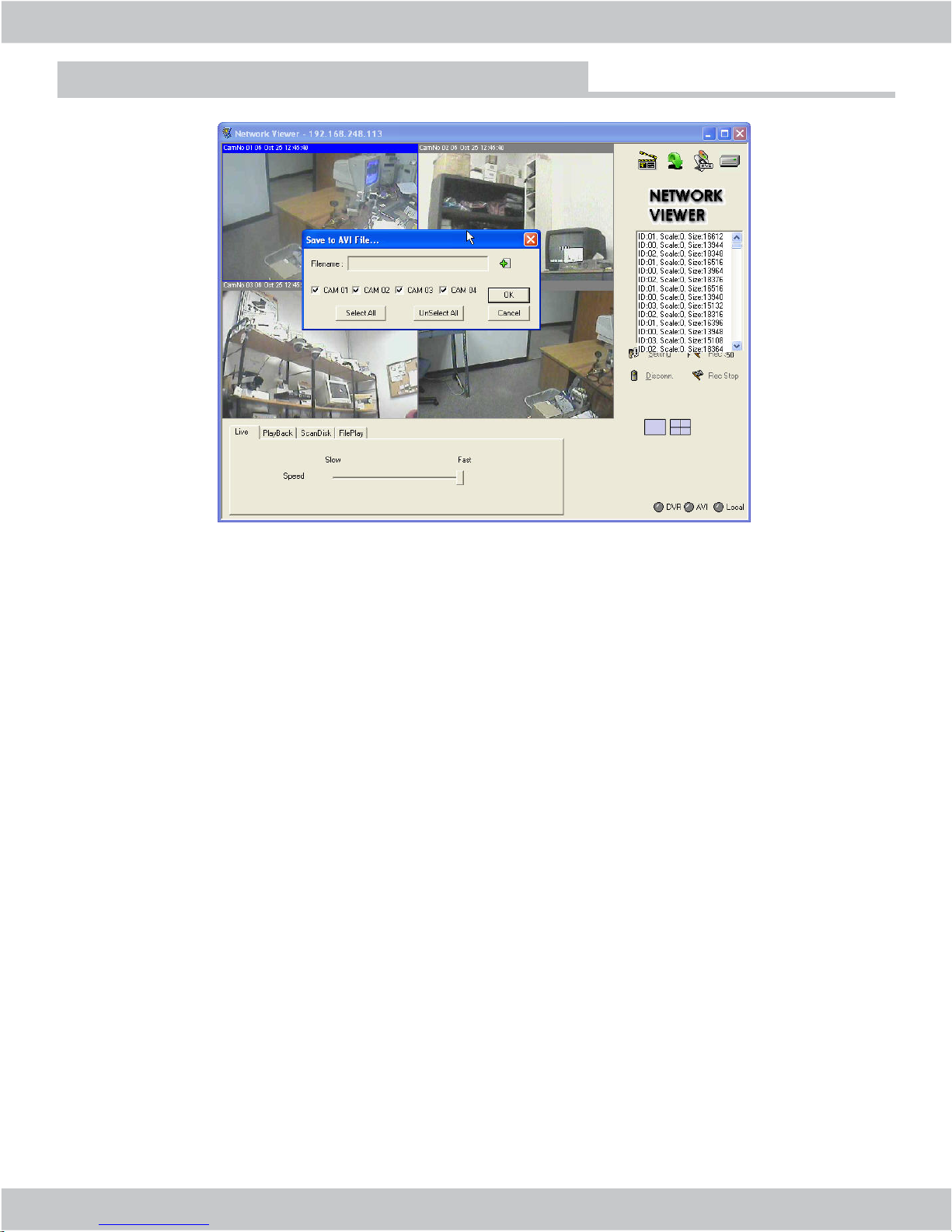

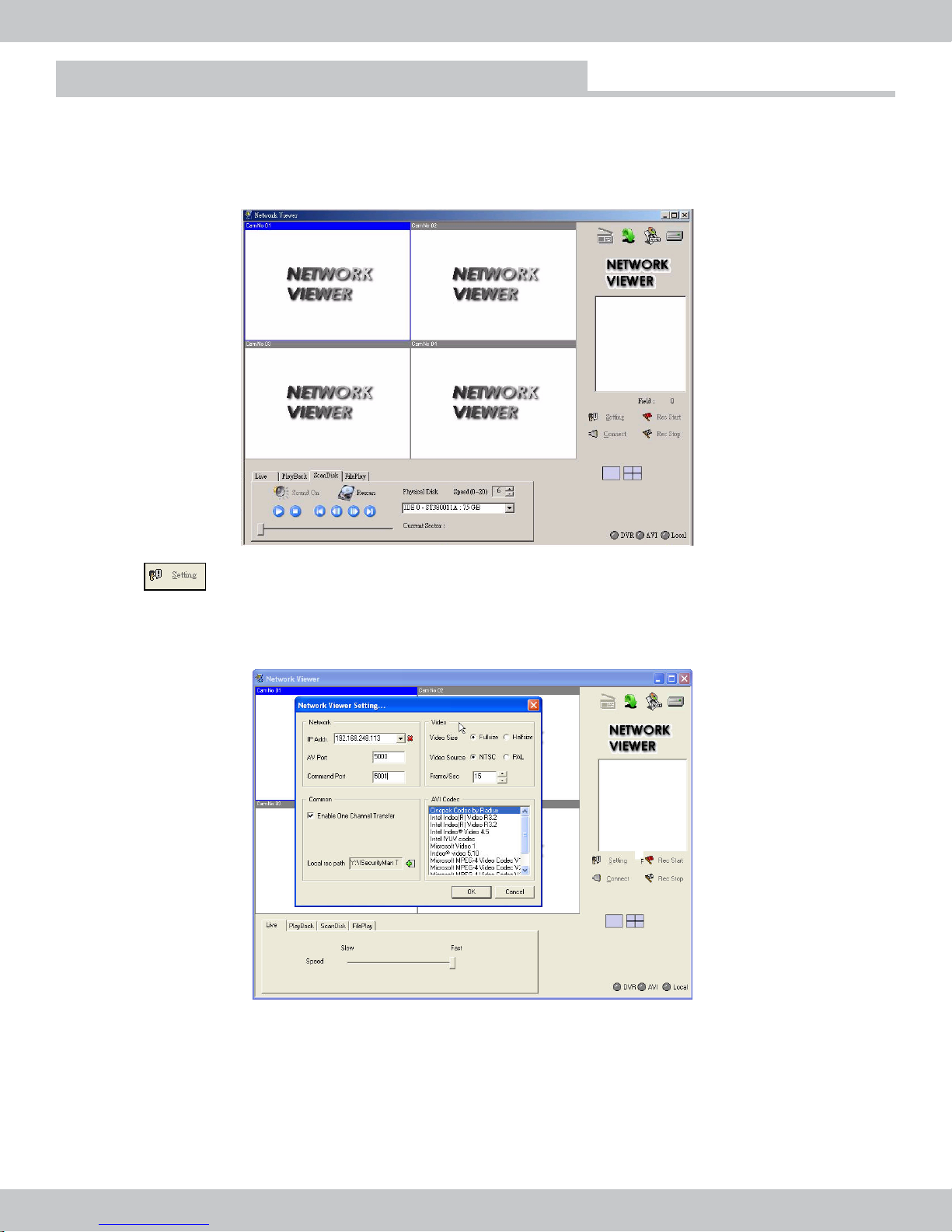

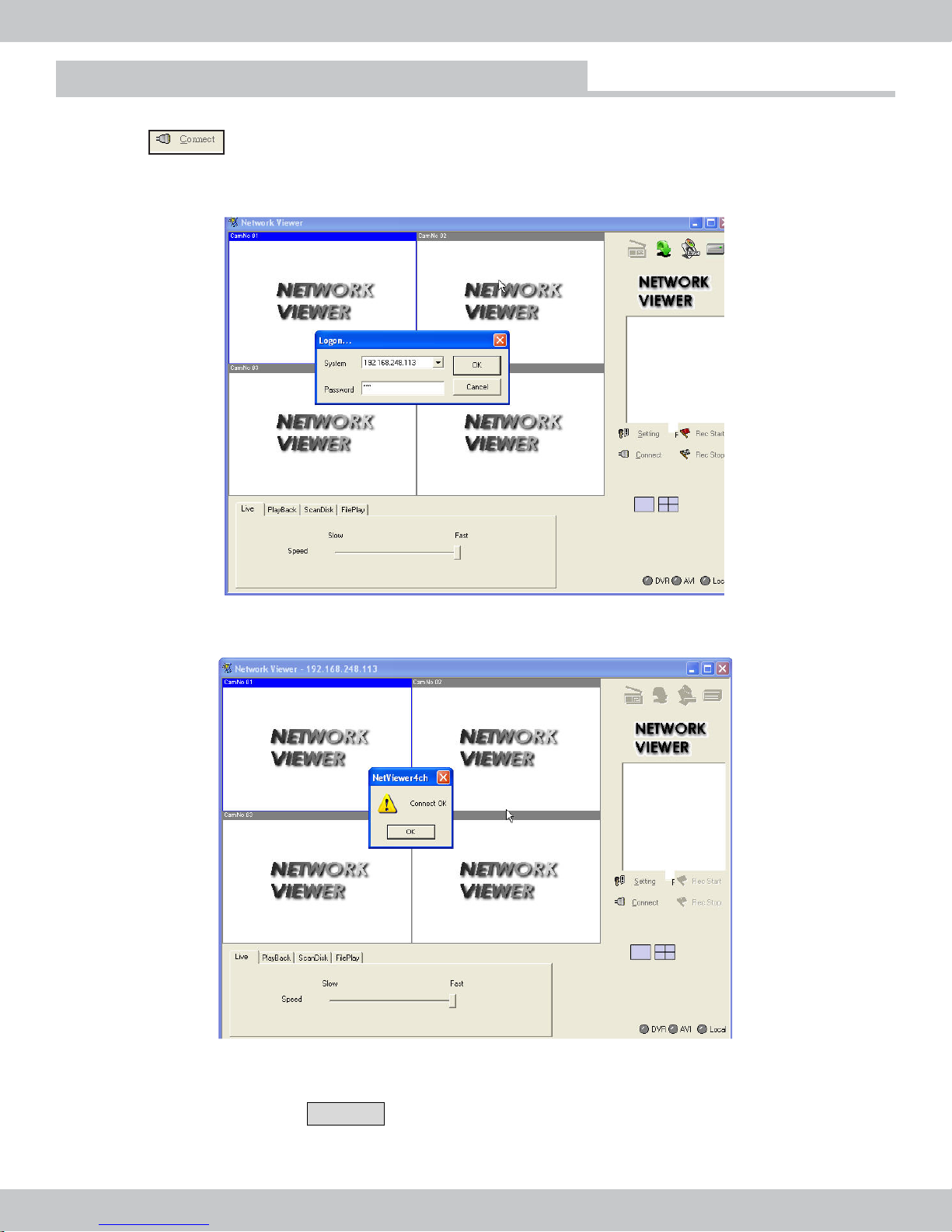

How to Use Network Viewer client softwar
e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

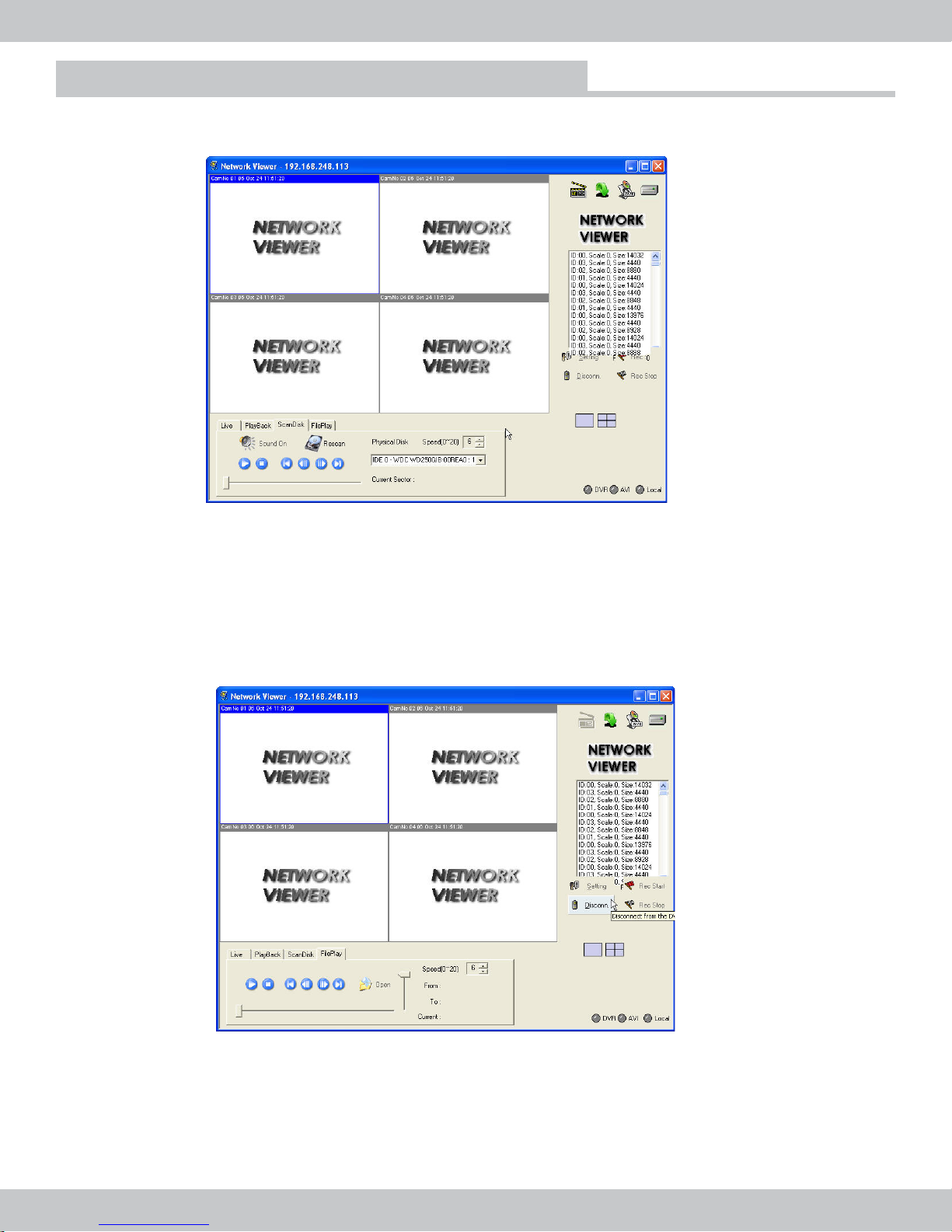

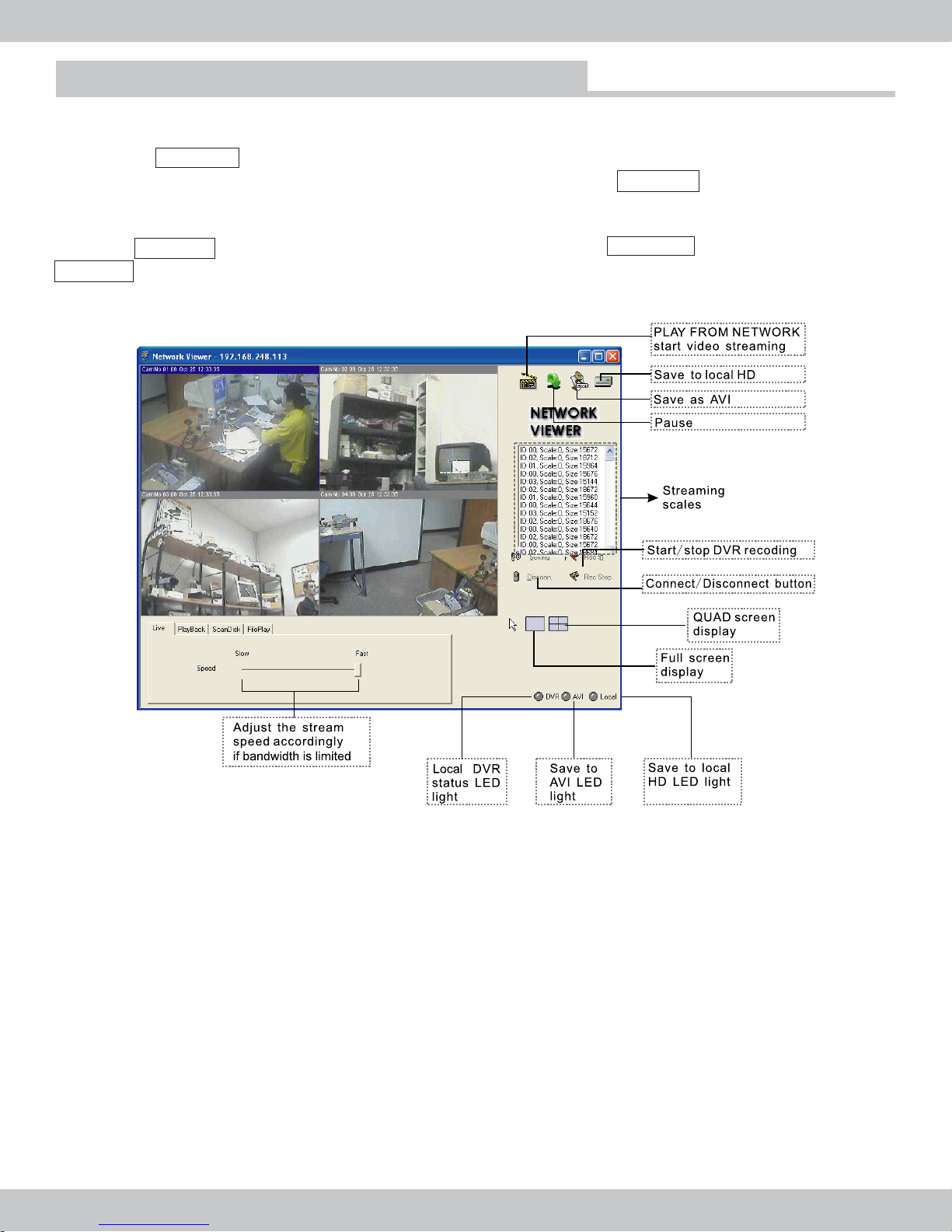

Live View
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scandi
sk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filepl
ay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Recording Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Important Messa
g
e. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording time formula. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording size per field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording time table at PAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording time table at NTSC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
32
32
31
29
27
34
33
35
33
33
33
Page 5
5

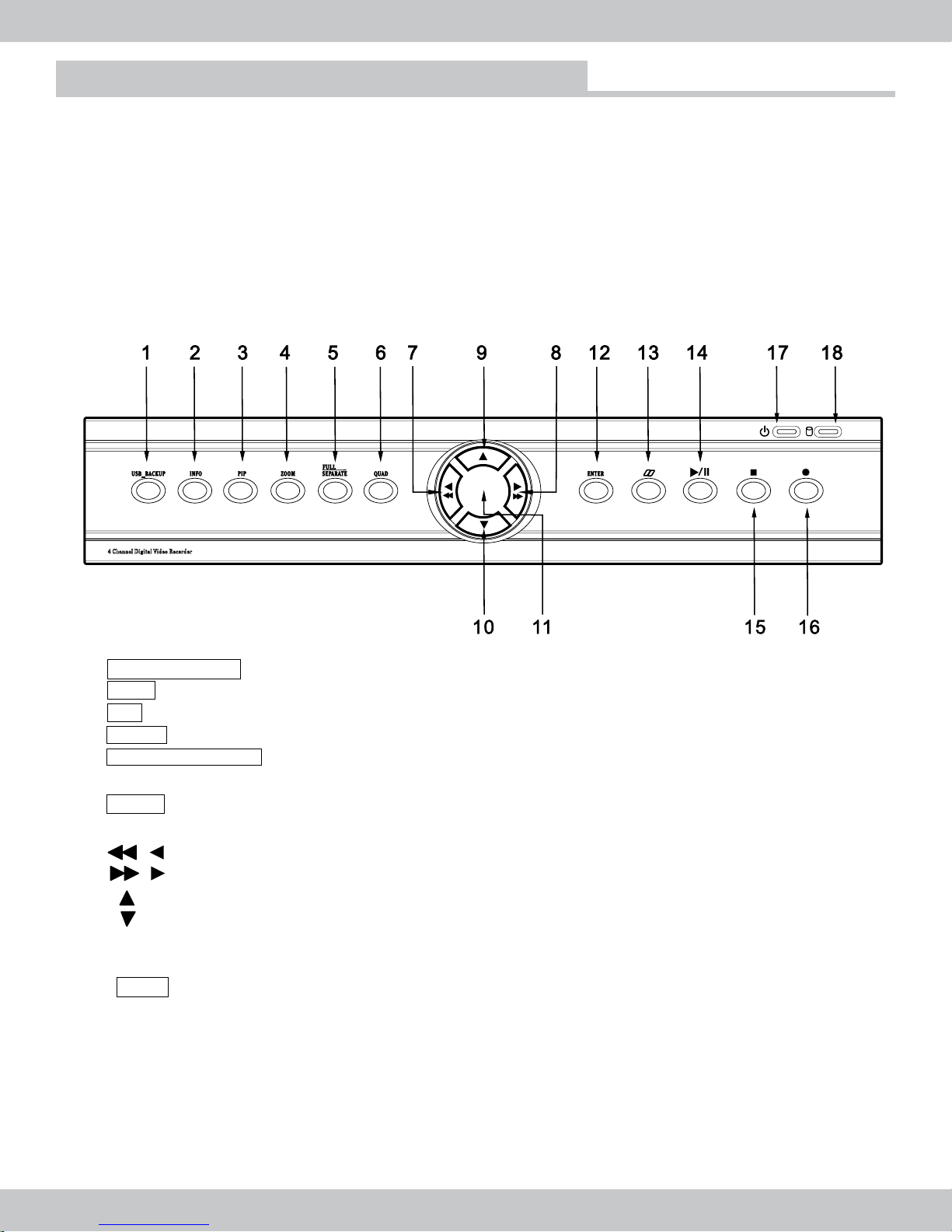

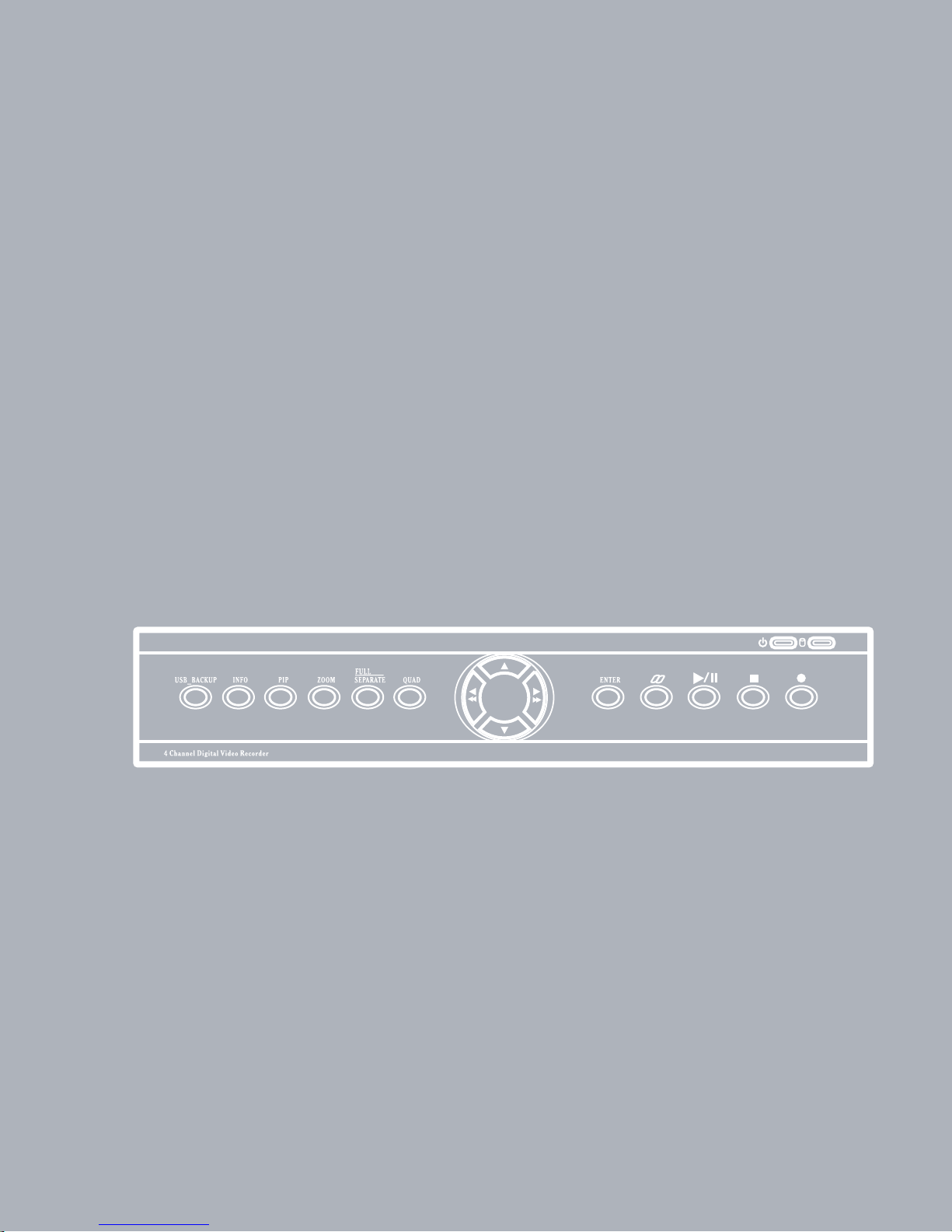

Front Panel Key Function
1) USB_ BACKUP : Backup recorded data to USB memory via USB port on the rear of the DVR.
2) INFO : Display current setting information of the DVR; HDD information, software version, etc.
3) PIP : Picture in Picture
4) ZOOM : Zoom into the current active image.
5) FULL/SEPARATE : Full screen of CH1, CH2, CH3 & CH4.
Press and hold for 3 seconds to activate 9 split screen.
6) QUAD : Display images in
Press and hold for 3 seconds to activate auto dwell between cameras.
QUAD view.
7) Rewind : Reverse playback
8) Forward: Fast Forward
9) Up: Browse up or choose between the three type of watermark during playback mode.
10) Down : Browse down
11) IR Remote Sensor
12) Enter: Select or confirm
13) Menu : Setup Mode, Menu
14) Playback/Pause
15) Stop: Stop playback.
16) Recording: Start or end recording.
17) Power on LED indicator: Solid Green
18) Recording LED indicator: Flashes Red on record.
The Digital Video Recorder (DVR) is for recording video streams up to 4 channels all at the same
time. It adopts the digital image compression technology to compress the video streams into digital
signals and uses HDD for recording. The following operation guide explains how to operate and
manage the DVR while the installation guide explains how to install the DVR and how to add HDD
into the DVR.
Hope you will enjoy it, use it to protect your home, and eventually make your home safe.
Introduction
Page 6
6

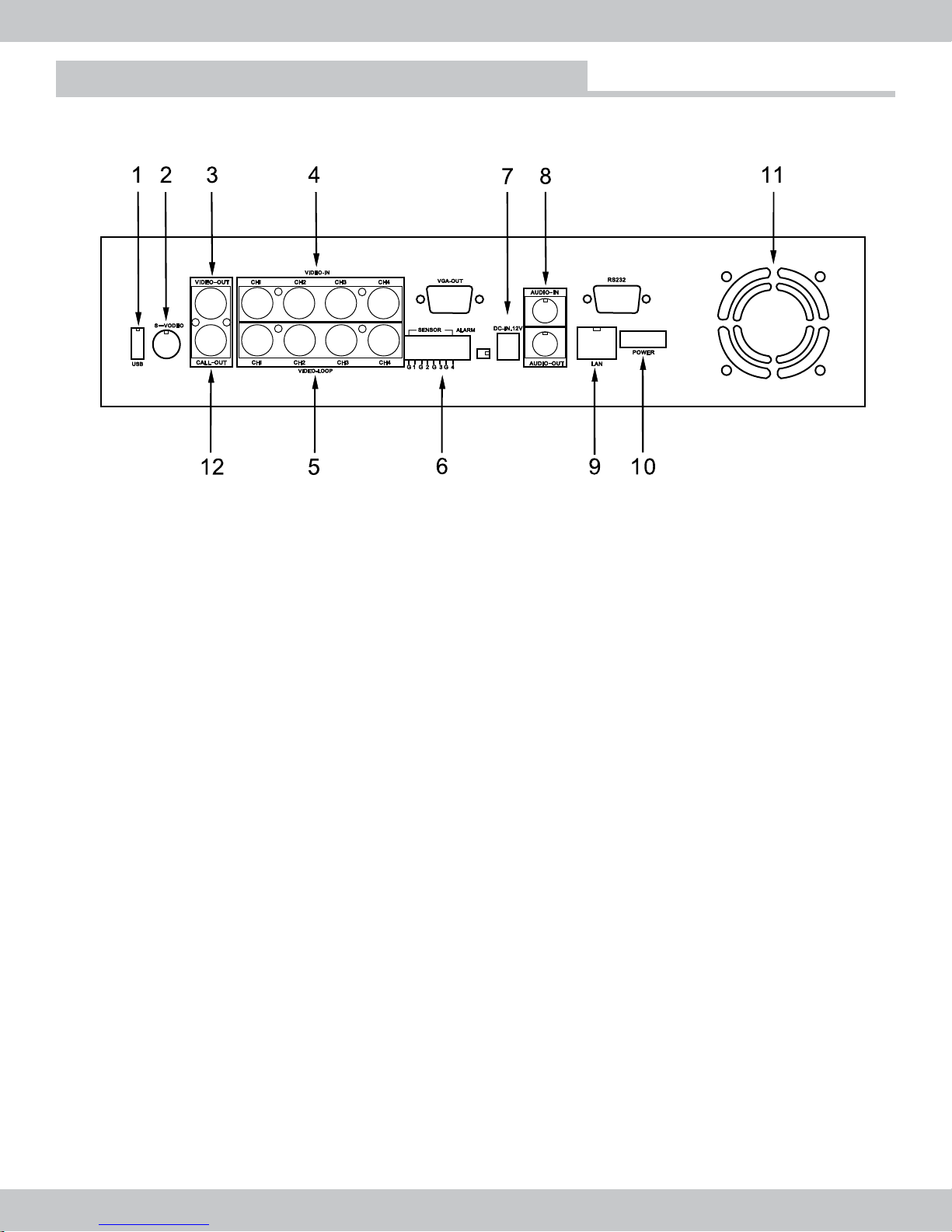

Rear Panel Function
1) USB2.0: Flash Drive
2) S-Video(Y/C) video output connector
3) VIDEO-OUT( BNC VIDEO OUTPUT CONNECTOR)
4) VIDEO-IN (BNC CAMERA INPUT)
5) VIDEO-LOOP OUTPUT (CAMERA LOOP OUT)
6) 4 sensor inputs and one alarm output
7) DC-IN 12V, 4.2A, positive inside
8) Audio channel input x 1 and audio output x 1
9) LAN network port
10) Power switch
11) NDVR FAN
12) CALL-OUT: Auto dwell video output to 2nd or son-monitor
Installation
Page 7
7
Video Output connection to TV or monitor
DVR Installation
A
t
Please connect the TV or monitor input source to the video-out located on the back of the DVR.
This unit provide an S-Video and 2BNC output connectors. Video output are used primary for
monitoring and toggle between full screen and quad screen display. The call out connector is used
for a 2nd or a son-monitor output to display full screen single channel with auto sequencing mode,

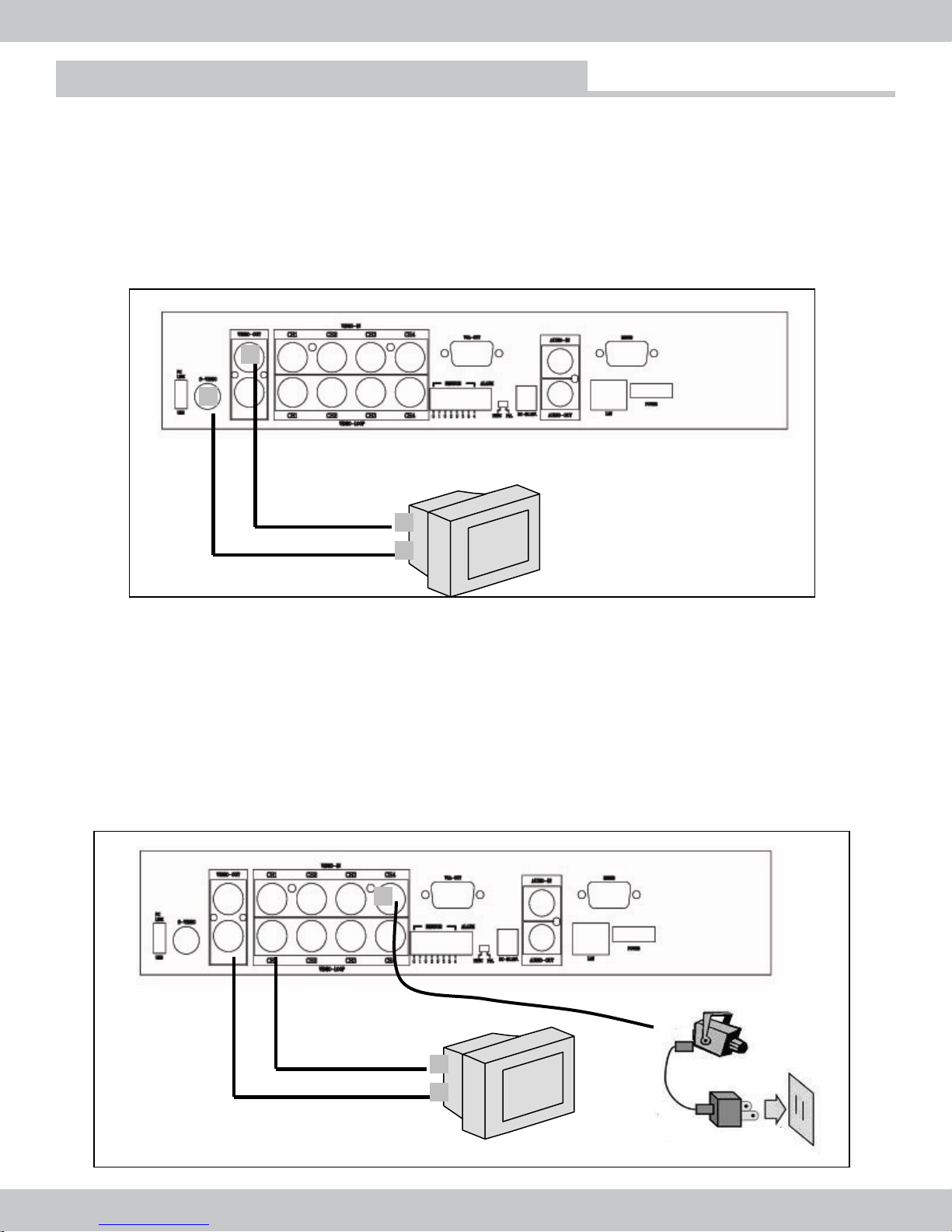

no quad view. The figure below illustrate the connection between the DVR and the monitor output.
Out to TV
S-Video out to TV
Video Input connection (Camera Input)
Please connect camera video cable to the DVR video input port. This unit provide 4 x
BNC video input connectors port. The camera installation procedures are as following:
Connecting the camera video: connect the camera video cable to the DVR's VIDEO-IN.
Connecting the camera power: connect camera’s A/C adapter to the camera, and plug the
adaptor into a power outlet. The complete connection illustration with a camera are
shown in the figure below.
Signal line
Camera
Power line
C/DC adapter
Power outle
Page 8
DVR Installation

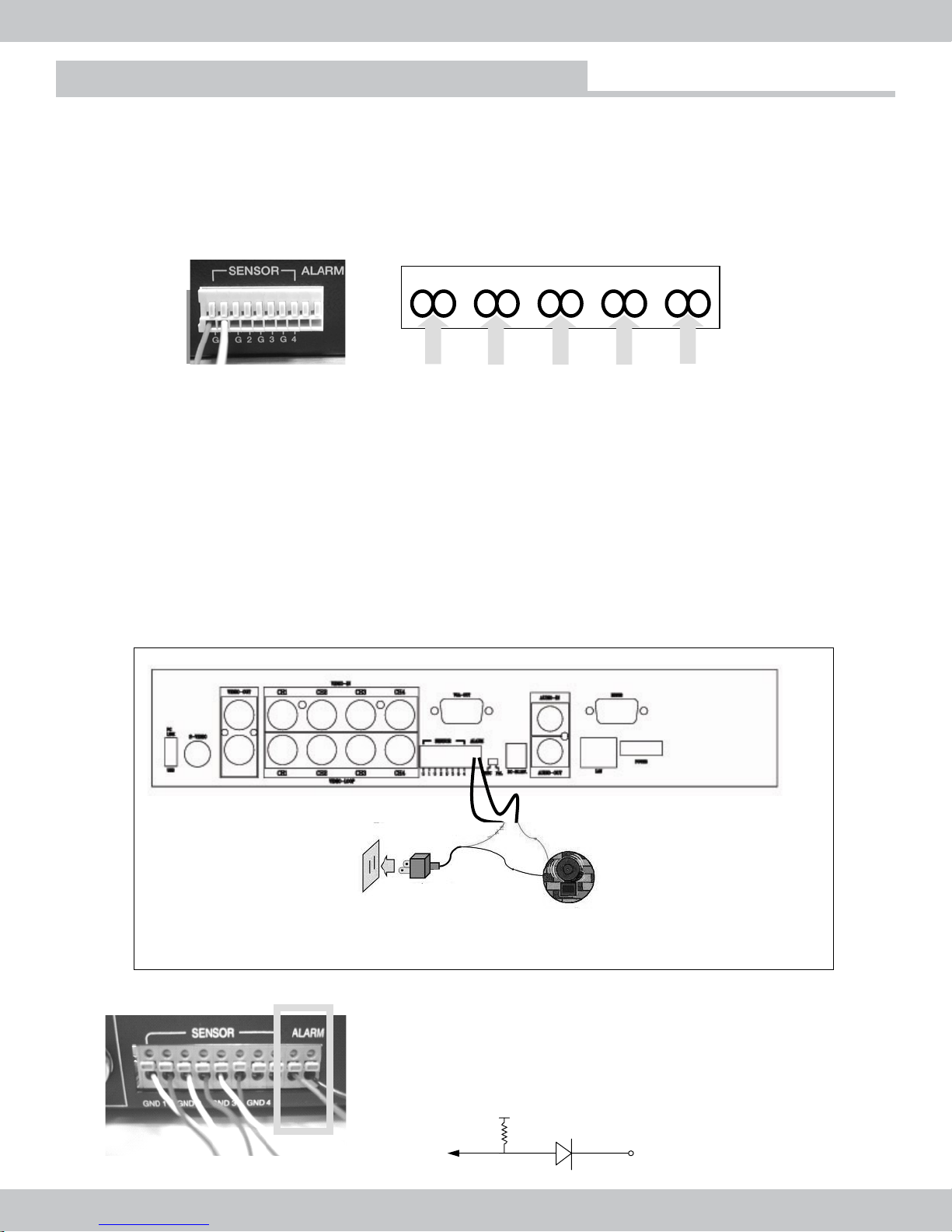

Sensor Installation
This unit contains 4 sensor inputs in which each sensor corresponds to the 4 channels. The sensor
installation procedures are as follow. There are two simple step in installing the sensors.
connecting the sensor signal line: connect the sensor signal line to DVR. The sensor signal terminal
is located on the rear panel of the DVR.
Then Connect the sensor jack to the sensor, and plug in the adaptor to an electrical outlet to power up sensor.
8
IN1
IN2
IN3
IN4
Alarm (output)
Note: Each sensor corresponds to each camera channel, for example, alarm input #1 will
correspond to channel #1 and so on.
Alarm (output) Installation
The unit provides 1 internal switch to sound the alarm when the sensor is activated. The switch is open at normal
state a wiring diagram as shown below. When the alarm is activated, the switch is closed so that the alarm gets the
power. The circuitry is shown as in the below figure. There are two simple steps to install the alarm.
a) Prepare the power supply for the alarm by connecting the power adapter from the camera to the power
outlet.
b) Connect the alarm power line to the alarm output terminal located on the back of the DVR as shown below.
Signal Line
Power
Power outlet
Alarm AC/DC adaptor
NOTICE: Sensor input is RECOGNIZED as LOW when alarm
signal is on the same level with GND, and it is recognized as
HIGH when alarm signal is Floating or 5V, following the internal
circuit. Thus, circuitry can be damaged, when the sensor input
goes to a Negative level or voltage higher than 5V.
5
V
D1
Page 9
Zoom Mode (Display Enlargement)
Operation Guide
9
Full screen or quad screen display
Press QUAD button to display quad screen. Press and hold the button for 3 seconds to enter auto
sequence display mode. To adjust the screen sequence auto dwell time between each channel,
please go to SYSTEM SETUP into AUTO SEQUENCE SET into MON SEL: DISPLAY
Press FULL/SEPARATE button to display the selected camera image in full screen, i.e. CAM 1,
CAM 2, CAM 3 or CAM 4 individually in full screen display.
Press FULL/SEPARATE button and hold for 3 seconds to display 9 split screen. The split screen
display live video images monitoring, see if the live video images are in record mode or not, and
able to view and control the history playback file. The “PB CH1~PB CH4” in the split screen below
displays the playback channels and the “CAM 1~CAM 4” show live video image display. The 9 split
screen allows viewing flexibility; ability to live monitor, show recording status and playback video
images all at the same time.
12/11
PB CH1
/2006 12:06:34MON
PB CH2
CAM 1
PB CH3 PB CH4 CAM 2
CAM 3 CAM 4
During the live view: Go to full screen mode by pressing the FULL/SEPARATE button, and then press
the STOP button. The freeze symbol F will appear on upper right corner of the screen. Then, press the
ZOOM button, the zoom symbol Z , will appear on the top right corner of the screen next to F . Now you
can use the directional buttons to locate the zoomed position up/down, or left/right. Press
ENTER at any time to enlarge the selects location and ENTER again to zoom out.
During playback mode: Go to full screen mode by pressing the FULL/SEPARATE button, then press
the STOP button, follow by the zoom button. The symbol Z will appear on top right corner. Now you
can use the directional buttons to locate the zoomed position and press ENTER to zoom in and
ENTER again to zoom out.
PIP (Picture in picture)
Press PIP to enter picture in picture mode. Figures 3.1 through 3.3 display the output screen when PIP
is pressed once, twice and third time .
Figure 3.1 Figure 3.2 Figure 3.3
Fig 3.1
Information
CAM1 CAM2
Fig 3.3
Fig 3.2 CAM1
CAM2 CAM3 CAM4 CAM2 CAM1 CAM3
Page 10
10
Information
Press INFO to get the following on screen display information; system setting, HD, firmware, etc.
USB Back-Up ( To back up data into USB Flash drive)
Note1 : Video backup can only be done during Playback mode.
Sub-Note : This button can be used to reset the DVR to manufacturer default setting. For example: if
by default the video mode is NTSC standard and PAL is accidentally selected, the video output will
roll vertically, or if password is forgotten. If in such case
s, this button can be used to default all setting
back to the original manufacture setting. To reset to manufacture default setting; power off the DVR,
press and hold the “USB BACKUP” button while tuning on the DVR power switch, continue to hold
down on the “USB_BACKUP” button for 5 seconds, after 5 seconds release the “USB_BACKUP”
button and then restart the DVR by using the power switch off and on.
a) Step One: Check available space of USB Flash Drive.
Plug a USB flash drive into the USB port on the rear panel of the DVR . Press MENU button
and choose FW UPDATE only to see the available space on the USB flash drive for backup.
Then press the MENU button to escape from FW UPDATE menu. Please note the USB flash
drive recommended use is 2GB which is the maximum capacity the DVR is capable of
detecting.
Drives that are larger than 2GB capacity can be use but, depending on the capacity size of the flash
drive the backup speed will vary during backup.
b) Step Two: Choose a video file section to save
Press PLAY/PAUSE button, and the Search Mode will appear on screen. Please select between
REC START /STOP SEARCH, EVENT LIST SEARCH, or TIME/DATA SEARCH, and press
ENTER to confirm the selection. During Playback Mode, press USB
_BACKUP button to save
the desired snapshot or video to the USB flash drive at anytime during playback. The
re are
two methods of backup: the first method is to press the USB BACKUP button once for
snapshots picture, and the second method is to press and hold the USB BACKUP button for
3 seconds for video clips backup. During these process an “S” will appear on the screen when
attempting to do snapshots backup and an “A" will appear on the screen when attempting to
do video clips backup.
Operation Guide
0000 MASTER SLAVE
HD
D MODEL: Maxtor
HD
D Capital: 40G NO DETECT
HD
D USED: 0.07%
HD
D READ: 0.07%
PB REPEAT: OFF
OVER
WRITE: ON
REC SPEED: 50 Fld/1sec
REC Letter:
HIGH
V. FORMAT: PAL
IP ADDR: 01
0 192 001 124
S/
W Ver: CR04U Vxx.xx
video USB backup can take anywhere from 3 seconds up to 45 seconds before if starts the
backup. For faster backup we recommend to use flash drives that are below 2G B in size. The larger
flash drive, the slower the backup
Note 2 :
Page 11
11
Freeze Mode
During the live camera view, press the stop button to freeze the image. The symbol F will appear
on the top right hand corner of the screen. The freeze command can be use in both single channel
view or quad channel view.
Playback Mode
Press Play/Pause button, and the SEARCH MODE will appear on screen as illustrated below.
Watermark protection feature: It is to prevent any modification of the recorded data file . If there is
modification; the watermark will not look the same. The watermark will automatically be added during
the recording stage, whether or not they are visible or invisible mark . There are 3 types of watermarks
to choose from as preferred below.
During playback mode, press the UP button once to activate the invisible watermark. Press the UP
button twice to activate the visible watermark; the visible watermark symbols will appear on the screen
as WTNMK as shown in the middle figure below. Finally by pressing the UP button third time to
activate the watermark as shown in last figure below. Most commonly used watermark is visible WTNMK.
Press the UP/DOWN button to browse and select one of the 3 search methods to playback recorded
video files.
Operation Guide
Watermark Mode
Invisible WTNMK Visible WTNMK WTNMK
W T
N
M K
W T
N
M K
SEARCH MODE
OP SEARCH
EV
ENT LIST SEARCH
-----------------------------------------------------------EN
TER SET ↑↓← → EXIT
◎ REC START / ST
□
□ TIME / DATE SEARCH
-
Page 12
12
EVENT LIST SEARCH:
Select EVENT LIST SEARCH to search for Alarm event, motion event, schedule event,
and network event (recorded over network client
software, Netviewer).
EVENT LIST can display up to 10 event files to a page and there are 100 pages which
total up to 1000 event lists.
START TIME: MM / DD / YYYY HH: MM: SS (Event start time)
EVENT: includes Alarm / Motion / Schedule / Network.
CH: CH 1, CH 2, CH 3, CH 4 (Event channel occurr
ing channel(s))
Press the UP/DOWN directional buttons to select a file and press ENTER to confirm the
selection.
START TIME: MM / DD / YYYY HH: MM (start of recorded file)
END TIME: MM / DD / YYYY HH: MM (End of recorded file)
The DVR can store up to 10 files to a page and 100 pages maximum. The total files listing
up to
and date.
1000. The START/STOP listing delete the rectangular box. are arranged in order by time
Press the directional button UP/DOWN to select a file and press [ENTER] to confirm the
selection and start the playback.
Operation Guide
RECORD SEARCH MASTER PAGE:0001/9999
4/06/2006 14:43 04/26/2006 14:46
----------------------------------------------------------EN
TER SET ↑↓← → EXIT
START TIME END TIME
0
05/06/2006
03:10 05/06/2006 03:45
05/06/2006
10:05 05/06/2006 10:23
--
EVENT SEARCH MASTER
PAGE:0001/9999
START
9/21/2005
13:02:18 MOTION 3+4
TIM
E EVENT CH
0
09/21/2005
12:59:42 NETWORK
09/21/2005
12:45:53 ALARM
CH1
TIME / DATE SEARCH:
TIME SEARCH HDD: MAS
START: 10 / 04 / 2005 12 : 37
TER
END: 10 / 13 /
2005 18 : 22
U1U U0U
/ U1
U U3U
/ U2
U U0U U0U U5U U1U U7U
: U2
U U2U
REC START/STOP SEARCH(Search by Start/Stop Time recording):
Page 13
On Screen Display Functions
□
[
]
↑↓
13
Select TIME/DATE SEARCH to search for specific time/date by inputting the
MM/YYYY HH: MM into the search, the search engine will start to search for the specified
time and date.
START: MM / DD / YYYY HH: MM (start/earliest date/time that exists in the hard drive)
:
END: MM / DD / YYYY HH: MM (End/last date/time that exist in the hard drive)
M M / D D / Y Y Y Y H H : M M (this date/time area is adjustable for search). Press the Forward/
Reverse button to select column digits and press UP/DOWN to change the value. Press
the ENTER button to start playback.
NOTE: Playback speed can be change with the Forward/Reverse button. The speed
can be of x1, x2, x4, x8, x16 times for rewind and x1, x2, x4, x8, x16, x32 times for fast
forward.
Basic Operation
Press the MENU button to enter the SETUP MODE, a variety of menu entities will appear as shown below:
SETUP MODE
◎ SYSTEM SET [ ]
O SET [ ]
□ VIDE
□ RECORD SET [
□ NETWORK S ]
□ SENSOR SET [ ]
□ BACKUP SET [
SCHEDULE SET
]
ET [
]
Press the UP/DOWN buttons to highlight selection and press ENTER to confimr selection and the
sub-menu will appear. Press the MENU button to return to the previous screen or to exit from
the setup mode.
SYSTEM SET
Press the MENU button to enter SETUP MODE. Choose SYSTEM SET and press ENTER to
access the sub-menu display as illustrated below.
SETUP MODE
◎ SYSTEM SET [ ]
□ VIDEO SET [
□ RECORD SET [ ]
□ NETWORK S ]
□ SENSOR SET [ ]
□ BACKUP SET [
□ SCHEDULE SET [
----------------------------- ---ENTER SET↑↓← → EXIT
]
ET [
]
--- -------------------------
]
SYSTEM SETUP
◎ TIME/DATE SET [ ]
□ HDD FORMAT SET [
□ AUTO SEQUENCE SET [ ]
□ FACTORY RES ]
□ PLAY REPEAT: NO
□ VIDEO SOURCE: PAL
□ BUZZER SOUND: ON
□ PASSWORD ENA: OFF
□ NEW PASSWORD: 0000
----------------------------------
ET [
ENTER SET
]
---------------------------
← → EXIT
Page 14
TIME/DATE SET
14
On Screen Display Functions
In the SYSTEM SETUP menu, select TIME/DATE SET and press [ENTER]. Press the UP/DOWN buttons
to change the value. Press the FORWARD /REVERSE to select number category. Press MENU/ESC to
return to SYSTEM setup.
TIME/DATE SET
DATE: 0
4 / 2 6 / 2 0 0 6
TIME: 1 5 : 4 3 : 5 1
DAY: TUE
FORMAT: MM / DD / YYYY(3 choice)
DISPLAY: ON/OFF
LOCAL: TOP/ BUT
-----------------------------
ENTER SET ↑↓← → EXIT
-----------------------------------
There are three TIME/DATE format display setting to choose from. TIME/DATE display setting can be
turn on or off or set to display at the top or at the bottom of the on screen display.
HDD FORMAT SET
In the SYSTEM SETUP menu, select HDD FORMAT SET and press ENTER. The warning screen
below will appear. Choose YES or NO by pressing the FORMARD/REUERSE buttons then press
ENTER to accept. Press MENU/ESC to return to the SYSTEM SETUP menu .
HDD FORM
-------------------------- --------------------------------------
AT SET
Attention
Do y
ou want to erase the HDD?
Yes
NO
ENTER SET ↑↓← → EXIT
AUTO SEQUENCE SET
In the SYSTEM SETUP menu, select AUTO SEQUENCE SET and press ENTER. Press the
directional buttons UP/DOWN to select the camera channel and the FORWARD/REVERSE buttons to
change the sequential dwell time for each channel display. Press MENU/ESC to return to SYSTEM SETUP
AUTO SEQ
MON SEL:
- CH1 : 01
- CH2 : 01 SEC
- CH3 : 01 SEC
- CH4 : 01 SEC
-------------------------------
MON SEL: CALL is auto sequence dwell time setting used for 2nd or Son-monitor output.
UENCE SET
DISPLAY
SEC
R SET ↑↓← → EXIT
ENTE
---------------------------------
Page 15
15
FACTORY RESET
On Screen Display Functions
In the SYSTEM SETUP menu, select FACTORY RESET and press ENTER. A warning screen will
appear as shown below. Select YES or NO by pressing the FORWARD/REVERSE buttons then press
ENTER to confirm selection. Press the MENU/ESC to return to the SYSTEM SETUP menu page.
In the SYSTEM SETUP menu, select VIDEO SOURCE. Use the directional buttons FORWARD/
REVERSE toggle between NTSC or PAL video format and press MENU/ESC to return to the SETUP
MODE or press the UP/DOWN directional buttons to browse to the next system setup.
Warning: Before switching from NTSC to PAL, please make sure that you are living outside of:
In the SYSTEM SETUP menu, select PLAY REPEAT. Then press the Forward/Reve
rse buttons to
select between YES or NO. Press MENU/ESC to return to the SETUP MODE menu or press UP/DOWN
directional buttons to browse to the system setup. Repeat play can be used to play cycle playback file.
FACTORY R
D
Yes
ESET
Attention
o you want to initialize?
NO
-------------------------- -------------------------------------EN
TER SET ↑↓← → EXIT
PLAY REPEAT
15
SYSTEM SETUP
◎ TIME/DATE SET [ ]
◎ HDD FORMAT SET [ ]
◎ AUTO SEQUENCE SET [ ]
ET [
◎ FACTORY RES ]
◎ PLAY REPEAT: NO
---------------------------
◎ VIDEO SOURCE: PAL
◎ BUZZER SOUND: ON
◎ PASSWORD ENA: OFF
◎ NEW PASSWORD: 0000
---------------------------------EN
TER SET
↑↓← → EXIT
VIDEO SOURCE
United states of america, alaska, american samoa, antigua, antilles (dutch), aruba, bahamas, barbados, barbuda, belize, bermuda, bolivia(ntsc m n), british virgin islands, burma, canada, caymen
islands(pal / ntsc), chile (ntsc-m), columbia, costa rica cuba, curacao, diego garcia, dominica, dominican republic, ecuador, el salvador, galapagos island, greenland(ntsc / pal), grenada, guam, guate
mala, guyana (republic), haiti, hawaii, honduras, jamaica, japan, johnston islands, korea south,
leeward islands, mariana islands, marshall islands, mexico, micronesia, midway islands, montserrat,
myanmar, nicaragua, okinawa, palau, panama, peru, philippines, puerto rico, samoa, st kitts and
nevis, st lucia, st vincent, surinam, taiwan, trinidad & tobago, veneauela, vietnam(ntsc / secam(v)),
and virgin islands.
Page 16
16
In the SYSTEM SETUP menu, select BUZZER SOUND. Press FORWARD /REVERSE button to
change the buzzer sound ON or OFF. Press MENU/ESC to return to SETUP MODE.
If the video standard setting is not set up correctly, resetting the DVR is required to default back to
NTSC standard. To default: turn off the DVR, press and hold the USB_BACKUP button located in the
front panel of the DVR. While pressing and holding down the USB_BACKUP button, turn the power of
the DVR on. Kept holding the USB_BACKUP button for 5 seconds and then release it. After the release
of the USB_BACKUP button, restart the DVR using the power switch located one the rear of the DVR.
On Screen Display Functions
BUZZER SOUND
S◎YSTEM SETUP
TIME/DATE SET [ ]
HDD FORM
AT SET [◎ ]
AUTO SEQUENCE SET
◎ [ ]
◎ FACTORY RESET [
]
NO
E
◎ PLAY REPEAT:
◎ VIDEO SOURC
: PAL
◎ BUZZER SOUND: NO
F
---------------
◎ PASSWORD ENA: OF
◎ NEW PASSWORD: 0000
--------------------------------------- ----
---
EN
TER SET
↑↓← → EXIT
PASSWORD ENA
In the SYSTEM SETUP menu, select PASSWORD ENA to enable or disable the DVR password
protection. Press the FORWARD/REVERSE button accordingly will turn ON/OFF the password
protection feature. When the password it set ON, the DVR will request for password whenever
the MENU button are pressed or to stop recording.
The factory default password is 0000. Press MENU/ESC to return to SETUP MODE menu or
simply browse up and down by pressing the UP/DOWN arrow keys.
SYSTEM SE
◎ TIME/DA
TUP
TE SET [
]
◎ HDD FORMAT SET [ ]
QUENCE SET [
◎ AUTO SE
]
◎ FACTORY RESET [ ]
NO
E
O
◎ PLAY REPEAT:
◎ VIDEO SOURC
: PAL
◎ BUZZER SOUND: N
◎ PASSWORD ENA: OFF
---------------
◎ NEW PASSWORD: 0000
--------------------------------------- ----
---
EN
TER SET
↑↓
← → EXIT
SYSTEM SETUP
◎ TIME/DATE SET [
]
◎ HDD FORMAT SET [
]
◎ AUTO SEQUENCE SET [ ]
ET [
◎ FACTORY RES ]
◎ PLAY REPEAT: NO
◎ VIDEO SOURCE: PA
◎ BUZZER SOUND: ON
L
---------------------------
◎ PASSWORD ENA: OFF
◎ NEW PASSWORD: 0000
---------------------------------EN
TER SET
↑↓
← → EXIT
Page 17
17
NEW PASSWORD
In the SYSTEM SETUP menu, select NEW PASSWORD. Use the directional
buttons FORWARD/
REVERSE to change value of the password. Use the Up/Down buttons to toggle between
the first
and the fourth digit setting. After changing from the manufacture default password, please
remember the newly created password or jot them down and place it in a secure area.
VIDEO SET
Press the MENU button to enter SETUP MODE. Select VIDEO SET from the list, and press ENTER to
access the video setting pages as shown below.
In the VIDEO SETUP menu, select NAME SETUP and press ENTER. Press the UP/DOWN buttons
to select one of the 4 channels, and then press ENTER to rename. Use the FORWARD/REVERSE
buttons to change the alphabet letter charactors. There is a maximum of 8 letters/numbers entries per
channel. Press the ENTER/OK after completion or browse down to display by pressing the UP/
DOWN buttons and FORWARD/REVERSE to switch between name display ON/OFF.
When finished, press MENU/ESC to return to VIDEO SETUP menu.
On Screen Display Functions
SYSTEM SETUP
IME/DATE SET [◎ T ]
DD FORM
AT SET [
◎ H ]
UTO SEQUENCE SE
◎ A T [ ]
◎ FACTORY RESET [
]
◎ PLAY REPEA
◎ VIDEO SOU
T: NO
RCE
: PAL
◎ BUZZER SOUND: NO
◎ PASSWORD ENA: OFF
◎ NEW PASSWORD: 0000
--------------------------------------- ----
--- ---------------
EN
TER SET↑↓← → EXIT
SET
◎ SYSTEM SET [
UP MODE
]
◎ VIDEO SET [ ]
◎ RECORD SET [
]
◎ NETWORK SET [ ]
◎ SENSOR SE
T [ ]
VIDEO SETUP
◎ NAME SETUP [ ]
◎ BRI / CON SET [ ]
◎ BOUNDARY: WHITE
◎ BACKGROUND: BLU
E
--------------------- ----------------↑↓← → EXIT
-----------------------
EN
TER SET
◎ BACKUP SET [
]
◎ SCHEDULE S T [E
]
---------------------------
-------------------------- --EN
TER SET
----↑↓← → EXIT
NAME SETUP
NAME SETUP
- CH1:
C A M 1 _ _ _ _
- CH2:
C A M 2 _ _ _ _
- CH3:
C A M 3 _ _ _ _
- CH4:
C A M 4 _ _ _ _
- DISPLAY: ON
◎
LANGUAGE: English
Page 18
18
On Screen Display Functions
BRI/CON SETUP
In the VIDEO SETUP menu, select BRI/CON SETUP and press ENTER. Press UP/DOWN to select
one of the four camera BRI/CON and press FORWARD/REVERSE buttons to adjust the value. Press
MENU to return to the VIDEO SETUP menu page. The default value is the middle for both the BRI/CON.
BRIGHT/CONTRAST SETUP
BRI: [ II ]
CON: [ II ]
CAM1
CAM3 CAM4
BRI: [ II ] BRI
CON: [ II ]
- -----
------------------------------ -------------------------------
BRI: [ II ]
CON: [ II ]
CAM2
: [ II ]
CON: [ II ]
T ↑
↓← → EXIT ENTER SE
BOUNDARY
In the VIDEO SETUP menu, select BOUNDARY. Use the FORWARD/REVERSE buttons to
select between White or Black boundary. Press MENU/ESC to return to the SETUP MODE
menu or press the UP/DOWN buttons to browse VIDEO SEPUT. Press the down button to advance
to BACKGROUND selection.
VIDEO SETUP
◎ NAME SETUP [ ]
◎ BRI / CON SET [
◎ BOUNDARY: WHITE
◎ BACKGROUND: BLUE
◎ LANGUAGE: E
]
NGLISH
----------------------- ---
--- ---------------------------
ENTER S ↑↓←
----ET → EXIT
18
BACKGROUND
In the VIDEO SETUP menu, select BACKGROUND. Use the directional buttons FORWARD/REVERSE
to select between black, blue, gray or white background. Press MENU/ESC to return to the SETUP
MODE or press the down button to advance the LANGUAGE selection.
VIDEO SETUP
◎ NAME SETUP [ ]
◎ BRI / CON SET [
◎ BOUNDARY: WHITE
◎ BACKGROUND: BLUE
◎ LANGUAGE: E
----------------------- ---
--- ---------------------------
ENTER S ↑↓←
LANGUAGE: the DVR support ENGLISH only.
]
NGLISH
----ET → EXIT
Page 19
19
On Screen Display Functions
↑↓
VIDEO SETUP
◎ NAME SETUP [ ]
◎ BRI / CON SET [ ]
◎ BOUNDARY: WHITE
◎ BACKGROUND: BLUE
◎ LANGUAGE: ENGLISH
--- ---------------------------
----------------------- ---
ENTER S ↑↓←
-----
ET → EXIT
RECORD SET
Press the MENU button to enter the SETUP MODE. Browse to select RECORD SET and press
ENTER to enter record setup as illustrated below.
SETUP M
◎ SYSTEM SET [
◎ VIDEO SET [ ]
◎ RECORD SET [ ]
◎ NETWORK SET [ ]
◎ SENSOR SET [ ]
◎ FW UPDATE [
◎ SCHEDULE S T [E
ENTER SET
]
-----
]
]
----------------------------------------------------- ---
ODE
← → EXIT
◎ OVERWRITE: YES
◎ REC SPEED: 50 Fld/1sec
◎ REC QUALITY: HIGH
◎ RESOLUTION: 720X240,360X240
◎ PB SPEED: 50 Fld/1sec
◎ AUDIO ENABLE: CAM1
◎ Alarm-R-SP
-------------------------------
RECORD SETUP
D: 60Fld/1Sec
------------------------------
ENTER SET ↑↓←
→ EXIT
Press UP/DOWN to browse and press FORWARD/REVERSE to change the value setting.
OVERWRITE: YES, NO (YES: once HD is ful system will overwrite the oldest data that existed.)
REC SPEED: 60, 30, 20, 12 5, 3, 2, 1 Fld/1Sec, 1Fld/2Sec
REC QUALITY: VERY HIGH, HIGH, LOW, VERY LOW
RESOLUTION: 720x240, 360 X 240
PB SPEED: 60 Fld/1Sec, 30, 20, 12, 5, 3, 2, 1 Fld/2Sec, No use
AUDIO ENABLE: CAM1, CAM2, CAM3, CAM4, OFF (only 1 audio channel can be active)
Alarm-R-SPD: 50, 25, 12, 10, 5, 3, 2, 1 Fld/1Sec, 1Fld/2sec (Frame-by-Frame PB set to 1Fld/1Sec)
Press MENU to return to the SETUP MODE menu.
NETWORK SET
Press the MENU button to enter the SETUP MODE, select NETWORK SET and press ENTER to
enter network setup as illustrated below.
SETUP MODE
◎ SYSTEM SET [
◎ VIDEO SET [
◎ RECORD SET [ ]
◎ NETWORK SET [ ]
◎ BACKUP SET [ ]
◎ SCHEDULE S [ET
--- ---------------------------
----------------------- ---
ENTER SET
T [
]
]
]◎ SENSOR SE
]
-----
↑↓← → EXIT
NETWORK SETUP
SUB NET: 255 255 255 000
GATEWAY: 010 192 001 001
IP ADDR: 010 192 001 001
NETWORK STATE: LOCAL_LAN/EXTER_LAN
NET CMD PORT: 5001
NET AV PORT: 5000
---------------------------------------
ENTER SET ↑↓← →
--------------------- EXIT
Page 20
20
On Screen Display Functions
SENSOR SET
Press the MENU button to enter the SETUP MODE, select SENSOR SET and press ENTER.
SETUP MODE
T [
SENSOR SETUP
◎ CHANNEL SELECT: CAM1
]◎ SYSTEM SE
◎ SENSOR ENABLE: OFF
◎ MOTION ENABLE: OFF
◎ VIDEO SET [
]
◎ RECORD SET [
◎ MOTION LEVEL: VERY HIGH
]
◎ NETWORK SET [
◎ COMPARE FRAME: 03
]
◎ EVENT REC TIME: OFF
◎ SENSOR SET [ ]
◎FW UPDATE [
◎ ALARM OUTPUT: NO USE
◎ AREA SET [
]
[◎ SCHEDULE SET
]
-------------------------- -----
]
----------------------------------------------→---------------
EXIT ENTER SET ↑↓←
--- --------------------------T
↑↓
← → EXIT ENTE SER
The DVR support static IP address only, it will NOTsupport dynamic IP address. With a valid static IP
address, please input them into each of the categories: SUB NET, GATEWAY, IP ADDR. If you are unsure,
please contact your ISP (Internet Service Provider) for detail as to what type of IP you signed up for when
registered. The NET CMD PORT and NET AV PORT are ports used to identity the DVR hardware. These
ports are required to be set open from the Router/Firewall in order for both audio and video to transmit
through the Router/Firewall to the internet. If you are not sure how to open ports 5000~5001 from the
Router/Firewall please consult with your local ISP or router manufacturer as to how to open up these ports.
To access the DVR from a remote location the same ports stated above is requried to be open from Router.
NOTE: When installing the client software in the remote computer and there are Router/Firewall, the
same ports 5000~5001 has to be opened from within the Router/Firewall in order for the audio/video to
breach though the Router/Firewall to the DVR.
Press the directional buttons UP/DOWN to browse and press FORWARD/ REVERSE buttons to
change the value.
CHANNEL SELECT: CAM1, CAM2, CAM3, CAM4 (each CAM set has independent sensor setup)
SENSOR ENABLE: OFF, N.C., N.O.(normally closed and normally opened relay)
MOTION ENABLE: ON, OFF (enable/disable video motion detection)
MOTION LEVEL: VERY HIGH, HIGH, NORMAL, LOW, VERY LOW (the higher the picture qualit the
more HD space used)
Page 21
21
On Screen Display Functions
COMPARE FRAME: 1~15(compare the changes of fields’ image for alarm trigger. 1=most sensitive
15=least sensitive)
EVENT REC TIME: OFF, 1~99 MINS, CONTINUES
ALARM OUTPUT: NO USE, 1~99 SEC, Always on (used for both sensor output and buzzer sound
output)
NOTE: To complete buzzer sound output settings; BUZZER SOUND located in the system Setup
needs to be turn ON to activate alarm buzzer sound.
Always on: alarm output set to Always on will enable both the sensor and buzzer output to
trigger. At anytime during alarm trigger; press the Menu (by remote control) to disable the buzzer
sound and go to ALARM output in the SENSOR SETUP to disable the sensor output.
AREA SET: Press Up/Down to browse and press [ENTER] to select the motion sensative area.
There are 48 blocks each are label ‘M’ stands form motion area. Use the directional buttons to choose
the area and press ENTER to confirm the selection or ENTER again again to de-select the fields.
M
M M M M M M M
M M M M M M M M
M M M M M M M M
M M M M M M M M
M M M M M M M M
M M M M M M M M
NOTE: when “M” is yellow, it means that the blocks are selected or active areas. The “M” is white,
when the areas are de-selected or not active.
Press MENU/ESC to return to the SENSOR SETUP MODE.
Firmware Update
Press the MENU button to enter the SETUP MODE, select FW UPDATE and press ENTER. The
“CONTINUE USB FIRMWARE UPDATE?” will appear in red color and the USB total size and useful
size will be calculated from the flash drive. Press ENTER again to continue with the firmware update.
After the Enter is pressed, wait for approximately 20~30 seconds before the “updating FW %” start in
yellow highlights. Once the update reached 100%, the FW is successfully updated; restart the DVR.
Page 22
22
On Screen Display Functions
SETUP MODE
◎ SYSTEM SET [
◎ VIDEO SET [
◎ RECORD SET [
◎ NETWORK SET [
◎ SENSOR SET [ ]
◎ FW UPDATE [ ]
◎ SCHED
ULE SET [ ]
]
]
]
]
USB FW UPDATE
USB total size:
Useful size:
512 MByte
512 MByte
USB Firmware Update
CONTINUE USB FIRMWARE UPDATE ?
Note: Only update firmware upon manufacturer’s request.
SCHEDULE SET
Press MENU button to enter the SETUP MODE, select SCHEDULE SET and press ENTER. Press
UP/DOWN to browse and press ENTER to high light selection and then the UP/DOWN buttons to turn
ON/OFF the schedule day(s). Use the FORWARD/REVERSE buttons to browse within the day setting
and use the UP/DOWN to change the start-stop schedule time value. Finally press ENTER to save and
proceed to the next day.
SETUP MODE
YSTEM SET [◎ S ]
DEO SET [◎ VI ]
ECORD SET [
◎ R ]
◎ NETW ]
◎ SE ]
◎FW UPDATE [ ]
◎ SCHEDULE SET [ ]
-------------------------- -------- ---------------------------
ORK SET [
NSOR SET [
ENTER ET S ↑↓← → EXIT
START STOP
◎ MON
◎ TUE
◎ WED
◎ THU
◎ FRI
◎ SAT
◎ SUN OFF
◎ SCHEDU
-------------------------------------------------------------
SCHEDULE SETUP
OFF _ _ : _ _ ~ _ _ : _ _
OFF _ _ : _ _ ~ _ _ : _ _
OFF _ _ : _ _ ~ _ _ : _ _
OFF _ _ : _ _ ~ _ _ : _ _
OFF _ _ : _ _ ~ _ _ : _ _
OFF _ _ : _ _ ~ _ _ : _ _
_ _ : _ _ ~ _ _ : _ _
LE ENABLE: OFF
ENTER SET ↑↓← → EXIT
To activate the scheduled recording; browse down to the SCHEDULE ENABLE and turn it to ON, then
press the Menu button or ESC button to exit out of the SCHEDULE SETUP menu.
Schedule recording: if schedule time is set within the DVR actual time interval, the DVR will show
*SCHEDULE MODE* but it will not start to record until approax.45 seconds later and then the stop
time end the DVR will stop to record according to the schedule time set. For example: if schedule start
to record at 11:30 and stop to record at 11:35, the DVR will start the scheduled record time of exactly
11:30 and will stop record at 11:35:59.
NOTE: if the DVR actual time is before the start scheduled time, the DVR need approax.45 seconds
to start to record. When schedule record is in use or in active mode, manual record and alarm/motion
record will NOT be active or cannot be used, to turn off *Schedule Mode *, go to SCHEDULE SET from
the SETUP MODE.
Page 23
To install a different folder, click Browse and select another folder. Then click “Next” to continue
installation.
Network Viewer software
To Install Network Netviewer Software:
Insert Netviewer CD into the CD-ROM tray, an install shield wizard will appear as shown below. If
the install wizard fail to appear, please bowse the CD contents and double click on “setup.exe”
file to exceute and run setup. Select a desire language, and then click “Next” to proceed.
23
Press “Next” to continue the installation.
Page 24
24
Setup will add program icons to the program folder listed below. Click “Next” to continue installation.
Click “Next” to install NetViewer software.
Network Viewer software
Page 25
25
Setup complete, Click “Finish”.
Network Viewer software
Page 26
Network Viewer software
26
To Uninstall Netviewer:
Go to start >programs/all programs> network viewer >uninstall Network Viewer or go to the system
control panel>Add or Remove programs to remove Network Viewer. The following windows will appear:
Click “Yes ” to proceed.
Click “OK ” to complete uninstallation.
Page 27
27
How to Use Network Viewer client software:
To execute the Netviewer software go to start >all programs >Network Viewer > NetViewer4ch or
double click on Netviewer4CH shortcut icon located on the desktop and a Network Viewer window will
appear as shown below:
Click the Setting icon on the Netviewer main screen, and the setting display box will appear.
Input an IP address assigned to the local DVR. Double check the AV Port and the Command Port to
match the local DVR’s port settings. The video size defaults to half size which has a resolution of 320x240,
for 720x240 select full size options.
Network Viewer software
Frame/Sec: To change the frame rate per second when connecter is establish. Enable One Channel
Transfer is recommended to transfer single image for better bandwidth control.
Local Rec. Path is to change the recording location to other hard drive or to other network drive.
AV code: this is auto- selected by the Net Viewer software, please do not change codec setting.
"OK" to confirm and exit.
Video Source: Please refer to country NTSC listing before changing.
Page 28
28
When successfully connected click OK.
Network Viewer software
The live video display should start to stream. In any case if the video is not streaming simply click on
the “PLAY FROM NETWORK” icon located in the upper right hand corner to start live view streaming
as illustrated below. Press the Disconn. disconnect button at any time to stop the live video streaming.
Click the Connect button, and the Logon dialog box will appear. The DVR IP address will
appear
“OK” to connect.
in the System field or click down arrow for options. Next input the DVR Password and click
Page 29
29
LIVE VIEW
In the save to AVI window, select a save to location and give it a file name. Next select any
combination of channels ranging from 1-4 to save and click OK to proceed. A blue LED located in the
Lower-Right hand corner will appear. To stop AVI recording simply press on the “Save As AVI…”
again.
Please note, AVI playbacks require window media and the playback speed will be 3 to 4 times faster
than the actual speed of the original recording. The Netviewer software cannot be used to playback
AVI files.
To save video streaming to local hard drive:
Click on the "Save Video Stream to PC's HDD" to start to
save the video to local hard drive. A green LED located at the Lower-Right hand corner will appear. To
stop saving to local hard drive, simply press the “Save Video Stream to PC’s HDD” and the green light
will disappear and grayed out from the Lower-Right hand corner of Network Viewer.
Note: The “Save Video Stream to PC’s HDD” saves video format as .dvr which can only be playback
using the “File Play” tab from the Netviewer software. The .dvr video saved to location setting can be
change in the Netviewer setting under the “Local Rec Path”
Click on the Rec Start button to start recording on the local DVR from Network Viewer software and
the red LED light will light up (lower-Right hand corner). Click on the Rec Stop button to stop the DVR
recording and the red DVR LED light will gray out.
Note: If the local DVR is initially in record mode, then using the Netviewer to remotely connect to the
DVR, the Rec Stop button will not be active or unusable unless the Rec Start. is initiated first then the
Rec Stop can be used to stop the local DVR recording remotely. The initial record mode from the local
DVR has the priority over Netviewer software.
To save video file as AVI format: Click on the “Save As AVI…” button located in the upper-right hand
corner of Network Viewer software, a window will appear as illustrated below.
Network Viewer software
Page 30
30
Network Viewer software
In the save to AVI window, select a save to location and give it a file name. Next select any
combination of channels ranging from 1-4 to save and click OK to proceed. A blue LED located in the
Lower-Right hand corner will appear. To stop AVI recording simply press on the “Save As AVI…”
again.
Please note, AVI playbacks require window media and the playback speed will be 3 to 4 times faster
than the actual speed of the original recording. The Netviewer software cannot be used to playback
AVI files.
To save video streaming to local hard drive: Click on the "Save Video Stream to PC's HDD" to start to
save the video to local hard drive. A green LED located at the Lower-Right hand corner will appear. To
stop saving to local hard drive, simply press the “Save Video Stream to PC’s HDD” and the green light
will disappear and grayed out from the Lower-Right hand corner of Network Viewer.
Note: The “Save Video Stream to PC’s HDD” saves video format as .dvr which can only be playback
using the “File Play” tab from the Netviewer software. The .dvr video saved to location setting can be
change in the Netviewer setting under the “Local Rec Path”
Page 31
31
SCANDISK
FILEPLAY
Network Viewer software
Scandisk tab is used when the hard drive is removed from the inside of the DVR and connecting it
directly to the IDE bus of the computer or via 3rd party External enclosure. This procedure is affective
if there is something wrong with the DVR's ability to playback important recorded data. Please note
that this is not one of the remote features used to control the DVR remotely.
FilePlay tab is used to retrieve saved .dvr files from the local hard drive to playback. Click on the ”Open”
button to browse for .dvr files and simply click on the play button in blue and white to start playback.
Use pause, stop, REW, FF and adjust the playback speed accordingly.
Page 32
32
Important Message:
Recording size per field without Audio
Recording Time
33 24 19 18
16 12 10 9
28 20 16 15
14 11 9 8
The higher the video quality, the clearer the picture. On the contrary, the lower the video quality setting
can provide longer the record time. The record time varies depending on the field size and picture
quality. The following record time tables can be used as a reference. The record time capacity
can vary depending on the image complexity, color, black & white, brightness, contrast, image
movement and background video noise. The actual record time can be more or less than the
given reference tables. On average, it takes an additional 8K per second more with audio recording.
Recording time calculation formula:
A: Hard disk capacity,
B: Video Quality: Low (8Kb/frame), Normal (10Kb/frame), High (12Kb/frame)
C: Recording Frame Rate: 30fps, 15fps, 10fps, 7fps, 5fps, 4fps etc.
A GB x 1,000,000 k/GB)/ (BxC) k per sec. = D sec (Recording Time)D sec. / 60 / 60 / 24 = H days
(Recording Time)
For example, at NTSC 720 *240, Quality: Very High: 28Kb/s
Max. 30 fps or 60 field/sec on a 200GB HDD.
200GB x 1,000,000 k/GB)/ (28k/f x 60field/s) = 119047.62 Seconds.
119047.62/3600 = 33.07 Hours of record time for a 200GB hard drive
Recording Size per Field Unit : KB
Resolution/Quality Very High High Low Very Low
PAL
720*240
360*240
NTSC Very High High Low Very Low
720*240
360*240
Page 33
33
Recording Time
Recording Time Table:
Based on 200GB HDD at PAL Unit : Hours
Field/Sec
Resolution
Very High 33.7 67.3 140.3 168.4 336.7 561.2 841.8 1683.5 3367.0
720*240
360*240
High 46.3 92.6 192.9 231.5 463.0 771.6 1157.4 2314.8 4629.6
Low 58.5 117.0 243.7 292.4 584.8 974.7 1462.0 2924.0 5848.0
Very Low 61.7 123.5 257.2 308.6 617.3 1028.8 1543.2 3086.4 6172.8
Very High 34.7
High 46.3
Low 55.6
Very Low 61.7
Recording Time Table
Based on 200GB HDD at NTSC Unit : Hours
Resolution
720*240
360*240
Field/Sec
Very High 33.1 66.1 99.2 165.3 396.8 661.4 992.1 1984.1 3968.3
High 46.3 92.6 138.9 231.5 555.6 925.9 1388.9 2777.8 5555.6
Low 57.9 115.7 173.6 289.4 694.4 1157.4 1736.1 3472.2 6944.4
Very Low 61.7 123.5 185.2 308.6 740.7 1234.6 1851.9 3703.7 7407.4
Very High 33.1
High 42.1
Low 51.4
Very Low 57.9
30 20
10 5100 50 25 12
12 5 3 2120 60
1 1/23 2
1 1/2
Recording Time Table:
Based on 320GB HDD at PAL Unit : Hours
Resolution
720*240
360*240
Field/Sec
Very High 53.9 107.7 224.5 269.4 538.7 897.9 1346.8 2693.6 5387.2
High 74.1 148.1 308.6 370.4 740.7 1234.6 1851.9 3703.7 7407.4
Low 93.6 187.1 389.9 467.8 935.7 1559.5 2339.2 4678.4 9356.7
Very Low 98.8 197.5 411.5 493.8 987.7 1646.1 2469.1 4938.3 9876.5
Very High 55.6
High 74.1
Low 88.9
Very Low 98.8
10 5 2/11215205001 3 2
Page 34
34
Recording Time
Recording Time Table
Based on 320GB HDD at NTSC Unit : Hours
Resolution
720*240
360*240
Field/Sec
Very High 52.9 105.8 158.7 264.6 634.9 1058.2 1587.3 3174.6 6349.2
High 74.1 148.1 222.2 370.4 888.9 1481.5 2222.2 4444.4 8888.9
Low 92.6 185.2 277.8 463.0 1111.1 1851.9 2777.8 5555.6 11111.1
Very Low 98.8 197.5 296.3 493.8 1185.2 1975.3 2963.0 5925.9 11851.9
Very High 52.9
High 67.3
Low 82.3
Very Low 92.6
12 5 3 2120 60
2/110203
Recording Time Table:
Based on 500GB HDD at PAL Unit : Hours
Resolution
720*240
360*240
Field/Sec
Very High 84.2 168.4 350.7 420.9 841.8 1402.9 2104.4 4208.8 8417.5
High 115.7 231.5 482.3 578.7 1157.4 1929.0 2893.5 5787.0 11574.1
Low 146.2 292.4 609.2 731.0 1462.0 2436.6 3655.0 7309.9 14619.9
Very Low 154.3 308.6 643.0 771.6 1543.2 2572.0 3858.0 7716.0 15432.1
Very High 86.8
High 115.7
Low 138.9
Very Low 154.3
10 5100 50 25 12
1 1/23 2
Recording Time Table
Based on 500GB HDD at NTSC Unit : Hours
Field/Sec
Resolution
Very High 82.7 165.3 248.0 413.4 992.1 1653.4 2480.2 4960.3 9920.6
720*240
360*240
High 115.7 231.5 347.2 578.7 1388.9 2314.8 3472.2 6944.4 13888.9
Low 144.7 289.4 434.0 723.4 1736.1 2893.5 4340.3 8680.6 17361.1
Very Low 154.3 308.6 463.0 771.6 1851.9 3086.4 4629.6 9259.3 18518.5
Very High 82.7
High 105.2
Low 128.6
Very Low 144.7
30 20
12 5 3 2120 60
1 1/2
Version: 1.5F
47-3030-2006
Page 35
www.securitymaninc.com
Loading...
