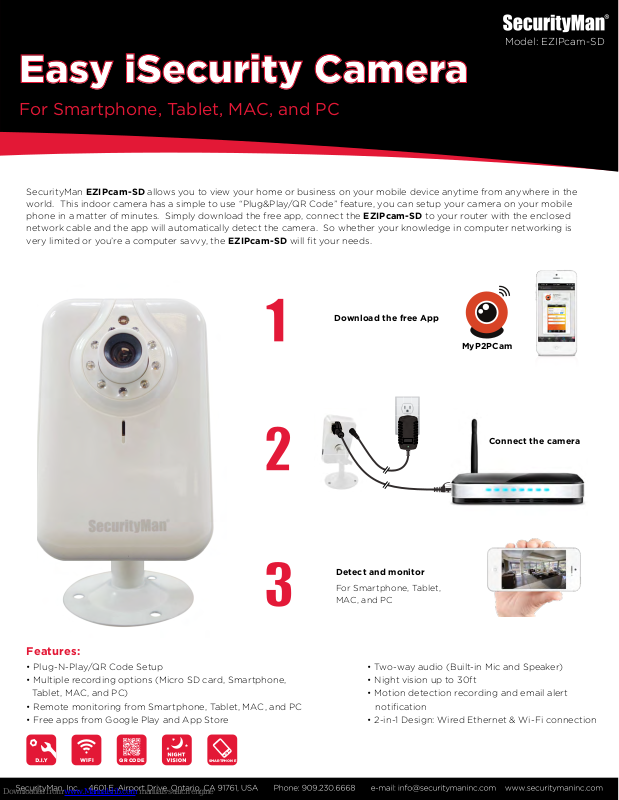

Page 1
Model: EZIPcam-SD
Easy iSecurity Camera
For Smartphone, Tablet, MAC, and PC
SecurityMan EZIPcam-SD allows you to view your home or business on your mobile device anytime from anywhere in the
world. This indoor camera has a simple to use “Plug&Play/QR Code” feature, you can setup your camera on your mobile
phone in a matter of minutes. Simply download the free app, connect the EZIPcam-SD to your router with the enclosed
network cable and the app will automatically detect the camera. So whether your knowledge in computer networking is
very limited or you’re a computer savvy, the EZIPcam-SD will fit your needs.
Download the free App
Detect and monitor
For Smartphone, Tablet,
MAC, and PC
MyP2PCam
Connect the camera
Features:
• Plug-N-Play/QR Code Setup
• Multiple recording options (Micro SD card, Smartphone,
Tablet, MAC, and PC)
• Remote monitoring from Smartphone, Tablet, MAC, and PC
• Free apps from Google Play and App Store
WIFI
QR CODE
SMARTPHON E
• Two-way audio (Built-in Mic and Speaker)
• Night vision up to 30ft
• Motion detection recording and email alert
notification
• 2-in-1 Design: Wired Ethernet & Wi-Fi connection
Page 2
Package Contents:
• EZIPcam-SD indoor camera with bracket
• Power adapter
• Software and user’s manual CD
• Quick start guide
Key Specifications:
Image sensor
Compression
Resolution
Micro SD slot
CPU
Video standard
Lens
Minimum illumination
IR LED lIghts
Night vision
Frame rate
Video bit rate
Video parameters
Wired network
Protocol
Wireless network
Image orientation
Digital zoom
Video control
Motion detection
Mobile support
Alarm action
Reset
Audio format
Two-way audio
Microphone
Speaker
Indoor/Outdoor usage
Dimensions (LxWxH)
Power consumption
Power supply
Operating temperature
Operating humidity
Operating system
Weight (net and gross)
• Ethernet cable
• Mounting screws
(SD card not included)
1/4” Color CMOS Sensor
H.264
720P (1280*720)
Yes (support up to 32GB, class 6 or above)
Ralink 5350
NTSC/PAL selectable
4mm
0Lux ( IR ON ) / 0.5Lux ( Normal )
8 × 3
30ft
0~30fps
16Kbps~ 4Mbps
Saturation, brightness, contrast, sharpness and adjustable
NIC 10/100Mbps Base-TX Ethernet
TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP
WiFi IEEE 802.11b/g/n
Mirror / Inversion
4X digital zoom
Yes
Yes
Yes
Email & FTP
Yes
PCM
Yes
Built-in
Built-in
Indoor
3.75” x 2.31” x 1.56” (without bracket)
<5 Watts
DC 5V 1.0A
14°F~ 122°F (—10°C~ 50°C)
10% ~ 80% RH
Windows XP, Vista, 7, 8 / MAC OS 10.7 or above
0.27lb (camera/bracket) / 1.0lb (with package)
