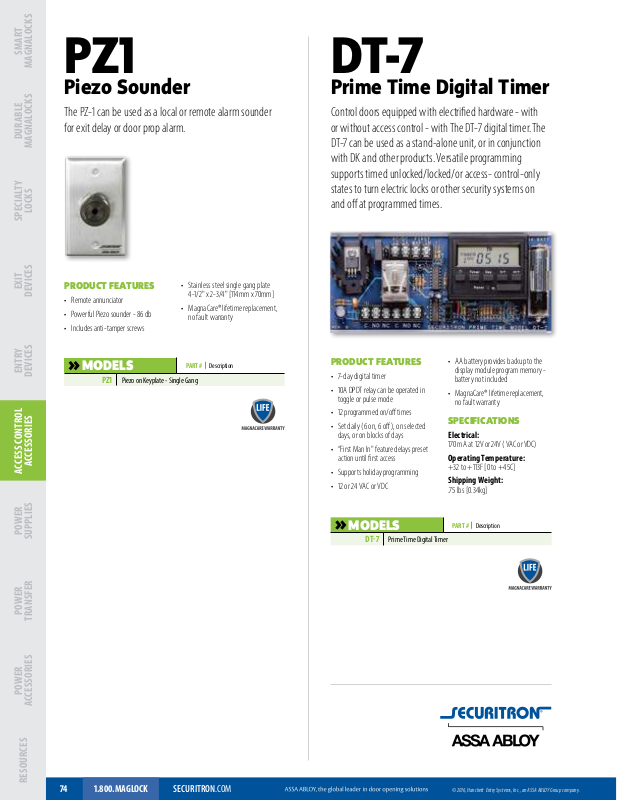

Securitron PZ1, DT-7 Specsheet
1.800.MAGLOCK SECURITRON.COM
SMART
MAGNALOCKS
PZ1
DT-7
DURABLE
SPECIALTY
EXIT
ENTRY
ACCESS CONTROL
ACCESS CONTROL
Piezo Sounder
The PZ-1 can be used as a local or remote alarm sounder
for exit delay or door prop alarm.
MAGNALOCKS
Prime Time Digital Timer
Control doors equipped with electried hardware - with
or without access control - with The DT-7 digital timer. The
DT-7 can be used as a stand-alone unit, or in conjunction
with DK and other products. Versatile programming
supports timed unlocked/locked/or access- control-only
states to turn electric locks or other security systems on
LOCKS
DEVICES
DEVICES
ACCESSORIES
ACCESSORIES
PRODUCT FEATURES
• Remote annunciator
• Powerful Piezo sounder - 86 db
• Includes anti-tamper screws
MODELS
Piezo on Keyplate - Single Gang
PZ1
• Stainless steel single gang plate
4-1/2" x 2-3/4" [114mm x 70mm]
• MagnaCare® lifetime replacement,
no fault warranty
PART # | Description
and o at programmed times.
PRODUCT FEATURES
• 7-day digital timer
• 10A DPDT relay can be operated in
toggle or pulse mode
• 12 programmed on/o times
• Set daily (6 on, 6 o ), on selected
days, or on blocks of days
• “First Man In" feature delays preset
action until rst access
• Supports holiday programming
• 12 or 24 VAC or VDC
• AA battery provides backup to the
display module program memory battery not included
• MagnaCare® lifetime replacement,
no fault warranty
SPECIFICATIONS
Electrical:
170 mA at 12V or 24V ( VAC or VDC)
Operating Temperature:
+32 to +113F [0 to +45C]
Shipping Weight:
.75 lbs [0.34kg]
POWER
SUPPLIES
POWER
TRANSFER
POWER
ACCESSORIES
RESOURCES
74
MODELS
Prime Time Digital Timer
DT-7
PART # | Description
© 2016, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
