Securitron PB, PBR, PBA Specsheet

B

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

D

C

A

EXIT

MODEL

PB

NOTE: FASTENERS NOT SHOWN ALL

A

4.5B2.75C.625D1.375

DIMENSIONS IN INCHES.

DEPTH

3

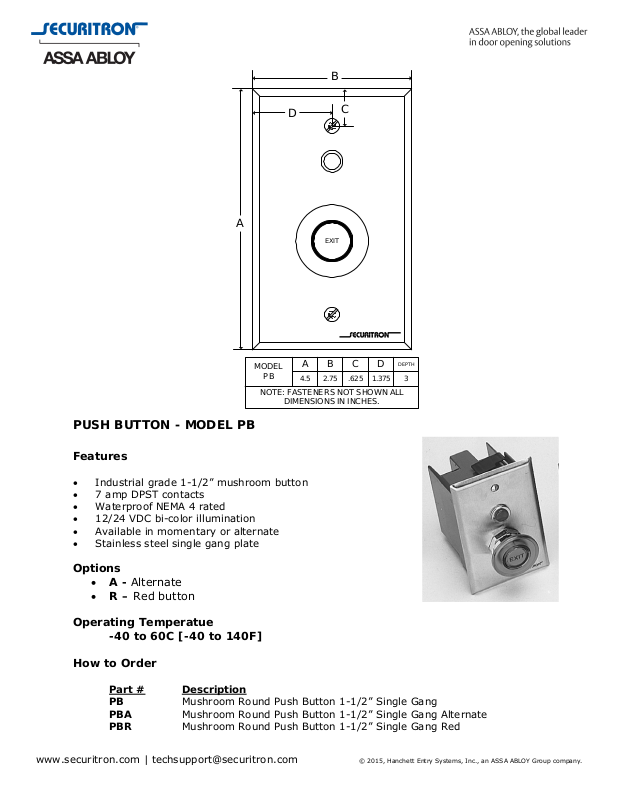

PUSH BUTTON - MODEL PB

Features

• Industrial grade 1-1/2” mushroom button

• 7 amp DPST contacts

• Waterproof NEMA 4 rated

• 12/24 VDC bi-color illumination

• Available in momentary or alternate

• Stainless steel single gang plate

Options

• A - Alternate

• R – Red button

Operating Temperatue

-40 to 60C [-40 to 140F]

How to Order

Part # Description

PB Mushroom Round Push Button 1-1/2” Single Gang

PBA Mushroom Round Push Button 1-1/2” Single Gang Alternate
PBR Mushroom Round Push Button 1-1/2” Single Gang Red

PUSH BUTTON - MODEL PB (cont’d)

www.securitron.com | [e-mail]

Architectural Specification

A. The Push Button shall be produced by an ISO 9001 certified manufacturer.
B. The Push Button shall be an industrial grade 1.5” diameter mushroom button.
C. The Button shall be labeled ‘EXIT” and shall be green back lit using a multi-chip

LED. A separate red LED shall be provided as an additional indicator.

D. The LED’s shall operate on 12 or 24 VDC (field selectable).
E. The switch shall be DP/ST and rated at 7 Amps at 12 or 24 VDC.
F. The push button shall be mounted on a Stainless Steel - 630/US32D single gang

face-plate.

G. The switch shall be available in either momentary or alternate action versions.
