Securitron MUNL-24, MUNL-12 Specsheet
C
www.securitron.com | techsupport@securitron.com
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
B
A

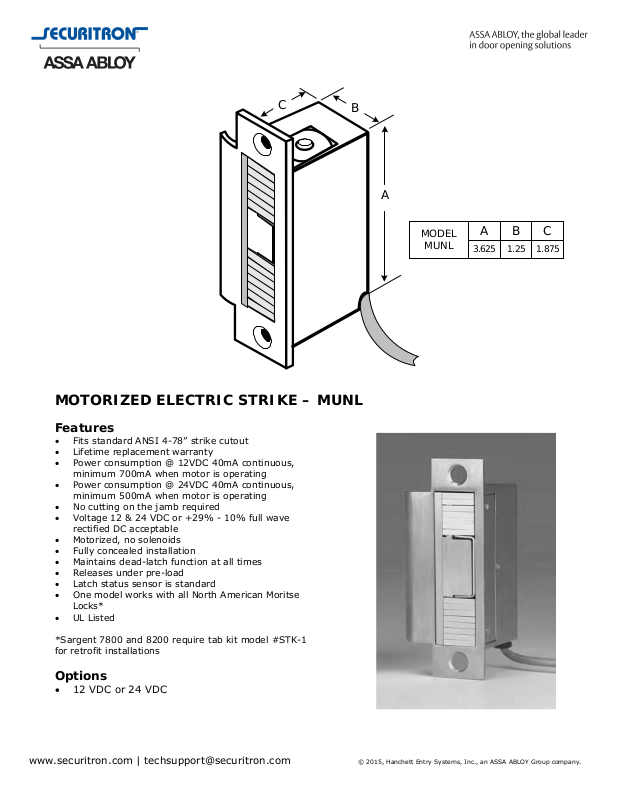

MOTORIZED ELECTRIC STRIKE – MUNL
Features
• Fits standard ANSI 4-78” strike cutout
• Lifetime replacement warranty
• Power consumption @ 12VDC 40mA continuous,
minimum 700mA when motor is operating
• Power consumption @ 24VDC 40mA continuous,
minimum 500mA when motor is operating
• No cutting on the jamb required
• Voltage 12 & 24 VDC or +29% - 10% full wave
rectified DC acceptable
• Motorized, no solenoids
• Fully concealed installation
• Maintains dead-latch function at all times
• Releases under pre-load
• Latch status sensor is standard
• One model works with all North American Moritse
Locks*
• UL Listed
MODEL
MUNL
A
3.625B1.25C1.875
*Sargent 7800 and 8200 require tab kit model #STK-1
for retrofit installations
Options
• 12 VDC or 24 VDC
MOTORIZED ELECTRIC STRIKE – MUNL (cont’d)
www.securitron.com | techsupport@securitron.com
Operating Temperature
-20 to 125F
How to Order
Part Number
MUNL-12 Mortise Unlatch, 12 VDC
MUNL-24 Mortise Unlatch, 24 VDC
STK-1 Tab Kit
Add –US3 for Polished Brass Finish and -10B for Oiled Bronze Finish
Product Description
ARCHITECTURAL SPECIFICATION – Motorized Electric
Strike Model MUNL
2.x ELECTROMECHANICAL LOCK
A. The electromechanical lock shall be manufactured by Securitron Magnalock Corp.,
Sparks, NV, an ISO 9001 certified manufacturer.
B. The lock shall be available in a 12VDC and a 24VDC model.
C. The lock shall have a lifetime replacement warranty.
D. The lock shall fit into a standard ANSI cutout with little or no modification to the
door frame.
E. The lock shall be fail secure and shall maintain a higher security standard than a
standard electric strike.
F. The lock shall work with any mortise lock set manufactured for the U.S. market.
G. The lock shall be rated at 250,000 or greater cycles of operation.
H. The lock shall manipulate the latch and dead latch out of the strike without the
use of solenoids or drop away paddles.
I. The lock shall have an integrated lock status monitor with a form C output.
