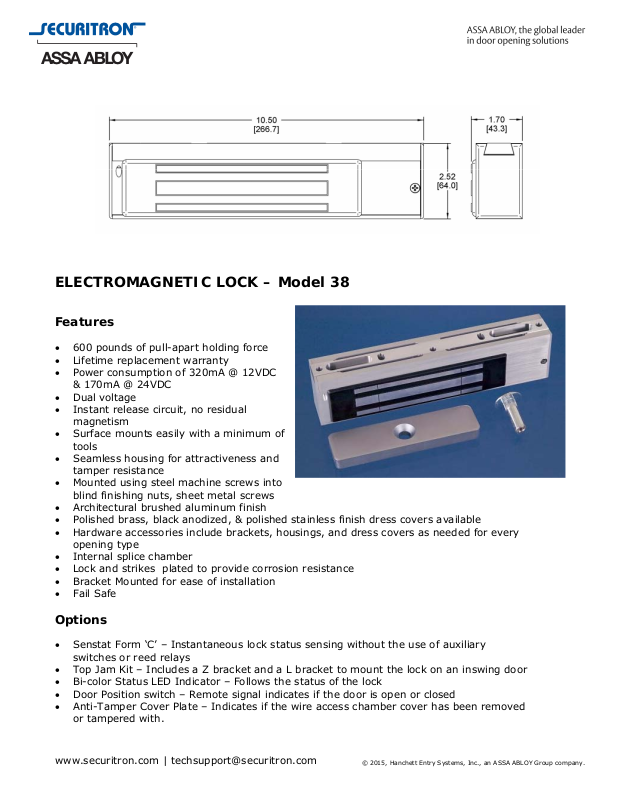

Securitron M38S, M38LT, M38LS, M38DS, M38DLST Specsheet

ELECTROMAGNETIC LOCK – Model 38

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

Features

• 600 pounds of pull-apart holding force

• Lifetime replacement warranty

• Power consumption of 320mA @ 12VDC

& 170mA @ 24VDC

• Dual voltage

• Instant release circuit, no residual

magnetism

• Surface mounts easily with a minimum of
tools

• Seamless housing for attractiveness and
tamper resistance

• Mounted using steel machine screws into
blind finishing nuts, sheet metal screws

• Architectural brushed aluminum finish

• Polished brass, black anodized, & polished stainless finish dress covers available

• Hardware accessories include brackets, housings, and dress covers as needed for every

opening type

• Internal splice chamber

• Lock and strikes plated to provide corrosion resistance

• Bracket Mounted for ease of installation

• Fail Safe

Options

• Sens

• Top Jam Kit – Includes a Z bracket and a L bracket to mount the lock on an inswing door

• Bi-color Status LED Indicator – Follows the status of the lock

• Door Position switch – Remote signal indicates if the door is open or closed

• Anti-Tamper Cover Plate – Indicates if the wire access chamber cover has been removed

tat Form ‘C’ – Instantaneous lock status sensing without the use of auxiliary

switches or reed relays

or tampered with.

ELECTROMAGNETIC LOCK – Model 38 (cont’d)

www.securitron.com | [e-mail]

Operating Temperature

0 to 43C [32 to 110F]

How to Order

Part Number Product Description
M38 Maglock Model 38 Dual Voltage

Add D t
Add L to part # if LED indicator is required
Add S to part # if Lock Status is required
Add T to part # if Tamper Sensor is required
For example: M38DL or M38DLST (all combinations work)

o part # if Door Position Switch is required

ARCHITECTURAL SPECIFICATION – Electromagnetic Lock
Model 38

2.x MAGNETIC LOCKS

A. All electromagnetic locks shall be manufactured by Securitron Magnalock Corp., Sparks, NV,

an ISO 9001 certified manufacturer.

B. Locks shall be capable of providing a pull-apart or tensile holding force of at least 600 pounds.

A laboratory test certifying the minimum holding force shall be submitted by the manufacturer
upon request.

C. Electromagnetic locks shall have a lifetime replacement warranty.
D. Locks shall not consume more than 320mA @ 12VDC and 170mA @ 24VDC.
E. Locks shall not exceed 10-1/2 inches x 2-9/16 inches x 1-9/16 inches in size.
F. Mount strike plates to provide a "floating" movement to assure automatic self-alignment with

the lock.

G. Finish is architectural brushed aluminum, other finishes available by selecting optional dress

covers.

H. Hardware accessories shall include brackets, housings, and dress covers.
I. The locks and strikes shall be plated to provide corrosion resistance.
J. The locks shall have automatic dual voltage—no field adjustment required
K. The locks shall have an Instant Release circuit
L. Options shall include Door Position switch, LED indicator, Lock Status, and Anti-Tamper

Sensor
