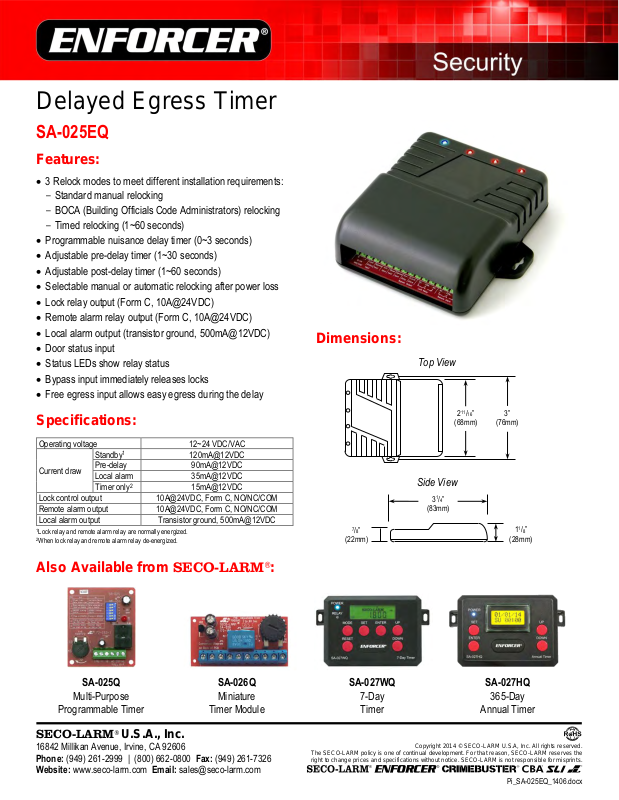

Delayed Egress Timer

SA-025EQ

Features:

 3 Relock modes to meet different installation requirements:

- Standard manual relocking

- BOCA (Building Officials Code Administrators) relocking

- Timed relocking (1~60 seconds)

 Programmable nuisance delay timer (0~3 seconds)
 Adjustable pre-delay timer (1~30 seconds)
 Adjustable post-delay timer (1~60 seconds)
 Selectable manual or automatic relocking after power loss
 Lock relay output (Form C, 10A@24VDC)
 Remote alarm relay output (Form C, 10A@24VDC)
 Local alarm output (transistor ground, 500mA@12VDC)
 Door status input
 Status LEDs show relay status
 Bypass input immediately releases locks
 Free egress input allows easy egress during the delay

Specifications:

Operating voltage

12~24 VDC/VAC

Current draw

Standby1

120mA@12VDC

Pre-delay

90mA@12VDC

Local alarm

35mA@12VDC

Timer only2

15mA@12VDC

Lock control output

10A@24VDC, Form C, NO/NC/COM

Remote alarm output

10A@24VDC, Form C, NO/NC/COM

Local alarm output

Transistor ground, 500mA@12VDC

Dimensions:

Also Available from SECO-LARM®:

211/16”

(68mm)

3”

(76mm)

11/8”

(28mm)

7

/8”

(22mm)

31/4”

(83mm)

1

Lock relay and remote alarm relay are normally energized.

2

When lock relay and remote alarm relay de-energized.

Top View

Side View
