E-931-S50RRQ
50ft Reflective Photoelectric Beam Sensor
Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.
Manual
Up to 50ft (15m) sensing range
Weatherproof (IP66)
Anti-condensation housing
12~250 VAC/VDC
Form C relay: 1A@30VDC
Beam status LED
N.C. Tamper switch:
500mA@30VDC
Caution:
This sensor is not designed to prevent bodily injury or loss of life.
This sensor is not designed for use in environments where explosive gasses may be present.
Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not
responsible for compliance with such laws or codes.
ENFORCER 50ft Reflective Photoelectric Beam Sensor
Specifications:
Model
E-931-S50RRQ
Type
Reflective photoelectric
beam sensor
Sensing range
50ft (15m)
Operating voltage
12~250 VAC/VDC
Current draw (max.)
12VDC
Standby: 50mA; Active: 25mA
24VAC
Standby: 30mA; Active: 18mA
Response time
10ms
Light source
IR LED
LEDs
Solid Green
Good beam signal, properly aligned
Alternating flash
Poor beam signal
Solid Red
No beam signal, triggered
Trigger output
SPDT Relay output (NO/NC/COM)
Switching capacity
0.5A@120VAC/1A@30VDC
Tamper switch
500mA@30VDC
IP Rating
IP66
Operating temperature
-13 ~140 F (-25 ~60 C)
Parts List:
1x Sensor
1x Reflector
1x Mounting bracket
1x Sensor hood
4x Cover screws
2x Mounting screws
1x Reflector mounting screw
1x Rubber ring
1x Cable connector
1x Manual
1x Removable terminal block
Overview:
Tamper switch
Vertical
adjustment screw
(without cover)
Cover
Cover
screw
Wire cable
connector
Mounting plate
Hood
Dimensions:
Beam
sensor LED
Terminal
block
Cable breakout
Captive screw
Beam sensor
413/16”
(122mm)
3
/16”
(4mm)
37/32”
(82mm)
11
/32”
(9mm)
21/8”
(54mm)
23/8”
(60mm)
115/16”
(49mm)
27/16”
(62mm)
Cable breakout
Polarity does not matter for the power input.
Connect the N.C. tamper terminal to the
tamper circuit of an alarm control panel.
Wiring Diagram:
12~250
VAC/VDC
(Non-Polarity)
N.C.
N.O.
COM
Tamper
N.C.
Relay
2 SECO-LARM U.S.A., Inc.
ENFORCER 50ft Reflective Photoelectric Beam Sensor

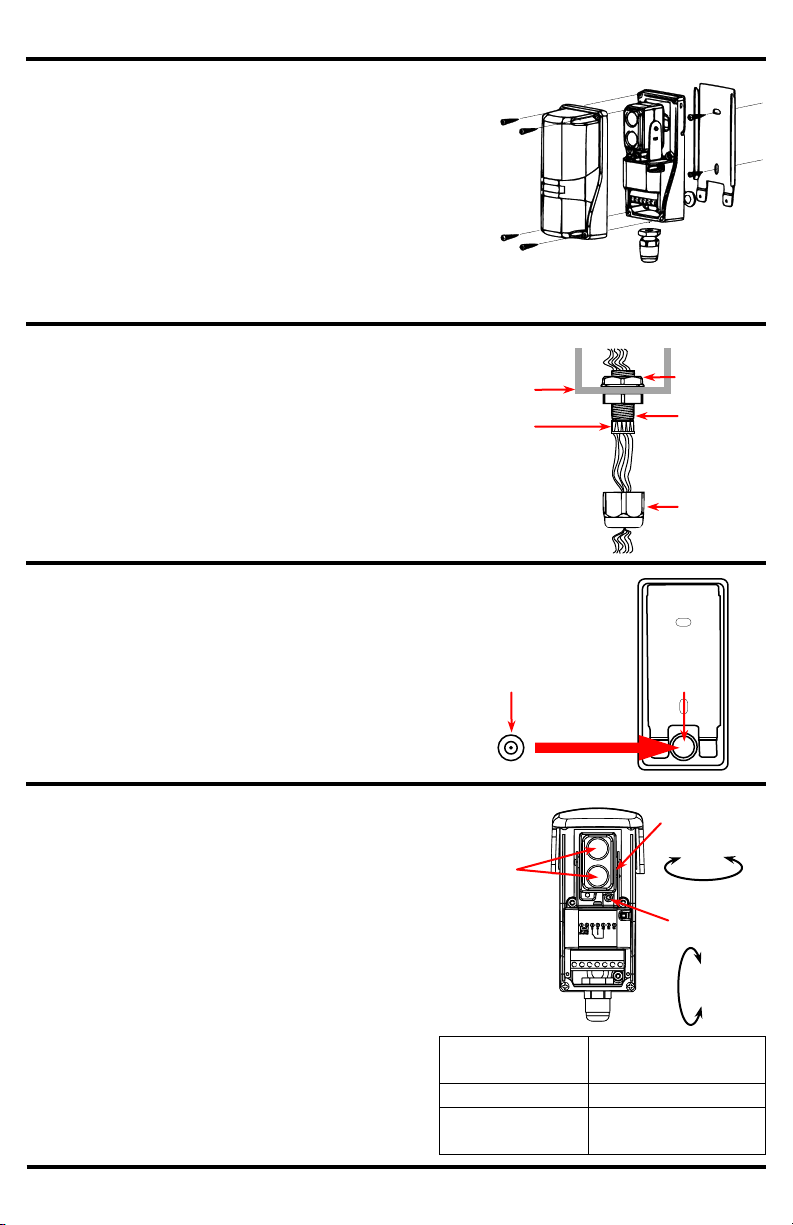

1. Mount the sensor and reflector so that they face
each other.
2. Connect power to the sensor. The LED will light as
indicated in the chart below.
3. Unscrew the 4 cover screws and remove the cover.
4. To find the correct alignment, slowly turn the lens
assembly left and right to adjust the horizontal angle.
5. Loosen the vertical adjustment screw to adjust the
vertical angle.
6. Place the hood on the sensor by sliding the hood’s
ridges into the slots on the sides of the sensor.
7. Re-attach the cover, replace the four screws, and
attach the hood to the top of the sensor.
1. Unscrew the four cover screws and remove the cover.
2. Loosen the captive screw and remove the sensor
from the mounting plate.
3. Using the included mounting screws, mount the
mounting plate to the wall.
4. Use the cable breakout and cable connector at
the bottom or rear of the sensor to run the wires.
5. Hang the sensor back on the plate and use the captive screw to secure it in place.
6. Re-attach the cover, replace the four screws, and attach the hood to the top of the sensor.
Mounting:
Alignment:
Solid green
Good beam signal,
properly aligned
Alternating flash
Poor beam signal
Solid red
No beam signal,
triggered
Lens
alignment
±90
±5
Horizontal
adjustment
Vertical
adjustment
Wiring for the Rear Cable Breakout
1. Puncture the cable breakout located at the rear of
the sensor using a screwdriver or other object.
2. Run wires through the included rubber ring.
3. Install the weatherproofing ring with the wires already
installed in the cable breakout hole.
4. Make sure the ring is secure and there is no room for
water to get into the unit.
Rubber
ring
Cable
breakout
Wiring for the Bottom Cable Breakout
1. Puncture the cable breakout located at the bottom of
the sensor using a screwdriver or other object.
2. Insert the short end side of the cable connector
into the cable breakout hole and use the nut to
secure it, tightening with a wrench as needed.
3. Run the wires through the end cap and cable connector.
4. Then screw the end cap into the external side of the cable
connector to prevent water from entering the unit.
Cable
Connector
End cap
Sensor
Nut
Rubber
neck
SECO-LARM U.S.A., Inc. 3
ENFORCER 50ft Reflective Photoelectric Beam Sensor
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal service
for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the
repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair,
or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such
equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal
or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to
change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2012 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of SECO-LARM.
M E-931-S50RRQ_1212.docx
PITSW3
SECO-LARM
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: info@seco-larm.com
