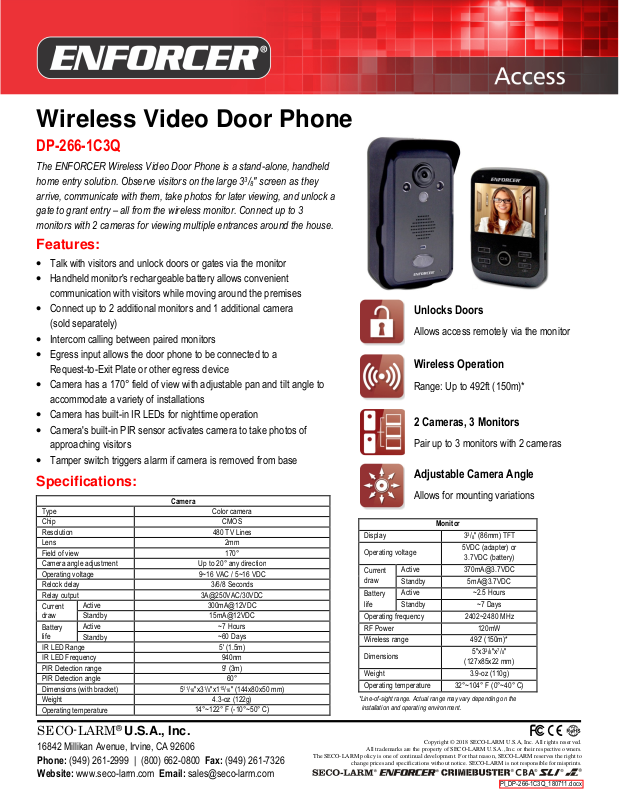

Wireless Video Door Phone
DP-266
-
1C3Q
arrive, communicate with them, take photos for later viewing, and unlock a
•
Features:
Specifications
:
Camera
Type Color camera
Chip CMOS
Resolution
480 TV Lines
Lens 2mm
Field of view
170°
Camera angle adjustment
Up to 20° any direction
Operating voltage
9~16 VAC
/
5~16 VDC
Relock delay
3/6/8 Seconds
Relay output
3A@250VAC/30VDC
Active 300mA@12VDC
Standby
15mA@12VDC
Active ~7 Hours
Standby
~60 Days
IR LED Range
5' (1.5m)
IR
LED Frequency
940nm
PIR Detection range
9' (3m)
PIR Detection angle
60°
Dimensions (with bracket)
511/16"x31/8"x115/16" (144x80x50 mm)
Weight
4.3-oz (122g)
Operating temperature
14°~122° F (
-
10°~50° C)
Monitor
Display
33/8" (86mm) TFT
5VDC (adapter) or
Current
Active 370mA@3.7VDC
Standby
5mA@3.7VDC
Battery
Active ~2.5 Hours
Standby
~7 Days
Operating frequency
2402~2480 MHz
RF P
ower 120mW
Wireless range
492' (150m)*
5"x33/8"x7/8"
Weight
3.9-oz (110g)
Operating temperature
32°~104° F (0°~40° C)
Unlocks Doors
Allows access remotely via the monitor
Wireless Operation
Range: Up to 492ft (150m)*
2 Cameras, 3 Monitors
Pair up to 3 monitors with 2 cameras
Adjustable Camera Angle
Allows for
mounting variations
The ENFORCER Wireless Video Door Phone is a stand-alone, handheld
home entry solution. Observe visitors on the large 33/8" screen as they
gate to grant entry – all from the wireless monitor. Connect up to 3
monitors with 2 cameras for viewing multiple entrances around the house.
Talk with visitors and unlock doors or gates via the monitor
• Handheld monitor's rechargeable battery allows convenient
communication with visitors while moving around the premises
• Connect up to 2 additional monitors and 1 additional camera
(sold separately)
• Intercom calling between paired monitors
• Egress input allows the door phone to be connected to a
Request-to-Exit Plate or other egress device
• Camera has a 170° field of view with adjustable pan and tilt angle to
accommodate a variety of installations
• Camera has built-in IR LEDs for nighttime operation
• Camera's built-in PIR sensor activates camera to take photos of
approaching visitors
• Tamper switch triggers alarm if camera is removed from base
Current
draw
Battery
life
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800 Fax: (949) 261-7326
PI_DP-266-1C3Q_180711.docx
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to
Operating voltage
draw
life
Dimensions
*Line-of-sight range. Actual range may vary depending on the
installation and operating environment.
All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners.
change prices and specifications without notice. SECO-LARM is not responsible for misprints.
Copyright © 2018 SECO-LARM U.S.A, Inc. All rights reserved.
3.7VDC (battery)
(127x85x22 mm)
SECO
-
LARM
Website:
www.seco
-
larm.com
Email:
sales@seco
-
larm.com
Status LED
Monitor:
MENU
EXIT
Charging
indicator
OK/Talk
Menu/Unlock
Exit/View
Microphone
Up
Down/Photo
Volume up/down
Camera
IR LEDs
PIR Sensor
Speaker
Status
Doorbell
Microphone
511/16"
115/16"
(50mm)
Wiring connections
Reset button
Battery cover
Camera angle
adjustment joystick
ON/OFF Button:
USB
Connector
(Mini-B)
PUSH
TO
EXIT
Camera
On-Screen Disp
lay Features
:
Wireless Video Door Phone
Overview:
Photos
–
View and delete photos taken by
Messages
–
View photos from missed calls
.
Time – Set the time and date.
Ring – Choose from four different ring tones
Language
–
Choose from English, German,
Setup – Set advanced settings such as
motion
Camera:
Front
Side
Back
(144mm)
31/8" (80mm)
Front Left
33/8" (86mm)
OK
5"
(127mm)
- Turn monitor
ON/OFF
- Standby mode
33/8" (85mm)
7
/8" (22mm)
the camera station.
Spanish, French, Russian, or
Chinese language formats.
Reset
Right
Sample Wiring Diagram:
COM
N.C.
N.O.
Egress input (N.O., -)
(–)
(+)
1 2 3 4 5 6
Electric strike
power supply
Request-to-exit plate
and set ring volume (six levels).
Optional Accessories:
DP-266-M3Q
Fail-secure
electric strike
Additional Monitor
detection, backlight time, unlocking
duration, pairing, or alarm settings.
DP-266-CQ
Negative (-) (black wire)
Positive (+) (red wire)
®
U.S.A., Inc.
To the included AC adapter or
the doorbell's transformer
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800 Fax: (949) 261-7326
Additional Camera
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to
All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners.
change prices and specifications without notice. SECO-LARM is not responsible for misprints.
PI_DP-266-1C3Q_180711.docx
Copyright © 2018 SECO-LARM U.S.A, Inc. All rights reserved.
