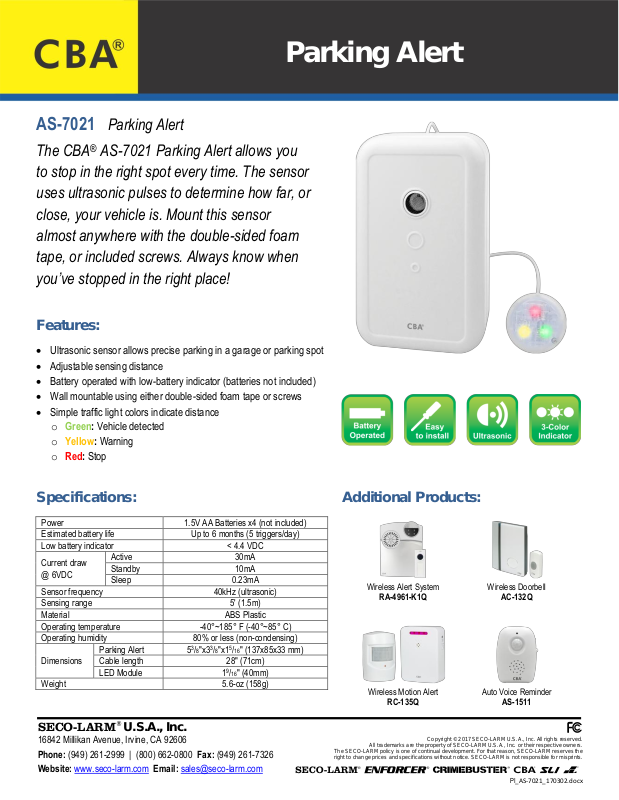

Seco-Larm AS-7021 Specsheet

SECO-LARM

®

U.S.A., Inc.

16842 Millikan Avenue, Irvine, CA 92606

Copyright © 2017 SECO-LARM U.S.A., Inc. All rights reserved.

All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the
right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.

Phone: [phone] | [phone] Fax: [phone]

Website: www.seco-larm.com Email: [e-mail]

PI_AS-7021_170302.docx

AS-7021 Parking Alert

The CBA® AS-7021 Parking Alert allows you
to stop in the right spot every time. The sensor
uses ultrasonic pulses to determine how far, or
close, your vehicle is. Mount this sensor
almost anywhere with the double-sided foam
tape, or included screws. Always know when

you’ve stopped in the right place!

Parking Alert

Features:

 Ultrasonic sensor allows precise parking in a garage or parking spot
 Adjustable sensing distance
 Battery operated with low-battery indicator (batteries not included)
 Wall mountable using either double-sided foam tape or screws
 Simple traffic light colors indicate distance

o Green: Vehicle detected
o Yellow: Warning
o Red: Stop

Specifications:

Power

1.5V AA Batteries x4 (not included)

Estimated battery life

Up to 6 months (5 triggers/day)

Low battery indicator

< 4.4 VDC

Current draw
@ 6VDC

Active

30mA

Standby

10mA

Sleep

0.23mA

Sensor frequency

40kHz (ultrasonic)

Sensing range

5' (1.5m)

Material

ABS Plastic

Operating temperature

-40°~185° F (-40°~85° C)

Operating humidity

80% or less (non-condensing)

Dimensions
Parking Alert

53/8"x33/8"x15/16" (137x85x33 mm)

Cable length

28" (71cm)

LED Module

19/16" (40mm)

Weight

5.6-oz (158g)

Additional Products:

Wireless Alert System

RA-4961-K1Q

Wireless Doorbell

AC-132Q

Wireless Motion Alert

RC-135Q

Auto Voice Reminder

AS-1511
