Operator’s Manual

24” SNOW THROWER

Model No. 247.883550

CAUTION: Before using this product, read this manual and follow all safety rules and operating instructions.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL

FORM NO. 769-01888C

7/5/2007

TABLE OF CONTENTS

Warranty Statement . . . . . . . . . . . . . . . . . . . . Page 2

Repair Protection Agreement . . . . . . . . . . . . . Page 3

Safe Operation Practices . . . . . . . . . . . . . .Pages 4-5

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Assembly . . . . . . . . . . . . . . . . . . . . . . . . .Pages 8-11

Operation . . . . . . . . . . . . . . . . . . . . . . . .Pages 12-15

Service &Maintenance . . . . . . . . . . . . . .Pages 16-23

Off-Season Storage . . . . . . . . . . . . . . . . . . . Page 24

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . Page 25

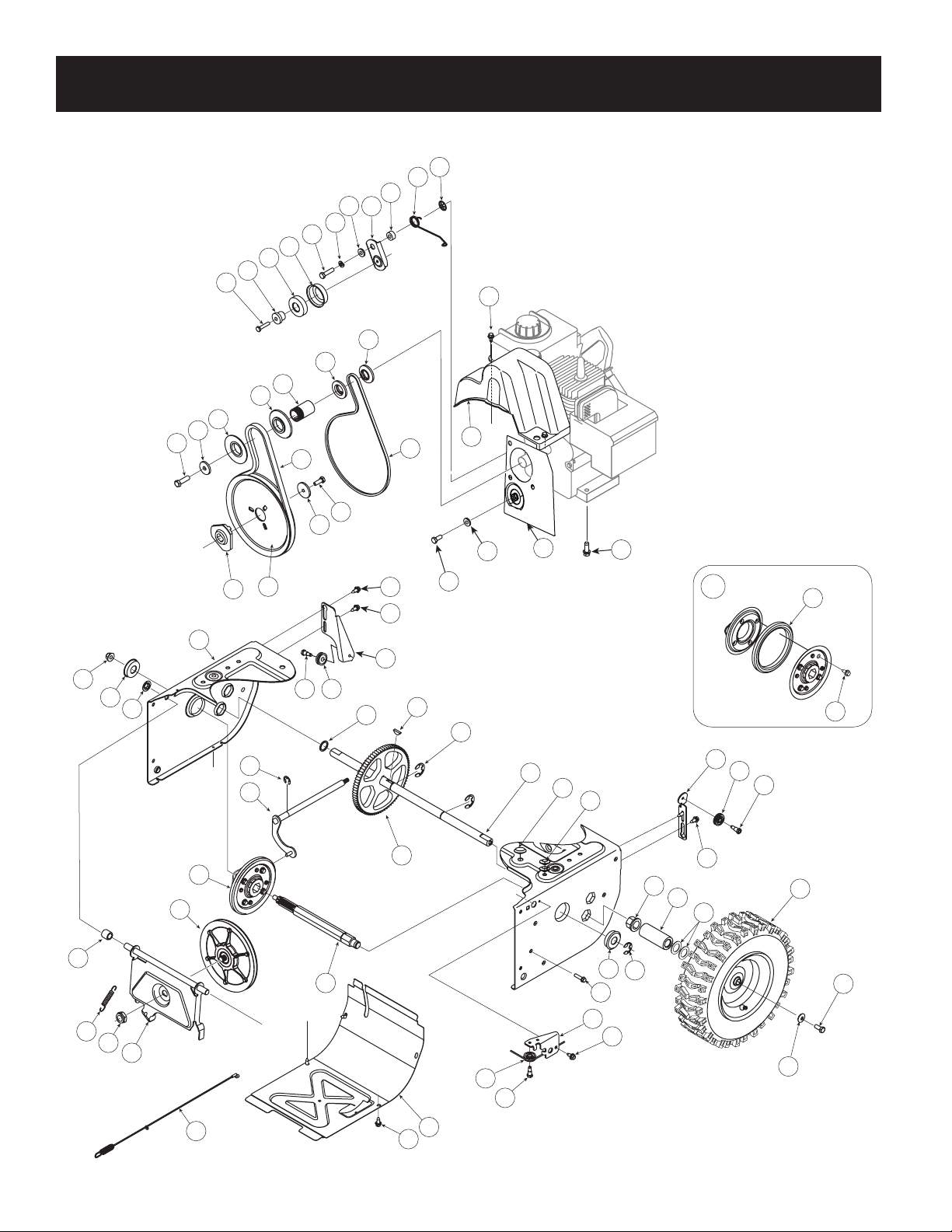

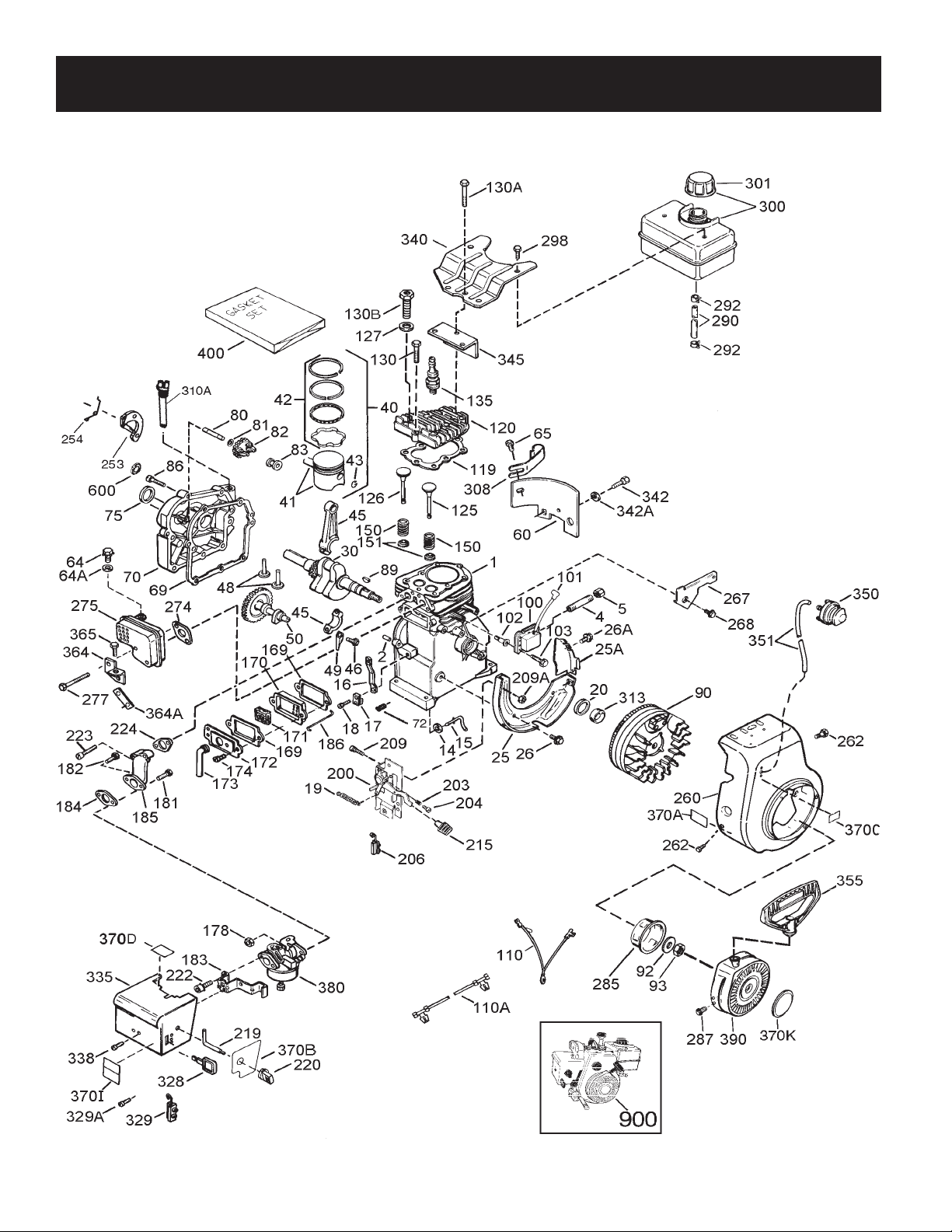

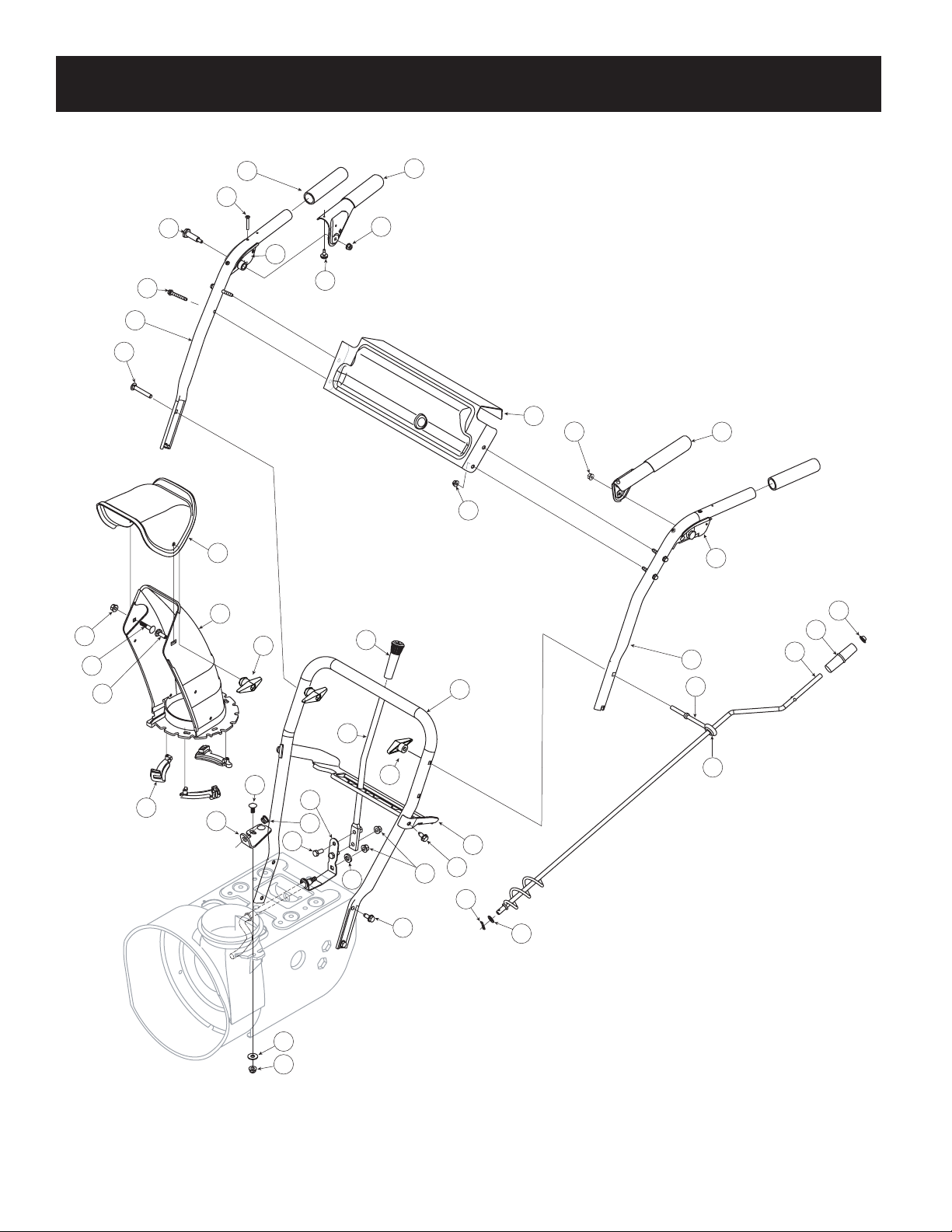

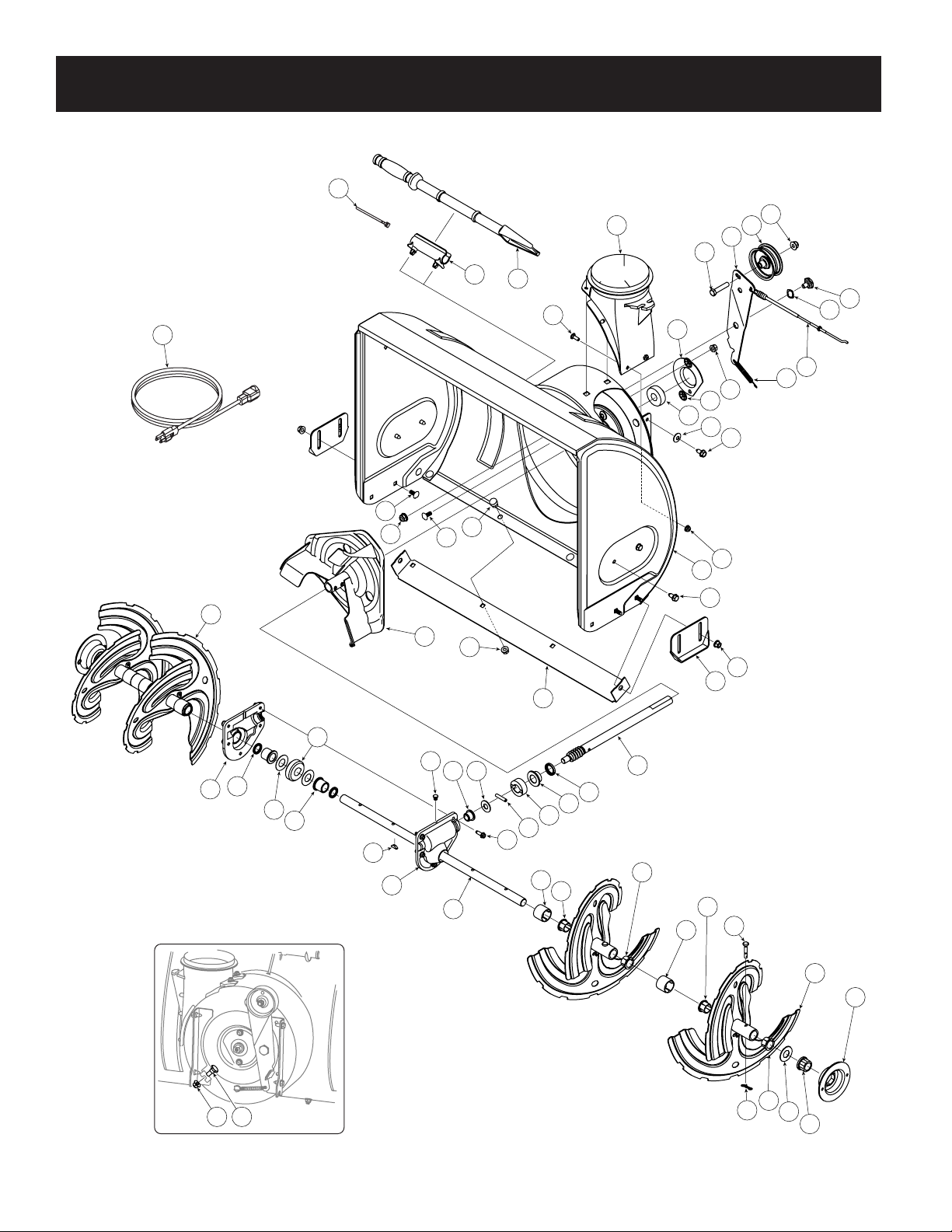

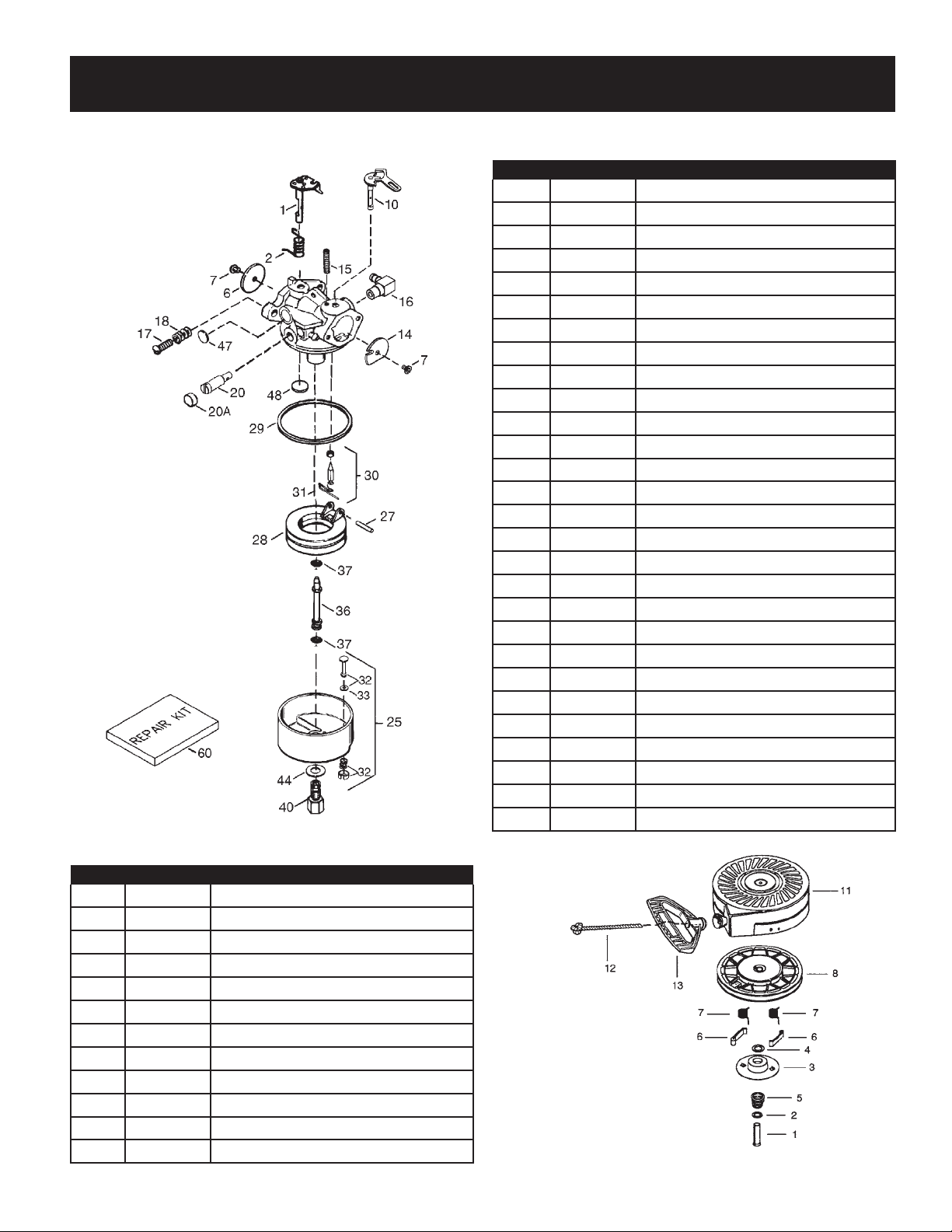

Parts List . . . . . . . . . . . . . . . . . . . . . . . . .Pages 26-35

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 38

WARRANTY STATEMENT

Two -Year Warranty on Craftsman Snow Thrower

This equipment is covered by a two-year warranty, provided that it is maintained, lubricated, and tuned up according to the instructions in the operator’s manual. During the warranty year, if this equipment experiences any failure due to defects in material or workmanship, RETURN IT TO YOUR NEAREST SEARS PARTS & REPAIR CENTER, and Sears will repair it, free of charge. In-home warranty service is available, but you will have to pay a trip charge.

This warranty does not cover:

Expendable items which become worn during normal use, such as skid shoes, shave plate and spark plugs.

• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused by improper

• storage, bent crankshafts, failure to use the proper grade and amount of engine oil, or failure to maintain the equipment according to the instructions contained in the operator’s manual.

Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel should be used

• within 30 days of its purchase date.

Equipment if used for commercial or rental purposes.

•

This warranty applies for only 90 days if this product is ever used for commercial or rental purposes.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

PRODUCT SPECIFICATIONS MODEL NUMBER

Engine Oil Type: SAE 5W-30 Engine Oil Capacity: 21 ounces Fuel Capacity: 2 Quarts Spark Plug: Champion® RJ19LM Spark Plug Gap: .030”

Model Number .................................................................

Serial Number .................................................................

Date of Purchase .............................................................

Record the model number, serial number

and date of purchase above

REPAIR PROTECTION AGREEMENT

Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That’s when having a Repair Protection Agreement can save you money and aggravation. Here’s what’s included in the Agreement:

• Expert service by our 12,000 professional repair specialists

• Unlimited service and no charge for parts and labor on all covered repairs

• Product replacement if your covered product can’t be fixed

• Discount of 10% from regular price of service and service-related parts not covered by the agreement; also, 10% off regular price of preventive maintenance check

• Fast help by phone – phone support from a Sears technician on products requiring in-home repair, plus convenient repair scheduling

Purchase a Repair Protection Agreement now and protect yourself from unexpected hassle and expense. Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online. Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Repair Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information call 1-800-827-6655. Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MY-HOME®

SAFETY INSTRUCTIONS

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read

and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol, HEED ITS WARNING!

Your Responsibility: Restrict the use of this power machine to persons who read, understand, and follow the warnings and instructions in this manual and on the machine.

TRAINING

Read, understand, and follow all instructions on the machine and in

• the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

Be familiar with all controls and their proper operation. Know how to stop

• the machine and disengage them quickly.

Never allow children under 14 years old to operate this machine. Chil-

• dren 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

Never allow adults to operate this machine without proper instruction.

• Thrown objects can cause serious personal injury. Plan your snow-

• throwing pattern to avoid discharge of material toward roads, bystanders and the like.

Keep bystanders, helpers, pets and children at least 75 feet from the

• machine while it is in operation. Stop machine if anyone enters the area.

Exercise caution to avoid slipping or falling, especially when operating in

• reverse.

DANGER

This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

WARNING

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

PREPARATION

Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards, wires and other foreign objects, which could be tripped over or thrown by the auger/impeller.

Always wear safety glasses or eye shields during operation and while

• performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

•

Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.

Use a grounded three-wire extension cord and receptacle for all units

• with electric start engines.

Adjust collector housing height to clear gravel or crushed rock surfaces.

• Disengage all control levers before starting the engine.

• Never attempt to make any adjustments while engine is running, except

• where specifically recommended in the operator’s manual.

Let engine and machine adjust to outdoor temperature before starting to

• clear snow.

Safe Handling of Gasoline

To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely ﬂammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.

Use only an approved gasoline container.

•

Extinguish all cigarettes, cigars, pipes and other sources of ignition. Never fuel machine indoors.

• Never remove gas cap or add fuel while the engine is hot or running.

•

Allow engine to cool at least two minutes before refueling. Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of

• filler neck to provide space for fuel expansion.

•

Replace gasoline cap and tighten securely. If gasoline is spilled, wipe it off the engine and equipment. Move

• machine to another area. Wait 5 minutes before starting the engine.

•

Never store the machine or fuel container inside where there is an open flame, spark or pilot light (e.g. furnace, water heater, space heater, clothes dryer etc.).

Allow machine to cool at least 5 minutes before storing.

•

SAFETY INSTRUCTIONS

OPERATION

Do not put hands or feet near rotating parts, in the auger/impeller

• housing or chute assembly. Contact with the rotating parts can amputate hands and feet.

The auger/impeller control lever is a safety device. Never bypass its

• operation. Doing so makes the machine unsafe and may cause personal injury.

The control levers must operate easily in both directions and automati-

• cally return to the disengaged position when released.

Never operate with a missing or damaged chute assembly. Keep all

• safety devices in place and working.

Never run an engine indoors or in a poorly ventilated area. Engine

• exhaust contains carbon monoxide, an odorless and deadly gas.

Do not operate machine while under the influence of alcohol or drugs.

• Muffler and engine become hot and can cause a burn. Do not touch.

• Exercise extreme caution when operating on or crossing gravel surfaces.

• Stay alert for hidden hazards or traffic.

Exercise caution when changing direction and while operating on slopes.

• Plan your snow-throwing pattern to avoid discharge towards windows,

• walls, cars etc. Thus, avoiding possible property damage or personal injury caused by a ricochet.

Never direct discharge at children, bystanders and pets or allow anyone

• in front of the machine.

Do not overload machine capacity by attempting to clear snow at too fast

• of a rate.

Never operate this machine without good visibility or light. Always be

• sure of your footing and keep a firm hold on the handles. Walk, never run.

Disengage power to the auger/impeller when transporting or not in use.

• Never operate machine at high transport speeds on slippery surfaces.

• Look down and behind and use care when backing up.

If the machine should start to vibrate abnormally, stop the engine,

• disconnect the spark plug wire and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.

Disengage all control levers and stop engine before you leave the

• operating position (behind the handles). Wait until the auger/impeller comes to a complete stop before unclogging the chute assembly, making any adjustments, or inspections.

Never put your hand in the discharge or collector openings. Always

• use the clean-out tool provided to unclog the discharge opening. Do not unclog chute assembly while engine is running. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.

Use only attachments and accessories approved by the manufacturer

• (e.g. wheel weights, tire chains, cabs etc.).

If situations occur which are not covered in this manual, use care and

• good judgment. Contact your Sears Service Center for assistance.

MAINTENANCE & STORAGE

Never tamper with safety devices. Check their proper operation

• regularly. Refer to the maintenance and adjustment sections of this manual.

Before cleaning, repairing, or inspecting machine disengage all control

• levers and stop the engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

Check bolts and screws for proper tightness at frequent intervals to keep

• the machine in safe working condition. Also, visually inspect machine for any damage.

Do not change the engine governor setting or over-speed the engine.

• The governor controls the maximum safe operating speed of the engine.

Snow thrower shave plates and skid shoes are subject to wear and

• damage. For your safety protection, frequently check all components and replace with original equipment manufacturer’s (OEM) parts only. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

Check controls periodically to verify they engage and disengage

• properly and adjust, if necessary. Refer to the adjustment section in this operator’s manual for instructions.

Maintain or replace safety and instruction labels, as necessary.

• Observe proper disposal laws and regulations for gas, oil, etc. to protect

• the environment.

Prior to storing, run machine a few minutes to clear snow from machine

• and prevent freeze up of auger/impeller.

Never store the machine or fuel container inside where there is an open

• flame, spark or pilot light such as a water heater, furnace, clothes dryer etc.

Always refer to the operator’s manual for proper instructions on

• off-season storage.

Do not modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

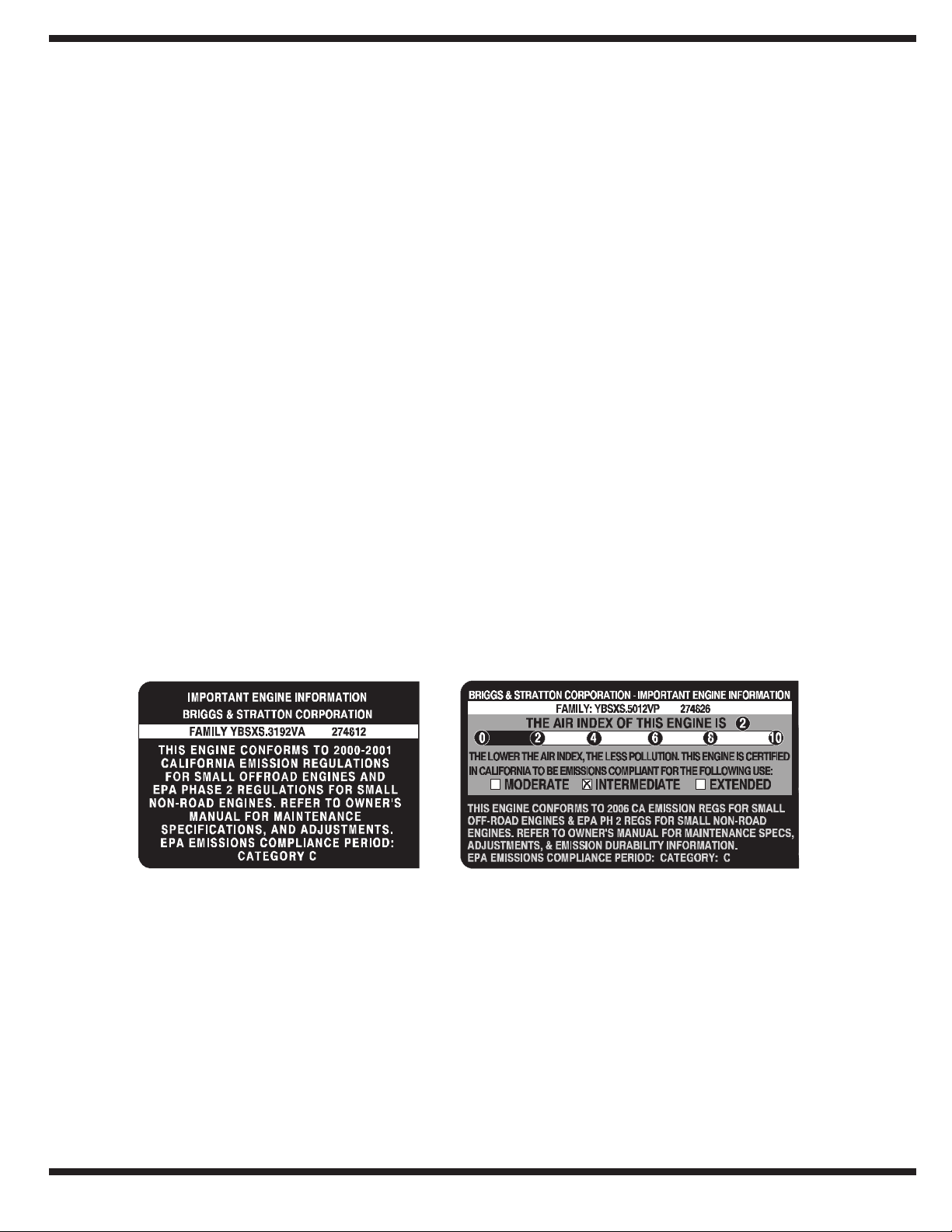

Notice Regarding Emissions

Engines which are certiﬁed to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certiﬁed to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modiﬁcation (EM) and Three Way Catalyst (TWC) if so equipped.

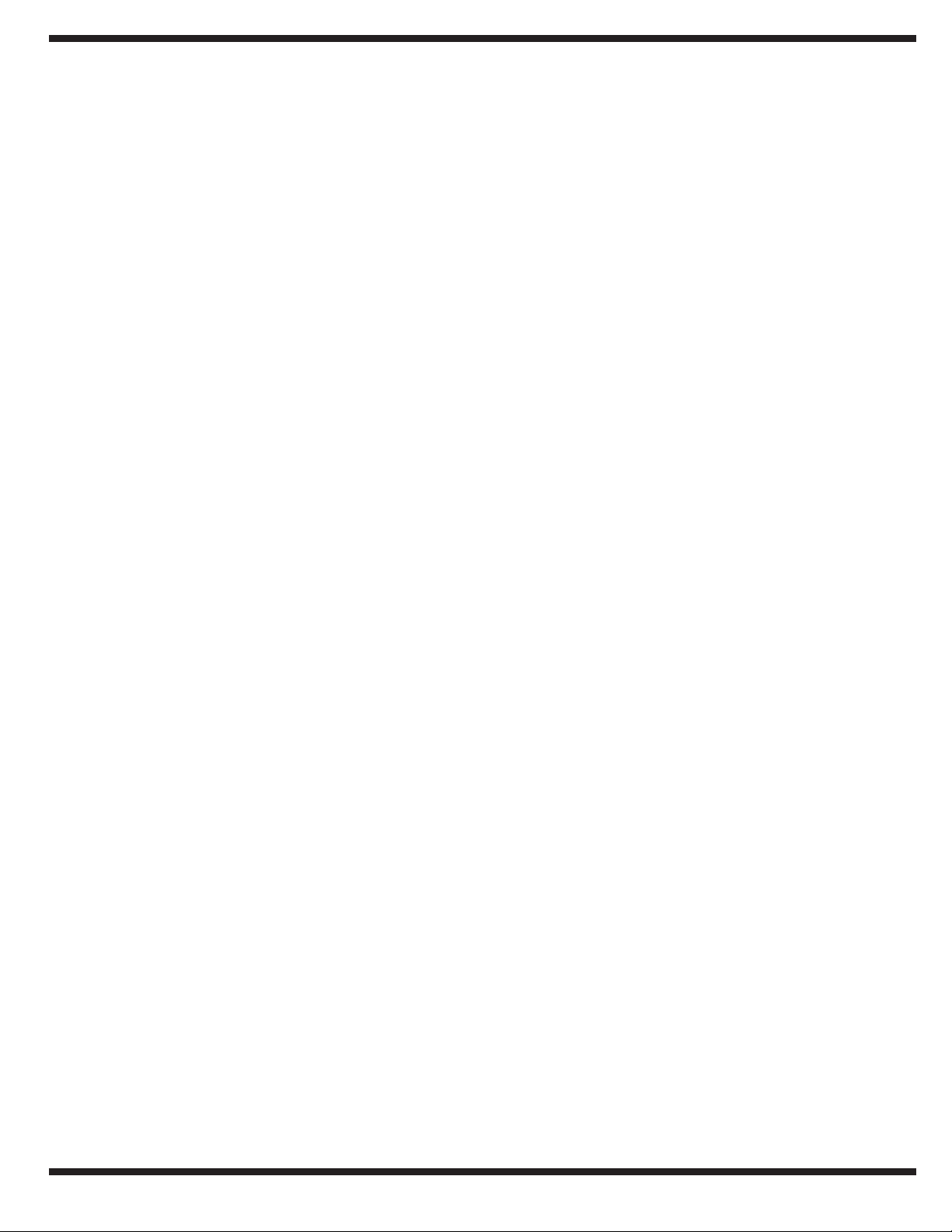

This page left intentionally blank.

SAFETY LABELS

KEEP AWAY FROM ROTATING IMPELLER AND AUGER. CONTACT WITH IMPELLER OR AUGER CAN AMPUTATE HANDS AND FEET

USE CLEAN-OUT TOOL TO UNCLOG DISCHARGE CHUTE.

DISENGAGE CLUTCH LEVERS, STOP ENGINE , AND REMAIN BEHIND HANDLES UNTIL ALL MOVING PARTS HAVE STOPPED BEFORE UNCLOGGING OR SERVICING MACHINE.

TO AVOID THROWN OBJECTS INJURIES, NEVER DIRECT DISCHARGE AT BYSTANDERS. USE EXTRA CAUTION WHEN OPERATING ON GRAVEL SURFACES.

READ OPERATOR'S MANUAL.

DANGER

CLEAN-OUT TOOL

DANGER

AVOID INJURY FROM ROTATING AUGER KEEP HANDS, FEET AND CLOTHING AWAY.

DANGER

NEVER PUT HAND IN CHUTE. CONTACT WITH ROTATING PARTS CAN AMPUTATE FINGERS AND HANDS.

SHUT OFF ENGINE AND WAIT UNTIL AL L MOVING PART S HA VE STOPPED BEFORE UNCLOGGING.

USE CLEAN-OUT TOOL OR WOODEN UNCLOG DISCHARGE CHUTE.

STICK TO

ASSEMBLY

NOTE: References to right or left side of the snow thrower are determined from behind the unit in the operating position (standing directly behind the snow thrower, facing the handle panel).

REMOVING FROM CARTON

Cut the corners of the carton and lay the sides flat on the ground.

1. Remove and discard all packing inserts.

Move the snow thrower out of the carton.

2. Make certain the carton has been completely emptied before

3. discarding it.

LOOSE PARTS

Two replacement auger shear pins are included with this manual. Refer to Replacing Shear Pins in the Operation section for more information regarding shear pin replacement.

ASSEMBLY

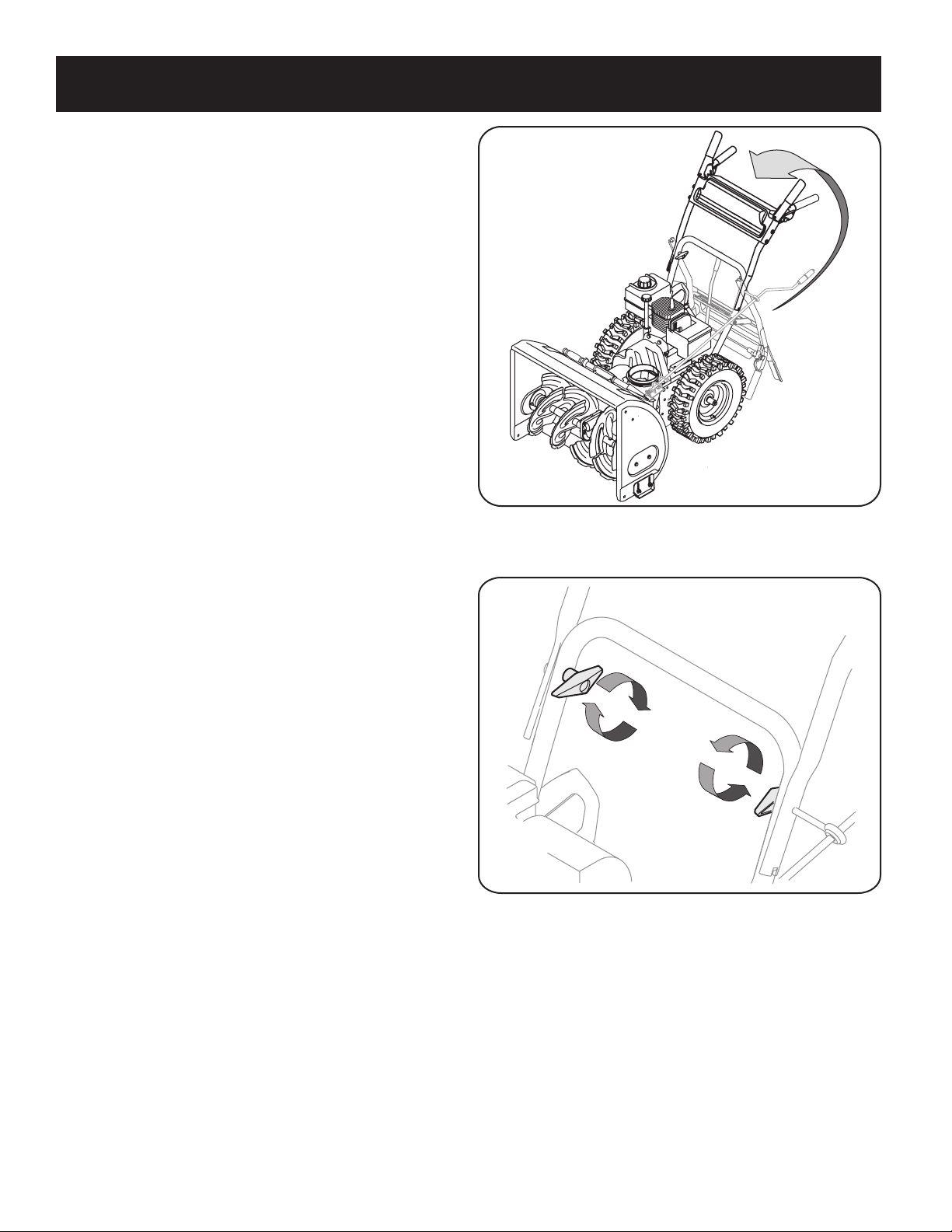

Observe the lower rear area of the snow thrower to be sure both

1. cables are aligned with roller guides before pivoting the handle upward. See Figure 1.

Figure 1

NOTE: Make certain the upper ends of each cable are seated properly in its bracket.

2. Secure the handle by tightening the plastic wing knob located on

both the left and right sides of the handle. See Figure 2. Remove and discard any rubber bands, if present. They are for packaging purposes only.

Figure 2

ASSEMBLY

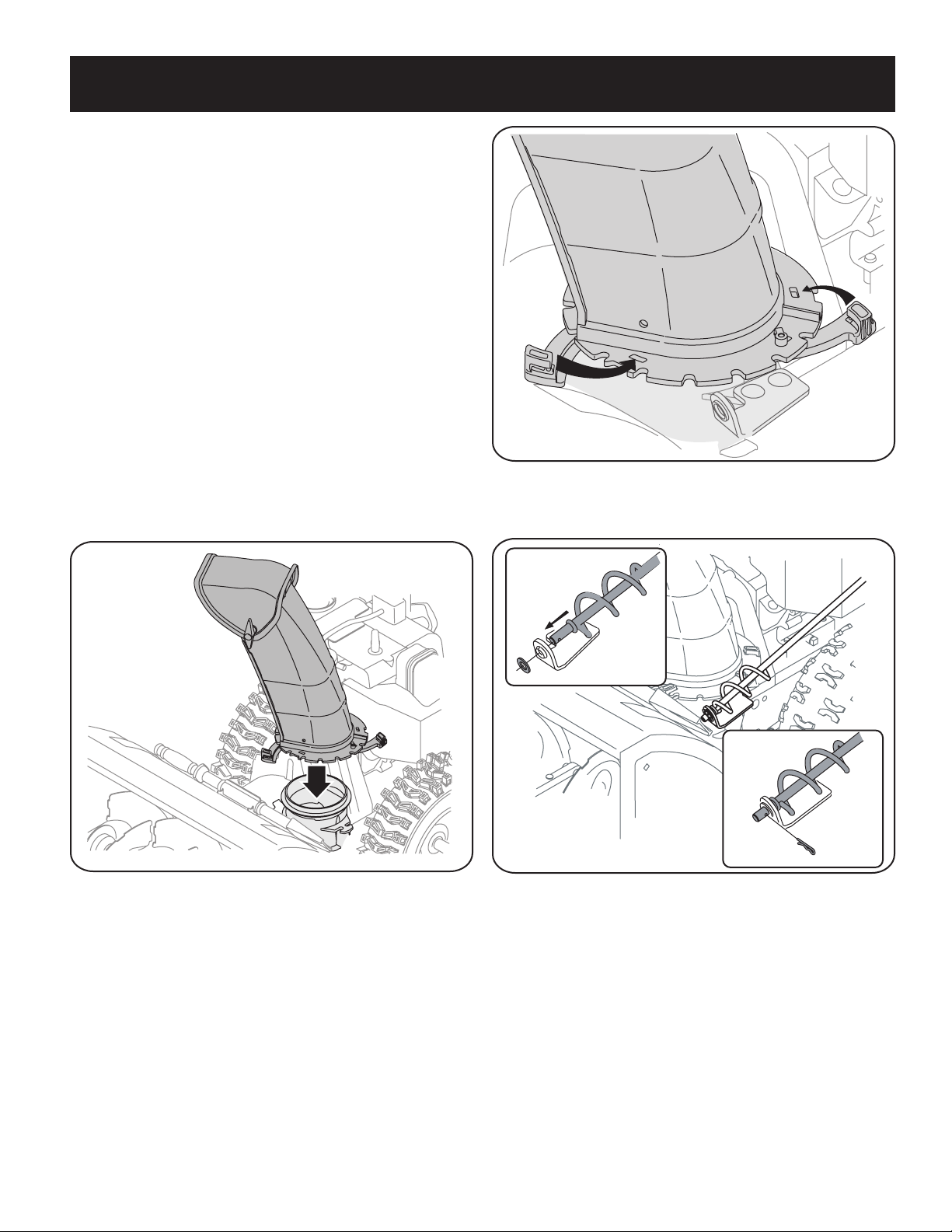

3. Position the chute assembly over the base. See Figure 3.

4. Close the flange keepers to secure the chute assembly to the chute base. See Figure 4. The flange keepers will click into place when properly secure.

NOTE: If the flange keepers will not easily click into place, use the palm of your hand to apply swift, firm pressure to the back of each.

5. a. Remove the flat washer and hairpin clip from the end of the chute directional control.

b. Insert the end of the chute directional control into the lower bracket and secure with the flat washer and hairpin clip just removed. See Figure 5. If necessary, the lower bracket can be adjusted. Refer to Chute Bracket Adjustment in the Service & Maintenance section.

Figure 4

Figure 3

Figure 5

ASSEMBLY

Chute Clean-out Tool

SET-UP

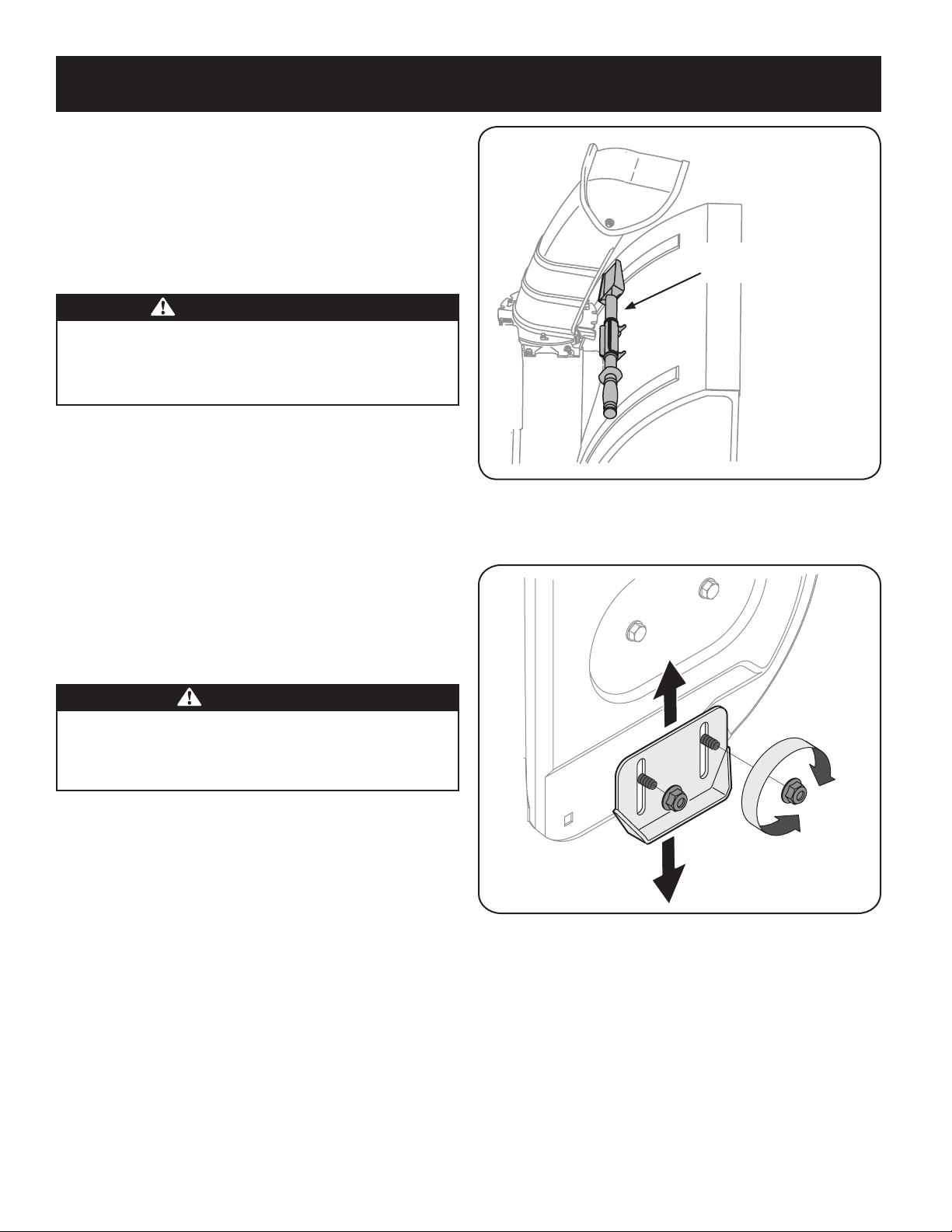

Chute Clean-Out Tool

A chute clean-out tool is fastened to the top of the auger housing with a mounting clip. See Figure 6. The tool is designed to clear a chute assembly of ice and snow. This item is fastened with a cable tie at the factory. Cut the cable tie before operating the snow thrower.

WARNING

Never use your hands to clear a clogged chute assembly. Shut off engine and remain behind handles until all moving parts have stopped before using the clean-out tool to clear the chute assembly.

Tire Pressure

Before operating, check tire pressure and reduce pressure in both tires to between 15 psi and 20 psi.

NOTE: If the tire pressure is not equal in both tires, the unit may not travel in a straight path and the shave plate may wear unevenly.

ADJUSTMENTS

Skid Shoes

The snow thrower skid shoes are adjusted upward at the factory for shipping purposes. Adjust them downward, if desired, prior to operating the snow thrower.

Figure 6

CAUTION

It is not recommended that you operate this snow thrower on gravel as it can easily pick up and throw loose gravel, causing personal injury or damage to the snow thrower and surrounding property.

For close snow removal on a smooth surface, raise skid shoes

• higher on the auger housing.

Use a middle or lower position when the area to be cleared is

• uneven, such as a gravel driveway

NOTE: If you choose to operate the snow thrower on a gravel surface, keep the skid shoes in position for maximum clearance between the ground and the shave plate.

To adjust the skid shoes:

Loosen the four hex nuts (two on each side) and carriage bolts.

1. Move skid shoes to desired position. See Figure 7.

Make certain the entire bottom surface of skid shoe is against the

2. ground to avoid uneven wear on the skid shoes.

Retighten nuts and bolts securely.

Figure 7

ASSEMBLY

Chute Assembly

The distance snow is thrown can be adjusted by changing the angle of the chute assembly. To do so:

Stop the engine by removing the ignition key and loosen the

1. plastic wing knob found on the left side of the chute assembly.

Pivot the chute upward or downward before retightening the wing

2. knob. See Figure 8.

Auger Control

WARNING

Prior to operating your snow thrower, carefully read and follow all instructions below. Perform all adjustments to verify your snow thrower is operating safely and properly.

Check the adjustment of the auger control as follows:

When the auger control is released and in the disengaged “up”

1. position, the cable should have very little slack. It should NOT be tight.

In a well-ventilated area, start the snow thrower engine. Refer

2. to Starting the Engine in the Operation section. Make sure the throttle is set in the FAST position.

While standing in the operator’s position (behind the snow

3. thrower), engage the auger.

Allow the auger to remain engaged for approximately ten (10)

4. seconds before releasing the auger control. Repeat this several times.

With the throttle control in the FAST (rabbit) position and

5. the auger control in the disengaged “up” position, walk to the front of the machine.

Confirm that the auger has completely stopped rotating and

6. shows NO signs of motion. If the auger shows ANY signs of rotating, immediately return to the operator’s position and shut off the engine. Wait for ALL moving parts to stop before re-adjusting the auger control.

To readjust the control cable, loosen the upper hex nut on the

7. auger cable bracket. See Figure 9.

Position the bracket upward to provide more slack (or downward

8. to increase cable tension).

Retighten the upper hex nut.

9. Repeat steps 2-6 above to verify proper adjustment has been

10. achieved.

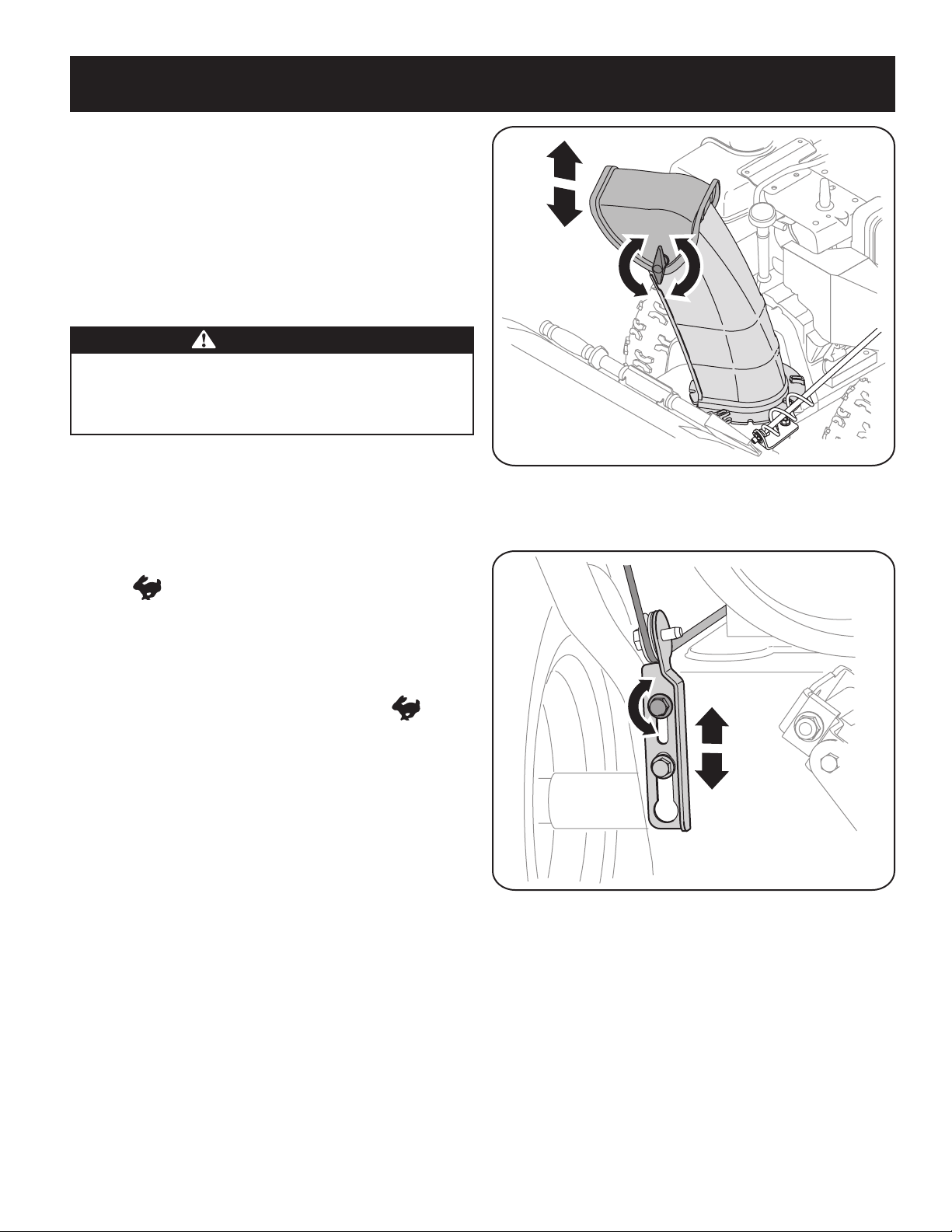

Figure 8

Figure 9

OPERATION

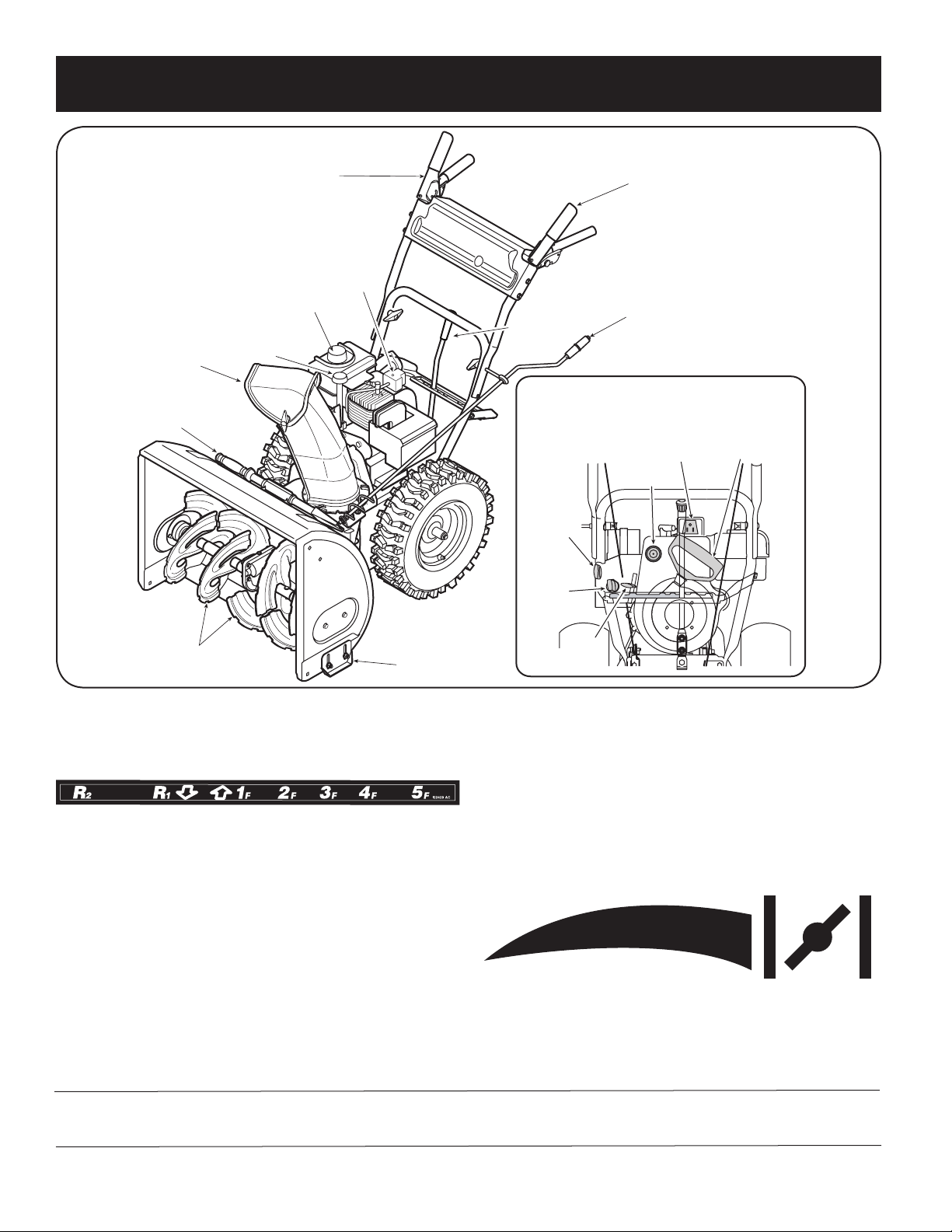

Drive Control

Gas Cap

Oil Fill

Electric Start Button

Chute Directional Control

Chute

Assembly

Clean-Out Tool

Auger Control

Shift Lever

Skid Shoe

Augers

Engine Controls

Recoil Starter

Handle

Electric Starter Outlet

Primer

Ignition

Key

Choke

Control

Throttle Control

Now that you have setup your snow thrower, it’s important to become acquainted with its controls and features. Refer to Figure 10.

SHIFT LEVER

The shift lever is located between the lower handles. Place the shift lever into any of seven positions to control the direction of travel and ground speed.

Forward

Your snow thrower has five forward (F) speeds. Position one (1) is the slowest and position five (5) is the fastest.

Reverse

Your snow thrower has two reverse (R) speeds. One (1) is the slower and two (2) is the faster.

Meets ANSI Safety Standards

Craftsman Snow Throwers conform to the safety standard of the American National Standards Institute (ANSI).

Figure 10

IGNITION KEY

The ignition key is a safety device. It must be fully inserted in order for the engine to start. Remove the ignition key when the snow thrower is not in use.

NOTE: Do not turn the ignition key in an attempt to start the engine. Doing so may cause it to break.

CHOKE CONTROL

The choke control is found on the rear of the engine and is activated by rotating the knob clockwise. Activating the choke control closes the choke plate on the carburetor and aids in starting the engine.

OPERATION

ThroTTle ConTrol

The throttle control is located on the rear of the engine. It regulates the speed of the engine and will shut off the engine when moved into the STOP position.

reCoil STarTer handle

This handle is used to manually start the engine.

eleCTriC STarTer BuTTon

Pressing the electric starter button engages the engine’s electric starter when plugged into a 120V power source.

eleCTriC STarTer ouTleT

Requires the use of a three-prong outdoor extension cord (included) and a 120V power source/wall outlet.

augerS

When engaged, the augers rotate and draw snow into the auger housing.

ChuTe aSSemBly

Snow drawn into the auger housing is discharged out the chute assembly.

Primer

Depressing the primer forces fuel directly into the engine’s carburetor to aid in cold-weather starting.

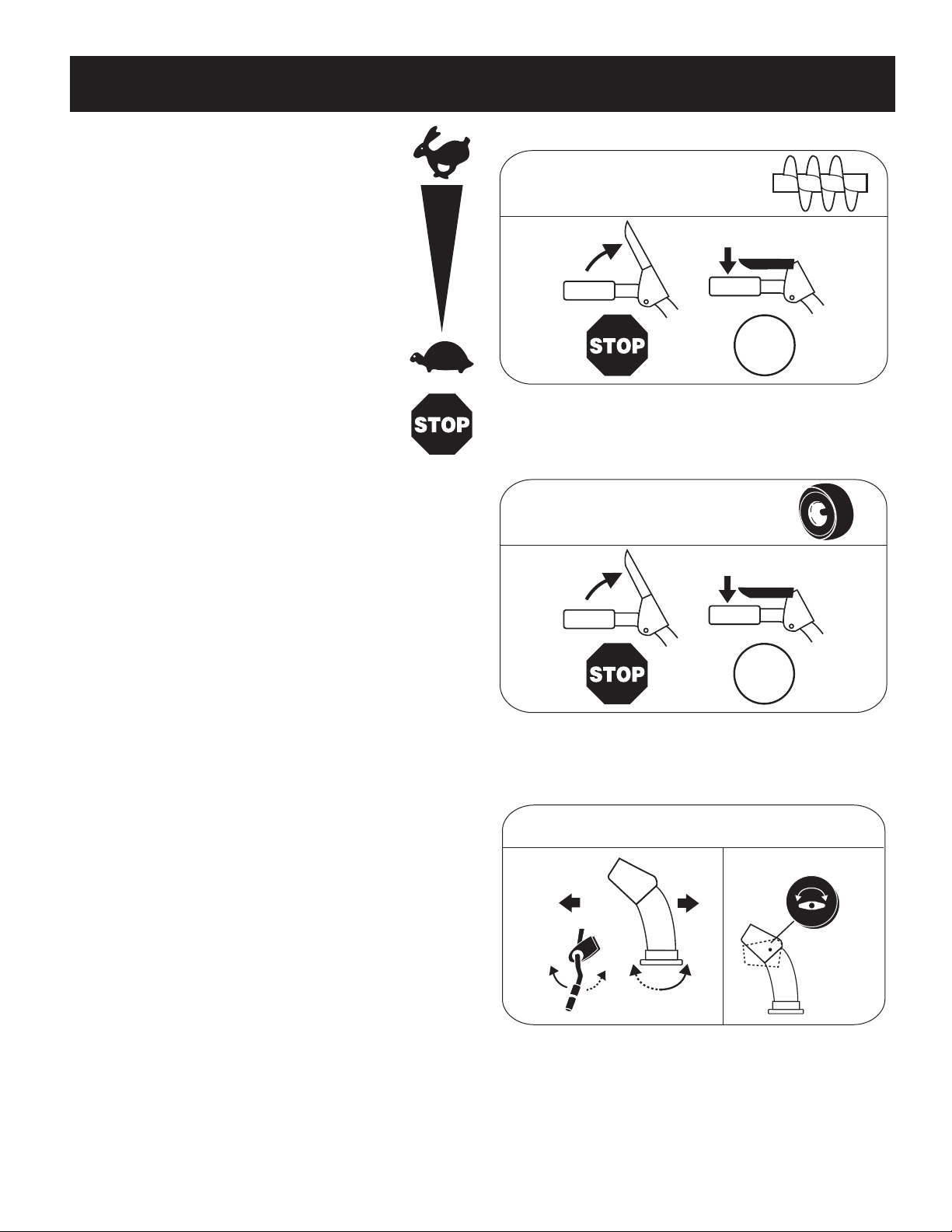

drive ConTrol/ auger ConTrol loCk

DRIVE

CONTROL

The drive control is located on the right handle. Squeeze the control grip against the handle to engage the wheel drive. Release to stop.

NOTE: Always release the drive control before changing speeds. Failure to do so will result in increased wear on your machine’s drive system.

ChuTe direCTional ConTrol

CHUTE DIRECTIONAL CONTROL

ADJUSTABLE

DISCHARGE

LEFT

DISCHARGE

RIGHT

CHUTE TILT

oil Fill

Engine oil level can be checked and oil added through the oil fill.

gaS CaP

Unthread the gas cap to add gasoline to the fuel tank.

auger ConTrol

AUGER

CONTROL

The auger control is located on the left handle. Squeeze the control grip against the handle to engage the augers and start snow throwing action. Release to stop.

The chute directional control is located on left side of the snow thrower. To change the direction in which snow is thrown, turn chute directional control as follows:

Crank clockwise to discharge to the left.

• Crank counterclockwise to discharge to the right.

•

Skid ShoeS

Position the skid shoes based on surface conditions. Adjust upward for hard-packed snow. Adjust downward when operating on gravel or crushed rock surfaces.

OPERATION

CLEAN-OUT TOOL

WARNING

Never use your hands to clear a clogged chute assembly. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.

The chute clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. Should snow and ice become lodged in the chute assembly during operation, proceed as follows to safely clean the chute assembly and chute opening:

Release both the Auger Control and the Drive Control.

1. Stop the engine by removing the ignition key.

2. Remove the clean-out tool from the clip which secures it to the

3. rear of the auger housing. Use the shovel-shaped end of the clean-out tool to dislodge and

4. scoop any snow and ice which has formed in and near the chute assembly.

Refasten the clean-out tool to the mounting clip on the rear of

5. the auger housing, reinsert the ignition key and start the snow thrower’s engine.

While standing in the operator’s position (behind the snow

6. thrower), engage the auger control for a few seconds to clear any remaining snow and ice from the chute assembly.

BEFORE STARTING ENGINE

WARNING

Read, understand, and follow all instructions and warnings on the machine and in this manual before operating.

Oil

The unit was shipped with oil in the engine. Check oil level before each operation to ensure adequate oil in the engine. For further instructions, refer to the steps on page 17.

Remove the dipstick from the oil fill.

1. Check and make sure that the level of oil is up to the FULL mark

2. on the dipstick.

If the oil level is not up to FULL, pour fresh motor oil (5W-30, with

3. a minimum classification of SL/SJ) slowly through the opening. Replace oil fill dipstick and check oil level again.

Gasoline

WARNING

Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.

Store gasoline in a clean, approved container and keep the cap in

• place on the container.

Make sure that the container from which you pour the gasoline is

• clean and free from rust or other foreign particles.

NOTE: A plastic dust cap may be found inside the fuel fill opening. Remove and discard, if present.

Always fill the fuel tank outdoors and use a funnel or spout to

• prevent spilling.

Fill fuel tank with clean, fresh, unleaded gasoline.

• Never fill the fuel tank completely. Fill the tank to within 1/2” from

• the top to provide space for expansion of fuel.

Make sure to wipe off any spilled fuel before starting the engine.

•

STARTING THE ENGINE

Attach spark plug wire to spark plug. Make certain the metal

1. loop on the end of the spark plug wire (inside the rubber boot) is fastened securely over the metal tip on the spark plug.

Make certain both the auger control and drive control are in the

2. disengaged (released) position.

Move throttle control up to FAST position. Insert ignition key

3. into slot. Make sure it snaps into place. Do not attempt to turn the key.

NOTE: The engine cannot start without the key is fully inserted into the ignition switch.

Electric Starter

Determine that your home’s wiring is a three-wire grounded system. Ask a licensed electrician if you are not certain.

WARNING

The optional electric starter is equipped with a grounded three-wire power cord and plug, and is designed to operate on 120 volt AC household current. It must be used with a properly grounded threeprong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.

If you have a grounded three-prong receptacle, proceed as follows:

Plug the extension cord into the outlet located on the engine’s

1. surface. Plug the other end of extension cord into a three-prong 120-volt, grounded, AC outlet in a well-ventilated area.

Rotate choke control to FULL choke position (for a cold

2. engine start).

NOTE: If the engine is already warm, place choke control in the OFF position instead of FULL .

3. Push the primer two or three times for cold engine start, making

sure to cover vent hole in the center of the primer when pushing.

NOTE: DO NOT use primer to restart a warm engine after a short shutdown.

4. Push starter button to start engine.

NOTE: Do not hold the button down for longer than seven (7) seconds at a time. Doing so may damage your engine’s electric starter.

OPERATION

5. Once the engine starts, release starter button.

6. As the engine warms, slowly rotate choke control to the OFF position. If the engine falters, quickly rotate choke control back to FULL then slowly into the OFF position again.

7. When disconnecting the extension cord, always unplug the end at the three-prong wall outlet before unplugging the opposite end from the snow thrower.

Recoil Starter

Rotate choke control to FULL choke position (cold engine

1. start).

NOTE: If the engine is already warm, place choke control in the OFF position instead of FULL .

2. Push the primer two or three times for cold engine start, making

sure to cover vent hole in the center of the primer when pushing.

NOTE: DO NOT use primer to restart a warm engine after a short shutdown.

NOTE: Additional priming may be necessary if the temperature is below 15° Fahrenheit.

3. Grasp the recoil starter handle and slowly pull the rope out. At the

point where it becomes slightly harder to pull the rope, slowly allow the rope to recoil.

4. Pull the starter handle with a firm, rapid stroke. Do not release

the handle and allow it to snap back. Keep a firm hold on the starter handle and allow it to slowly recoil.

5. As the engine warms, slowly rotate the choke control to the OFF

position. If the engine falters, quickly rotate the choke control back to the FULL position and then slowly into the OFF position again.

NOTE: When selecting a Drive Speed, use the slower speeds until you are comfortable and familiar with the operation of the snow thrower.

2. Squeeze the drive control against the handle the snow thrower will move. Release it and drive motion will stop.

NOTE: NEVER reposition the shift lever (change speeds or direction of travel) without first releasing the drive control and bringing the snow thrower to a complete stop. Doing so will result in premature wear to the snow thrower’s drive system.

TO ENGAGE AUGERS

To engage the augers and start throwing snow, squeeze the auger control against the left handle. Release to stop the augers.

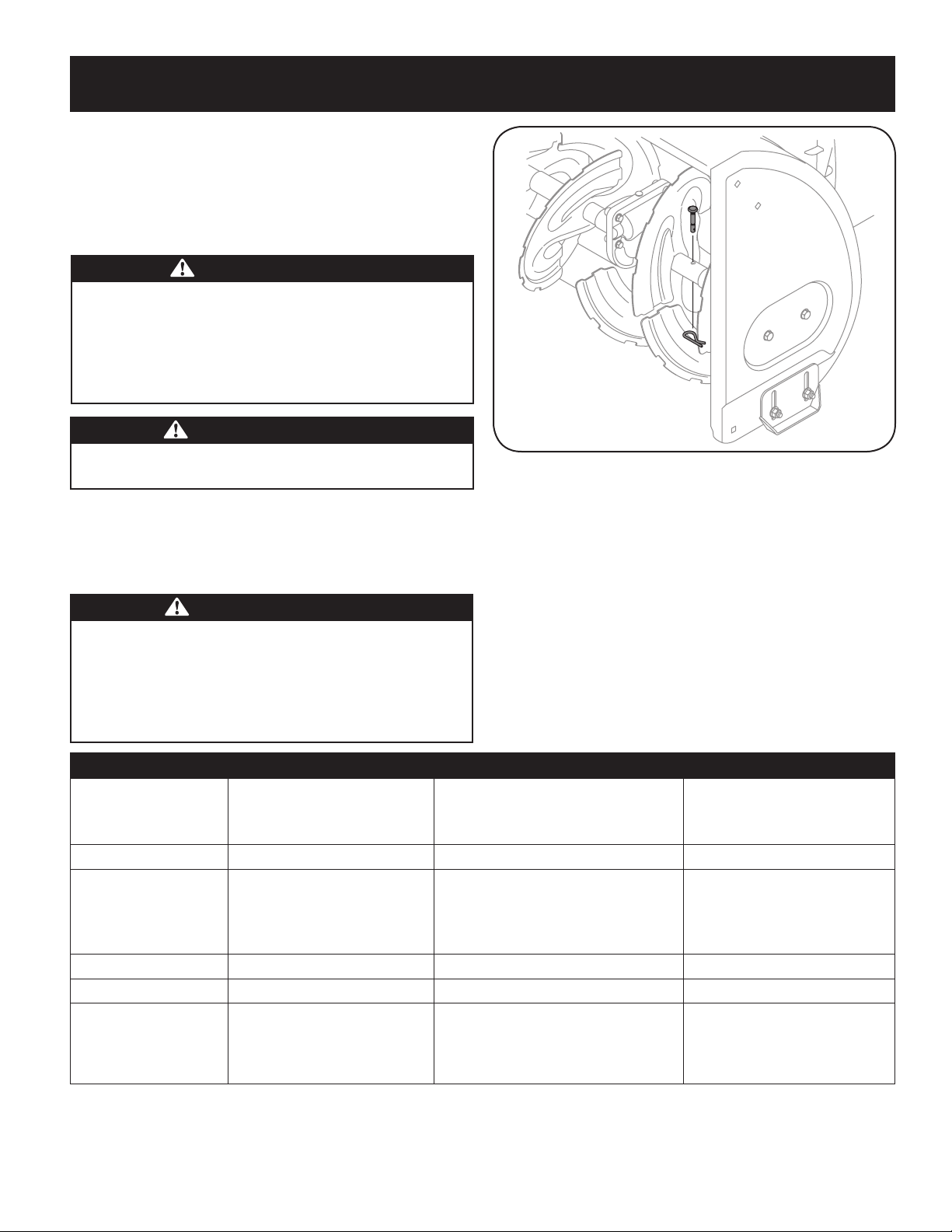

REPLACING SHEAR PINS

The augers are secured to the spiral shaft with two shear pins and cotter pins. If the auger should strike a foreign object or ice jam, the snow thrower is designed so that the shear pins may shear. If the augers will not turn, check to see if the pins have sheared. See Figure 11.

CAUTION

NEVER replace the auger shear pins with anything other than OEM Part No. 738-04124A replacement shear pins. Any damage to the auger gearbox or other components as a result of failing to do so will NOT be covered by your snow thrower’s warranty.

WARNING

Always turn off the snow thrower’s engine and remove the key prior to replacing shear pins.

NOTE: Allow the engine to warm up for a few minutes after starting. The engine will not develop full power until it reaches operating temperatures.

STOPPING THE ENGINE

Run engine for a few minutes before stopping to help dry off any moisture on the engine.

STOP

Move throttle control to STOP Remove the ignition key and store in a safe place.

2. Wipe all snow and moisture from the area around the engine as

3. well as the area in and around the drive control and auger control. Also, engage and release both controls several times.

position.

TO ENGAGE DRIVE

With the throttle control in the Fast position, move shift lever

1. into one of the five forward (F) positions or two reverse (R) positions. Select a speed appropriate for the snow conditions and a pace you’re comfortable with.

Figure 11

SERVICE AND MAINTENANCE

ENGINE MAINTENANCE

WARNING

Before lubricating, repairing, or inspecting, disengage all controls and stop engine. Wait until all moving parts have come to a complete stop.

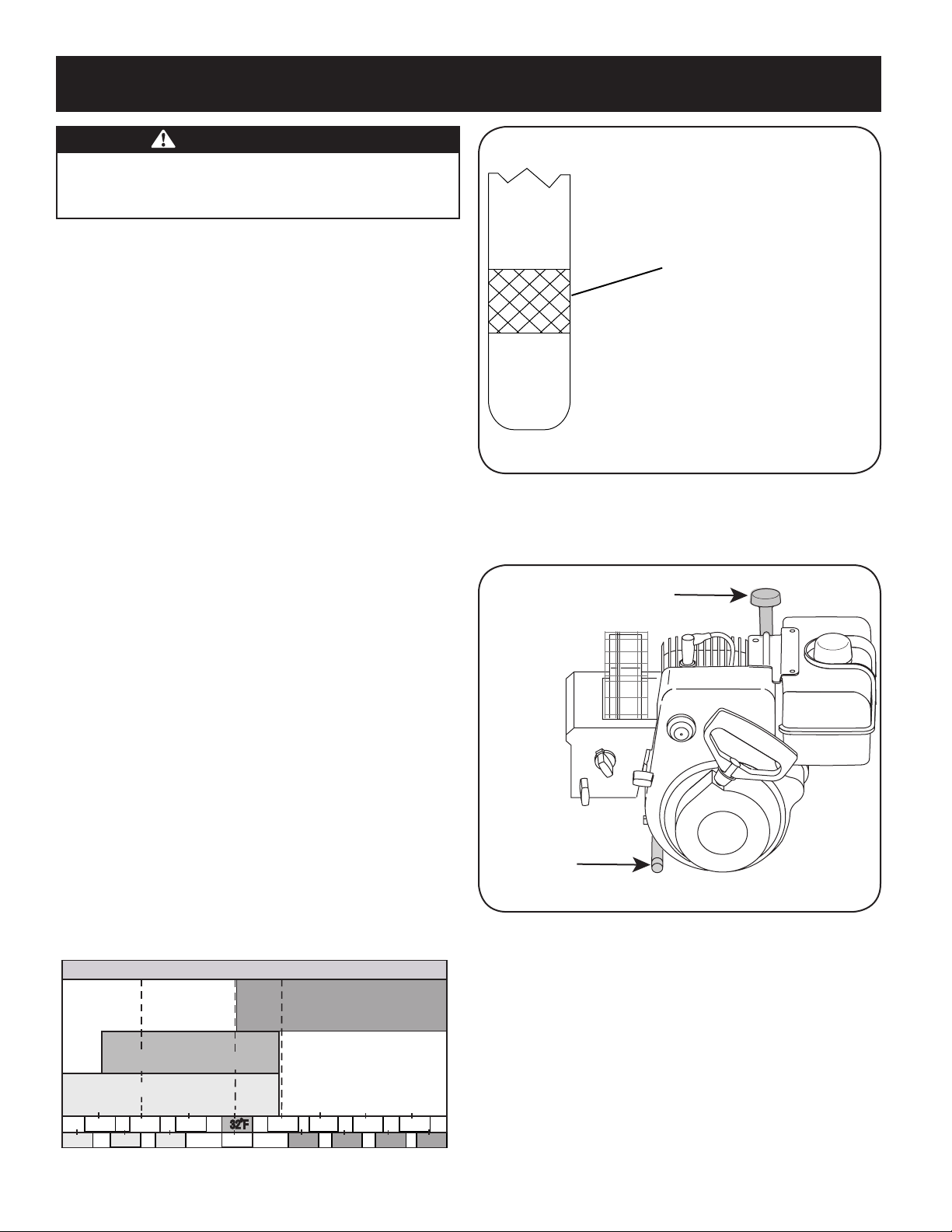

Checking Engine Oil

Be sure engine is upright and level.

1. Unscrew oil fill cap from oil filler tube and wipe dipstick clean.

2. Screw oil fill cap back into oil filler tube. Tighten securely.

3. Unscrew and remove oil fill cap from oil filler tube. Note oil level.

4. If oil reading on dipstick is below “ADD” mark, slowly add oil to reach “FULL” level. See Figure 12.

Screw oil fill cap back into oil filler tube. Tighten securely.

5. Wipe away any spilled oil.

Changing Engine Oil

To avoid engine damage, it is important to:

Check oil level before each use and every five operating hours.

• Change oil after first two (2) operating hours and every 25 operat-

• ing hours thereafter.

Engine should still be warm but not hot from recent use.

• Locate the oil drain plug. See Figure 13.

1. Be sure the gas cap is on and is tightened securely.

2. Clean area around oil drain plug.

3. Place approved recyclable oil container under oil drain plug.

4. Remove oil drain plug and drain oil.

FULL

ADD

Maintain Oil Level

Between FULL and ADD

Figure 12

Oil FIll

NOTE: Used oil must be disposed of at a proper collection center.

6. Install oil drain plug and tighten securely.

7. Refill the engine with recommended oil. See Recommended Oil

Usage chart. The engine’s oil capacity is 21 ounces.

Recommended Oil Usage

Non-Multi Grade

SAE 30

Multi Grade

SAE 5W-30 or SAE 10W-30

Synthetic Multi Grade

SAE 0W-30

-30 C

-20 C

0 F

-20 F

-10 C

20 F

32 FO 32 F

0 C

10 C

20 C

80 F

60 F

40 F

30 C

100 F

40 C

8. Wipe away any spilled oil.

Oil Drain

Figure 13

SERVICE AND MAINTENANCE

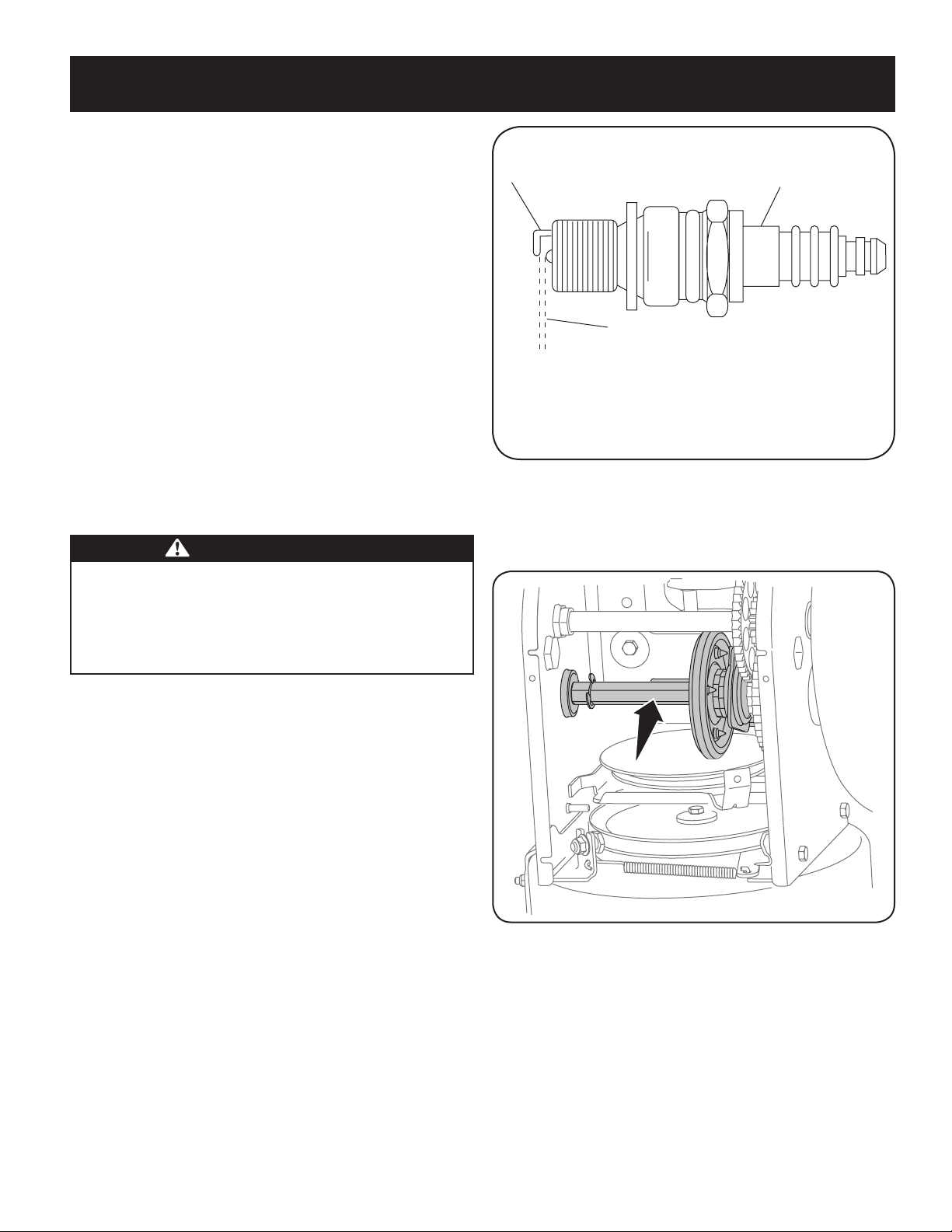

Checking Spark Plug

Check spark plug yearly or every 100 operating hours

Clean area around spark plug.

1. Remove and inspect spark plug.

2. Replace spark plug if porcelain is cracked or if electrodes are

3. pitted, burned or fouled with deposits

Check electrode gap with a feeler gauge and set gap to .030

4. (0.76mm) if necessary. See Figure 14.

Reinstall spark plug and tighten securely.

NOTE: A resistor spark plug must be used for replacement. Contact a Sears Parts and Repair Center for a replacement spark plug.

Carburetor

If you suspect your carburetor needs adjusting, see a Sears Parts and Repair Center. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). For operation at higher elevations, contact a Sears Parts and Repair Center.

Engine Speed

WARNING

Avoid serious injury or death, DO NOT modify engine in any way. Tampering with the governor setting can cause the engine and equipment to operate at unsafe speeds. NEVER tamper with factory setting of engine governor. Running the engine faster than the speed set at the factory is dangerous.

1. .030 (.76 mm) Gap

2. Electrodes

3. Porcelain

Figure 14

LUBRICATION

Gear Shaft

The gear (hex) shaft should be lubricated at least once a season or after every 25 hours of operation.

Carefully pivot the snow thrower up and forward so that it rests on

1. the auger housing.

Remove the lower frame cover from the underside of the snow

2. thrower by removing the four self-tapping screws which secure it.

Apply a light coating of engine oil (or 3-in-1 oil) to the hex shaft.

3. See Figure 15.

NOTE: When lubricating the hex shaft, be careful not to get any oil on the aluminum drive plate or rubber friction wheel. Doing so will hinder the snow thrower’s drive system. Wipe off any excess or spilled oil.

Wheels

At least once a season, remove both wheels. Clean and coat the axles with a multipurpose automotive grease before reinstalling wheels.

Chute Directional Control

Once a season, lubricate the eye bolt bushing and the spiral with 3-in-1 oil.

Auger Shaft

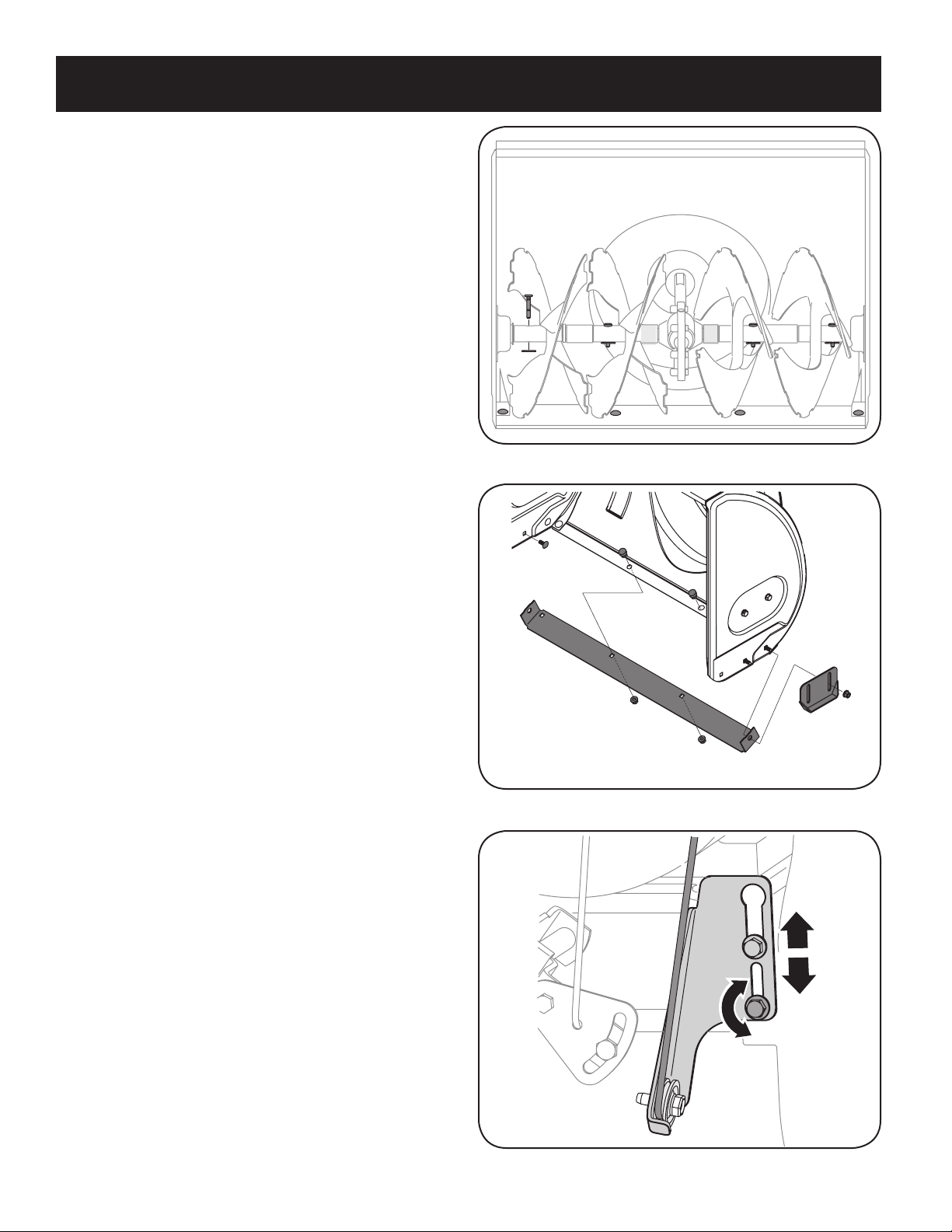

At least once a season, remove the shear pins on auger shaft. Spray lubricant inside shaft, and around the spacers and flange bearings found at either end of the shaft. See Figure 16.

Figure 15

Figure 16

SERVICE AND MAINTENANCE

SHAVE PLATE AND SKID SHOES

The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. They should be checked periodically and replaced when necessary.

To remove skid shoes:

Remove the four carriage bolts and hex flange nuts which secure

1. them to the snow thrower.

Reassemble new skid shoes with the four carriage bolts (two on

2. each side) and hex flange nuts. Refer to Figure 17.

To remove shave plate:

Remove the carriage bolts and hex nuts which attach it to the

1. snow thrower housing.

Reassemble new shave plate, making sure heads of carriage

2. bolts are to the inside of housing. Tighten securely.

ADJUSTMENTS

Drive Control

When the drive control is released and in the disengaged “up” position, the cable should have very little slack. It should NOT be tight. Also, if there is excessive slack in the drive cable or if the unit experiences intermittent drive while using, the cable may need to be adjusted. Check the adjustment of the drive control as follows:

With the drive control released, push the snow thrower gently

1. forward. The unit should roll freely.

Engage the drive control and gently attempt to push the snow

2. thrower forward. The wheels should not turn. The unit should not roll freely.

With the drive control released, move the shift lever back and

3. forth between the R2 position and the F5 position several times. There should be no resistance in the shift lever.

If any of the above tests failed, the drive cable is in need of adjust-

4. ment. Proceed as follows:

Loosen the lower hex nut on the drive cable bracket. See Figure

18. Position the bracket upward to provide more slack (or downward

6. to increase cable tension).

Retighten the lower hex nut.

NOTE:

Augers not shown for clarit

Figure 17

Figure 18

SERVICE AND MAINTENANCE

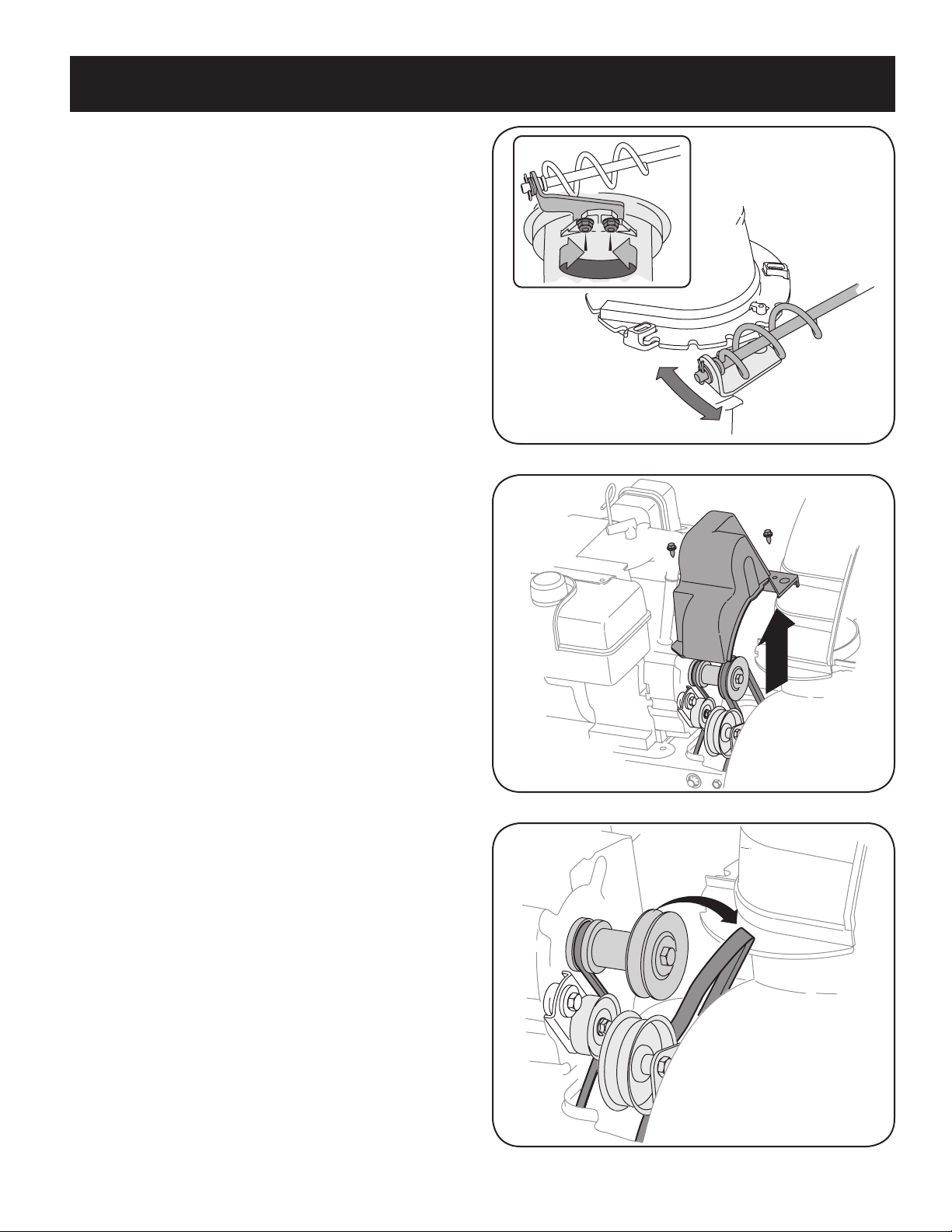

Chute Bracket

If the spiral at the bottom of the chute directional control is not fully engaging with the chute assembly, the chute bracket can be adjusted. To do so:

Loosen the two nuts which secure the chute bracket and reposi-

1. tion it slightly. See Figure 19.

Retighten the nuts.

Auger Control

Refer to the Assembly section for instructions on adjusting the auger control cable.

Skid Shoes

Refer to the Assembly section for instructions on adjusting the skid shoes.

BELT REPLACEMENT

Auger Belt

To remove and replace your snow thrower’s auger belt, proceed as follows:

To prevent spillage, place a piece of plastic wrap under the gas

1. cap and tighten securely.

Remove the plastic belt cover on the front of the engine by remov-

2. ing the two self-tapping screws. See Figure 20.

Roll the auger belt off the engine pulley. See Figure 21.

3. Carefully pivot the snow thrower up and forward so that it rests on

4. the auger housing.

Figure 19

Figure 20

Figure 21

SERVICE AND MAINTENANCE

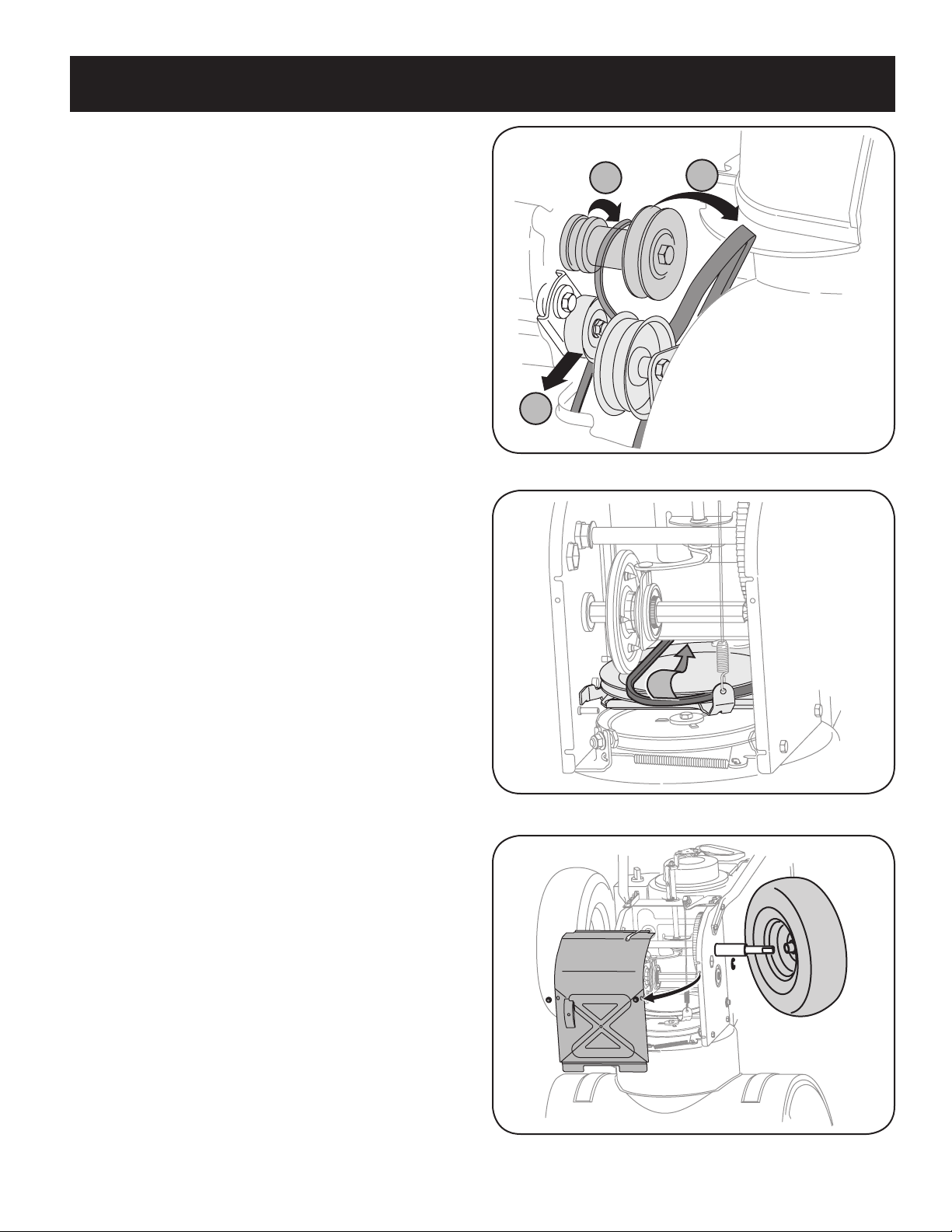

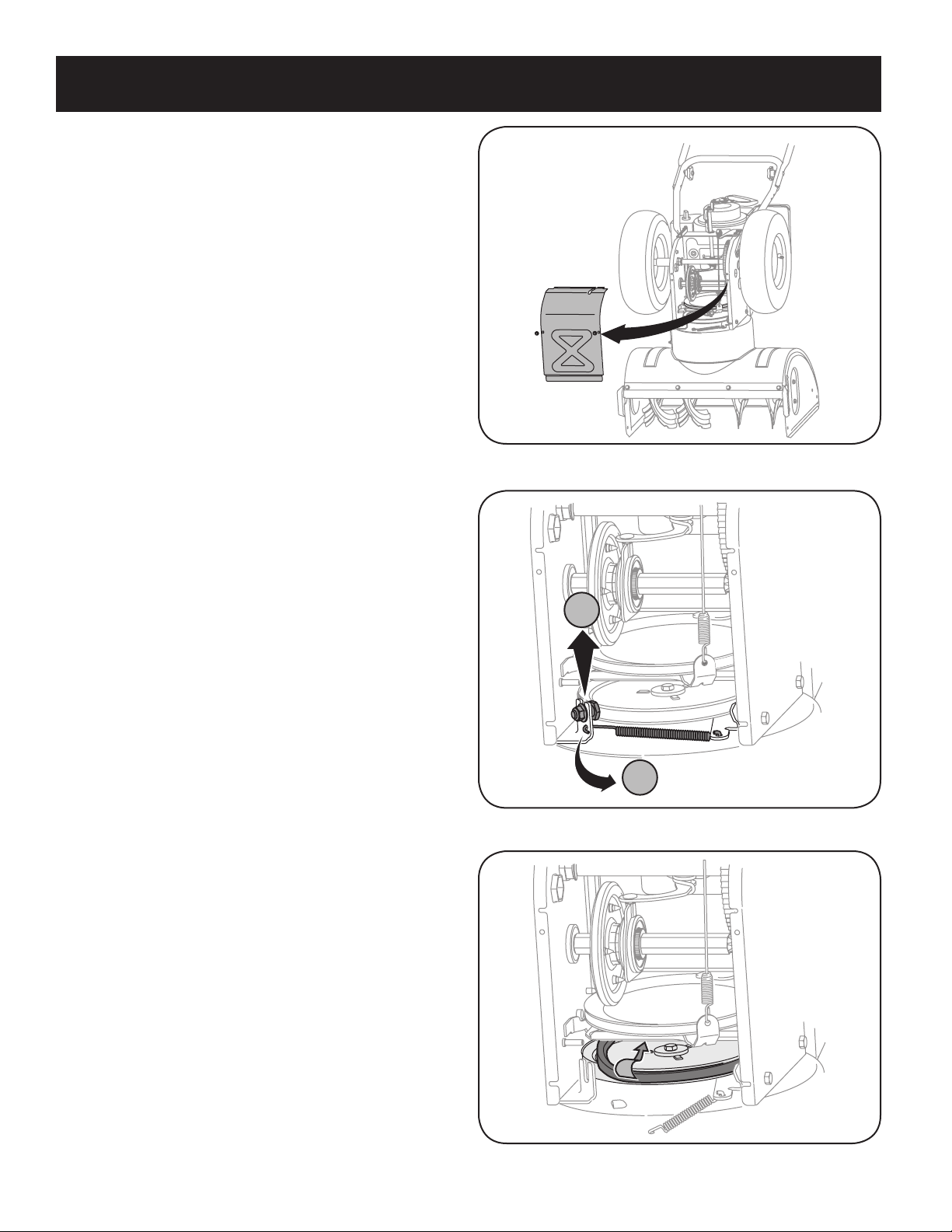

Remove the frame cover from the underside of the snow thrower

5. by removing four self-tapping screws which secure it. See Figure

22. Remove the belt as follows. Refer to Figure 23.

a. Loosen and remove the shoulder screw which acts as a belt keeper.

b. Unhook the support bracket spring from the frame.

7. Remove the belt from around the auger pulley, and slip the belt

between the support bracket and the auger pulley. See Figure 24.

8. Reassemble auger belt by following instructions in reverse order.

NOTE: Do NOT forget to reinstall the shoulder screw and reconnect the spring to the frame after installing a replacement auger belt.

Drive Belt

To remove and replace your snow thrower’s drive belt, proceed as follows:

Place a piece of plastic under the gas cap.

1. Remove the plastic belt cover on the front of the engine by remov-

2. ing the two self-tapping screws. See Figure 20 on previous page.

Figure 22

Figure 23

Figure 24

+ 44 hidden pages
