Sears 249R, 249RP, 801RFD, 245 User Manual
INFORMATION
MANUAL
SU

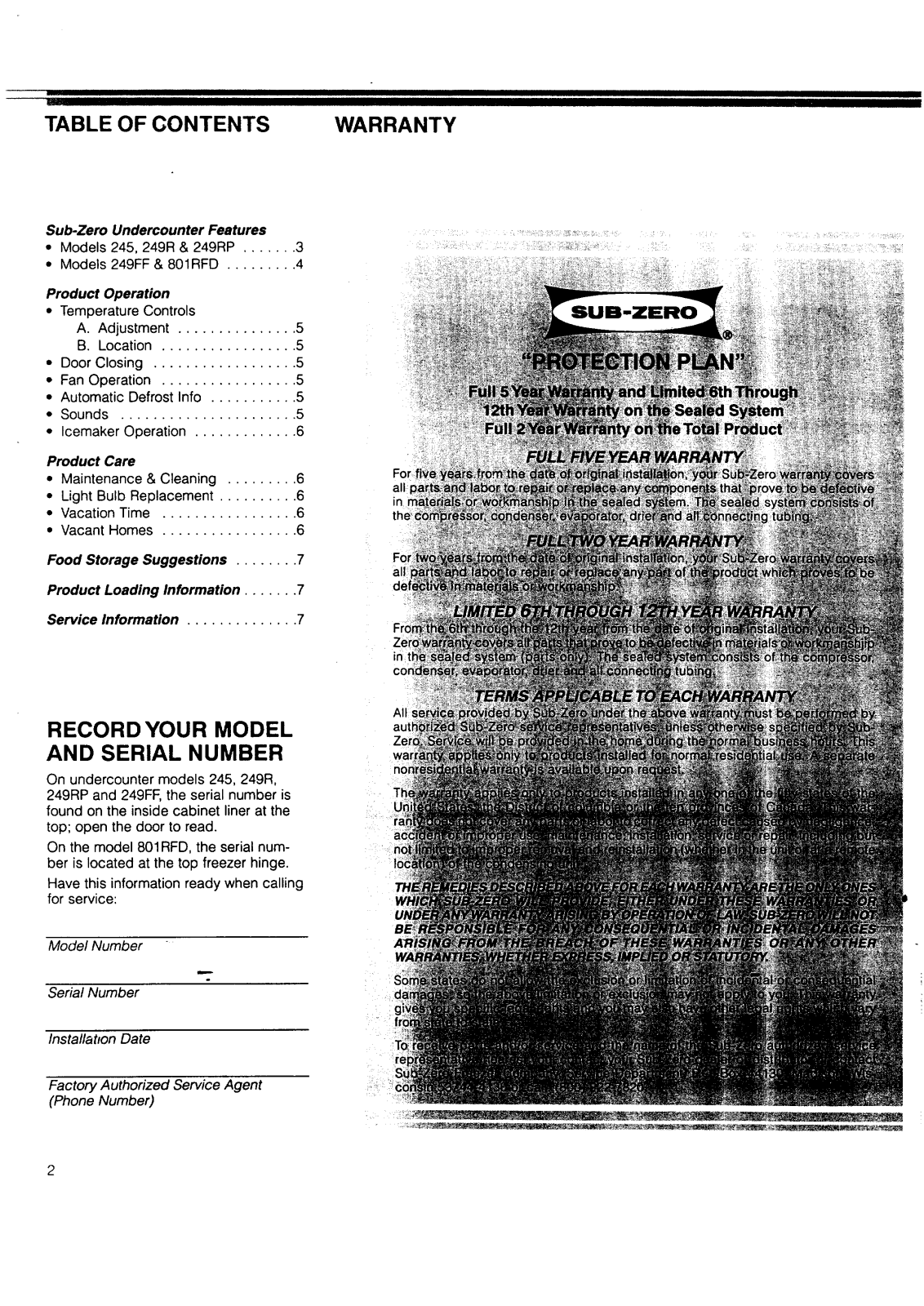

TABLE OF CONTENTS
Sub-Zero Undercounter Features
• Models 245, 249R & 249RP ....... 3

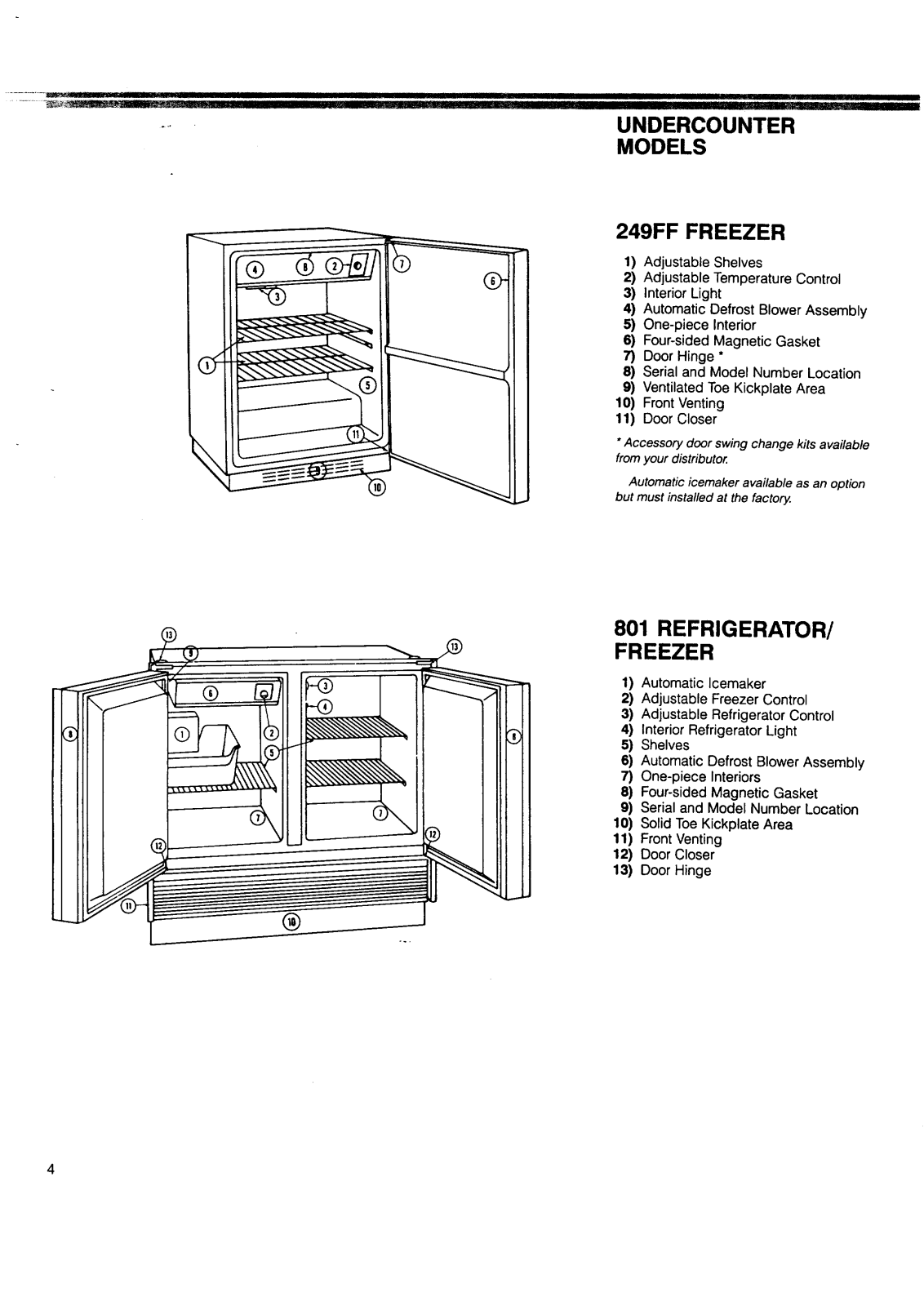

• Models 249FF & 801RFD ......... 4

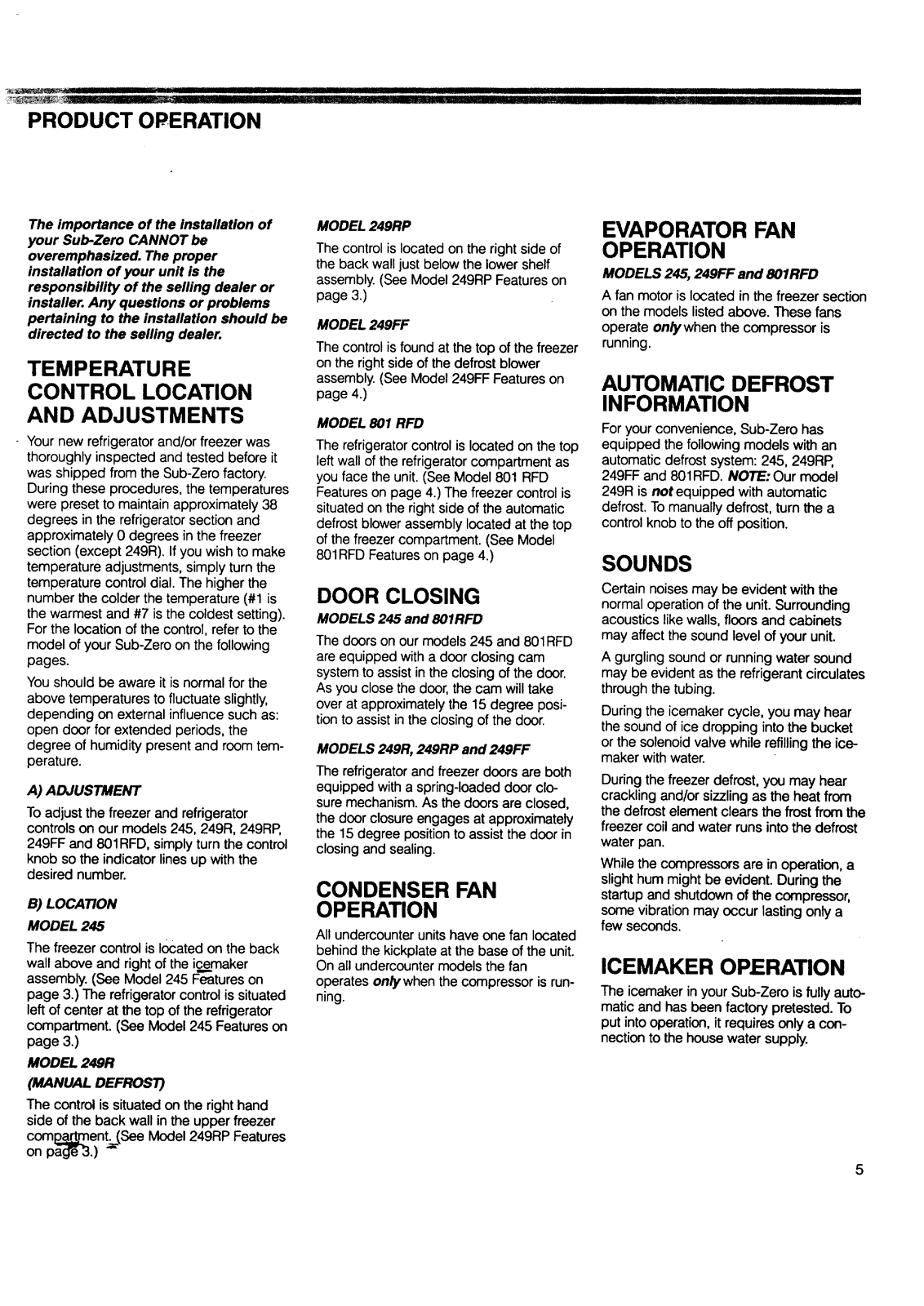

Product Operation
• Temperature Controls
A. Adjustment ............... 5
B. Location ................. 5
• Door Closing .................. 5
• Fan Operation ................. 5
• Automatic Defrost Info ........... 5
• Sounds ...................... 5
• Icemaker Operation ............. 6

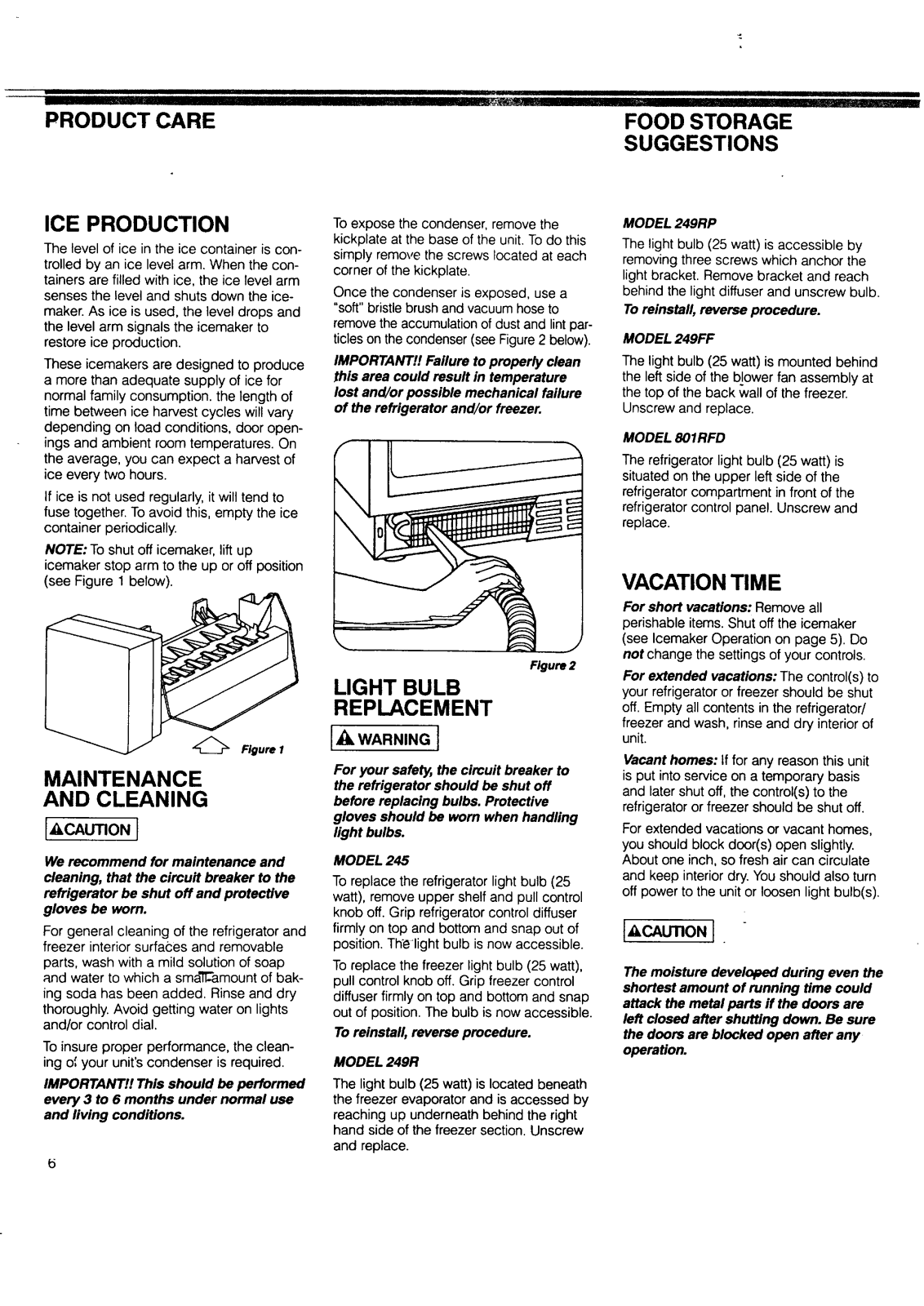

Product Care
• Maintenance & Cleaning ......... 6
• Light Bulb Replacement .......... 6
• Vacation Time ................. 6
• Vacant Homes ................. 6
WARRANTY

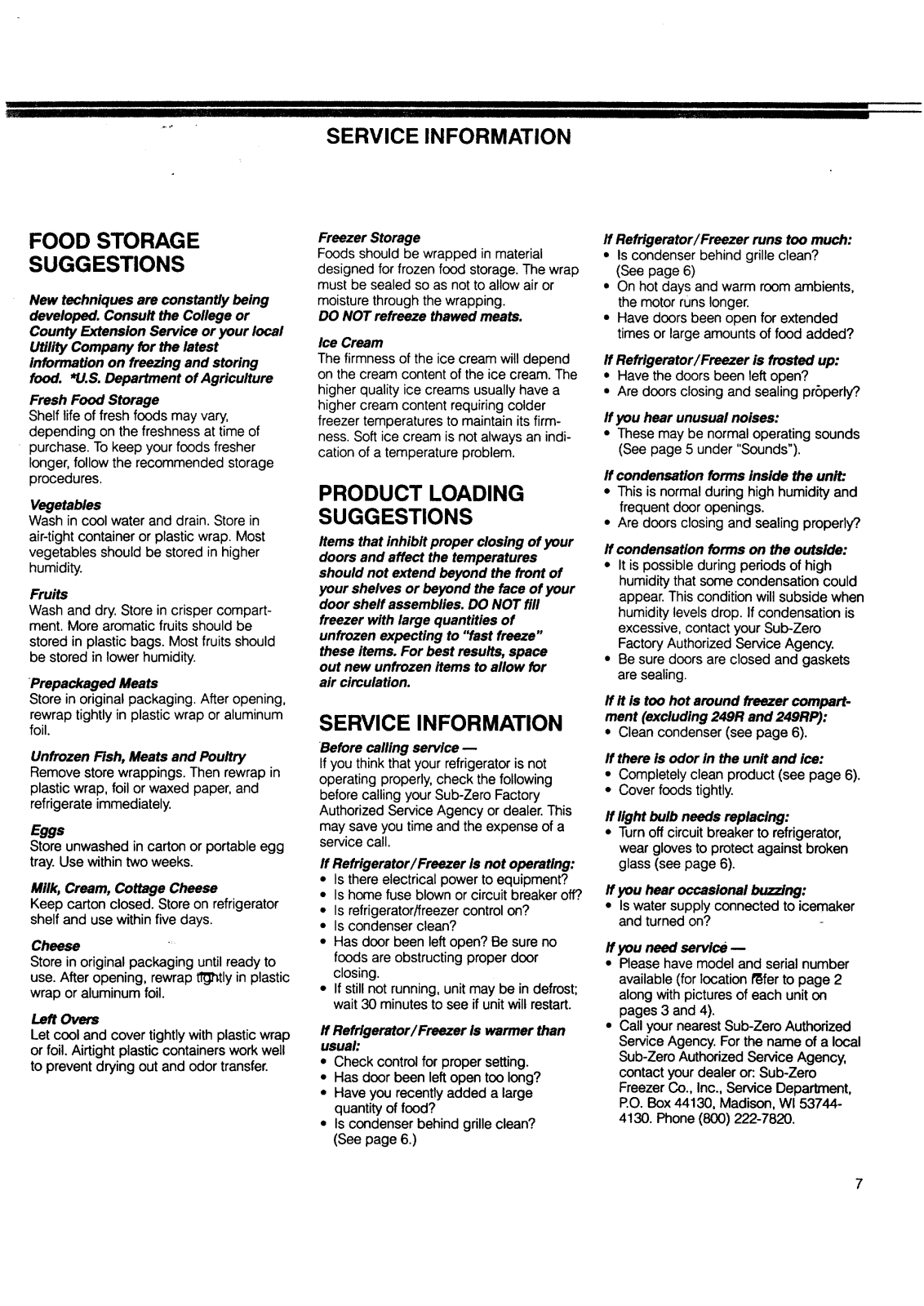

Food Storage Suggestions ........ 7
Product Loading Information ....... 7
Service Information .............. 7
RECORD YOUR MODEL
AND SERIAL NUMBER
On undercounter models 245, 249R,
249RP and 249FF, the serial number is
found on the inside cabinet liner at the
top; open the door to read.
On the model 801RFD, the serial num-
ber is located at the top freezer hinge.
Have this information ready when calling
for service:
Model Number
Serial Number
alii
aut_
Installahon Date
Factory Authorized Service Agent
(Phone Number)
Irl

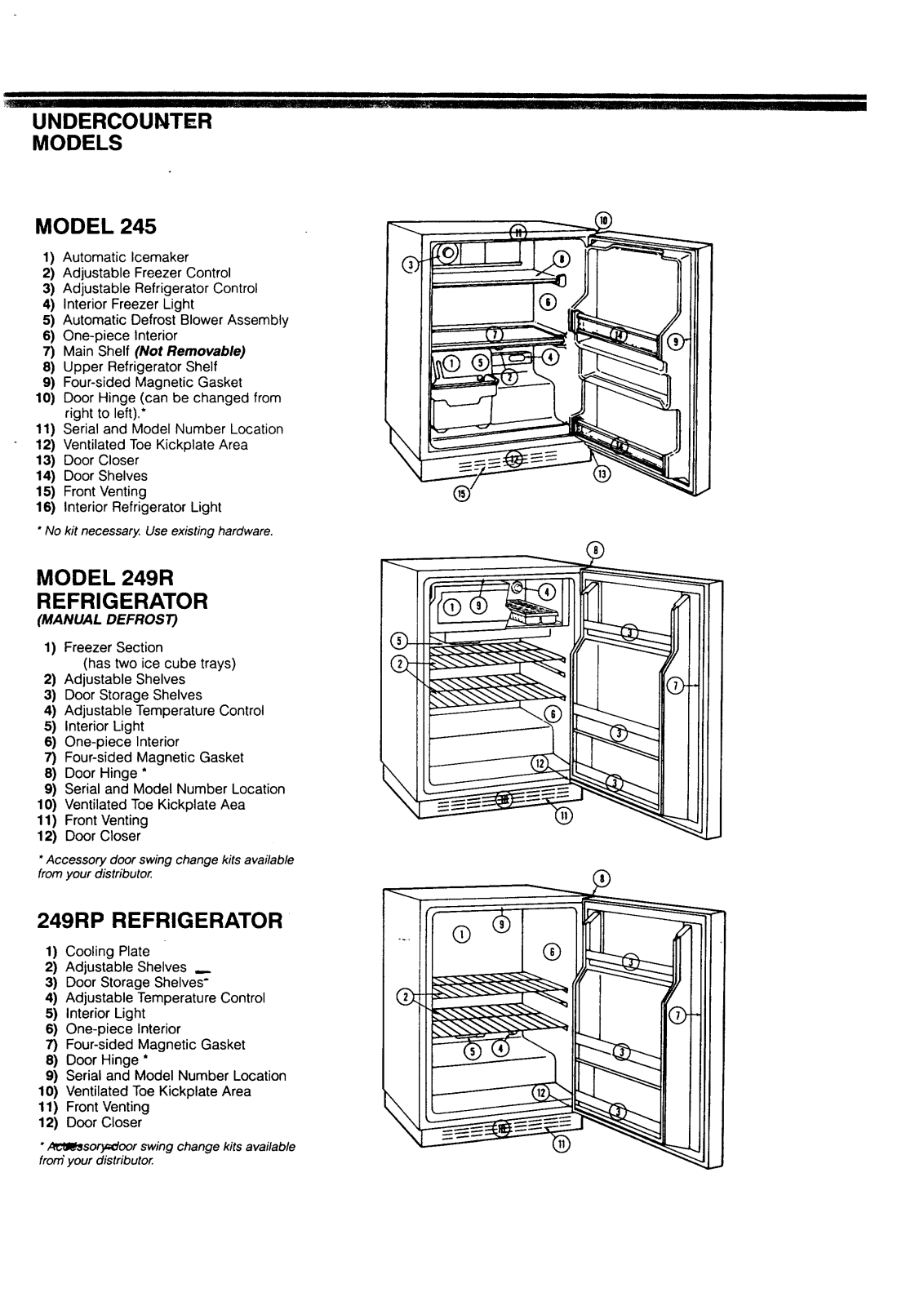

UNDERCOUNTER
MODELS
MODEL 245
1) Automatic Icemaker
2) Adjustable Freezer Control
3) Adjustable Refrigerator Control
4) Interior Freezer Light
5) Automatic Defrost Blower Assembly
6) One-piece Interior
7) Main Shelf (Not Removable)
8) Upper Refrigerator Shelf
9) Four-sided Magnetic Gasket
10) Door Hinge (can be changed from
right to left).*
11) Serial and Model Number Location
12) Ventilated Toe Kickplate Area
13) Door Closer
14) Door Shelves
15) Front Venting
16) Interior Refrigerator Light
* No kit necessary. Use existing hardware.
I
i
J
MODEL 249R
REFRIGERATOR
(MANUAL DEFROST)
1) Freezer Section
(has two ice cube trays)
2) Adjustable Shelves
3) Door Storage Shelves
4) Adjustable Temperature Control
5) Interior Light
6) One-piece Interior
7) Four-sided Magnetic Gasket
8) Door Hinge *
9) Serial and Model Number Location
10) Ventilated Toe Kickplate Aea
11) Front Venting
12) Door Closer
*Accessory door swing change kits available
from your distributor.
249RP REFRIGERATOR
1) Cooling Plate
2) Adjustable Shelves p
3) Door Storage Shelves"
4) Adjustable Temperature Control
5) Interior Light
6) One-piece Interior
7) Four-sided Magnetic Gasket
8) Door Hinge *
9) Serial and Model Number Location
10) Ventilated Toe Kickplate Area
11) Front Venting
12) Door Closer
*AC'tB_soryadoor swing change kits available
frorri your distributor.
!
