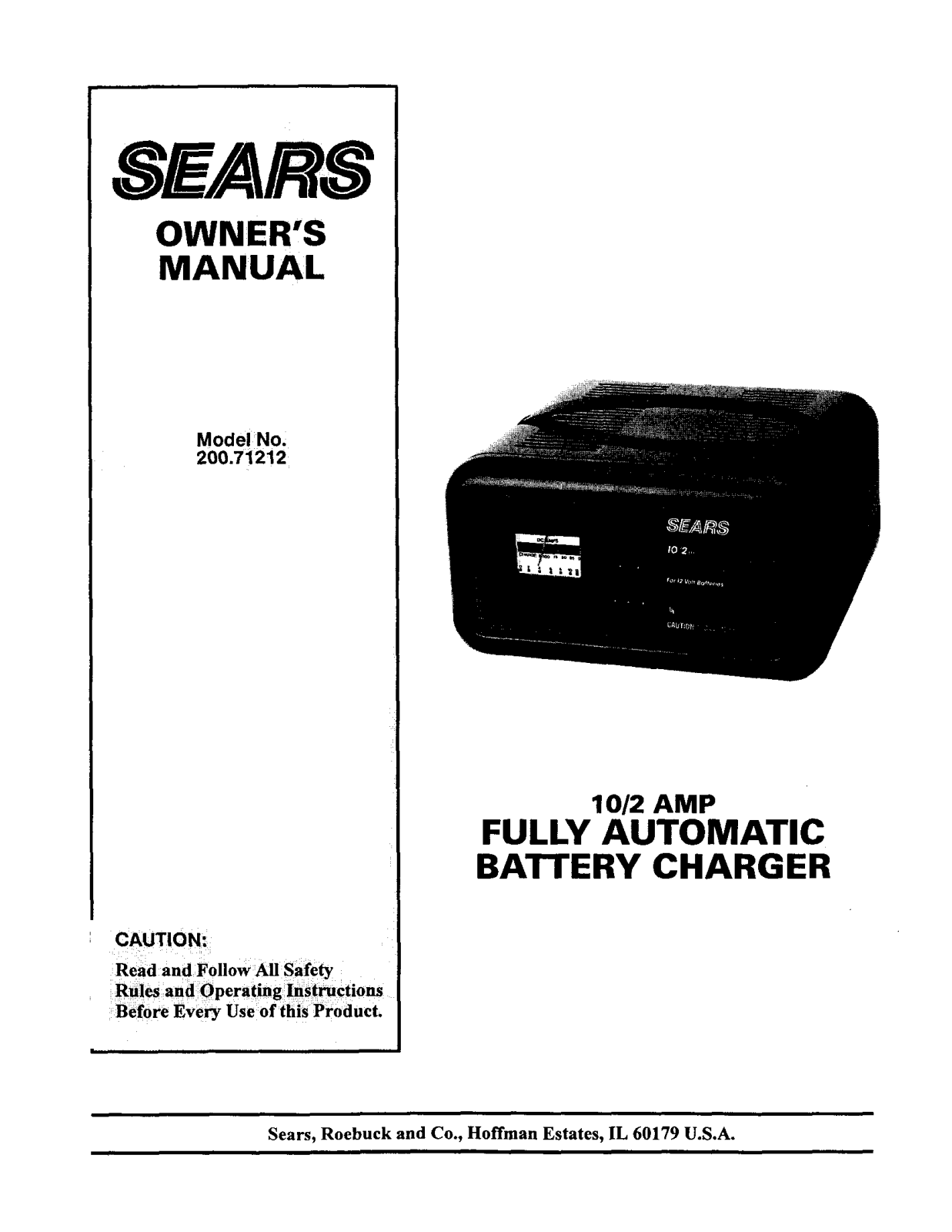

Sears 200.71212 User Manual

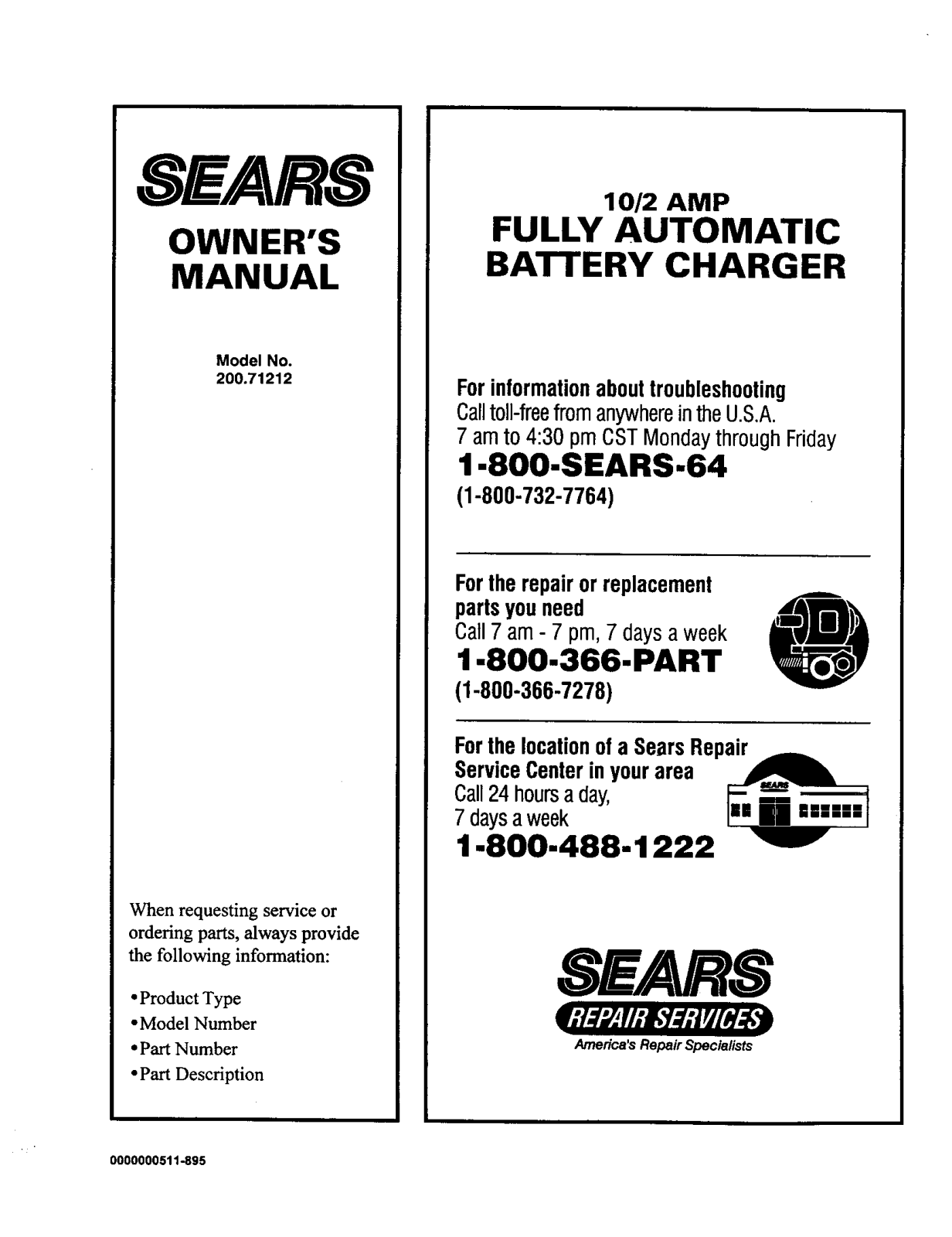

SEARS
OWNER'S
MANUAL
Model No,
200.71212
CAUTION:
Read and Follow All Safety
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
10/2 AMP
FULLY AUTOMATIC
BATTERY CHARGER

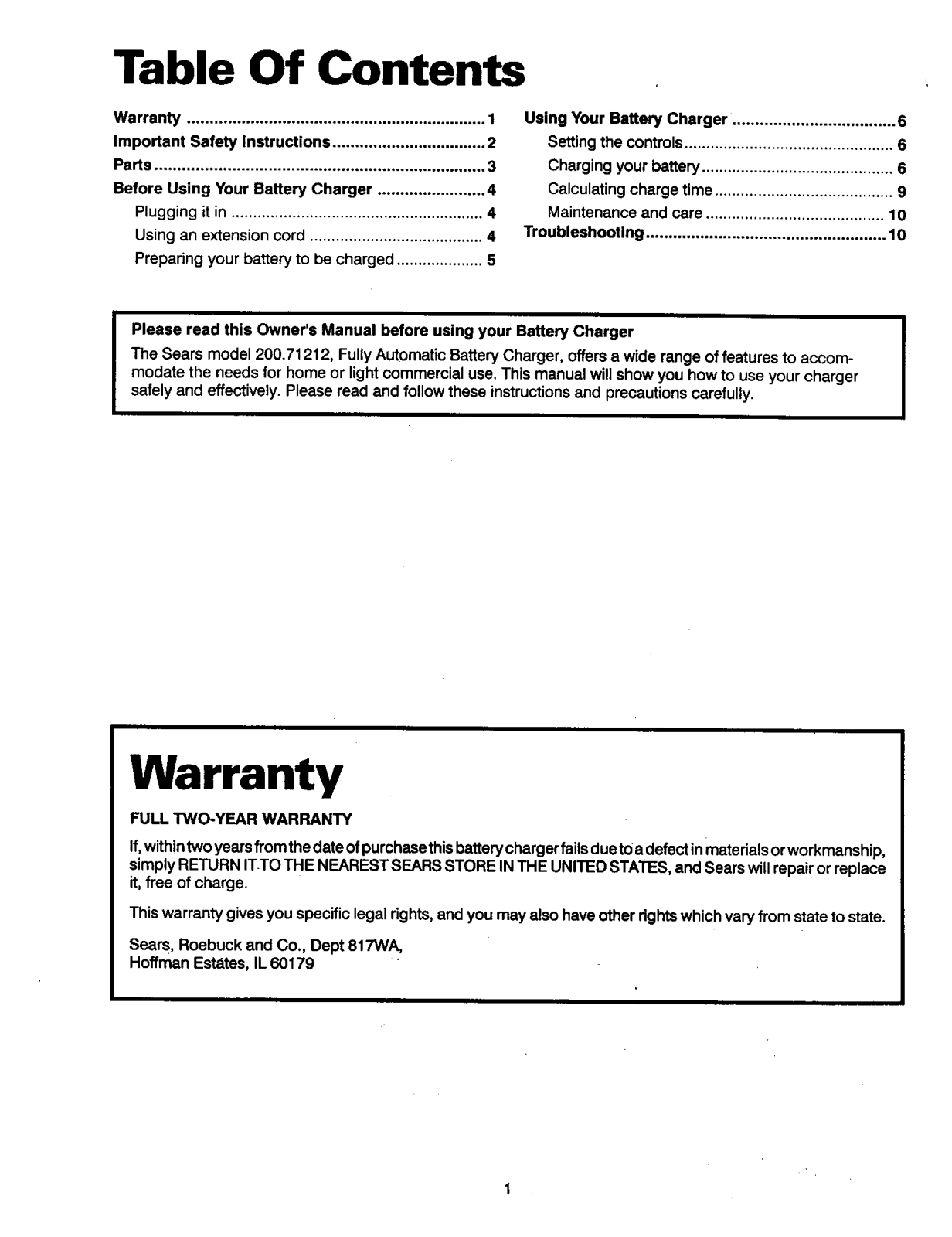

Table Of Contents
Warranty .................................................................. 1
Important Safety Instructions .................................. 2
Parts ......................................................................... 3

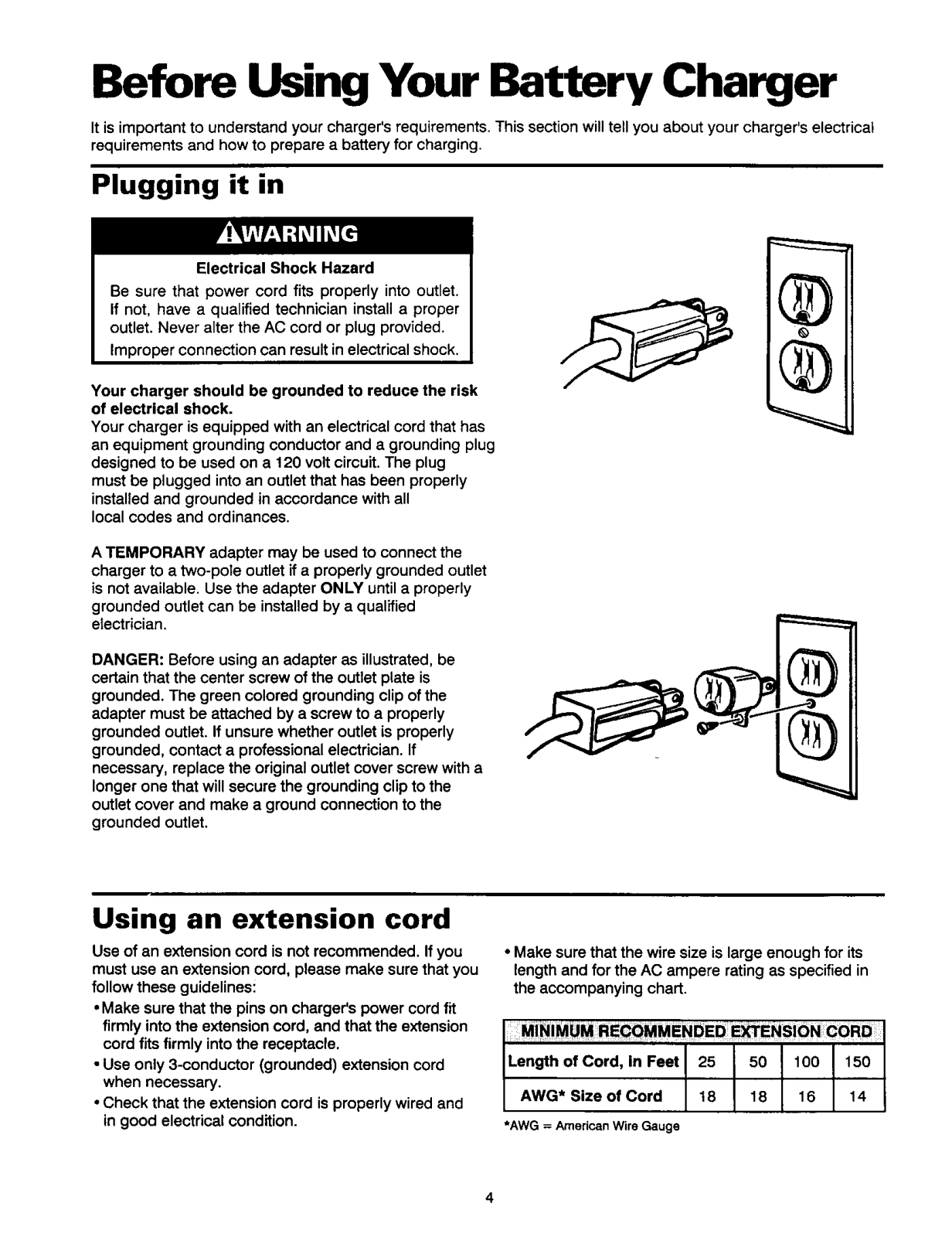

Before Using Your Battery Charger ........................ 4
Plugging it in .......................................................... 4
Using an extension cord ........................................ 4

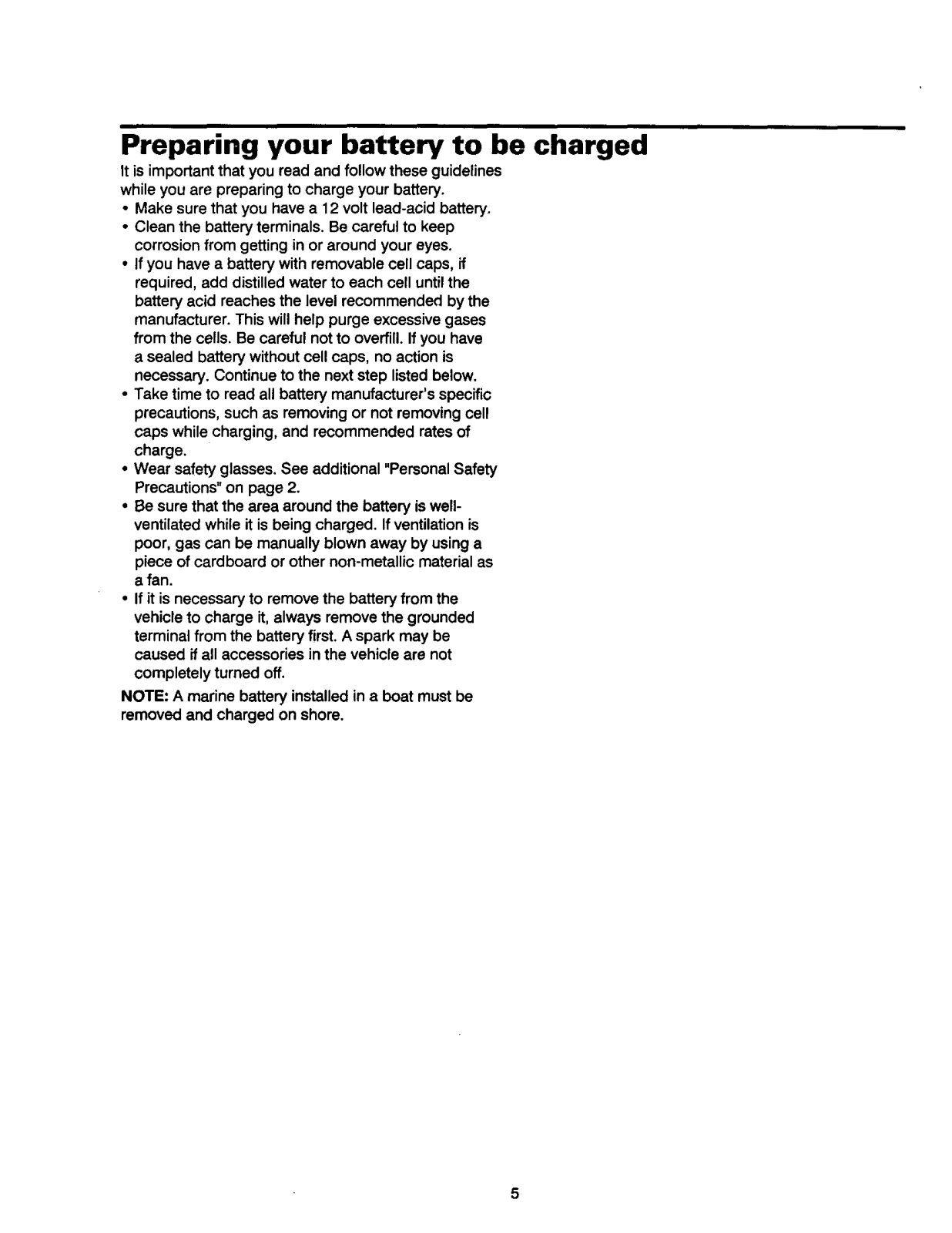

Preparing your battery to be charged .................... 5
Please read this Owner's Manual before using your Battery Charger
The Sears model 200.71212, Fully Automatic Battery Charger, offers a wide range of features to accom-
modate the needs for home or light commercial use. This manual will show you how to use your charger
safely and effectively. Please read and follow these instructions and precautions carefully.

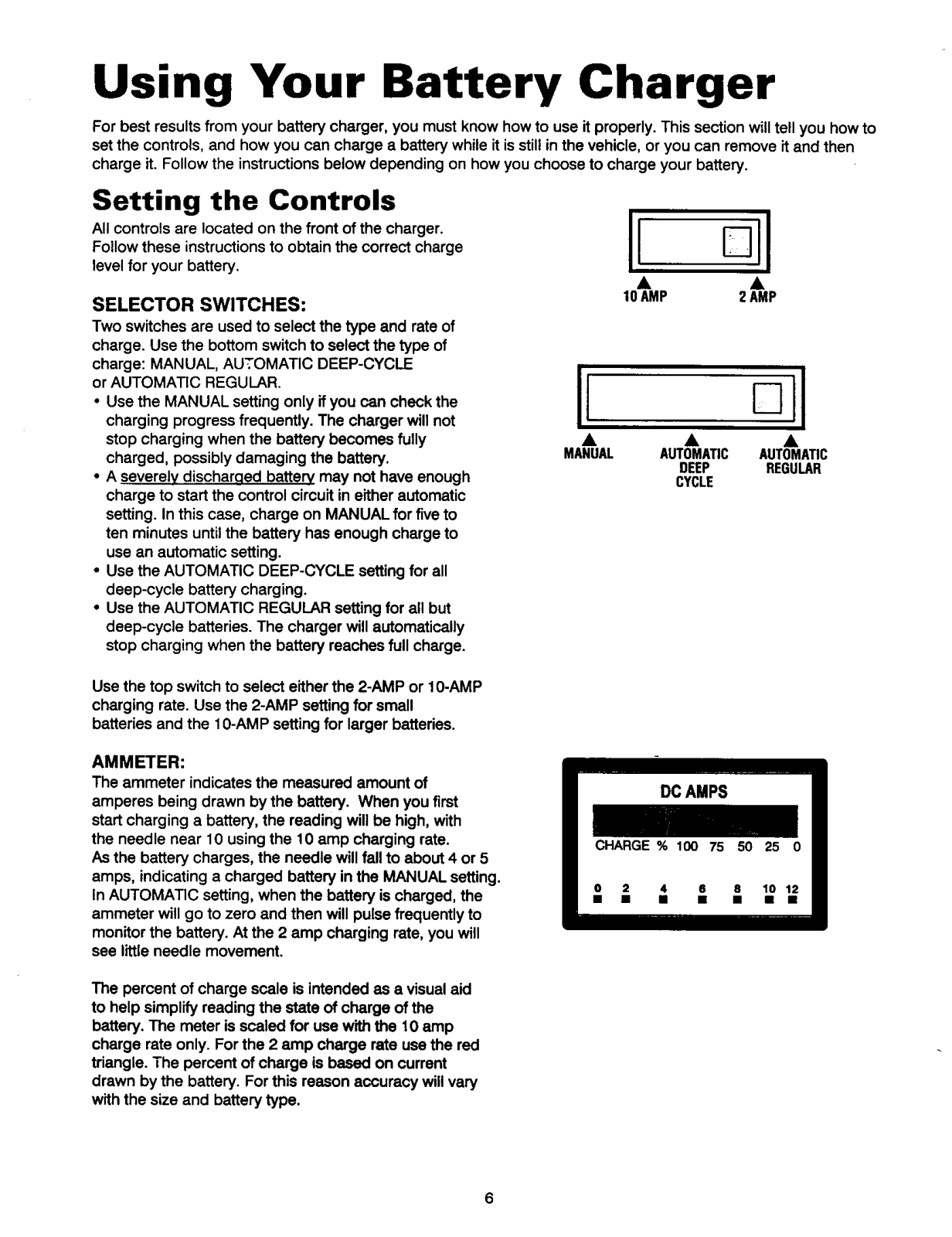

Using Your Battery Charger .................................... 6
Setting the controls ................................................ 6

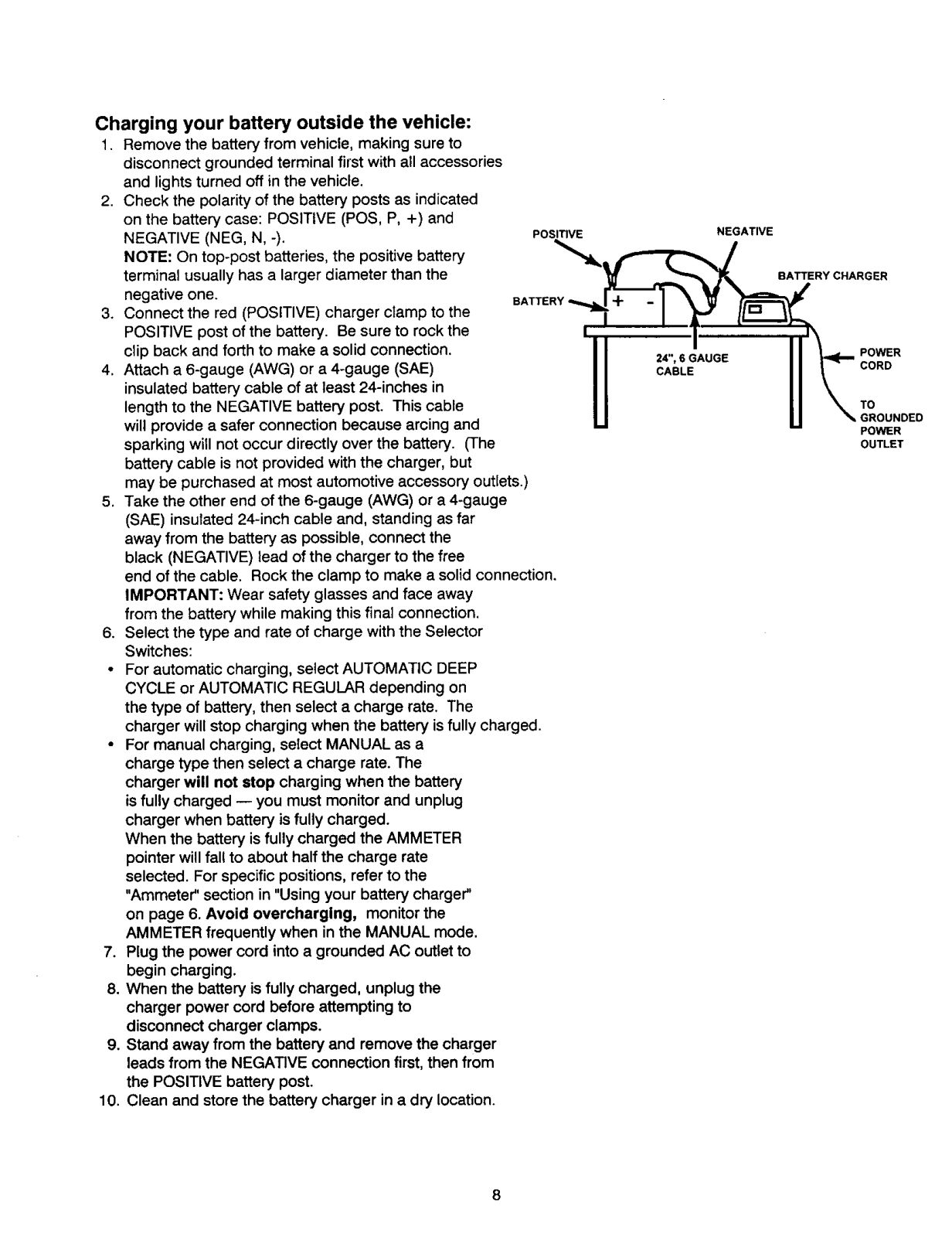

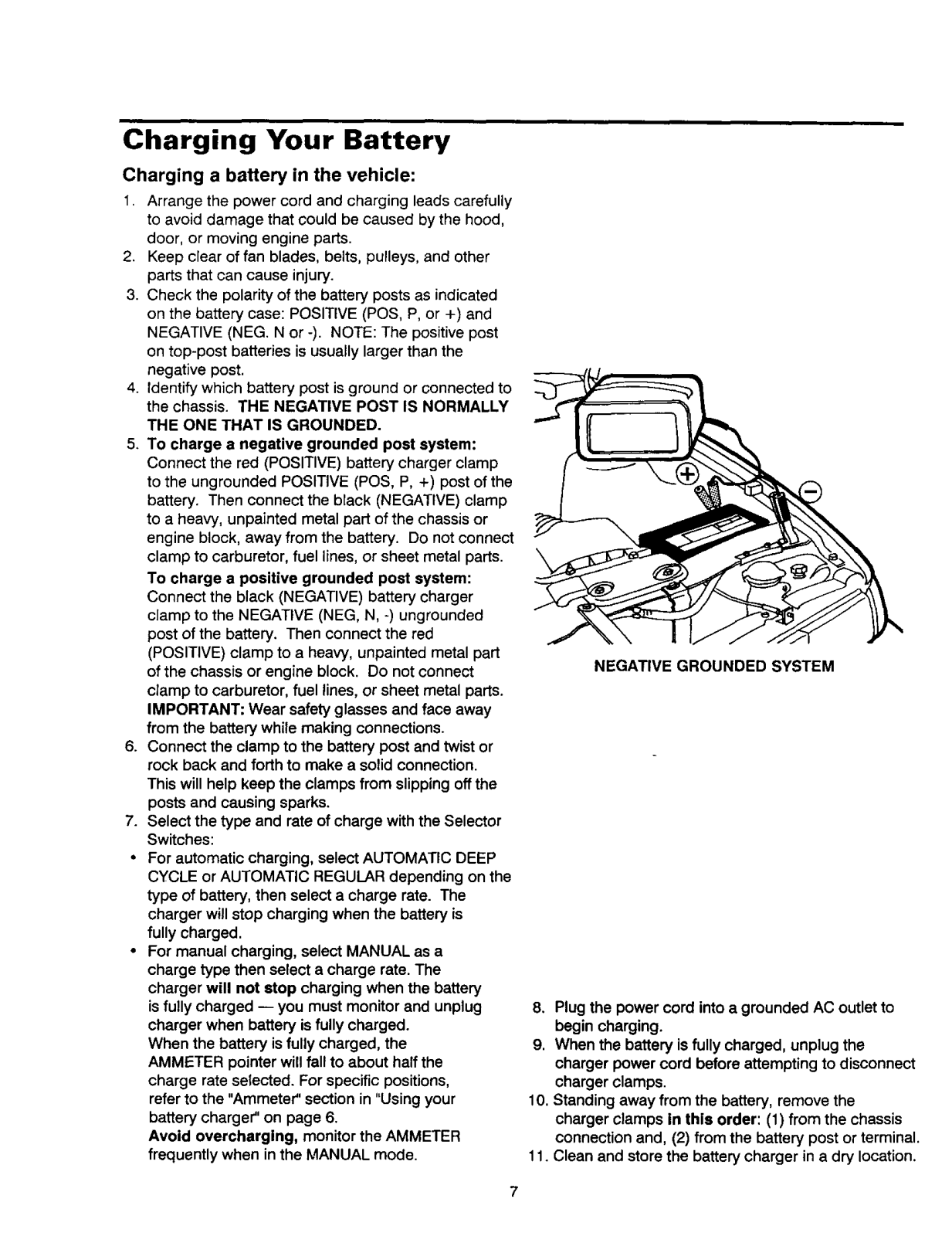

Charging your battery ............................................ 6

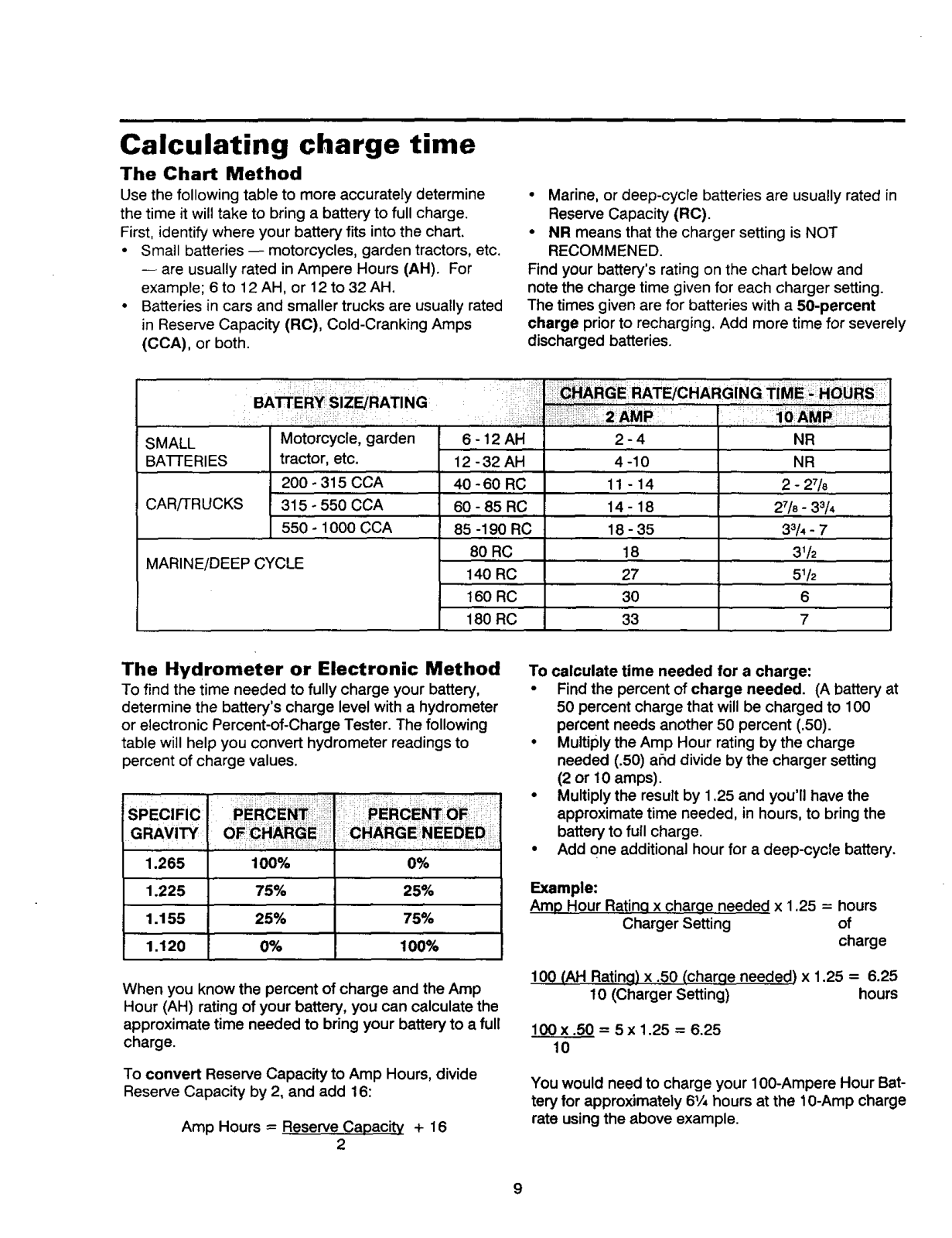

Calculating charge time ......................................... 9

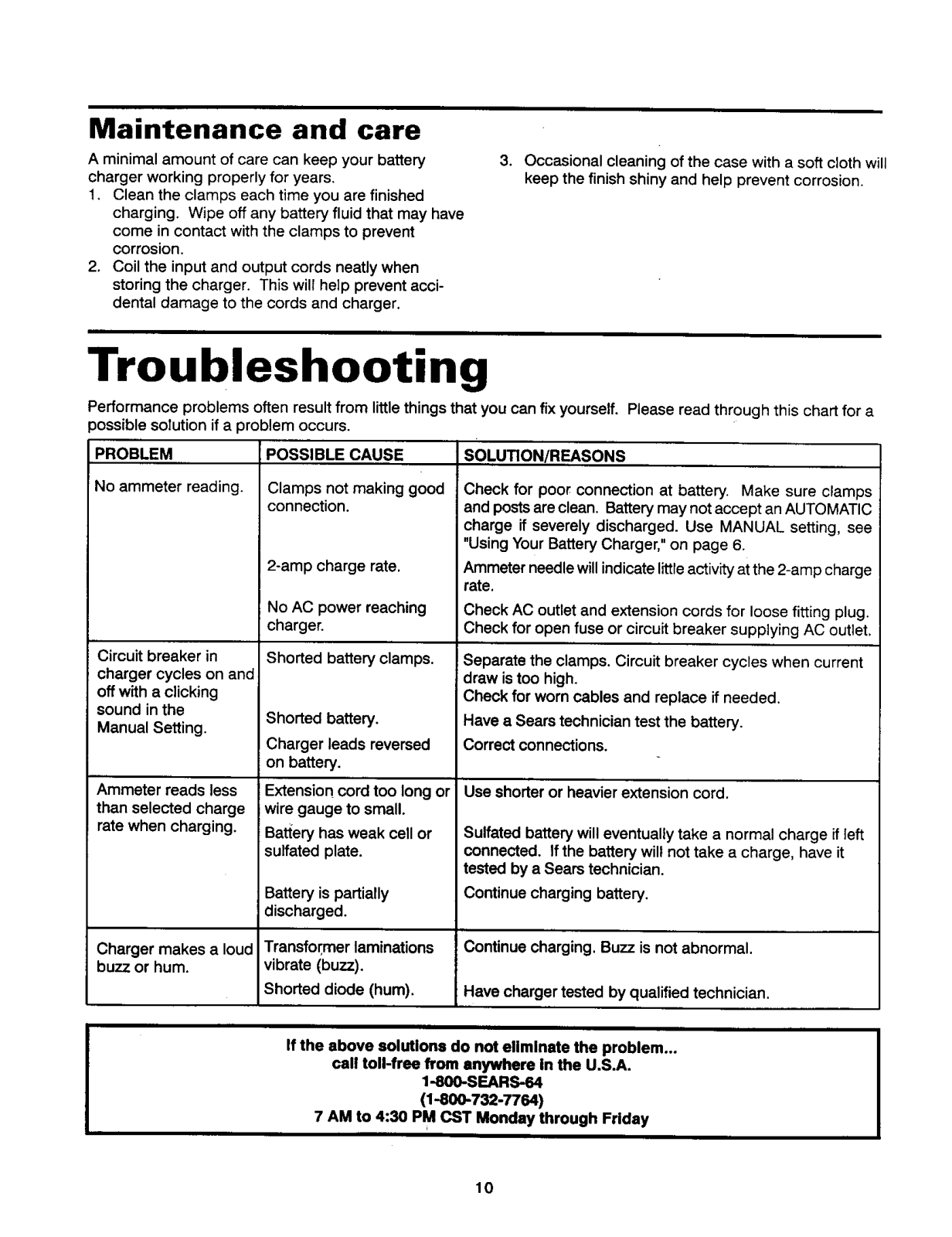

Maintenance and care ......................................... 10
Troubleshooting ..................................................... 10
Warranty
FULL TWO-YEAR WARRANTY
If,withintwo years from the date ofpurchase this battery charger fails due to a defect inmate rialsorworkmanship,
simply RETURN IT.TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair or replace
it, free of charge.
Thiswarranty gives you specific legal rights, and you may also have other rightswhich vary from state to state.
Seam, Roebuck and Co, Dept 817WA,
Hoffman Estates, IL 60179

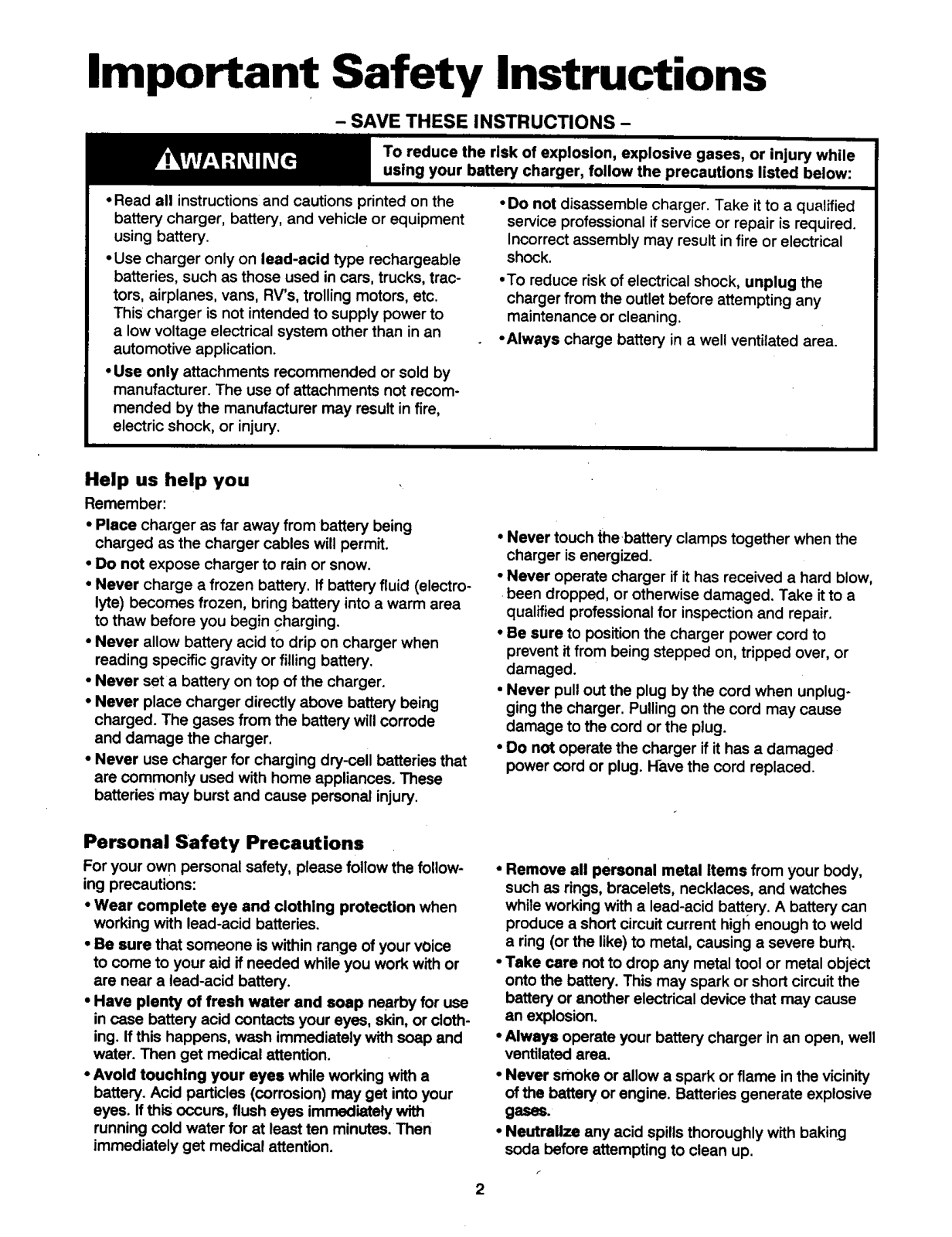

Important Safety Instructions
- SAVE THESE INSTRUCTIONS -
• Read all instructions and cautions printed on the
battery charger, battery, and vehicle or equipment
using battery
•Use charger only on lead-acid type rechargeable
batteries, such as those used in cars, trucks, trac-
tors, airplanes, vans, RV's, trolling motors, etc.
This charger is not intended to supply power to
a low voltage electrical system other than in an
automotive application.
•Use only attachments recommended or sold by
manufacturer. The use of attachments not recom-
mended by the manufacturer may result in fire,
electric shock, or injury.
Help us help you
Remember:
• Place charger as far away from battery being
charged as the charger cables will permit.
• Do not expose charger to rain or snow.
• Never charge a frozen battery. If battery fluid (electro-
lyte) becomes frozen, bring battery into a warm area
to thaw before you begin charging.
• Never allow battery acid to drip on charger when
reading specific gravity or filling battery.
• Never set a battery on top of the charger.
• Never place charger directly above battery being
charged. The gases from the battery willcorrode
and damage the charger.
• Never use charger for charging dry-cell batteries that
are commonly used with home appliances. These
batteries may burst and cause personal injury.
• DO not disassemble charger. Take itto a qualified
service professional if service or repair is required.
Incorrect assembly may result in fire or electrical
shock.
• To reduce risk of electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
• Always charge battery in a well ventilated area.
• Never touch the battery clamps together when the
charger is energized.
• Never operate charger if it has received a hard blow,
been dropped, or otherwise damaged. Take it to a
qualified professional for inspection and repair.
• Be sure to position the charger power cord to
prevent it from being stepped on, tripped over, or
damaged.
• Never pull out the plug by the cord when unplug-
ging the charger. Pulling on the cord may cause
damage to the cord or the plug.
• Do not operate the charger if it has a damaged
power cord or plug. Have the cord replaced
Personal Safety Precautions
For your own personal safety, please follow the follow-
ing precautions:
• Wear complete eye and clothing protection when
working with lead-acid batteries.
• Be sure that someone iswithin range of your vOice
to come to your aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and soap nearby for use
in case battery acid contacts your eyes, skin, or cloth-
ing. If this happens, wash immediately with soap and
water. Then get medical attention.
• Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. Ifthis occurs, flush eyes immediately with
running cold water for at least ten minutes. Then
immediately get medical attention.
• Remove all personal metal Items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. A battery can
produce a short circuit current high enough to weld
a ring (or the like) to metal, causing a severe bum.
• Take care not to drop any metal tool or metal object
onto the battery. This may spark or short circuit the
battery or another electrical device that may cause
an explosion.
• Always operate your battery charger in an open, well
ventilated area.
• Never smoke or allow a spark or flame in the vicinity
of the battery orengine. Batteries generate explosive
gases.
• Neutralize any acid spills thoroughly with baking
soda before attempting to clean up.

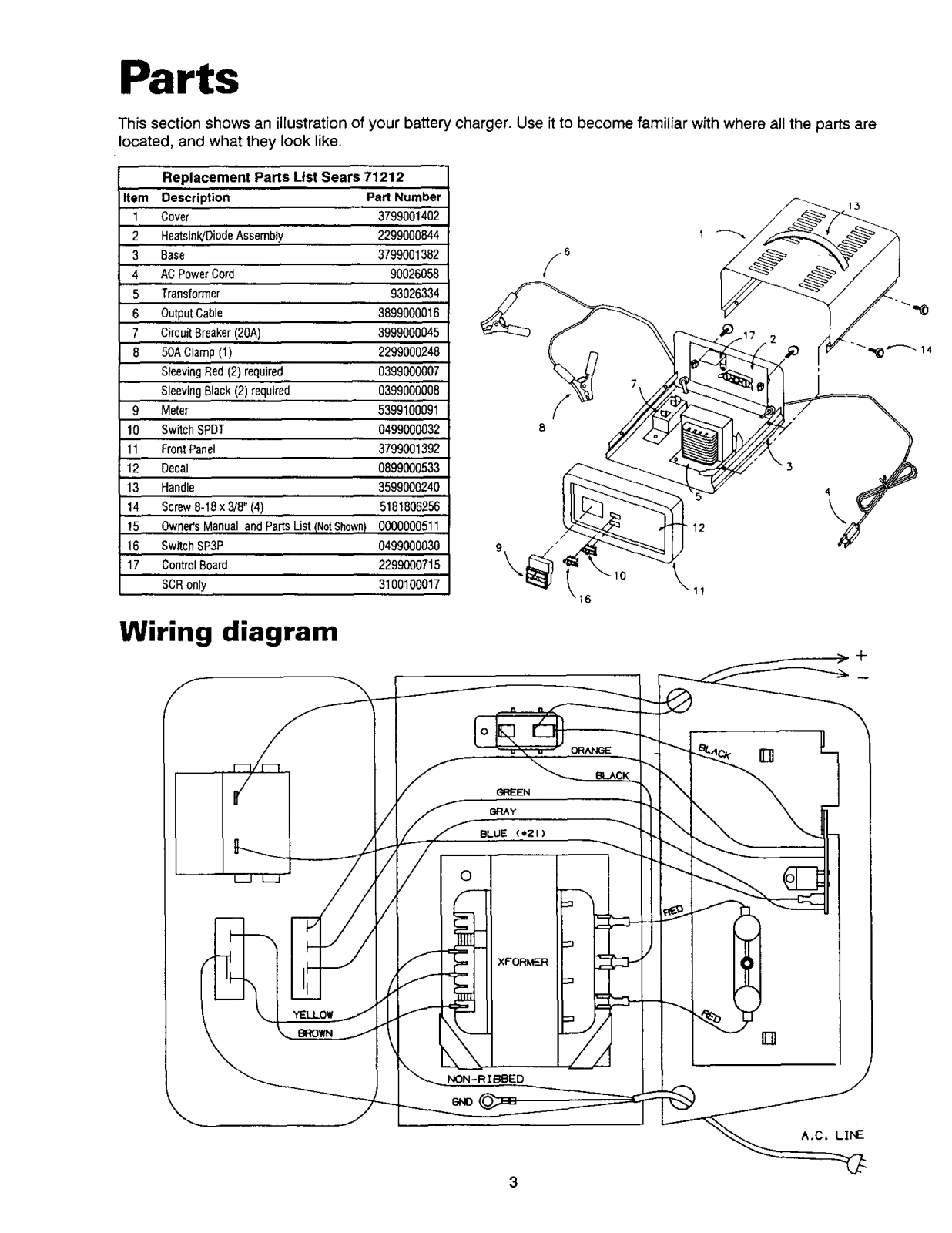

Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts List Sears 71212
Item Description Part Number
1 Cover 3799001402
2 Heatsink/[_iodeAssembly 2299000844
3 Base 3799001382
4 ACPowerCord 90026058
5 Transformer 93026334
6 OutputCable 3899000016
7 CircuitBreaker(20A) 3999000045
8 50AClamp(1) 9299000248
SleevingRed(2)required 0399000007
SleevingBlack(2)required 0399000008
9 Meter 5399100091
10 SwitchSPDT 0499000032
11 FrontPanel 3799001392
12 Decal 0899000533
13 Handle 3599000240
14 Screw8-18x3/8"(4) 5181808255
15 Owner'sManualandPartsList{NotShown} 0000000511
16 SwitchSP3P 0499000030
17 ControlBoard 2299000715
SCRonly 3100100017
t6
Wiring diagram
A.C. LINE
3
