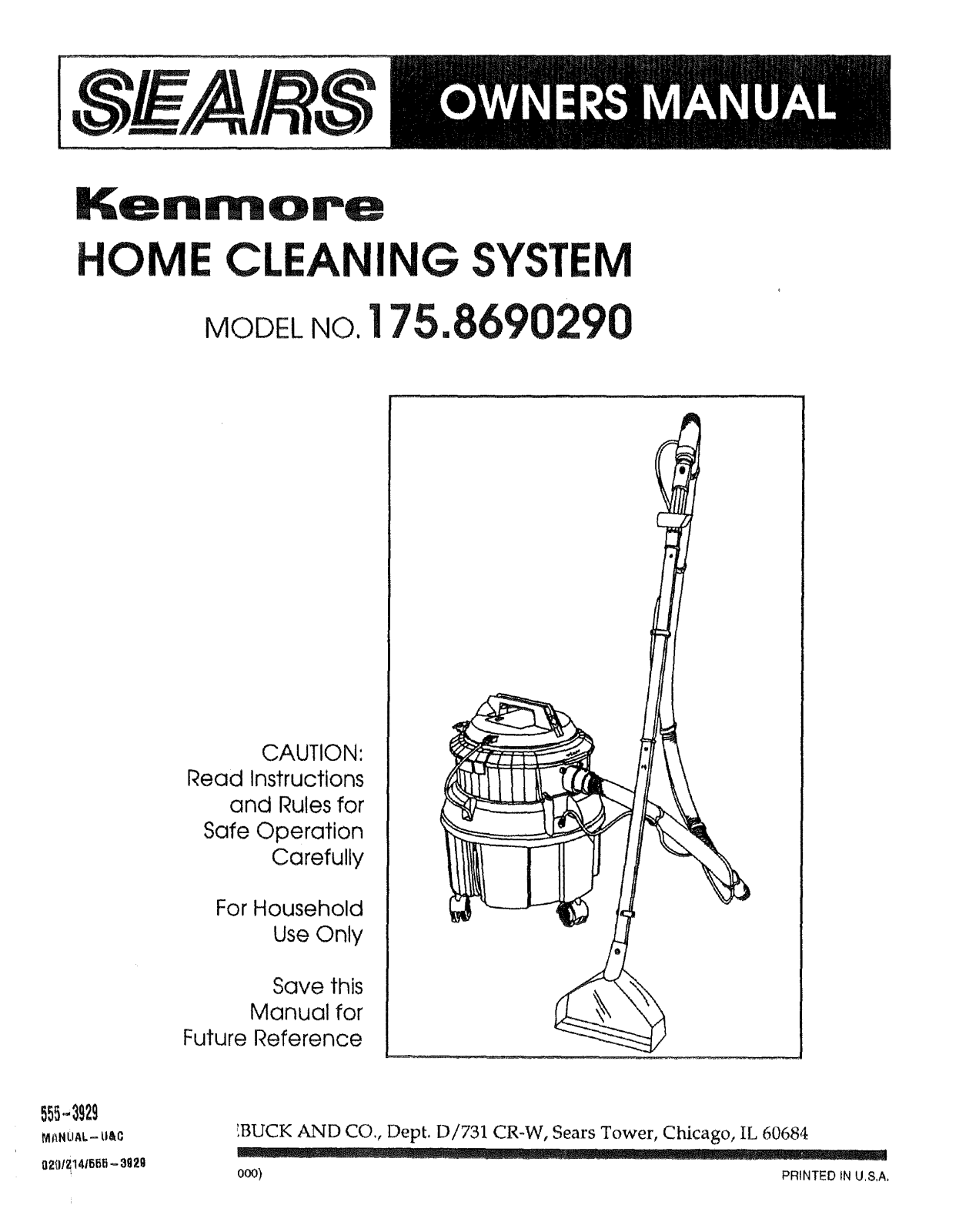

Sears 175 User Manual

HOME CLEANING SYSTEM

MODELNO.175,8690290

555-3929

MJ_HLIAL- LI&C

02_11Z141561i- 3929

CAUTION:

Read Instructions

and Rules for

Safe Operation

Carefully

For Household

Use Only

Save this

Manual for

Future Reference

'.BUCK AND CO., Dept. D/731 CR-W, Sears Tower, Chicago, IL 60684

0o0) PRINTED IN U,S,A,

i

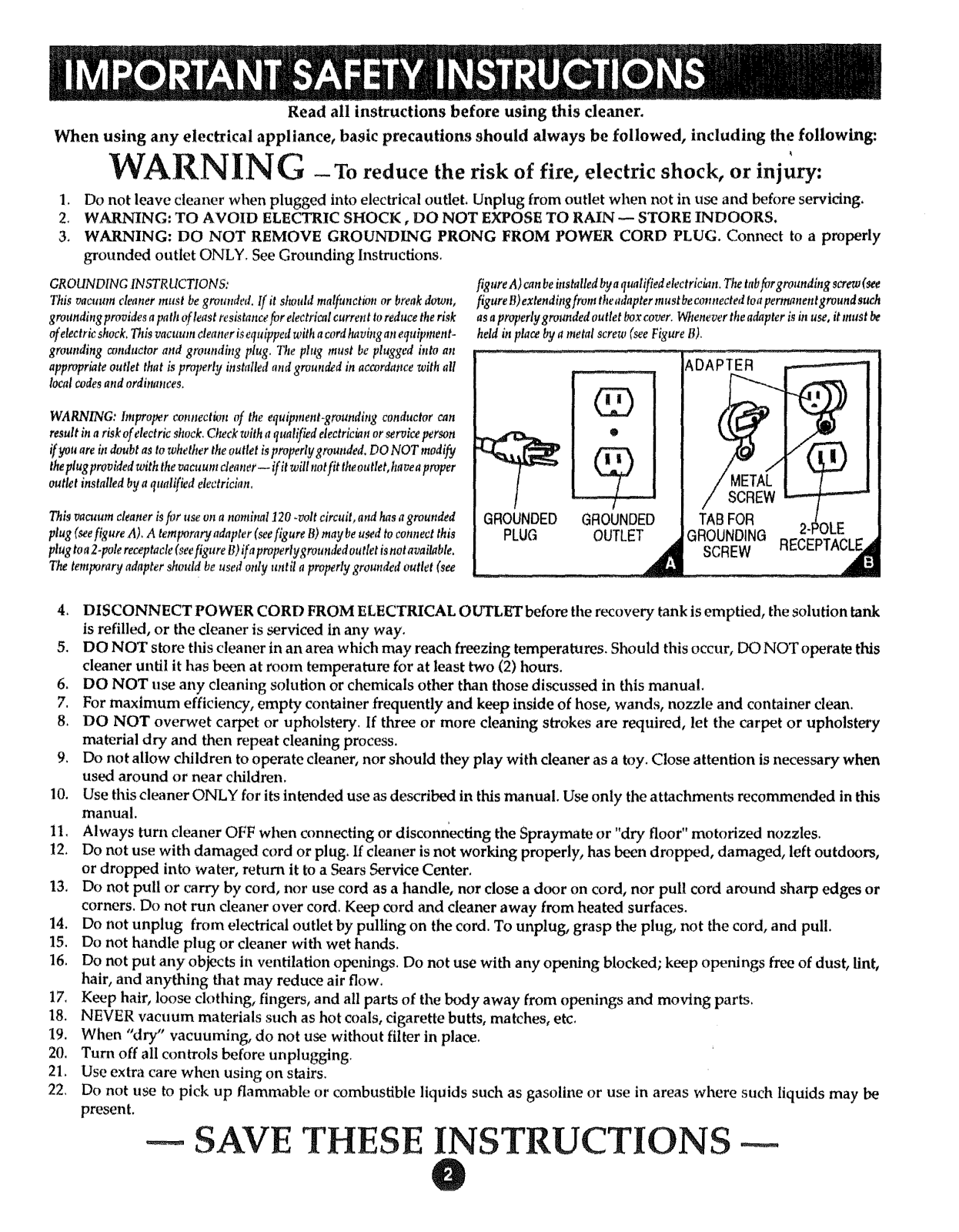

Read all instructions before using this cleaner.

When using any electrical appliance, basic precautions should always be followed, including the following:

WARNING -To reduce the risk of fire, electric shock, or injury:

I,

Do not leave cleaner when plugged into electrical outlet, Unplug from outlet when not in use and before servidng,

2,

WARNING: TO AVOID ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN -- STORE INDOORS,

3.

WARNING: DO NOT REMOVE GROUNDING PRONG FROM POWER CORD PLUG. Connect to a properly

grounded outlet ONLY. See Grounding Instructions.

GROUNDING INSTRUCTIONS:
This vacuum cleaner must begrounded. If it shouht malfimction or break down,

groundingprovides apoth oflcast resistance for electricalcurrent toreduce the risk

ofdectr icshock,Thisvacuum cleaner isequipped with acordhavinganequipment-
grounding conductor and gtvundhtg plug. The plug must be plugged into an
appropriate outlet that is properly installedand grounded inaccordat_cewith all

localcodesand ordinmwes,

figureA)canbehtstalledbyaqualifieddeetrickm.Thetabfargroundlngscrew(see
figuret!)extendhzgfromtheadaptermustbeeomtectedtoapermanentgroundsuch

asaproperlygroundedoutletboxcover.Whenevertheadapterism use,itmustbe

heldinplacebyametalscrew(seeFigureB).

ADAPTER

023

WARNING: hnproper connection of the equipment_groundingconductor can

resultin a riskof dectric shock,Cheek with aqualified electricianorservicel_rson

ifyouare in doubt as towhether the outlet is properly gt_unded. DO NOT modify

theplug provided with the vacuum cleaner-- if it will natfit theoutlet, hayeaproper
outlet installed by a qualified electrician,

@

Thisvacuum cleanerisfor use on a nominal120 .voltcircuit, and has agrounded
plug (seefigureA), A temporary adapter (seefigure B)may beu_ed to connectthis
plugtoa 2-polereceptacle(seefigure B)irapraperlygrounded oufletisnotavailable.

Thetemporary adapter should be used only until a properly grounded outlet (see

4. DISCONNECT POWER CORD FROM ELECTRICAL OUTLETbefore the recovery tank is emptied, the solution tank
is refilled, or the cleaner is serviced in any way.

5. DO NOT store this cleaner in an area which may reach freezing temperatures. Should this occur, DO NOT operate this

cleaner until it has been at room temperature for at least two (2) hours.

6. DO NOT use any cleaning solution or chemicals other than those discussed in this manual.

7. For maximum efficiency, empty container frequently and keep inside of hose, wands, nozzle and container dean.

8. DO NOT overwet carpet or upholstery. If three or more cleaning strokes are required, let the carpet or upholstery

material dry and then repeat cleaning process.

9. Do not allow children to operate cleaner, nor should they play with cleaner as a toy. Close attention is necessary when

used around or near children.

10. Use this cleaner ONLY for its intended use as described in this manual. Use only the attachments recommended in this
manual,

11. Always turn cleaner OFF when connecting or disconnecting the Spraymate or "dry floor" motorized nozzles.

12. Do not use with damaged cord or plug. If cleaner is not working properly, has been dropped, damaged, left outdoors,
or dropped into water, return it to a Sears Service Center.

13. Do not pull or carry by cord, nor use cord as a handle, nor close a door on cord, nor pull cord around sharp edges or
corners. Do not run cleaner over cord. Keep cord and cleaner away from heated surfaces.

14. Do not unplug from electrical outlet by pulling on the cord. To unplug, grasp the plug, not the cord, and pull.

15. Do not handle plug or cleaner with wet hands.

16. Do not put any objects in ventilation openings. Do not use with any opening blocked; keep openings free of dust, lint,
hair, and anything that may reduce air flow.

17. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

18. NEVER vacuum materials such as hot coals, cigarette butts, matches, etc.

19. When "dry" vacuuming, do not use without filter in place.

20. Turn off all controls before unplugging.

21. Use extra care when using on stairs.
22, Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where such liquids may be

present.

GROUNDED GROUNDED

-- SAVE THESE INSTRUCTIONS

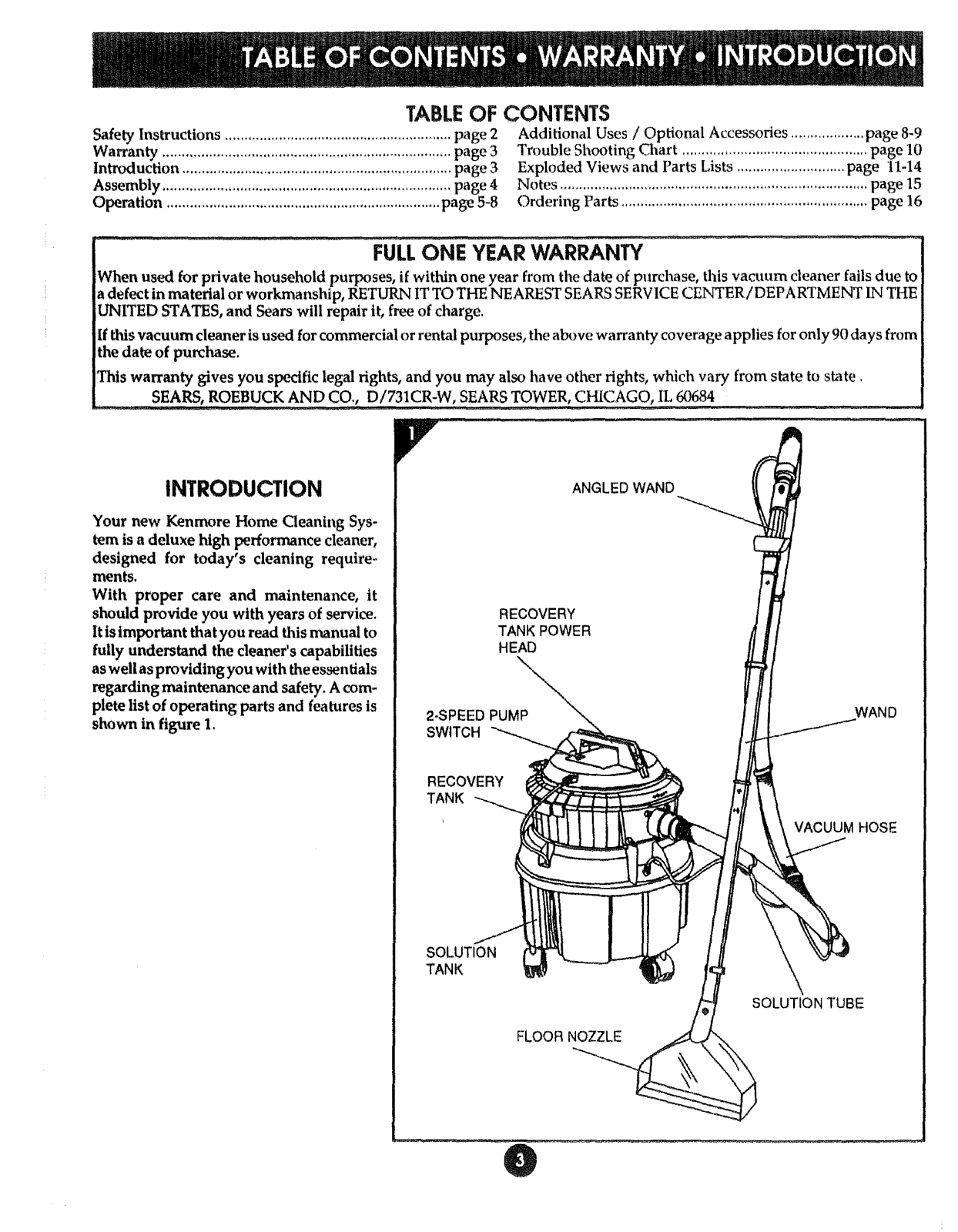

TABLEOF CONTENTS

Safety Instructions ........................................................... page 2

Warranty ........................................................................... page 3

Introduction ...................................................................... page 3

Assembly ........................................................................... page 4

Operation ....................................................................... page 5-8

Additional Uses / Optional Accessories ................... page 8-9

Trouble Shooting Chart ................................................ page 10

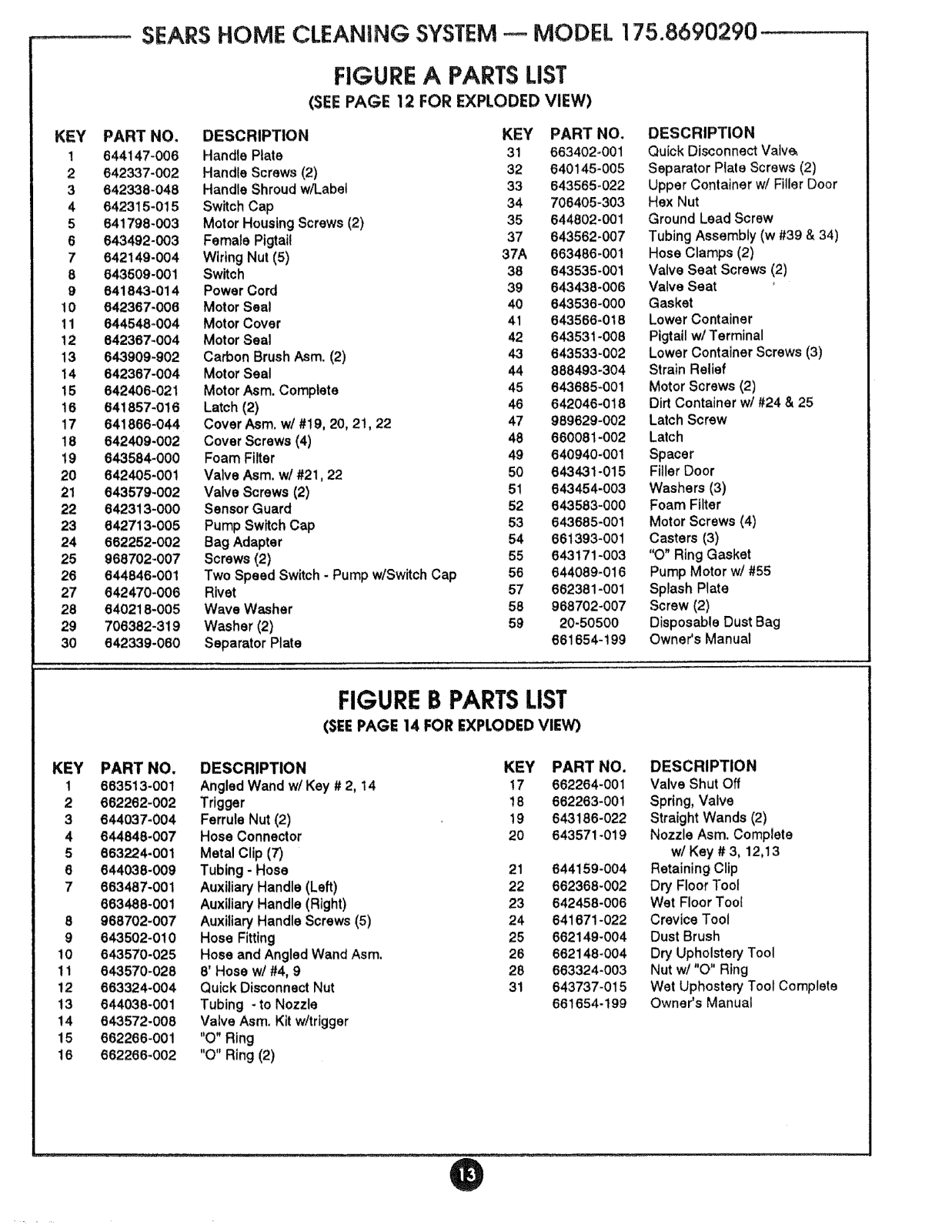

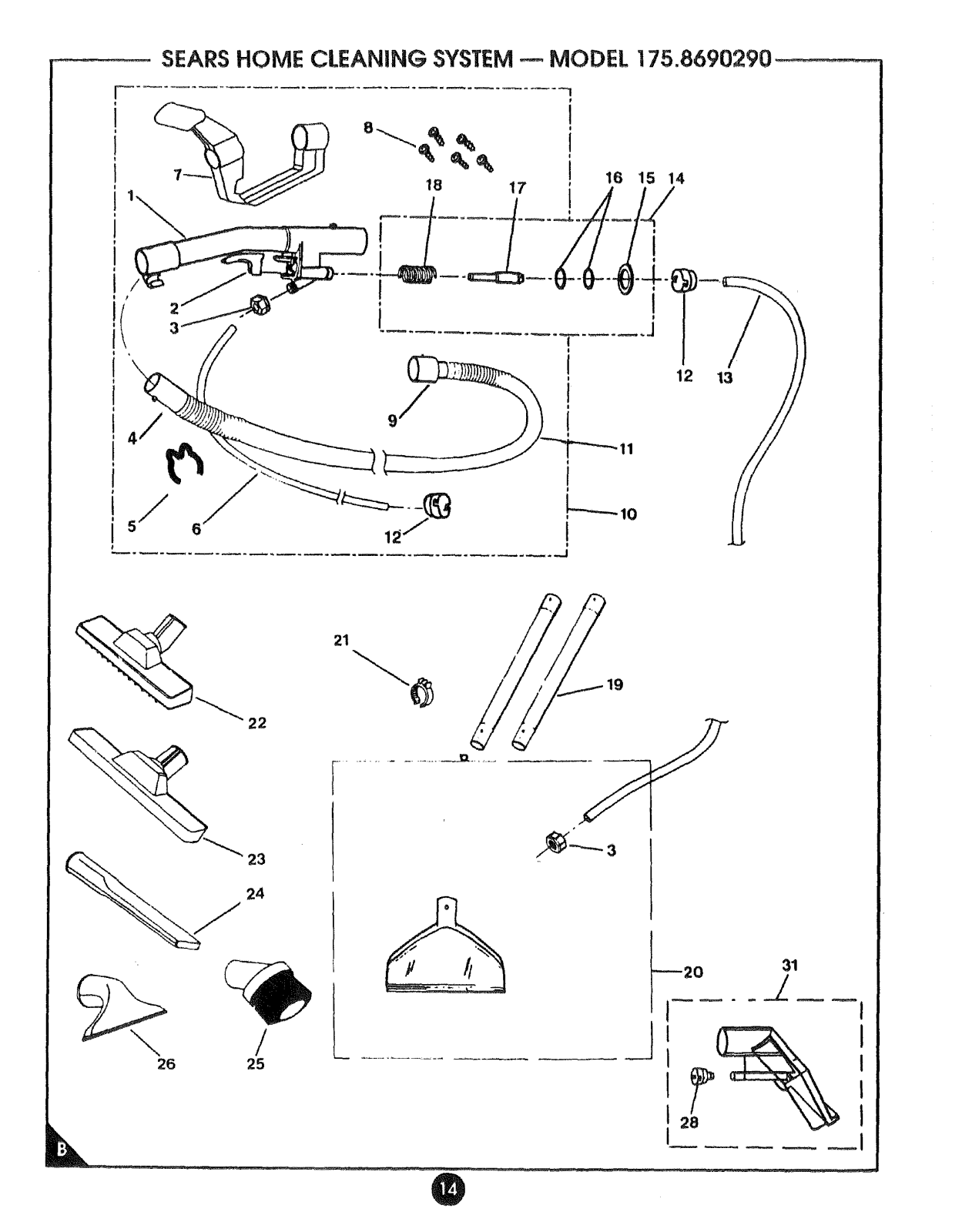

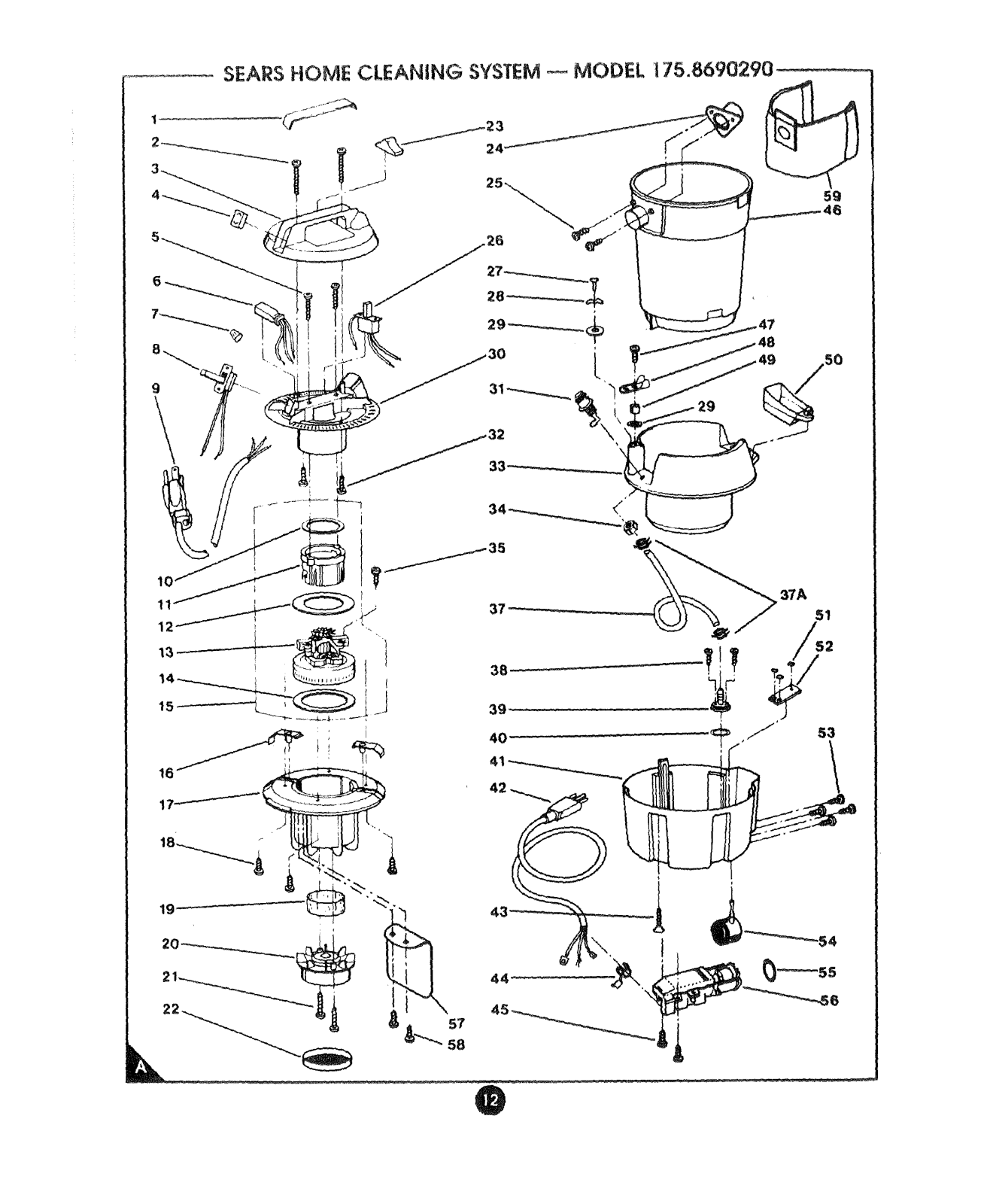

Exploded Views and Parts Lists ............................ page 11-14

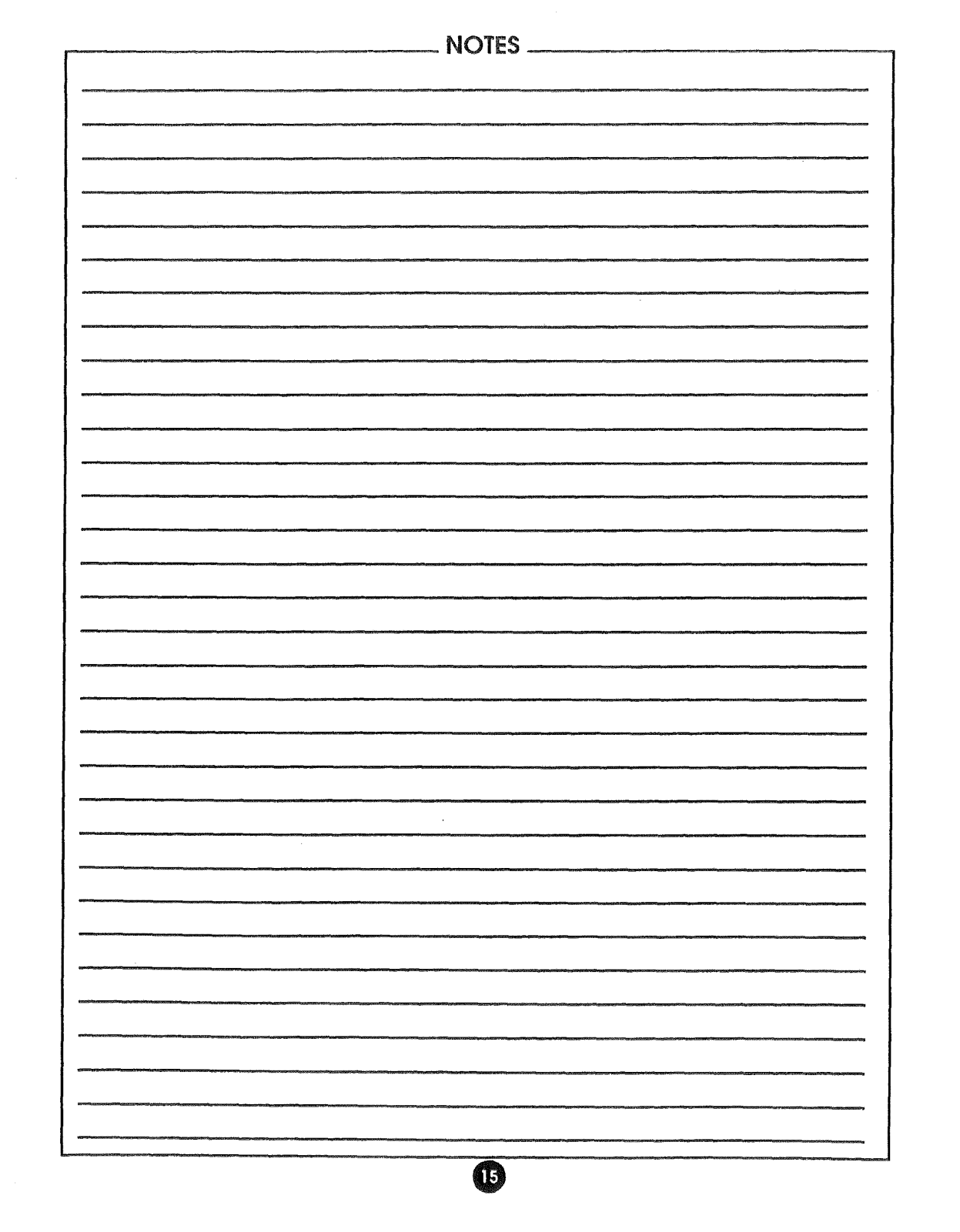

Notes ................................................................................ page 15

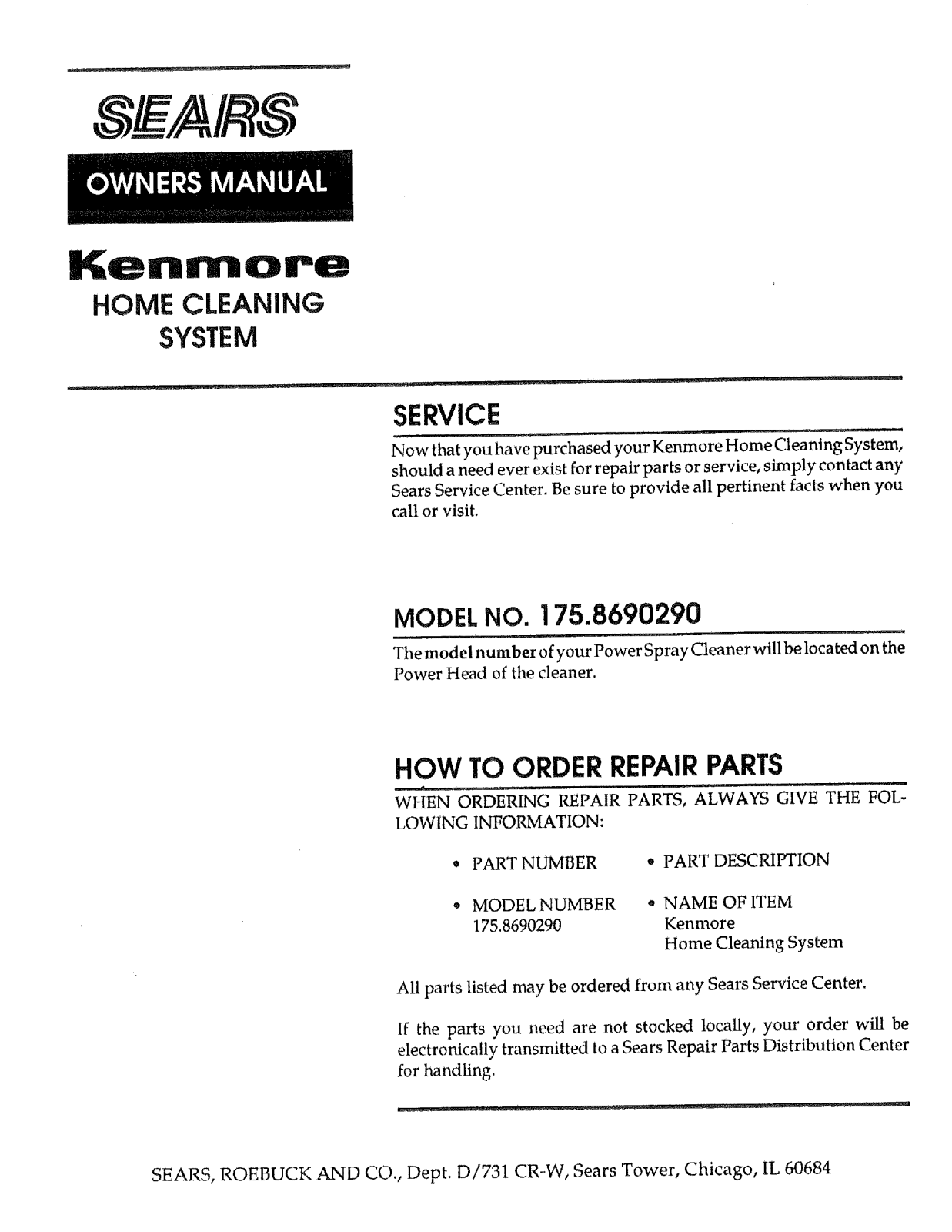

Ordering Parts ................................................................ page 16

FULLONE YEAR WARRANTY

When used for private household purposes, if within one year from tile date of purchase, this vacuum cleaner fails due to
a defect in material or workmanship, RETURN IT TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT 1N THE

UNITED STATES, and Sears will repair it, free of charge.
If this vacuum cleaner is used for commercial or rental purposes, the above warranty coverage applies for only 90 days from

the date of purchase.
This warranty gives you spedflc legal rights, and you may also have other rights, which vary from state to state.

SEARS, ROEBUCK AND CO., D/731CR'W, SEARS TOWER, CHICAGO, IL 60684

INTRODUCTION ANGLEDWAND

Your new Kenmore Home Cleaning Sys-
tem is a deluxe high performance cleaner,
designed for today's cleaning require-

ments.

With proper care and maintenance, it

should provide you with years of service.
Itis important that you read this manual to

fully understand the cleaner's capabilities

as well as providing you with theessentiMs

regarding maintenance and safety. A com-

plete list of operating parts and features is
shown in figure 1.

2-SPEED PUMP WAND
SWITCH

RECOVERY I I I

TANK POWER
HEAD

RECOVERY

TANK

SOLUTION
TANK

FLOOR

VACUUM HOSE

NOZZLE

;OLUTIONTUBE

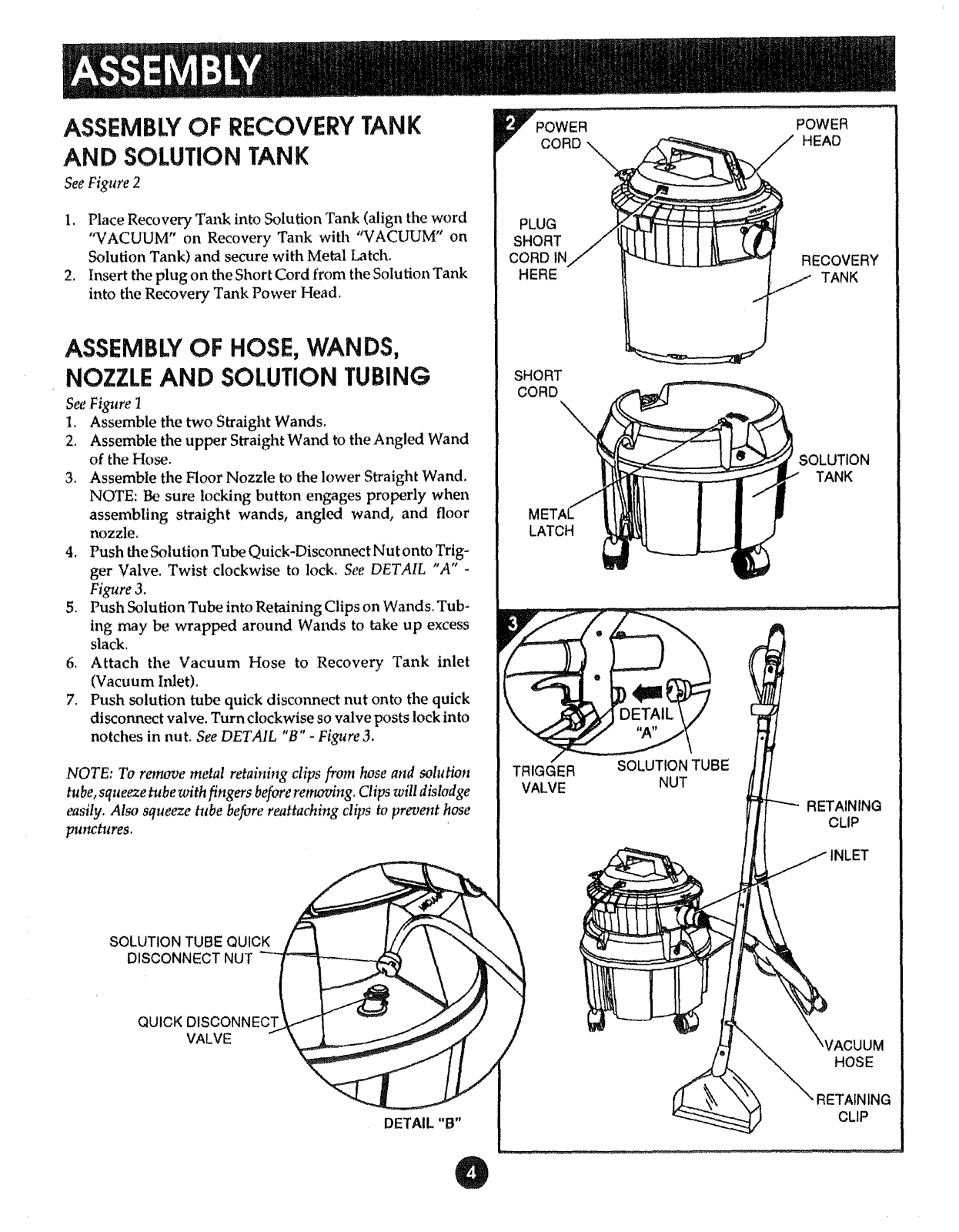

ASSEMBLYOF RECOVERYTANK

AND SOLUTION TANK

See Figure 2

O0wER

RD

POWER

HEAD

1, Place Recovery Tal& into Solution Tank (align the word

"VACUUM" on Recovery Tank with "VACUUM" on
Solution Tank) and secure with Metal Latch.

2, Insert the plug on the Short Cord from the Solution Tank

into the Recovery Tank Power Head.

ASSEMBW OF HOSE, WANDS,

NOZZLE AND SOLUTION TUBING

See Figure 1

1. Assemble the two Straight Wands.

2. Assemble the upper Straight Wand to the Angled Wand
of the Hose.

3, Assemble the Floor Nozzle to the lower Straight Wand.

NOTE: Be sure locking button engages properly when
assembling straight wands, angled wand, and floor

nozzle,

4. Push the Solution Tube Quick-Disconnect Nut onto Trig-
ger Valve. Twist clockwise to lock, See DETAIL "A" -

Figure 3.

5. Push Solution Tube into Retaining Clips on Wands. Tub-
ing may be wrapped around Wands to take up excess

slack.

6. Attach the Vacuum Hose to Recovery Tank inlet
(Vacuum halet).

7. Push solution tube quick disconnect nut onto the quick

disconnect valve. Turn clockwise so valve posts lock into

notches in nut. See DETAIL "B" - Figure 3.

PLUG

SHORT

CORD

HERE

SHORT

CORD

LATCH

RECOVERY

TANK

\

TANK

l

NOTE: To remove metal retaining clips from hose and solution

tube, squeeze tube with fingers before removing, Clips will dislodge

easily. Also squeeze tube before reattaching clips to prevent hose

punctures.

SOLUTION TUBE QUICK

DISCONNECT NUT

QUICK DISCONNECT

VALVE

DETAIL "B"

TRIGGER

VALVE

SOLUTION TUBE

NUT

RETAINING

CLIP

HOSE

lING

CLIP

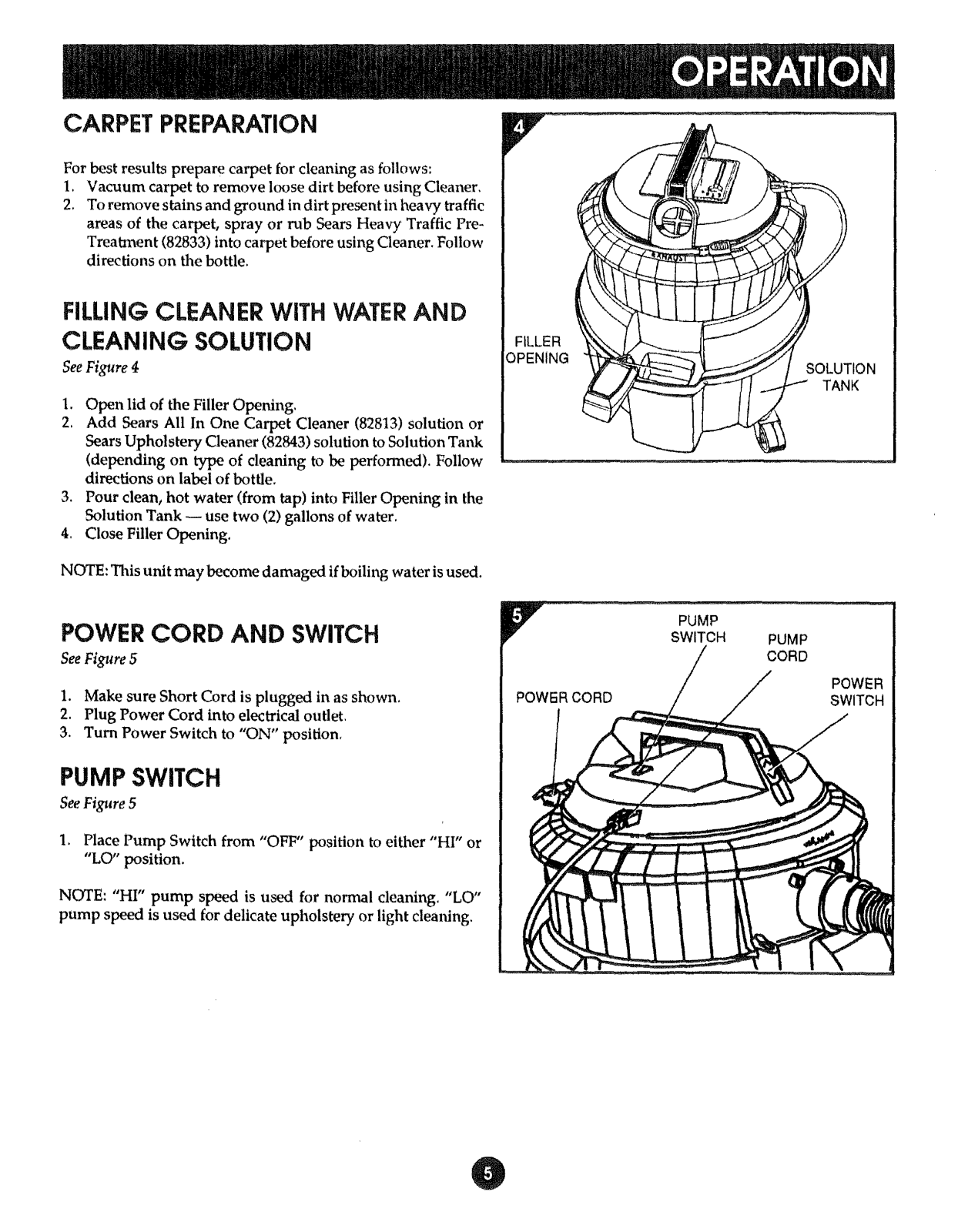

CARPET PREPARATION

For best results prepare carpet for cleaning as follows:

1. Vacuum carpet to remove loose dirt before using Cleaner,

2. To remove stains and ground in dirt present in heavy traffic

areas of the carpet, spray or rub Sears Heavy Traffic Fre-
Trealanent (82833) into carpet before using Cleaner. Follow

directions on the bottle.

FILLING CLEANER WITH WATERAND

CLEANING SOLUTION

See Figure 4

1. Open lid of the Filler Opening.

2. Add Sears All In One Carpet Cleaner (82813) solution or
Sears Upholstery Cleaner (82843) solution to Solution Tank

(depending on type of cleaning to be performed). Follow

directions on label of bottle.

3. Pour clean, hot water (from tap) into Filler Opening in the
Solution Tank -- use two (2) gallons of water.

4. Close Filler Opening.

NOTE: This unit may become damaged if boiling water is used,

POWER CORD AND SWITCH

See Figure 5

1. Make sure Short Cord is plugged in as shown.

2. Plug Power Cord into electrical outlet.

3. Turn Power Switch to "ON" position,

PUMPSWITCH

See Figure 5

FILLER

OPENING

PUMP

SWITCH

PUMP

CORD

POWER

SWITCH

1. Place Pump Switch from "OFF" position to either "HI" or

"LO" position.

NOTE: "HI" pump speed is used for normal cleaning. "LO"
pump speed is used for delicate upholstery or light cleaning.
