Product Manual

Constellation® Serial ATA

ST9500530NS ST9160511NS

100538694 Rev. D February 2011

Page 2

Revision history

Revision Date Sheets affected or comments

Rev. A 02/24/09 Initial release. Rev. B 04/20/09 5, 7-9, 12-13 and 15. Rev. C 07-20-10 Trademark revision. Rev. D 02-14-11 6, 9 & 23.

LLC in the United States and/or other countries. Momentus and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1(877-782-8351) to request permission.

One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Y our computer's operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or specifications.

Page 3

Contents

1.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.5 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.6 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.7 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.8 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.8.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.8.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.3 Voltage tolerance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.9 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.4 Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.5 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.10 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.11 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.12 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.12.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . 18

3.13 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.13.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.13.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.13.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.14 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.14.1 European Union Restriction of Hazardous Substances (RoHS) Directive. . . . . 20

3.14.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . 20

3.15 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.5 Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2 Serial ATA device plug connector pin definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.3.1 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Constellation Serial ATA Product Manual, Rev. D i

Page 4

ii Constellation Serial ATA Product Manual, Rev. D

Page 5

List of Figures

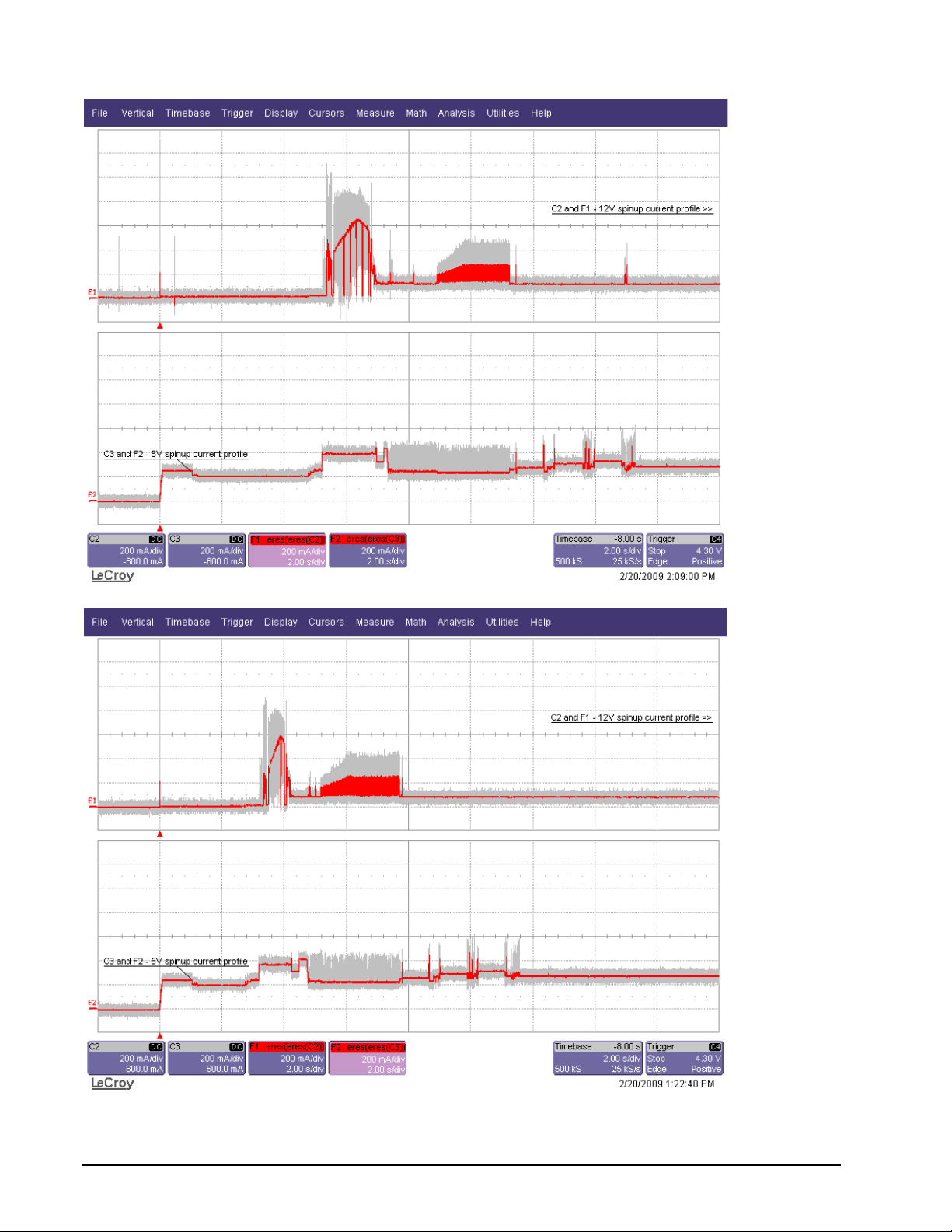

Figure 1. Typical 5V/12V startup and operation current profile for ST9500530NS . . . . . . . . . . . . . . . . 12

Figure 2. Typical 5V/12V startup and operation current profile for ST9160511NS . . . . . . . . . . . . . . . . 12

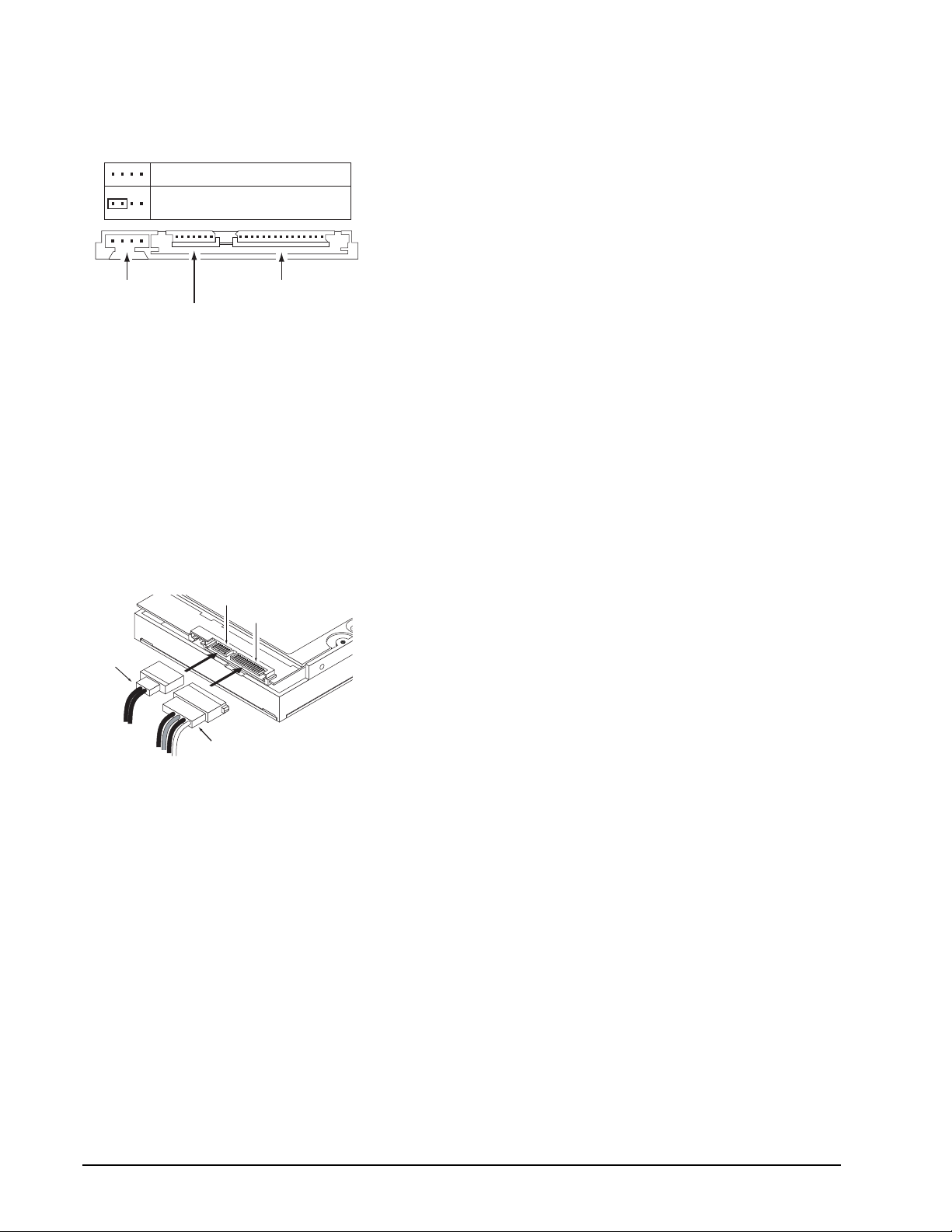

Figure 3. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 4. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

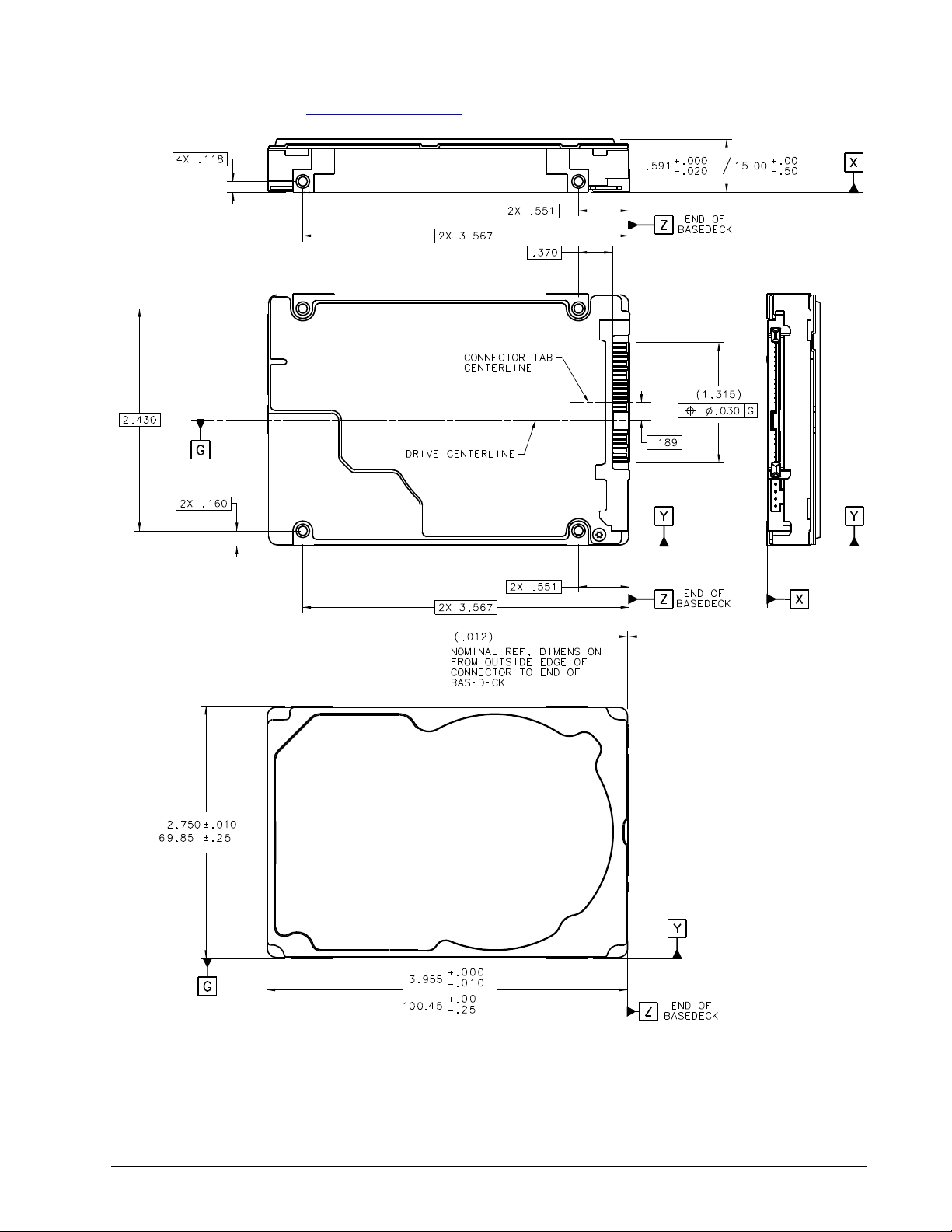

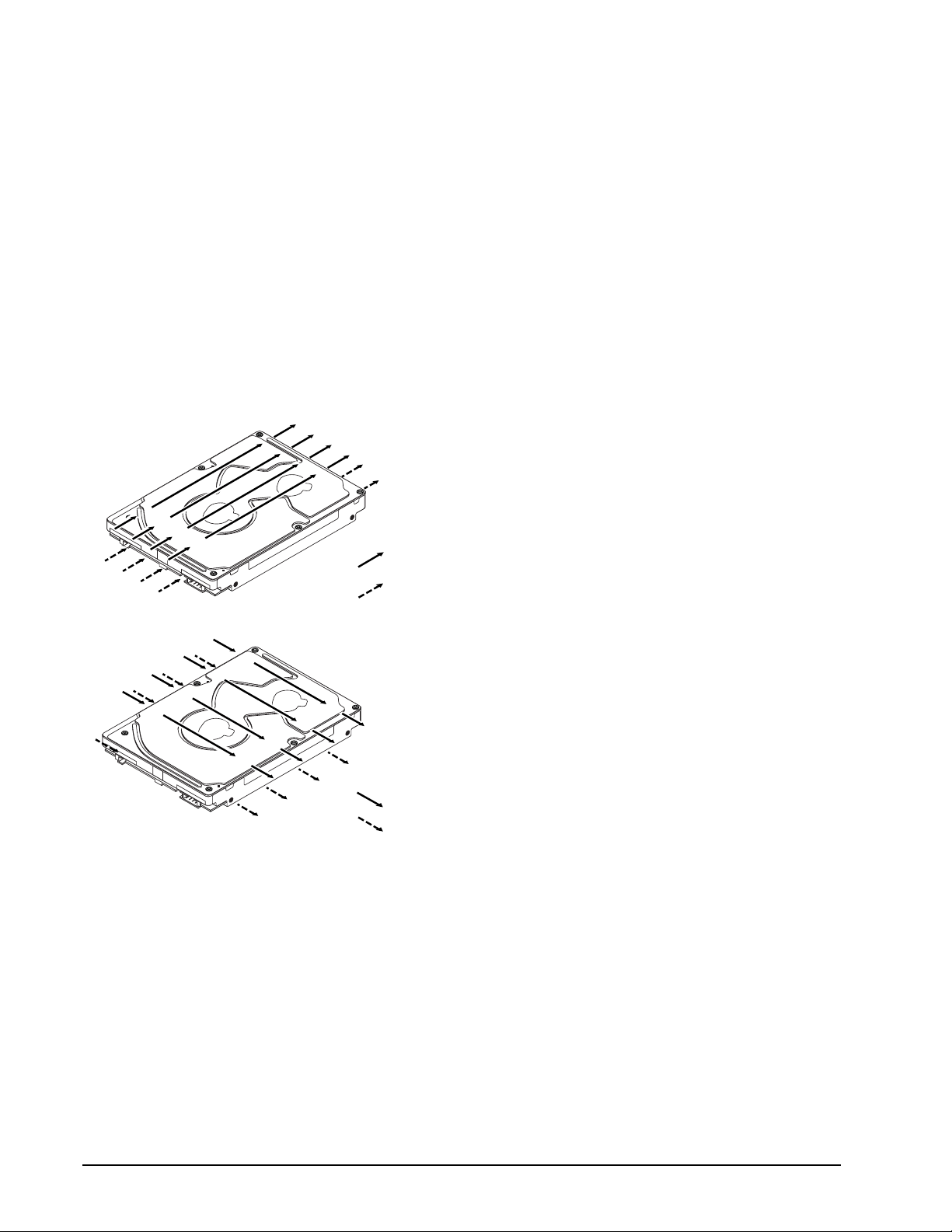

Figure 5. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 6. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Constellation Serial ATA Product Manual, Rev. D iii

Page 6

Page 7

1.0 Seagate Technology support services

SEAGATE ONLINE SUPPORT and SERVICES

For information regarding products and services, visit http://www.seagate.com/www/en-us/about/contact_us/

Available services include:

Presales & Technical support Global Support Services telephone numbers & business hours Authorized Service Centers

For information regarding Warranty Support, visit

http://www.sea

For information regarding Data Recovery Services, visit http://www.i365.com For Seagate OEM & Distribution partner portal, visit https://direct.seagate.com/portal/system For Seagate reseller portal, visit http://spp.seagate.com

gate.com/www/en-us/support/warranty_&_returns_assistance

Constellation Serial ATA Product Manual, Rev. D 1

Page 8

2 Constellation Serial ATA Product Manual, Rev. D

Page 9

2.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate Constellation

ST9500530NS ST9160511NS These drives provide the following key features:

• 7200 RPM spindle speed.

• High instantaneous (burst) data-transfer rates (up to 300 Mbytes per second).

• Perpendicular recording technology provides the drives with increased areal density.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Native Command Queueing with command ordering to increase performance in demanding applications.

• Full-track multiple-sector transfer capability without local processor intervention.

• Quiet operation.

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Supports latching SATA cables and connectors.

• Worldwide Name (WWN) capability uniquely identifies the drive.

Serial ATA model drives:

Constellation Serial ATA Product Manual, Rev. D 3

Page 10

2.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current system and expect all of your existing applications to work as normal.

The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

Note. The host adapter may, optionally, emulate a master/slave environment to host software where two

devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter contains a set of registers that shadow the content s of the traditio nal device regi sters, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downlo aded from www.serialata.org.

4 Constellation Serial ATA Product Manual, Rev. D

Page 11

3.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:

ST9500530NS ST9160511NS Product data communicated in this manual is specific only to the model numbers listed in this manual. The data

listed in this manual may not be predictive of future generation specifications or requirements. If you are designing a system which will use one of the models listed or future generation products and need further assistance, please contact your Field Applications Engineer (FAE) or our global support services group as shown in Section 1.0.

3.1 Specification summary tables

The specifications listed in the following tables are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual.

Constellation Serial ATA Product Manual, Rev. D 5

Page 12

Table 1: Drive specifications summary for 500 and 160 GB models

Drive specification ST9500530NS ST9160511NS

Formatted Gbytes (512 bytes/sector)* 500 160 Guaranteed sectors 976,773,168 312,581,808 Heads 6 2 Discs 3 1 Bytes per sector 512 Default sectors per track 63 Default read/write heads 16 Default cylinders 16,383 Recording density, KBPI (kbits/in max) 1410 Track density, KTPI (ktracks/in avg.) 200 Areal density, (Gbits/in2 avg) 283 Spindle speed (RPM) 7200 Internal data transfer rate (Mbits/sec max) 1136 Sustained data transfer rate OD (Mbytes/sec max) 95 I/O data-transfer rate (Mbytes/sec max) 300 ATA data-transfer modes supported PIO modes 0–4

Cache buffer 32 Mbytes Weight: (maximum) 196 grams (0.43 lbs) 188 grams (0.41 lbs) Average latency 4.16 msec Power-on to ready (sec max) 20 sec Standby to ready (sec max) 6 sec 4 sec Track-to-track seek time (msec typical) 0.5 read

Average seek, read (msec typical) 8.0 Average seek, write (msec typical) 8.4 Startup current (typical) 12V (peak) 2.0 amps Voltage tolerance (including noise) 5V ± 5%

Ambient temperature 5° to 55°C (operating)

Temperature gradient (°C per hour max) 20°C (operating)

Relative humidity 5% to 95% (operating)

Relative humidity gradient 20% per hour max Wet bulb temperature (°C max) 37.7 (operating)

Altitude, operating –60.96 m to 3048 m

Altitude, nonoperating (below mean sea level, max)

Operational Shock (max at 2 msec) 70 Gs Non-Operational Shock (max at 2 msec) 400 Gs Vibration, operating 5–22 Hz: 0.25 Gs, Limited displacement

Vibration, nonoperating 5–500 Hz: 3.0 Gs

Multiword DMA modes 0–2 Ultra DMA modes 0–6

0.7 write

12V ± 5%

–40° to 70°C (nonoperating)

20°C (nonoperating)

5% to 95% (nonoperating)

40.0 (nonoperating)

(–200 ft. to 10,000+ ft.) –60.96 m to 12,192 m

(–200 ft. to 40,000+ ft.)

22–350 Hz: 0.50 Gs 350–500 Hz: 0.25 Gs

6 Constellation Serial ATA Product Manual, Rev. D

Page 13

Drive specification ST9500530NS ST9160511NS

Drive acoustics, sound power (bels) Active 2.6 (typical) 2.5 (typical) Idle** 2.3 (typical) 2.1 (typical) Nonrecoverable read errors 1 sector per 10 Annualized Failure Rate (AFR) 0.73% Warranty To determine the warranty for a specific drive, use a web browser to access the

Motor start-stop cycles (25°C, 50% rel. humidity)

Supports Hotplug operation per Serial ATA Revision 2.5 specification

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

**During periods of drive idle, some offline a ctivity may occur according to the S.M.A.R.T. specification, which may incr ease acoustic and

power to operational levels.

following web page :http://www.seagate.com/www/en-us/support/warranty_&_returns_assistance

From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for your drive.

50,000

Yes

bits read

Constellation Serial ATA Product Manual, Rev. D 7

Page 14

3.2 Formatted capacity

Model

ST9500530NS 500 Gbytes 976,773,168 ST9160511NS 160 Gbytes 312,581,808

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

Formatted capacity*

Guaranteed sectors

Bytes per sector

512

3.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (

sectors) are consecutively numbered from 0 to n–1,

where n is the number of guaranteed sectors as defined above. See Section 5.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-

bit addressing support of drives with capacities over 137 Gbytes.

3.3 Default logical geometry

Cylinders Read/write heads Sectors per track

16,383 16 63

LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

3.4 Recording and interface technology

Interface Serial ATA (SATA) Recording method Perpendicular Recording density , KBPI (kbit Track density, KTPI (ktracks/inch avg) 200 Areal density (Gbits/inch Spindle speed (RPM) (± 0.2%) 7200 Internal data transfer rate (Mbits/sec max) 1136 Sustained data transfer rate (Mbytes/sec max) 95 I/O data-transfer rate (Mbytes/sec max) 300 (Ultra DMA mode 5)

s/inch max) 1410

avg) 283

500GB 160GB

8 Constellation Serial ATA Product Manual, Rev. D

Page 15

3.5 Physical characteristics

Weight: (maximum)

ST9500530NS 196 grams (0.43 lbs) ST9160511NS 188 grams (0.41 lbs)

Cache buffer 32 Mbytes (32,768 kbytes)

Note. Refer to Figure 5, page 23 for detailed mounting configuration dimensions.

3.6 Seek time

Seek measurements are taken with nominal power at 25°C am bient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an average of all

• Average seek time is a true statistical random aver a random tracks, less overhead.

*Typical seek times (msec) Read Write

Track-to-track 0.5 0.7 Average 8.0 8.4 Full Stroke 17.4 17.9 Average latency: 4.16

possible single-track seeks in both directions.

ge of at least 5,000 measurements of seeks between

*Measured in performance mode. Note. Th

ese drives are designed to consistently meet the seek times represented in this manual. Physical seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted values. However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications.

3.7 Start/stop times

ST9500530NS ST9160511NS Power-on to Ready (sec) 20 (max) Standby to Ready (sec) 6 (max) 4 (max) Ready to spindle stop (sec) 20 (max)

Constellation Serial ATA Product Manual, Rev. D 9

Page 16

3.8 Power specifications

Parameter Voltage +5 V +12 V Power +5 V +12 V Power

Average Idle Current 0.28 0.11 2.69 0.29 0.11 2.71 Advanced Idle Current

Idle_A 0.24 0.10 2.42 0.24 0.10 2.45 Idle_B 0.14 0.08 1.71 0.15 0.08 1.72 Idle_C 0.14 0.05 1.37 0.15 0.05 1.38 Stan dby 0.16 0.02 1.05 0.17 0.02 1.06 Average Sleep Current 0.16 0.02 1.06 0.16 0.02 1.03 Ma ximu m St art Cur rent: DC (Peak DC) 0.39 0.64 9.64 0.40 0.65 9.77 AC (Peak AC) 0.73 1.50 21.59 0.72 1.55 22.25 Delayed Motor Start (DC max) 0.16 0.03 1.12 0.17 0.02 1.08 Peak Ope rat i ng Curr en t (random read) : Typical DC 0.29 0.13 3.05 0.30 0.14 3.11 Maximum DC 0.29 0.15 3.22 0.30 0.15 3.30

Peak Ope rat i ng Curr en t (random writ e): Typical DC 0.34 0.14 3.42 0.35 0.14 3.49 Maximum DC 0.36 0.14 3.50 0.36 0.15 3.59 Maximum DC (peak) 1.02 0.58 12.06 1.02 0.60 12.30 Peak ope rat ing c urren t (s equ ent ial read ): Typical DC 0.58 0.12 4.27 0.58 0.12 4.33 Maximum DC 0.59 0.12 4.35 0.60 0.12 4.44 Maximum DC ( p eak) 0.82 0.22 6.74 0.84 0.22 6.84 Peak ope rat ing c urren t (s equ ent ial wr ite): Typical DC 0.63 0.12 4.52 0.64 0.12 4.59 Maximum DC 0.67 0.12 4.77 0.68 0.12 4.84 Maximum DC ( p eak) 1.04 0.20 7.60 1.06 0.20 7.70

ST9500530NS ST9500530NS

(1.5GB) (3.0GB)

The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 4, page 22 on page 22.

3.8.1 Power consumption

Power requirements for the drives are listed in the t ab le on p age 9. Typical power measurements are based on

n average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient

a temperature.

• Spinup power

Spinup power is measured from the time of power-on to speed.

• Standby mode

During Standby mode, the drive accepts commands, but th write electronics are in power-down mode.

Table 2: DC power requirements

the time that the drive spindle rea ches operating

e drive is not spinning, and the servo and read/

Regulation +/-5% +/-5% (watts) +/-5% + /-5

Maximum DC (peak) 0.84 0.52 10.44 0.84 0.56 10.92

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

10 Constellation Serial ATA Product Manual, Rev. D

(watts)

Page 17

Parameter Voltage +5 V +12 V Power +5 V +12 V Power

Average Idle Current 0.23 0.08 2.11 0.24 0.08 2.14 Advanced Idle Current

Idle_A 0.23 0.08 2.08 0.24 0.08 2.10 Idle_B 0.14 0.06 1.46 0.15 0.06 1.49 Idle_C 0.14 0.04 1.25 0.15 0.04 1.27 Stan dby 0.16 0.02 1.02 0.17 0.02 1.04 Average Slee p Current 0.16 0.02 0.97 0.16 0.02 1.00 Ma ximum Start Cur ren t : DC ( Peak DC) 0.41 0.62 9.47 0.41 0.62 9.51 AC (Peak AC) 0.57 0.77 12.11 0.57 1.09 15.94 Delayed Motor Start (DC max) 0.16 0.02 1.01 0.17 0.02 1.04 Peak Ope rat i ng Curr en t (rand om read) : Typical DC 0.31 0.11 2.88 0.31 0.11 2.92 Maximum DC 0.31 0.12 3.01 0.32 0.12 3.07

Peak Ope rat i ng Curr en t (rand om write): Typical DC 0.35 0.12 3.18 0.36 0.12 3.22 Maximum DC 0.35 0.12 3.23 0.36 0.12 3.28 Maximum DC (peak) 1.02 0.56 11.82 1.00 0.52 11.24 Peak ope rat i ng curr en t (sequ ent ial read ): Typical DC 0.58 0.09 3.98 0.59 0.09 4.00 Maximum DC 0.60 0.09 4.08 0.60 0.09 4.11 Maximum DC ( peak) 0.84 0.20 6.60 0.86 0.20 6.70 Peak ope rat i ng curr en t (sequ ent ial write): Typical DC 0.62 0.09 4.15 0.62 0.09 4.18 Maximum DC 0.67 0.09 4.46 0.68 0.09 4.49 Maximum DC ( peak) 1.02 0.20 7.50 1.04 0.20 7.60

ST9160511NS ST9160511NS

(1.5GB) (3.0GB)

Regulation +/-5% +/-5% (watts) +/-5% +/-5

Maximum DC (peak) 0.82 0.5

10.34 0.84 0.52 10.44

(watts)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R. T. specification, which may increase acoustic and

power to operational levels.

Constellation Serial ATA Product Manual, Rev. D 11

Page 18

3.8.1.1 Typical current profiles

Figure 1. Typical 5V/12V startup and operation current profile for ST9500530NS

Figure 2. Typical 5V/12V startup and operation current profile for ST9160511NS

12 Constellation Serial ATA Product Manual, Rev. D

Page 19

3.8.2 Conducted noise

Input noise ripple is measured at the host system powe r supply across an equivalent 80-ohm resistive load on the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.

• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to- peak square- wave injected noise at up to 10 MHz.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10 MHz.

Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write

current.

3.8.3 Voltage tolerance

Voltage tolerance (including noise): 5V ±5%

12V ±5%

Constellation Serial ATA Product Manual, Rev. D 13

Page 20

3.8.4 Power-management modes PowerChoiceTM power management

Drives using the load/unload architecture provide programmable power management to tailor systems for performance and greater energy efficiency.

The table below lists the supporte d PowerChoice mod es. The further you go down in the t ab le, the more power savings you get. For example, Idle_B mode results in greater power savings than Idle_A mode. Standby mode results in the greatest power savings.

Mode Description

Idle_A Reduced electronics

Idle_B Heads unloaded. Disks spinning at full RPM

Idle_C Heads unloaded. Disks spinning at reduced RPM

Standby H eads unload ed. Motor stopped (disks not spinning)

PowerChoice can be invoked using one of these two methods:

• Extended Power Conditions (EPC) Set Features Command method-Enable and initialize the idle condition timers.

• Standby Immediate and Idle Immediate command method-Use th e EPC Set Features Command. This allows the host to directly transition the drive to any supp orte d PowerChoice mode . The drive preser ves the existin g idle power settings.

PowerChoice reporting methods

PowerChoiceTM provides these reporting methods for tracking purposes: Check Power Mode Reports

• Current power condition

Power Condition Log Reports

• Idle condition enabled/disabled

• If timer is changeable

• Typical recovery time from extended power conditions

• Current timer setting and Manufacturer default timer settings

SMART Read Data Attribute - Load/ Unload Cycle Counter

14 Constellation Serial ATA Product Manual, Rev. D

Page 21

3.9 Environmental specifications

3.9.1 Ambient temperature

Ambient temperature is defined as the temperature of th

e environment immediately surrounding the drive.

Actual drive case temperature should not exceed 60°C (140°F) within the operating ambient conditions. Above 1,000 feet (305 meters), the maximum temperature is derated linearly to 112°F (44°C) at 10,000 feet

(3,048 meters).

Operating: 5° to 55°C (41° to 131°F) Nonoperating: –40° to 70°C (–40° to 158°F)

3.9.2 Temperature gradient

Operating: 20°C per hour (68°F per hour max), without condensation Nonoperating: 20°C per hour (86°F per hour max)

3.9.3 Humidity

3.9.3.1 Relative humidity

Operating: 5% to 95% noncondensing (20% per hour max) Nonoperating: 5% to 95% noncondensing (20% per hour max)

3.9.3.2 Wet bulb temperature

Operating: 37.7°C (99.9°F max) Nonoperating: 40.0°C (104.0°F max)

3.9.4 Altitude

Operating: –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.) Nonoperating: –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.)

3.9.5 Shock

All shock specifications assume that th

e drive is mounted securely with the input shock applied at the drive

mounting screws. Shock may be applied in the X, Y or Z axis.

3.9.5.1 Operating shock

These drives comply with the pe

rformance levels specified in this document when subjected to a maximum operating shock of 70 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more than once every 2 seconds.

3.9.5.2 Nonoperating shock

The nonoperating shock level that the drive can experien

ce without incurring physical damage or degradation in performance when subsequently put into operation is 40 0 Gs based on a nonr epetitive half-sin e shock pulse of 2 msec duration.

Constellation Serial ATA Product Manual, Rev. D 15

Page 22

3.9.6 Vibration

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y or Z axis.

3.9.6.1 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below .

5–22 Hz 0.25 Gs (Limited displacement) 22–350 Hz 0.50 Gs 350–500 Hz 0.25 Gs

3.9.6.2 Nonoperating vibration

The maximum nonoperating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operatio n are specified below.

5–500 Hz 3.0 Gs

16 Constellation Serial ATA Product Manual, Rev. D

Page 23

3.10 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.

Note. Fo

r seek mode tests, the drive is placed in seek mode on ly. The number of seeks per second is defined

by the following equation:

(Number of seeks per second = 0.4 / (average latency + average access time)

Table 3: Fluid Dynamic Bearing (FDB) motor acoustics

Active Idle*

ST9500530NS 2.6 bels (typ) 2.3 bels (typ) ST9160511NS 2.5 bels (typ) 2.1 bels (typ)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R. T. specification, which may increase acoustic and

power to operational levels.

3.11 Electromagnetic immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environments defined in the following table:

Table 4: Radio frequency environments

Test Description Performance level Reference standard

Electrostatic discharge

Radiated RF immunity

Contact, HCP, VCP: ± 4

80 to 1,000 MHz, 3 V/m, 80% AM with 1 kHz sine 900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz

kV; Air: ± 8 kV B EN 61000-4-2: 95

A EN 61000-4-3: 96

ENV 50204: 95

Electrical fast transient

Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95 Conducted RF

immunity Voltage dips,

interrupts

± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95

150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine A EN 61000-4-6: 97

0% open, 5 seconds 0% short, 5 seconds 40%, 0.10 seconds 70%, 0.01 seconds

C C C B

EN 61000-4-11: 94

Constellation Serial ATA Product Manual, Rev. D 17

Page 24

3.12 Reliability

3.12.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

The product shall achieve an Annualized Failure Rate - AFR - of 0.73% (Mean Time Between Failures - MTBF

- of 1.2 Million hours) w

exceed 40

C. Operation at case temper at ur es o utside t he s pecifications in Section 3.9 may increase the product Annualized Failure Rate (decrease MTBF). AF R and MT BF are popu lation st atistics that ar e not relevant to individual units.

AFR and MTBF specifications are based on the following assumptions for business critical storage system environments:

• 8,760 power-on-hours per year.

• 250 average motor start/stop cycles per year.

• Operations at nominal voltages.

• Systems will provide adequate cooling to ensure

outside the specifications in Sec tio n 3. 9 will increase the product AFR and decrease MTBF.

Nonrecoverable read errors 1 per 1015 bits read, max Annualized Failure Rate (AFR) 0.73% (nominal power, 40°C case temperature) Motor start-stop cycles 50,000 cycles

Warranty

Preventive maintenance None required.

hen operated in an environment that ensures the HDA case temperatures do not

the case temperatures do not exceed 40°C. Temperatures

(at nominal voltage and temperature, with 60 cycles per ho To determine the warranty for a specific drive, use a web browser to access the

following web page :

http://www.seagate.com/www/en-us/support/warranty_&_returns_assistance

ur and a 50% duty cycle)

3.13 Agency certification

3.13.1 Safety certification

The drives are recognized in accordance with UL 1950 and of IEC950 and EN 60950 as tested by TUV North America.

3.13.2 Electromagnetic compatibility

Hard drives that display the CE mark comply with the European Union (EU) requirement tromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024.

Seagate uses an independent laboratory to confirm compliance with the EC directives specified in the previous paragraph. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm EMC compliance and provide CE marking for their products.

CSA C22.2 (950) and meet all applicable sections

s specified in the Elec-

18 Constellation Serial ATA Product Manual, Rev. D

Page 25

Korean RRL

If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information and Communication Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interfer ence /Electroma gnetic Susce ptibility (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab.

• Constellation Serial ATA

• Certificate number: STX- ST9500530NS (B)

Australian C-Tick (N176)

If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548 1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication Authority (ACA).

3.13.3 FCC verification

These drives are intended to be contained solely within a pe rson al computer or simila r enclosur e (no t attached as an external device). As such, each drive is considered to be a subassembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications Commission verification or certification of the device is required.

Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disc drive, m otherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and used in strict accordance w ith the manufacturer ’s instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined by turning the equipment on and off, you are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets. If necessary, you should consult your dealer or an experienced radio/television technician for additional sug-

gestions. You may find helpful the following booklet prepared by the Federal Communications Commission: How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.

Constellation Serial ATA Product Manual, Rev. D 19

Page 26

3.14 Environmental protection

RoHS MCV

X "

RoHS MCV

Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical substances.

3.14.1 European Union Restriction of Hazardous Substances (RoHS) Directive

The European Union Restriction of Hazardous Substances (RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercur y, Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured with component s and materi als that comply with the RoHS Directive.

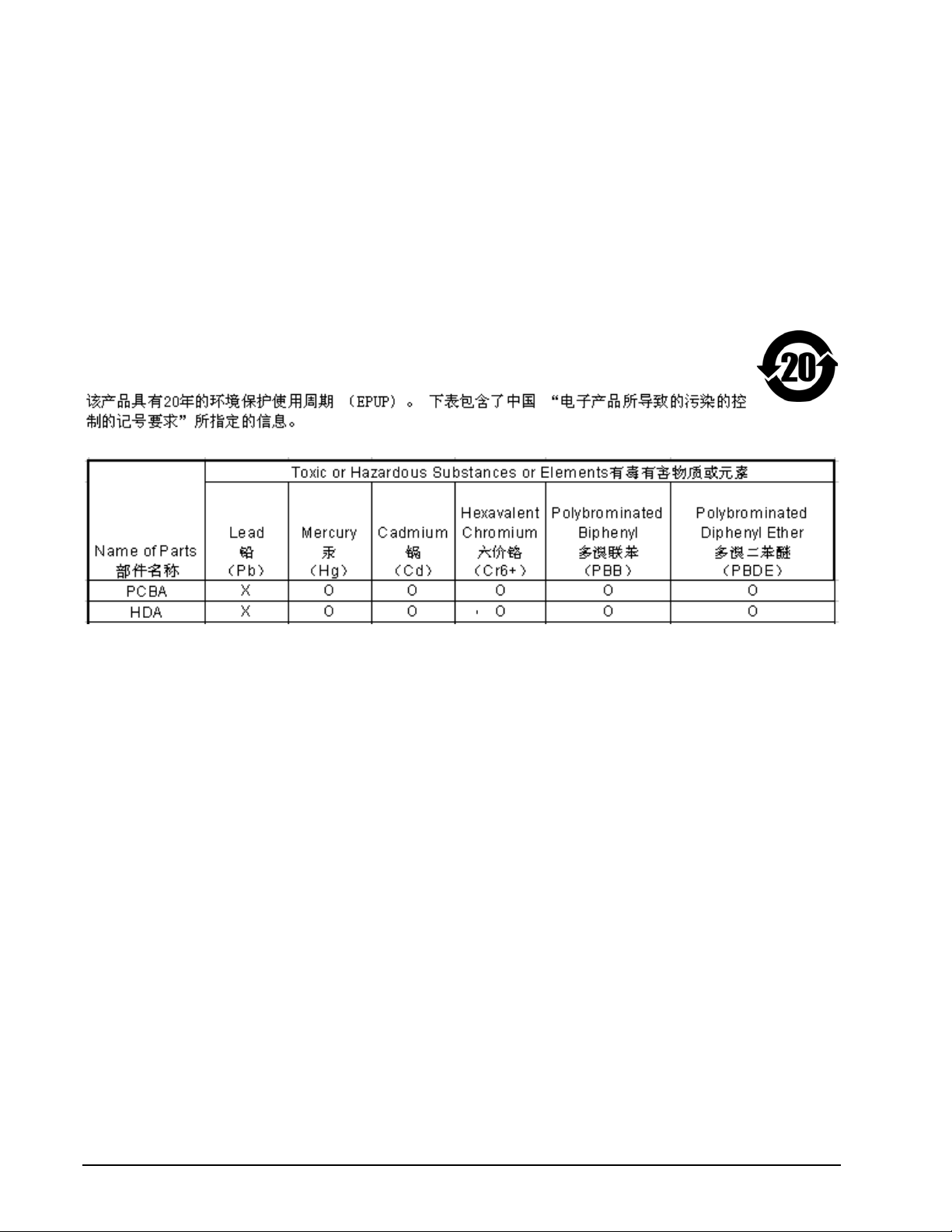

3.14.2 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance con tent of the p art (at the h omogenous mater ial level) is lower than the threshold defined by the China RoHS MCV Standard.

表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over the threshold defined by the China RoHS MCV Standard.

中国限制危险物品的指令

标准所定义的门槛值。

表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国

标准所定义的门槛值。

3.15 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment. Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate product s are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication , such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

20 Constellation Serial ATA Product Manual, Rev. D

Page 27

4.0 Configuring and mounting the drive

This section contains the specifications and instructions for configuring and mounting the drive.

4.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:

Caution:

• Before handling the drive, put on a grounded wrist str ap , or ground yourself frequently by touching the metal chassis of a computer that is plugged into a grounded outlet. Wea r a grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until you mount it in the computer.

• Do not touch the co nnector pins or the printed circuit board.

• Do not remove the factory-installed labels from the dr ive or cover them with additional labels. Removal voids the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

4.2 Configuring the drive

Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point relationship. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.

Serial ATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive for proper operation; however, if you connect the drive and receive a “drive not detected” error, your SATAequipped motherboard or host adapter may use a chipset that does not support SA TA speed autonegotiation. If you have a motherboard or host adapter that does not support autonegotiation:

• Install a jumper as shown in Figure 3, page 22 below to limit the data transfer rate to 1.5 Gbits per second (and leave the drive connected to the SATA-equipped motherboard or host adapter that doesn’t support autonegotiation) or

Constellation Serial ATA Product Manual, Rev. D 21

Page 28

• Install a SATA host adapter that supports autonegotiation, leave the drive jumper block set to “Normal

Jumper block

SATA interface connector

SATA power connector

Limit data transfer rate to

1.5 Gbits per second

3.0 Gbits per second operation

Power cable

Signal cable

Signal connector

Power connector

operation” (see Figure 3, page 22 below), and con nect the drive to tha t adapter. This optio n has the ben efit of not limiting the drive to a 1.5 G

Figure 3. Serial ATA connectors

bits/sec transfer rate.

4.3 Serial ATA cables and connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 5 for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable.

For installations which require cables, you can connect the drive as illustrated in Figure 4, page 22.

Figure 4. Attaching SATA cabling

Each cable is keyed to ensure correct orientation. Constellation Serial ATA drives support latching SATA connectors.

4.4 Drive mounting

You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. See Figure 5, page 23 for drive mounting dimensions. Follo w these important mounting precautions when mounting the drive:

• Allow a minimum clearance of 0 a guideline. Please refer to Section 4.5 for final cooling requirements.

• Use only M3

x 0.5 metric mounting screws.

• Four (4) threads (0.080 inches) minimum screw engagement recommended. Also ensure maximum screw le

ngth does not bottom out in mounting holes.

• Do not overtighten the mounting screws (maximum torque: 4.5 inch-lb, ± 0.45 in-lb).

.030 inches (0.76 mm) around the entir e perimeter of the drive fo r cooling as

22 Constellation Serial ATA Product Manual, Rev. D

Page 29

Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8201 and

in mm

SFF-8223, found at

www.sffcommittee.org.

Figure 5. Mounting dimensions—top, side and end view

Constellation Serial ATA Product Manual, Rev. D 23

Page 30

4.5 Cooling

Above unit

Under unit

Note. Air flows in the direction shown (back to front)

or in reverse direction (front to back)

Above unit

Under unit

Note. Air flows in the direction shown or in reverse direction (side to side)

Cabinet cooling must be designed by the customer so that the ambient temperature immediately surro unding the drive will not exceed temperature conditions specified in Section 3.9.1, "Ambient temperature."

The rack, cabinet, or drawer environment for the drive must provide heat removal from the electronics and head and disc assembly (HDA). You should confirm that adequate heat removal is provided using the temperature measurement guidelines described in Section 3.9.1.

Forced air flow may be r equired to keep temper atures a t or be low the temper atures s pecified in Section 3.9.1 in which case the drive should be oriented, or air flow directed, so that the least amount of air flow resistance is created while providing air flow to the electronics and HDA. Also, the shortest possible path between the air inlet and exit should be chosen to minimize the travel length of air heated by the drive and other heat sources within the rack, cabinet, or drawer environment.

If forced air is determined to be necessary, possible air-flow patterns are shown in Figure 6, page 24. The airflow patterns are created by one or more fans, either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced air-flow patterns are acceptable as long as the temperature measurement guidelines of Section 3.9.1 are met.

Figure 6. Air flow

24 Constellation Serial ATA Product Manual, Rev. D

Page 31

5.0 Serial ATA (SATA) interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.

For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification.

5.1 Hot-Plug compatibility

Constellation Serial ATA drives incorporate connectors which enable you to hot plug these drives in accordance with the Serial ATA II: Extension to Serial ATA 1.0a specification. This specification can be downloaded from www.serialata.org.

Caution:

The drive motor must come to a complete stop (Ready to spindle stop time indicated in Section 3.7) prior to changing the plane of operation. This time is required to insure data integrity.

Constellation Serial ATA Product Manual, Rev. D 25

Page 32

5.2 Serial ATA device plug connector pin definitions

Table 5 summarizes the signals on the Serial ATA interface and power connectors.

Table 5: Serial ATA connector pin definitions

Segment Pin Function Definition

S1 Ground 2nd mate S2 A+ Differential signal pair A from Phy S3 AS4 Ground 2nd mate S5 B- Differential signal pair B from Phy S6 B+

Signal

S7 Ground 2nd mate

Key and spacing separate signal and power segments

P1 V P2 V P3 V

3.3V power

3.3V power, pre-charge, 2nd mate P4 Ground 1st mate P5 Ground 2nd mate P6 Ground 2nd mate

Power

P7 V P8 V P9 V

5V power, pre-charge, 2nd mate 5V power

5V power P10 Ground 2nd mate P11 Ground or LED signal If grounded, drive does not use deferred spin P12 Ground 1st mate. P13 V P14 V P15 V

12V power, pre-charge, 2nd mate

12V power

Notes:

1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration.

4. All used voltage pins (Vx) must be terminated.

26 Constellation Serial ATA Product Manual, Rev. D

Page 33

5.3 Supported ATA commands

The following table lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification. See “S.M.A.R.T. commands” on page 34.for details and subcommands used in the S.M.A.R.T. implemen tation.

Table 6: Supported ATA commands

Command name Command code (in hex)

Check Power Mode E5

Device Configuration Freeze Lock B1H / C1 Device Configuration Identify B1H / C2 Device Configuration Restore B1H / C0 Device Configuration Set B1H / C3 Device Reset 08 Download Microcode 92 Execute Device Diagnostics 90 Flush Cache E7 Flush Cache Extended EA Format Track 50 Identify Device EC Idle E3 Idle Immediate E1 Initialize Device Parameters 91 Read Buffer E4 Read DMA C8 Read DMA Extended 25 Read DMA Without Retries C9 Read Log Ext 2F Read Multiple C4 Read Multiple Extended 29 Read Native Max Address F8 Read Native Max Address Extended 27 Read Sectors 20 Read Sectors Extended 24 Read Sectors Without Retries 21 Read Verify Sectors 40 Read Verify Sectors Extended 42 Read Verify Sectors Without Retries 41 Recalibrate 10 Security Disable Password F6 Security Erase Prepare F3

H H H

H H

H H H H H H H H H H H H

H H H H

Constellation Serial ATA Product Manual, Rev. D 27

Page 34

Command name Command code (in hex)

Security Erase Unit F4 Security Freeze F5 Security Set Password F1 Security Unlock F2 Seek 70 Set Features EF Set Max Address F9

H H H H H

Note: Individual Set Max Address commands are identified by the value placed in the Set Max Features register as defined to the right.

Set Max Address Extended 37 Set Multiple Mode C6 Sleep E6

S.M.A.R.T. Disable Operations B0H / D9 S.M.A.R.T. Enable/Disable Autosave B0H / D2 S.M.A.R.T. Enable Operations B0H / D8 S.M.A.R.T. Execute Offline B0H / D4 S.M.A.R.T. Read Attribute Thre sholds B0H / D1 S.M.A.R.T. Read Data B0H / D0 S.M.A.R.T. Read Log Sector B0H / D5 S.M.A.R.T. Return Status B0H / DA S.M.A.R.T. Save Attribute Values B0H / D3 S.M.A.R.T. Write Log Sector B0H / D6 Standby E2 Standby Immediate E0 Write Buffer E8 Write DMA CA Write DMA Extended 35 Write DMA FUA Extended CD Write DMA Without Retries CB Write Log Extended 3F Write Multiple C5 Write Multiple Extended 39 Write Multiple FUA Extended CE Write Sectors 30 Write Sectors Without Retries 31 Write Sectors Extended 34

H H H

H H

H H H H

Address:

Password:

Unlock:

Freeze Lock:

H H H H H H H

H H H

Lock:

00 01 02 03 04

H H H H H

28 Constellation Serial ATA Product Manual, Rev. D

Page 35

5.3.1 Identify Devic e comma n d

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is organized as a single 512-b yte block of data, whose contents are shown in Tabl e 6 on page 27. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive. See Section 3.0 on page 5 for default parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specification.

Word Description Value

Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

0C5A

• Bit 6: removable controller

• Bit 0: reserved 1 Number of logical cylinders 16,383 2 ATA-reserved 0000 3 Number of logical heads 16 4 Retired 0000 5 Retired 0000 6 Number of logical sectors per logical track: 63 003F 7–9 Retired 0000 10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII 20 Retired 0000 21 Retired 0400 22 Obsolete 0000 23–26 Firmware revision (8 ASCII character string, padded with blanks to

x.xx

end of string)

27–46 Drive model number: (40 ASCII characters, padded with blanks to

end of string)

H H H H

H H H

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write

multiple (16) 48 Reserved 0000 49 Standard Standby timer, IORDY supported and may be disabled 2F00 50 ATA-reserved 0000 51 PIO data-transfer cycle timing mode 0200 52 Retired 0200 53 Words 54–58, 64–70 and 88 are valid 0007 54 Number of current logical cylinders xxxx 55 Number of current logical heads xxxx 56 Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx 59 Number of sectors transferred during a Read Multiple or Write Multi-

ple command

8010

xxxx

H H H H H

H H H H H H

Constellation Serial ATA Product Manual, Rev. D 29

Page 36

Word Description Value

60–61 Total number of user-addressable LBA sectors available

0FFFFFFFh* (see Section 3.2 for related information) *Note: The maximum value allowed in this field is: 0FFFFFFFh

(268,435,455 sectors, 137 Gbytes). Drives with capacities over 137 Gbytes will have 0FFFFFFFh in this field and the actual number of user-addressable LBAs specified in words 100-103. This is required for drives that support the 48-bit addressing feature.

62 Retired 0000 63 Multiword DMA active and modes supported (see note following this

xx07 table)

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003 65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078 66 Recommended multiword DMA transfer cycle time per word (120

0078 nsec)

67 Minimum PIO cycle time without IORDY flow control (240 nsec) 00F0 68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078 69–74 ATA-reserved 0000 75 Queue depth 0000 76 Serial ATA capabilities xxxx 77 Reserved for future Serial ATA definition xxxx 78 Serial ATA features supported xxxx 79 Serial ATA features enabled xxxx 80 Major version number 003E 81 Minor version number 0000 82 Command sets supported 364B 83 Command sets supported 7C03

4003

84 Command sets support extension (see note following this table)

(4003H = 0100000000000011

binary)

H H H

H H H H H

H H

See Word 108-111 note.

85 Command sets enabled 30xx 86 Command sets enabled 0001 87 Command sets enable extension 4 000 88 Ultra DMA support and current mode (see note following this table) xx3F 89 Security erase time 0000 90 Enhanced security erase time 0000 92 Master password revision code FFFE 93 Hardware reset value xxxx 95–99 ATA-reserved 0000 100–103 Total number of user-addressable LBA sectors available (see Sec-

tion 3.2 for related information). These words are required for drives that support the 48-bit addressing feature. Maximum value:

500 GB models = 976,773,168 160 GB models = 312,581,808

0000FFFFFFFFFFFFh.

104–107 ATA-reserved 0000

30 Constellation Serial ATA Product Manual, Rev. D

Page 37

Word Description Value

108–111 The mandatory value of the world wide name (WWN) for the drive.

NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit

Each drive will have a unique value.

WWN support. 112–127 ATA-reserved 0000 128 Security status 0001

129–159 Seagate-reserved xxxx 160–254 ATA-reserved 0000 255 Integrity word xxA5

Note. See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported. 1 Multiword DMA mode 1 is supported.

H H

2 Multiword DMA mode 2 is supported. 8 Multiword DMA mode 0 is currently active. 9 Multiword DMA mode 1 is currently active. 10 Multiword DMA mode 2 is currently active.

Bit Word 84

0 SMART error logging is supported. 1 SMART self-test is supported. 2 Media serial number is supported. 3 Media Card Pass Through Command feature set is supported. 4 Streaming feature set is supported. 5 GPL feature set is supported. 6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported. 7 WRITE DMA QUEUED FUA EXT command is supported. 8 64-bit World Wide Name is supported. 9-10 Obsolete. 11-12 Reserved for TLC. 13 IDLE IMMEDIATE command with IUNLOAD feature is supported. 14 Shall be set to 1. 15 Shall be cleared to 0.

Constellation Serial ATA Product Manual, Rev. D 31

Page 38

Bit Word 88

0 Ultra DMA mode 0 is supported. 1 Ultra DMA mode 1 is supported. 2 Ultra DMA mode 2 is supported. 3 Ultra DMA mode 3 is supported. 4 Ultra DMA mode 4 is supported. 5 Ultra DMA mode 5 is supported. 6 Ultra DMA mode 6 is supported. 8 Ultra DMA mode 0 is currently active. 9 Ultra DMA mode 1 is currently active. 10 Ultra DMA mode 2 is currently active. 11 Ultra DMA mode 3 is currently active. 12 Ultra DMA mode 4 is currently active. 13 Ultra DMA mode 5 is currently active. 14 Ultra DMA mode 6 is currently active.

32 Constellation Serial ATA Product Manual, Rev. D

Page 39

5.3.2 Set Features command

This command controls the implementation of various featur es that the drive su pports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the Features register are defined as follows:

Table 7: Set Features co mmand values

02 03

10 55 82 90 AA F1

Enable write cache (default).

Set transfer mode (based on value in Sector Count register).

Sector Count register values: 00

Set PIO mode to default (PIO mode 2).

Set PIO mode to default and disable IORDY (PIO mode 2).

08HPIO mode 0 09HPIO mode 1 0A

PIO mode 2

0BHPIO mode 3 0CHPIO mode 4 (default) 20

Multiword DMA mode 0

21HMultiword DMA mode 1 22HMultiword DMA mode 2 40

Ultra DMA mode 0

41HUltra DMA mode 1 42HUltra DMA mode 2 43

Ultra DMA mode 3

44HUltra DMA mode 4 45HUltra DMA mode 5 46

Ultra DMA mode 6

Enable use of SATA features

Disable read look-ahead (read cache) feature.

Disable write cache

Disable use of SATA features

Enable read look-ahead (read cache) feature (default).

Report full capacity available

Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-

cated above.

Constellation Serial ATA Product Manual, Rev. D 33

Page 40

5.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4

) that elimi-

nates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:

http://seatools.sea

gate.com.

This drive is shipped with S.M.A.R.T . featur es disabled . You must have a recent BIOS or software p ackage that supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 8: S.M.A.R.T. commands

Code in features register S.M.A.R.T. command

D0 D2 D3 D4 D5 D6 D8 D9 DA

H H H H H H H H

S.M.A.R.T. Read Data S.M.A.R.T. Enable/Disabl e Attribute Autosave S.M.A.R.T. Save Attribute Values S.M.A.R.T. Execute Off-line Immediate (runs DST) S.M.A.R.T. Read Log Sector S.M.A.R.T. Write Log Sector S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status

Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04

(abort) is written to the Error register.

34 Constellation Serial ATA Product Manual, Rev. D

Page 41

Index

ACA 19 acceleration 16 acoustics 17 Agency certification 18 altitude 15 Ambient temperature 15 ambient temperature 9, 10 Annualized Failure Rate (AFR) 18 areal density 3, 8 ATA commands 27

Australia/New Zealand Standard AS/NZS3548 1995

Australian Communication Authority (ACA) 19 Australian C-Tick 19 Average latency 9 Average seek time 9

BPI 8 buffer 9

cables and connectors 22 cache 9 capacity 8 case temperature 15 CE mark 18 certification 18 Check Power Mode 27 China RoHS directive 20 Class B computing device 19 compatibility 18 Conducted noise 13 Conducted RF immunity 17 Configuring the drive 21 connectors 22 Corrosive environment 20 CSA C22.2 (950) 18 cycles 18 Cylinders 8

data-transfer rates 3 DC power 10 Default logical geometry 8 density 8 Device Configuration Freeze Lock 27 Device Configuration Identify 27 Device Configuration Restore 27

Device Configuration Set 27 Device Reset 27 dimensions 9, 23 Download Microcode 27

Electrical fast transient 17 Electromagnetic compatibility 18 Electromagnetic Compatibility (EMC) 19 Electromagnetic Compatibility control Regulation 19

Electromagnetic Compatibility Directive (89/336/EEC)

Electromagnetic immunity 17 Electrostatic discharge 17 electrostatic discharge (ESD) 21 EN 55022, Class B 18 EN 55024 18 EN 60950 18 Environmental specifications 15 error-correction algorithms 3 errors 18 ESD 21 EU 18 EU RoHS directive 20 European Union (EU) requirements 18 Execute Device Diagnostics 27

FCC verification 19 features 3 Federal Communications Commission 19 Flush Cache 27 Flush Cache Extended 27 Format Track 27 Formatted capacity 8

geometry 8 Gs 16 guaranteed sectors 8

Handling precautions 21 heads 8 humidity 15

I/O data-transfer rate 8 Identify Device 27 Identify Device command 29 Idle 27 Idle Immediate 27 IEC950 18

Constellation Serial ATA Product Manual, Rev. D 35

Page 42

Information Technology Equipment (ITE) 18 Initialize Device Parameters 27 Input noise ripple 13 input voltage 10 interface 8, 25 internal data-transfer rate OD 8 is 9 ISO document 7779 17 ITE 18

Korea Ministry of Information and Communication

(MIC)

Korean RRL 19

latency 9 LBA mode 8 logical geometry 8

maintenance 18 master/slave 4 maximum temperature 15 MIC 19 mounting 22 mounting configuration 9 mounting screws 15 mounting the drive 21

noise 13 nominal power 9 Nonoperating shock 15 Nonoperating vibration 16 Nonrecoverable read errors 18

Operating shock 15 Operating vibration 16

Physical characteristics 9 point-to-point 4, 21 Power consumption 10 Power specifications 10 Power-management modes 14 Power-on to Ready 9 precautions 21 printed circuit board 21

quick reference 5

Radiated RF immunity 17 Radio and television interference 19 radio frequency (RF) 17 Read Buffer 27 Read DMA 27 Read DMA Extended 27 Read DMA without Retries 27 read errors 18 Read Log Ext 27 Read Multiple 27 Read Multiple Extended 27 Read Native Max Address 27 Read Native Max Address Extended 27 Read Sectors 27 Read Sectors Extended 27 Read Sectors Without Retries 27 Read Verify Sectors 27 Read Verify Sectors Extended 27 Read Verify Sectors Without Retries 27 Read/write heads 8 Recalibrate 27 recording density 8 recording method 8 Recording technology 8 relative humidity 15 Reliability 18 RF 17 RMS read/write current 13 RoHS 20 RRL 19

S.M.A.R.T. Disable Operations 28 S.M.A.R.T. Enable Operations 28 S.M.A.R.T. Enable/Disable Autosave 28 S.M.A.R.T. Execute Offline 28 S.M.A.R.T. implementation 27 S.M.A.R.T. Read Attribute Thresholds 28 S.M.A.R.T. Read Data 28 S.M.A.R.T. Read Log Sector 28 S.M.A.R.T. Return Status 28 S.M.A.R.T. Save Attribute Values 28 S.M.A.R.T. Write Log sector 28 Safety certification 18 SATA 25 screws 15 sectors 8 Sectors per track 8 Security Disable Password 27 Security Erase Prepare 27

36 Constellation Serial ATA Product Manual, Rev. D

Page 43

Security Erase Unit 28 Security Freeze 28 Security Set Password 28 Security Unlock 28 Seek 28 Seek time 9 Serial ATA (SATA) interface 25 serial ATA ports 4 Set Features 28 Set Max Address 28 Set Max Address Extended 28 Set Multiple Mode 28 Shock 15 single-track seeks 9 Sleep 28 sound 17 Specification summary table 5 spindle speed 8 Spinup power 10 Standby 28 Standby Immediate 28 Standby mode 10 Standby to Ready 9 Start/stop times 9 start-stop cycles 18 static-discharge 21 support services 1 Surge immunity 17

Write DMA FUA Extended 28 Write DMA Without Retries 28 Write Log Extended 28 Write Multiple 28 Write Multiple Extended 28 Write Multiple FUA Extended 28 Write Sectors 28 Write Sectors Extended 28 Write Sectors Without Retries 28

technical support services 1 temperature 9, 15 temperature gradient 15 track density 8 Track-to-track 9 Track-to-track seek time 9 TUV North America 18

UL 1950 18

Vibration 16 voltage 10 Voltage dips, interrupts 17 Voltage tolerance 13

weight 9 wet bulb temperature 15 Write Buffer 28 Write DMA 28 Write DMA Extended 28

Constellation Serial ATA Product Manual, Rev. D 37

Page 44

38 Constellation Serial ATA Product Manual, Rev. D

Page 45

Page 46

Seagate Technology LLC

920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100538694, Rev. D
