Product Manual
Pulsar®.2 SAS
Standard Models
ST800FM0002
ST800FM0032
ST400FM0002
ST400FM0042
ST200FM0002
ST200FM0042
ST100FM0002
ST100FM0052
Self-Encrypting Drive Models
ST800FM0012
ST800FM0042
SED FIPS140-2 Models
ST800FM0022
100666271
Rev. C
March 2013
Document Revision History
Revision Date Description of changes
Rev. A 08/11/2011 Initial release.
Rev. B 04/16/2012 fc, 1-2, 6-7, 11, 13-14, 17, 23, 39, 41-43, 54, 56-57 & 63.
Rev. C 03/08/2013 fc & 1-2.
© 2013 Seagate Technology LLC. All rights reserved.
Publication number: 100666271, Rev. C March 2013
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or
other countries. Pulsar and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated
companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product
endorsement by NIST, the U.S., or Canadian governments.All other trademarks or registered trademarks are the property of their
respective owners.
No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1 (877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your
computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed
capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on
various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating
environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S.
Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import
and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.
CONTENTS
1.0 SCOPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.0 APPLICABLE STANDARDS AND REFERENCE DOCUMENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 STANDARDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.3 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . . 4
2.1.4 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . . 5
2.2 REFERENCE DOCUMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.0 GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 STANDARD FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 MEDIA DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.4 RELIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 FORMATTED CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.6 PROGRAMMABLE DRIVE CAPACITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.7 FACTORY-INSTALLED OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.8 THIN PROVISIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.8.1 Logical Block Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.8.2 Thin Provisioning capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.8.3 UNMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.8.4 FORMAT UNIT command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.8.5 Protection Information (PI) and Security (SED) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.0 PERFORMANCE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 INTERNAL DRIVE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 PERFORMANCE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2.1 Access time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2.2 FORMAT UNIT command execution time for 512-byte LBA’s (minutes) . . . . . . 10
4.2.3 Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 START/STOP TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 CACHE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4.1 Caching write data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.0 RELIABILITY SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1 ERROR RATES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.1 Unrecoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.2 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 ENDURANCE MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.1 Wear Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.2 Garbage Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.3 Write Amplification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.4 UNMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.5 Data Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.6 Lifetime Endurance Management (Available on select models) . . . . . . . . . . . . 14
5.2.7 SSD Percentage Used Endurance Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 RELIABILITY AND SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) . . . . 15
5.3.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3.5 Thermal monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.6 Drive Self Test (DST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PULSAR.2 SAS PRODUCT MANUAL, REV. C I
CONTENTS
5.3.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.0 PHYSICAL/ELECTRICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1 POWER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2 AC POWER REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.3 DC POWER REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.4 POWER DISSIPATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.5 ENVIRONMENTAL LIMITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.5.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.5.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.5.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.5.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.5.5 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.5.6 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.5.7 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.6 MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.0 ABOUT FIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.0 ABOUT SELF-ENCRYPTING DRIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.1 DATA ENCRYPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 CONTROLLED ACCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2.2 Locking SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.3 RANDOM NUMBER GENERATOR (RNG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.4 DRIVE LOCKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.5 DATA BANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.6 CRYPTOGRAPHIC ERASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.7 AUTHENTICATED FIRMWARE DOWNLOAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.8 POWER REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.9 SUPPORTED COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.10 SANITIZE - CRYPTOGRAPHIC ERASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.11 REVERTSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.12 SANITIZE FEATURE SET ON SED DRIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.0 DEFECT AND ERROR MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.1 DRIVE INTERNAL DEFECTS/ERRORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.2 DRIVE ERROR RECOVERY PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.3 SAS SYSTEM ERRORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.4 BACKGROUND MEDIA SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.5 AUTO-REALLOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.6 PROTECTION INFORMATION (PI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.6.1 Levels of PI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.6.2 Setting and determining the current Type Level. . . . . . . . . . . . . . . . . . . . . . . . . 39
9.6.3 Identifying a Protection Information drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10.1 DRIVE ORIENTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10.2 COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
PULSAR.2 SAS PRODUCT MANUAL, REV. C II
CONTENTS
10.3 DRIVE MOUNTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.4 GROUNDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
11.0 INTERFACE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.1 SAS FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.1.1 Task management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.1.2 Task management responses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.2 DUAL PORT SUPPORT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.3 SCSI COMMANDS SUPPORTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
11.3.1 INQUIRY data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
11.3.2 MODE SENSE data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11.4 MISCELLANEOUS OPERATING FEATURES AND CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11.4.1 SAS physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11.4.2 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.4.3 Connector requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.4.4 Electrical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.4.5 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.4.6 SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
11.4.7 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
11.5 SIGNAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
11.5.1 Ready LED Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

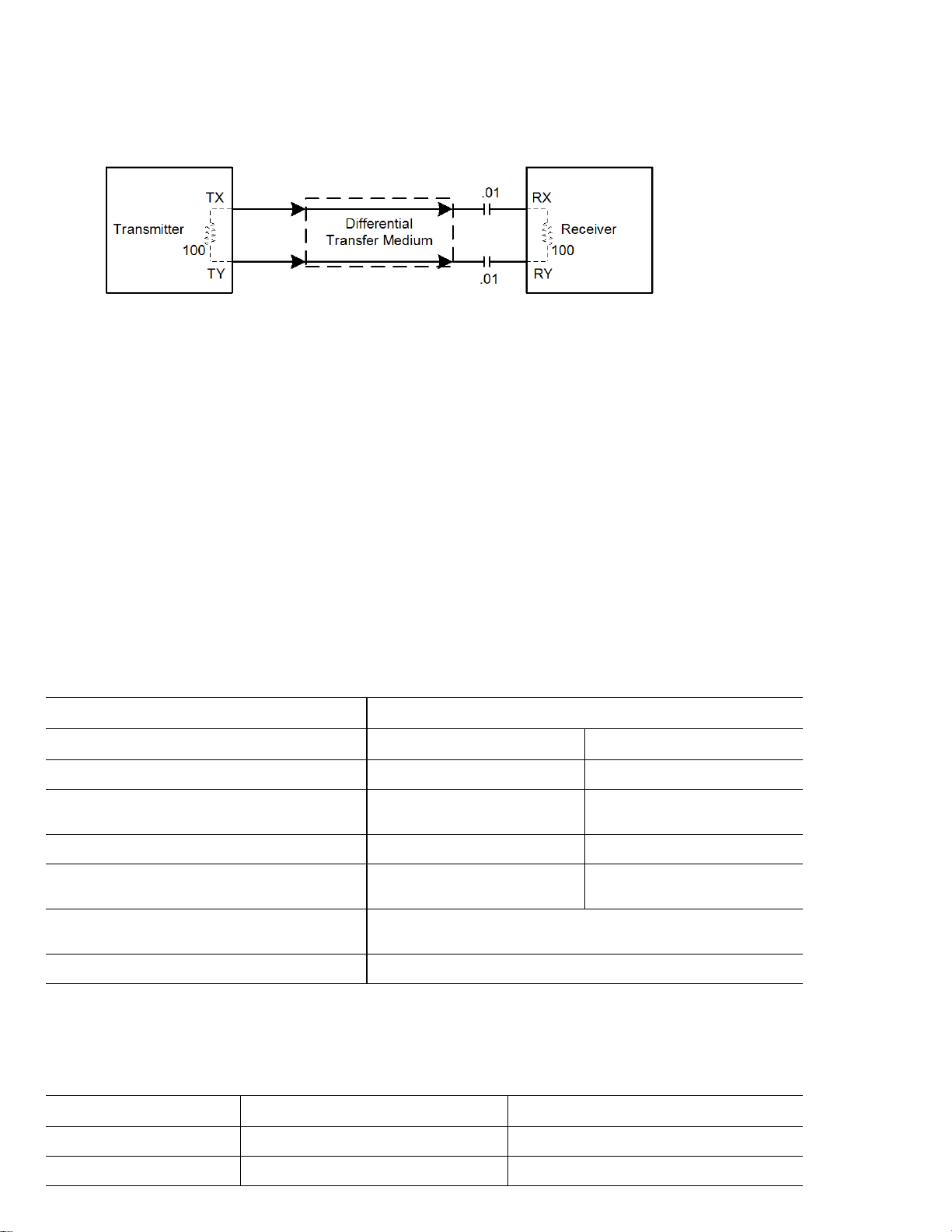

11.5.2 Differential signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
11.6 SAS-2 SPECIFICATION COMPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
11.7 ADDITIONAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
PULSAR.2 SAS PRODUCT MANUAL, REV. C III
FIGURES

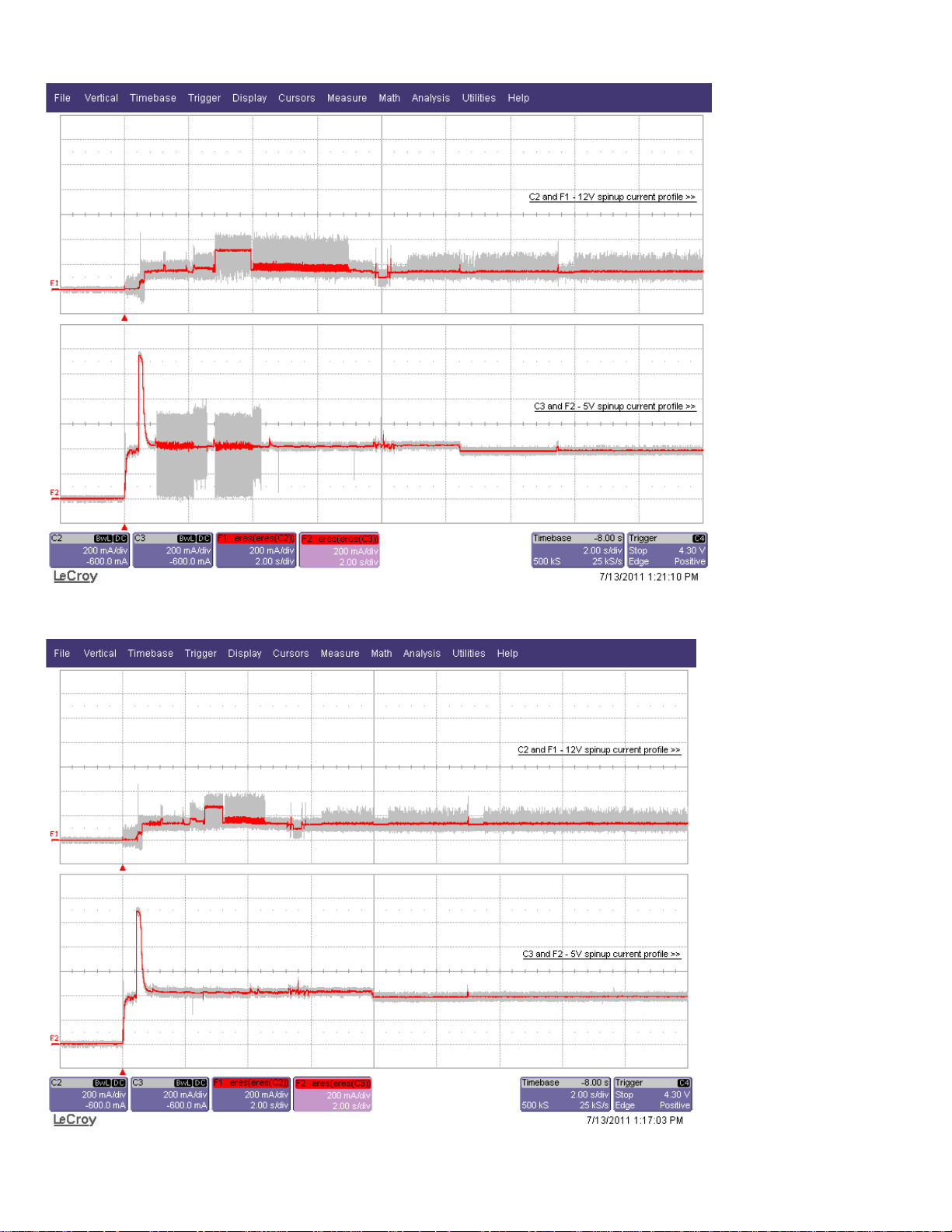

Figure 1. Current profiles for 800GB models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 2. Current profiles for 400GB models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 3. Current profiles for 200GB models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 4. Current profiles for 100GB models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 5. 800GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 27
Figure 6. 400GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 27
Figure 7. 200GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 28
Figure 8. 100GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 28
Figure 9. Temperature check point location - 15mm drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 10. Temperature check point location - 7mm drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

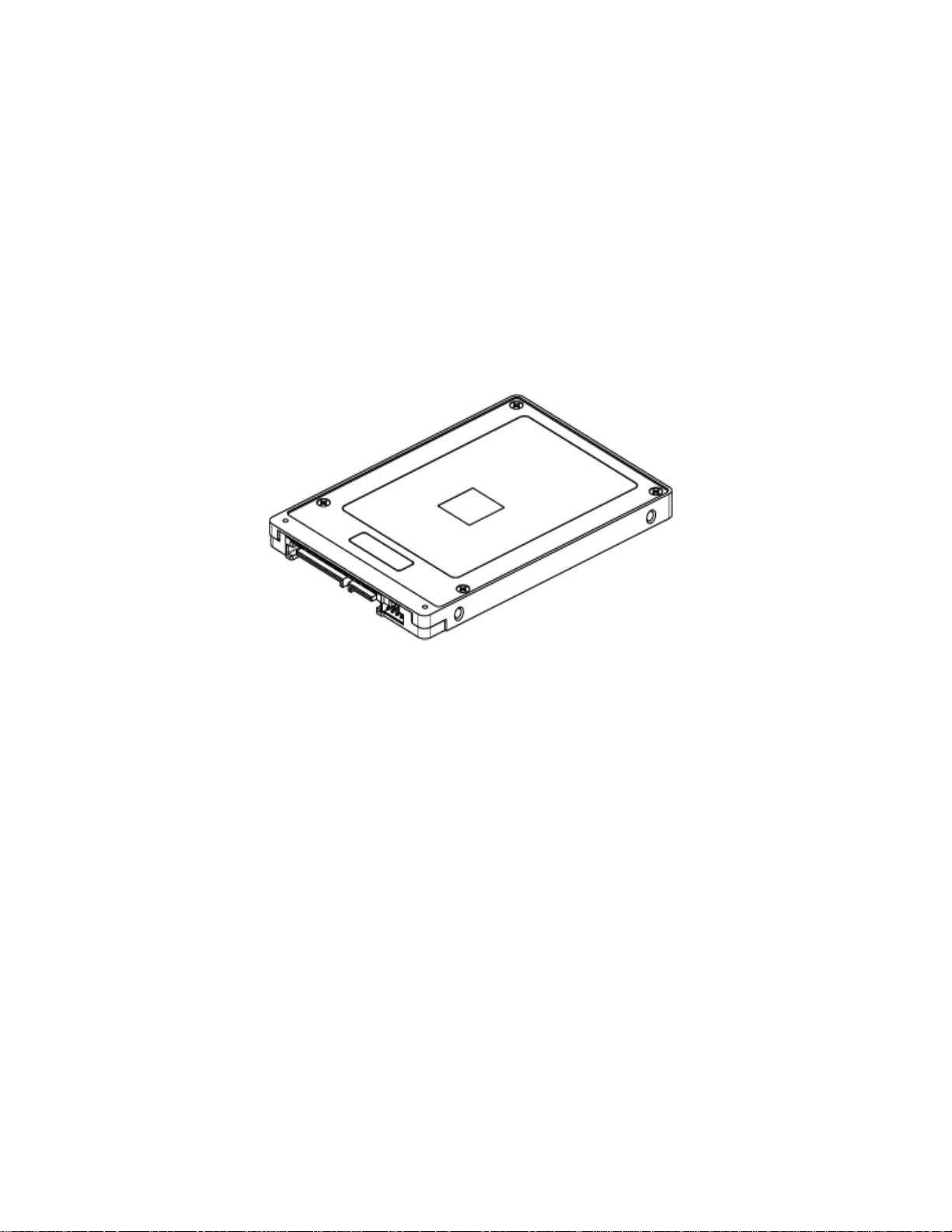

Figure 11. Recommended mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 12. Mounting configuration dimensions (800GB models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 13. Mounting configuration dimensions (400, 200 & 100GB models) . . . . . . . . . . . . . . . . . . . . . . 33
Figure 14. Example of FIPS tamper evidence labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

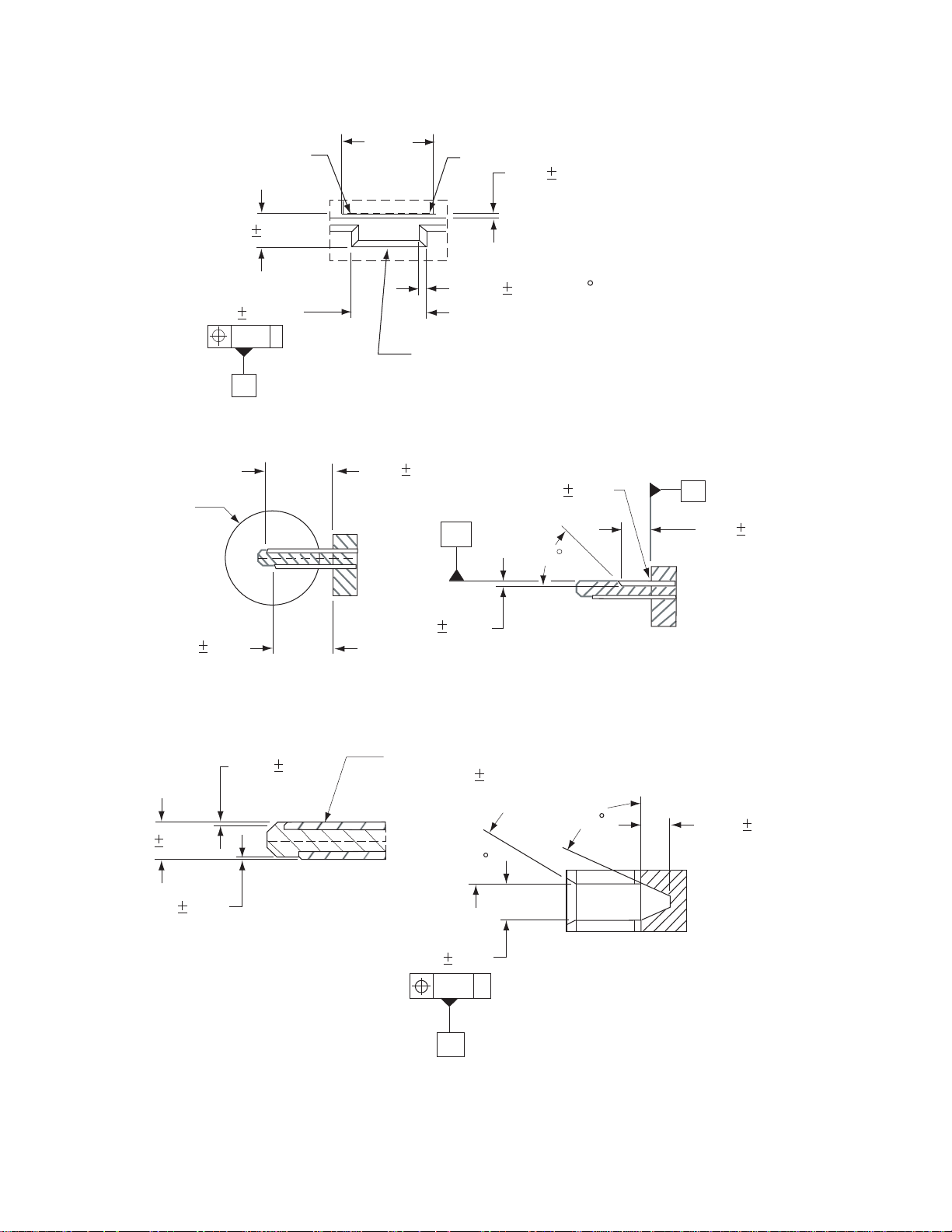

Figure 15. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

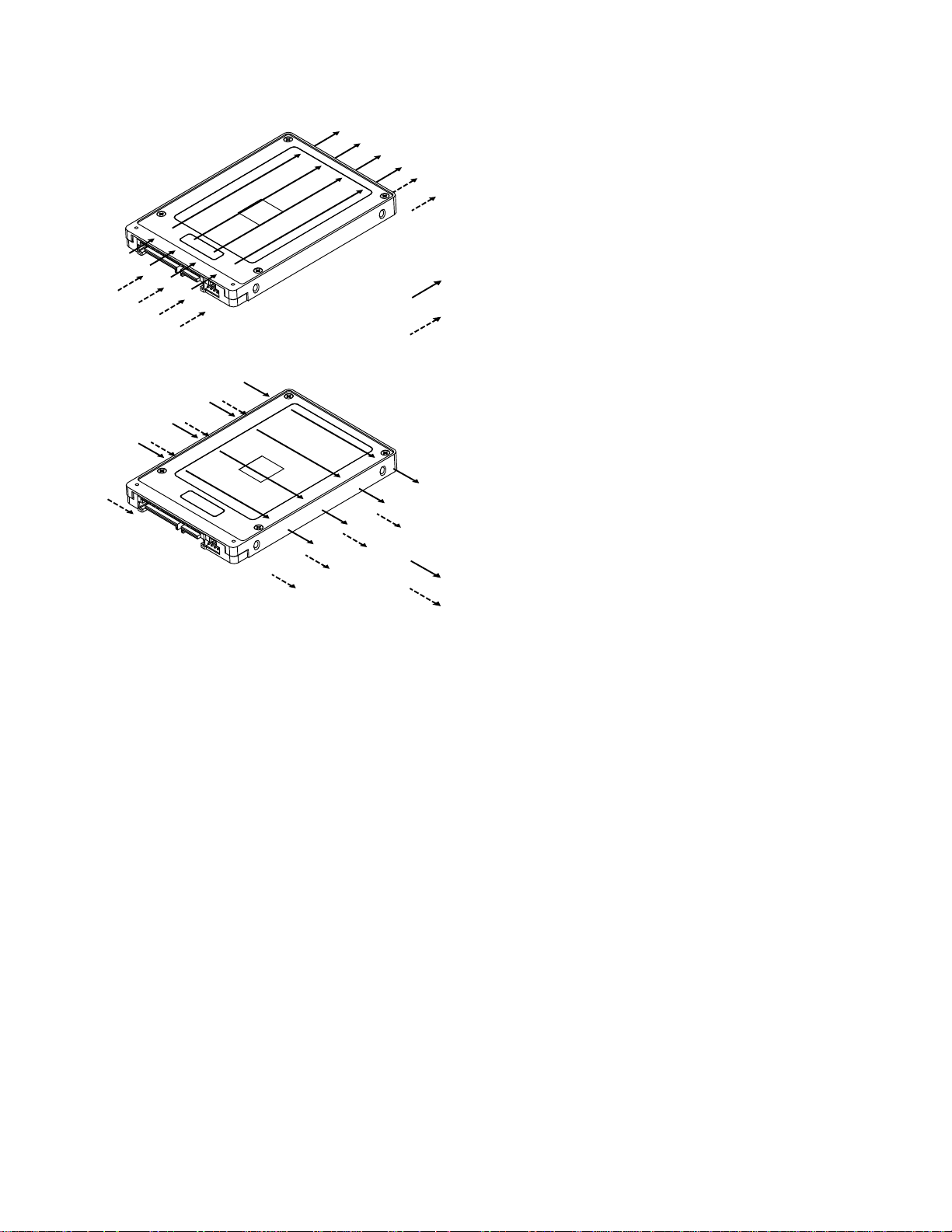

Figure 16. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 17. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Figure 18. SAS device plug dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Figure 19. SAS device plug dimensions (detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Figure 20. SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PULSAR.2 SAS PRODUCT MANUAL, REV. C IV
Seagate Technology Support Services
For information regarding online support and services, visit
Available services include:
• Presales & Technical support
• Global Support Services telephone numbers & business hours
• Authorized Service Centers
Warranty terms will vary based on type of warranty chosen: “Managed Life” or “Usage Based”. Consult your Seagate sales
representative for warranty terms and conditions.
For information regarding data recovery services, visit
For Seagate OEM and Distribution partner portal, visit
For Seagate reseller portal, visit
http://www.seagate.com/support/downloads/seatools/
http://www.seagate.com/about/contact-us/technical-support/
http://www.seagate.com/services-software/data-recovery-services/
http://www.seagate.com/partners
Pulsar.2 SAS Product Manual, Rev. C 1
1.0 SCOPE
This manual describes Seagate Technology® LLC, Pulsar
Pulsar.2 drives support the SAS Protocol specifications to the extent described in this manual. The SAS Interface Manual (part number
100293071) describes the general SAS characteristics of this and other Seagate SAS drives. The Self-Encrypting Drive Reference
Manual, part number 100515636, describes the interface, general operation, and security features available on Self-Encrypting Drive
models.
Product data communicated in this manual is specific only to the model numbers listed in this manual. The data listed in this manual may
not be predictive of future generation specifications or requirements. If you are designing a system which will use one of the models listed
or future generation products and need further assistance, please contact your Field Applications Engineer (FAE) or our global support
services group as shown in See “Seagate Technology Support Services” on page 1.
Unless otherwise stated, the information in this manual applies to standard and Self-Encrypting Drive models.
Standard models Standard SED models FIPS 140-2 LEVEL 2
ST800FM0002 ST800FM0012 ST800FM0022
ST800FM0032 ST800FM0042
ST400FM0002
ST400FM0042
ST200FM0002
ST200FM0042
ST100FM0002
ST100FM0052
®
.2 SAS (Serial Attached SCSI) drives.
Note. Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption (FDE) models before a differ-
entiation between drive-based encryption and other forms of encryption was necessary.
Note. The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for “Security of Data at Rest”
based on the standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).
For more information on FIPS 140-2 Level 2 certification Section 7.0 on page 34.
For product certification status visit -
http://csrc.nist.gov/groups/STM/cmvp/documents/140-1/1401vend.htm.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 2
2.0 APPLICABLE STANDARDS AND REFERENCE DOCUMENTATION
The drives documented in this manual have been developed as system peripherals to the highest standards of design and construction.
The drives depend on host equipment to provide adequate power and environment for optimum performance and compliance with
applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shielding,
audible noise control, and temperature regulation. In particular, the drives must be securely mounted to guarantee the specified
performance characteristics. Mounting by bottom holes must meet the requirements of Section 10.3.
2.1 STANDARDS
The Pulsar.2 family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate SAS Interface
Manual, part number 100293071.
The drives are recognized in accordance with UL 60950 and CSA 60950 as tested by UL(CSA) and EN60950 as tested by TUV.
The security features of Self-Encrypting Drive models are based on the “TCG Storage Architecture Core Specification” and the “TCG
Storage Workgroup Security Subsystem Class: Enterprise_A” specification with additional vendor-unique features as noted in this product
manual.
2.1.1 Electromagnetic compatibility
The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. The drive is supplied as a
subassembly and is not subject to Subpart B of Part 15 of the FCC Rules and Regulations nor the Radio Interference Regulations of the
Canadian Department of Communications.
The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable shielding. The
drive is capable of meeting the Class B limits of the FCC Rules and Regulations of the Canadian Department of Communications when
properly packaged; however, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system.
Shielded I/O cables may be required if the enclosure does not provide adequate shielding. If the I/O cables are external to the enclosure,
shielded cables should be used, with the shields grounded to the enclosure and to the host controller.
2.1.1.1 Electromagnetic susceptibility
As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the responsibility of those
integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the
same system as the drive or external to the system does not adversely affect the performance of the drive. See Tables 10 through 12, DC
power requirements.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 3
2.1.2 Electromagnetic compliance
Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. The
drive was tested in a representative system for typical applications. The selected system represents the most popular characteristics for
test platforms. The system configurations include:
• Typical current use microprocessor
• Keyboard
• Monitor/display
• Printer
• Mouse
Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee that all systems will comply.
The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.
Electromagnetic compliance for the European Union
If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 2004/
108/EC as put into place on 20 July 2007.
Australian C-Tick
If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZ CISPR22 and meets the Electromagnetic
Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).
Korean KCC
If these drives have the Korean Communications Commission (KCC) logo, they comply with KN22 and KN61000.
Taiwanese BSMI
If this model has the Taiwanese certification mark then it complies with Chinese National Standard, CNS13438.
2.1.3 European Union Restriction of Hazardous Substances (RoHS)
The European Union Restriction of Hazardous Substances (RoHS) Directive restricts the presence of chemical substances, including Lead
(Pb), in electronic products effective July 2006.
A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers
regarding the presence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our chemical
substance restrictions, and our suppliers document their compliance with our requirements by providing material content declarations for
all parts and materials for the drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any
RoHS-regulated substance in such parts or materials.
Seagate also has internal systems in place to ensure ongoing compliance with the RoHS Directive and all laws and regulations which
restrict chemical content in electronic products. These systems include standard operating procedures that ensure that restricted
substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to
ensure that all standard operating procedures are complied with.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 4
2.1.4 China Restriction of Hazardous Substances (RoHS) Directive
This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information
mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.
"O" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is lower than the threshold defined
by the China RoHS MCV Standard.
"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over the threshold defined by the
China RoHS MCV Standard.
2.2 REFERENCE DOCUMENTS
SCSI Commands Reference Manual Seagate part number: 100293068
SAS Interface Manual Seagate part number: 100293071
ANSI SAS Documents
SFF-82232.5” Drive Form Factor with Serial Connector
SFF-8460HSS Backplane Design Guidelines
SFF-8470Multi Lane Copper Connector
SFF-8482SAS Plug Connector
ANSI INCITS.xxx Serial Attached SCSI (SAS-2) Standard (T10/1760-D)
ISO/IEC 14776-xxxSCSI Architecture Model-3 (SAM-4) Standard (T10/1683-D)
ISO/IEC 14776-xxxSCSI Primary Commands-3 (SPC-4) Standard (T10/1731-D)
ISO/IEC 14776-xxxSCSI Block Commands-3 (SBC-3) Standard (T10/1799-D)
ANSI Small Computer System Interface (SCSI) Documents
X3.270-1996(SCSI-3) Architecture Model
Trusted Computing Group (TCG) Documents (apply to Self-Encrypting Drive models only)
TCG Storage Architecture Core Specification, Rev. 1.0
TCG Storage Security Subsystem Class Enterprise Specification, Rev. 1.0
Self-Encrypting Drives Reference Manual Seagate part number: 100515636
JEDEC Standards
JESD218 - Solid-State Drive (SSD) Requirements and Endurance Test Method
JESD219 - Solid-State Drive (SSD) Endurance Workloads
In case of conflict between this document and any referenced document, this document takes precedence.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 5
3.0 GENERAL DESCRIPTION
Pulsar.2 drives provide high performance, high capacity data storage for a variety of systems with a Serial Attached SCSI (SAS) interface.
The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and
high-density storage requirements.
Pulsar.2 drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI
specifications, this document, and the SAS Interface Manual (part number 100293071) which describes the general interface
characteristics of this drive. Pulsar.2 drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the
ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the
choice of populating their systems with either SAS or SATA drives. This allows users to continue to leverage existing investment in SCSI
while gaining a 6Gb/s serial data transfer rate.
The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for “Security of Data at Rest” based on the
standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).
Note. Never disassemble and do not attempt to service items in the enclosure. The drive does not contain user-replaceable parts.
Opening for any reason voids the drive warranty.
3.1 STANDARD FEATURES
Pulsar.2 SAS drives have the following standard features:
• 1.5 / 3.0 / 6.0 Gb Serial Attached SCSI (SAS) interface
• Integrated dual port SAS controller supporting the SCSI protocol
• Support for SAS expanders and fanout adapters
• Firmware downloadable using the SAS interface
• 128 - deep task set (queue)
• Supports up to 32 initiators
• Jumperless configuration
• User-selectable logical block size (512, 520, 524, 528, 4096, 4160, 4192, or 4224 bytes per logical block)
• Industry standard SFF 2.5-inch dimensions
• ECC maximum burst correction length of 96 bits
• No preventive maintenance or adjustments required
• Self diagnostics performed when power is applied to the drive
• Vertical, horizontal, or top down mounting
• Drive Self Test (DST)
• Background Media Scan (BMS)
• Parallel flash access channels
• Power loss data protection
• Thin Provisioning with Block Unmap Support
• Silent operation
• Lifetime Endurance Management (available on certain models)
Pulsar.2 SAS Self-Encrypting Drive models have the following additional features:
• Automatic data encryption/decryption
• Controlled access
• Random number generator
• Drive locking
• 16 independent data bands
• Cryptographic erase of user data for a drive that will be repurposed or scrapped
• Authenticated firmware download
PULSAR.2 SAS PRODUCT MANUAL, REV. C 6
3.2 MEDIA DESCRIPTION
The media used on the drive consists of Multi Layer Cell (MLC) NAND Flash for improved reliability and performance.
3.3 PERFORMANCE
• Programmable multi-segmentable cache buffer
• 600MB/s maximum instantaneous data transfers.
• Background processing of queue
• Non-Volatile Write Cache
Note. There is no significant performance difference between Self-Encrypting Drive and standard (non-Self-Encrypting Drive) mod-
els.
3.4 RELIABILITY
• Annualized Failure Rate (AFR) of 0.44%
• Mean time between failures (MTBF) of 2,000,000 hours
• Incorporates industry-standard Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)
• "Managed Life" or "Usage Based" warranty options [1]
[1] Warranty terms will vary based on type of warranty chosen: “Managed Life” or “Usage Based” Consult your Seagate sales representative for war-
ranty terms and conditions.
3.5 FORMATTED CAPACITIES
Standard OEM models are formatted to 512 bytes per block. The block size is selectable at format time and must be a multiple of 4 bytes.
Users having the necessary equipment may modify the data block size before issuing a FORMAT UNIT command and obtain different
formatted capacities than those listed.
To provide a stable target capacity environment and at the same time provide users with flexibility if they choose, Seagate recommends
product planning in one of two modes:
Seagate designs specify capacity points at certain block sizes that Seagate guarantees current and future products will meet. We
recommend customers use this capacity in project planning, as it ensures a stable operating point with backward and forward compatibility
from generation to generation. The current guaranteed operating points for this product are shown below. The Capacity stated is identical
when the drive is formatted with or without PI enabled.
Table 1: Formatted Capacity LBA Count
CAPACITY (LBAS)
LBA
SIZE
512
520
524
528
4096
4160
4192
4224
DECIMAL HEX DECIMAL HEX DECIMAL HEX DECIMAL HEX
1,562,824,368 5D26CEB0h 781,422,768 2E9390B0h 390,721,968 1749F1B0h 195,371,568 BA52230h
1,529,743,600 5B2E08F0h 764,871,800 2D970478h 382,435,904 16CB8240h 191,217,952 B65C120h
1,509,354,136 59F6EA98h 754,677,072 2CFB7550h 377,338,536 167DBAA8h 188,669,272 B3EDD58h
1,487,666,080 58ABFBA0h 743,833,040 2C55FDD0h 371,916,520 162AFEE8h 185,958,264 B157F78h
195,353,046 BA4D9D6h 97,677,846 5D27216h 48,840,246 2E93E36h 24,421,446 174A446h
192,307,693 B7661EDh 96,153,847 5BB30F7h 48,076,924 2DD987Ch 24,038,462 16ECC3Eh
190,839,695 B5FFB8Fh 95,419,848 5AFFDC8h 47,709,924 2D7FEE4h 23,854,962 16BFF72h
189,393,940 B49EC14h 94,696,970 5A4F60Ah 47,348,485 2D27B05h 23,674,243 1693D83h
800GB 400GB 200GB 100GB
PULSAR.2 SAS PRODUCT MANUAL, REV. C 7
3.6 PROGRAMMABLE DRIVE CAPACITY
Using the MODE SELECT command, the drive can change its capacity to something less than maximum. See the MODE SELECT (6)
parameter list table in the SAS Interface Manual, part number 100293071. A value of zero in the Number of Blocks field indicates that the
drive will not change the capacity it is currently formatted to have. A number other than zero and less than the maximum number of LBAs
in the Number of Blocks field changes the total drive capacity to the value in the Number of Blocks field. A value greater than the maximum
number of LBAs is rounded down to the maximum capacity.
3.7 FACTORY-INSTALLED OPTIONS
OEMs may order the following items which are incorporated at the manufacturing facility during production or packaged before shipping.
Some of the options available are (not an exhaustive list of possible options):
• Other capacities can be ordered depending on sparing scheme and LBA size requested.
• Single-unit shipping pack. The drive is normally shipped in bulk packaging to provide maximum protection against transit damage. Units
shipped individually require additional protection as provided by the single unit shipping pack. Users planning single unit distribution
should specify this option.
• The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each standard OEM drive shipped,
but extra copies may be ordered.
3.8 THIN PROVISIONING
3.8.1 Logical Block Provisioning
The drive is designed with a feature called Thin Provisioning. Thin Provisioning is a technique which does not require Logical Blocks to be
associated to Physical Blocks on the storage medium until such a time as needed. The use of Thin Provisioning is a major factor in SSD
products because it reduces the amount of wear leveling and garbage collection that must be performed. The result is an increase in the
products endurance. For more details on Logical Block Provisioning and Thin Provisioning, Reference the SBC-3 document provided by
the T-10 committee.
3.8.2 Thin Provisioning capabilities
The level of Thin Provisioning support may vary by product model. Devices that support Thin Provisioning are allowed to return a default
data pattern for read requests made to Logical Blocks that have not been mapped to Physical Blocks by a previous WRITE command.
In order to determine if Thin Provisioning is supported and what features of it are implemented requires the system to send a READ
CAPACITY 16 (9Eh) command to the drive. Thin Provisioning and the READ CAPACITY 16 (9Eh) command is defined in the Seagate
SCSI Command Reference 100293068..
Table 2 Thin Provisioning Product Configuration
Product Configuration LBPME LBPRZ
Non-SED Supported Supported
SED Supported Not Supported
A logical block provisioning management enabled (LBPME) bit set to one indicates that the logical unit implements logical block
provisioning management. An LBPME bit set to zero indicates that the logical unit is fully provisioned and does not implement logical block
provisioning management.
A logical block provisioning read zeros (LBPRZ) bit set to one indicates that, for an unmapped LBA specified by a read operation, the
device server sends user data with all bits set to zero to the data-in buffer. An LBPRZ bit set to zero indicates that, for an unmapped LBA
specified by a read operation, the device server may send user data with all bits set to any value to the data-in buffer.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 8
3.8.3 UNMAP
The UNMAP command requests that the device server break the association of a specific Logical Block address from a Physical Block,
thereby freeing up the Physical Block from use and no longer requiring it to contain user data. An unmapped block will respond to a READ
command with data that is determined by the setting of the LBPRZ bit in the READ CAPACITY parameter data.
3.8.4 FORMAT UNIT command
A device which supports Thin Provisioning will be capable of performing a SCSI FORMAT UNIT command which allocates Logical Blocks
Addresses that are not linked to Physical Block Locations. A FORMAT command will cause all LBAs to become unmapped.
3.8.5 Protection Information (PI) and Security (SED)
The requirements in this section apply to any device which supports LBA unmapping.
In SCSI devices, umapped LBAs are defined as part of the Thin Provisioning model. Support of the Thin Provisioning model is indicated by
the LBPME bit having a value of '1' in the READ CAPACITY (16) parameter data.
When a region of LBA's are erased via cryptographic erase, as part of the erase, the drive shall unmap those LBAs.
If the host attempts to access an unmapped or trimmed LBA, the drive shall return scrambled data. For a given LBA, the data shall be
identical from access to access, until that LBA is either updated with actual data from the host or that LBA is cryptographically erased. The
drive shall report a value of '0' in the LBPRZ field returned in the READ CAPACITY (16) parameter data.
If the host attempts to access an unmapped LBA on a drive that has been formatted with Protection Information (PI), the drive shall return
scrambled PI data for that LBA. Depending on the value of the RDPROTECT field in the data-access command CDB, this may result in the
drive returning a standard PI error to the host.
If the host reduces the addressable capacity of the drive via a MODE SELECT command, the drive shall unmap or trim any LBA within the
inaccessible region of the device.
Additionally, an UNMAP command is not permitted on a locked band.
Table 3 PI and SED Drive Configuration
DRIVE CONFIGURATION
Standard SED
PI Setting Disabled Enabled Disabled Enabled
PROT_EN bit 010 1
LBPME bit 111 1
LBPRZ bit 110 0
PI Check Requested N/A Yes No N/A Yes No
DATA Returned for
Thin Provisioned LBA
PI Returned for
Thin Provisioned LBA
PI Check Performed N/A No No N/A Yes No
0x00 0x00 0x00 Random None Random
None 0xFF 0xFF None None
Scrambled
PI data
Error reported to Host No No No No Yes No
PULSAR.2 SAS PRODUCT MANUAL, REV. C 9
4.0 PERFORMANCE CHARACTERISTICS
This section provides detailed information concerning performance-related characteristics and features of Pulsar.2 drives.
Note. Data provided is based on format at 512-bytes.
4.1 INTERNAL DRIVE CHARACTERISTICS
Drive capacity 800400 200100 GB
Flash Memory Type NAND MLC
Emulated LBA Size 512, 520, 524, 528, 4096, 4160, 4192, or 4224
Native Programmable
Page Size 8192 User Bytes
Default Transfer
Alignment Offset 0
4.2 PERFORMANCE CHARACTERISTICS
See Section 11.4.1, "SAS physical interface" and the SAS Interface Manual (part number 100293071) for additional timing details.
4.2.1 Access time
Access measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The
specifications in the table below are defined as follows:
Page-to-page access time is an average of all possible page-to-page accesses in both directions for a sequentially preconditioned
•
drive.
• Average access time is a true statistical random average of at least 5000 measurements of accesses between programmable
pages on a randomly preconditioned drive.
Table 4 Typical Access Time (μsec)
(formatted, rounded off value)
800GB
1,2
400, 200, 100 GB
1,2
READ WRITE READ WRITE
Average
Page to Page 62 136 60 120
Typical
3
Average Latency 273 206
1. Execution time measured from receipt of the Command to the Response.
2. Assumes no errors.
3. Typical access times are measured under nominal conditions of temperature, voltage, and horizontal orientation as measured on a
representative sample of drives.
293 137 227 120
Note. These drives are designed to provide the highest possible performance under typical conditions.
However, due to the nature of Flash memory technologies there are many factors that can result in
2.
4.2.2 FORMAT UNIT command execution time for 512-byte LBA’s (minutes)
The device may be formatted as either a Thin Provisioned device or a Fully Provisioned device. The default format is Thin Provisioned and
is
maximize endurance.
Table 5
CONFIGURATION
Non-SED (Default) Thin Provisioned DCRT = 0 IP = 0 5 5 5 5
Non-SED (Default) Thin Provisioned DCRT = 1 IP = 0 5 5 5 5
values different than those stated in this specification
recommended for most applications. Thin Provisioning provides the most flexibility for the device to manage the flash medium to
Maximum FORMAT UNIT Times (minutes)
Format Mode DCRT Bit IP Bit 800GB 400GB 200GB 100GB
Non-SED Fully Provisioned DCRT = 0 IP = 1 430 130 70 60
Non-SED Fully Provisioned DCRT = 1 IP = 1 280 100 50 30
SED (Default) Thin Provisioned DCRT = 0 IP = 0 5 N/A N/A N/A
SED (Default) Thin Provisioned DCRT = 1 IP = 0 5 N/A N/A N/A
SED Fully Provisioned DCRT = 0 IP = 1 430 N/A N/A N/A
SED Fully Provisioned DCRT = 1 IP = 1 280 N/A N/A N/A
PULSAR.2 SAS PRODUCT MANUAL, REV. C 10
4.2.3 Performance
Table 6 Performance (Managed Life Warranty)
NOTE
S
ST800FM00
02
ST800FM00
12
ST800FM00
22
ST400FM0002ST200FM0002ST100FM00
02
Maximum Burst Transfer Rate
Peak sequential 128KB read/write
data transfer rate (MB/s max)
Sustained sequential 128KB read/
write data transfer rate (MB/s)
Peak 4KB random read/write
command rate (IOPs)
Sustained 4KB random read/write
command rate (IOPs)
Sustainable 4KB Random combined
IOPS for 5 year Endurance
(65%/35% R/W, 70% Duty Cycle)
Table 7 Performance (Usage Based Warranty)
[1] 370/200 370/190
[1] 370/200 370/140 370/70 370/35
[2] 48,000/15,000 48,000/12,000
[2] 48,000/15,000 48,000/11,000 48,000/5500 48,000/2800
[3] 23,000 22,000
NOTE
S
Maximum Burst Transfer Rate
Peak sequential 128KB read/write
data transfer rate (MB/s max)
Sustained sequential 128KB read/
write data transfer rate (MB/s)
[1] 370/200 370/190
[1] 370/200 370/190
ST800FM00
32
ST800FM00
42
600MB/s
ST400FM0042ST200FM0042ST100FM00
52
600MB/s
Peak 4KB random read/write
command rate (IOPs)
Sustained 4KB random read/write
command rate (IOPs)
Sustainable 4KB Random combined
IOPS for 5 year Endurance
(65%/35% R/W, 70% Duty Cycle)
[1] Testing performed at Queue Depth = 32, Sequentially Preconditioned drive, using IOMeter 2006.7.27.
[2] Testing performed at Queue Depth = 32, Randomly Preconditioned drive, using IOMeter 2006.7.27.
[3] Testing performed at Queue Depth = 32, Non-Preconditioned drive, using IOMeter 2006.7.27.
[2] 48,000/15,000 48,000/12,000
[2] 48,000/15,000 48,000/12,000
[3] 23,000 22,000
Note. IOMeter is available at http://www.iometer.org/ or http://sourceforge.net/projects/iometer/.
IOMeter is licensed under the Intel Open Source License and the GNU General Public License. Intel does not endorse any IOMeter results.
Peak performance is defined as the typical best case performance that the product will be able to achieve when the product is
preconditioned as mentioned and host commands are aligned on 4KB boundaries.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 11
Sustained performance is defined as the worst case performance that the product will be able to achieve when the product is
preconditioned as mentioned and host commands are aligned on 4KB boundaries. For models that support Lifetime Endurance
Management, write values also take into account the worst case performance throttling that may occur to ensure the product meets
specified reliability specifications.
Due to the nature of Flash memory technologies there are many factors that can result in values different than those stated in this
specification. Some discrepancies can be caused by bandwidth limitations in the host adapter, operating system, or driver limitations. It is
not the intent of this manual to cover all possible causes of performance discrepancies.
When evaluating performance of SSD devices, it is recommended to measure performance of the device in a method that resembles the
targeted application using real world data and workloads. Test time should also be adequately large to ensure that sustainable metrics and
measures are obtained.
4.3 START/STOP TIME
The drive accepts the commands listed in the SAS Interface Manual less than 3 seconds after DC power has been applied.
If the drive receives a NOTIFY (ENABLE SPINUP) primitive through either port and has not received a START STOP UNIT command with
the START bit equal to 0, the drive becomes ready for normal operations within 15 seconds (excluding the error recovery procedure).
If the drive receives a START STOP UNIT command with the START bit equal to 0 before receiving a NOTIFY (ENABLE SPINUP)
primitive, the drive waits for a START STOP UNIT command with the START bit equal to 1. After receiving a START STOP UNIT command
with the START bit equal to 1, the drive waits for a NOTIFY (ENABLE SPINUP) primitive. After receiving a NOTIFY (ENABLE SPINUP)
primitive through either port, the drive becomes ready for normal operations within 15 seconds (excluding the error recovery procedure).
If the drive receives a START STOP UNIT command with the START bit and IMMED bit equal to 1 and does not receive a NOTIFY
(ENABLE SPINUP) primitive within 5 seconds, the drive fails the START STOP UNIT command.
The START STOP UNIT command may be used to command the drive to stop. Stop time is 3 seconds (maximum) from removal of DC
power. SCSI stop time is 3 seconds. There is no power control switch on the drive.
4.4 CACHE CONTROL
All default cache mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in Table 20 and 21.
4.4.1 Caching write data
Write caching is a write operation by the drive that makes use of a drive buffer storage area where the data to be written to the medium is
stored while the drive performs the WRITE command.
If the number of write data logical blocks exceed the size of the segment being written into, when the end of the segment is reached, the
data is written into the beginning of the same cache segment, overwriting the data that was written there at the beginning of the operation;
however, the drive does not overwrite data that has not yet been written to the medium.
If write caching is enabled (WCE=1), then the drive may return Good status on a WRITE command after the data has been transferred into
the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status
has already been returned, a deferred error will be generated.
Data that has not been written to the medium is protected by a back up power source which provides the ability of the data to be written to
non-volatile medium in the event of an unexpected power loss.
The SYNCHRONIZE CACHE command may be used to force the drive to write all cached write data to the medium. Upon completion of a
SYNCHRONIZE CACHE command, all data received from previous WRITE commands will have been written to the medium. Tables 19,
20 and 21 show the mode default settings for the drive.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 12
5.0 RELIABILITY SPECIFICATIONS
The following reliability specifications assume correct host and drive operational interface, including all interface timings, power supply
voltages, environmental requirements and drive mounting constraints.
Read Error Rates
Unrecovered Data Less than 1 LBA in 1016 bits transferred
Miscorrected Data Less than 1 LBA in 10
Interface error rate: Less than 1 error in 1012 bits transferred
Mean Time Between Failure (MTBF): 2,000,000 hours
Annualized Failure Rate (AFR): 0.44%
Preventive maintenance: None required
Typical Data Retention with
Power removed (at 40C)
Endurance Rating:
1. Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.
2. As NAND Flash devices age with use, the capability of the media to retain a programmed value begins to deteriorate.
This deterioration is affected by the number of times a particular memory cell is programmed and subsequently erased.
When a device is new, it has a powered off data retention capability of up to several years. With use the retention capability of the device is reduced. Temperature also has an effect on how long a Flash component can retain its programmed value with power removed. At high temperature the retention capabilities of the device are reduced. Data
retention is not an issue with power applied to the SSD. The SSD drive contains firmware and hardware features that
can monitor and refresh memory cells when power is applied.
3. Endurance rating is the expected amount of host data that can be written by product when subjected to a specified workload at a specified operating and storage temperature. For the specific workload to achieve this level of endurance,
please reference JEDEC Specification JESD218. TBW is defined as 1x10^12 Bytes.
1
21
bits transferred
3 months
2
3
Method 1: Full drive writes per day 10
Method 2: TBW (per JEDEC JESD218 800GB = 17,800 TB
400GB = 8800 TB
200GB = 4400 TB
100GB = 2200 TB
5.1 ERROR RATES
The error rates stated in this manual assume the following:
• The drive is operated in accordance with this manual using DC power as defined in paragraph 6.3, "DC power requirements."
• Errors caused by host system failures are excluded from error rate computations.
• Assume random data.
• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write retries and full retry time.
5.1.1 Unrecoverable Errors
An unrecoverable data error is defined as a failure of the drive to recover data from the media. These errors occur due to read or write
problems. Unrecoverable data errors are only detected during read operations, but not caused by the read. If an unrecoverable data error
is detected, a MEDIUM ERROR (03h) in the Sense Key will be reported. Multiple unrecoverable data errors resulting from the same cause
are treated as 1 error.
5.1.2 Interface errors
An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the
receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 13
5.2 ENDURANCE MANAGEMENT
Customer satisfaction with Solid State Drives can be directly related to the internal algorithms which an SSD uses to manage the limited
number of Program-Erase (PE) cycles that NAND Flash can withstand. These algorithms consist of Wearleveling, Garbage Collection,
Write Amplification, Unmap, Data Retention, Lifetime Endurance Management.
5.2.1 Wear Leveling
Wear Leveling is a technique used by the drive to ensure that all Flash cells are written to or exercised as evenly as possible to avoid any
hot spots where some cells are used up faster than other locations. Wear Leveling is automatically managed by the drive and requires no
user interaction. The Seagate algorithm is tuned to operate only when needed to ensure reliable product operation.
5.2.2 Garbage Collection
Garbage Collection is a technique used by the drive to consolidate valid user data into a common cell range freeing up unused or obsolete
locations to be erased and used for future storage needs. Garbage Collection is automatically managed by the drive and requires no user
interaction. The Seagate algorithm is tuned to operate only when needed to ensure reliable product operation.
5.2.3 Write Amplification
While Write Amplification is not an algorithm, it is a major characteristic of SSD's that must be accounted for by all the algorithms that the
SSD implements. The Write Amplification Factor of an SSD is defined as the ratio of Host/User data requested to be written to the actual
amount of data written by the SSD internal to account for the user data and the housekeeping activities such as Wear Leveling and
Garbage Collection. The Write Amplification Factor of an SSD can also be directly affected by the characteristics of the host data being
sent to the SSD to write. The best Write Amplification Factor is achieved for data that is written in sequential LBA's that are aligned on 4KB
boundaries. The worst case Write Amplification Factor typically occurs for randomly written LBA's of transfer sizes that are less than 4KB
and that originate on LBA's that are not on 4KB boundaries.
5.2.4 UNMAP
A new SCSI command has been added to the SSD as part of the Thin Provisioning feature set. Use of the UNMAP command reduces the
Write Amplification Factor of the drive during housekeeping tasks such as Wear Leveling and Garbage Collection. This is accomplished
because the drive does not need to retain data which has been classified by the host as obsolete.
5.2.5 Data Retention
Data Retention is another major characteristic of SSD's that must be accounted for by all the algorithms that the SSD implements. While
powered up, the Data Retention of SSD cells are monitored and rewritten if the cell levels decay to an unexpected level. Data Retention
when the drive is powered off is affected by Program and Erase (PE) cycles and the temperature of the drive when stored.
5.2.6 Lifetime Endurance Management (Available on select models)
As stated in Section 5.2, an SSD has a limited number of Program and Erase (PE) cycles that are capable. In worse case applications, the
write workload could be such that the drive experiences a high Write Amplification Factor that could lead to potential wear out prior to the
drive achieving it's expected field life. Additionally, the Data Retention spec of the SSD needs to be considered to ensure the spec is met
once the drive is worn out. Seagate has implemented a Lifetime Endurance Management technique which helps OEMS and user to avoid
early wear out. By monitoring the write workload being sent to the drive, the drive can add additional response time to WRITE commands
to provide a sustainable level of performance that is capable of being sustained for the life of the drive. Most users may never see this
added response time in their applications.
5.2.7 SSD Percentage Used Endurance Indicator
An application can interrogate the drive through the host to determine an estimate of the percentage of device life that has been used. To
accomplish this, issue a LOG SENSE command to log page 0x11. This allows applications to read the contents of the Percentage Used
Endurance Indicator parameter code. The Percentage Used Endurance Indicator is defined in the T10 document SBC-3 available from the
T10 committee.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 14
5.3 RELIABILITY AND SERVICE
Integrators can enhance the reliability of Pulsar.2 drives by ensuring that the drive receives adequate cooling. Section 6.0 provides
temperature measurements and other information that may be used to enhance the service life of the drive. Section 10.2 provides
recommended air-flow information.
5.3.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF)
The production drive shall achieve an AFR of 0.44% (MTBF of 2,000,000 hours) when operated in an environment that ensures the case
temperatures do not exceed the values specified in Section 6.5. Operation at case temperatures outside the specifications in Section 6.5
may increase the product AFR (decrease the MTBF). The AFR (MTBF) is a population statistic not relevant to individual units.
The AFR (MTBF) specification is based on the following assumptions for Enterprise Storage System environments:
• 8760 power-on hours per year.
• 250 average on/off cycles per year.
• Operations at nominal voltages.
• Systems will provide adequate cooling to ensure the case temperatures specified in Section 6.5 are not exceeded. Temperatures outside
the specifications in Section 6.5 will increase the product AFR and decrease the MTBF.
5.3.2 Preventive maintenance
No routine scheduled preventive maintenance is required.
5.3.3 Hot plugging the drive
When a drive is powered on by switching the power or hot plugged, the drive runs a self test before attempting to communicate on its’
interfaces. When the self test completes successfully, the drive initiates a Link Reset starting with OOB. An attached device should
respond to the link reset. If the link reset attempt fails, or any time the drive looses sync, the drive initiated link reset. The drive will initiate
link reset once per second but alternates between port A and B. Therefore each port will attempt a link reset once per 2 seconds assuming
both ports are out of sync.
If the self-test fails, the drive does not respond to link reset on the failing port.
Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage hazard, or ESD potential hazard
is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to insert
ing it into the system.
5.3.4 S.M.A.R.T.
S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that
indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow administrators to back up the data before
an actual failure occurs.
-
Note. The drive’s firmware monitors specific attributes for degradation over time but can’t predict instantaneous drive failures.
Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the
thresholds are optimized to minimize “false” and “failed” predictions.
Controlling S.M.A.R.T.
The operating mode of S.M.A.R.T. is controlled by the DEXCPT and PERF bits on the Informational Exceptions Control mode page (1Ch).
Use the DEXCPT bit to enable or disable the S.M.A.R.T. feature. Setting the DEXCPT bit disables all S.M.A.R.T. functions. When enabled,
S.M.A.R.T. collects on-line data as the drive performs normal read and write operations. When the PERF bit is set, the drive is considered
to be in “On-line Mode Only” and will not perform off-line functions.
An application can measure off-line attributes and force the drive to save the data by using the REZERO UNIT command. Forcing
S.M.A.R.T. resets the timer so that the next scheduled interrupt is in one hour.
An application can interrogate the drive through the host to determine the time remaining before the next scheduled measurement and
data logging process occurs. To accomplish this, issue a LOG SENSE command to log page 0x3E. This allows applications to control
when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with the REZERO UNIT command resets the timer.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 15
Performance impact
S.M.A.R.T. attribute data is saved to the media so that the events that caused a predictive failure can be recreated. The drive measures
and saves parameters once every hour subject to an idle period on the drive interfaces. The process of measuring off-line attribute data
and saving data to the media is interruptible. The maximum on-line only processing delay is summarized below
Maximum processing delay
Fully-enabled delay
DEXCPT = 0
S.M.A.R.T. delay times 75 ms
Reporting control
Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method. For
example, if the MRIE is set to one, the firmware will issue to the host an 01-5D00 sense code. The FRU field contains the type of predictive
failure that occurred. The error code is preserved through bus resets and power cycles.
Determining rate
S.M.A.R.T. monitors the rate at which errors occur and signals a predictive failure if the rate of degraded errors increases to an
unacceptable level. To determine rate, error events are logged and compared to the number of total operations for a given attribute. The
interval defines the number of operations over which to measure the rate. The counter that keeps track of the current number of operations
is referred to as the Interval Counter.
S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the
current interval. This counter is referred to as the Failure Counter.
Error rate is the number of errors per operation. The algorithm that S.M.A.R.T. uses to record rates of error is to set thresholds for the
number of errors and appropriate interval. If the number of errors exceeds the threshold before the interval expires, the error rate is
considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is
considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over.
Predictive failures
S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count
of the number of times the error rate for each attribute is unacceptable. To accomplish this, a counter is incremented each time the error
rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually increments
such that it reaches the predictive threshold, a predictive failure is signaled. This counter is referred to as the Failure History Counter.
There is a separate Failure History Counter for each attribute.
5.3.5 Thermal monitor
Pulsar.2 drives implement a temperature warning system which:
1. Signals the host if the temperature exceeds a value which would threaten the drive.
2. Signals the host if the temperature exceeds a user-specified value. (i.e., the reference temperature value)
3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.
A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature exceeds a set
threshold. The temperature is measured at power-up and then at ten-minute intervals after power-up.
The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in compliance with
the SCSI standard. The drive temperature is reported in the FRU code field of MODE SENSE data. Administrators can use this information
to determine if the warning is due to the temperature exceeding the drive threatening temperature or the user-specified temperature.
This feature is controlled by the Enable Warning (EWasc) bit, and the reporting mechanism is controlled by the Method of Reporting
Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).
The current algorithm implements two temperature trip points. The first trip point is set at the maximum temperature limit according to the
drive specification. The second trip point is user-selectable using the LOG SELECT command. The reference temperature parameter in
the temperature log page (see Table 8) can be used to set this trip point. The default value for this drive is listed in the table, however,
applications can set it to any value in the range defined. If a temperature is specified that is greater than the maximum allowed in this field,
the temperature is rounded down to the maximum allowed. A sense code is sent to the host to indicate the rounding of the parameter field.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 16
Table 8 Temperature Log Page (0Dh)
Parameter Code Description 800/400/200/100GB
0000h
0001h
5.3.6 Drive Self Test (DST)
Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the
functionality of the drive at a system level.
There are two test coverage options implemented in DST:
1. Extended test
2. Short test
The most thorough option is the extended test that performs various tests on the drive and scans every logical block address (LBA) of the
drive. The short test is time-restricted and limited in length—it does not scan the entire media contents, but does some fundamental tests
and scans portions of the media.
If DST encounters an error during either of these tests, it reports a "diagnostic failed" condition. If the drive fails the test, remove it from
service and return it to Seagate for service.
5.3.6.1 DST failure definition
The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a functional failure is
encountered during DST. The drive parameters are not modified to test the drive more stringently, and the recovery capabilities are not
reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no failure condition will be reported
regardless of the recovery processes required to recover the data.
The following conditions are considered DST failure conditions:
• Read error after recovery attempts are exhausted
• Write error after recovery attempts are exhausted
Recovered errors will not be reported as diagnostic failures.
Primary Temperature Drive Temperature
Reference Temperature
Default Setting 65
Changeable Range 0 to 65
°C
°C
5.3.6.2 Implementation
This section provides all of the information necessary to implement the DST function on this drive.
5.3.6.2.1 State of the drive prior to testing
The drive must be in a ready state before issuing the SEND DIAGNOSTIC command. There are multiple reasons why a drive may not be
ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a FORMAT UNIT, or another
DST. It is the responsibility of the host application to determine the “not ready” cause.
5.3.6.2.2 Invoking DST
To invoke DST, submit the SEND DIAGNOSTIC command with the appropriate Function Code (001b for the short test or 010b for the
extended test) in bytes 1, bits 5, 6, and 7.
5.3.6.2.3 Short and extended tests
DST has two testing options:
1. short
2. extended
These testing options are described in the following two subsections.
Each test consists of two segments: an electrical test segment and a read/verify scan segment.
Short test (Function Code: 001b)
The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test
does not scan the entire media contents, but does some fundamental tests and scans portions of the media. A complete read/verify scan is
not performed and only factual failures will report a "diagnostic failed" condition. This option provides a quick confidence test of the drive.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 17
Extended test (Function Code: 010b)
The objective of the extended test option is to empirically test critical drive components. The read operation tests the media contents. The
integrity of the media is checked through a read/verify scan of the media.
The anticipated length of the Extended test is reported through the Control Mode page.
5.3.6.2.4 Log page entries
When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-test
parameter block at the beginning of the self-test results log parameter section of the log page. Existing data will be moved to make room
for the new parameter block. The drive reports 20 parameter blocks in the log page. If there are more than 20 parameter blocks, the least
recent parameter block will be deleted. The new parameter block will be initialized as follows:
1. The Function Code field is set to the same value as sent in the DST command
2. The Self-Test Results Value field is set to Fh
3. The drive will store the log page to non-volatile memory
After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its Self-Test Results Log page in
non-volatile memory. The host may use LOG SENSE to read the results from up to the last 20 self-tests performed by the drive. The selftest results value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the
DST. If the field is not set to zero, the test failed for the reason reported in the field.
The drive will report the failure condition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and
FRU are used to report the failure condition.
5.3.6.2.5 Abort
There are several ways to abort a diagnostic. Applications can use a SCSI Bus Reset or a Bus Device Reset message to abort the
diagnostic.
Applications can abort a DST executing in background mode by using the abort code in the DST Function Code field. This will cause a 01
(self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as
a 02 (self-test routine was interrupted by a reset condition).
5.3.7 Product warranty
See See “Seagate Technology Support Services” on page 1 for warranty information.
Warranty terms will vary based on type of warranty chosen: “Managed Life” or “Usage Based”. Consult your Seagate sales representative
for warranty terms and conditions.
Managed Life Warranty
This warranty is term based and includes the Lifetime Endurance Management feature stated in section 6.2.6.
Usage Based Warranty
This warranty is based on the shorter of term and endurance usage of the drive.
Shipping
When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate approved containers are
easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty.
Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact your authorized
Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in handling computer
equipment.
Product repair and return information
Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party
repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.
Storage
The maximum recommended storage period for the drive in a non-operational environment is 90 days. Drives should be stored in the
original unopened Seagate shipping packaging when ever possible. Once the drive is removed from the Seagate original packaging the
recommended maximum period between drive operation cycles is 30 days. During any storage period the drive non-operational
temperature, humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.
(see Section 6.0)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 18
6.0 PHYSICAL/ELECTRICAL SPECIFICATIONS
This section provides information relating to the physical and electrical characteristics of the drive.
6.1 POWER SPECIFICATIONS
The drive receives DC power (+5V and +12V) through the standard SAS interface.
6.1.1 Power consumption
Power requirements for the drives are listed in the tables beginning on page 21. Typical power measurements are based on an average of
drives tested, under nominal conditions, using +5V and +12V input voltage at 60°C ambient temperature.
• Startup power
Startup power is measured from the time of power-on to the time that the drive reaches operating condition and can process media
access commands.
• Peak operating mode
During peak operating mode, the drive is tested in various read and write access patterns to simulate the worst-case power consumption.
• Idle mode power
Idle mode power is measured with the drive powered up and ready for media access commands, with no media access commands
having been received from the host.
6.2 AC POWER REQUIREMENTS
None.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 19
6.3 DC POWER REQUIREMENTS
Table 9 800GB standard model DC power requirements
PARAMETER 800GB (6.0GB)
Regulation ±5% ±5%
Voltage +5V +12V
CURRENT (A) CURRENT (A) POWER (W)
Average idle current
Maximum starting current
(peak DC) DC 3σ 0.79 0.49
(peak AC) AC 3σ 0.60 0.71
Delayed start (max) DC 3σ 0.45 0.20 4.65
Peak operating current (random read):
Typical DC DC 0.49 0.29 5.93
Maximum DC 3σ 0.51 0.31 6.27
DC
0.42 0.19 4.38
Maximum (peak) DC 3σ 0.90 0.61
Peak operating current (random write)
Typical DC DC 0.49 0.57 9.29
Maximum DC 3σ 0.52 0.59 9.68
Maximum (peak) DC 3σ 0.95 1.13
Peak operating current (sequential read)
Typical DC DC 0.58 0.44 8.18
Maximum DC 3σ 0.62 0.46 8.62
Maximum (peak) DC 3σ 1.01 0.76
Peak operating current (sequential write)
Typical DC DC 0.48 0.51 8.52
Maximum DC 3σ 0.52 0.55 9.20
Maximum (peak) DC 3σ 0.85 1.13
PULSAR.2 SAS PRODUCT MANUAL, REV. C 20
Table 10 400GB standard model DC power requirements
PARAMETER 400GB (6.0GB)
Regulation ±5% ±5%
Voltage +5V +12V
CURRENT (A) CURRENT (A) POWER (W)
Average idle current
Maximum starting current
(peak DC) DC 3σ 0.50 0.35
(peak AC) AC 3σ 0.54 0.60
Delayed start (max) DC 3σ 0.45 0.13 3.81
Peak operating current (random read):
Typical DC DC 0.47 0.20 4.75
Maximum DC 3σ 0.51 0.21 5.07
DC
0.41 0.12 3.49
Maximum (peak) DC 3σ 0.95 0.48
Peak operating current (random write)
Typical DC DC 0.47 0.44 7.63
Maximum DC 3σ 0.52 0.46 8.12
Maximum (peak) DC 3σ 0.93 1.11
Peak operating current (sequential read)
Typical DC DC 0.55 0.31 6.47
Maximum DC 3σ 0.60 0.32 6.84
Maximum (peak) DC 3σ 1.00 0.59
Peak operating current (sequential write)
Typical DC DC 0.46 0.44 7.58
Maximum DC 3σ 0.52 0.48 8.36
Maximum (peak) DC 3σ 0.91 1.14
PULSAR.2 SAS PRODUCT MANUAL, REV. C 21
Table 11 200GB standard model DC power requirements
PARAMETER 200GB (6.0GB)
Regulation ±5% ±5%
Voltage +5V +12V
CURRENT (A) CURRENT (A) POWER (W)
Average idle current
Maximum starting current
(peak DC) DC 3σ 0.51 0.31
(peak AC) AC 3σ 0.61 1.26
Delayed start (max) DC 3σ 0.45 0.12 3.69
Peak operating current (random read):
Typical DC DC 0.48 0.19 4.68
Maximum DC 3σ 0.51 0.20 5.15
Maximum (peak) DC 3σ 0.86 0.47
DC
0.43 0.11 3.47
Peak operating current (random write)
Typical DC DC 0.47 0.41 7.27
Maximum DC 3σ 0.51 0.42 7.59
Maximum (peak) DC 3σ 0.82 0.98
Peak operating current (sequential read)
Typical DC DC 0.55 0.28 6.11
Maximum DC 3σ 0.59 0.29 6.43
Maximum (peak) DC 3σ 0.80 0.57
Peak operating current (sequential write)
Typical DC DC 0.47 0.41 7.27
Maximum DC 3σ 0.51 0.42 7.59
Maximum (peak) DC 3σ 0.76 0.95
PULSAR.2 SAS PRODUCT MANUAL, REV. C 22
Table 12 100GB standard model DC power requirements
PARAMETER 100GB (6.0GB)
Regulation ±5% ±5%
Voltage +5V +12V
CURRENT (A) CURRENT (A) POWER (W)
Average idle current
Maximum starting current
(peak DC) DC 3σ 0.48 0.32
(peak AC) AC 3σ 1.53 0.61
Delayed start (max) DC 3σ 0.45 0.13 2.38
Peak operating current (random read):
Typical DC DC 0.50 0.18 4.66
Maximum DC 3σ 0.51 0.20 4.95
Maximum (peak) DC 3σ 0.88 0.47
DC
0.43 0.12 3.59
Peak operating current (random write)
Typical DC DC 0.49 0.36 6.77
Maximum DC 3σ 0.51 0.39 7.23
Maximum (peak) DC 3σ 0.80 0.89
Peak operating current (sequential read)
Typical DC DC 0.56 0.26 5.92
Maximum DC 3σ 0.59 0.29 6.43
Maximum (peak) DC 3σ 0.89 0.56
Peak operating current (sequential write)
Typical DC DC 0.50 0.35 6.70
Maximum DC 3σ 0.52 0.38 7.16
Maximum (peak) DC 3σ 0.83 0.94
[1] Measured with average reading DC ammeter. Instantaneous +12V current peaks will exceed these values. Power supply at nominal voltage. N (num-
ber of drives tested) = 6, 60 Degrees C ambient.
[2] For +12 V, a –10% tolerance is allowed during initial start but must return to ±5% before reaching ready state. The ±5% must be maintained after the
drive signifies that its power-up sequence has been completed and that the drive is able to accept selection by the host initiator.
[3] See +12V current profile in Figure 6 (for 400GB models) and Figure 7 (for 200GB models).
[4] See +12V current profile in Figure 8 (for 100GB models).
[5] This condition occurs after OOB and Speed Negotiation completes but before the drive has received the Notify Spinup primitive.
[6] See paragraph 6.3.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and transient response.
General DC power requirement notes.
1. Minimum current loading for each supply voltage is not less than 1.7% of the maximum operating current shown.
2. The +5V and +12V supplies should employ separate ground returns.
3. Where power is provided to multiple drives from a common supply, careful consideration for individual drive power requirements
should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.
4. Parameters, other than start, are measured after a 10-minute warm up.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 23
6.3.1 Conducted noise immunity
Noise is specified as a periodic and random distribution of frequencies covering a defined frequency. Maximum allowed noise values given
below are peak-to-peak measurements and apply at the drive power connector.
+5v = 250 mV pp from 100 Hz to 20 MHz.
+12v = 450 mV pp from 100 Hz to 100 KHz.
6.3.2 Power sequencing
The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.
6.3.3 Current profiles
The +12V and +5V current profiles for the Pulsar.2 drives are shown below.
250 mV pp from 100 KHz to 20 MHz.
150 mV pp from 20 MHz to 80 MHz.
Figure 1. Current profiles for 800GB models
PULSAR.2 SAS PRODUCT MANUAL, REV. C 24
Figure 2. Current profiles for 400GB models
Figure 3. Current profiles for 200GB models
PULSAR.2 SAS PRODUCT MANUAL, REV. C 25
Figure 4. Current profiles for 100GB models
PULSAR.2 SAS PRODUCT MANUAL, REV. C 26
6.4 POWER DISSIPATION
800GB models in 6Gb operation
Typical power dissipation under idle conditions in 6Gb operation is 4.38 watts 14.95 BTUs per hour).
To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 6). Locate the typical I/O rate
for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical
axis. To calculate BTUs per hour, multiply watts by 3.4123.
Figure 5. 800GB (at 6Gb) DC current and power vs. input/output operations per second
400GB models in 6Gb operation
Typical power dissipation under idle conditions in 6Gb operation is 3.49 watts 11.91 BTUs per hour).
To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 6). Locate the typical I/O rate
for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical
axis. To calculate BTUs per hour, multiply watts by 3.4123.
Figure 6. 400GB (at 6Gb) DC current and power vs. input/output operations per second
200GB models in 6Gb operation
Typical power dissipation under idle conditions in 6Gb operation is 3.47 watts (11.84 BTUs per hour).
PULSAR.2 SAS PRODUCT MANUAL, REV. C 27
To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 7). Locate the typical I/O rate
for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical
axis. To calculate BTUs per hour, multiply watts by 3.4123.
Figure 7. 200GB (at 6Gb) DC current and power vs. input/output operations per second
100GB models in 6Gb operation
Typical power dissipation under idle conditions in 6Gb operation is 3.59 watts 12.25 BTUs per hour).
To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 8). Locate the typical I/O rate
for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical
axis. To calculate BTUs per hour, multiply watts by 3.4123.
Figure 8. 100GB (at 6Gb) DC current and power vs. input/output operations per second
6.5 ENVIRONMENTAL LIMITS
Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part. Altitude and
atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb temperature is 82°F (28°C).
Note. To maintain optimal performance drives should be run at nominal case temperatures.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 28
6.5.1 Temperature
a. Operating
The drive meets the operating specifications over a 41°F to 140°F (5°C to 60°C) drive case temperature range with a maximum
temperature gradient of 36°F (20°C) per hour.
The maximum allowable drive case temperature is 60°C.
The MTBF specification for the drive assumes the operating environment is designed to maintain nominal case temperature. The rated
MTBF is based upon a sustained case temperature of 122°F (50°C). Occasional excursions in operating temperature between the
rated MTBF temperature and the maximum drive operating case temperature may occur without impact to the rated MTBF
temperature. However continual or sustained operation at case temperatures beyond the rated MTBF temperature will degrade the
drive MTBF and reduce product reliability.
Air flow may be required to achieve consistent nominal case temperature values (see Section 6.5). To confirm that the required cooling
is provided, place the drive in its final mechanical configuration, and perform random write/read operations. After the temperatures
stabilize, measure the case temperature of the drive. See Figure 9 and 10 for temperature checkpoint.
b. Non-operating
–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the
drive is packaged in the shipping container designed by Seagate for use with drive.
Figure 9. Temperature check point location - 15mm drives
Figure 10. Temperature check point location - 7mm drives
Note. Images may not represent actual product, for reference only.
6.5.2 Relative humidity
The values below assume that no condensation on the drive occurs.
a. Operating
5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.
b. Non-operating
5% to 95% non-condensing relative humidity.
6.5.3 Effective altitude (sea level)
a. Operating
–200 to +10,000 feet (–60.96 to +3048 meters)
b. Non-operating
–200 to +40,000 feet (–60.96 to +12,192 meters)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 29
6.5.4 Shock and vibration
Shock and vibration limits specified in this document are measured directly on the drive chassis. If the drive is installed in an enclosure to
which the stated shock and/or vibration criteria is applied, resonances may occur internally to the enclosure resulting in drive movement in
excess of the stated limits. If this situation is apparent, it may be necessary to modify the enclosure to minimize drive movement.
The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four methods shown in
Figure 11, and in accordance with the restrictions of Section 10.3.
6.5.4.1 Shock
a. Operating—normal
The drive, as installed for normal operation, shall operate error free while subjected to intermittent shock not exceeding:
• 1000 Gs at a maximum duration of 0.5ms (half sinewave)
Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.
Note. This specification does not cover connection issues that may result from testing at this level.
b. Non-operating
The limits of non-operating shock shall apply to all conditions of handling and transportation. This includes both isolated drives and
integrated drives.
The drive subjected to nonrepetitive shock not exceeding the three values below, shall not exhibit device damage or performance
degradation.
• 1000 Gs at a maximum duration of 0.5ms (half sinewave)
Shock may be applied in the X, Y, or Z axis.
c. Packaged
Seagate finished drive bulk packs are designed and tested to meet or exceed applicable ISTA and ASTM standards. Volume finished
drives will be shipped from Seagate factories on pallets to minimize freight costs and ease material handling. Seagate finished drive
bulk packs may be shipped individually. For less than full shipments, instructions are printed on the bulk pack carton for minimum drive
quantities and proper drive placement.
Figure 11. Recommended mounting
Note. Image may not represent actual product, for reference only.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 30
6.5.4.2 Vibration
a. Operating—normal
The drive as installed for normal operation, shall comply with the complete specified performance while subjected to vibration:
Vibration may be applied in the X, Y, or Z axis.
Operating normal translational random shaped profile
20 - 2000 Hz 11.08 GRMS
Note. This specification does not cover connection issues that may result from testing at this level.
b. Operating—abnormal
Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration:
Vibration occurring at these levels may degrade operational performance during the abnormal vibration period. Specified operational
performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.
Operating abnormal translational random shaped profile
20 - 2000 Hz 11.08 GRMS
Note. This specification does not cover connection issues that may result from testing at this level.
c. Non-operating
The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and
integrated drives.
The drive shall not incur physical damage or degraded performance as a result of vibration.
Vibration may be applied in the X, Y, or Z axis.
Non-operating translational random shaped profile
20 - 2000 Hz 11.08 GRMS
6.5.5 Air cleanliness
The drive is designed to operate in a typical office environment with minimal environmental control.
6.5.6 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments
containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate
every potential application environment.
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic
drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate
products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In
addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA)
or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can
outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing
materials near circuitry with sulfide-free alternatives.
6.5.7 Electromagnetic susceptibility
See Section 2.1.1.1.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 31
6.6 M
Refer to Figure 12 or 13 for detailed mounting configuration dimensions. See Section 10.3, “Drive mounting.”
ECHANICAL SPECIFICATIONS
Weight: 0.353 pounds 160 grams
Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8201 and
SFF-8223 found at
www.sffcommittee.org.
Figure 12. Mounting configuration dimensions (800GB models)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 32
Weight: 0.220 pounds 100 grams
Note.
These dimensions conform to the Small Form Factor Standard documented in SFF-8201 and
SFF-8223 found at
www.sffcommittee.org
Figure 13. Mounting configuration dimensions (400, 200 & 100GB models)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 33
7.0 ABOUT FIPS
The Federal Information Processing Standard (FIPS) Publication 140-2 is a U.S. Government Computer Security Standard used to
accredit cryptographic modules. It is titled 'Security Requirements for Cryptographic Modules (FIPS PUB 140-2)' and is issued by the
National Institute of Standards and Technology (NIST).
Purpose
This standard specifies the security requirements that will be satisfied by a cryptographic module utilized within a security system
protecting sensitive but unclassified information. The standard provides four increasing, qualitative levels of security: Level 1, Level 2,
Level 3 and Level 4. These levels are intended to cover the wide range of potential applications and environments in which cryptographic
modules may be employed.
Validation Program
Products that claim conformance to this standard are validated by the Cryptographic Module Validation Program (CMVP) which is a joint
effort
between National Institute of Standards and Technology (NIST) and the Communications Security Establishment (CSE) of the
Government of Canada. Products validated as conforming to FIPS 140-2 are accepted by the Federal agencies of both countries for the
protection of sensitive information (United States) or Designated Information (Canada).
In the CMVP, vendors of cryptographic modules use independent, accredited testing laborites to have their modules tested. National
Voluntary Laboratory Accreditation Program (NVLAP) accredited laboratories perform cryptographic module compliance/conformance
testing.
Seagate Enterprise SED
The SEDs referenced in this Product Manual have been validated by CMVP and have been thoroughly tested by a NVLAP accredited lab
to satisfy FIPS 140-2 Level 2 requirements. In order to operate in FIPS Approved Mode of Operation, these SEDs require security
initialization. For more information, refer to 'Security Rules' section in the 'Security Policy' document uploaded on the NIST website. To
reference the product certification visit:
Security Level 2
Security Level 2 enhances the physical security mechanisms of a Security Level 1 cryptographic module by adding the requirement for
tamper-evidence, which includes the use of tamper-evident coatings or seals on removable covers of the module. Tamper-evident coatings or seals are placed on a cryptographic module so that the coating or seal must be broken to attain physical access to the critical
security parameters (CSP) within the module. Tamper-evident seals (example shown in Figure 14, page 34) are placed on covers to
protect against unauthorized physical access. In addition Security Level 2 requires, at a minimum, role-based authentication in which a
cryptographic module authenticates the authorization of an operator to assume a specific role and perform a corresponding set of services.
http://csrc.nist.gov/groups/STM/cmvp/documents/140-1/1401vend.htm, and search for "Seagate".
Figure 14. Example of FIPS tamper evidence labels.
Note. Image is for reference only, do not represent actual drive.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 34
8.0 ABOUT SELF-ENCRYPTING DRIVES
Self-encrypting drives (SEDs) offer encryption and security services for the protection of stored data, commonly known as “protection of
data at rest.” These drives are compliant with the Trusted Computing Group (TCG) Enterprise Storage Specifications as detailed in Section
2.2.
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital
communications industry. Seagate’s SED models comply with the standards published by the TCG.
To use the security features in the drive, the host must be capable of constructing and issuing the following two SCSI commands:
• SECURITY PROTOCOL OUT
• SECURITY PROTOCOL IN
These commands are used to convey the TCG protocol to and from the drive in the appropriate command payloads.
8.1 DATA ENCRYPTION
Encrypting drives use one in-line encryption engine for each port, employing AES-256 data encryption in Cipher Block Chaining (CBC)
mode to encrypt all data prior to being written on the media and to decrypt all data as it is read from the media. The encryption engines are
always in operation and cannot be disabled.
The 32-byte Data Encryption Key (DEK) is a random number which is generated by the drive, never leaves the drive, and is inaccessible to
the host system. The DEK is itself encrypted when it is stored on the media and when it is in volatile temporary storage (DRAM) external to
the encryption engine. A unique data encryption key is used for each of the drive's possible16 data bands (see Section 8.5).
8.2 CONTROLLED ACCESS
The drive has two security providers (SPs) called the "Admin SP" and the "Locking SP." These act as gatekeepers to the drive security
services. Security-related commands will not be accepted unless they also supply the correct credentials to prove the requester is
authorized to perform the command.
8.2.1 Admin SP
The Admin SP allows the drive's owner to enable or disable firmware download operations (see Section 8.4). Access to the Admin SP is
available using the SID (Secure ID) password or the MSID (Manufacturers Secure ID) password.
8.2.2 Locking SP
The Locking SP controls read/write access to the media and the cryptographic erase feature. Access to the Locking SP is available using
the BandMasterX or EraseMaster passwords. Since the drive owner can define up to 16 data bands on the drive, each data band has its
own password called BandMasterX where X is the number of the data band (0 through 15).
8.2.3 Default password
When the drive is shipped from the factory, all passwords are set to the value of MSID. This 32-byte random value can only be read by the
host electronically over the interface. After receipt of the drive, it is the responsibility of the owner to use the default MSID password as the
authority to change all other passwords to unique owner-specified values.
8.3 RANDOM NUMBER GENERATOR (RNG)
The drive has a 32-byte hardware RNG that it is uses to derive encryption keys or, if requested to do so, to provide random numbers to the
host for system use, including using these numbers as Authentication Keys (passwords) for the drive’s Admin and Locking SPs.
8.4 DRIVE LOCKING
In addition to changing the passwords, as described in Section 8.2.3, the owner should also set the data access controls for the individual
bands.
The variable "LockOnReset" should be set to "PowerCycle" to ensure that the data bands will be locked if power is lost. In addition
"ReadLockEnabled" and "WriteLockEnabled" must be set to true in the locking table in order for the bands "LockOnReset" setting of
"PowerCycle" to actually lock access to the band when a "PowerCycle" event occurs. This scenario occurs if the drive is removed from its
cabinet. The drive will not honor any data READ or WRITE requests until the bands have been unlocked. This prevents the user data from
being accessed without the appropriate credentials when the drive has been removed from its cabinet and installed in another system.
When the drive is shipped from the factory, the firmware download port is unlocked allowing the drive to accept any attempt to download
new firmware. The drive owner must use the SID credential to lock the firmware download port before firmware updates will be rejected.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 35
8.5 DATA BANDS
When shipped from the factory, the drive is configured with a single data band called Band 0 (also known as the Global Data Band) which
comprises LBA 0 through LBA max. The host may allocate Band1 by specifying a start LBA and an LBA range. The real estate for this
band is taken from the Global Band. An additional 14 Data Bands may be defined in a similar way (Band2 through Band15) but before
these bands can be allocated LBA space, they must first be individually enabled using the EraseMaster password.
Data bands cannot overlap but they can be sequential with one band ending at LBA (x) and the next beginning at LBA (x+1).
Each data band has its own drive-generated encryption key and its own user-supplied password. The host may change the Encryption Key
(see Section 8.6) or the password when required. The bands shall be aligned to 4KB LBA boundaries.
8.6 CRYPTOGRAPHIC ERASE
A significant feature of SEDs is the ability to perform a cryptographic erase. This involves the host telling the drive to change the data
encryption key for a particular band. Once changed, the data is no longer recoverable since it was written with one key and will be read
using a different key. Since the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can
never be recovered. This is tantamount to an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned.
8.7 AUTHENTICATED FIRMWARE DOWNLOAD
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files
which have been cryptographically signed by the appropriate Seagate Design Center.
Three conditions must be met before the drive will allow the download operation:
1. The download must be an SED file. A standard (base) drive (non-SED) file will be rejected.
2. The download file must be signed and authenticated.
3. As with a non-SED drive, the download file must pass the acceptance criteria for the drive. For example it must be applicable to the
correct drive model, and have compatible revision and customer status.
8.8 POWER REQUIREMENTS
The standard drive models and the SED drive models have identical hardware, however the security and encryption portion of the drive
controller ASIC is enabled and functional in the SED models. This represents a small additional drain on the 5V supply of about 30mA and
a commensurate increase of about 150mW in power consumption. There is no additional drain on the 12V supply. See the tables in
Section 6.3 for power requirements on the standard (non-SED) drive models.
8.9 SUPPORTED COMMANDS
The SED models support the following two commands in addition to the commands supported by the standard (non-SED) models as listed
in Table 16:
• SECURITY PROTOCOL OUT (B5h)
• SECURITY PROTOCOL IN (A2h)
8.10 SANITIZE - CRYPTOGRAPHIC ERASE
This command cryptographically erases all user data on the drive by destroying the current data encryption key and replacing it with a new
data encryption key randomly generated by the drive. Sanitize CRYPTOGRAPHIC ERASE is a SCSI CDB Op code 48h and selecting the
service action code 3 (CRYPTOGRAPHIC ERASE).
8.11 REVERTSP
SED models will support the RevertSP feature which erases all data in all bands on the device and returns the contents of all SPs (Security
Providers) on the device to their original factory state. In order to execute the RevertSP method the unique PSID (Physical Secure ID)
printed on the drive label must be provided. PSID is not electronically accessible and can only be manually read from the drive label or
scanned in via the 2D barcode.
8.12 SANITIZE FEATURE SET ON SED DRIVES
The drive shall support the Sanitize Feature Set as defined in ANSI/INCITS ACS-2 with the exceptions and/or modifications described in
this section.
The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands.
Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the
command.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 36
9.0 DEFECT AND ERROR MANAGEMENT
Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data
integrity, perform drive self-maintenance, and validate proper drive operation.
SCSI defect and error management involves drive internal defect/error management and SAS system error considerations (errors in
communications between the initiator and the drive). In addition, Seagate provides the following technologies used to increase data
integrity and drive reliability:
• Background Media Scan (see Section 9.4)
• Auto-Reallocation (see Section 9.5)
The read error rates and specified storage capacities are not dependent on host (initiator) defect management routines.
9.1 DRIVE INTERNAL DEFECTS/ERRORS
During the initial drive manufacturing test operation at the factory, media defects are identified, tagged as being unusable, and their
locations recorded on the drive primary defects list (referred to as the “P’ list). At factory format time, these known defects are also
deallocated, that is, marked as retired and the location listed in the defects reallocation table. The “P” list is not altered after factory
formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list
(defects growth list). The “P” and “G” lists may be referenced by the initiator using the READ DEFECT DATA command.
Details of the SCSI commands supported by the drive are described in the SAS Interface Manual. Also, more information on the drive Error
Recovery philosophy is presented in the SAS Interface Manual.
The drive uses a vendor unique format to report defects via the READ DEFECT DATA command pending T10 standardization of a format
for Solid State Devices. This format defect type is defined as 110b in the SCSI FORMAT UNIT command. The definition of the 110b format
is defined in the following table.
Table 13 SSD Physical format address descriptor
Bit
Byte
7 6 5 4 3 2 1 0
0 (MSB) MEDIA ID
1 (LSB)
2 CHANNEL
3 DIE
4 (MSB) BLOCK
5 (LSB)
6 RESERVED
7 VENDOR UNIQUE
The MEDIA ID field contains an identifier for the flash controller for devices that utilize more than one flash controller.
The CHANNEL field contains the channel number within the corresponding Flash Controller.
The DIE field contains the die number within channel.
The BLOCK field contains the block number within the die.
The VENDOR UNIQUE field may contain vendor unique information.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 37
9.2 DRIVE ERROR RECOVERY PROCEDURES
When an error occurs during drive operation, the drive performs error recovery procedures to attempt to recover the data. The error
recovery procedures used are not user changeable.
9.3 SAS SYSTEM ERRORS
Information on the reporting of operational errors across the interface is given in the SAS Interface Manual. The SSP Response returns
information to the host about numerous kinds of errors. The Receive Diagnostic Results reports the results of diagnostic operations
performed by the drive.
Status returned by the drive to the initiator is described in the SAS Interface Manual. Status reporting plays a role in systems error
management and its use in that respect is described in sections where the various commands are discussed.
9.4 BACKGROUND MEDIA SCAN
Background Media Scan (BMS) is a self-initiated media scan. BMS is defined in the T10 document SPC-4 available from the T10
committee. BMS performs reads across the entire addressable space of the media while the drive is idle. In RAID arrays, BMS allows hot
spare drives to be scanned for defects prior to being put into service by the host system. On regular duty drives, if the host system makes
use of the BMS Log Page, it can avoid placing data in suspect locations on the media. Unreadable and recovered error sites will be logged
and reallocated.
With BMS, the host system can consume less power and system overhead by only checking BMS status and results rather than tying up
the bus and consuming power in the process of host-initiated media scanning activity.
Since the background scan functions are only done during idle periods, BMS causes a negligible impact to system performance. The BMS
scan is performed after 500ms of idle time. Other features that normally use idle time to function will function normally because BMS
functions for bursts of 500ms and then suspends activity for 100ms to allow other background functions to operate.
BMS interrupts immediately to service host commands from the interface bus while performing reads. BMS will complete any BMS-initiated
error recovery prior to returning to service host-initiated commands. Overhead associated with a return to host-servicing activity from BMS
only impacts the first command that interrupted BMS, this results in a typical delay of about 1ms.
9.5 AUTO-REALLOCATION
Auto-Reallocation allows the drive to reallocate unreadable locations on a subsequent write command if the recovery process deems the
location to be defective. The drive performs auto-reallocation on every WRITE command. With each write to a Logical LBA, the drive
writes the data to a different physical media location. Physical locations that return unrecoverable errors are retired during future WRITE
attempts and associated recovery process.
This is in contrast to the system having to use the REASSIGN BLOCKS command to reassign a location that was unreadable and then
generate a WRITE command to rewrite the data. This operation requires that AWRE and ARRE are enabled—this is the default setting
from the Seagate factory.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 38
9.6 PROTECTION INFORMATION (PI)
Protection Information is intended as a standardized approach to system level LRC traditionally provided by systems using 520 byte
formatted LBAs. Drives formatted with PI information provide the same, common LBA count (i.e. same capacity point) as non-PI formatted
drives. Sequential performance of a PI drive will be reduced by approximately 1.56% due to the extra overhead of PI being transferred
from the media that is not calculated as part of the data transferred to the host. To determine the full transfer rate of a PI drive, transfers
should be calculated by adding the 8 extra bytes of PI to the transferred LBA length, i.e. 512 + 8 = 520. PI formatted drives are physically
formatted to 520 byte LBA’s that store 512 bytes of customer data with 8 bytes of Protection Information appended to it. The advantage of
PI is that the Protection Information bits can be managed at the HBA and HBA driver level. Allowing a system that typically does not
support 520 LBA formats to integrate this level of protection.
Protection Information is valid with any supported LBA size. 512 LBA size is used here as common example.
9.6.1 Levels of PI
There are 4 types of Protection Information.
Type 0 - Describes a drive that is not formatted with PI information bytes. This allows for legacy support in non-PI systems.
Type 1 - Provides support of PI protection using 10 and 16 byte commands. The RDPROTECT and WRTPROTECT bits allow for checking
control through the CDB. Eight bytes of Protection Information are transmitted at LBA boundaries across the interface if RDPROTECT and
WRTPROTECT bits are nonzero values. Type 1 does not allow the use of 32 byte commands.
Type 2 - Provides checking control and additional expected fields within the 32 byte CDBs. Eight bytes of Protection Information are
transmitted at LBA boundaries across the interface if RDPROTECT and WRTPROTECT bits are nonzero values. Type 2 does allow the
use of 10 and 16 byte commands with zero values in the RDPROTECT and WRTPROTECT fields. The drive will generate 8 bytes of
Protection Information (e.g. 0xFFFFFFFF) to be stored on the media, but the 8 bytes will not be transferred to the host during a READ
command.
Type 3 - Seagate products do not support Type 3.
9.6.2 Setting and determining the current Type Level
A drive is initialized to a type of PI by using the FORMAT UNIT command on a PI capable drive. Once a drive is formatted to a PI Type, it
may be queried by a READ CAPACITY (16) command to report the PI type which it is currently formatted to. A drive can only be formatted
to a single PI Type. It can be changed at anytime to a new Type but requires a FORMAT UNIT command which destroys all existing data
on the drive. No other vehicle for changing the PI type is provided by the T10 SBC3 specification.
Type 1 PI FORMAT UNIT CDB command: 04 90 00 00 00 00, parameter data: 00 A0 00 00
Type 2 PI FORMAT UNIT CDB command: 04 D0 00 00 00 00, parameter data: 00 A0 00 00
9.6.3 Identifying a Protection Information drive
The Standard INQUIRY data provides a bit to indicate if PI is support by the drive. Vital Product Descriptor (VPD) page 0x86 provides bits
to indicate the PI Types supported and which PI fields the drive supports checking.
Note. For further details with respect to PI, please refer to SCSI Block Commands - 3 (SBC-3) Draft Standard documentation.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 39
10.0 INSTALLATION
Pulsar.2 drive installation is a plug-and-play process. There are no jumpers on the drive.
SAS drives are designed to be used in a host system that provides a SAS-compatible backplane with bays designed to accommodate the
drive. In such systems, the host system typically provides a carrier or tray into which the drive must be mounted. Mount the drive to the
carrier or tray provided by the host system using four M3 x 0.5 metric screws. When tightening the screws, use a maximum torque of 4.5
in-lb +/- 0.45 in-lb. Do not over-tighten or force the screws. The drive can be mounted in any orientation.
Note. SAS drives are designed to be attached to the host system without I/O or power cables. If the intent is to use the drive in a
non-backplane host system, connecting the drive using high-quality cables is acceptable as long as the I/O cable length does
not exceed 10 meters (32.8 feet).
Slide the carrier or tray into the appropriate bay in the host system using the instructions provided by the host system. This connects the
drive directly to the system’s SAS connector. The SAS connector is normally located on a SAS backpanel. See Section 11.4.1 for
additional information about these connectors.
Power is supplied through the SAS connector.
The drive is shipped from the factory low-level formatted in 512-byte logical blocks. Reformatting the drive is only required if the application
requires a different logical block size.
Figure 15. Physical interface
10.1 DRIVE ORIENTATION
The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in
horizontal (level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.
10.2 COOLING
Cabinet cooling must be designed by the customer so that the temperature of the drive will not exceed temperature conditions specified in
Section 6.5.1, "Temperature."
The rack, cabinet, or drawer environment for the drive must provide heat removal from the assembly. The system designer should confirm
that adequate heat removal is provided using the temperature measurement guidelines described in Section 6.5.1.
Forced air flow may be required to keep temperatures at or below the temperatures specified in Section 6.5.1 in which case the drive
should be oriented, or air flow directed, so that the least amount of air flow resistance is created while providing air flow. Also, the shortest
possible path between the air inlet and exit should be chosen to minimize the travel length of air heated by the drive and other heat sources
within the rack, cabinet, or drawer environment.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 40
If forced air is determined to be necessary, possible air-flow patterns are shown in Figure 16. The air-flow patterns are created by one or
more fans, either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced air-flow patterns are
acceptable as long as the temperature measurement guidelines of Section 6.5.1 are met.
Abo e nit
Note Air lo s in the direction sho n (bac to ront)
or in re erse direction ( ront to bac )
Note Air lo s in the direction sho n or
in re erse direction (side to side)
Figure 16. Air flow
nder nit
Abo e nit
nder nit
Note. Image may not represent actual product, for reference only.
10.3 DRIVE MOUNTING
Mount the drive using the bottom or side mounting holes. If mounting the drive using the bottom holes, ensure that you do not physically
distort the drive by attempting to mount it on a stiff, non-flat surface.
The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm). The following equation and paragraph define the allowable mounting
surface stiffness:
K x X = F < 15lb = 67N
where K is the mounting surface stiffness (units in lb/in or N/mm) and X is the out-of-plane surface distortion (units in inches or millimeters).
The out-of-plane distortion (X) is determined by defining a plane with three of the four mounting points fixed and evaluating the out-of-plane
deflection of the fourth mounting point when a known force (F) is applied to the fourth point.
10.4 GROUNDING
Signal ground (PCBA) and case ground are connected together in the drive and cannot be separated by the user. The equipment in which
the drive is mounted is connected directly to the drive with no electrically isolating shock mounts. If it is desired for the system chassis to
not be connected to the drive ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of
mounting the drive in the host equipment.
Increased radiated emissions may result if designers do not provide the maximum surface area ground connection between system
ground and drive ground. This is the system designer’s and integrator’s responsibility.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 41
11.0 INTERFACE REQUIREMENTS
This section partially describes the interface requirements as implemented on Pulsar.2 drives. Additional information is provided in the SAS
Interface Manual (part number 100293071).
11.1 SAS FEATURES
This section lists the SAS-specific features supported by Pulsar.2 drives.
11.1.1 Task management functions
Table 14 lists the SAS task management functions supported.
Table 14 SAS task management functions supported
TASK NAME SUPPORTED
Abort Task Yes
Abort task set Yes
Clear ACA Yes
Clear task set Yes
I_T Nexus Reset Yes
Logical Unit Reset Yes
Query Task Yes
Query Task Set Yes
Query Asynchronous Event Yes
11.1.2 Task management responses
Table 15 lists the SAS response codes returned for task management functions supported.
Table 15 Task management response codes
FUNCTION NAME RESPONSE CODE
Function complete 00
Invalid frame 02
Function not supported 04
Function failed 05
Function succeeded 08
Invalid logical unit 09
11.2 DUAL PORT SUPPORT
Pulsar.2 SAS drives have two independent ports. These ports may be connected in the same or different SCSI domains. Each drive port
has a unique SAS address.
The two ports have the capability of independent port clocking (e.g. both ports can run at 6Gb/s or the first port can run at 6Gb/s while the
second port runs at 3Gb/s.) The supported link rates are 1.5, 3.0, or 6.0 Gb/s.
Subject to buffer availability, the Pulsar.2 drives support:
• Concurrent port transfers—The drive supports receiving COMMAND, TASK management transfers on both ports at the same time.
• Full duplex—The drive supports sending XFER_RDY, DATA and RESPONSE transfers while receiving frames on both ports.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 42
11.3 SCSI COMMANDS SUPPORTED
Table 16 lists the SCSI commands supported by Pulsar.2 drives.
Table 16 Supported commands
COMMAND NAME COMMAND CODE SUPPORTED
CHANGE DEFINITION 40h N
FORMAT UNIT [1] 04h Y
DPRY bit supported N
DCRT bit supported Y
STPF bit supported Y
IP bit supported Y
DSP bit supported Y
IMMED bit supported Y
VS (vendor specific) N
INQUIRY 12h Y
Block Limits page (B0h) Y
Block Device Characteristics page (B1h) Y
Date Code page (C1h) Y
Device Behavior page (C3h) Y
Device Identification page (83h) Y
Extended Inquiry Data page (86h) Y
Firmware Numbers page (C0h) Y
Jumper Settings page (C2h) N
Power Conditions page (8Ah) Y
Supported Vital Product Data page (00h) Y
Thin Provisioning page (B2h) Y
Unit Serial Number page (80h) Y
Vendor Unique page (D1h) Y
Vendor Unique page (D2h) Y
LOG SELECT 4Ch Y
PCR bit Y
DU bit N
DS bit Y
TSD bit Y
ETC bit N
TMC bit N
LP bit N
LOG SENSE 4Dh Y
Application Client Log page (0Fh) N
Background Scan Results log page (15h) Y
Buffer Over-run/Under-run page (01h) N
Cache Statistics page (37h) Y
Factory Log page (3Eh) Y
Information Exceptions Log page (2Fh) Y
Last n Deferred Errors or Asynchronous Events page (0Bh) N
Last n Error Events page (07h) N
Non-medium Error page (06h) Y
Pages Supported list (00h) Y
PULSAR.2 SAS PRODUCT MANUAL, REV. C 43
Table 16 Supported commands
COMMAND NAME COMMAND CODE SUPPORTED
Protocol-Specific Port log pages (18h) Y
Read Error Counter page (03h) Y
Read Reverse Error Counter page (04h) N
Self-test Results page (10h) Y
Solid State Media log page (11h) Y
Start-stop Cycle Counter page (0Eh) Y
Temperature page (0Dh) Y
Vendor Unique page (3Ch) Y
Verify Error Counter page (05h) Y
Write error counter page (02h) Y
MODE SELECT (6) (same pages as MODE SENSE (6)) 15h Y [3]
MODE SELECT (10) (same pages as MODE SENSE (6)) 55h Y
MODE SENSE (6) 1Ah Y [3]
Caching Parameters page (08h) Y
Control Mode page (0Ah) Y
Disconnect/Reconnect (02h) Y
Error Recovery page (01h) Y
Format page (03h) N
Information Exceptions Control page (1Ch) Y
Background Scan mode subpage (1Ch/01h) Y
Notch and Partition Page (0Ch) N
Protocol-Specific LUN mode page (18h) Y
Protocol-Specific Port page (19h) Y
Power Condition page (1Ah) Y
Rigid Disc Drive Geometry page (04h) N
Unit Attention page (00h) Y
Verify Error Recovery page (07h) Y
Xor Control page (10h) N
MODE SENSE (10) (same pages as MODE SENSE (6)) 5Ah Y
PERSISTENT RESERVE IN 5Eh Y
PERSISTENT RESERVE OUT 5Fh Y
PRE-FETCH (10) 34h N
READ (6) 08h Y
READ (10) 28h Y
DPO bit supported Y
FUA bit supported Y
READ (12) A8h N
READ (16) 88h Y
READ (32) 7Fh/0009h Y
READ BUFFER (modes 0, 2, 3, Ah And Bh supported) 3Ch Y (non-SED drives only)
READ CAPACITY (10) 25h Y
READ CAPACITY (16) 9Eh/10h Y
READ DEFECT DATA (10) 37h Y
READ DEFECT DATA (12) B7h Y
READ LONG (10) 3Eh Y (non-SED drives only)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 44
Table 16 Supported commands
COMMAND NAME COMMAND CODE SUPPORTED
READ LONG (16) 9Eh/11h Y (non-SED drives only)
REASSIGN BLOCKS 07h Y
RECEIVE DIAGNOSTIC RESULTS 1Ch Y
Supported Diagnostics pages (00h) Y
Translate page (40h) N
RELEASE (6) 17h Y
RELEASE (10) 57h Y
REPORT LUNS A0h Y
REQUEST SENSE 03h Y
Actual Retry Count bytes Y
Extended Sense Y
Field Pointer bytes Y
RESERVE (6) 16h Y
3rd Party Reserve Y
Extent Reservation N
RESERVE (10) 56h Y
3rd Party Reserve Y
Extent Reservation N
REZERO UNIT 01h Y
SANITIZE 48h Y (SED models only)
Overwrite N
Block Erase N
Cryptographic Erase ---/03h Y (SED models only)
SECURITY PROTOCOL IN A2h Y (SED models only)
SECURITY PROTOCOL OUT B5h Y (SED models only)
SEEK (6) 0Bh Y
SEEK (10) 2Bh Y
SEND DIAGNOSTICS 1Dh Y
Supported Diagnostics pages (00h) Y
Translate page (40h) N
START UNIT/STOP UNIT 1Bh Y
SYNCHRONIZE CACHE 35h Y
SYNCHRONIZE CACHE (16) 91h Y
TEST UNIT READY 00h Y
UNMAP 42H Y
VERIFY (10) 2Fh Y
BYTCHK bit Y
VERIFY (12) AFh N
VERIFY (16) AFh Y
VERIFY (32) 7Fh/000Ah Y
WRITE (6) 0Ah Y
WRITE (10) 2Ah Y
DPO bit Y
FUA bit Y
WRITE (12) AAh N
PULSAR.2 SAS PRODUCT MANUAL, REV. C 45
Table 16 Supported commands
COMMAND NAME COMMAND CODE SUPPORTED
WRITE (16) 8Ah Y
WRITE (32) 7Fh/000Bh Y
WRITE AND VERIFY (10) 2Eh Y
DPO bit Y
WRITE AND VERIFY (12) AEh N
WRITE AND VERIFY (16) 8Eh Y
WRITE AND VERIFY (32) 7Fh/000Ch Y
WRITE BUFFER (modes 0, 2, supported) 3Bh Y (non-SED drives only)
WRITE BUFFER 3Bh
Firmware Download option (modes 5, 7, Ah and Bh) [2] Y (non-SED drives only)
Firmware Download option (modes 4, 5, 7) Y (SED drives only)
WRITE LONG (10) 3Fh Y
WRITE LONG (16) 9Fh/11h Y
WRITE SAME (10) 41h Y
PBdata N
LBdata N
WRITE SAME (16) 93h Y
WRITE SAME (32) 7Fh/000Dh Y
XDREAD 52h N
XDWRITE 50h N
XPWRITE 51h N
[1] Pulsar.2 drives can format to 512, 520, 524, 528, 4096, 4160, 4192 and 4224 bytes per logical block.
[2] Warning. Power loss during a firmware upgrade can result in firmware corruption. This usually makes the drive inoperable.
[3] Reference MODE SENSE command 1Ah for mode pages supported.
[4] Y = Yes. Command is supported.
N = No. Command is not supported.
A = Support is available on special request.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 46
11.3.1 INQUIRY data
Table 17 lists the INQUIRY command data that the drive should return to the initiator per the format given in the SAS Interface Manual.
Table 17 Pulsar.2 INQUIRY data
BYTES DATA (HEX)
0-15 00 00 xx** 12 8B 01 PP 02 53 45 41 47 41 54 45 20 Vendor ID
16-31 [53 54 38 30 30 46 4D 30 30 30 32] 20 20 20 20 20 Product ID
32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00
48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright
112-127 30* 31* 31* 20 53 65 61 67 61 74 65 20 41 6C 6C 20 notice
128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20
* Copyright year (changes with actual year).
** SCSI Revision support. See the appropriate SPC release documentation for definitions.
PP 10 = INQUIRY data for an INQUIRY command received on Port A.
30 = INQUIRY data for an INQUIRY command received on Port B.
R# Four ASCII digits representing the last four digits of the product firmware release number.
S# Eight ASCII digits representing the eight digits of the product serial number.
[ ] Bytes 16 through 26 reflect model of drive. The table above shows the hex values for Model ST800FM0002.
Refer to the values below for the values of bytes 16 through 26 for a particular model:
ST800FM0012 53 54 38 30 30 46 4D 30 30 31 32
ST800FM0022 53 54 38 30 30 46 4D 30 30 32 32
ST800FM0032 53 54 38 30 30 46 4D 30 30 33 32
ST800FM0042 53 54 38 30 30 46 4D 30 30 34 32
ST400FM0002 53 54 34 30 30 46 4D 30 30 30 32
ST400FM0042 53 54 34 30 30 46 4D 30 30 34 32
ST200FM0002 53 54 32 30 30 46 4D 30 30 30 32
ST200FM0042 53 54 32 30 30 46 4D 30 30 34 32
ST100FM0002 53 54 31 30 30 46 4D 30 30 30 32
ST100FM0052 53 54 31 30 30 46 4D 30 30 35 32
PULSAR.2 SAS PRODUCT MANUAL, REV. C 47
11.3.2 MODE SENSE data
The MODE SENSE command provides a way for the drive to report its operating parameters to the initiator. The drive maintains four sets
of mode parameters:
1. Default values
Default values are hard-coded in the drive firmware stored in flash E-PROM (nonvolatile memory) on the drive’s PCB. These default
values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An initiator can request and
receive from the drive a list of default values and use those in a MODE SELECT command to set up new current and saved values,
where the values are changeable.
2. Saved values
Saved values are stored on the drive’s media using a MODE SELECT command. Only parameter values that are allowed to be
changed can be changed by this method. Parameters in the saved values list that are not changeable by the MODE SELECT com
mand get their values from default values storage.
When power is applied to the drive, it takes saved values from the media and stores them as current values in volatile memory. It is not
possible to change the current values (or the saved values) with a MODE SELECT command before the drive is “ready.” An attempt to
do so results in a “Check Condition” status.
On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the
media prior to shipping the drive. Some drives may have unique firmware with unique default values also.
On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on
the media prior to shipping.
3. Current values
Current values are volatile values being used by the drive to control its operation. A MODE SELECT command can be used to change
the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset,
hard reset, or Bus Device Reset message.
4. Changeable values
Changeable values form a bit mask, stored in nonvolatile memory, that dictates which of the current values and saved values can be
changed by a MODE SELECT command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not change
able. For example, in Table 19, refer to Mode page 81, in the row entitled “CHG.” These are hex numbers representing the changeable
values for Mode page 81. Note in columns 5 and 6 (bytes 04 and 05), there is 00h which indicates that in bytes 04 and 05 none of the
bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields are all zeros. In byte 02, hex
value FF equates to the binary pattern 11111111. If there is a zero in any bit position in the field, it means that bit is not changeable.
Since all of the bits in byte 02 are ones, all of these bits are changeable.
The changeable values list can only be changed by downloading new firmware.
-
-
Note. Because there are often several different versions of drive control firmware in the total population of drives in the field, the
MODE SENSE values given in the following tables may not exactly match those of some drives.
The following tables list the values of the data bytes returned by the drive in response to the MODE SENSE command pages for SCSI
implementation (see the SAS Interface Manual ).
DEF = Default value. Standard OEM drives are shipped configured this way.
CHG = Changeable bits; indicates if default value is changeable.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 48
Table 18 MODE SENSE data for 800GB drives
MODE DATA HEADER:
01 3e 00 10 01 00 00 10
BLOCK DESCRIPTOR:
00 00 00 00 5d 26 ce b0 00 00 00 00 00 00 02 00
MODE PAGES:
DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff
CHG 81 0a 38 00 00 00 00 00 ff 00 00 00
DEF 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00
CHG 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00
DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff
CHG 87 0a 08 00 00 00 00 00 00 00 ff ff
DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00
CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00
DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff
CHG 8a 0a 07 f0 00 00 00 00 00 00 00 00
DEF 18 06 06 00 00 00 00 00
CHG 18 06 00 00 00 00 00 00
DEF 99 0e 46 00 07 d0 00 00 00 00 00 00 00 00 00 00
CHG 99 0e 50 00 ff ff ff ff ff ff 00 00 00 00 00 00
DEF 59 01 00 64 00 06 00 02 00 00 00 00 10 29 0e 00 50 00 c5 00 00 1b 9a 81 50 06 05 b0 00 00 fe e4 04 00 00 00 00 00 00 00
88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00 14 1a 0e 00 50 00 c5 00 00 1b 9a 82 50 06 05 b0 01 49 c2
60 02 00 00 00 00 00 00 00 88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CHG 59 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
DEF 59 03 00 2c 00 06 00 02 00 00 00 10 80 ac 00 01 00 ac 00 01 80 00 00 00 00 00 09 00 00 01 00 10 80 ac 00 01 80 ac 00 01
80 bc 00 00 00 00 1a 00
CHG 59 03 00 2c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0
CHG 9a 0a 00 02 ff ff ff ff 00 00 00 00
DEF 9c 0a 10 00 00 00 00 00 00 00 00 01
CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff
DEF dc 01 00 0c 01 00 01 50 00 00 00 00 00 00 00 00
CHG dc 01 00 0c 01 00 ff ff 00 00 00 00 00 00 00 00
DEF 80 06 00 80 00 00 00 00
CHG 80 06 b7 80 00 00 00 00
PULSAR.2 SAS PRODUCT MANUAL, REV. C 49
Table 19 MODE SENSE data for 400GB drives
MODE DATA HEADER:
01 3e 00 10 01 00 00 10
BLOCK DESCRIPTOR:
00 00 00 00 2e 93 90 b0 00 00 00 00 00 00 02 00
MODE PAGES:
DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff
CHG 81 0a 38 00 00 00 00 00 ff 00 00 00
DEF 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00
CHG 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00
DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff
CHG 87 0a 08 00 00 00 00 00 00 00 ff ff
DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00
CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00
DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff
CHG 8a 0a 07 f0 00 00 00 00 00 00 00 00
DEF 18 06 06 00 00 00 00 00
CHG 18 06 00 00 00 00 00 00
DEF 99 0e 46 00 07 d0 00 00 00 00 00 00 00 00 00 00
CHG 99 0e 50 00 ff ff ff ff ff ff 00 00 00 00 00 00
DEF 59 01 00 64 00 06 00 02 00 00 00 00 10 09 0e 00 50 00 c5 00 00 1b 32 89 50 06 05 b0 00 00 fe e4 04 00 00 00 00 00 00 00
88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00 14 1a 0e 00 50 00 c5 00 00 1b 32 8a 50 06 05 b0 01 49 c2
60 02 00 00 00 00 00 00 00 88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CHG 59 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
DEF 59 03 00 2c 00 06 00 02 00 00 00 10 80 ac 00 01 80 ac 00 01 00 00 00 00 00 00 09 00 00 01 00 10 80 ac 00 01 80 ac 00 01
80 bc 00 00 00 00 1a 00
CHG 59 03 00 2c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0
CHG 9a 0a 00 02 ff ff ff ff 00 00 00 00
DEF 9c 0a 10 00 00 00 00 00 00 00 00 01
CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff
DEF dc 01 00 0c 01 00 01 50 00 00 00 00 00 00 00 00
CHG dc 01 00 0c 01 00 ff ff 00 00 00 00 00 00 00 00
DEF 80 06 00 80 00 00 00 00
CHG 80 06 b7 80 00 00 00 00
PULSAR.2 SAS PRODUCT MANUAL, REV. C 50
Table 20 MODE SENSE data for 200GB drives
MODE DATA HEADER:
01 3e 00 10 01 00 00 10
BLOCK DESCRIPTOR:
00 00 00 00 17 49 f1 b0 00 00 00 00 00 00 02 00
MODE PAGES:
DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff
CHG 81 0a 38 00 00 00 00 00 ff 00 00 00
DEF 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00
CHG 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00
DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff
CHG 87 0a 08 00 00 00 00 00 00 00 ff ff
DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00
CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00
DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff
CHG 8a 0a 07 f0 00 00 00 00 00 00 00 00
DEF 18 06 06 00 00 00 00 00
CHG 18 06 00 00 00 00 00 00
DEF 99 0e 46 00 07 d0 00 00 00 00 00 00 00 00 00 00
CHG 99 0e 50 00 ff ff ff ff ff ff 00 00 00 00 00 00
DEF 59 01 00 64 00 06 00 02 00 00 00 00 10 09 0e 00 50 00 c5 00 00 1b 3f 1a 50 06 05 b0 00 00 fe e4 05 00 00 00 00 00 00 00
88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00 14 1a 0e 00 50 00 c5 00 00 1b 3f a2 50 06 05 b0 01 49 c2 60
00 00 00 00 00 00 00 00 88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CHG 59 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
DEF 59 03 00 2c 00 06 00 02 00 00 00 10 80 ac 00 01 80 ac 00 01 00 00 00 00 00 00 09 00 00 01 00 10 80 ac 00 01 80 ac 00 01
80 bc 00 00 00 00 1a 00
CHG 59 03 00 2c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0
CHG 9a 0a 00 02 ff ff ff ff 00 00 00 00
DEF 9c 0a 10 00 00 00 00 00 00 00 00 01
CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff
DEF dc 01 00 0c 01 00 01 50 00 00 00 00 00 00 00 00
CHG dc 01 00 0c 01 00 ff ff 00 00 00 00 00 00 00 00
DEF 80 06 00 80 00 00 00 00
CHG 80 06 b7 80 00 00 00 00
PULSAR.2 SAS PRODUCT MANUAL, REV. C 51
Table 21 MODE SENSE values for 100GB drives
MODE DATA HEADER:
01 3e 00 10 01 00 00 10
BLOCK DESCRIPTOR:
00 00 00 00 0b a5 22 30 00 00 00 00 00 00 02 00
MODE PAGES:
DEF 81 0a 00 01 5a 00 00 00 0b 00 ff ff
CHG 81 0a 08 00 00 00 00 00 ff 00 00 00
DEF 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00
CHG 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00
DEF 87 0a c0 01 5a 00 00 00 00 00 ff ff
CHG 87 0a 38 00 00 00 00 00 00 00 ff ff
DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00
CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00
DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff
CHG 8a 0a 07 f0 00 00 00 00 00 00 00 00
DEF 18 06 06 00 00 00 00 00
CHG 18 06 00 00 00 00 00 00
DEF 99 0e 46 00 07 d0 00 00 00 00 00 00 00 00 00 00
CHG 99 0e 50 00 ff ff ff ff ff ff 00 00 00 00 00 00
DEF 59 01 00 64 00 06 00 02 00 00 00 00 10 29 0e 00 50 00 c5 00 00 1b 8e 91 50 06 05 b0 00 00 fe e4 05 00 00 00 00 00 00 00
88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00 14 0a 0e 00 50 00 c5 00 00 1b 8e 92 50 06 05 b0 01 49 c2 60
00 00 00 00 00 00 00 00 88 aa 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CHG 59 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00
DEF 59 03 00 2c 00 06 00 02 00 00 00 10 80 ac 00 01 80 ac 00 01 00 00 00 00 00 00 09 00 00 01 00 10 80 ac 00 01 80 ac 00 01
80 bc 00 00 00 00 1a 00
CHG 59 03 00 2c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0
CHG 9a 0a 00 02 ff ff ff ff 00 00 00 00
DEF 9c 0a 10 00 00 00 00 00 00 00 00 01
CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff
DEF dc 01 00 0c 01 00 01 50 00 00 00 00 00 00 00 00
CHG dc 01 00 0c 01 00 ff ff 00 00 00 00 00 00 00 00
DEF 80 06 00 80 00 00 00 00
CHG 80 06 b7 80 00 00 00 00
PULSAR.2 SAS PRODUCT MANUAL, REV. C 52
11.4 MISCELLANEOUS OPERATING FEATURES AND CONDITIONS
Table 22 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the
support column indicates the feature or condition is not supported.
Table 22 Miscellaneous features
SUPPORTED FEATURE OR CONDITION
N Automatic contingent allegiance
N Asynchronous event notification
Y Segmented caching
N Zero latency read
Y Queue tagging (up to 128 queue tags supported)
Y Deferred error handling
Y Parameter rounding (controlled by Round bit in MODE SELECT page 0)
N Reporting actual retry count in Extended Sense bytes 15, 16, and 17
Table 23 Miscellaneous status
SUPPORTED STATUS
Y Good
Y Check condition
Y Condition met/good
Y Busy
Y Reservation conflict
Y Task set full
N ACA active
N ACA active, faulted initiator
N Task Aborted
11.4.1 SAS physical interface
Figure 17 shows the location of the SAS device connector J1. Figures 18 and 19 provide the dimensions of the SAS connector.
Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s SAS
drives are provided in the SAS Interface Manual.
Figure 17. Physical interface
PULSAR.2 SAS PRODUCT MANUAL, REV. C 53
0.80 (6X)
0.30 0.05 (2X)
2.00 (3X)
7.625.92
5.08
42.73 REF.
41.13 0.15
0.20 B
C
A
4.65
0.45 0.03 (7X)
0.10 M
E
0.52 0.08 x 45
B
1.10
4.00 0.08
0.15 D
0.30 0.05 (4X)
0.35MIN
C OF DATUM D
L
A
B
15.875
1.27 (14X)
P15
C
33.43 0.05
5.08
C OF DATUM B
L
15.875
1.27 (6X)
P1
SEE Detail1
B
0.84 0.05 (22X)
S1
S7
R0.30 0.08 (4X)
0.15 B
4.90 0.08
Figure 18. SAS device plug dimensions
PULSAR.2 SAS PRODUCT MANUAL, REV. C 54
Detail A
SEE Detail 2
2.25 0.05
4.85 0.05
0.10 B
E
S14
6.10
CORING ALLOWED
IN THIS AREA.
4.40 0.15
S8
0.30 0.05 x 45 (5X)
0.40 0.05 X 45 (3X)
R0.30 0.08
A
45
C
1.95 0.08
3.90 0.15
1.23 0.05
0.08 0.05
SECTION A - A
0.08 0.05
Detail 2
0.35 0.05
CONTACT SURFACE FLUSH
TO DATUM A 0.03
30
2.40 0.08
0.10 A
D
SECTION C - C
65
SECTION B - B
1.90 0.08
Figure 19. SAS device plug dimensions (detail)
PULSAR.2 SAS PRODUCT MANUAL, REV. C 55
11.4.2 Physical characteristics
This section defines physical interface connector.
11.4.3 Connector requirements
Contact your preferred connector manufacturer for mating part information. Part numbers for SAS connectors will be provided in a future
revision of this publication when production parts are available from major connector manufacturers.
The SAS device connector is illustrated in Figures 18 and 19.
11.4.4 Electrical description
SAS drives use the device connector for:
• DC power
• SAS interface
• Activity LED
This connector is designed to either plug directly into a backpanel or accept cables.
11.4.5 Pin descriptions
This section provides a pin-out of the SAS device and a description of the functions provided by the pins.
Table 24 SAS pin descriptions
PIN SIGNAL NAME SIGNAL TYPE PIN SIGNAL NAME SIGNAL TYPE
S1 Port A Ground P1* NC (reserved 3.3Volts)
S2* +Port A_in Diff. input pair P2* NC (reserved 3.3Volts)
S3* -Port A_in P3 NC (reserved 3.3Volts)
S4 Port A Ground P4 Ground
S5* -Port A_out Diff output pair P5 Ground
S6* +Port A_out P6 Ground
S7 Port A Ground P7 5 Volts charge
S8 Port B Ground P8* 5 Volts
S9* +Port B_in Diff. input pair P9* 5 Volts
S10* -Port B_in P10 Ground
S11 Port A Ground P11* Ready LED Open collector out
S12* -Port B_out Diff output pair P12 Ground
S13* +Port B_out P13 12 Volts charge
S14 Port B Ground P14* 12 Volts
P15* 12 Volts
* - Short pin to support hot plugging
NC - No connection in the drive.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 56
11.4.6 SAS transmitters and receivers
A typical SAS differential copper transmitter and receiver pair is shown in Figure 20. The receiver is AC coupling to eliminate ground shift
noise.
Figure 20. SAS transmitters and receivers
11.4.7 Power
The drive receives power (+5 volts and +12 volts) through the SAS device connector.
Three +12 volt pins provide power to the drive, 2 short and 1 long. The current return for the +12 volt power supply is through the common
ground pins. The supply current and return current must be distributed as evenly as possible among the pins.
Three +5 volt pins provide power to the drive, 2 short and 1 long. The current return for the +5 volt power supply is through the common
ground pins. The supply current and return current must be distributed as evenly as possible among the pins.
Current to the drive through the long power pins may be limited by the system to reduce inrush current to the drive during hot plugging.
11.5 SIGNAL CHARACTERISTICS
This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 24 for signal type and signal
name information.
11.5.1 Ready LED Out
The Ready LED Out signal is driven by the drive as indicated in Table 25.
Table 25 Ready LED Out conditions
NORMAL COMMAND ACTIVITY LED STATUS
Ready LED Meaning bit mode page 19h
Drive stopped, not ready, and no activity Off Off
Drive stopped, not ready, and activity
(command executing)
Drive started, ready, and no activity On Off
Drive started, ready, and activity
(command executing)
Drive transitioning from not-ready state to
ready state or the reverse.
(50% on and 50% off, 0.5 seconds on and off for 0.5 seconds)
01
On On
Off On
Blinks steadily
FORMAT UNIT in progress, Toggles on/off
The Ready LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +3.3 volt supply through
an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive. See Table 26 for the output
characteristics of the LED drive signals.
Table 26 LED drive signal
STATE TEST CONDITION OUTPUT VOLTAGE
LED off, high 0 V ≤ VOH ≤ 3.6 V -100 μA < IOH < 100 μA
LED on, low I
= 15 mA 0 ≤ VOL ≤ 0.225 V
OL
PULSAR.2 SAS PRODUCT MANUAL, REV. C 57
11.5.2 Differential signals
The drive SAS differential signals comply with the intra-enclosure (internal connector) requirements of the SAS standard.
Table 27 defines the general interface characteristics
Table 27 General interface characteristics
CHARACTERISTIC UNITS 1.5GB/S 3.0GB/S 6.0GB/S
Bit rate (nominal) Mbaud 1,500 3,000 6,000
Unit interval (UI)(nominal) ps 666.6 333.3 166.6
Impedance (nominal, differential ) ohm 100 100 100
Transmitter transients, maximum V ± 1.2 ± 1.2 ± 1.2
Receiver transients, maximum V ± 1.2 ± 1.2 ± 1.2
11.6 SAS-2 SPECIFICATION COMPLIANCE
Seagate SAS-2 drives are entirely compatible with the latest SAS-2 Specification (T10/1760-D) Revision 16.
The most important characteristic of the SAS-2 drive at 6Gb/s is that the receiver is capable of adapting the equalizer to optimize the
receive margins. The SAS-2 drive has two types of equalizers:
1. A Decision Feedback Equalizer (DFE) which utilizes the standard SAS-2 training pattern transmitted during the SNW-3 training gap.
The DFE circuit can derive an optimal equalization characteristic to compensate for many of the receive losses in the system.
2. A Feed Forward Equalizer (FFE) optimized to provide balanced receive margins over a range of channels bounded by the best and
worst case channels as defined by the relevant ANSI standard.
11.7 ADDITIONAL INFORMATION
Please contact your Seagate representative for SAS electrical details, if required.
For more information about the Phy, Link, Transport, and Applications layers of the SAS interface, refer to the Seagate SAS Interface
Manual, part number 100293071.
For more information about the SCSI commands used by Seagate SAS drives, refer to the Seagate SCSI Commands Reference Manual,
part number 100293068.
PULSAR.2 SAS PRODUCT MANUAL, REV. C 58
INDEX
NUMERICS
12 volt
pins 57
5 volt pins 57
6 Gbps 58
A
abort task set function 42
AC coupling 57
AC power requirements 19
ACA active status 53
ACA active, faulted initiator status 53
access time
average latency 10
average typical 10
page to page typical 10
active LED Out signal 57
Admin SP 35
AES-256 data encryption 35
air cleanliness 31
air flow 40, 41
illustrated 41
air inlet 40
altitude 29
ambient 29
ambient temperature 19
ANSI documents
SCSI 5
Serial Attached SCSI 5
asynchronous event notification 53
audible noise 3
automatic contingent allegiance 53
Auto-Reallocation 38
average idle current 20, 21, 22, 23
B
Background Media Scan 38
backpanel 56
Band 0 36
BandMasterX 35
BMS 38
busy status 53
C
cache control 12
caching write data 12
Canadian Department of Communications 3
capacity
unformatted 10
case 41
CBC 35
CE Marking 4
check condition status 53
China RoHS directive 5
Cipher Block Chaining 35
class B limit 3
clear ACA function 42
clear task set function 42
CMVP 34
commands supported 43
condensation 29
condition met/good status 53
connector
illustrated 56
requirements 56
cooling 40
CRC
error 13
Cryptographic Erase 36
Cryptographic erase 36
Current profiles 24
customer service 18
D
Data Bands 36
data bands 35
data block size
modifing the 7
Data encryption 35
Data Encryption Key 35
Data Retention 13, 14
DATA Returned for Thin Provisioned LBA 9
DC power 19, 56
requirements 20
Decision Feedback Equalizer 58
decrypt 35
default MSID password 35
defects 37
deferred error handling 53
DEK 35
description 6
DFE 58
dimensions 32
drive 31
drive characteristics 10
drive failure 15
Drive Locking 35
drive mounting 32, 41
drive select 56
dual port support 42
E
electrical
description of connector 56
signal characteristics 57
specifications 19
electromagnetic compatibility 3
electromagnetic susceptibility 31
EMI requirements 3
encryption engine 35
encryption key 36
PULSAR.2 SAS PRODUCT MANUAL, REV. C 59
INDEX
Endurance 13
Endurance Management 14
environment 40
environmental
limits 28
requirements 13
environmental control 31
EraseMaster 35
error
management 37
rates 13
Error reported to Host 9
errors 37
European Union Restriction of Hazardous Substances 4
F
FCC rules and regulations 3
features 6
interface 42
Federal Information Processing Standard 34
feed forward equalizer 58
FFE 58
FIPS 34
firmware 6
corruption 46
firmware download port 35
Format command execution time 10
function
complete, code 00 42
not supported, code 05 42
reject, code 04 42
G
Garbage Collection 14
Global Data Band 36
Good status 53
gradient 29
ground shift noise 57
grounding 41
H
heat removal 40
heat source 40
host equipment 41
hot plugging the drive 15
humidity 29
humidity limits 28
I
Identifying a PI drive 39
Idle mode 19
Idle mode power 19
input voltage 19
inquiry data 47
installation 40
guide 5
interface
commands supported 43
error rate 13
errors 13
illustrated 53
physical 53
requirements 42
internal defects/errors 37
internal drive characteristics 10
J
jumpers 40
L
LBPME bit 9
LBPRZ bit 9
Lifetime Endurance Management 14
Locking SP 35
LockOnReset 35
Logical Block Provisioning 8
logical block size 6
M
maintenance 13
Manufacturers Secure ID 35
maximum delayed motor start 20, 21, 22, 23
maximum start current 20, 21, 22, 23
mean time between failure. See MTBF
media description 7
miscellaneous feature support
Asynchronous event notification 53
Automatic contingent allegiance 53
Deferred error handling 53
Parameter rounding 53
Queue tagging 53
Reporting actual retry count 53
Segmented caching 53
Zero latency read 53
miscellaneous status support
ACA active 53
ACA active, faulted initiator 53
Busy 53
Check condition 53
Condition met/good 53
Good 53
Reservation conflict 53
Task set full 53
miscorrected media data 13
Mode sense
data, table 48, 49, 50, 51
mounting 41
holes 41
orientations 40
mounting configuration 32
PULSAR.2 SAS PRODUCT MANUAL, REV. C 60
INDEX
mounting configuration dimensions 32, 33
MSID 35
MTBF 13, 15
N
NIST website 34
noise
audible 3
noise immunity 24
non-operating 29, 30, 31
temperature 29
non-operating vibration 31
NVLAP 34
O
office environment 31
operating 29, 30, 31
option selection 56
options 8
out-of-plane distortion 41
P
packaged 30
parameter rounding 53
password 35
passwords 35
PCBA 41
peak operating current 20, 21, 22, 23
Peak operating mode 19
peak-to-peak measurements 24
Performance 11
performance characteristics 10
detailed 10
performance highlights 7
physical damage 31
physical interface 53
physical specifications 19
PI Check Performed 9
PI Check Requested 9
PI level - Type 0 39
PI level - Type I 39
PI level - Type II 39
PI level - Type III 39
PI Levels 39
PI Returned for Thin Provisioned LBA 9
PI Setting 9
pin descriptions 56
power 57
dissipation 27
requirements, AC 19
requirements, DC 20
sequencing 24
Power consumption 19
power distribution 3
Power specifications 19
PowerChoice 19
PowerCycle 35
preventive maintenance 13
PROT_EN bit 9
protection information 39
protection of data at rest 35
Q
queue tagging 53
R
radio interference regulations 3
Random number generator 35
read error rates 13, 37
ReadLockEnabled 35
receivers 57
recommended mounting 30
reference
documents 5
relative humidity 29
reliability 7
specifications 13
reliability and service 15
repair and return information 18
reporting actual retry count 53
reservation conflict status 53
resonance 30
return information 18
RevertSP 36
RNG 35
RoHS 4, 5
S
safety 3
Sanitize 36
sanitize feature set 36
SAS
interface 56
physical interface 53
task management functions 42
SAS documents 5
SAS Interface Manual 3, 5
SAS-2 Specification 58
SCSI interface
commands supported 43
Seagate Technology Support Services 1
Secure ID 35
Security Protocol In 35
Security Protocol Out 35
security providers 35
segmented caching 53
self-encrypting drives 35
Self-Monitoring Analysis and Reporting Technology 7, 15
Serial Attached SCSI (SAS) Interface Manual 2
shielding 3
PULSAR.2 SAS PRODUCT MANUAL, REV. C 61
INDEX
shipping 18
shipping container 29
shock 30
and vibration 30
shock mount 41
SID 35
signal
characteristics 57
single-unit shipping pack kit 8
SMART 7, 15
SNW-3 training gap 58
Specification 58
SSD Physical format address descriptor 37
standards 3
start/stop time 12
Startup power 19
surface stiffness
allowable for non-flat surface 41
system chassis 41
T
Task Aborted 53
task management functions 42
Abort task set 42
Clear ACA 42
Clear task set 42
terminate task 42
task management response codes 42
Function complete 00 42
Function not supported 05 42
Function reject 04 42
task set full status 53
TCG 35
temperature 29, 40
limits 28
non-operating 29
regulation 3
See also cooling
terminate task function 42
Thin Provisioning 8
transmitters 57
transporting the drive 18
Trusted Computing Group 35
Type 1 PI format 39
Type 2 PI format 39
W
warranty 18
Wear Leveling 14
Write Amplification 14
WriteLockEnabled 35
Z
zero latency read 53
U
unformatted 7
Unmap 9, 14
Unrecoverable Errors 13
unrecovered media data 13
V
vibration 30, 31
voltage 19
PULSAR.2 SAS PRODUCT MANUAL, REV. C 62
