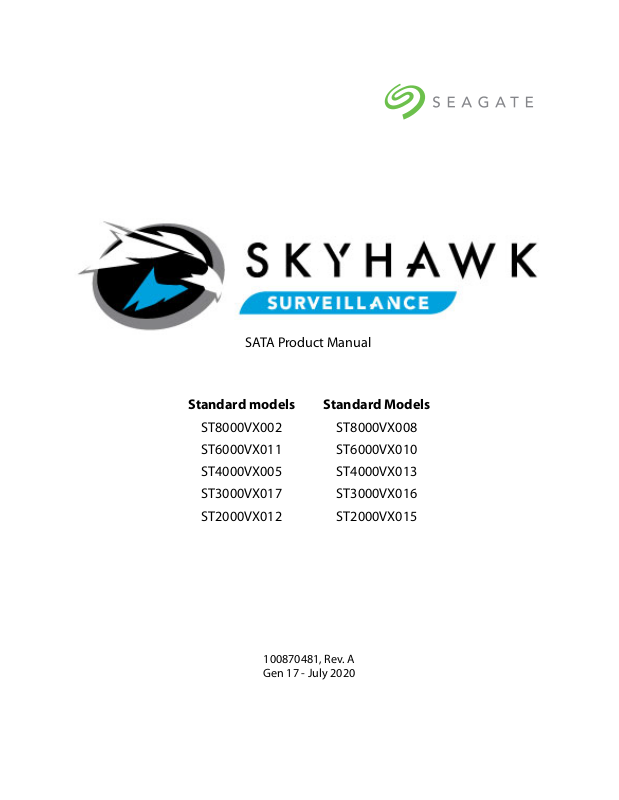

SATA Product Manual
Standard models
ST8000VX002
ST6000VX011
ST4000VX005
ST3000VX017
ST2000VX012
100870481, Rev. A
Gen 17 - July 2020
Standard Models
ST8000VX008
ST6000VX010
ST4000VX013
ST3000VX016
ST2000VX015
Page 2
Document Revision History
Revision Date Pages affected
Rev. A 07/01/2020 Initial release.
© 2020 Seagate Technology LLC. All rights reserved.
Publication number: 100870481, Rev. A July 2020
Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SkyHawk and SeaTools are either trade-
marks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are
the property of their respective owners.
No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1(877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different
standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage.
Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and
other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more
information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.
Page 3
Contents
Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 About the SATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 LBA mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Default logical geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Recording and interface technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.5 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.7.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.7.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.7.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.7.4 Power-management modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.1 Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.2 Temperature gradient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.4 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.8.5 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.8.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.9.1 Test for Prominent Discrete Tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.10 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.11.1 Data loss under power interruption with write cache enabled . . . . . . . . . . . . . . . . . . . . . . 17
2.11.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.11.3 HDD and SSD Regulatory Compliance and Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.11.4 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.12 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Seagate SkyHawk Product Manual, Rev. A 2
Page 4
Contents
3.0 Configuring and Mounting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 SATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.0 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 SATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Seagate SkyHawk Product Manual, Rev. A 3
Page 5
Figures
Figure 1 Location of the HDA temperature check point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 2 Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 3 Mounting dimensions (4TB, 3TB & 2TB models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 4 Mounting dimensions (8TB & 6TB models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Seagate SkyHawk Product Manual, Rev. A 4
Page 6
Seagate® Technology Support Services
For Seagate Product Support, visit: https://www.seagate.com/support
For Seagate Compliance, Safety, and Disposal, visit: https://www.seagate.com/support
For Firmware Download and Tools Download for Secure Erase, visit: https://www.seagate.com/support/downloads/
For information regarding online support and services, visit: http://www.seagate.com/contacts/
For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/
For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/
For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners
Seagate SkyHawk Product Manual, Rev. A 5
Page 7
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following
Seagate® Skyhawk and model drives:
Standard models Standard models
ST8000VX002 ST8000VX008
ST6000VX011 ST6000VX010
ST4000VX005 ST4000VX013
ST3000VX017 ST3000VX016
ST2000VX012 ST2000VX015
These drives provide the following key features:
• 1M hour MTBF - designed for high write duty cycle across SkyHawk
• ATA AV Command support - streaming video command support across SkyHawk
• Best-in-class acoustic performance means virtually silent operation
• Built-in error recovery for non-stop video streaming
• Compliant with RoHS requirements in China and Europe
• Full-track multiple-sector transfer capability without local processor intervention
• Idle3 power mode support
• Low activity power
• Low-RPM spindle speed
• Native Command Queuing with command ordering to increase performance in demanding applications
• Performance-tuned for seamless video applications
• Reliability for 24×7 video surveillance applications
• Rotational Vibration - mitigation of system level rotational vibration inside SkyHawk
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• State-of-the-art cache and on-the-fly error-correction algorithms
• Streaming video optimization - consistent command completion times & ERC support across SkyHawk
• Support for S.M.A.R.T. drive monitoring and reporting
•Supports "8+" drive bays
• Supports ATA8 streaming commands
• Supports latching SATA cables and connectors
• Supports up to 64 HD cameras for recording and playback
• Thermal monitoring and reporting for 24×7 operations
• Transient power on management - <=1.8A spin-up current
• Uncompromising reliability supports flexible surveillance design with case temperatures up to 70ºC
• Workload ratings of 180TB/year
• Worldwide Name (WWN) capability uniquely identifies the drive
Seagate SkyHawk Product Manual, Rev. A 6
Page 8
www.seagate.com Introduction
1.1 About the SATA interface
The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other
configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to
allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing
applications to work as normal.
The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no
master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host
adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This
essentially means both drives behave as if they are Device 0 (master) devices.
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward
compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data
transfers, resets, and interrupts are all emulated.
The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as
the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA
emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.0”. The specification can be
downloaded from www.sata-io.or
g.
Note
The host adapter may, optionally, emulate a master/slave environment to host software where two
devices on separate SATA ports are represented to host software as a Device 0 (master) and Device 1
(slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave
environment manages two sets of shadow registers. This is not a typical SATA environment.
Seagate SkyHawk Product Manual, Rev. A 7
Page 9
2.0 Drive Specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For
convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models
Standard models Standard models
ST8000VX002 ST8000VX008
ST6000VX011 ST6000VX010
ST4000VX005 ST4000VX013
ST3000VX017 ST3000VX016
ST2000VX012 ST2000VX015
2.1 Specification summary tables
The specifications listed in Table 1 are for quick reference.
For details on specification measurement or definition, refer to the appropriate section of this manual.
Table 1 Drive specifications summary
Drive Specification*
ST8000VX002,
ST8000VX008
ST6000VX010,
ST6000VX011
ST4000VX005,
ST4000VX013
ST3000VX016,
ST3000VX017
ST2000VX012,
ST2000VX015
Formatted capacity
(512 bytes/sector)**
Guaranteed sectors 15,628,053,168 11,721,045,168 7,814,037,168 5,860,533,168 3,907,029,168
Heads 8 4 2
Disks 4 2 1
Bytes per sector
(emulated at 512-byte sectors)
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 2197 kB/in
Track density (avg) 540 ktracks/in
Areal density (avg) 1186 Gb/in
SATA interface transfer rate 600 MB/s
Maximum data transfer rate 180 MB/s
ATA data-transfer modes supported
Cache buffer 256MB
Height 26.1mm / 1.028 in (max) 20.20mm / 0.795 in (max)
Width 101.6mm (± 0.25) / 4.0 in (± 0.010)
Length 146.99mm / 5.787 in (max)
Weight (typical) 630g / 1.389 lb 610g / 1.345 lb 490g / 1.08 lb 415g / 0.915 lb
Average latency 6.0 ms
Power-on to ready (typ) 15.0s 10.0s 8.0s
Standby to ready (typ) 15.0s 10.0s 8.0s
Startup current (typical) 12V 1.8A 1.1A
Voltage tolerance (including noise)
Non-Operating (Ambient °C) –40° to 70°
8000GB (8TB) 6000GB (6TB) 4000GB (4TB) 3000GB (3TB) 2000GB (2TB)
4096 (physical)
2
900 Gb/in
2
Multiword DMA modes: 0 to 2
1186 Gb/in
PIO modes: 0 to 4
Ultra DMA modes 0 to 6
5V ±5%
12V ±10%
2
900 Gb/in
2
1186 Gb/in
2
Seagate SkyHawk Product Manual, Rev. A 8
Page 10
www.seagate.com Drive Specifications
Table 1 Drive specifications summary (continued)
Drive Specification*
Operating ambient temperature
(min °C)
#
Operating temperature
(drive case max °C)
Temperature gradient
Relative humidity
ST8000VX002,
ST8000VX008
ST6000VX010,
ST6000VX011
20°C per hour max (operating)
30°C per hour max (non-operating)
5% to 95% (non-operating)
ST4000VX005,
ST4000VX013
0°
†
70°
5% to 90% (operating)
ST3000VX016,
ST3000VX017
ST2000VX012,
ST2000VX015
Relative humidity gradient (max) 30% per hour
Wet bulb temperature (max)
Altitude, operating
Altitude, non-operating
(below mean sea level, max)
30°C max (operating)
40°C max (non-operating)
–304m to 3048m
(–1000 ft to 10,000 ft)
–304m to12,192m
(–1000 ft to 40,000+ ft)
Operational shock (max) 80 Gs (read) / 70 Gs (write) at 2ms
Non-operational shock (max) 300 Gs at 2ms 350 Gs at 2ms
10Hz to 22Hz: 0.25 Gs, Limited displacement
Vibration, operating
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
5Hz to 22Hz: 3.0 Gs
Vibration, non-operating
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
Drive acoustics, sound power
Idle***
Seek
Non-recoverable read errors 1 per 10
2.6 bels (typical)
2.7 bels (max)
2.7 bels (typical)
2.8 bels (max)
14
bits read
Average annualized workload rating: <180TB/year.
The specifications for the product assumes the I/O workload does not exceed the average
Rated workload
annualized workload rate limit of 180TB/year. Workloads exceeding the annualized rate may
degrade and impact reliability as experienced by the particular application. The average
annualized workload rate limit is in units of TB per calendar year.
To determine the warranty for a specific drive, use a web browser to access the following
web page: http://www.seagate.com/support/warranty-and-replacements/
Warranty
From this page, click on “Is my Drive under Warranty”. Users will be asked to provide the
drive serial number, model number (or part number) and country of purchase. The system
will display the warranty information for the drive.
Load/unload cycles
(at 25°C, 50% rel. humidity)
Supports hotplug operation per the
Serial ATA Revision 3.2 specification
600,000
Yes
* All specifications above are based on native configurations.
** One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity.
Accessible capacity may vary depending on operating environment and formatting.
*** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T.
specification, which may increase acoustic and power to operational levels.
† Seagate does not recommend operating at sustained case temperatures above 60°C.
Operating at higher temperatures will reduce useful life of the product.
# The operating case temperature is 0 to 70°C (32 to 158°F).
The recommended measure location can be found in Section 3.4 Figure 3 & 4.
Note
If the drive is powered-off before issuing flush cache command, in some instances,
the end user data in the DRAM cache might not be committed to the disk.
Seagate SkyHawk Product Manual, Rev. A 9
Page 11
www.seagate.com Drive Specifications
2.2 Formatted capacity
Model Formatted capacity* Guaranteed sectors Bytes per sector
8TB 8000GB 15,628,053,168
6TB 6000GB 11,721,045,168
4TB 4000GB 7,814,037,168
3TB 3000GB 5,860,533,168
2TB 2000GB 3,907,029,168
*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary
depending on operating environment and formatting.
4096
2.2.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the
number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit
addressing support of drives with capacities over 137GB.
2.3 Default logical geometry
• Cylinders: 16,383
• Read/write heads: 16
• Sectors per track: 63
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the
number of guaranteed sectors as defined above.
2.4 Recording and interface technology
Models 6TB & 3TB 8TB, 4TB & 2TB
Interface SATA
Recording method SMR
Recording density (kBPI) 2197
Track de nsity (ktracks/inch avg) 540
Areal density (Gb/in
Interface transfer rate (MB/s) 600
Data transfer rate (MB/s) up to 180
2
) 900 1186
Seagate SkyHawk Product Manual, Rev. A 10
Page 12
www.seagate.com Drive Specifications
2.5 Physical characteristics
Height
8TB & 6TB 26.1mm / 1.028 in (max)
2TB, 3TB & 4TB 20.20mm / 0.795 in (max)
Width 101.6mm (± 0.25) / 4.0 in (± 0.010 in)
Length 146.99mm / 5.787 in (max)
Typical weight
8TB 630g / 1.389 lb
6TB 610g / 1.345 lb
3TB & 4TB 490g / 1.08 lb
2TB 415g / 0.915 lb
Cache buffer 256MB
2.6 Start/stop times
The start/stop times are listed below.
8TB & 6TB models 4TB & 3TB models 2TB models
Power-on to ready
(in seconds)
Standby to ready
(in seconds)
Ready to spindle stop
(in seconds)
15 (typical) 10 (typical) 8 (typical)
15 (typical) 10 (typical) 8 (typical)
18 (typical) 12 (typical) 10 (typical)
Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown
procedures.
Seagate SkyHawk Product Manual, Rev. A 11
Page 13
www.seagate.com Drive Specifications
2.7 Power specifications
The drive receives DC power (+5V or +12V) through a native SATA power connector. Refer to Figure 2 on page 18.
2.7.1 Power consumption
Power requirements for the drives are listed in Table 2 and Table 3. Typical power measurements are based on an average
of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature. These power
measurements are done with DIPM enabled.
• Spinup current is measured from the time of power-on to the time that the drive spindle reaches operating
speed.
• Operating Power is measured following IDEMA 3 streams standard, assuming CE operating condition
• The drive supports three idle modes: Performance Idle mode, Active Idle mode and Low Power Idle mode.
Refer to Section 2.7.4 for power-management mode.
Table 2 DC power requirements (8TB & 6TB)
Power dissipation Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 1.8
Idle, Low Power 3.4 0.10 0.242
Operating Power 5.3 0.28 0.325
Standby 0.25 0.04 0.004
Sleep 0.25 0.04 0.004
Table 3 DC power requirements (4TB, 3TB & 2TB)
Power dissipation Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 1.8
Idle, Low Power 2.5 0.12 0.15
Operating Power 3.7 0.28 0.191
Standby 0.25 0.04 0.004
Sleep 0.25 0.04 0.004
2.7.2 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt
line or an equivalent 15-ohm resistive load on the +5 volt line.
• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave injected
noise at up to 10MHz.
• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected
noise at up to 10MHz.
Note
Seagate SkyHawk Product Manual, Rev. A 12
Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.
Page 14
www.seagate.com Drive Specifications
2.7.3 Voltage tolerance
Voltage tolerance (including noise):
•5VDC ±5%
• 12VDC ±10%
2.7.4 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems, users can
control power management through the system setup program. The drive features the following power-management
modes:
Power modes Heads Spindle Electronics
Active Tracking Rotating Full Power
Idle, Performance Tracking Rotating Full Power
Idle, Active Floating Rotating Partial Power
Idle, Low Power Parked Rotating Partial Power
Standby Parked Stopped Low Power
Sleep Parked Stopped Low Power
•Active mode
The drive is in Active mode during the read/write and seek operations.
• Idle mode
The electronics remain powered, and the drive accepts all commands and returns to Active mode when disk access
is necessary.
•Standby mode
The drive enters Standby mode immediately when the host sends a Standby Immediate command. If the host has
set the standby timer, the drive enters Standby mode automatically after the drive has been inactive for a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In Standby mode, the
electronics are in low power mode, the heads are parked and the spindle is at rest. The drive accepts all commands
and returns to Active mode when disk access is necessary.
• Sleep mode
The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the electronics are in
low power mode, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard
Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and begins
counting down from its specified delay times to zero. If the standby timer reaches zero before any drive activity is
required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary.
Seagate SkyHawk Product Manual, Rev. A 13
Page 15
www.seagate.com Drive Specifications
HDA Temp.
Check Point
2.8 Environmental specifications
This section provides the temperature, humidity, shock, and vibration specifications for SkyHawk drives. Ambient
temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000ft. (305
meters), the maximum temperature is derated linearly by 1°C every 1000 ft. Refer to
Section 3.4 on page 19 for base plate
measurement location.
2.8.1 Ambient Temperature
Non-operating (Ambient) –40° to 70°C (–40° to 158°F)
Operating ambient (min °C) 0° (32°F)
Operating (Drive case max °C) 70° (158°F)
† Seagate does not recommend operating at sustained case temperatures above 60°C.
Operating at higher temperatures will reduce useful life of the product.
†
Figure 1 Location of the HDA temperature check point
Note Image is for reference only, may not represent actual drive.
2.8.2 Temperature gradient
Operating 20°C per hour (36°F per hour max), without condensation
Non-operating 30°C per hour (54°F per hour max)
2.8.3 Humidity
2.8.3.1 Relative humidity
Operating 5% to 90% non-condensing (30% per hour max)
non-operating 5% to 95% non-condensing (30% per hour max)
2.8.3.2 Wet bulb temperature
Operating 30°C / 86°F (rated)
Non-operating 40°C / 104°F (rated)
Seagate SkyHawk Product Manual, Rev. A 14
Page 16
www.seagate.com Drive Specifications
2.8.4 Altitude
Operating –304m to 3048m (–1000 ft. to 10,000 ft.)
Non-operating –304m to 12,192m (–1000 ft. to 40,000+ ft.)
2.8.5 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting
screws. Shock may be applied in the X, Y or Z axis.
2.8.5.1 Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum operating
shock of 80 Gs (read) / 70 Gs (write) based on half-sine shock pulses of 2ms during read operations. Shocks should not be
repeated more than two times per second.
2.8.5.2 Non-operating shock
The non-operating shock level that the drive can experience without incurring physical damage or degradation in
performance when subsequently put into operation is 300 Gs based on a non-repetitive half-sine shock pulse of
2ms duration.
2.8.6 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive
mounting screws. Vibration may be applied in the X, Y or Z axis. Throughput may vary if improperly mounted.
2.8.6.1 Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards specified in this
document are specified below.
10Hz to 22Hz 0.25 Gs (Limited displacement)
22Hz to 350Hz 0.50 Gs
350Hz to 500Hz 0.25 Gs
2.8.6.2 Non-operating vibration
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or
degradation in performance when subsequently put into operation are specified below.
5Hz to 22Hz 3.0 Gs (Limited displacement)
22Hz to 350Hz 3.0 Gs
350Hz to 500Hz 3.0 Gs
Seagate SkyHawk Product Manual, Rev. A 15
Page 17
www.seagate.com Drive Specifications
2.9 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are
consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a
reflecting plane. For all tests, the drive is oriented with the cover facing upward.
For seek mode tests, the drive is placed in seek mode only.
Note
Table 4 Fluid Dynamic Bearing (FDB) motor acoustics
The number of seeks per second is defined by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time
Idle* Seek
All models
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
2.6 bels (typical)
2.7 bels (max)
2.7 bels (typical)
2.8 bels (max)
2.9.1 Test for Prominent Discrete Tones (PDTs)
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the
use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone
audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to
Annex D of the ECMA-74 standards.
2.10 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in performance
when subjected to the radio frequency (RF) environments defined in
Table 5 Radio frequency environments
Te st D es c ri pt i on
Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN61000-4-2: 95
Radiated RF immunity 80MHz to 1,000MHz, 3 V/m,
80% AM with 1kHz sine
900MHz, 3 V/m, 50% pulse modulation @ 200Hz
Table 5.
Performance
level
A EN61000-4-3: 96
Reference
standard
ENV50204: 95
Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common,
AC mains
Conducted RF immunity 150kHz to 80MHz, 3 Vrms, 80% AM with 1kHz sine A EN61000-4-6: 97
Voltage dips, interrupts 0% open, 5 seconds
0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds
Seagate SkyHawk Product Manual, Rev. A 16
B EN61000-4-5: 95
C
C
C
B
EN61000-4-11: 94
Page 18
www.seagate.com Drive Specifications
2.11 Warranty
To determine the warranty for a specific drive, use a web browser to access the following web page:
http://www.sea
From this page, click on “Is my Drive under Warranty”. Users will be asked to provide the drive serial number, model
number (or part number) and country of purchase. The system will display the warranty information for the drive.
gate.com/support/warranty-and-replacements/
2.11.1 Data loss under power interruption with write cache enabled
Drive preserves its data during all operations except in cases where power to the drive is interrupted during write
operations. This could result in either an uncorrected data error being reported, or the entire sector/track becoming
unreadable. This can be permanently recovered by rewriting to the same location on the drive. Additionally any data
present in the DRAM buffer will not be written to the disk media, additionally, the drive will not be able to return the
original data.
In order to prevent this data loss, the host should issue a standby immediate or flush cache command before a controlled
power off operation to the drive.
2.11.2 Storage
Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged
within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year
packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and
non-corrosive environment). During any storage period the drive non-operational temperature, humidity, wet bulb,
atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.
2.11.3 HDD and SSD Regulatory Compliance and Safety
For the latest regulatory and compliance information see: https://www.seagate.com/support/
scroll to bottom of page and click the Seagate HDD and SSD Regulatory Compliance and Safety link.
2.11.4 Safety certification
The drives are recognized in accordance with UL/cUL 60950-1 and EN 60950-1.
The following regulatory model numbers represent all features and configurations within the series:
SKR002: 1/2D (4TB, 3TB & 2TB Models)
SKR004: 3/4D (8TB & 6TB Models)
2.12 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial
environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this
accelerated testing cannot duplicate every potential application environment. Users should use caution exposing any
electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component
reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate
products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the
most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the
printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in
cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated.
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free
alternatives.
Seagate SkyHawk Product Manual, Rev. A 17
Page 19
www.seagate.com Configuring and Mounting the Drive
3.0 Configuring and Mounting the Drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling and static-discharge precautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD)
hazards. Observe the following standard handling and static-discharge precautions:
Caution
• Before handling the drive, put on a grounded wrist strap, or ground oneself frequently by touching the metal chassis of
a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation
procedure.
• Handle the drive by its edges or frame only.
• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until users mount it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty.
Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and
contamination.
3.2 Configuring the drive
Each drive on the SATA interface connects point-to-point with the SATA host adapter. There is no master/slave relationship
because each drive is considered a master in a point-to-point relationship. If two drives are attached on one SATA host
adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives
behave as if they are Device 0 (master) devices.
SATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive for proper
operation; however, if users connect the drive and receive a “drive not detected” error, the SATA-equipped motherboard or
host adapter may use a chipset that does not support SATA speed autonegotiation.
3.3 SATA cables and connectors
The SATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size
may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See
end of the SATA signal cable can be attached to the drive or host.
For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host
receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable.
For installations which require cables, users can connect the drive as illustrated in
Figure 2 Attaching SATA cabling
Table 6 for connector pin definitions. Either
Figure 2.
Each cable is keyed to ensure correct orientation. SkyHawk drives support latching SATA connectors.
Seagate SkyHawk Product Manual, Rev. A 18
Page 20
www.seagate.com Configuring and Mounting the Drive
Max: .795" or 20.20 mm
Alterntive: .783" .012" or 19.90 0.30 mm
4X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.14 MAXIMUM FASTENER
PENETRATION
3X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.14 MAXIMUM FASTENER
PENETRATION BOTH SIDES
3.4 Drive mounting
Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottommounting holes. Refer to
mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.140 inch (3.56mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
Figure 3 Mounting dimensions (4TB, 3TB & 2TB models)
Figure 3 for drive mounting dimensions. Follow these important mounting precautions when
Seagate SkyHawk Product Manual, Rev. A 19
Page 21
Figure 4 Mounting dimensions (8TB & 6TB models)
4X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.14 MAXIMUM FASTENER
PENETRATION
3X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.14 MAXIMUM FASTENER
PENETRATION
BOTH SIDES
Seagate SkyHawk Product Manual, Rev. A 20
Page 22
www.seagate.com SATA Interface
4.0 SATA Interface
These drives use the industry-standard Serial ATA (SATA) interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0 to 4; multiword DMA modes 0 to 2, and Ultra DMA modes 0 to 6.
For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment”
specification.
4.1 Hot-Plug compatibility
SkyHawk drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision
3.2 specification. This specification can be downloaded from www.serialata.or
4.2 SATA device plug connector pin definitions
Table 6 summarizes the signals on the SATA interface and power connectors.
Table 6 SATA connector pin definitions
Segment Pin Function Definition
Signal S1 Ground 2nd mate
S2 A+
S3 A-
S4 Ground 2nd mate
S5 B-
S6 B+
S7 Ground 2nd mate
Key and spacing separate signal and power segments
Power
P1
P2
P3
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7
P8
P9
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13
P14
P15
V
V
V33
V
V
V5
V
V
V
33
33
5
5
12
12
12
Differential signal pair A from Phy
Differential signal pair B from Phy
3.3V power
3.3V power
3.3V power, pre-charge, 2nd mate
5V power, pre-charge, 2nd mate
5V power
5V power
12V power, pre-charge, 2nd mate
12V power
12V power
g.
Notes
1. All pins are in a single row, with a 1.27 mm (0.050 in) pitch.
2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating
sequences are:
• the ground pins P4 and P12.
• the pre-charge power pins and the other ground pins.
• the signal pins and the rest of the power pins.
3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate back-
plane configuration.
• All used voltage pins (V
Seagate SkyHawk Product Manual, Rev. A 21
) must be terminated.
x
Page 23
4.3 Supported ATA commands
The following table lists SATA standard commands that the drive supports.
For a detailed description of the ATA commands, refer to the Serial ATA International Organization:
Serial ATA Revision 3.0 (http://www.sata-io.or
See “S.M.A.R.T. commands” on page 30 for details and subcommands used in the S.M.A.R.T. implementation.
Table 7 SATA standard commands
Command name Command code (in hex)
Check Power Mode E5
Device Configuration Freeze Lock B1H / C1
Device Configuration Identify B1H / C2
Device Configuration Restore B1H / C0
Device Configuration Set B1H / C3
Device Reset 08
Download Microcode 92
Execute Device Diagnostics 90
Flush Cache E7
Flush Cache Extended EA
Form at Track 50
Identify Device EC
Idle E3
Idle Immediate E1
Initialize Device Parameters 91
Read Buffer E4
Read DMA C8
Read DMA Extended 25
Read DMA Without Retries C9
Read Log Ext 2F
Read Multiple C4
Read Multiple Extended 29
Read Native Max Address F8
Read Native Max Address Extended 27
Read Sectors 20
Read Sectors Extended 24
Read Sectors Without Retries 21
Read Verify Sectors 40
Read Verify Sectors Extended 42
Read Verify Sectors Without Retries 41
Recalibrate 10
Security Disable Password F6
Security Erase Prepare F3
Security Erase Unit F4
Security Freeze F5
Security Set Password F1
g).
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Seagate SkyHawk Product Manual, Rev. A 22
Page 24
www.seagate.com SATA Interface
Table 7 SATA standard commands (continued)
Command name Command code (in hex)
Security Unlock F2
Seek 70
Set Features EF
Set Max Address F9
Note: Individual Set Max Address
commands are identified by the value
placed in the Set Max Features register as
defined to the right.
Set Max Address Extended 37
Set Multiple Mode C6
Sleep E6
S.M.A.R.T. Disable Operations B0H / D9
S.M.A.R.T. Enable/Disable Autosave B0H / D2
S.M.A.R.T. Enable Operations B0H / D8
S.M.A.R.T. Execute Offline B0H / D4
S.M.A.R.T. Read Attribute Thresholds B0H / D1
S.M.A.R.T. Read Data B0H / D0
S.M.A.R.T. Read Log Sector B0H / D5
S.M.A.R.T. Return Status B0H / DA
S.M.A.R.T. Save Attribute Values B0H / D3
S.M.A.R.T. Write Log Sector B0H / D6
Standby E2
Standby Immediate E0
Write Buffer E8
Write DMA CA
Write DMA Extended 35
Write DMA FUA Extended 3D
Write DMA Without Retries CB
Write Log Extended 3F
Write Multiple C5
Write Multiple Extended 39
Write Multiple FUA Extended CE
Write Sectors 30
Write Sectors Without Retries 31
Write Sectors Extended 34
Write Uncorrectable 45
H
H
H
H
Address:
Password:
Lock:
Unlock:
Freeze Lock:
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
00H
01H
02H
03H
04H
Seagate SkyHawk Product Manual, Rev. A 23
Page 25
www.seagate.com SATA Interface
4.3.1 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following power up.
The data is organized as a single 512-byte block of data, whose contents are shown in Table 7 on page 22. All reserved
bits or words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive.
The following commands contain drive-specific features that may not be included in the SATA specification.
Table 8 Identify Device commands
Word Description Value
Configuration information:
• Bit 15: 0 = ATA; 1 = ATAPI
0
1 Number of logical cylinders 16,383
2
• Bit 7: removable media
• Bit 6: removable controller
• Bit 0: reserved
Specific configuration:
37C8h Device requires SET FEATURES subcommand to spin-up after power-up
and IDENTIFY DEVICE data is incomplete.
738Ch Device requires SET FEATURES subcommand to spin-up after power-up
and IDENTIFY DEVICE data is complete.
8C73h Device does not require SET FEATURES subcommand to spin-up after
power-up and IDENTIFY DEVICE data is incomplete.
C837h Device does not require SET FEATURES subcommand to spin-up after
power-up and IDENTIFY DEVICE data is complete.
0C5A
C837
H
H
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision (8 ASCII character string, padded with blanks to end of string) x.xx
27–46 Drive model number: (40 ASCII characters, padded with blanks to end of string)
47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16) 8010
Trusted Computing feature set options:
48
15 Shall be cleared to zero
14 Shall be set to one
4000
13:1 Reserved for the Trusted Computing Group
0 Trusted Computing feature set is supported
49 Standard Standby timer, IORDY supported and may be disabled 2F00
Capabilities: (see 7.17.7.17)
H
H
H
H
H
H
H
H
H
H
15 Shall be cleared to zero
50
14 Shall be set to one
13:2 Reserved
4000
H
1 Obsolete
0 Shall be set to one to indicate a vendor specific Standby timer value minimum
Seagate SkyHawk Product Manual, Rev. A 24
Page 26
www.seagate.com SATA Interface
Table 8 Identify Device commands (continued)
Word Description Value
51 PIO data-transfer cycle timing mode 0200
52 Retired (Obsolete) 0200
15:8 Free-fall Control Sensitivity
7:3 Reserved
53
2 the fields reported in word 88 are valid
0007
1 the fields reported in words (70:64) are valid
0 Obsolete
54 Number of current logical cylinders (Obsolete) xxxx
55 Number of current logical heads (Obsolete) xxxx
56 Number of current logical sectors per logical track (Obsolete) xxxx
57–58 Current capacity in sectors (Obsolete) xxxx
15 The BLOCK ERASE EXT command is supported
14 The OVERWRITE EXT command is supported
13 The CRYPTO SCRAMBLE EXT command is supported
59
12 The Sanitize feature set is supported
11:9 Reserved
5C10
8 Multiple logical sector setting is valid
7:0 Current setting for number of logical sectors that shall be transferred per DRQ
data block on READ/WRITE Multiple commands
Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
60–61
*Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455
sectors, 137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field
0FFFFFFFh*
and the actual number of user-addressable LBAs specified in words 100-103. This
is required for drives that support the 48-bit addressing feature.
H
H
H
H
H
H
H
H
62 Obsolete 0000
63
Multiword DMA active and modes supported
(see note following this table)
xx07
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078
66 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078
67 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
Additional Supported
15 CFast Specification Support
14 Deterministic data in trimmed LBA range(s) is supported
13 Long Physical Sector Alignment Error Reporting Control is supported
12 Obsolete
11 READ BUFFER DMA is supported
10 WRITE BUFFER DMA is supported
69
9 Obsolete
8 DOWNLOAD MICROCODE DMA is supported
0000
7 Reserved for IEEE 1667
6 0 = Optional ATA device 28-bit commands supported
5 Trimmed LBA range(s) returning zeroed data is supported
4 Device Encrypts All User Data
3 Extended Number of User Addressable Sectors is supported
2 All write cache is non-volatile
1:0 Reserved
H
H
H
H
H
H
H
H
Seagate SkyHawk Product Manual, Rev. A 25
Page 27
www.seagate.com SATA Interface
Table 8 Identify Device commands (continued)
Word Description Value
70–74 ATA-reserved 0000
75 Queue depth 001F
76 SATA capabilities xxxx
77 Reserved for future SATA definition xxxx
78 SATA features supported xxxx
79 SATA features enabled xxxx
80 Major version number 07F0
81 Minor version number 006D
82 Command sets supported 306B
83 Command sets supported 7561
84 Command sets support extension (see note following this table) 6173
85 Command sets enabled 30xx
86 Command sets enabled B441
87 Command sets enable extension 6173
88 Ultra DMA support and current mode (see note following this table) xx7F
89 Security erase time xxxx
90 Enhanced security erase time xxxx
92 Master password revision code FFFE
93 Hardware reset value xxxx
94 Automatic acoustic management D0D0
95–99 ATA-reserved 0000
8TB models = 15,628,053,168
100–103
Total number of user-addressable LBA sectors available (see Section 2.2 for
related information). These words are required for drives that support the 48-bit
addressing feature. Maximum value: 0000FFFFFFFFFFFFh.
6TB models = 11,721,045,168
4TB models = 7,814,037,168
3TB models = 5,860,533,168
2TB models = 3,907,029,168
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
104-105 ATA-reserved 0000
106 Physical sector size / logical sector size 6003
107 ATA-reserved 0000
108-111
The mandatory value of the world wide name (WWN) for the drive.
NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.
112-118 ATA-reserved 0000
119 Commands and feature sets supported 41DE
120 Commands and feature sets supported or enabled 409C
121-127 ATA-reserved 0000
128 Security status 0021
129–159 Seagate-reserved xxxx
160–167 ATA-reserved 0000
168 Device Nominal Form Factor 0002
H
H
H
Each drive will have a unique
value.
H
H
H
H
H
H
H
H
Seagate SkyHawk Product Manual, Rev. A 26
Page 28
www.seagate.com SATA Interface
Table 8 Identify Device commands (continued)
Word Description Value
169-205 ATA-reserved 0000
206 SCT Command Transport 10A5
207-208 ATA-reserved 0000
209 Alignment of logical blocks within a physical block 4000
210-216 ATA-reserved 0000
217 Nominal media rotation rate 175C
218-221 ATA-reserved 0000
222 Transport major version number 107F
223-229 ATA-reserved 0000
8TB models = 15,628,053,168
6TB models = 11,721,045,168
230-233 Extended Number of User Addressable Sectors
4TB models = 7,814,037,168
3TB models = 5,860,533,168
2TB models = 3,907,029,168
234–254 ATA-reserved 0000
255 Integrity word xxA5
Note
Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported.
H
H
H
H
H
H
H
H
H
H
H
Note
See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.
Seagate SkyHawk Product Manual, Rev. A 27
Page 29
www.seagate.com SATA Interface
Description (if bit is set to 1)
Bit Word 63
0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word 84
0 SMART error login is supported.
1 SMART self-test is supported.
2 Media serial number is supported.
3 Media Card Pass Through Command feature set is supported.
4 Streaming feature set is supported.
5 GPL feature set is supported.
6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.
7 WRITE DMA QUEUED FUA EXT command is supported.
8 64-bit World Wide Name is supported.
9-10 Obsolete.
11-12 Reserved for TLC.
13 IDLE IMMEDIATE command with IUNLOAD feature is supported.
14 Shall be set to 1.
15 Shall be cleared to 0.
Bit Word 88
0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
6 Ultra DMA mode 6 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.
Seagate SkyHawk Product Manual, Rev. A 28
Page 30
www.seagate.com SATA Interface
4.3.2 Set Features command
This command controls the implementation of various features that the drive supports. When the drive receives this
command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the
register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read lookahead and write caching features enabled. The acceptable values for the Features register are defined as follows:
Table 9 Set Features command
02
03
06
07
10
55
82
86
90
AA
F1
H
H
H
H
H
H
H
H
H
H
Enable write cache (default)
Set transfer mode (based on value in Sector Count register)
Sector Count register values:
00
Set PIO mode to default (PIO mode 2)
H
01
Set PIO mode to default and disable IORDY (PIO mode 2)
H
PIO mode 0
08
H
09
PIO mode 1
H
0A
PIO mode 2
H
PIO mode 3
0B
H
0C
PIO mode 4 (default)
H
20
Multiword DMA mode 0
H
Multiword DMA mode 1
21
H
22
Multiword DMA mode 2
H
40
Ultra DMA mode 0
H
Ultra DMA mode 1
41
H
42
Ultra DMA mode 2
H
43
Ultra DMA mode 3
H
Ultra DMA mode 4
44
H
45
Ultra DMA mode 5
H
46
Ultra DMA mode 6
H
Enable the PUIS feature set
PUIS feature set device spin-up
Enable use of SATA features
Disable read look-ahead (read cache) feature
Disable write cache
Disable the PUIS feature set
Disable use of SATA features
Enable read look-ahead (read cache) feature (default)
H
Report full capacity available
Note
At power-on, or after a hardware or software reset, the
default values of the features are as indicated above.
Seagate SkyHawk Product Manual, Rev. A 29
Page 31
www.seagate.com SATA Interface
4.3.3 S.M.A.R.T. commands
S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors
predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is
likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is
limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the
Draft ATA-5 Standard.
SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4
unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.sea
gate.com.
This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports
S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.
Table 10 S.M.A.R.T. commands
Code in features register S.M.A.R.T. command
) that eliminates
H
D0
D2
D3
D4
D5
D6
D8
D9
DA
H
H
H
H
H
H
H
H
H
Note
S.M.A.R.T. Read Data
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST)
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status
If an appropriate code is not written to the Features Register, the
command is aborted and 0x04 (abort) is written to the Error register.
Seagate SkyHawk Product Manual, Rev. A 30
Page 32
Seagate Technology LLC
AMERICAS Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000
Publication Number: 100870481, Rev. A
July 2020
Loading...
