Cheetah 4LP Installation Guide, Rev. B 1

Preface

This manual contains information for users of the Seagate® Cheetah 4LP SCSI disc drives. It provides s upp ort services, performance specifications, and initial setup information. Additional information is available in the number 83329120). Contact your Seagate sales representative if you need to order this publication.

Attention. This high performance Cheetah disc drive MUST

have proper power and cooling considerations for reliable operatio n.

Why is there a difference between 10,000 RPM and 7,200 RPM disc drives?

• Cheetah disc drives spinning at 10,000 RPM will dissipate more heat than 7,200 RPM class disc drives (typical power dissipation is 22.5 watts).

• The increased heat is primarily due to increased motor power dissipated inside the drive.

• The increase in heat dissipation requires that the Cheetah 10,000 RPM disc drives receive more cooling consideration than 7,200 RPM class disc drives.

• Proper consideration of enhanced cooling by conduction (heat transfer thru material) can reduce the convection cooling (heat transfer by air motion) requirements.

Note. Please contact Seagate technical support services or

your distributor’s technical support if you have questions.

Cheetah 4LP Product Ma n ual

(part

2 Cheetah 4LP Installation Guide, Rev. B

Electrostatic discharge protection

Caution.

All drive electronic assemblies are sensitive to static electricity, due to the electrostatically sensitive devices used within the drive circuitry. Although some devices such as metal-oxide semiconductors are extremely sensitive, all semiconductors, as well as some resistors and capacitors, may be damaged or degraded by exposure to static electricity.

Electrostatic damage to electronic devices may be caused by the direct discharge of a charged conductor or by exposure to the static fields surrounding charged objects. To avoid damaging drive electronic assemblies, observe the following precautions when installing or servicing the drive:

• Ground yourself to the drive whenever the drive electronics are or will be exposed. Connect yourself to ground with a wrist strap (Seagate part number 12263496). Connection may be made to any grounded metal assembly. As a general rule, remember that you and the drive electronics must all be grounded to avoid potentially damaging static discharges.

• Tur n off the power before removing or installing the DC power cable.

• Do not remove any circuit board s from the drive.

• Never use an ohmmeter on any circuit boards.

• When installing the drive on a carrier or tray, discharge the carrier or tray prior to inserting it into the system.

Removal of circuit boards by personnel not performing depot repair will damage components and may void the warranty.

Cheetah 4LP Installation Guide, Rev. B 3

Important safety information and precautions

Caution.

Use proper safety techniques for safe, reliable operation of this unit.

The procedures in this manual and labels on the unit contain warnings and cautions that must be carefully read and followed to minimize or eliminate the ris k of personal injury. The warnings point out conditions or practices that may endanger you or others. The cautions point out conditions or practices that may damage the unit, possibly making it unsafe for use.

Always observe the following warnings and precautions:

• Follow all cautions and warnings in the procedures.

• Use sound safety practices when operating, installing, or removing the unit.

• Use caution when troubleshooting a unit that has voltages present. Turn off power to the unit before removing it.

• Ensure that the internal temperature of the rack or cabinet does not exceed the limits defined for the drive when the drive is mounted in an equipment rack or cabinet. When units are stacked vertically, pay special attention to the top where temperatures are usually highest.

• Follow the precautions listed above in “Electrostatic discharge protection.”

• Do not remove any circuit boards from the drive. Return the entire drive for depot repair if any circuit board is defective. Removal of circuit boards by personnel not performing depot repair will damage components and may void the warranty.

Use forced-air ventilation when bench-testing the drive to ensure proper cooling of drive components.

4 Cheetah 4LP Installation Guide, Rev. B

• Do not separate the head and disc assembly (HDA) from the PCB. Return the entire drive for depot repair if the HDA is defective.

• Do not attempt to disassemble the HDA. It is not field repairable. If the sealed HDA is opened by personnel not performing depot repair, this will damage components and void the warranty.

As a component, this drive is designed to be installed and operated in accordance with UL1950, EN60950, CSA C22.2 950M89, and VDE0805.

Seagate takes all reasonable ste ps to ensure that its products are certifiable to currently accepted standards. Typical applications of these disc drives include customer packaging and subsystem design. Safety agencies conditionally certify component assemblies, such as the Cheetah disc drive, based on their final acceptability in the end-use product. The subsystem designers are respons ible for meeting t hese conditions of acceptabi lity in obtaining safety-regulatory agency compliance in their end-use products and for certifying where required by law. A necessary part of meeting safety requirements is the provision for overcurrent protection on drive SELV supply voltages.

This unit is a compon ent part and as s uch i s no t meant t o c omply with FCC or similar national requirements as a stand-alone unit. Engineering radiated emissions test results are available through the Seagate Safety Department to assist the subsystem designer.

Cheetah 4LP Installation Guide, Rev. B 5

Wichtige Sicherheitshinweise

Vorsicht.

Fremdbelüftung vorzusehen, um eine ausreichende Kühlung der Laufwerkkomponenten sicherzustellen.

Verwenden Sie geeignete Sicherheits- um den sicheren, zuverlässigen Betrieb dieser Einheit zu gewährleisten.

Die Verfahren in diesem Handbuch und die Aufkleber auf dem Gerät enthalten Warn- und Vorsichtshinweise. Diese Hinweise sind sorgfältig durchzulesen und zu beachten, um das Risiko von Verletzungen auf ein Mindestmaß zu beschränken oder ganz zu vermeide n. Die Warnhinweis e machen auf Situa tionen oder Praktiken aufmerksam, die Sie oder andere gefährden könnten. Die Vorsichtshinweise machen auf Situationen oder Praktiken aufmerksam, die Einheit beschädigen können, so daß deren Gebrauch mit Risiko behaftet ist.

Die Warn- und Vorsichtshinweise sind nicht allumfassend! Es ist uns einfach nicht möglich, alle Wartungsmethoden oder die eventuellen Risiken jeder Methode zu kennen, zu beurteilen und Sie entsprechend zu beraten. Aus diesem Grund haben wir auf eine derartige umfassende Beurteilung verzichtet. Falls Sie ein hier nicht beschriebenes Verfahren oder Werkzeug verwenden, stellen Sie zuerst sicher, daß das gewählte Verfahren weder Ihre persönliche Sicherheit noch die Leistung der Einheit gefährdet.

Beachten Sie in jedem Fall die folgenden Warn-und Vorsichtshinweise:

• Beachten Sie alle Warn- und Vorsichtshinweise in diesem

Beim Testen des Laufwerks auf dem Prüftisch ist

Handbuch.

6 Cheetah 4LP Installation Guide, Rev. B

• Treffen Sie beim Betrieb, bei der Installation oder bei der Entfernung der Einheit angemessene Sicherheitsvorkehrungen.

• Wenn eine Einheit unter Spannung steht, gehen Sie bei der Fehlerdiagnose besonders vorsichtig vor. Schalten Sie die Einheit aus, bevor Sie mit den Installations-und Entfernungsarbeiten beginnen.

• Wenn das Laufwerk in einem Einbaugestell oder Gehäuse montiert ist, sorgen Sie dafür, daß die Temperatur im Inneren des Gestells oder Gehäuses die für das Laufwerk vorgegebenen Grenzwerte nicht übersteigt. Wenn Einheiten vertikal übereinander betestigt werden, achten Sie besonders auf den oberen Stapelbereich, da dort die Temperatur gewöhnlich am höchsten ist.

• Befolgen Sie die oben unter “Electrostatic Discharge Protection” angegebenen Sicherheitsmaßnahmen.

• Nehmen Sie keine Platinen aus dem Laufwerk. Wenn eine Platine defekt ist, muß das gesamte Laufwerk zur Reparatur eingeschickt werden. Die Herausnahme von Platinen durch andere Personen als die für die werkseitige Reparatur zuständigen kann zu einer Beschädigung der Komponenten und Erlöschen des Garantieanspruchs führen.

• Die vormontierte Kopf- und Festplatteneinheit (HDA) nicht aus dem Laufwerkgehäuse nehmen! Falls die HDA beschädigt ist, schicken Sie das gesamte Laufwerk zur Reparatur ein.

• Die HDA ist nicht vor Ort reparierbar und darf nicht auseinandergenommen werden! Öffnen der versiegelten HDA durch andere Personen als die für die werkseitige Reparatur zustän-

Cheetah 4LP Installation Guide, Rev. B 7

digen hat eine Beschädigung der Komponenten und Erlöschen des Garantieanspruchs zur Folge.

Als Teilkomponente ist dieses Laufwerk für die Installation und den Betrieb in Übereinstimmung mit UL 1950, EN60950, CSA C22.2 950-M89 und VDE0805 vorgesehen.

Seagate ist ständig b emüht, die Zulassungsfähi gkeit von Seagate-Produkten im Rahmen der gegenwärtig geltenden Standards zu gewährleisten. Zu d en typischen Anwendungen dieser Festplattenwerke zählen Systemeinbau durch den Kunden und die Konstruktion von Untersystemen. Sicherheitsbehörden gewähren eine bedingte Zulassung für Komponenten wie das Cheetah-Festplattenlaufwerk vorbehaltlich der endgültigen Zulasssung im Endprodukt. Designer von Untersystemen sind dafür verantwortlich, die Voraussetzungen für die Einhaltung sicherheits- oder aufsichtsbehördlicher Vorschriften in ihren Endprodukten und - falls gesetzlich vorgeschrieben - für die Zulassung zu schaffen. Eine Grundvoraussetzung zur Einhaltung der Sicherheitsanforderungen ist die Bereitstellung eines Überlastschutzes für die SELV-Versorgungsspannungen des Laufwerks.

Dieses Gerät ist eine Baugruppe und unterliegt als solche nicht den Anforderungen der FCC od er äh nl ich er na tio nal er Beh örde n für eigenständige Geräte. Technische Testergebnisse zu elektromagnetische Strahlung sind für Designer von Untersystemen auf Anfrage von der Seagate-Sicherheitsabteilung erhältlich.

8 Cheetah 4LP Installation Guide, Rev. B

Regulatory agency compliance

Electromagnetic susceptibility

As a component assembly, the drive is not required to meet any susceptibility perf ormance requirem ents . It is the respon sibil ity of those inte grating the d rive wit hin t heir s yste ms to perfor m thos e tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Table 2, DC power requirements.

Electromagnetic compliance

Seagate uses an independent laboratory to confirm compliance to the directives/standard(s) for CE Marking and C-Tick Marking. The drive was tested in a representative system for typical applications. The selected system represents the most popular characteristics for test platforms. The system configurations include:

• 486, Pentium, and PowerPC microprocessors

• 3.5-inch floppy disc drive

• Keyboard

• Monitor/display

•Printer

• External modem

•Mouse

Although the test system with this Seagate model complies to the directives/standard(s), we cannot guarantee that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide CE Marking and CTick Marking for their product.

Cheetah 4LP Installation Guide, Rev. B 9

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 89/336/EEC of 03 May 1989 as amended by Directive 92/ 31/EEC of 28 April 1992 and Directive 93/68/EEC of 22 July

1993.

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZS3548 1995 and meets the Electromagnetic Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).

10 Cheetah 4LP Installation Guide, Rev. B

Seagate technical support services

If you need assistance installing your drive, consult your dealer. Dealers are familiar with their unique system configurations and can help you wit h system confli cts and other techni cal issu es. If you need additional assistance with your Seagate other Seagate products, use one of the Seagate technical support services listed below.

SeaFONE® 1-800-SEAGATE

Seagate’s 800 number (1-800-732-4283) allows toll-free access to automated self-help services, providing answers to commonly asked questions, troubleshooting tips, and specifications for disc drives and t ape drives. This s ervice is available 24 hours daily and requires a touch-tone phone. International callers can reach this automated self-help service by dialing 408-456-4496.

Online services

Using a modem, you can obtain troubleshooting tips, free utility programs, drive specifications and jumper settings for Seagate’s entire product line. You can also download software for installing and analyzing your drive.

SeaNET ™

You can obtain technical information about Seagate products over the Internet from Seagate’s World Wide Web home page

(http://www.seagate.com) or Seagate’s ftp server (ftp:// ftp.seagate.com). You can also se nd E-m ai l with your quest ion s to D iscSupport @ Se agate.com or TapeSupport @ Seagate. com .

drive or

Cheetah 4LP Installation Guide, Rev. B 11

Seagate CompuServe forum

Online technical support for Seagate products is available on CompuServe. To access our technical support forum, type

seagate

. This forum provi des information similar to that f oun d on

SeaBOARD. In addition, you can type questions or browse through previous questions and answers on the forum messages.

SeaBOARD®

SeaBOARD is a computer bulletin board system that contains information about Seagate disc and tape drive products and is available 24 hours daily. Set your communications software to eight data bits, no parity, and one stop bit (8-N-1).

Location Phone number

Australia 61-2-9756-2359 England 44-1628-478011 France 33 1-48 25 35 95 Germany 49-89-140-9331 Singapore TBA Taiwan 886-2-719-6075 Thailand 662-531-8111 USA Disc: 405-936-1600; Tape: 405-936-1630

12 Cheetah 4LP Installation Guide, Rev. B

FAX services

SeaFAX®

You can use a touch-tone telephone to access Seagate’s automated FAX system to receive technical support information by return FAX. This service is available 24 hours daily.

Location Phone number

Australia 61-2-9756-5170 England 44-1628-894084 USA 1-800-SEAGATE or 408-456-4496

Seagate technical support FAX

You can FAX questions or comments to technical support specialists 24 hours daily. Responses are sent during business hours.

Location Phone number

Australia 61-2-9725-4052 England 44-1628-890660 France 33 1-46 04 42 50 Germany 49-89-1430-5100 Hong Kong 852-2368 7173 Japan 81-3-5462-2979 Korea 82-2-556-7294/4251 Singapore 65-488-7528 Taiwan 886-2-715-2923 USA Disc: 405-936-1685; Tape: 405-936-1683

Cheetah 4LP Installation Guide, Rev. B 13

Direct-support services

Seagate technical support

For one-on-one help, you can talk to a technical support specialist during local business hours. Before calling, note your system

xxxx

configuration and drive model number (ST

Location Phone number

Australi a 61-2-9725-3366 (9:00 England 44-1628-894083 (10:00

2:00

P.M

to 5:00

France 33 1-41 86 10 86 (9:30

P.M

to 5:00

2:00

P.M

A.M

, M–F)

A.M

, M–F)

Germany Disc: 49-89-140-9332; Tape: 49-89-140-9333

(9:30

A.M

to 12:30

P.M

, 2:00

M–F) Hong Kong 852-2368 9918 Korea 82-2-556-8241 Singapore 65-488-7584 (9:00

to 5:00

P.M

, M–F)

A.M

to 12:00

Taiwan 886-2-514-2237 USA Please dial 1-800-SEAGATE or 408-456-4496

for the specific product telephone number.

(8:00

A.M

to 1:15

P.M

, 2:30

Central time, M–F)

SeaTDD™ 405-936-1687

Using a telecommunications device for the deaf (TDD), you can send questions or comments 24 hours daily and exchange messages with a technical support specialist between 8:00

P.M. and 2:30 P.M. to 7:00

1:15

P.M

through Friday.

to 5:00

to 1:00

to 12:30

P.M

to 4:00

, 2:00

P.M

to 7:00

, M–F)

P.M

A.M

(Central time) Monday

14 Cheetah 4LP Installation Guide, Rev. B

Customer service centers

Seagate direc t OEM, Distribution , and Systems Integrat or customers should contact their Seagate service representative for warranty information. Other custom ers sho uld co ntact th eir plac e of purchase. Seagate offers comprehensive customer support for all Seagate drives. These services are available worldwide.

Location Phone number FAX number

Asia Pacific and Australia 65-485-3595 65-485-4980 Europe, Middle East,

and Africa 31-2031-67300 31-2065-34320 Japan 81-3-5462-2904 81-3-5462-2979 USA 1-800-468-3472 405-949-6740

Other Americas (Brazil,

Canada, Mexi co) 405-949-6706 405-949-6738

Manufacturer’s representatives

Brazil

MA Informatica 55-11-810-7794 55-21-253-6467 Canada

Memofix

Adtech Mexico

Abicom Seamax

SA DE CV 525-546-6965 525-546-4888

905-660-4936 905-812-8099 1-800-624-9857

905-660-8738 905-812-7807

Cheetah 4LP Installation Guide, Rev. B 15

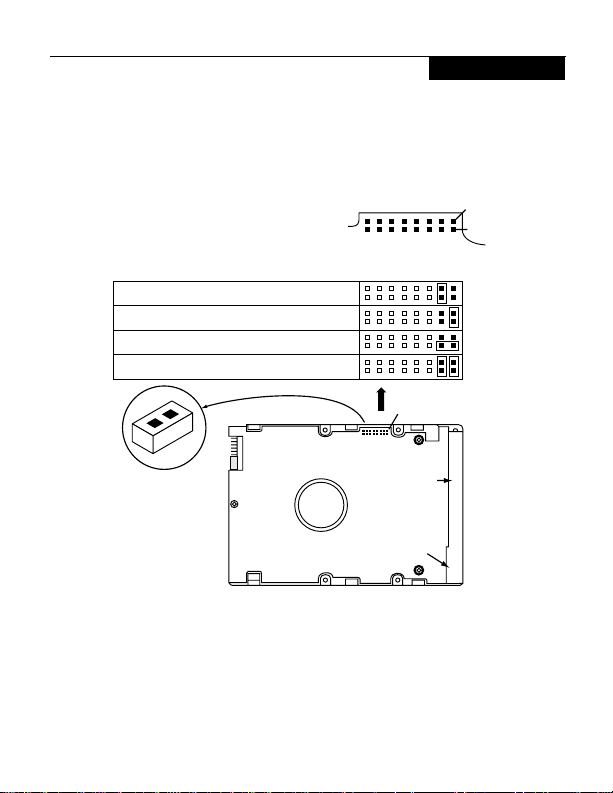

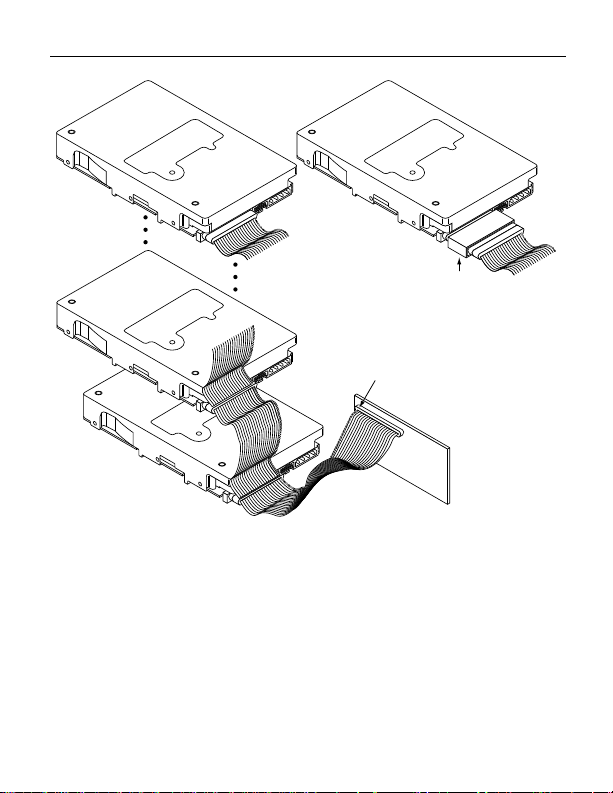

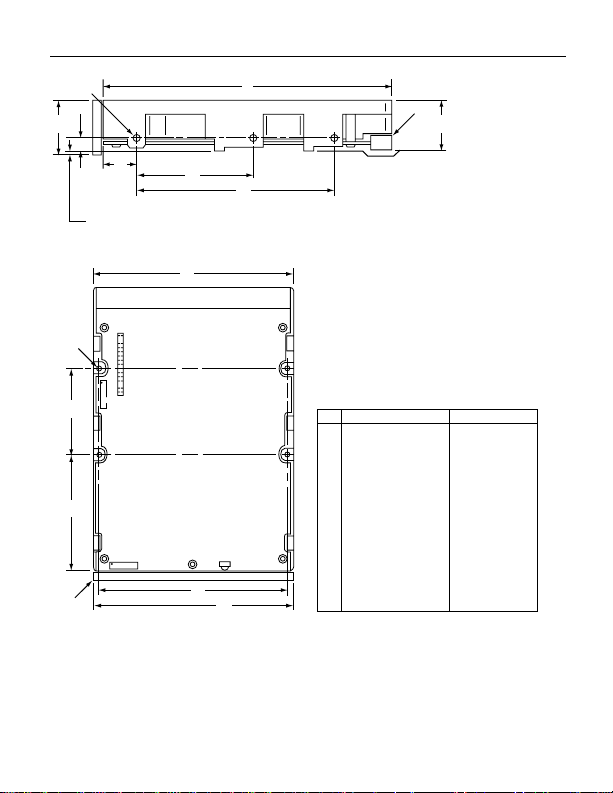

General description

Cheetah 4LP SCSI disc drives are high-speed, random-access digital-data storage devices.

The drive is a component for installation in an enclosure designed for the drive. This is ofte n a rack within the syst em or an external enclo sure de signe d to hous e one or m ore dis c driv es or other peri pheral unit s. In either ca se, the disc drive must receive adequate cooling (refer to “Providing adequate cooling”) and it must be sufficiently grounded and shielded from emissions. The

83329120) con tains guidelines for a prope rly designed enclosure.

Cheetah 4LP Product Manual

(par t number

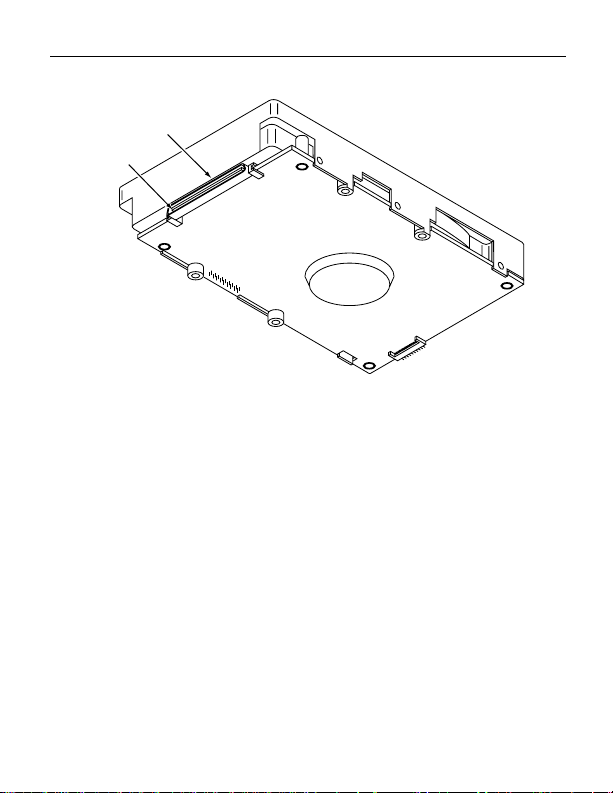

*Model “N” version with 50-pin SCSI I/O connector

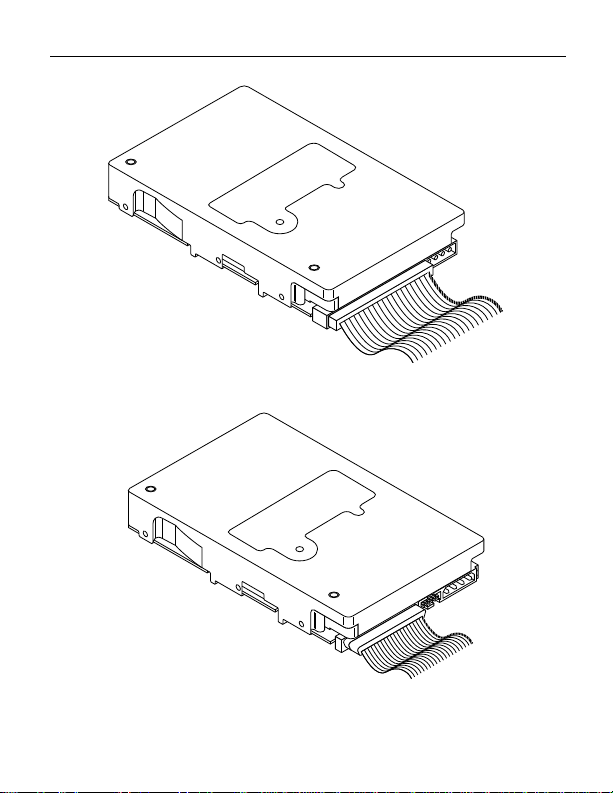

Figure 1. Cheetah 4LP family drive
