Seagate ST32112A, ST34311A, ST36421A, ST38421A User Manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 8421 (ST38421A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 6421 (ST36421A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 4311 (ST34311A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 2112 (ST32112A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
© 1999 Seagate Technology, Inc. All rights reserved. Publication Number: SG35126-001 , Rev. A, February 1999
Seagate, Seagate Technology, the Seagate logo, Medalist and the Medalist logo are registered trademarks of Seagate Technol­ogy, Inc. DiscWizard, SeaFAX, SeaFONE, SeaTDD and Sea­BOARD are either trademarks or registered trademarks of Seagate Technology, Inc. or one of its subsidiaries. All other trademarks or registered trademarks are the property of their respective owners.
Medalist 8421, 6421, 4311 and 2112, Rev. A -1
iii
Contents
The easiest way to install your drive .................................... 1
What you need........................................................................ 2
Before you begin.................................................................... 2
Handling precautions.............................................................3
Master/slave jumpers............................................................. 4
Attaching cables and mounting the drive............................ 6
Configuring your computer................................................... 9
Addressing drive-capacity limitations ...............................11
Preparing your drive for use ............................................... 13
Installation using Disk Manager........................................ 14
Windows 95 or Windows 98 installation ........................... 15
Standard DOS installation................................................ 16
Additional installation options............................................ 18
Non-ATA compatible slave jumper.................................... 18
Cable select jumper..........................................................18
Advanced Disk Manager options........................................19
Troubleshooting................................................................... 22
Seagate Technology support services............................... 28
Storing and shipping your drive......................................... 35
0 Medalist 8421, 6421, 4311 and 2112, Rev. Aiv
Medalist 8421, 6421, 4311 and 2112, Rev. A 1
The easiest way to install your drive
DiscWizard is Seagate’s exclusive Win­dows program, provided on a diskette, that makes it easy to install your Medalist
DiscWizard helps you configure your new drive and your computer. It analyzes your system, lets you select various installation options and creates customized step-by­step instructions. It also allows older computers to access the full capacity of large-capacity drives.
You can run DiscWizard to install your new hard drive if:
You already have an existing, bootable hard drive in your com­puter with at least 3 Mbytes of available disc space,
You are running Windows 95 or Windows 98.
If you can run DiscWizard, follow the instructions on the DiscWizard diskette to install your drive. If you need additional information, refer to this installation guide.
If you cannot run DiscWizard, follow the instructions in this installation guide to install and configure your new drive.
drive.
and
2 Medalist 8421, 6421, 4311 and 2112, Rev. A
What you need
Straight-edge and Phillips screwdrivers
Four 6-32 UNC drive mounting screws
A standard 40-pin ATA interface cable, an 80-conductor cable if your system runs Ultra DMA mode 3 or 4 (max length: 18 inches)
An unused drive power cable for your new drive
or
Before you begin
Make sure your computer is turned off before you open the case.
Read the handling precautions at the right and inspect the drive to make sure that it is not damaged.
Save your foam-lined Seagate disc drive box. This box has been approved by Seagate for shipping a Seagate disc drive. Using any other container or packing material voids your drive warranty.
Medalist 8421, 6421, 4311 and 2112, Rev. A 3
Handling precautions
Disc drives are extremely fragile. Do not drop or jar your drive.
Keep the drive in its antistatic bag until you are ready to install it.
Protect your dr ive from static dischar ge by making sure you are well grounded before touching the drive. We recommend wearing a grounded wrist strap throughout the installation process. Do not touch the connectors or any part of the printed cir­cuit board.
Always handle the drive by its edges or frame.
Do not apply pressure or attach labels to the circuit board or the top of the drive.
4 Medalist 8421, 6421, 4311 and 2112, Rev. A
Master/slave jumpers
If you already have one hard drive in your computer and you are installing a seco nd driv e , y ou m ust c onf igure on e driv e as a ma s­ter and the other as a slave.
Note. If you need to change the jumpers on your existing hard
drive, see the Disk Manager online manual, look on the drive label, or contact the drive manufacturer.
To configure the drive as a master or one drive only:
The drive is configured at the factory for a master or single­drive operation with a jumper set on pins 7 and 8.
Note. The master drive us ually de f au lts to bei ng the “b oot” driv e
(drive C), from which the computer loads system soft­ware when it first starts up.
To configure the drive as a slave:
Remove the jumper to configure the drive as a slave.
Medalist 8421, 6421, 4311 and 2112, Rev. A 5
40-pin ATA
interface
connector
pin 1
4-pin power
connector
Master or single drive
Drive is slave
24
135

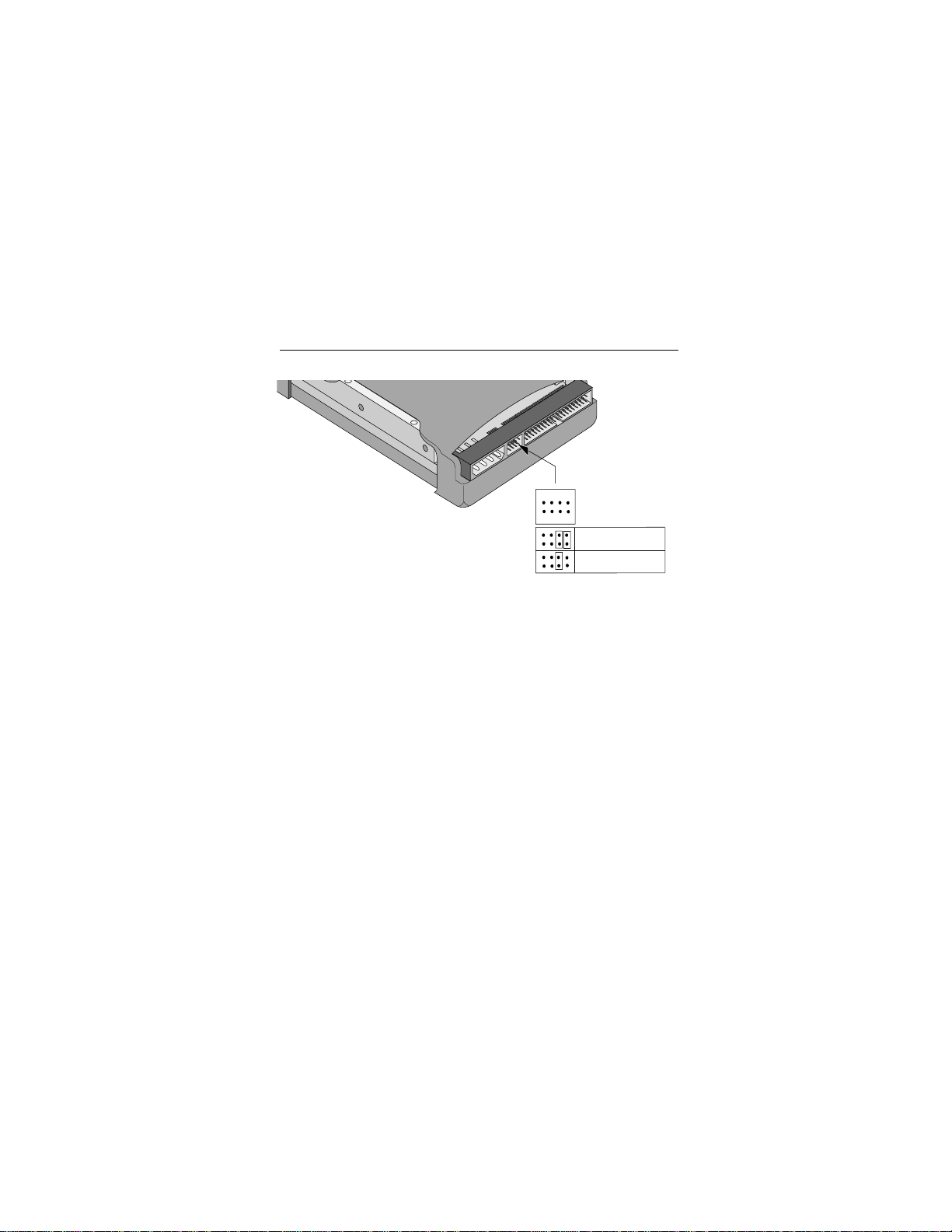

Figure 1. Master and slave jumper settings
6
8
7
Master/slave jumper block
6 Medalist 8421, 6421, 4311 and 2112, Rev. A
Attaching cables and mounting the drive
1. If you are attaching an ATA (IDE) interface cable to a single
drive, attach one end of the cable to the interface connector on your motherboard. Most computers provide two IDE con-
IDE
nectors, primary and secondary, usually labeled as
HDD
on your motherboard. See your computer manual for
connector locations .
Note. If you are running Ultra DMA mod e 3 or 4 , y ou mu st use a
special 40-pin 80-co ndu ctor c ab le or th ese m odes wil l not be enabled. For information on how to obtain this cable, contact your dealer.
or
Pin 1
Computer
Motherboard
Figure 2. Attaching the cables
2. Thread the interface cable through the drive bay and attach
the connector at the end of the interface cable to your new drive (the maxi mum ATA cable l ength is 18 in ches (457 m m) long).
Medalist 8421, 6421, 4311 and 2112, Rev. A 7 Note. If you are us ing the 80-c onductor cable, attach the blue
connector (with the longest section of the cable) to the motherboard, attach the black connector to the master or single drive, and attach the grey connector to the slave.
!
Figure 3. Mounting screws
3. You can mount the drive in any orientation. Usually it is
4. Slide the drive carefully into the drive bay. Secure the drive
Caution. To avoid possible damage to your system,
make sure to align pin 1 on the motherboard with pin 1 on your drive. Pin 1 on the inte rface cable is usually indicated by a stripe along the edge of the cable.
mounted with the circuit board down.
with four 6-32 UNC mounting screws in either the side­mounting holes or the bottom-mounting holes. Insert the screws no more than 0.22 inch (5.58 mm) into the bottom­mounting holes and no more than 0.20 inch (5.0 mm) into the side-mounting holes.
8 Medalist 8421, 6421, 4311 and 2112, Rev. A
Power connector
Interface connector
Pin 1
Figure 4. Cable connectors
!
Note. If you are mounting the drive in a 5.25-inch drive bay, you
5. Attach a power cable to the drive. If your computer does not have
6. Check all cable co nnections a nd then rep lace your compute r
Caution. To avoid possib le dama ge to the driv e ,
overtighten the screws or use metric screws.
need a mounting adapter or frame kit. Contact your com­puter dealer. Some computers also require drive mount­ing rails, which can usually be obtained from your dealer.
an unused power connector, you can purchase a Y-shaped power cable from your computer dealer.
cover. Continue to “Configuring Your Computer.”
do not
Medalist 8421, 6421, 4311 and 2112, Rev. A 9
Configuring your computer
Before yo u f ormat or partition y our ne w driv e , y ou m ust conf igure your computer’s BIOS.
To configure your computer’s BIOS:
1. Turn your computer on. As your computer starts up, watch the
screen for a message that describes how to run the system setup program (also called BIOS or CMOS setup). This is usually done by pressing a special key, such as
, during st artup. See your co mputer manual for detai ls.
F
OR
1
Press the appropriate key to run the system setup program.
2. Select the BIOS hard drive settings menu. To set the drive parameters, choose Primary Master or Slave, Master or Slave.
3. Select automatic driv e dete ction if a v ail ab le . Th is op tion al lo ws your computer to configure itself automatically for your new drive. If your BI OS does not provide au tomatic drive detec ­tion, sele ct “User-defined ” drive settings an d enter the CHS values from the table on page 10. These CHS values support capacities up to 8.4 Gbytes.
4. Verify th at LBA mod e is enabled. Many BIOS u se the logi cal block ad dres si ng (LBA) mode to access d rives with capacities greater than 528 Mbytes. Most BIOS automatically set this mode during the auto-detection process.
5. Enable UDMA mode if it is available. To run in Ultra DMA mode 3 or 4, the system requires a speci al 40-p in 80 -con du c­tor cable to en sure signal integrity. These modes wi ll not be enabled unless the 80-conductor cable is present.
6. Save the settings and exit the System Setup program (your computer will automatically reboot).
DELETE, ESC
or
Secondary
10 Medalist 8421, 6421, 4311 and 2112, Rev. A
BIOS Settings
Drive Model Cylinders Heads Sectors
ST32112A
CHS addressing Addressable sectors
4,192 4,225,536
16
63 —
ST34311A
CHS addressing Addressable sectors
8,944 8,452,080
15
63 —
ST36421A
CHS addressing Addressable sectors
13,330 12,596,850
15
63 —
ST38421A
CHS addressing Addressable sectors
Note. Set the
write precomp
16,368 16,498,944
or
landing zone
16
parameters
63 —
to zero.
ecommendation
R
We recommend you use Disk Manager to evaluate your BIOS and determine whether your system needs additional BIOS sup­port. If your BIOS needs support for drives with capacities greater than 8.4 Gbytes, instructions will be provided. For more information, see “Installation using Disk Manager” on page 14.
