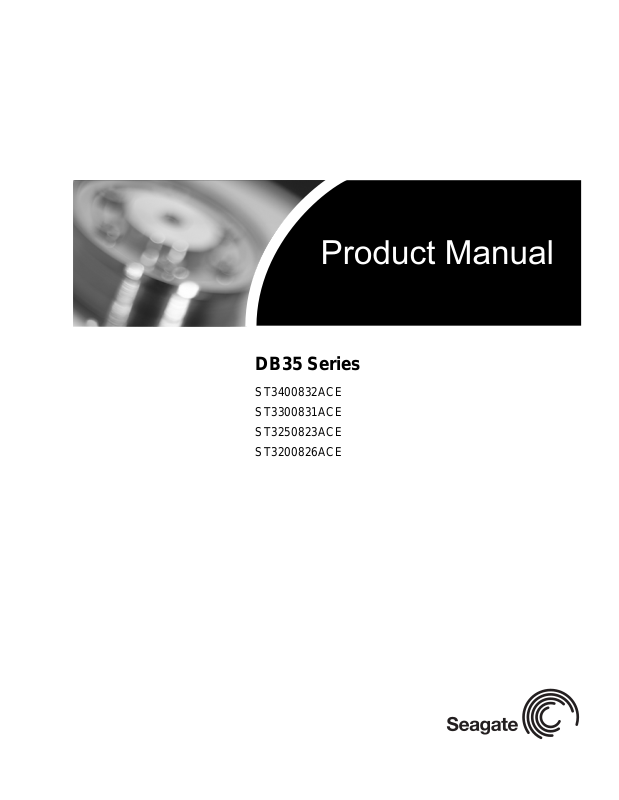

Seagate ST3400832ACE, ST3300831ACE, ST3250823ACE, ST3200826ACE User Manual

DB35 Series

ST3400832ACE ST3300831ACE ST3250823ACE ST3200826ACE

DB35 Series

ST3400832ACE ST3300831ACE ST3250823ACE ST3200826ACE

Publication number: 100347671, Rev. B

May 2005

Seagate and Seagate Technology are reg istered trademarks of Seagate Technology LLC. SeaTools, SeaFONE, SeaB OARD, Se aTDD, and the Wave logo ar e eith er regi stered trade marks or trademarks of Seagate Technology LLC. Other product names are registered trademarks or trademarks of their owners.

Seagate reserves the right to ch ange, witho ut notice, product offerings or spec ifications . No

part of this publication may be reproduc ed in any form w ithout wr itte n per mi ssio n of Seagate

Technology LLC.

Revision status summary sheet

Revision Date Sheets Affected

Rev. A 01/26/05 All. Rev. B 05/16/05 Pages 6 and 7.

DB35 Series Product Manual, Rev. B iii

iv DB35 Series Product Manual, Rev. B

Contents

1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Specification summary table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.5 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.6 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.7 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.7.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.7.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.7.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.7.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.8 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.8.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.8.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8.4 Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8.5 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.10 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.11 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.12 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.12.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.12.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.13 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.13.1 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . 13

3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Handling and static discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2 Breather filter hole precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3 Jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3.1 Master/slave configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3.2 Cable-select option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3.3 Alternate capacity jumper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3.4 Ultra ATA/100 cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.0 ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1 ATA interface signals and connector pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1.1 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.1.2 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1.3 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.1.4 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DB35 Series Product Manual, Rev. B v

vi DB35 Series Product Manual, Rev. B

List of Figures

Figure 1. Typical 5V startup and operation current profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 2. Typical 12V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3. Breather filter hole location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 4. Master/slave jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 5. Ultra ATA cable connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 6. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 7. I/O pins and supported ATA signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DB35 Series Product Manual, Rev. B vii

viii DB35 Series Product Manual, Rev. B

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate® DB35

model drives:

DB35 Series

• ST3400832ACE

• ST3300831ACE

• ST3250823ACE

• ST3200826ACE

These drives provide the following key features:

• Minimal acoustics for consumer storage usage profile.

• Bedroom quiet performance.

• Optimized power for consumer storage devices.

• Spinup current limited to a maximum of 2 amps.

• 7,200-RPM spindle speed

• 8-Mbyte buffer on: ST3400832ACE, ST3300831ACE, ST3250823ACE and ST3200826ACE.

• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.

• Tunneling Giant magnetoresistive (TGMR) recording heads and EPRML technology, which provide the drives with increased areal density.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Full-track multiple-sector transfer capability without local processor intervention.

• 350 Gs nonoperating shock.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Support for Read Multiple and Write Multiple commands.

• Support for autodetection of master/slave drives that use cable select (CSEL).

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• The 3D Defense System™ , which includes Drive Defe nse, Data Defense, and Diag nostic Defense, offers the industry’s most comprehensive protection for disc drives.

DB35 Series Product Manual, Rev. B 1

2 DB35 Series Product Manual, Rev. B

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate ST3400832ACE, ST3300831ACE, ST3250823ACE and ST3200826ACE model drives.

2.1 Specification summary table

The specificatio ns lis ted in th is table ar e for quick reference. F or details on specification me as ur eme nt o r de finition, see the appropriate section of this manual.

Table 1:

Drive specification ST3400832ACE ST3300831ACE S T3250823ACE ST3200826ACE

Formatted Gbytes (512 bytes/sector)

Guaranteed sectors 781,422,768 586,072,368 488,397,168 390,721,968 Bytes per sector 512 Default sectors per track 63 Default read/write heads 16 Default cylinders 16,383 Recording density, BPI

(bits/i n max) Track density, TPI

(tracks/in max) Areal density,

(Mbits/in Spindle speed (RPM) 7,200 Internal data transfer rate OD

(Mbytes/sec max) Sustained data transfer rate OD (Mbytes/sec) 65 I/O data-transfer rate

(Mbytes/sec max) ATA data-transfer modes supported PIO modes 0–4

Cache buffer 8 Mbytes (8,192 kbytes) Height (mm max) 26.11 mm (1.028 inches) Width (mm max) 101.85 mm (4.010 inches) Length (mm max) 146.99 mm (5.787 inches) Weight (typical) 635 grams (1.39 lb.) Average latency (msec) 4.16 Power-on to ready (sec max) 15.5 sec Standby to ready (sec max) 14.0 sec

Drive specifications

max)

400 300 250 200

763,000

120,000

91,560

100

Multiword DMA modes 0–2 Ultra DMA modes 0–5

DB35 Series Product Manual, Rev. B 3

Drive specification ST3400832ACE ST3300831ACE S T3250823ACE ST3200826ACE

Track-to-track seek time (msec typical) 0.8 (read), 1.0 (write) Average seek (msec typical) 18 (read), 20 (write) Startup current (typical) 12V (peak) 2.0 amps Seek power (typical) 8.6 watts Operating (Consumer Storage Profile) 7.2 watts Idle mode (typical) 6.9 watts Standby mode (typical) 0.80 watts Sleep mode (typical) 0.80 watts Voltage tolerance

(including noise) Ambient

temperature Temperature gradient

(°C per hour max) Relative humidity 5% to 90% (operating)

Relative humidity gradient 30% per hour max Wet bulb temperature

(°C max) Altitude, operating –60.96 m to 3,048 m

Altitude, nonoperating (below mean sea level, max)

Operational Shock (Gs max at 2 msec)

Non-Operational Shock (Gs max at 2 msec)

Vibration, operating 0.25 G acceleration Vibration, nonoperating 0.25 G (5–22 Hz)

Drive acoustics, sound power Idle* (bels) 2.6 (typical)

Operational (bels) 2.8 (typical)

Nonrecoverable read errors 1 per 10 Service life 5 Years Contact start-stop cycles

(25°C, 50% rel. humidity)

5V ± 5% 12V ± 10%

0° to 60°C (operating) –40° to 70°C (nonoperating)

20°C (operating) 30°C (nonoperating)

5% to 95% (nonoperating)

37.7 (operating) 40 (nonoperating)

(–200 ft. to 10,000+ ft.) –60.96 m to 12,192 m

(–200 ft. to 40,000+ ft.) 63

300 Gs

5.0 Gs (22–350 Hz)

2.8 (max)

3.0 (max)

50,000

bits read

2.4 (typical)

2.7 (max)

2.8 (typical)

3.0 (max)

*During periods of drive idle, some o ffline activity may occur according to the S. M.A.R.T. specification, which may increase acoust ic and

power to operational levels.

4 DB35 Series Product Manual, Rev. B

2.2 Formatted capacity

Formatted

Model

ST3400832ACE 400 Gbytes 781,422,768 512 ST3300831ACE 300 Gbytes 586,072,368 512 ST3250823ACE 250 Gbytes 488,397,168 512 ST3200826ACE 200 Gbytes 390,721,968 512

capacity

Guaranteed sectors Bytes per sector

2.2.1 LBA mode

When addressing these d rives in LBA mode, all bl ocks (sectors) are c onsecutively numbered fr om 0 to n–1, where n is the number of guaranteed sectors as defined above.

See Section 4.1.2, "Id enti fy Devi ce co mmand" (words 60-61 a nd 1 00-10 3) for a ddi tio nal information about 48bit addressing support of drives with capacities over 137 Gbytes.

2.3 Recording and interface technology

Interface ATA Recording method 16/17 EPRML Recording density BPI (bits/inch max) 763,000 Track density TPI (tracks/inch max) 120,000

Areal density (Mbits/inch

max) 91,560 Spindle speed (RPM) (± 0.2%) 7,200 Internal data-transfer rate OD (Mbytes/sec max) 95 Sustained data transfer rate OD (Mbytes/sec max) 65.0 I/O data-transfer rate (Mbytes/sec max) 100 (Ultra DMA mode 5) Interleave 1:1 Cache buffer ST3400832ACE, ST3300831ACE, ST3250823ACE and ST3200826ACE 8 Mbytes (8,192 kbytes)

DB35 Series Product Manual, Rev. B 5
