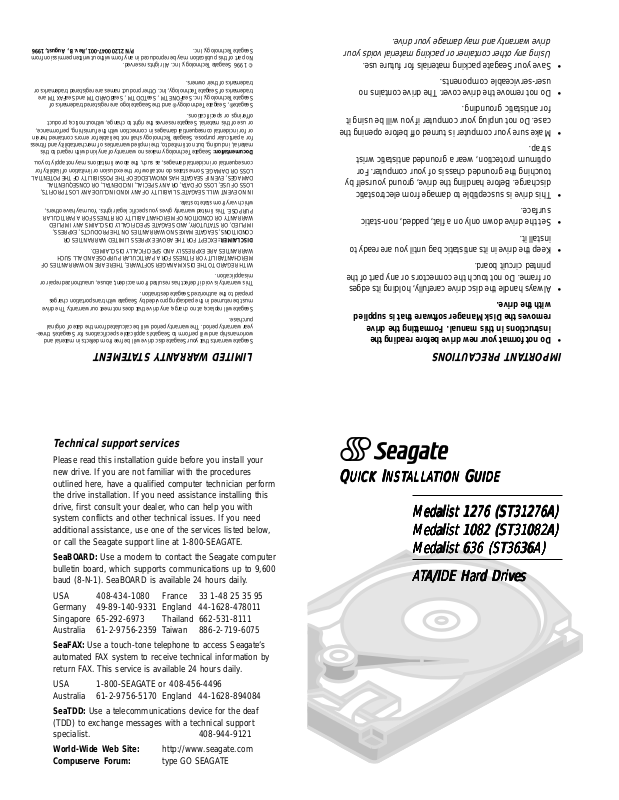

Seagate ST3636A, ST31276A, ST31082A User Manual

Seagate T echnology , Inc. P/N 21200047-001,Rev. B, August, 1996 No part of this publication may be reproduced in any form without written permission from © 1996 Seagate Technology, Inc. All rights reserved.

trademarks of their owners. trademarks of Seagate Technology, Inc. Other product names are registered trademarks or Seagate T echnology , Inc. SeaFONE TM , SeaTDD TM , SeaBOARD TM and SeaF AX TM are Seagate®, Seagate Technology® and the Seagate logo are registered trademarks of

offerings or specifications. or use of this material. Seagate reserves the right to change, without notice, product or for incidental consequential damages in connection with the furnishing, performance, for a particular purpose. Seagate Technology shall not be liable for errors contained herein material, including, but not limited to, the implied warranties of merchantability and fitness Documentation: Seagate Technology makes no warranty of any kind with regard to this

consequential or incidental damages, as such, the above limitations may not apply to you. LOSS OR DAMAGE. Some states do not allow for the exclusion or limitation of liability for DAMAGES, EVEN IF SEAGATE HAS KNOWLEDGE OF THE POSSIBILITY OF THE POTENTIAL LOSS OF USE, LOSS OF DATA, OR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL IN NO EVENT WILL SEAGATE’S LIABILITY OF ANY KIND INCLUDE ANY LOST PROFITS,

which vary from state to state. PURPOSE. This limited warranty gives you specific legal rights. You may have others, WARRANTY OR CONDITION OF MERCHANT ABILITY OR FITNESS FOR A PARTICULAR IMPLIED, OR STA TUTOR Y, AND SEAGATE SPECIFICALLY DISCLAIMS ANY IMPLIED CONDITIONS, SEAGATE MAKES NO W ARRANTIES ON THE PRODUCTS, EXPRESS, DISCLAIMER: EXCEPT FOR THE ABOVE EXPRESS LIMITED W ARRANTIES OR

WARRANTIES ARE EXPRESSLY AND SPECIFICALL Y DISCLAIMED. MERCHANTABILITY OR FITNESS FOR A PAR TICULAR PURPOSE AND ALL SUCH WITH REGARD TO THE DISK MANAGER SOFTWARE, THERE ARE NO WARRANTIES OF

misapplication. This warranty is void if defect has resulted from accident, abuse, unauthorized repair or

prepaid to the authorized Seagate destination. must be returned in the packaging provided by Seagate with transportation charges Seagate will replace, at no charge, any drive that does not meet our warranty. The drive

purchase. year warranty period. The warranty period will be calculated from the date of original workmanship and will perform to Seagate’s applicable specifications for Seagate’s threeSeagate warrants that your Seagate disc drive will be free from defects in material and

LIMITED WARRANTY STATEMENT

drive warranty and may damage your drive. Using any other container or packing material voids your

• Save your Seagate packing materials for future use.

user-serviceable components.

• Do not remove the drive cover. The drive contains no

for antistatic grounding. case. Do not unplug your computer if you will be using it

• Make sure your computer is turned off before opening the

strap. optimum protection, wear a grounded antistatic wrist touching the grounded chassis of your computer. For discharge. Before handling the drive, ground yourself by

• This drive is susceptible to damage from electrostatic

surface.

• Set the drive down only on a flat, padded, non-static

install it.

• Keep the drive in its antistatic bag until you are ready to

printed circuit board. or frame. Do not touch the connectors or any part of the

• Always handle the disc drive carefully, holding its edges

with the drive. removes the Disk Manager software that is supplied instructions in this manual. Formatting the drive

• Do not format your new drive before reading the

IMPORTANT PRECAUTIONS

Technical support services

Please read this installation guide before you install your new drive. If you are not familiar with the procedures outlined here, have a qualified computer technician perform the drive installation. If you need assistance installing this drive, first consult your dealer, who can help you with system conflicts and other technical issues. If you need additional assistance, use one of the services listed below, or call the Seagate support line at 1-800-SEAGATE.

SeaBOARD: Use a modem to contact the Seagate computer bulletin board, which supports communications up to 9,600 baud (8-N-1). SeaBOARD is available 24 hours daily.

USA 408-434-1080 France 33 1-48 25 35 95 Germany 49-89-140-9331 England 44-1628-478011 Singapore 65-292-6973 Thailand 662-531-8111 Australia 61-2-9756-2359 Taiwan 886-2-719-6075

SeaFAX: Use a touch-tone telephone to access Seagate’s automated FAX system to receive technical information by return FAX. This service is available 24 hours daily.

USA 1-800-SEAGATE or 408-456-4496 Australia 61-2-9756-5170 England 44-1628-894084

SeaTDD: Use a telecommunications device for the deaf (TDD) to exchange messages with a technical support specialist. 408-944-9121

World-Wide Web Site: http://www.seagate.com Compuserve Forum: type GO SEAGATE

UICKUICK

UICK

UICKUICK

I I

NSTNST

ALLAALLA

NST

ALLA

NSTNST

ALLAALLA

Medalist 1276 (ST31276A)Medalist 1276 (ST31276A)

Medalist 1276 (ST31276A)

Medalist 1276 (ST31276A)Medalist 1276 (ST31276A) Medalist 1082 (ST31082A)Medalist 1082 (ST31082A)

Medalist 1082 (ST31082A)

Medalist 1082 (ST31082A)Medalist 1082 (ST31082A) Medalist 636 (ST3636A)Medalist 636 (ST3636A)

Medalist 636 (ST3636A)

Medalist 636 (ST3636A)Medalist 636 (ST3636A) AA

A/IDE HarA/IDE Har

A/IDE Har

A/IDE HarA/IDE Har

TIONTION

TION

TIONTION

G G

UIDEUIDE

UIDE

UIDEUIDE

d Drivesd Drives

d Drives

d Drivesd Drives

INST ALLA TION PROCEDURE:

Configuring the drive

1. Turn off your computer and remove the cover.

2. Configure the disk drive jumpers as necessary. Refer to the

illustration below for details.

40-pin ATA

interface

connector

pin 1

4-pin power

connector

Drive is slave Drive is master in single-

or dual-drive system Drive is master with

non-ATA-compatible slave Enable Cable Select



Connecting cables and mounting the drive

1. Connect the interface cable to the drive. Make sure that pin 1 on the

interface cable (colored stripe) is attached to pin 1 on the drive (see above) and pin 1 on the host adapter.

2. Partially insert the drive into the drive bay. Select an unused power connector from the power supply and connect it to the drive. If there are no unused power connections on the power supply, you can purchase a “Y” cable adapter from your dealer. This connector will allow you to add another power connection for your new drive.

3. Secure the drive with four 6-32 x 0.25 screws. CAUTION: If you use screws longer than 0.25 inch when mounting the drive, you may damage the drive’s circuit board. The maximum insertion depth for the bottom mounting holes is 0.25 inch; the maximum insertion depth for the side holes is 0.125 inch.

About Disk Manager Software

This Seagate drive is shipped with free Disk Manager software installed on a temporary partition on the drive. This software partitions and formats the drive and allows older computers to access the drive’s full capacity.

Before you can use the Disk Manager software, you must transfer it from the temporary partition on the drive to a bootable diskette with at least one Mbyte available. To create a bootable diskette, see your DOS manual.

Transferring the software to a bootable diskette

1. Insert a bootable diskette into drive A.

2. Simultaneously press [CTRL], [ALT], and [DEL] to reboot your

computer from the bootable diskette.

3. During the start-up process, enter your computer’s system setup program (sometimes called BIOS or CMOS setup). This is usually done by pressing a special key, such as [DELETE], [ESC], or [F1] during start-ups. See your computer or motherboard manual for system-specific instructions.

4. Within the system setup program, configure your new hard drive as Drive Type 2, or enter the following values for a user-definable drive type: 615 cylinders, 4 heads, and 17 sectors per track. These temporary settings allow you to access the Disk Manager software on your new hard disc.

Master/slave jumper settings

135

Use this jumper setting

not work with a single jumper on pins 5 and 6.

Consult your computer manual to determine 

if your system supports cable select.

only

if the drive does

Save the drive-type settings and exit the system setup program. Yo u will have to reboot your computer for the changes to take effect.

6. After you reboot your computer, you should be able to access the software on your new hard disc. If your new hard drive is drive C, type C:\SEAMOVE. Press [ENTER] to transfer the disc support software. Use a different drive letter if necessary.

The SEAMOVE program transfers the Disk Manager files from your new hard disc to the bootable diskette in drive A. After all the files have been transferred, SEAMOVE deletes all the files from the hard drive, along with the temporary partition that held them.

Running Disk Manager from your bootable software diskette

1. Simultaneously press [CTRL], [ALT], and [DEL] to reboot your

computer from the bootable diskette that now contains the Disk Manager software. During the start-up process, enter your computer’s system setup program, as described previously.

2. Within the system setup program, make sure that a drive type is listed for each ATA hard drive in your computer. Some newer computers can automatically determine drive-type characteristics, using the provide this option, you must manually enter the number of cylinders, heads, and sectors per track for your new drive, as shown in the table below.

Model Heads Cylinders Sectors Capacity*

ST31276A 16 2482 63 1275 Mbytes ST31082A 16 2097 63 1080 Mbytes ST3636A 16 1241 63 635 Mbytes *1 Mbyte = 1,000,000 bytes

3. Save the drive-type settings and exit the system setup program. You will have to reboot your computer for the changes to take effect.

4. At the DOS prompt, type A:\DM. Press [ENTER] to run Disk Manager

5. Follow the instructions on your computer screen. From the main menu, select

6. At this point, Disk Manager lists all the hard drives that it can recognize. You should see your new Seagate drive and your old hard drive (if any). If Disk Manager recognizes all your drives, select the new drive you wish to install and press [ENTER]. Disk Manager will format and partition your new drive.

If a hard drive is not recognized, exit Disk Manager and turn off your computer. Check all cables, jumpers and BIOS settings. Then run Disk Manager again.

7. Follow the instructions on the Disk Manager post-installation screens. You're done!

NOTES:

1) If your computer does not require software support for large hard

drives, Disk Manager will optimize your system BIOS settings, then partition and format your new hard disc.

2) If Disk Manager has installed software to help your computer

access a large hard drive, you should see a blue Disk Manager banner each time you boot your computer. In this case, if you need to boot from a diskette instead of from your hard drive, see the Disk Manager online manual for instructions.

3) To view the Disk Manager online manual, insert the Disk Manager

diskette and type A:\DM /H. Then press [ENTER]. You can also view the online manual from within Disk Manager by selecting

Online Manual

Auto

drive-type setting. If your computer does not

(E)asy Disk Installation

. Then press [ENTER].

in the main menu.

(V)iew/Print
