Page 1

Product Manual

Seagate® Surveillance HDD

ST4000VX000 ST3000VX002

100730368 Rev. A February 2014

Page 2

Document Revision History

Revision Date Description of Change

Rev. A 02/20/2014 Initial release.

Publication number: 100384760, Rev. A February 2014 Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the

United States and/or other countries. Seagate Surveillance HDD and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1(877-782-8351) to request permission.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

Page 3

Contents

Seagate Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 About the SATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Formatted capacityy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.5 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.6 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.7 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.8 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.8.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.8.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.8.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.8.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.9 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.9.1 Drive case temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.9.2 Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9.3 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9.4 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9.5 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9.6 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9.7 Non-operating vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.10 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.10.1 Test for Prominent Discrete Tones (PDTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.11 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.12 AFR and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.14 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.14.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.14.2 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.14.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.15 Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.15.1 European Union Restriction of Hazardous Substances (RoHS) Directive . . . . . 14

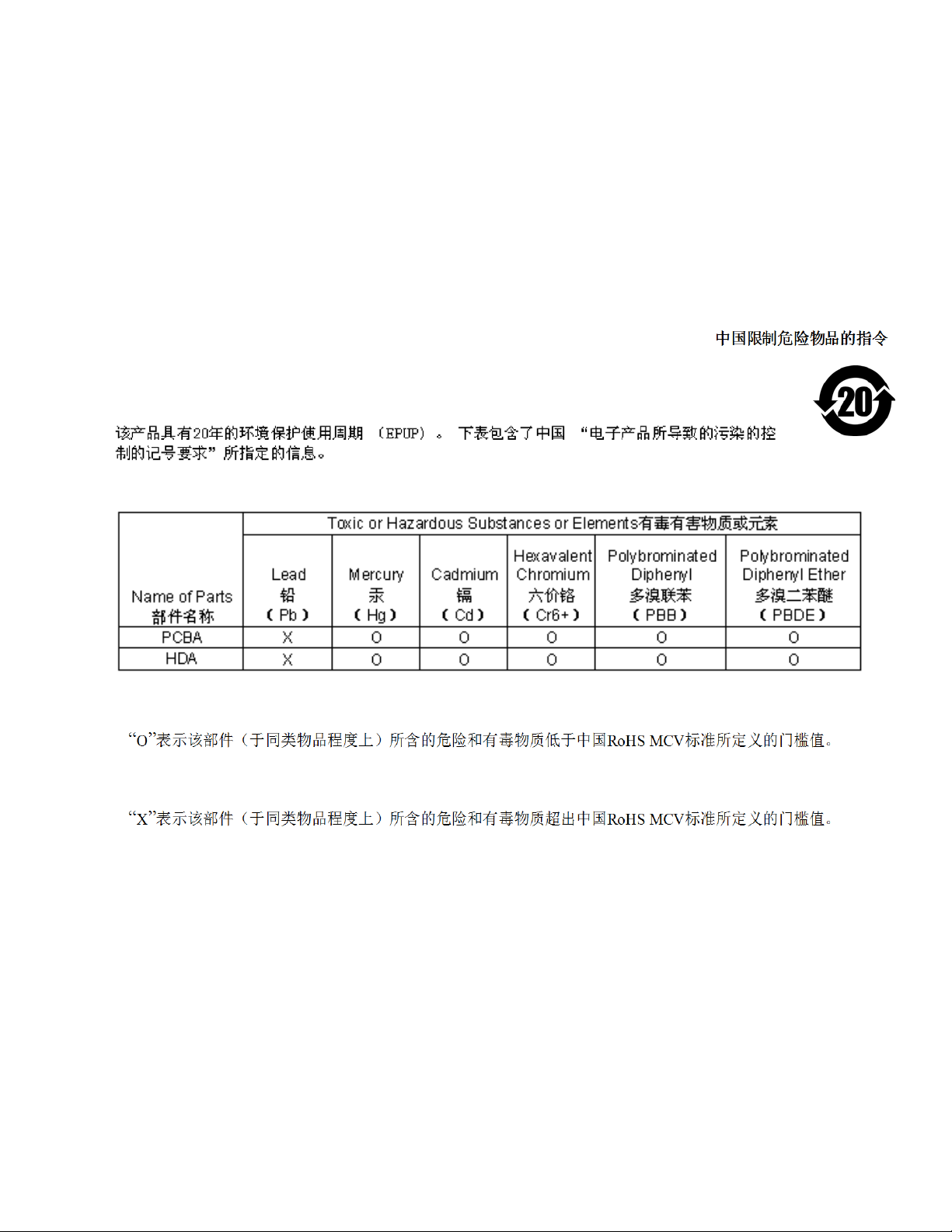

2.15.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . 14

2.16 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.0 Configuring and Mounting the Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Handling and static-discharge precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3 SATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.0 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2 SATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Seagate Surveillance HDD Product Manual, Rev. A

Page 4

Figures

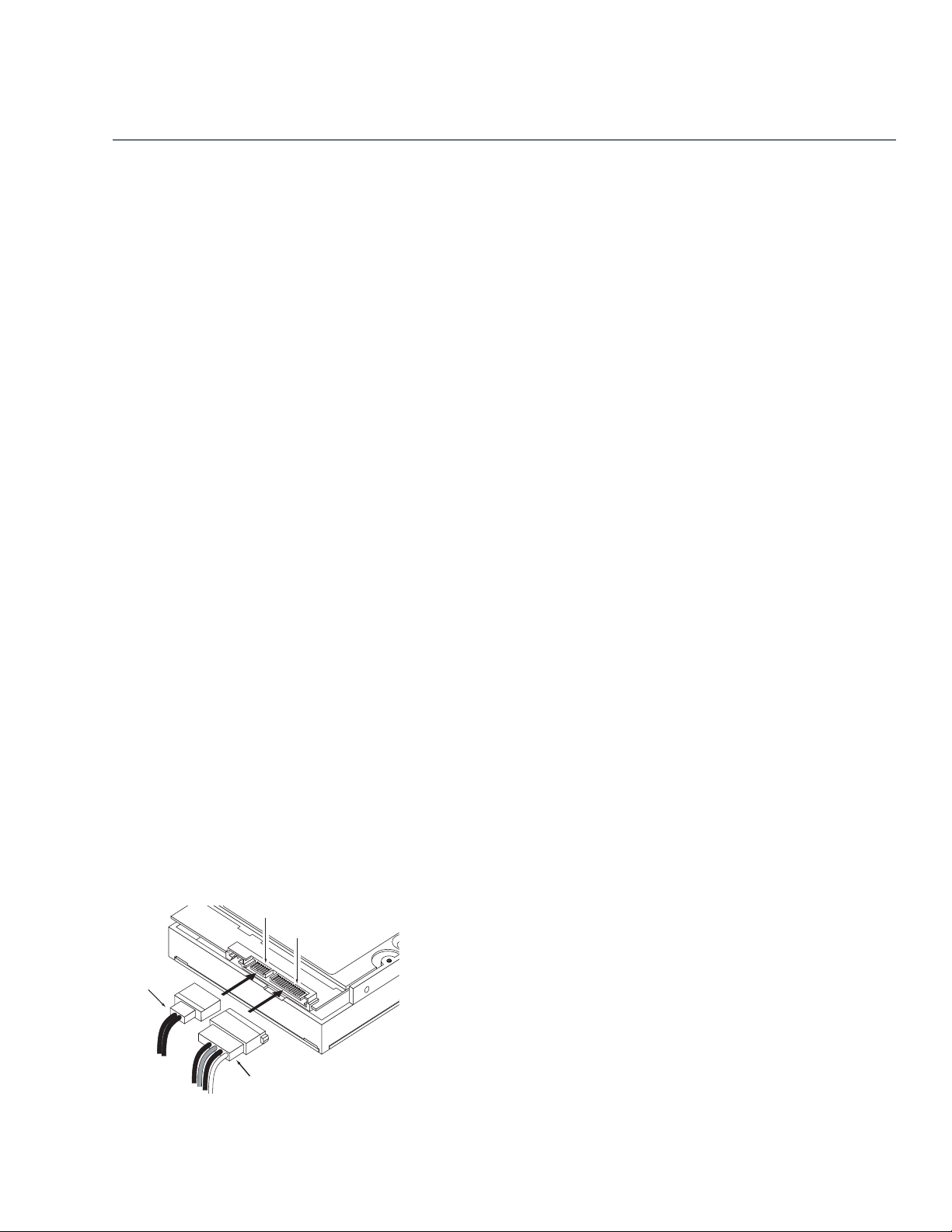

Figure 1 Attaching SATA cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

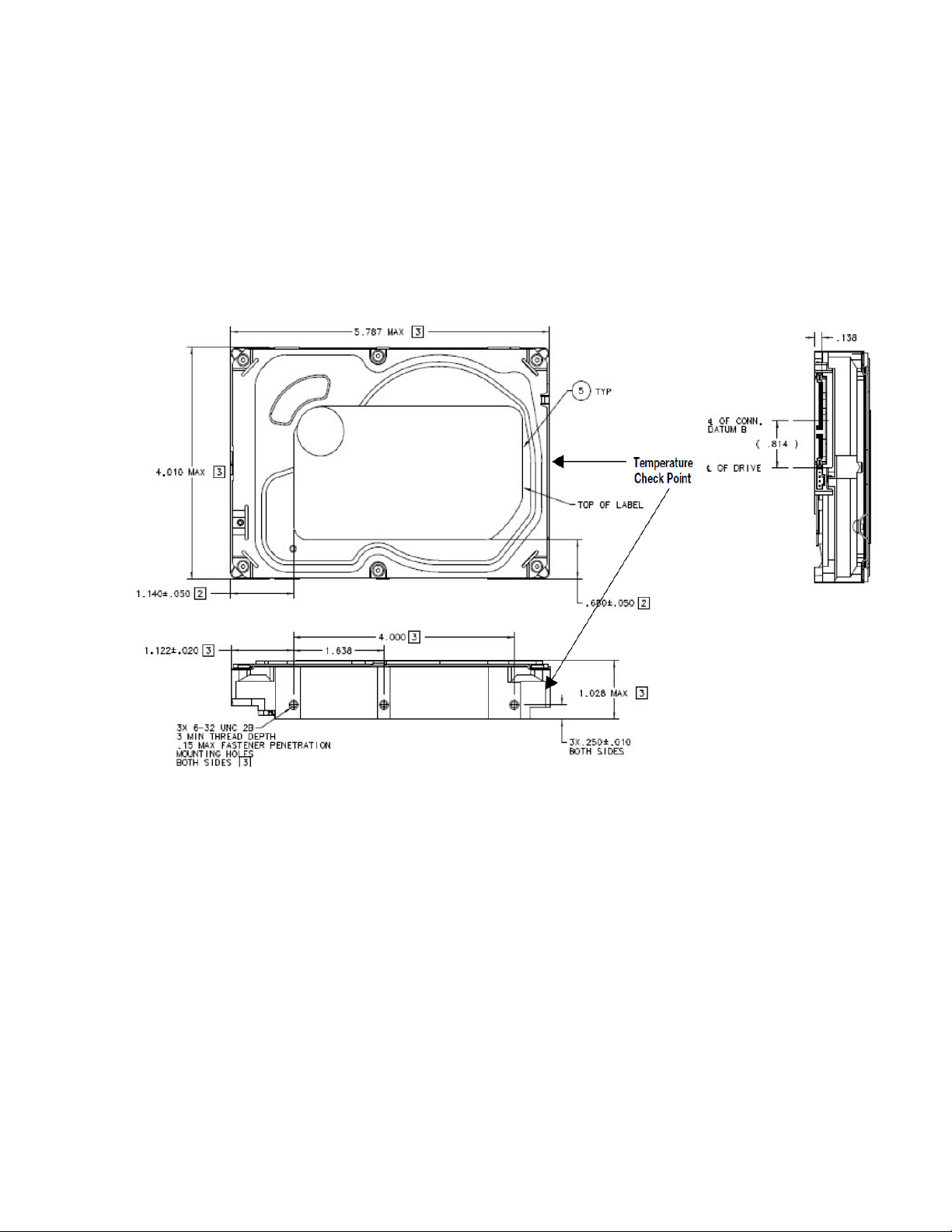

Figure 2 Mounting dimensions (3TB and 4TB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Seagate Surveillance HDD Product Manual, Rev. A

Page 5

Seagate Technology Support Services

For information regarding online support and services, visit Available services include:

• Presales & Technical support

• Global Support Services telephone numbers & business hours

• Authorized Service Centers

For information regarding Warranty Support, visit: For information regarding data recovery services, visit For Seagate OEM and Distribution partner portal, visit: For Seagate reseller portal, visit:

http://www.seagate.com/partners/my-spp-dashboard/

http://www.seagate.com/support/warranty-and-replacements/

http://www.seagate.com/about/contact-us/technical-support/

http://www.seagate.com/services-software/data-recovery-services/

http://www.seagate.com/partners/

Seagate Surveillance HDD Product Manual, Rev. A 1

Page 6

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate® Surveillance HDD model drives:

ST4000VX000 ST3000VX002

These drives provide the following key features:

• Reliability for 24×7 video surveillance applications

• Thermal monitoring and reporting for 24×7 operations

• Uncompromising reliability supports flexible surveillance design with case temperatures up to 70º C

• Performance-tuned for seamless video applications

• Built-in error recovery for non-stop video streaming

• Best-in-class acoustic performance means virtually silent operation

• Low-RPM spindle speed

• Low activity and idle power

• Supports ATA8 streaming commands

• 1M hour MTBF - designed for high write duty cycle across Surveillance HDD

• Streaming video optimization - consistent command completion times & ERC support across Surveillance HDD

• ATA AV Command support - streaming video command support across Surveillance HDD

• Number of drives supported in surveillance environment: Non RAID Application, sequential HDD usage model RAID Application - Surveillance HDD <=16 HDDs

• Transient power on management - <=2A spin-up current

• Rotational Vibration - mitigation of system level rotational vibration inside Surveillance HDD

• TGMR recording technology provides the drives with increased areal density.

• State-of-the-art cache and on-the-fly error-correction algorithms

• Native Command Queueing with command ordering to increase performance in demanding applications

• Full-track multiple-sector transfer capability without local processor intervention

• Compliant with RoHS requirements in China and Europe

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• Support for S.M.A.R.T. drive monitoring and reporting

• Supports latching SATA cables and connectors

• Worldwide Name (WWN) capability uniquely identifies the drive

Seagate Surveillance HDD Product Manual, Rev. A 2

Page 7

www.seagate.com

Introduction

1.1 About the SATA interface

The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers

or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing applications to work as normal.

The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.0”. The specification can be downloaded from www.sata-io.org.

Note

The host adapter may, optionally, emulate a master/slave environment to host software where two devices on separate SATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment.

Seagate Surveillance HDD Product Manual, Rev. A 3

Page 8

2.0 Drive Specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:

ST4000VX000 ST3000VX002

2.1 Specification summary tables

The specifications listed in Table 1 are for quick reference. For details on specification measurement or definition, refer to the appropriate section of this manual.

Table 1 Drive specifications summary for 4TB and 3TB models

Drive Specification* ST4000VX000 ST3000VX002

Formatted capacity (512 bytes/sector)** 4000GB (4TB) 3000GB (3TB)

Guaranteed sectors 7,814,037,168 5,860,533,168

Heads 8

Disks 4

Bytes per sector (4K physical emulated at 512-byte sectors)

Default sectors per track 63

Default read/write heads 16

Default cylinders 16,383

Recording density (max) 1807kFCI 1550kFCI

Track density (avg) 340ktracks/in

Areal density (avg) 625Gb/in

Internal data transfer rate (max) 1813Mb/s

Maximum sustained data rate, OD read (MB/s) 180MB/s

ATA data-transfer modes supported PIO modes: 0 to 4

I/O data-transfer rate (max) 600MB/s

Cache buffer 64MB

Height (max) 26.1mm / 1.028 in

Width (max) 101.6mm /4.0 in (+ 0.010 in)

Length (max) 146.99mm / 5.787 in

Weight (typical) 610g / 1.345 lb

Average latency 5.1ms

Power-on to ready (max) <17.0s

Standby to ready (max) <17.0s

Average seek, read (typical) Average seek, write (typical)

Startup current (typical) 12V 2.0A

Voltage tolerance (including noise) 5V: ±5%

Ambient temperature (drive case temperature) 0° to 70°C (operating)

Temperature gradient 20°C per hour max (operating)

Relative humidity 5% to 90% (operating)

Relative humidity gradient (max) 30% per hour

Multiword DMA modes: 0 to 2

Ultra DMA modes 0 to 6

–40° to 70°C (non-operating)

30°C per hour max (nonoperating)

5% to 95% (nonoperating)

4096

<12.0ms <12.0ms

12V: ±10%

536Gb/in

Seagate Surveillance HDD Product Manual, Rev. A 4

Page 9

www.seagate.com

Drive Specifications

Table 1 Drive specifications summary for 4TB and 3TB models (continued)

Drive Specification* ST4000VX000 ST3000VX002

Wet bulb temperature (max) 37.7°C max (operating)

Altitude, operating –304m to 3048m

Altitude, non-operating (below mean sea level, max)

Operational Shock (max) 80 Gs at 2ms

Non-Operational Shock (max) 300 Gs at 2ms

Vibration, operating 2Hz to 22Hz: 0.25 Gs, Limited displacement

Vibration, non-operating 5Hz to 22Hz: 3.0 Gs

Drive acoustics, sound power

Idle***

Seek

Non-recoverable read errors 1 per 10

Annualized Failure Rate (AFR) <1%

Warranty To determine the warranty for a specific drive, use a web browser to access the

following web page: http://www.seagate.com/support/warranty-and-replacements/ From this page, click on “Check to see if the drive is under Warranty”. Users will be asked to provide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.

Load/Unload cycles (25°C, 50% rel. humidity) 300,000 at 25°C, 50% rel. humidity

Supports Hotplug operation per the Serial ATA Revision 3.0 specification

40.0°C max (nonoperating)

(–1000 ft to 10,000 ft)

–304m to12,192m

(–1000ft to 40,000+ ft)

22Hz to 350Hz: 0.50 Gs

350Hz to 500Hz: 0.25 Gs

22Hz to 350Hz: 3.0 Gs

350Hz to 500Hz: 3.0 Gs

2.3 bels (typical)

2.4 bels (max)

2.5 bels (typical)

2.6 bels (max)

bits read

Yes

*All specifications above are based on native configurations.

** One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary

depending on operating environment and formatting.

*** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and

power to operational levels.

Seagate Surveillance HDD Product Manual, Rev. A 5

Page 10

www.seagate.com

2.2 Formatted capacityy

Drive Specifications

Model

ST4000VX000 4000GB 7,814,037,168

Formatted capacity*

Guaranteed sectors

Bytes per sector

ST3000VX002 3000GB 5,860,533,168

*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending

on operating environment and formatting.

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137GB.

2.3 Default logical geometry

• Cylinders: 16,383

• Read/write heads: 16

• Sectors per track: 63

LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

2.4 Recording and interface technology

Interface SATA

Recording method TGMR

Recording density

4TB 1807kFCI

3TB 1550kFCI

Track density (ktracks/inch avg) 340

Areal density (Gb/in2)

4TB 625

3TB 536

Internal data transfer rate (Mb/s max) 1813

Maximum sustained data transfer rate, OD read (MB/s) 180

I/O data-transfer rate (MB/s max) 600

Seagate Surveillance HDD Product Manual, Rev. A 6

Page 11

www.seagate.com

Drive Specifications

2.5 Physical characteristics

Maximum height 26.11mm / 1.028 in

Maximum width 101.6mm / 4.0 in (± 0.010 in)

Maximum length 146.99mm / 5.787 in

Typical weight 610g / 1.345 lb

Cache buffer 64MB

2.6 Seek time

Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.

• Average seek time is a true statistical random average of at least 5000 measurements of seeks between

random tracks, less overhead.

Typical seek times (ms) Read Write

Track-to-track 1.0 1.2

Average <12.0

Average latency 5.1

These drives are designed to consistently meet the seek times represented in this manual. Physical seeks,

Note

regardless of mode (such as track-to-track and average), are expected to meet the noted values. However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications.

2.7 Start/stop times

The start/stop times listed below are for 3TB and 4TB models.

Power-on to ready (in seconds) 15 (typical) / 17 (max)

Standby to ready (in seconds) 15 (typical) / 17 (max)

Ready to spindle stop (in seconds) 10 (typical) / 11 (max)

Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures.

Seagate Surveillance HDD Product Manual, Rev. A 7

Page 12

www.seagate.com

Drive Specifications

2.8 Power specifications

The drive receives DC power (+5V or +12V) through a native SATA power connector. Refer to Figure 1 on page 15.

2.8.1 Power consumption

Power requirements for the drives are listed in Table 2. Typical power measurements are based on an average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.

• Spinup power

Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating speed.

• Read/write power and current

Read/write power is measured with the heads on track, based on a 16-sector write followed by a 32-ms delay, then a 16-sector read followed by a 32-ms delay.

• Operating power and current

Operating power is measured using 40 percent random seeks, 40 percent read/write mode (1 write for each 10 reads) and 20 percent drive idle mode.

• Idle mode power

Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in a random track location.

• Standby mode

During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/ write electronics are in power-down mode.

Table 2 DC power requirements (3TB and 4TB)

Power dissipation (4-disk values shown)

Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps

Spinup — — 2.0

Idle* † 5.0 0.17 0.35

Operating 7.50 0.48 0.43

Standby 0.750 0.138 0.005

Sleep 0.750 0.138 0.005

* Idle1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and

power to operational levels.

†5W IDLE with DIPLM Enabled

2.8.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.

• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave

injected noise at up to 10MHz.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave

injected noise at up to 10MHz.

Note

Seagate Surveillance HDD Product Manual, Rev. A 8

Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

Page 13

www.seagate.com

Drive Specifications

2.8.3 Voltage tolerance

Voltage tolerance (including noise):

• 5V ±5%

• 12V ±10%

2.8.4 Power-management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems, users can control power management through the system setup program. The drive features the following powermanagement modes:

Power modes Heads Spindle Buffer

Active Tracking Rotating Enabled

Idle Tracking Rotating Enabled

Standby Parked Stopped Enabled

Sleep Parked Stopped Disabled

• Active mode

The drive is in Active mode during the read/write and seek operations.

• Idle mode

The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disk access is necessary.

• Standby mode

The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In Standby mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive accepts all commands and returns to Active mode any time disk access is necessary.

• Sleep mode

The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the drive buffer is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode with all current translation parameters intact.

• Idle and Standby timers

Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and begins counting down from its specified delay times to zero. If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary.

2.9 Environmental specifications

This section provides the temperature, humidity, shock, and vibration specifications for SV HDDs. This section provides the temperature, humidity, shock, and vibration specifications.

2.9.1 Drive case temperature

Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000ft. (305 meters), the maximum temperature is derated linearly by 1°C every 1000 ft. Drive case temperature should be measured at the location indicated in Figure 2.

Seagate Surveillance HDD Product Manual, Rev. A 9

Page 14

www.seagate.com

2.9.2 Ambient Temperature

Operating 0° to 70°C

Non-operating –40° to 70°C

2.9.3 Temperature gradient

Operating 20°C per hour (68°F per hour max), without condensation

Non-operating 30°C per hour (86°F per hour max)

2.9.4 Humidity

2.9.4.1 Relative humidity

Operating 5% to 90% non-condensing (30% per hour max)

Nonoperating 5% to 95% non-condensing (30% per hour max)

Drive Specifications

2.9.4.2 Wet bulb temperature

Operating 37.7°C (99.9°F max)

Non-operating 40°C (104°F max)

2.9.5 Altitude

Operating –304m to 3048m (–1000 ft. to 10,000 ft.)

Non-operating –304m to 12,192m (–1000 ft. to 40,000+ ft.)

2.9.6 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be applied in the X, Y or Z axis.

2.9.6.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 80 Gs based on half-sine shock pulses of 2ms during read operations. Shocks should not be repeated more than 2 times per second.

2.9.6.2 Non-operating shock

3TB and 4TB

The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 300 Gs based on a non-repetitive half-sine shock pulse of 2ms duration.

Seagate Surveillance HDD Product Manual, Rev. A 10

Page 15

www.seagate.com

Drive Specifications

2.9.6.3 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.

2Hz to 22Hz 0.25 Gs (Limited displacement)

22Hz to 350Hz 0.50 Gs

350Hz to 500Hz 0.25 Gs

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y or Z axis. Throughput may vary if improperly mounted.

2.9.7 Non-operating vibration

The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below.

5Hz to 22Hz 3.0 Gs (Limited displacement)

22Hz to 350Hz 3.0 Gs

350Hz to 500Hz 3.0 Gs

2.10 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.

For seek mode tests, the drive is placed in seek mode only. The number of seeks per second is defined by the

Note

Table 3 Fluid Dynamic Bearing (FDB) motor acoustics

following equation:

(Number of seeks per second = 0.4 / (average latency + average access time

Idle* Seek

4-Disk

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power

to operational levels.

2.3 bels (typical)

2.4 bels (max)

2.5 bels (typical)

2.6 bels (max)

2.10.1 Test for Prominent Discrete Tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-

7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of

tone ratios according to Annex D of the ECMA-74 standards.

Seagate Surveillance HDD Product Manual, Rev. A 11

Page 16

www.seagate.com

Drive Specifications

2.11 Electromagnetic immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environments defined in Table 4.

Table 4 Radio frequency environments

Test Description

Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN61000-4-2: 95

Performance level

Reference standard

Radiated RF immunity 80MHz to 1,000MHz, 3 V/m,

80% AM with 1kHz sine 900MHz, 3 V/m, 50% pulse modulation @ 200Hz

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN61000-4-4: 95

Surge immunity ± 1 kV differential, ± 2 kV common,

AC mains

Conducted RF immunity 150kHz to 80MHz, 3 Vrms, 80% AM with 1kHz

sine

Voltage dips, interrupts 0% open, 5 seconds

0% short, 5 seconds 40%, 0.10 seconds 70%, 0.01 seconds

A EN61000-4-3: 96

B EN61000-4-5: 95

A EN61000-4-6: 97

C C C B

ENV50204: 95

EN61000-4-11: 94

2.12 AFR and Warranty

The product will achieve an Annualized Failure Rate (AFR) of <1% when operated in an environment of ambient air temperatures of 25°C. Operation at temperatures outside the specifications shown in Section 2.9, "Environmental specifications." may increase the product AFR. AFR is a population statistics that is not relevant to individual units.

AFR specifications are based on the following assumptions for consumer electronics environments:

• 8760 power-on-hours per year

• 10,000 average motor start/stop cycles per year

• Operations at nominal voltages

• Temperatures outside the specifications in Environmental specifications on page 18 may reduce the product

reliability.

• Normal I/O duty cycle for consumer electronics environments. Operation at excessive I/O duty cycle may

degrade product reliability.

The consumer electronics environment of power-on-hours, temperature, and I/O duty cycle affect the product AFR. The AFR will be degraded if used in an enterprise application.

2.13 Warranty

To determine the warranty for a specific drive, use a web browser to access the following web page:

http://www.seagate.com/support/warranty-and-replacements/

From this page, click on “Check to see if the drive is under Warranty”. Users will be asked to provide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.

2.14 Agency certification

2.14.1 Safety certification

These products are certified to meet the requirements of UL60950-1, CSA60950-1 and EN60950 and so marked as to the certify agency.

Seagate Surveillance HDD Product Manual, Rev. A 12

Page 17

www.seagate.com

Drive Specifications

2.14.2 Electromagnetic compatibility

Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic Compatibility Directive (2004/108/EC) as put into place 20 July 2007. Testing is performed to the levels specified by the product standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024.

Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm EMC compliance and provide CE marking for their products.

Korean RRL

If these drives have the Korean Communications Commission (KCC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Communications Commission, Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab.

• Family name: (SV HDD)

• Certificate number: In process

Australian C-Tick (N176)

If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZ CISPR22 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication Authority (ACA).

2.14.3 FCC verification

These drives are intended to be contained solely within a personal computer or similar enclosure (not attached as an external device). As such, each drive is considered to be a subassembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications Commission verification or certification of the device is required.

Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with non-certified assemblies is likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined by turning the equipment on and off, users are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.

If necessary, users should consult the dealer or an experienced radio/television technician for additional suggestions. users may find helpful the following booklet prepared by the Federal Communications Commission: How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.

Seagate Surveillance HDD Product Manual, Rev. A 13

Page 18

www.seagate.com

Drive Specifications

2.15 Environmental protection

Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical substances.

2.15.1 European Union Restriction of Hazardous Substances (RoHS) Directive

The European Union Restriction of Hazardous Substances (RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercury, Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured with components and materials that comply with the RoHS Directive.

2.15.2 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is lower than the threshold defined by the China RoHS MCV Standard.

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over the threshold defined by the China RoHS MCV Standard.

2.16 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment. Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Seagate Surveillance HDD Product Manual, Rev. A 14

Page 19

www.seagate.com

Configuring and Mounting the Drive

3.0 Configuring and Mounting the Drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:

Caution

• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal

chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until mounting it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the

warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

3.2 Configuring the drive

Each drive on the SATA interface connects point-to-point with the SATA host adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point relationship. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.

SATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive for proper operation; however, if users connect the drive and receive a “drive not detected” error, the SATA-equipped motherboard or host adapter may use a chipset that does not support SATA speed autonegotiation.

3.3 SATA cables and connectors

The SATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 5 for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable.

For installations which require cables, users can connect the drive as illustrated in Figure 1.

Figure 1 Attaching SATA cabling

Signal connector

Power connector

Signal cable

Power cable

Each cable is keyed to ensure correct orientation. Seagate Surveillance HDD drives support latching SATA connectors.

Seagate Surveillance HDD Product Manual, Rev. A 15

Page 20

3.4 Drive mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to Figure 2 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:

• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• The screws should be inserted no more than 0.150 inch (3.81mm) into the bottom or side mounting holes.

• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).

Figure 2 Mounting dimensions (3TB and 4TB)

Seagate Surveillance HDD Product Manual, Rev. A 16

Page 21

www.seagate.com

SATA Interface

4.0 SATA Interface

These drives use the industry-standard Serial ATA (SATA) interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0 to 4; multiword DMA modes 0 to 2, and Ultra DMA modes 0 to 6.

For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification.

4.1 Hot-Plug compatibility

Seagate Surveillance HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 3.0 specification. This specification can be downloaded from www.serialata.org.

Seagate Surveillance HDD Product Manual, Rev. A 17

Page 22

4.2 SATA device plug connector pin definitions

Table 5 summarizes the signals on the SATA interface and power connectors.

Table 5 SATA connector pin definitions

Segment Pin Function Definition

Signal S1 Ground 2nd mate

S2 A+ Differential signal pair A from Phy

S3 A-

S4 Ground 2nd mate

S5 B- Differential signal pair B from Phy

S6 B+

S7 Ground 2nd mate

Key and spacing separate signal and power segments

Power P1

P4 Ground 1st mate

P5 Ground 2nd mate

P6 Ground 2nd mate

P10 Ground 2nd mate

3.3V power

3.3V power, pre-charge, 2nd mate

5V power, pre-charge, 2nd mate

5V power

P11 Ground or LED signal If grounded, drive does not use deferred spin

P12 Ground 1st mate.

P13

P14

P15

12V power, pre-charge, 2nd mate

12V power

Notes

1. All pins are in a single row, with a 1.27 mm (0.050 in) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this

case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed

in a blind-mate backplane configuration.

• All used voltage pins (Vx) must be terminated.

Seagate Surveillance HDD Product Manual, Rev. A 18

Page 23

4.3 Supported ATA commands

The following table lists SATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA International Organization: Serial ATA Revision 3.0 (http://www.sata-io.org).

See “S.M.A.R.T. commands” on page 26 for details and subcommands used in the S.M.A.R.T. implementation.

Table 6 SATA standard commands

Command name Command code (in hex)

Check Power Mode E5

Device Configuration Freeze Lock B1H / C1

Device Configuration Identify B1H / C2

Device Configuration Restore B1H / C0

Device Configuration Set B1H / C3

Device Reset 08

Download Microcode 92

Execute Device Diagnostics 90

Flush Cache E7

Flush Cache Extended EA

Format Track 50

Identify Device EC

Idle E3

Idle Immediate E1

Initialize Device Parameters 91

Read Buffer E4

Read DMA C8

Read DMA Extended 25

Read DMA Without Retries C9

Read Log Ext 2F

Read Multiple C4

Read Multiple Extended 29

Read Native Max Address F8

Read Native Max Address Extended 27

Read Sectors 20

Read Sectors Extended 24

Read Sectors Without Retries 21

Read Verify Sectors 40

Read Verify Sectors Extended 42

Read Verify Sectors Without Retries 41

Recalibrate 10

Security Disable Password F6

Security Erase Prepare F3

Seagate Surveillance HDD Product Manual, Rev. A 19

Page 24

www.seagate.com

Table 6 SATA standard commands (continued)

Command name Command code (in hex)

SATA Interface

Security Erase Unit F4

Security Freeze F5

Security Set Password F1

Security Unlock F2

Seek 70

Set Features EF

Set Max Address F9

Note: Individual Set Max Address commands are identified by the value placed in the Set Max Features register as defined to the right.

Address: Password: Lock: Unlock: Freeze Lock:

Set Max Address Extended 37

Set Multiple Mode C6

Sleep E6

S.M.A.R.T. Disable Operations B0H / D9

S.M.A.R.T. Enable/Disable Autosave B0H / D2

S.M.A.R.T. Enable Operations B0H / D8

S.M.A.R.T. Execute Offline B0H / D4

S.M.A.R.T. Read Attribute Thresholds B0H / D1

S.M.A.R.T. Read Data B0H / D0

S.M.A.R.T. Read Log Sector B0H / D5

S.M.A.R.T. Return Status B0H / DA

S.M.A.R.T. Save Attribute Values B0H / D3

S.M.A.R.T. Write Log Sector B0H / D6

Standby E2

Standby Immediate E0

Write Buffer E8

Write DMA CA

Write DMA Extended 35

Write DMA FUA Extended 3D

Write DMA Without Retries CB

Write Log Extended 3F

Write Multiple C5

Write Multiple Extended 39

Write Multiple FUA Extended CE

Write Sectors 30

Write Sectors Without Retries 31

Write Sectors Extended 34

Write Uncorrectable 45

Seagate Surveillance HDD Product Manual, Rev. A 20

Page 25

www.seagate.com

SATA Interface

4.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in on page 19. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive.

The following commands contain drive-specific features that may not be included in the SATA specification.

Table 7 Identify Device commands

Word Description Value

0 Configuration information:

0C5A

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

• Bit 6: removable controller

• Bit 0: reserved

1 Number of logical cylinders 16,383

2 ATA-reserved 0000

3 Number of logical heads 16

4 Retired 0000

5 Retired 0000

6 Number of logical sectors per logical track: 63 003F

7–9 Retired 0000

10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII

20 Retired 0000

21 Retired 0400

22 Obsolete 0000

23–26 Firmware revision

(8 ASCII character string, padded with blanks to end of string)

x.xx

27–46 Drive model number:

(40 ASCII characters, padded with blanks to end of string)

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple

(16)

48 Reserved 0000

49 Standard Standby timer, IORDY supported and may be disabled 2F00

50 ATA-reserved 0000

51 PIO data-transfer cycle timing mode 0200

52 Retired 0200

53 Words 54–58, 64–70 and 88 are valid 0007

54 Number of current logical cylinders xxxx

55 Number of current logical heads xxxx

56 Number of current logical sectors per logical track xxxx

57–58 Current capacity in sectors xxxx

8010

Seagate Surveillance HDD Product Manual, Rev. A 21

Page 26

www.seagate.com

Table 7 Identify Device commands (continued)

Word Description Value

SATA Interface

59 Number of sectors transferred during a Read Multiple

xxxx

or Write Multiple command

60–61 Total number of user-addressable LBA sectors available

0FFFFFFFh* (see Section 2.2 for related information) *Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455

sectors, 137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the actual number of user-addressable LBAs specified in words 100-103. This is required for drives that support the 48-bit addressing feature.

62 Retired 0000

63 Multiword DMA active and modes supported

xx07 (see note following this table)

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003

65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078

66 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078

67 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078

68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078

69–74 ATA-reserved 0000

75 Queue depth 001F

76 SATA capabilities xxxx

77 Reserved for future SATA definition xxxx

78 SATA features supported xxxx

79 SATA features enabled xxxx

80 Major version number 01F0

81 Minor version number 0028

82 Command sets supported 364B

83 Command sets supported 7F09

84 Command sets support extension (see note following this table) 4163

85 Command sets enabled 30xx

86 Command sets enabled BE09

87 Command sets enable extension 4163

88 Ultra DMA support and current mode (see note following this table) xx7F

89 Security erase time 0039

90 Enhanced security erase time 0039

92 Master password revision code FFFE

93 Hardware reset value xxxx

94 Automatic acoustic management 8080

95–99 ATA-reserved 0000

Seagate Surveillance HDD Product Manual, Rev. A 22

Page 27

www.seagate.com

Table 7 Identify Device commands (continued)

Word Description Value

SATA Interface

100–103 Total number of user-addressable LBA sectors available (see Section 2.2 for

related information). These words are required for drives that support the 48bit addressing feature. Maximum value: 0000FFFFFFFFFFFFh.

ST4000VX000 = 7,814,037,168

ST3000VX002 = 5,860,533,168

104–107 ATA-reserved 0000

108–111 The mandatory value of the world wide name (WWN) for the drive. NOTE:

This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.

Each drive will have a unique

value.

112–127 ATA-reserved 0000

128 Security status 0001

129–159 Seagate-reserved xxxx

160–254 ATA-reserved 0000

255 Integrity word xxA5

Note

Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported.

See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.

1 Multiword DMA mode 1 is supported.

2 Multiword DMA mode 2 is supported.

8 Multiword DMA mode 0 is currently active.

9 Multiword DMA mode 1 is currently active.

10 Multiword DMA mode 2 is currently active.

Bit Word 84

0 SMART error login is supported.

1 SMART self-test is supported.

2 Media serial number is supported.

3 Media Card Pass Through Command feature set is supported.

4 Streaming feature set is supported.

5 GPL feature set is supported.

6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.

7 WRITE DMA QUEUED FUA EXT command is supported.

8 64-bit World Wide Name is supported.

9-10 Obsolete.

11-12 Reserved for TLC.

Seagate Surveillance HDD Product Manual, Rev. A 23

Page 28

www.seagate.com

13 IDLE IMMEDIATE command with IUNLOAD feature is supported.

14 Shall be set to 1.

15 Shall be cleared to 0.

Bit Word 88

0 Ultra DMA mode 0 is supported.

1 Ultra DMA mode 1 is supported.

2 Ultra DMA mode 2 is supported.

3 Ultra DMA mode 3 is supported.

4 Ultra DMA mode 4 is supported.

5 Ultra DMA mode 5 is supported.

6 Ultra DMA mode 6 is supported.

8 Ultra DMA mode 0 is currently active.

9 Ultra DMA mode 1 is currently active.

10 Ultra DMA mode 2 is currently active.

SATA Interface

11 Ultra DMA mode 3 is currently active.

12 Ultra DMA mode 4 is currently active.

13 Ultra DMA mode 5 is currently active.

14 Ultra DMA mode 6 is currently active.

Seagate Surveillance HDD Product Manual, Rev. A 24

Page 29

www.seagate.com

SATA Interface

4.3.2 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the Features register are defined as follows:

Table 8 Set Features commands

Enable write cache (default).

Set transfer mode (based on value in Sector Count register).

Sector Count register values:

Set PIO mode to default (PIO mode 2).

Set PIO mode to default and disable IORDY (PIO mode 2).

PIO mode 0

PIO mode 1

PIO mode 2

PIO mode 3

PIO mode 4 (default)

Multiword DMA mode 0

Multiword DMA mode 1

Multiword DMA mode 2

Ultra DMA mode 0

Ultra DMA mode 1

Ultra DMA mode 2

Ultra DMA mode 3

Ultra DMA mode 4

Ultra DMA mode 5

Ultra DMA mode 6

Enable the PUIS feature set

PUIS feature set device spin-up

Enable use of SATA features

Disable read look-ahead (read cache) feature

Disable write cache

Disable the PUIS feature set

Disable use of SATA features

Enable read look-ahead (read cache) feature (default).

Report full capacity available

Note

At power-on, or after a hardware or software reset, the default values of the features are as indicated above.

Seagate Surveillance HDD Product Manual, Rev. A 25

Page 30

www.seagate.com

SATA Interface

4.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4H) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:

http://seatools.seagate.com.

This drive is shipped with S.M.A.R.T. features enabled. Table 9 below shows the S.M.A.R.T. command codes that the drive uses.

Table 9 S.M.A.R.T. commands

Code in features register S.M.A.R.T. command

Note

S.M.A.R.T. Read Data

S.M.A.R.T. Enable/Disable Attribute Autosave

S.M.A.R.T. Save Attribute Values

S.M.A.R.T. Execute Off-line Immediate (runs DST)

S.M.A.R.T. Read Log Sector

S.M.A.R.T. Write Log Sector

S.M.A.R.T. Enable Operations

S.M.A.R.T. Disable Operations

S.M.A.R.T. Return Status

If an appropriate code is not written to the Features Register, the command is aborted and 0x 04 (abort) is written to the Error register.

Seagate Surveillance HDD Product Manual, Rev. A 26

Page 31

Index

ACA 13 acceleration 11 acoustics 11 Active 9 Active mode 9 AFR 12 Agency certification 12 altitude 10 Ambient temperature 9 ambient temperature 7, 8 Annualized Failure Rate 12 areal density 6 ATA commands 19 Australia/New Zealand Standard AS/NZ CISPR22 13 Australian Communication Authority (ACA) 13 Australian C-Tick 13 Average latency 7 Average seek time 7

buffer 7

cables and connectors 15 cache 7 capacity 6 CE mark 13 certification 12 Check Power Mode 19 China RoHS directive 14 compatibility 13 Conducted noise 8 Conducted RF immunity 12 Configuring the drive 15 connectors 15 Corrosive environment 14 CSA60950-1 12

DC power 8 Default logical geometry 6 density 6 Device Configuration Freeze Lock 19 Device Configuration Identify 19 Device Configuration Restore 19 Device Configuration Set 19 Device Reset 19 dimensions 16 dissipation 8 Download Microcode 19

Electrical fast transient 12 Electromagnetic compatibility 13 Electromagnetic Compatibility (EMC) 13 Electromagnetic Compatibility control Regulation 13 Electromagnetic Compatibility Directive (2004/108/EC) 13 Electromagnetic immunity 12 Electrostatic discharge 12

electrostatic discharge (ESD) 15 EN 55022, Class B 13 EN 55024 13 EN60950 12 enclosures 13 Environmental specifications 9 ESD 15 EU 13 EU RoHS directive 14 European Union (EU) requirements 13 Execute Device Diagnostics 19

FCC verification 13 features 2 Flush Cache 19 Flush Cache Extended 19 Format Track 19 Formatted capacity 6

geometry 6 Gs 11 guaranteed sectors 6

Handling precautions 15 height 7 humidity 10

I/O data-transfer rate 6 Identify Device 19 Identify Device command 21 Idle 9, 19 Idle Immediate 19 Idle mode 8, 9 Information Technology Equipment (ITE) 13 Initialize Device Parameters 19 Input noise ripple 8 input voltage 8 interface 6, 17 interference 13 internal data-transfer rate OD 6 is 7 ISO document 7779 11 ITE 13

KCC 13 Korean Communications Commission 13 Korean RRL 13

latency 7 LBA mode 6 length 7 logical geometry 6

master/slave 3 mounting 16 mounting screws 10 mounting the drive 15

Seagate Surveillance HDD Product Manual, Rev. A 27

Page 32

noise 8 nominal power 7 Nonoperating shock 10 Nonoperating vibration 11

operating 8 Operating power 8 Operating shock 10 Operating vibration 11

Physical characteristics 8 point-to-point 3, 15 Power consumption 8 power dissipation 8 Power modes 9 Power specifications 8 Power-management modes 9 Power-on to Ready 7 precautions 15 printed circuit board 15 programmable power management 9 prominent discrete tone 11

quick reference 4

Radiated RF immunity 12 radio and television interference 13 radio frequency (RF) 12 random seeks 8 Read Buffer 19 Read DMA 19 Read DMA Extended 19 Read DMA without Retries 19 Read Log Ext 19 Read Multiple 19 Read Multiple Extended 19 Read Native Max Address 19 Read Native Max Address Extended 19 Read Sectors 19 Read Sectors Extended 19 Read Sectors Without Retries 19 Read Verify Sectors 19 Read Verify Sectors Extended 19 Read Verify Sectors Without Retries 19 Read/write power 8 Recalibrate 19 recording density 6 recording method 6 Recording technology 6 relative humidity 10 Reliability 12 RF 12 RMS read/write current 8 RoHS 14 RRL 13

S.M.A.R.T. Disable Operations 20 S.M.A.R.T. Enable Operations 20 S.M.A.R.T. Enable/Disable Autosave 20 S.M.A.R.T. Execute Offline 20 S.M.A.R.T. implementation 19 S.M.A.R.T. Read Attribute Thresholds 20 S.M.A.R.T. Read Data 20 S.M.A.R.T. Read Log Sector 20 S.M.A.R.T. Return Status 20 S.M.A.R.T. Save Attribute Values 20 S.M.A.R.T. Write Log sector 20 Safety certification 12 screws 10 Seagate Technology Support Services 1 sectors 6 Security Disable Password 19 Security Erase Prepare 19 Security Erase Unit 20 Security Freeze 20 Security Set Password 20 Security Unlock 20 See “S.M.A.R.T. commands” on page 34 19 Seek 20 Seek time 7 Serial ATA (SATA) interface 17 serial ATA ports 3 servo electronics 8 Set Features 20 Set Max Address 20 Set Max Address Extended 20 Set Multiple Mode 20 Shock 10 single-track seeks 7 Sleep 8, 9, 20 Sleep mode 9 sound 11 Specification summary table 4 Spinup 8 Spinup power 8 Standby 8, 9, 20 Standby Immediate 20 Standby mode 8, 9 standby timer 9 Standby to Ready 7 Start/stop times 7 static-discharge 15 subassembly 13 Surge immunity 12

temperature 7 temperature gradient 10 timer 9 timers 9 track density 6 Track-to-track 7 Track-to-track seek time 7

28 Seagate Surveillance HDD Product Manual, Rev. A

Page 33

UL60950-1 12

voltage 8 Voltage dips, interrupts 12 Voltage tolerance 9

weight 7 wet bulb temperature 10 width 7 Write Buffer 20 Write DMA 20 Write DMA Extended 20 Write DMA FUA Extended 20 Write DMA Without Retries 20 Write Log Extended 20 Write Multiple 20 Write Multiple Extended 20 Write Multiple FUA Extended 20 Write Sectors 20 Write Sectors Extended 20 Write Sectors Without Retries 20

Seagate Surveillance HDD Product Manual, Rev. A 29

Page 34

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00

Publication Number: 100730368, Rev. A February 2014
