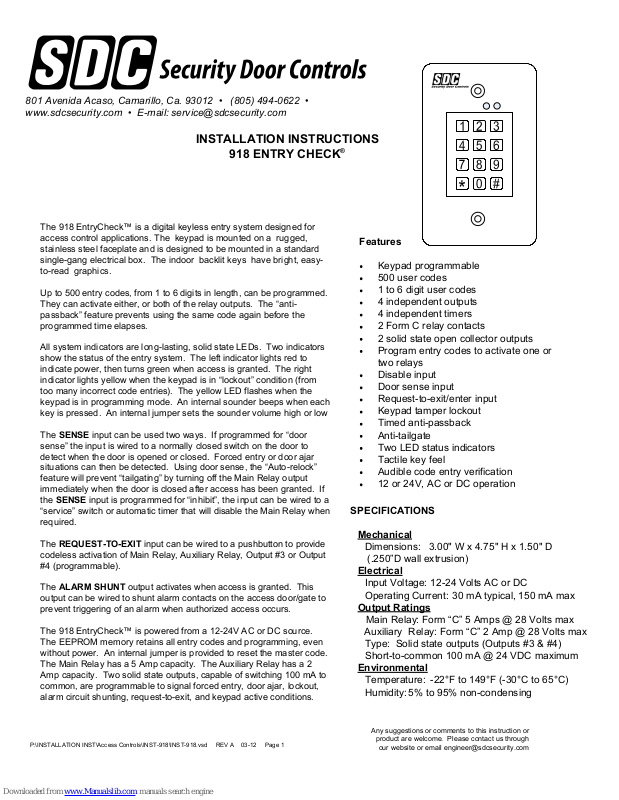

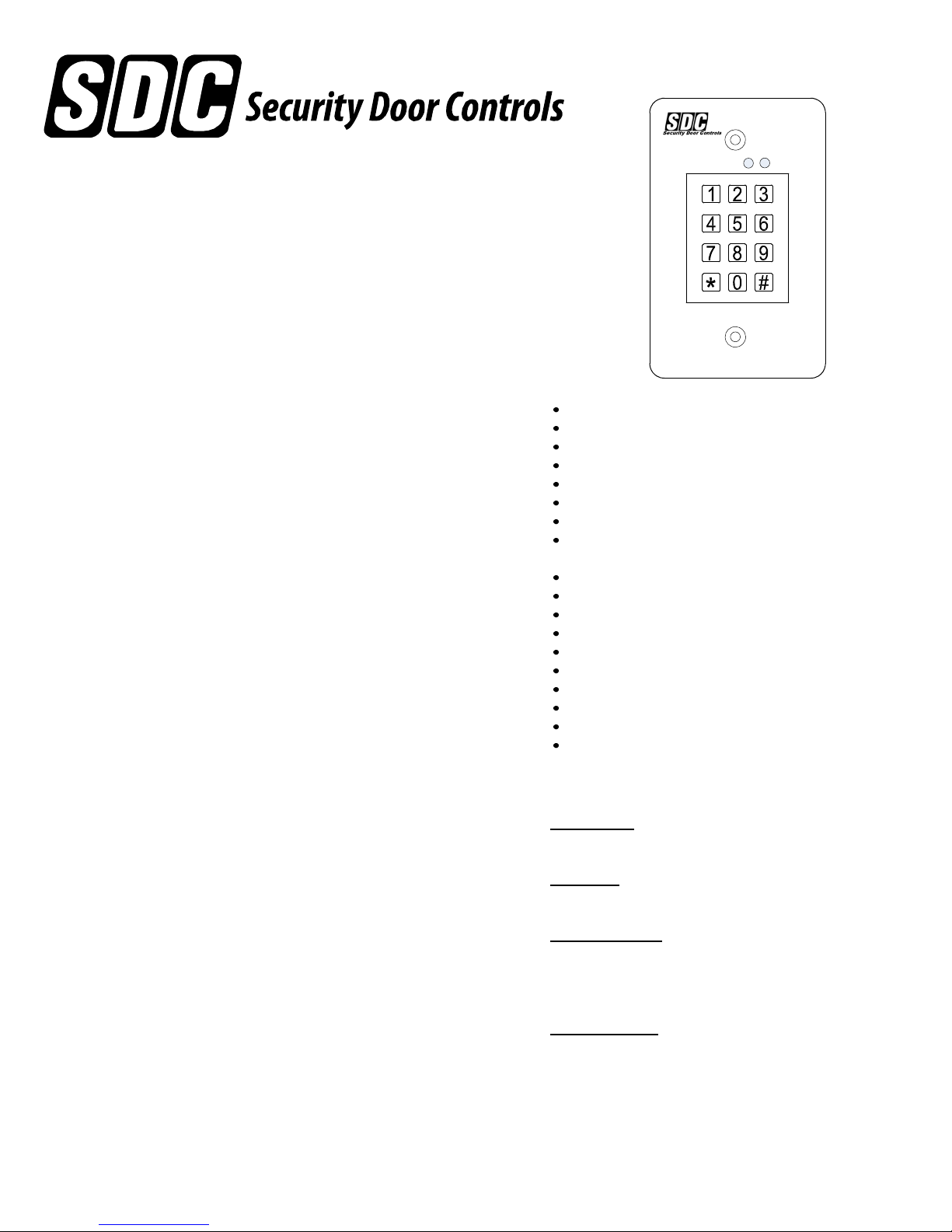

INSTALLATION INSTRUCTIONS

918 ENTRY CHECK

The 918 EntryCheck™ is a digital keyless entry system designed for access control applications. The keypad is mounted on a rugged, stainless steel faceplate and is designed to be mounted in a standard single-gang electrical box. The indoor backlit keys have bright, easyto-read graphics.

Up to 500 entry codes, from 1 to 6 digits in length, can be programmed. They can activate either, or both of the relay outputs. The “antipassback” feature prevents using the same code again before the programmed time elapses.

All system indicators are long-lasting, solid state LEDs. Two indicators show the status of the entry system. The left indicator lights red to indicate power, then turns green when access is granted. The right indicator lights yellow when the keypad is in “lockout” condition (from too many incorrect code entries). The yellow LED flashes when the keypad is in programming mode. An internal sounder beeps when each key is pressed. An internal jumper sets the sounder volume high or low

The SENSE input can be used two ways. If programmed for “door sense” the input is wired to a normally closed switch on the door to detect when the door is opened or closed. Forced entry or door ajar situations can then be detected. Using door sense, the “Auto-relock” feature will prevent “tailgating” by turning off the Main Relay output immediately when the door is closed after access has been granted. If the SENSE input is programmed for “inhibit”, the input can be wired to a “service” switch or automatic timer that will disable the Main Relay when required.

The REQUEST-TO-EXIT input can be wired to a pushbutton to provide codeless activation of Main Relay, Auxiliary Relay, Output #3 or Output #4 (programmable).

The ALARM SHUNT output activates when access is granted. This output can be wired to shunt alarm contacts on the access door/gate to prevent triggering of an alarm when authorized access occurs.

The 918 EntryCheck™ is powered from a 12-24V AC or DC source. The EEPROM memory retains all entry codes and programming, even without power. An internal jumper is provided to reset the master code. The Main Relay has a 5 Amp capacity. The Auxiliary Relay has a 2 Amp capacity. Two solid state outputs, capable of switching 100 mA to common, are programmable to signal forced entry, door ajar, lockout, alarm circuit shunting, request-to-exit, and keypad active conditions.

Features

Keypad programmable 500 user codes 1 to 6 digit user codes 4 independent outputs 4 independent timers 2 Form C relay contacts 2 solid state open collector outputs Program entry codes to activate one or two relays Disable input Door sense input Request-to-exit/enter input Keypad tamper lockout Timed anti-passback Anti-tailgate Two LED status indicators Tactile key feel Audible code entry verification 12 or 24V, AC or DC operation

SPECIFICATIONS

Mechanical

Dimensions: 3.00" W x 4.75" H x 1.50" D

(.250”D wall extrusion)

Electrical

Input Voltage: 12-24 Volts AC or DC Operating Current: 30 mA typical, 150 mA max

Output Ratings

Main Relay: Form “C” 5 Amps @ 28 Volts max Auxiliary Relay: Form “C” 2 Amp @ 28 Volts max Type: Solid state outputs (Outputs #3 & #4) Short-to-common 100 mA @ 24 VDC maximum

Environmental

Temperature: -22°F to 149°F (-30°C to 65°C) Humidity: 5% to 95% non-condensing

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 1

Any suggestions or comments to this instruction or

product are welcome. Please contact us through

our website or email [email protected]

Page 2

QuickStart Programming

To enter Programming Mode, enter #9# plus the Master Code. The yellow indicator will blink slowly showing that the 918 EntryCheck™ is in programming mode. Use the option codes to program the each function. After the new data entry is complete for each function , the yellow indicator will flash quickly while the data is being stored and the green indicator will light briefly if the programming has been accepted. The red indicator will light if any programming data is entered incorrectly or the function is rejected. If a red indicator is seen, the entire function (option code + data) will have to be fully re-entered.

Program the first user code

Step 1. Enter: #9# 123456 Enter the program mode (default master code)

Step 2. Enter: 03# 4# Set the entry code length to 4 digits

RED/GREEN POWER/ACCESS INDICATOR

YELLOW “LOCKOUT/ PROGRAM” INDICATOR

Step 3. Enter: 21# 5# Set the main relay activate time to 5 sec.

Step 4. Enter: 01# 9876# 9876# 1# Set user code ‘9876’ to activate the main relay

Step 5. Enter: # Exit programming mode

Test your new user code

Enter user code ‘9876’. The green indicator should illuminate, the

main relay should activate and the door should unlock for 5 seconds.

Adding additional user codes

Once the code length and relay time have been set you do not need to set them each time you additional users.

To add additional users:

Step 1. Enter: #9# 123456 Enter the program mode (default master code)

Step 2. Enter: 01# 2222# 2222# 1# Set user code ‘2222’ to activate the main relay

Step 3. Enter: 01# 3333# 3333# 1# Set user code ‘3333’ to activate the main relay

Step 4. Enter: # Exit programming mode

Deleting a user code

To delete a user:

Step 1. Enter: #9# 123456 Enter the program mode (default master code)

Step 2. Enter: 02# 3333# 3333# User code ‘3333’ has been deleted.

Step . Enter: # Exit programming mode

FAIL SECURE CONNECTION

FAIL SAFE CONNECTION

IF THE UNIT IS AC POWERED, MAKE SURE

THAT THE SECONDARY OF THE SYSTEM IS

ISOLATED FROM EARTH GROUND

TO POWER SUPPLY

CAUTION

}

COM

}

COM

2 AMPS @ 28VDC MAX

}

918 TERMINALS

KEY PAD POWER

12-24 VOLTS

AC OR DC

MAIN RELAY

5 AMPS @ 28VDC MAX

AUXILIARY RELAY

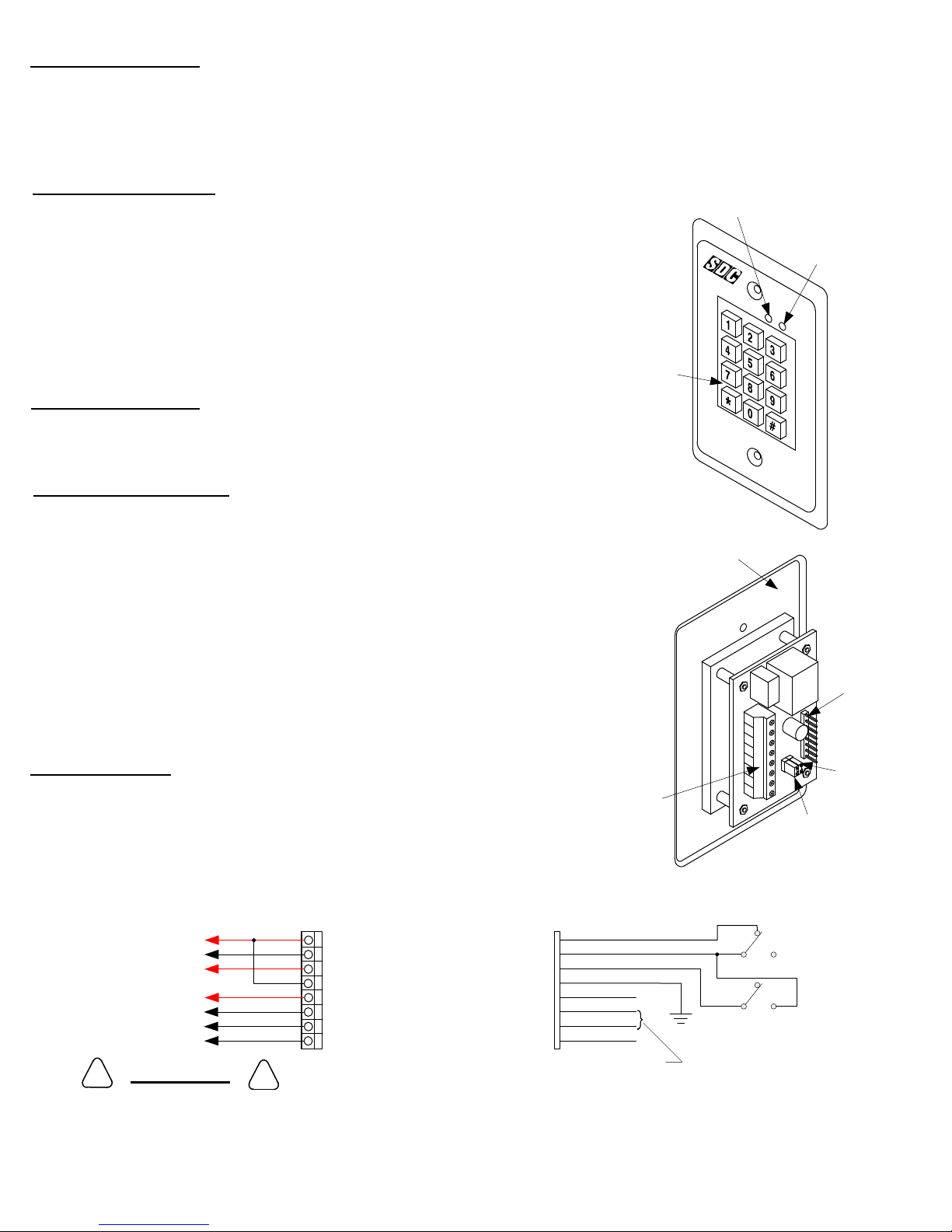

Fig. 2 Wiring Diagram

SENSE

GROUND

REQUEST TO EXIT

GROUND

OUTPUT 3

OUTPUT 4

GROUND

E3 E2

KEYPAD

TERMINAL BLOCK #1 (TB1)

GRAY

BLACK

VIOLET

BLACK

BLUE

GREEN

BLACK

AUXILIARY OUTPUTS

100mA MAX TO COMMON

MOUNTING PLATE

Fig. 1 Keypad

N/C

EARTH

GROUND

CONNECTION

BEEPER LEVEL JUMPER (JP1)

MASTER CODE RESET JUMPER (JP2)

N/C DOOR POSITION

SWITCH

N/O

REQUEST-

TO-EXIT SWITCH

N/O

WIRE HARNESS (E1-E8)

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 2

Page 3

KEYPAD WIRING

See Fig. 3 for an example of a basic door installation. The keypad is mounted adjacent to the door. An electric door strike is mounted in the door jamb to release the door lock. A magnetic switch is mounted on top of the door jamb for detecting when the door is open.

Use the following steps to wire the keypad. Refer to the wiring diagram shown in Fig. 4 to assist in the wiring.

Note: Up to 500 feet of 18 AWG wire can be run for power, use larger wire for longer runs. Use 22 AWG or larger (depending on load) for other connections.

Output

Install a low voltage electric door strike for unlocking the door. Route two wires between the door strike and the keypad box. Connect the (+) door strike wire to the keypad’s MAIN RELAY N.O. terminal (TB1 #3). Connect the other door strike wire to the keypad’s AC/DC (-) terminal (TB1 #2). Connect a wire between the keypad’s AC/DC (+) terminal (TB1 #1) and the MAIN RELAY COM terminal (TB1 #4).

Power

Choose a location for the power supply or transformer. Route two wires between the door strike and the keypad box. Connect the power supply’s output terminals to the keypad’s AC/DC input terminals (TB1 #1 (+) & #2(-)). Observe wiring polarity if using DC.

Caution: If the unit is AC powered, make sure the secondary of the system transformer is isolated from earth ground.

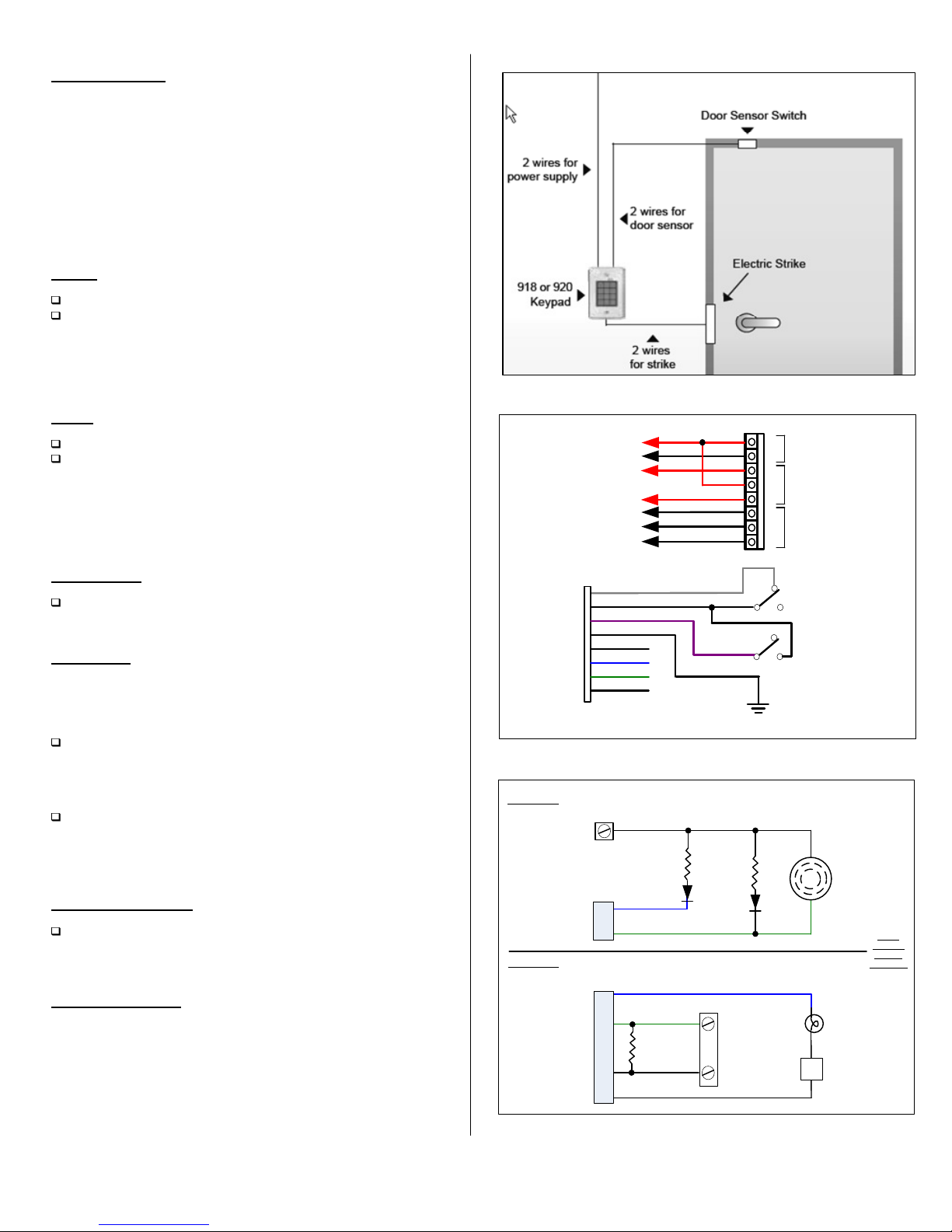

Fig. 3 Basic Door Installation

TO POWER SUPPLY

FAIL SECURE CONNECTION

FAIL SAFE CONNECTION

TB1

1 2

3 4

12 – 24 VOLTS

COM

AC OR DC

MAIN RELAY –

5 AMPS @ 28 VDC MAX

AUXILIARY RELAY

2 AMPS @ 28 VDC MAX

Earth Ground

To avoid damage to the unit from static discharges, connect the EARTH GROUND black wires E1, 4, 5 or 8 to a good earth grounding point. Suggested wiring size is 18 AWG for earth ground.

Sense Input

Note: SENSE terminal (gray wire) can be programmed for either a door sense or inhibit input. Both features cannot be used at the same time. If you are not using the sense input, program the input for inhibit.

To use the door sense feature to detect forced entry or door ajar conditions, install a normally closed door switch on the door and route two wires from the switch to the keypad box. Connect the door switch to the keypad’s SENSE terminal (gray wire E8) and COM terminal (any black wire). If an inhibit switch or timer is going to be used for temporarily disabling the keypad, route two wires from the switch or timer to the keypad box. Connect the inhibit switch/timer normally open terminals to the keypad’s SENSE (gray wire E8) and COM (black wires) terminal.

Request-to-Exit Input

(wiring shown on page 3, fig. 4)

If a request-to-exit pushbutton is going to be used, route two wires from the keypad box to a normally open pushbutton mounted on the secure side of the door. Connect the wires to the pushbutton and to the keypad’s REX (violet wire E6) and COM (black wires) terminals.

Solid State Outputs

The two solid state outputs (Outputs #3 & #4) can be programmed to activate during various conditions. These outputs can be used to activate indicators or sounders. See fig. 5 for wiring examples using the solid state outputs.

SENSE

GROUND

REQUEST-TO-EXIT

GROUND

OUTPUT

GROUND

EXAMPLE #1:

POWER SUPPLY

OUTPUT #3

OUTPUT #4

EXAMPLE #2:

OUTPUT #3

OUTPUT #4

OUTPUT #4 COM

OUTPUT #3 COM

WIRES

E5 E4

GRAY

BLACK

VIOLET

BLACK

BLUE

GREEN

BLACK

POSITION SWITCH

NO REQUEST-TO-

EARTH

GROUND

CONNECTION

Fig. 4 Basic Door Installation Wiring

OUTPUT #3 LIGHTS AN LED OUTPUT #4 LIGHTS AN LED AND SOUNDS A BEEPER

1KΩ

LED

BLUE

Wire

Pigtail

GREEN

OUTPUT #3 LIGHTS A LAMP POWERED FROM AN EXTERNAL SOURCE OUTPUT #4 TRIGGERS A NORMALLY OPEN ALARM PANEL ZONE

BLUE

GREEN

END OF LINE

Wire

RESISTOR

Pigtail

BLACK

1KΩ

LED

NO ZONE

ALARM PANEL

COMMON

NC DOOR

EXIT SWITCH

ELECTRONIC

BEEPER

LOW

VOLTAGE

LAMP

POWER

SOURCE

EACH

OUTPUT

100 mA

MAXIMUM

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 3

Fig. 5 Using Solid State Outputs

Page 4

FACTORY DEFAULTS

Master Programming Code………..………………….….…...123456 Entry Code Length……………………………………….……..4 digits

Request-to-exit Output Relay……………………….........Main Relay

Alarm Shunt Output….………………………………….........Disabled

Forced Entry Output……………………………..…………..Output #3 Door Ajar Output…………………………………..………...Output #4 Main Relay On Time………………………………...……..60 Seconds Auxiliary Relay On Time………………………………...…60 Seconds Solid State Output #3 On Time………………………..….60 Seconds Solid State Output #4 On Time…………………………...60 Seconds Door Sense/Inhibit Input…………………………...……..Door Sense Keypad Lockout Output………………………………..…….Disabled Keypad Active Output………………………………..…..…..Disabled Beeper Sounds When Key Pressed……………………...………Yes Beeper Sounds During Relay #1………………………..…...…….No Beeper Sounds During Relay #2……………………………...…...No

Beeper Sounds During Output #3……………………………….....No

Beeper Sounds During Output #4……………………………........No

Keypad Lockout Count……….………......….3 Tries Before Lockout

Anti-Passback Time………………..……...……….No Anti-Passback Auto-Relock…………………………………...………….………….On

BASIC PROGRAMMING

When the 918 EntryCheck™ is in Programming Mode, both indicators will turn off until programming begins. After a programming option number is entered, the yellow indicator will blink. This shows that the 918 is ready to accept the new programming data. After the new data entry is complete, the yellow indicator will flash while the data is being stored. The green indicator will light if the data is accepted. The red indicator will light if any programming data is entered incorrectly, and the command will have to be fully re-entered.

Entering Programming Mode

The 6-digit Master Programming Code (default = 123456) is used to enter Programming Mode.

Press: # 9 # Master Code

Master Code = the current 6-digit Master Programming Code

Exiting Programming Mode

Press:

* *

The red indicator will light after exiting Programming Mode

Note: The 918 will automatically exit Programming Mode after two minutes of inactivity

Re-entering a Command After a Mistake

If the red indicator lights, signaling an incorrect entry, or an incorrect key is pressed during programming, to clear the keypad and re-enter the command:

Press: * 9 #

Setting Entry Code Length Default: 4 digits

Press: 0 3 # Length #

Length = 1-6 for entry code length

Note: If the Entry Code Length is going to be changed from the factory default of 4 digits, make this change first before programming any entry codes.

Adding a New Entry Code

Press: 0 1 # Code # Code # Relay #

Code=The new entry code: 1-999999, depending on code length

Relay=Relay output entry code will activate:

1=Main Relay 2=Auxiliary Relay 3=Both Relays

10=Relay #1, toggled 20=Relay #2, toggled 30=both Relays toggled

12=Relay #1 toggled; Relay #2 timed open 21=Relay #1 timed open; Relay #2 toggled

The yellow indicator will flash quickly while the 918 searches its memory for available space and duplicate entries. The green indicator will light when the new code is stored. If the new entry code chosen is already being used for another entry code, the red indicator will light. A new unique code needs to be entered.

Note: Leading zeros (zeros before the code number, i.e.0001) do not need to be entered when programming a new code. The 918 will internally add any zeros to fill digits determined by the entry code length setting. Leading zeros will have to be entered by the user when entering their code to gain access.

Erasing a Single Entry Code

Press: 0 2 # Code # Code #

Code=The entry code to delete

The yellow indicator will flash quickly while the 918 searches its memory for the code to erase. The green indicator will light when the code is erased.

Erasing All Entry Codes

WARNING: PERFORMING THIS COMMAND WILL REMOVE

ALL ENTRY CODES FROM THE MEMORY

Press: 9 7 # 0 0 0 0 0 0 # 0 0 0 0 0 0 #

Note: The green indicator will light while the memory is being erased. This may take up to 15 seconds.

Changing the 6-Digit Master Programming Code

Press: 9 8 # Master Code # Master Code #

Master Code=The new 6-digit Master Programming Code

New master code: ____________

PROGRAMMING OPTIONS

There are several 918 EntryCheck™ programming options. For most installations, the factory set default options are sufficient. The keypad must be in Programming Mode to make these changes.

Programming the 918 To Hold the Output

SDC’s EntryCheck™ products have a programmable “Toggle Mode” available for each relay and solid-state output. When an output is programmed for Toggle Mode, the output alternates from OFF to ON or from ON to OFF each time it is activated. When output is toggled on, the green LED flashes until toggled off.

The rules for a toggle output are:

If the output is OFF, it will turn ON and stay on until the next activation. If the output is ON, it will turn OFF and stay off until the next activation.

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 4

Page 5

(Typical Programming cont.)

Program all normal entry codes to use the Main Relay (Relay #1), and only Relay #1 as the output relay. Program the code(s) that you want to use to hold the output for an indefinite period to the Auxiliary Relay (Relay #2). See the following example that sets entry codes 1234 for normal and 5678 for toggle operation.

Press: 0 1 # 1 2 3 4 # 1 2 3 4 # 1 #

01=Programming Step; 1234=Entry Code; 1=Main Relay

Press: 0 1 # 5 6 7 8 # 5 6 7 8 # 20 #

01=Programming Step; 5678=Entry Code; 20=Auxiliary Relay

Toggle

Typical Toggle Mode Wiring

For devices triggered by a normally open circuit, wire the contacts of the Main and Auxiliary Relays in parallel (see the Figure below). Either relay will be able to trigger the access device. Entry codes programmed for the Auxiliary Relay will be able to hold the output on.

918

OUTPUTS

MAIN

RELAY

AUXILIARY

RELAY

COMMON

ACCESS

DEVICE

EITHER RELAY CAN TRIGGE R THE ACCESS DEVICE

Select Door Sense or Inhibit Input Default: Door Sense

The input (gray wire) can be programmed for DOOR SENSE or INHIBIT.

Press: 1 0 # Input #

Input=0 for Door Sense; =1 for Inhibit

When programmed for DOOR SENSE, if an open condition on the input occurs before access is granted (with an entry code or with the request-to-enter input) a FORCED ENTRY output will occur. If an open condition remains 60 seconds after a relay activation for access, a DOOR AJAR output will occur.

When programmed for INHIBIT, a closed condition on the input will prevent Relay #1 from activating when access is requested with an entry code. This mode is typically used with an external timer to disable the access device at certain times.

Select Forced Entry Output Default: Output #3

Sets which output activates if the DOOR SENSE input opens before access is granted. This output is not timed.

Press: 1 1 # Output #

Output=Output to Activate(0-4)

1=Main Relay; 2=Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

Select Door Ajar Output Default: Output #4

Sets which output activates if the DOOR SENSE input stays open 60 seconds after access is granted. This output is not timed.

Press: 1 2 # Output #

Output=Output to Activate (0-4)

1=Main Relay; 2=Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

Select Keypad Lockout Output Default: No Output

Sets which output activates when the keypad is “locked out” after too many incorrect entry code attempts. The lockout time is 60 seconds.

Press: 1 3 # Output #

Output=Output to Activate (0-4)

1=Main Relay; 2 = Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

Select Keypad Active Output Default: No Output

Sets which output activates when any keys are pressed. This output is timed. If toggle mode is selected for the output, the timer value defaults to 2 seconds.

Press: 1 4 # Output #

Output=Output to Activate(0-4)

1=Main Relay; 2=Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

Select Alarm Shunt Output Default: No Output

Sets which output activates during the time access is granted. (Use this output ot shunt alarm contacts attached to the access door.) This output may be timed or toggled.

Press: 1 5 # Output #

Output=Output to Activate(0-4)

1=Main Relay; 2=Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

Select Request-to-Exit Output Default: No

Sets which output activates when the Request-to-Exit input is grounded. This output may be timed or toggled.

Press: 1 6 # Output #

Output=Output to Activate(0-4)

1=Main Relay; 2=Auxiliary Relay; 3=Output #3; 4=Output #4;

0=No Output

REX input terminates toggle of Main Relay

Main Relay On-time Default: 60 Seconds

Sets the length of time the Main Relay activates when triggered.

Green LED is on when Main Relay is active.

Press: 2 1 # Seconds #

Seconds=Output time in seconds (0-60)

Auxiliary Relay On-time Default: 60 Seconds

Sets the length of time the Auxiliary Relay activates when triggered.

Press: 2 2 # Seconds #

Seconds=Output time in seconds (0-60)

Solid-state Output #3 On-time Default: 60 Seconds

Sets the length of time Output #3 activates when triggered.

Press: 2 3 # Seconds #

Seconds=Output time in seconds (0-60), 99=Toggle Mode

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 5

Page 6

Solid-state Output #4 On-time Default: 60 Seconds

Selects mode for Keypad LED Backlight Default: 30 Seconds

Sets the length of time Output #4 activates when triggered.

Press: 2 4 # Seconds #

Seconds=Output time in seconds (0-60), 99=Toggle Mode

Beep Sounds on Keystrokes Default: 1 Second

Selects whether or not the keypad beeps as each key is pressed.

Press: 4 0 # Sound #

Sound=1 for Yes, =0 for No

Beep Sounds During Main Relay Default: No

Selects whether or not the keypad beeps during Main Relay activation.

Press: 4 1 # Sound #

Sound=1 for Yes, =0 for No

Beep Sounds During Auxiliary Relay Default: No

Selects whether or not the keypad beeps during Auxiliary Relay activation.

Press: 4 2 # Sound #

Sound=1 for Yes, =0 for No

Beep Sounds During Output #3 Default: No

Selects whether or not the keypad beeps during Output #3 activation.

Press: 4 3 # Sound #

Sound=1 for Yes, =0 for No

Beep Sounds During Output #4 Default: No

Selects whether or not the keypad back light stays OFF, lights for 30 seconds when activated or stays ON.

Press: 52 # Output #

0 = Light always OFF

1 = 30 sec light when activated (default)

2 = Light always ON

RESETTING KEYPAD

Master Reset

CAUTION: Performing a master reset will clear the entire memory of the 918 and return all programmable options to the factory default values. ALL ENTRY CODES WILL BE ERASED.

STEP 1 Disconnect power from the keypad. STEP 2 Press and hold down the * and # keys. STEP 3 Apply power to the keypad, continue holding the keys

down until the red indicator starts flashing

STEP 4 Release the keys. The red and yellow indicators will

remain lit until the process is complete, then the yellow indicator will go out.

Resetting the Master Code

STEP 1 Remove the 918 from the wall.. STEP 2 Locate jumper at JP2. This jumper is used to reset

the master code.

STEP 3 With power applied to the keypad, remove the jumper

at JP2. The keypad will begin to beep, signaling that

the code has been reset.

STEP 4 Replace jumper on JP2

THE MASTER PROGRAMMING CODE IS NOW 123456.

Beeper Sound Level

The Keypad’s beeper can be set to high or low level. Remove jumper JP1 to reduce beeper sound level.

Selects whether or not the keypad beeps during Output #4 activation.

Press: 4 4 # Sound #

Sound=1 for Yes, =0 for No

Keypad Lockout Count Default: 3 Tries

Sets the number or incorrect entry code attempts allowed before the keypad “locks out”.

Press: 5 0 # Attempts #

Attempts=Number of attempts before lockout (2-7)

Anti-Pass Back Time Default: No Anti-Pass Back

Sets the length of time an entry code will not function after it is used.

Press: 5 1 # Minutes #

Minutes=Time in minutes (1-4), 0=No Anti-passback

P:\INSTALLATION INST\Access Controls\INST-918\INST-918.vsd REV A 03-12 Page 6
