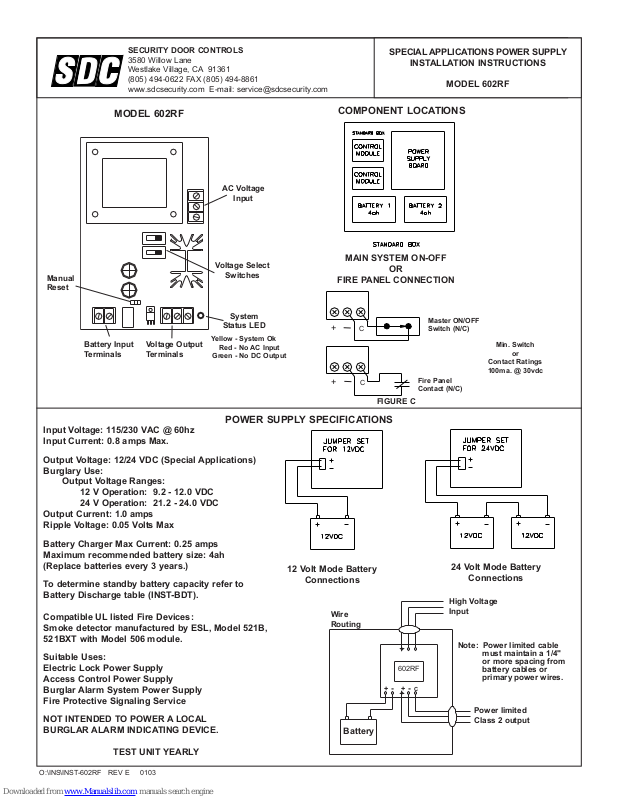

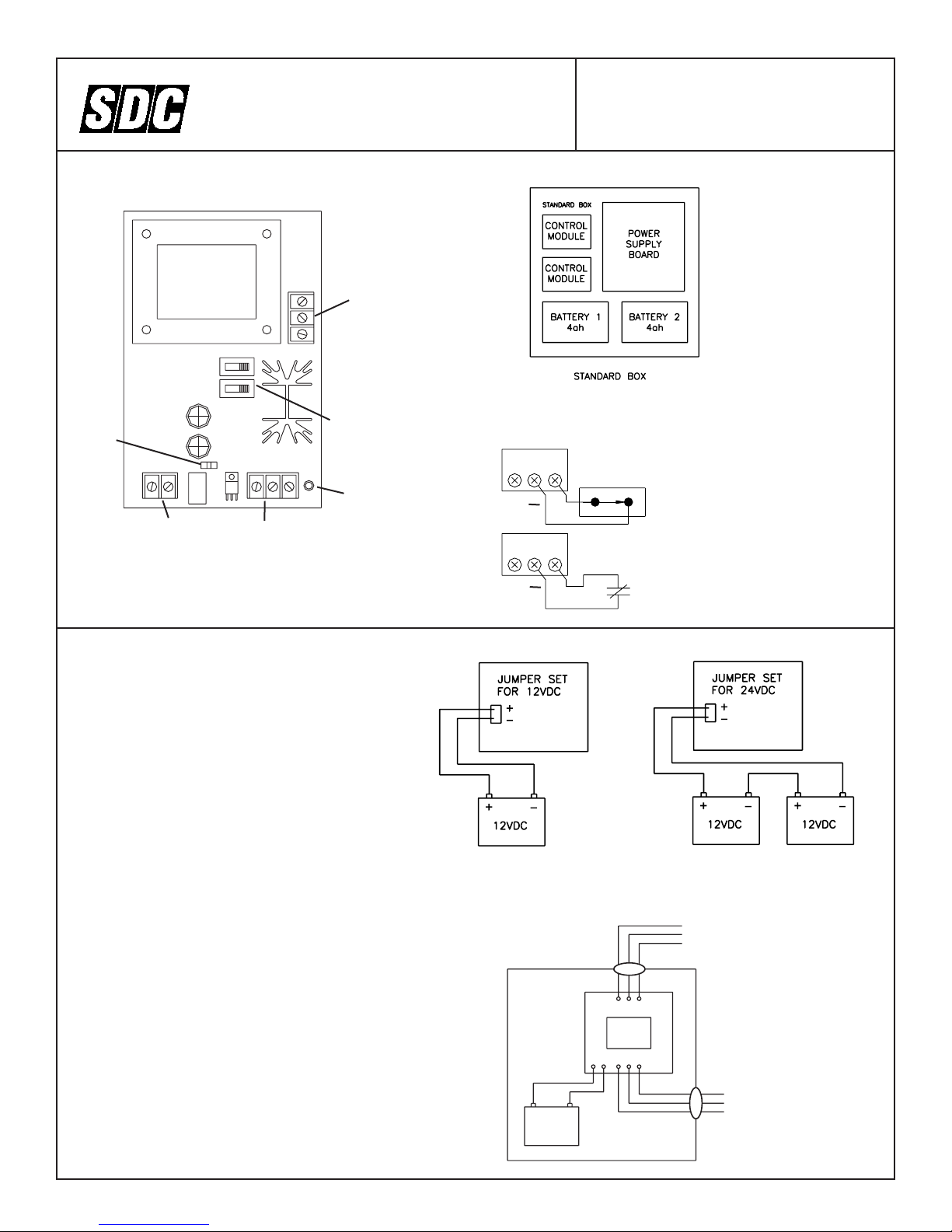

Page 1
SECURITY DOOR CONTROLS
3580 Willow Lane
Westlake Village, CA 91361
(805) 494-0622 FAX (805) 494-8861
www.sdcsecurity.com E-mail: [email protected]
SPECIAL APPLICATIONS POWER SUPPLY
INSTALLATION INSTRUCTIONS
MODEL 602RF
Master ON/OFF
Switch (N/C)
Fire Panel
Contact (N/C)
Min. Switch
or
Contact Ratings
100ma. @ 30vdc
MAIN SYSTEM ON-OFF
OR
FIRE PANEL CONNECTION
COMPONENT LOCATIONS
FIGURE C
Input Voltage: 115/230 VAC @ 60hz
Input Current: 0.8 amps Max.
Output Voltage: 12/24 VDC (Special Applications)
Burglary Use:
Output Voltage Ranges:
12 V Operation: 9.2 - 12.0 VDC
24 V Operation: 21.2 - 24.0 VDC
Output Current: 1.0 amps
Ripple Voltage: 0.05 Volts Max
Battery Charger Max Current: 0.25 amps
Maximum recommended battery size: 4ah
(Replace batteries every 3 years.)
To determine standby battery capacity refer to
Battery Discharge table (INST-BDT).
Compatible UL listed Fire Devices:
Smoke detector manufactured by ESL, Model 521B,
521BXT with Model 506 module.
Suitable Uses:
Electric Lock Power Supply
Access Control Power Supply
Burglar Alarm System Power Supply
Fire Protective Signaling Service
NOT INTENDED TO POWER A LOCAL
BURGLAR ALARM INDICATING DEVICE.
TEST UNIT YEARLY
12 Volt Mode Battery
Connections
O:\INS\INST-602RF REV E 0103
Battery Input
Terminals
Voltage Output
Terminals
System
Status LED
Voltage Select
Switches
AC Voltage
Input
MODEL 602RF
+
C
+
C
POWER SUPPLY SPECIFICATIONS
Power limited
Class 2 output
Note: Power limited cable
must maintain a 1/4"
or more spacing from
battery cables or
primary power wires.
High Voltage
Input
Wire
Routing
+ - C
+ -
Battery
24 Volt Mode Battery
Connections
602RF
Yellow - System Ok
Red - No AC Input
Green - No DC Output
Manual
Reset

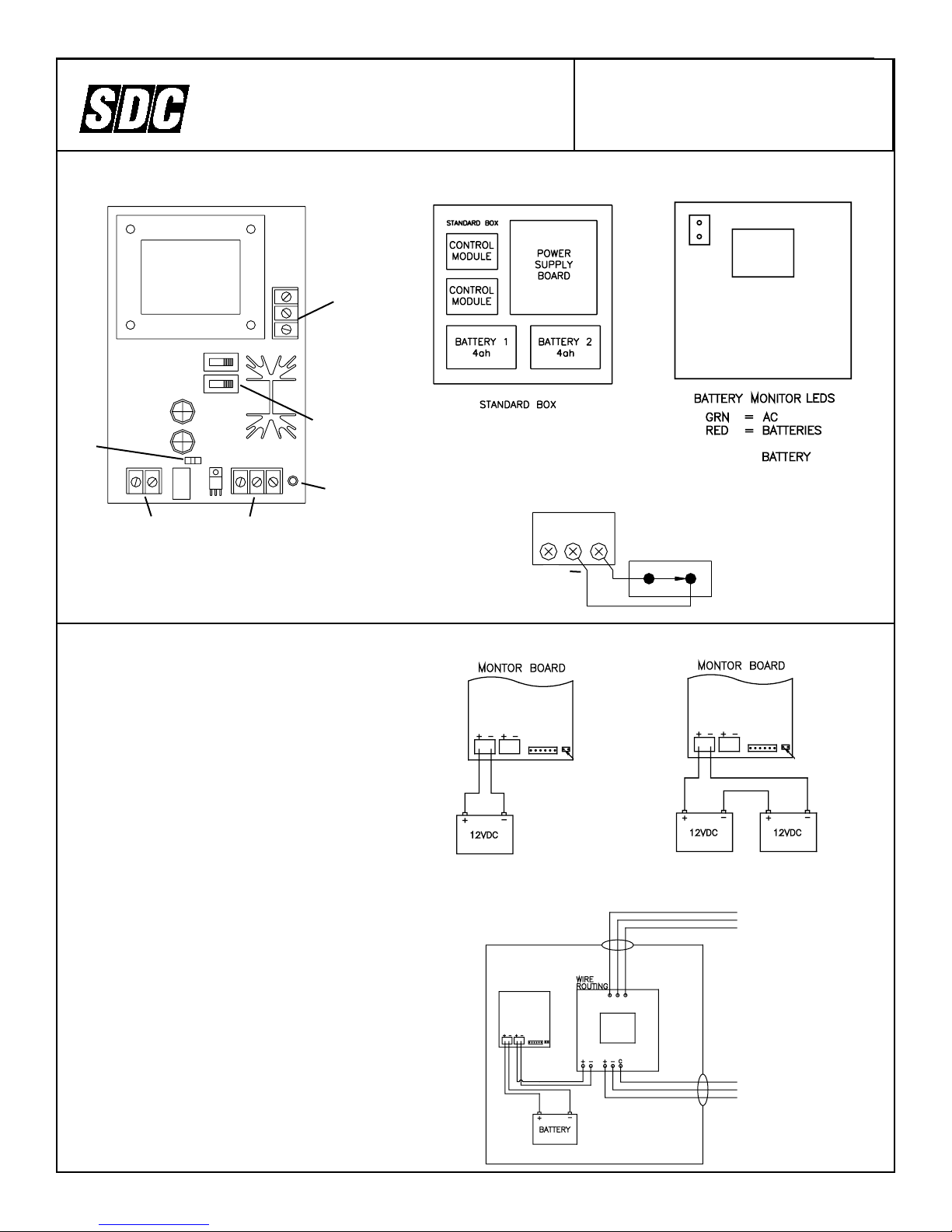

Page 2
SECURITY DOOR CONTROLS
3580 Willow Lane
Westlake Village, CA 91361
(805) 494-0622 FAX (805) 494-8861
www.sdcsecurity.com E-mail: [email protected]
Master ON/OFF
Switch (N/C)
Min. Switch
or
Contact Ratings
100ma. @ 30vdc
MAIN SYSTEM ON-OFF
COMPONENT LOCATIONS
Input Voltage: 115 VAC @ 60hz
Input Current: 0.8 amps Max.
Output Voltage: 12/24 VDC (Special Applications)
Burglary Use:
Output Voltage Ranges:
12 V Operation: 9.2 - 12.0 VDC
24 V Operation: 21.2 - 24.0 VDC
Output Current: 1.0 amps
Ripple Voltage: 0.05 Volts Max
Battery Charger Max Current: 0.25 amps
Maximum recommended battery size: 4ah
Recommended Battery: SDC Model RB12V4
(Replace batteries every 3 years.)
To determine standby battery capacity refer to
Battery Discharge table (INST-BDT).
Suitable Uses:
Electric Lock Power Supply
Access Control Power Supply
TEST UNIT YEARLY
12 Volt Mode Battery
Connections
O:\INS\INST-602RF-CUL REV A 0103
Battery Input
Terminals
Voltage Output
Terminals
System
Status LED
Voltage Select
Switches
AC Voltage
Input
MODEL 602RF-CUL
+
C
POWER SUPPLY SPECIFICATIONS
24 Volt Mode Battery
Connections
602RFCUL
SPECIAL APPLICATIONS POWER SUPPLY
INSTALLATION INSTRUCTIONS
MODEL 602RF-CUL
COVER
Note: Power limited cable
must maintain a
1
/
4
”
or more spacing from
battery cables or
primary power wires.
Power limited
Class 2 output
High Voltage
Input
Yellow - System Ok
Red - No AC Input
Green - No DC Output
Manual
Reset
ORG = LO/NO
