Page 1
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]

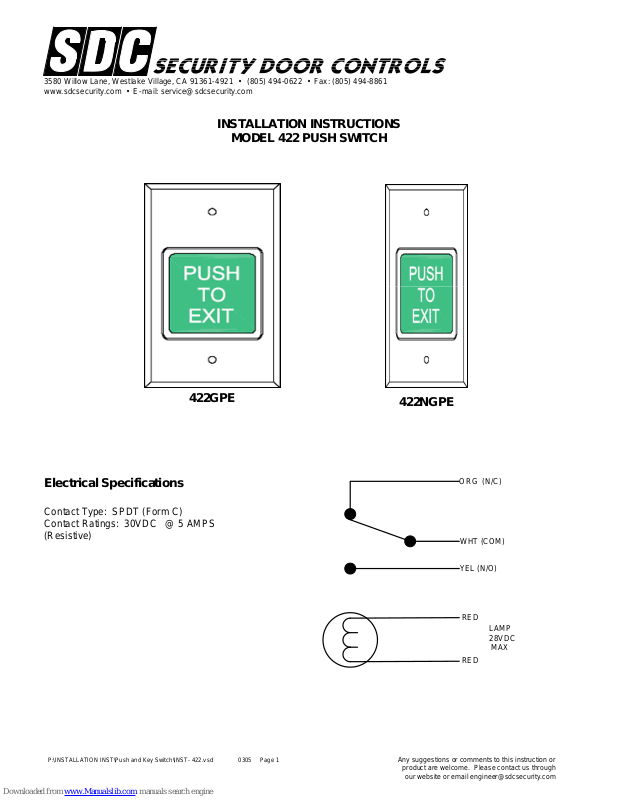

INSTALLATION INSTRUCTIONS

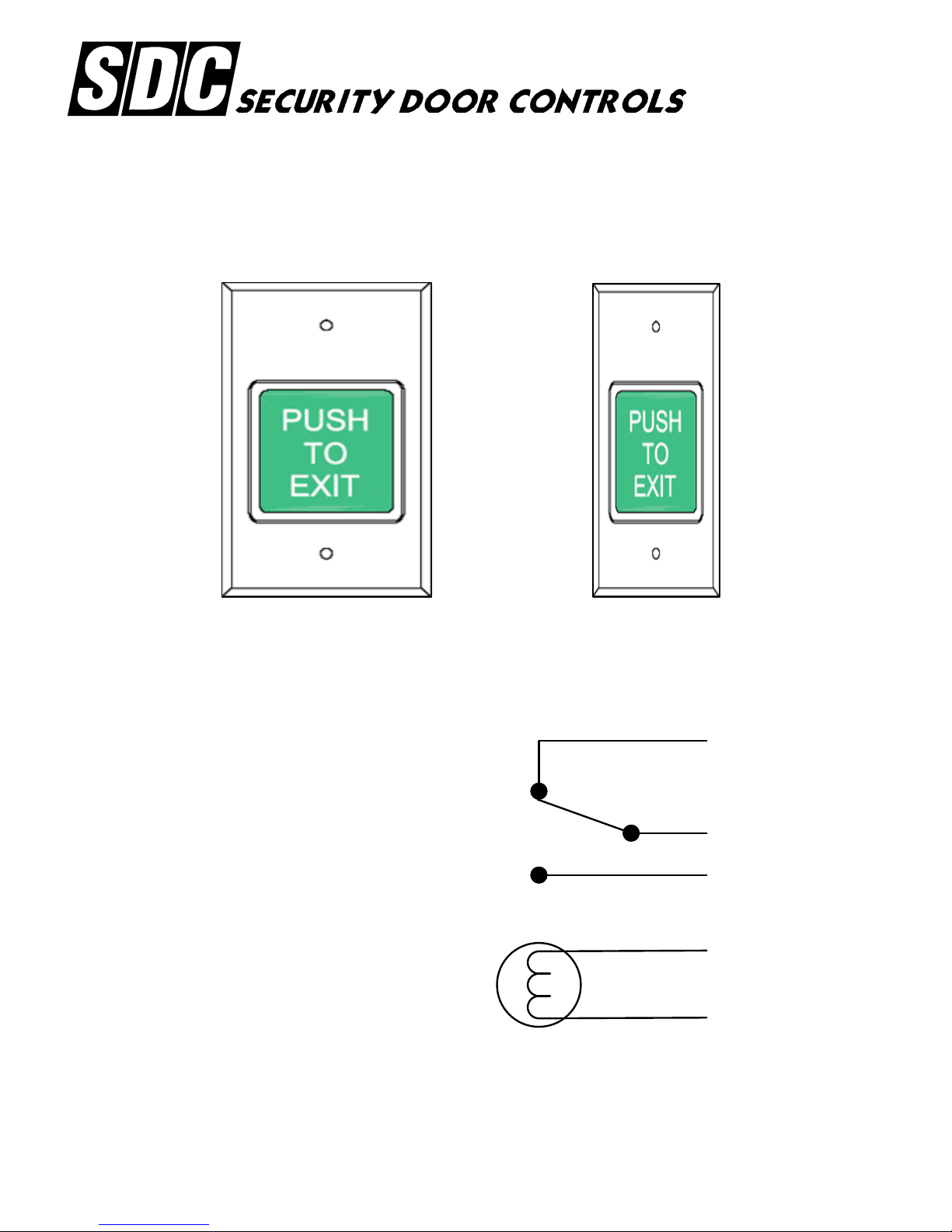

MODEL 422 PUSH SWITCH
422GPE
Electrical Specifications
Contact Type: SPDT (Form C)
Contact Ratings: 30VDC @ 5 AMPS
(Resistive)
422NGPE
ORG (N/C)
WHT (COM)
YEL (N/O)
RED
LAMP
28VDC
MAX
RED
P:\INSTALLATION INST\Push and Key Switch\INST- 422.vsd 0305 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
Page 2
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
SECURITY DOOR CONTROLS
www.sdcsecurity.com • E-mail: [email protected]
INSTALLATION INSTRUCTIONS

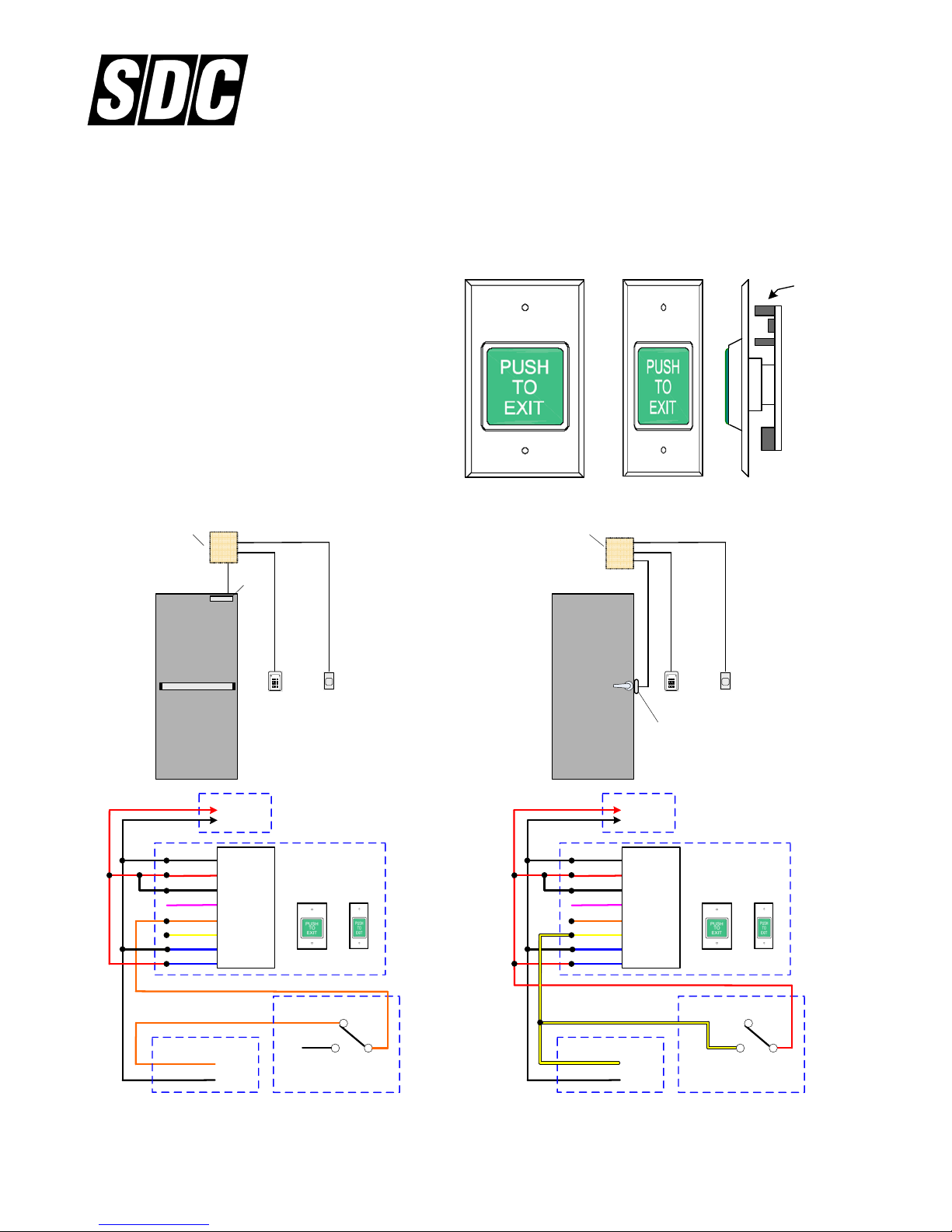

MODEL 413NU & 423U PUSH SWITCH
1-60 SECOND ADJUSTABLE TIME DELAY
When the button is pressed, the lock releases for 1-60 seconds. If pressed again during the lock release period, the unit will
“Retrigger” starting a new release period.
Electrical Specifications
Input Voltage: 12/24VDC
Timer Current Draw: 20 ma
Lamp Voltage: 28V @ 35ma
Output Relay: SPDT
Max Output Load: 30VDC @ 2 AMP
413NU423U
1-60 SEC
TIMER
ADJ POT
POWER
SUPPLY
BLK
RED
WHT
VIO
ORG
YEL
BLU
BLU
+
12/24VDC
-
LAMP
LAMP
EMLOCK
+
COM
N/C
N/O
3
1 2
4
7
8659
0*#
ACCESS
MODEL 413NU/423U
CONTROL
ADJUSTABLE PUSH
TO EXIT SWITCH
POWER
SUPPLY
413NU OR 423U
MANUAL RELEASE
DEVICE
TYPICAL WIRING
PUSH
TO
EXIT
POWER
SUPPLY
BLK
RED
WHT
VIO
ORG
YEL
BLU
BLU
+
12/24VDC
-
+
COM
N/C
N/O
LAMP
LAMP
3
1 2
4
7
8659
0*#
ACCESS
CONTROL
ELECTRIC
STRIKE
POWER
SUPPLY
MANUAL RELEASE
PUSH
TO
EXIT
MODEL 413NU/423U
ADJUSTABLE PUSH
TO EXIT SWITCH
413NU OR 423U
DEVICE
FAIL-SAFE LOCK
POWER
P:\INSTALLATION INST\Push and Key Switch\INST-413NU-423U.vsd REV B 03-09 Page 1
+
-
NO
ACCESS CONTROL
NC
NC
C
FAIL-SECURE LOCK
POWER
+
-
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
NO
ACCESS CONTROL
C
our website or email [email protected]
Page 3
SECURITY DOOR CONTROLS
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]
INSTALLATION INSTRUCTIONS

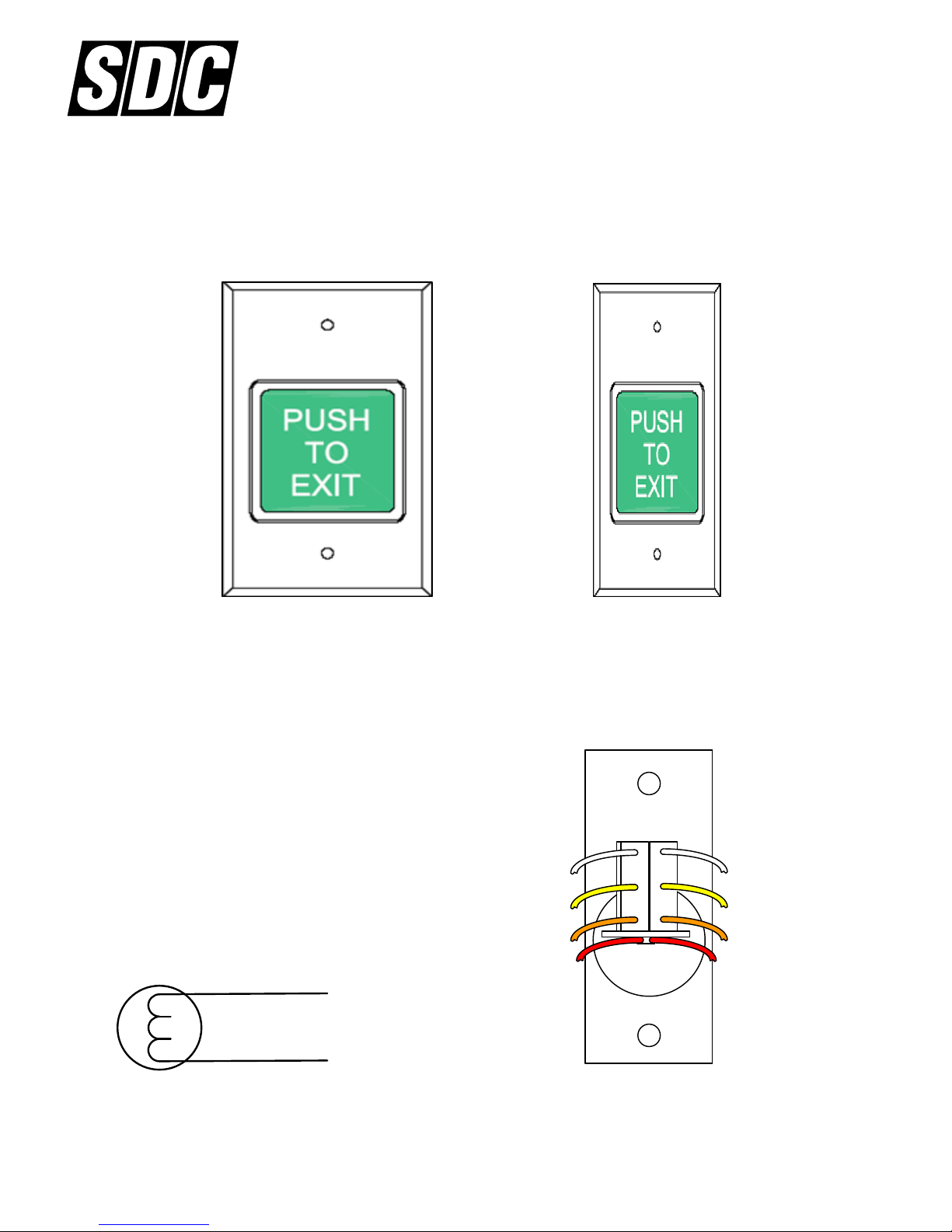

414 & 424 PUSH SWITCH
424U 414NU
Electrical Specifications
Contact Type: DPDT (Form C)
Contact Ratings: 30VDC @ 5 AMPS
(Resistive)
RED
LAMP
28VDC
MAX
RED
P:\INSTALLATION INST\Push and Key Switch\INST-414-424.vsd REV A 06-08 Page 1
WHT
(COM)
YEL
(N/O)
ORG
(N/C)
WHT
(COM)
YEL
(N/O)
ORG
(N/C)
REDRED
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
Page 4
SECURITY DOOR CONTROLS
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]
INSTALLATION INSTRUCTIONS

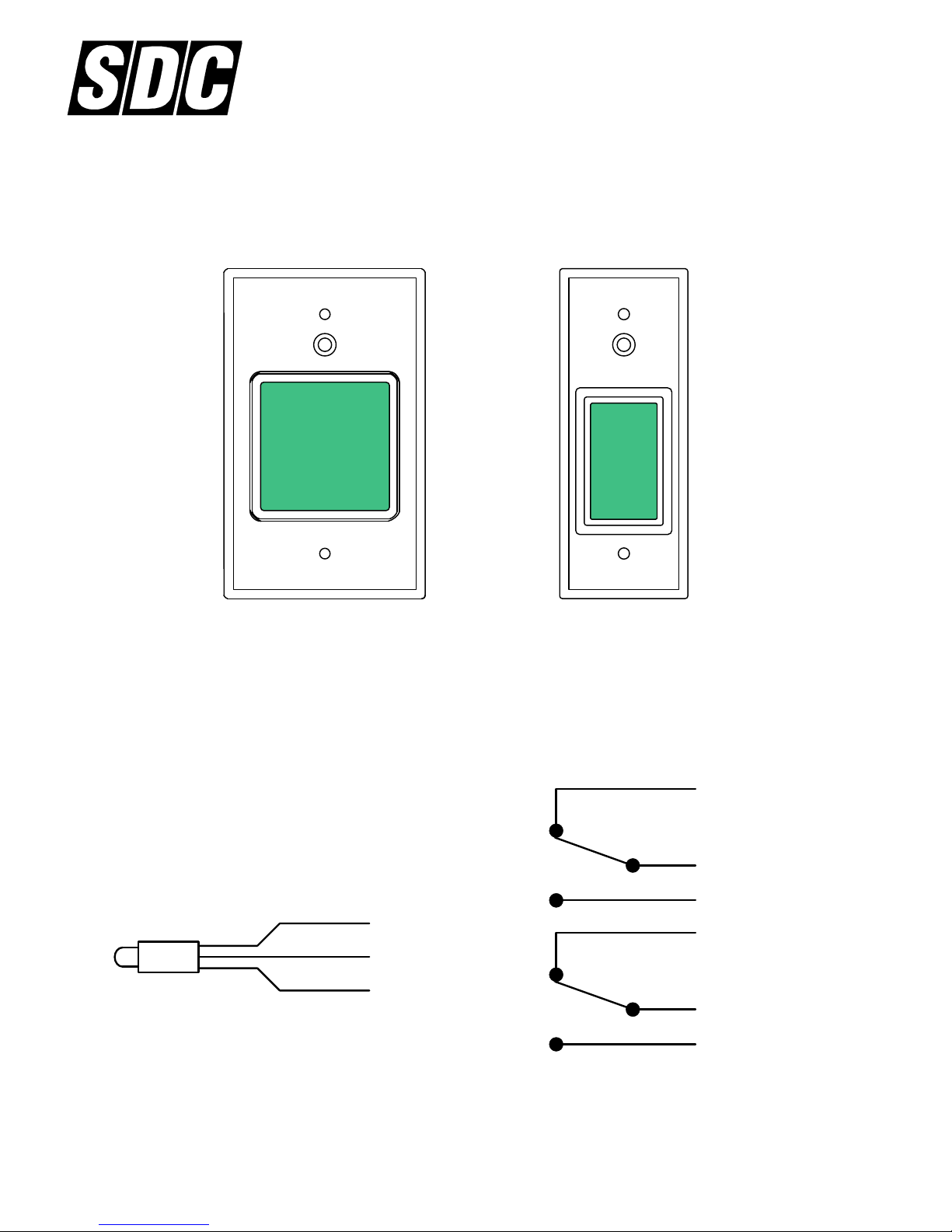

MODEL 415N & 425 ON/OFF PUSH SWITCH
425
Electrical Specifications
Contact Type: DPDT (Form C)
Contact Ratings: 30VDC @ 5 AMPS
(Resistive)
RED
LED
BLK
GRN
RED
-
GRN
415N
ORG (N/C)
WHT (COM)
YEL (N/O)
ORG (N/C)
WHT (COM)
YEL (N/O)
P:\INSTALLATION INST\Push and Key Switch\INST- 415N-425.vsd 09-08 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
Page 5
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]
INSTALLATION INSTRUCTIONS

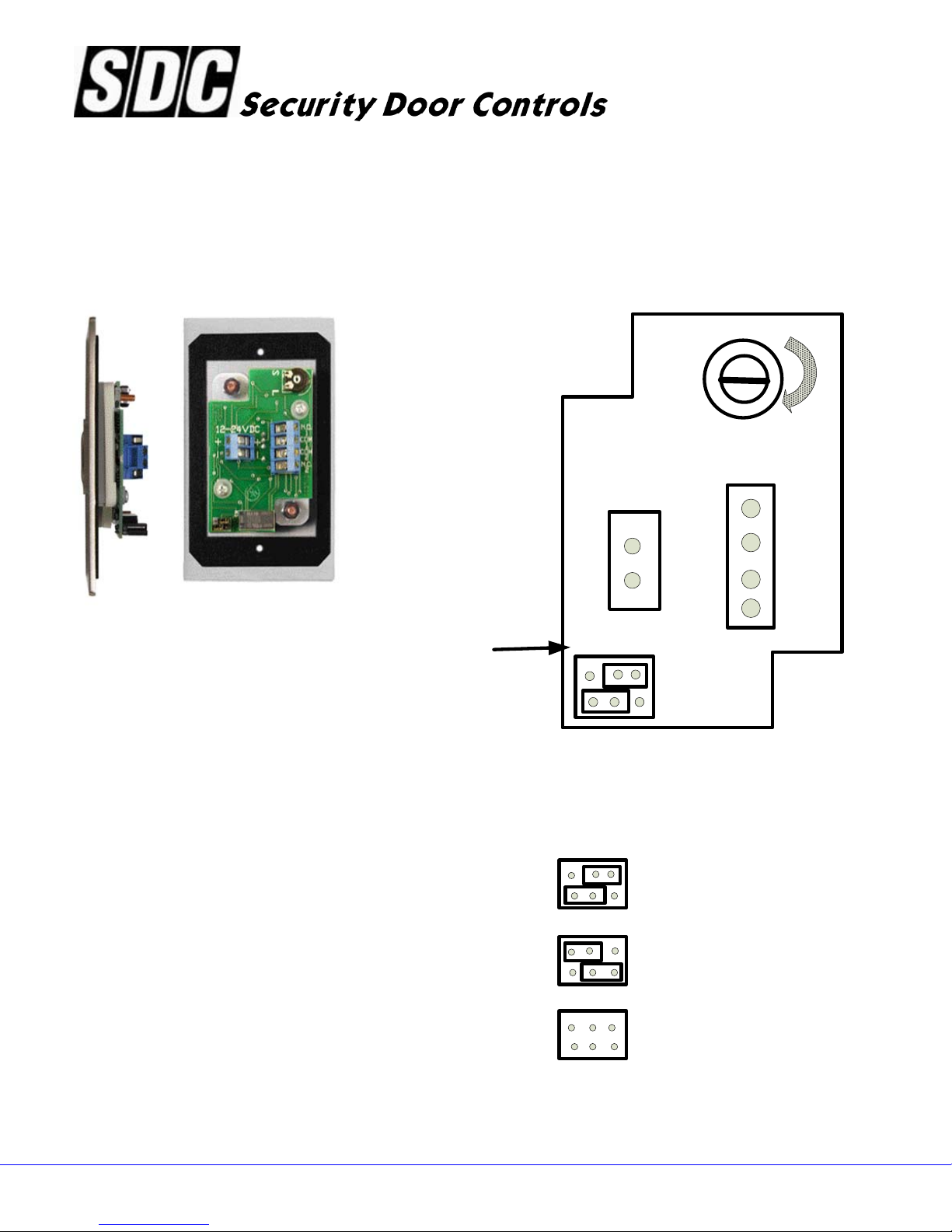

MODEL 460
REQUEST – TO – EXIT - SWITCH
Adjustable
Timer
1 – 40 Seconds
Specifications
Input Voltage: 12/24VDC
Current:
LED On: Idle-60mA, Active 120mA
LED Off: Idle-10mA, Active-60mA
Outputs:
1 N.O., 1 N.C., 2 Amp @ 30VDC
Switch Operating Environment
-40° F to +160°F (-40° C to +70°C)
With the jumpers
as shown the red LED’s are
on in stand-by and the green
LED’s turn on when the relay
is on.
*
Selectable Bi-color Illumination Status
Relay Off – Red, Green or None
Relay On – Red, Green or None
12-24 VDC
+
-
*
NO 1
COM1
COM2
NC 2
Red On – Standby
Green On – Relay Action
Red On – Relay Active
Green On - Standby
Dimensions
4.5" H x 2.75" W x 1.25" D
(11.4 x 7 x 3.2 cm)
P:\INSTALLATION INST\Push and Key Switch\INST-460.vsd 0305 Page 1
Red Off
Green Off
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
