Aladin TEC 2G

Deutsch EnglishItalianoNederlands Español Français

User manual

Bedienungsanleitung

Manuel d’utilisation

Manuale d’uso

Instrucciones para el uso

Handleiding

Safety considerations

I UWATEC Aladin TEC 2G

You must carefully read and understand this entire manual before using your

Aladin TEC 2G

Diving has many inherent risks. Even if you follow the instructions of this manual in a careful manner, it is still possible that you may be seriously injured or die from decompression sickness, oxygen toxicity or some other inherent risk of scuba with Nitrox or compressed air. Unless you are fully aware of these risks and are willing to personally accept and assume responsibility for those risks, do not use

Aladin TEC 2G

Guidelines for the use of Aladin TEC 2G:

The following guidelines for using Aladin

TEC 2G are derived from the latest medical research and the recommendations of the American Academy of Underwater Sciences for diving with diving computers. Following these guidelines will greatly increase your safety while diving, but cannot guarantee that decompression sickness or oxygen toxicity will not occur.

• Aladin TEC 2G is designed for dives with compressed air (21% O2) and Nitrox (22 to 100% O2) only. Do not use Aladin TEC 2G for dives made with other mixed gases.

• It is absolutely necessary to check the set mixture before each dive and to compare it to the gas mixture currently used. Always remember: setting an incorrect mixture carries an inherent risk of decompression sickness and/or oxygen toxicity! Maximum deviation from the measured mixture must not exceed 1%O2. An incorrect gas mixture can be lethal!

• Only use Aladin TEC 2G with open circuit breathing systems.

• Only use Aladin TEC 2G for diving with an independent breathing apparatus. Aladin TEC 2G is not designed for long term exposures with Nitrox.

• Always observe the visual and audible alarm signals. Avoid situations of increased risk which are marked with a warning sign in this operating manual.

• Aladin TEC 2G

has a ppO2 warning. The default limit is set at 1.4bar ppO2 max. It can be changed

between 1.2 and 1.6bar.

• Frequently check the "oxygen clock" (CNS O2). Ascend and finish the dive if the CNS O2 exceeds 75%.

• Never dive deeper than the Maximum Operating Depth (MOD) pertinent to the gas mixture in use.

• Always check the diving limits considering the oxygen content and standard sports diving procedures (decompression sickness, oxygen toxicity).

• In accordance with the recommended maximum diving limit of all instructional agencies, do not dive deeper than 40 metres/130 feet.

•

The danger of nitrogen narcosis has to be taken into consideration

. Aladin TEC 2G gives no warning

about this.

• On all dives, with or without dive computer, make a safety stop for at least 3 minutes at 5 metres (15 feet).

• All divers using dive computers to plan dives and indicate or determine decompression status must use their own computer, which they take with them on all dives.

• If Aladin TEC 2G

fails at any time during the dive, the dive must be terminated, and appropriate surfac-

ing procedures (including a slow ascent and a 3 to 5 minute safety stop at 5

metres /15 feet

) should

be initiated immediately.

• Comply with the ascent rate and carry out any decompression stop required. If the computer should fail for any reason, you must ascend at a rate of 10m (30ft) per minute or less.

• On any given dive, both divers in a buddy pair must follow the most conservative dive computer for that particular dive.

• Never dive without a buddy. Aladin TEC 2G

does not substitute for a dive buddy.

• Only make dives that are appropriate to your level of dive training. Aladin

TEC 2G

does not increase

your knowledge of diving.

• Always dive with back-up instruments. Make sure that you always use back-up instrumentation including a depth gauge, submersible pressure gauge, digital bottom timer or dive watch, and have access to decompression tables whenever diving with a dive computer.

• Avoid repeated ascents and descents (yo yo diving).

WARNING

English

I UWATEC Aladin TEC 2G

• Avoid repeated heavy workload while at depth.

• Plan the dives to be shorter if they are made in cold water.

• After finishing the decompression or at the end of a no-stop dive, the final stage of the ascent should be as slow as possible.

• You MUST be familiar with all signs and symptoms of decompression sickness before using Aladin TEC 2G! Seek IMMEDIATE treatment for decompression sickness should any of these signs or symptoms occur after a dive! There is a direct correlation between the effectiveness of treatment and the delay between the onset of symptoms and the treatment for decompression sickness.

• Only dive with Nitrox after you have been thoroughly instructed by a recognised institution.

Repetitive dives

• Do not start your next dive before your CNS O

% status has dropped below 40%.

• When diving with Nitrox, make sure your surface interval is long enough (just like diving with compressed air). Plan for a minimum surface interval of two hours. Oxygen, too, needs sufficient time to leave the body.

• Match gas mixture to the intended dive.

• Do not attempt a repetitive dive if the no-dive warning NO is visible on the display.

• Plan a day without diving once a week.

• If you have to change computers, wait at least 48 hours before carrying out your next dive.

• Diving after a reset of the remaining saturation (reset, see page 47, or battery replacement, see page 51) may lead you into

potentially

hazardous situations which could result in death or serious

injury. After a reset of the remaining saturation do not dive for at least 48 hours.

Altitude and diving

• Do not dive at altitudes higher than 4000m (13000ft).

• After a dive do not rise to altitudes that Aladin TEC 2G

prohibits via the flashing altitude

range number (see page 29).

Flying after diving

• After diving, wait at least 24 hours prior to flying.

Aladin TEC 2G

dive instrument is a personal protective equipment in compliance with the essential safety requirements of the European Union directive 89/686/EEC. RINA SpA, Via Corsica 12, I-16128 Genoa, notified body no. 0474, have certified the conformity with the European Standard EN 13319:2000.

EN13319:2000 Diving accessories - Depth gauges and combined depth and time measuring devices - Functional and safety requirements, test methods. Any information on decompression obligation displayed by equipment covered by this standard is explicitly excluded from its scope.

Safety considerations

Introduction

I UWATEC Aladin TEC 2G

The following symbols are used in the operating manual:

This operating manual makes use of the following icons to indicate especially important comments:

Remarks Information and tips which are important for optimal use of the functions of

Aladin.

Danger!

Instructions for manual input

Flashing display

Audible attention signal

Audible signals

Audible alarm signal

-> Page reference e.g. ->10

Important remarks concerning signal words and symbols

Congratulations on purchasing Aladin TEC 2G

and welcome to UWATEC. From now on you will enjoy the assistance of the most extraordinary dive computer - equipped with UWATEC's most innovative technology - while diving.

Aladin TEC 2G

enables you to use two different gas mixtures during the same dive. However, for an easy reading this manual mainly refers to dives with a single gas mixture. Information for diving with two gas mixtures is marked with or has been summarised in special chapters.

We thank you for choosing Aladin TEC 2G and we hope you will enjoy safe dives in the future! Further information on UWATEC dive computers and other products by UWATEC can be found on our web page at www.scubapro-uwatec.com. To make this manual easier to read we will use the term "Aladin" as an abbreviation for "UWATEC Aladin TEC 2G diving computer" throughout this booklet.

Safety considerations Dive computers provide divers with data; they, however, do not provide the knowledge how this data should be understood and applied. Dive computers cannot replace common sense! You must therefore carefully read and understand this entire manual before using your Aladin.

Press left push button Press and hold (1 second)

left push button

Press and hold (1 second)

both push buttons

Press right push

button

Press and hold

(1 second) right push button

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

WARNING

Alternate displays

By pushing during the dive you can scroll

through alternate displays. How to get back to the first display:

• scrolling with through the displays

• after 5 seconds: automatically if marked with

• after 5 seconds: directly by pushing 1x E.g. Max depth > Temperature >

Temperature, Time > Max depth

Time out after 5 seconds without operation.

Display switches back to original indication.

Valid only for dives

with 2 gas mixtures

English

Quick reference

I UWATEC Aladin TEC 2G

• Alarm clock ->48

• UTC time zone ->48

• Time of day ->48

• 24h / AM PM ->49

• Date ->49

• Display contrast ->49

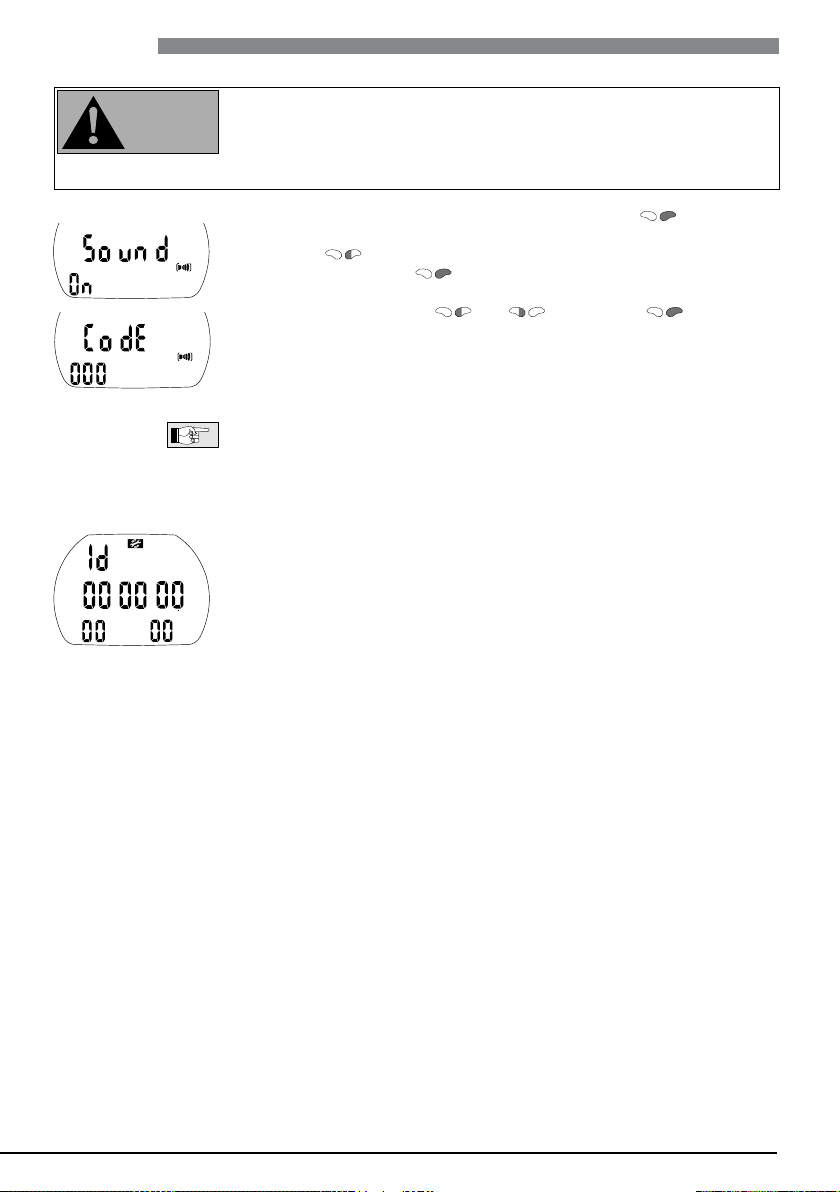

• Sound on / off ->50

• Electronic ID ->50

• IrDA speed ->49

• Dive time alarm ->46

• Safety stop duration ->46

• Salt / fresh water ->46

• Backlight duration ->47

• Depth alarm ->45

• Reset to air ->46

• ppO2 max ->46

• Unit system ->46

• Deco gas on/off ->46

• Attention beep on /off ->47

• Water contacts on /off ->47

•

Reset desaturation

->47

Time of day display

Gas 1

O2%

->20

Altitude ->29

(adjustment

->45)

Gauge mode

on / off

->30

Gas d

O2%

->37

Dive

planner

->41

Logbook

->43

Set 2

->48

Set 1

->45

• Date

• (Desat. time CNS O2% )

• Battery condition

->14

->15

Off

MB Level

L0-L5

->32

STOP

S L O W

DECO

CNS O2%

DEPTH

NO STOP

DIVE TIME

DESAT

AMPM

Dive planner icon

MB level icon (input / MB level reduced)

O2 mix icon (input)

Current depth Altitude sections

Too fast

ascent Max depth Temperature MB level Maximum Operating Depth (MOD) Average depth Dive number

Setting icon Service icon

Date icon

AM/PM icon Desaturation icon

Do not fly icon

Dive time / No-fly time / SOS duration Repetitive dive number

No-stop time / Total ascent time MB no-stop time

Time of day / Date Decompression depth / Level stop depth Desaturation time (DESAT) Duration of no-dive warning

Duration of surface interval

Partial pressure of oxygen ppO

Ascent time icon

No-stop indicator

Level stop indicator

Decompression stop obligation / Ignored decompression stop

Decompression stop indicator

Gauge icon

Icon for stopwatch and safety stop timer

No-dive warning

O2 mix Oxygen toxicity CNS O2% Ascent rate

Alarm clock icon / Infrared icon

Battery icon

Nitrogen loading bar (dive) Residual Nitrogen bar (surface) Desaturation Battery condition

Logbook

icon

Average

depth

icon

Decompression stop duration Level stop duration

Without operation the display switches automatically back to the time of day display and after 3 minutes the display switches off.

See also page 14.

Operating scheme

"->" means "more information at page"

Enter / Scroll / Change setting Backlight Exit

Operating scheme

I UWATEC Aladin TEC 2G

(MB level)

S L O W

DEPTH

DIVE TIME

LogbookGas 1 O2% Diveplanner

Surface interval

Display switched off

Statistic information

Deepest dive

Longest dive

Cumulative bottom time

Number of dives

DEPTH

NO STOP

DEPTH

DIVE TIME

Bottom time

(MB-) No-stop time

No-stop dive

Decompression dive

STOP

DECO

CNS O2%

DEPTH

DIVE TIME

Oxygen concentration

–

ppO2 max

–

( )

Exit

Confirmation

Exit

After the oldest dive:

–

Depth

–

Repetitive dive number Starting time

Surface interval if applicable

CNS O2% at the end

Minimum

temperature

Altitude

range (if>0)

SOS if

applicable

CNS O2%

Dive number

O2 mix

Dive time

Date of

the dive

Battery performance

Max

depth

–

S L O W

DEPTH

DIVE TIME

Page 3

Page 2

Page 1

Gas d O2%

Oxygen concentration

–

ppO2 max

–

Confirmation

O2 mix deco gas (if used)

English

I UWATEC Aladin TEC 2G

I Safety considerations ___________________________________ 2 Introduction ___________________________________ 4 Important remarks concerning signal words and symbols ___________________________________ 4 Quick reference / Operating scheme ___________________________________

List of chapters ___________________________________ 7

II System and operation ___________________________________ 9

1 System description ___________________________________

2 Operation ___________________________________ 9

2.1 Push buttons ___________________________________ 9

2.2 Water contacts __________________________________

2.3 SmartTRAK __________________________________10

2.4 Switching on the display __________________________________ 13

2.5 How to navigate Aladin at the surface __________________________________ 14

2.6 Checking the desaturation time __________________________________

2.7 Checking the surface interval __________________________________ 14

2.8 Displaying the date __________________________________ 15

2.9 Checking the battery condition __________________________________ 15

2.10 Active backlight __________________________________

2.11 Switching off the display __________________________________16

2.12 Alarm clock __________________________________ 16

3 SOS mode __________________________________ 16

III Diving with Aladin __________________________________ 17

1 Terminology / Symbols __________________________________ 17

1.1 General terminology / Display during no-stop phase __________________________________ 17

1.2 Display during decompression phase __________________________________

1.3 Nitrox information (

O2 information) __________________________________ 18

2 Attention messages and alarms __________________________________ 19

2.1 Attention messages __________________________________ 19

2.2 Alarms __________________________________

3 Preparation for the dive __________________________________ 20

3.1 Setting the gas mixture and pp

O2 max

__________________________________ 20

3.2 Setting the MB level __________________________________21

3.3 Preparation for diving with two mixtures __________________________________21

3.4 Preparation for the dive and function check __________________________________

4 Functions during the dive __________________________________ 22

4.1 Immersion __________________________________ 22

4.2 Setting bookmarks __________________________________ 22

4.3 Dive time __________________________________

4.4 Current depth /

O2% mix __________________________________ 22

4.5 Max depth / Temperature __________________________________ 23

4.6 Ascent rate __________________________________ 24

4.7 Partial pressure of oxygen (pp

O2 max) /

Maximum Operating Depth (MOD) __________________________________ 25

4.8 Oxygen toxicity (CNS

O2%) __________________________________25

4.9 Nitrogen loading bar graph __________________________________ 26

4.10 Decompression information __________________________________

4.11 Safety stop timer __________________________________ 27

5 Functions at the surface __________________________________ 27

5.1 End of a dive __________________________________ 27

List of chapters

I UWATEC Aladin TEC 2G

List of chapters

5.2 Residual nitrogen bar graph __________________________________ 28

5.3 Desaturation time, No-fly time and No-dive warning __________________________________

6 Diving in mountain lakes __________________________________ 29

6.1 Altimeter __________________________________ 29

6.2 Altitude ranges __________________________________

6.3 Prohibited altitude __________________________________29

6.4 Decompression dives in mountain lakes __________________________________ 29

IV Gauge mode __________________________________30

V Diving with microbubble (MB) levels __________________________________

1 Comparison of dives with MB level L0 and MB level L5 __________________________________32

2 Terminology __________________________________ 33

2.1 Display during MB no-stop phase __________________________________

2.2 Display during level stop phase __________________________________ 33

3 Preparation for a dive with MB levels __________________________________ 34

3.1 Setting the MB level __________________________________34

4 Functions during the dive with MB levels __________________________________

4.1 Level stop information __________________________________ 34

4.2 Total time of ascent __________________________________ 35

4.3 Decompression obligation __________________________________ 35

4.4 Level stop and deco stop __________________________________

5 Complete a dive with MB levels __________________________________ 36

VI Diving with two gas mixtures __________________________________ 37

VII Dive planner __________________________________ 41

1 Planning a no-stop dive __________________________________

41 2 Planning a decompression dive __________________________________ 42 3 Leaving the dive planner __________________________________ 42

VIII

Logbook __________________________________ 43

1 Survey __________________________________ 43 2 Operation __________________________________ 43

Settings __________________________________ 45

1 Altitude adjustment __________________________________ 45 2 Menu "set 1" __________________________________ 45 3 Menu

set 2" __________________________________ 48

X Appendix __________________________________ 51

1 Technical information __________________________________ 51 2 Maintenance __________________________________

2.1 Replacing the battery __________________________________ 51 3 Warranty __________________________________ 53 4 Index __________________________________ 53

English

II UWATEC Aladin TEC 2G

II System and operation

1 System description

Aladin displays all important dive and decompression data and has a memory which stores the full dive data.

The data can be transmitted with an infrared interface (IrDA) and SmartTRAK software to a Windows® personal computer. SmartTRAK software CD is included with the Aladin package. Infrared interfaces are available in PC stores; a list of recommended interfaces is available on our website (www.scubapro-uwatec.com).

2 Operation

On page 5 and 14 you will find an operating schematic.

2.1 Push buttons

Aladin can be operated with two push buttons ( ). Operation of the push buttons is divided into "press" ( / ) and "press and hold (1 second)" ( / ).

At the surface:

/ • Switch on Aladin (time of day display)

• Comparable to the ENTER or RETURN key of a keyboard

• Enter into the displayed sub menu

• Open the displayed setting

• Confirm or enter the displayed value or setting / • Scroll through a menu / • Once entered with into a sub menu or setting:

• Increase ( ) or decrease ( ) the indicated value

• Change the setting

• Operate the backlight

• Exit the current function or menu and switch to the time of

day display

• Switch off Aladin

Under water:

• Access alternate displays

• Set bookmark

• Operate the backlight

•

Activate the safety stop timer (dive mode only, in depths < 6.5m

/ 20ft)

Gauge mode (stopwatch):

• Restart

Diving with two mixtures:

• Initiate switch to gas D or gas 1

• Interrupt switching process

• Confirm switch to gas D or gas 1

Infrared port

Push Buttons

Water Contacts

SmartTRAK

Aladin TEC 2G

Infrared Interface (option)

II UWATEC Aladin TEC 2G

2 Operation

2.2 Water contacts

On submerging in water the water contacts switch on Aladin automatically

If you have chosen the option "Water contacts off" ("set 1", ->47), Aladin will turn on with a delay of up to 1 minute into the dive. This will affect functioning of the computer. Make sure that the computer is on before starting the dive.

2.3 SmartTRAK

With SmartTRAK you can configure Aladin, transfer dive data to a personal computer and graphically display the data. To start the communication, turn on Aladin and place it so that its infrared window is in front of the infrared interface. If Aladin detects an infrared device within range appears.

Configuring Aladin

To configure Aladin, select "Dive Computer Settings" under "OPTIONS" on the main menu bar of SmartTRAK after having established communication between your PC and Aladin. The following window will appear:

WARNING

When making any changes to the settings via SmartTRAK, you must press the "Write" icon for the changes to take effect.

English

II UWATEC Aladin TEC 2G

2 Operation

Setting

• Depth alarm

• Dive time alarm

• Safety stop duration

• Maximum partial pressure of oxygen (ppO

max)

• Time limit to reset the O2% mix to air

• Deco gas

• Unit system

• Water type

• Backlight illumination duration

• Audible attention signals

• Water contacts

• Reset desaturation

• Gauge mode

• Alarm clock

• UTC (Universal Time Change) zone

• Time of day

• 24 or AM/PM setting

• Date

• Display contrast

• Sound

Range

5 - 100m (20 - 330ft) on/off 5-195min, on/off 1-5min

1.2-1.6bar no reset / 1 - 48hrs on/off metric/imperial on (salt water)/off (fresh water) 2-12s ; push on / push off on / off (SmartTRAK: selective) on / off on / off on / off 0 - 23h 59min, on/off ±13hrs, increments: 15min hours:minutes 24 (off) / AM/PM (on)

1 (low) -12 (high) on / off

Default

40m (130ft),off 60min, off 3 minutes

1.4bar no reset off

on (salt water) 6s on on no reset off 12:00, off

4 on

Page

45 46 46

46 46 46 46 46 47 47 47 47 30 48 48 48 49 49 49 50

The following data may be recalled with SmartTRAK:

• Number of past dives

• Total duration of dives

• Deepest dive

• Longest dive

• Atmospheric pressure

• Dive profile

• Logbook

• Temperature curve

• Alarms and attention messages

• Bookmarks

• Average depth

• Battery condition

The following settings may be changed with SmartTRAK or via "set 1" or "set 2" directly on

Aladin

Downloading your dives

Aladin’s memory allows you to store approximately 25 hours of dive profile information in 4 second sampling intervals. With SmartTRAK you can transfer this information to the PC in order to visualize and analyze your dives on the monitor. To download data from Aladin, click on "NEW" under the "LOGBOOK" menu to open and name a new logbook or open an existing logbook. Then click on the "TRANSFER DIVES" icon: a box will appear on the screen identifying the computer being downloaded, and a progress bar will show the status of the transfer. You can choose between transferring all dives or new dives only (default setting) from Aladin’s memory. If you choose to transfer new dives only, SmartTRAK will only transfer dives that are more recent than the most recent dive already saved in the PC logbook. To transfer all dives, you must change the default setting by selecting "Transfer" under "Dives" in the main menu bar.

Once the data is downloaded, a window will show you a summary table of all dives; for the selected dive, another window will show you its details. From these windows you can add and edit your dive information.

Dive window

Dive information panel

Dive profile panel

Alarm symbols

Notes panel

Dive computer display

Tissue panel

Physiology panel

Dive table

2 Operation

II UWATEC Aladin TEC 2G

English

2.4 Switching on the display

• automatically, on submerging in water* or when adaptation to atmospheric pressure is necessary;

• manually, by pushing or . If switched on with all segments light up for 5 seconds.

Afterwards the display shows the time of the day, the O

mix and the tempera-

ture.

This display is called

time of day display. Most navigation descrip-

tions start from this display. At the surface

Aladin

returns automati-

cally to this display.

If there is a remaining saturation from the last dive or from a change of altitude,

Aladin also displays the "do not fly" time, the "do not fly" icon, the current altitude range and the prohibited altitude range (->29).

When Aladin is in state of rest no information is displayed but the atmospheric

pressure is continuously monitored. If a change in altitude range is detected, Aladin switches on for 3 minutes automatically ->29.

* Only if the option

Water contacts on" ("set 1", ->47) is chosen. See warning ->10.

STOP



S L O W

DECO

CNS O2%

DEPTH

NO STOP

DIVE TIME

DESATAMPM



Time of day display

2 Operation

II UWATEC Aladin TEC 2G

2.7 Checking the surface interval

From the time of day display you can check the surface interval by pushing (logbook menu)

The surface interval is the time since the end of the last dive and is displayed

as long as there is remaining saturation.

2.6 Checking the desaturation time

From the

time of day display

you can check the desaturation

time* by pushing

. Desaturation time is determined either by oxygen toxicity, nitrogen saturation or the regression of microbubbles, depending on which requires the longer time.

The display switches back to the time of day display after 5 seconds without operation.

* Only displayed

if there is a remaining saturation due to the last dive or change of

altitude.

For the calculations of the desaturation and no-fly time it is assumed that the diver breathes air while on the surface.

2 Operation



S L O W

CNS O2%

DESAT

WARNING

Do not fly icon

No-fly time

No-dive warning

Residual nitrogen bar

Oxygen toxicity

Desaturation time

Surface interval

2.5 How to navigate Aladin at the surface

Starting from the time of day display you can enter into different menus.

• Alarm clock ->48

• UTC time zone ->48

• Time of day ->48

• 24h / AM PM ->49

• Date ->49

• Display contrast ->49

• Sound on / off ->50

• Electronic ID ->50

• IrDA speed ->49

• Dive time alarm ->46

• Safety stop duration ->46

• Salt / fresh water ->46

• Backlight duration ->47

• Depth alarm ->45

• Reset to air ->46

• ppO2 max ->46

• Unit system ->46

• Deco gas on/off ->46

• Attention beep on /off ->47

• Water contacts on /off ->47

•

Reset desaturation

->47

Time of day display

Gas 1

O2%

->20

Altitude ->29

(adjustment

->45)

Gauge mode

on / off

->30

Gas d

O2%

->37

Dive

planner

->41

Logbook

->43

Set 2

->48

Set 1

->45

• Date

• (Desat. time CNS O2% )

• Battery condition

->14

->15

Off

MB Level

L0-L5

->32

• Enter with into the function or sub menu.

• With you can switch to the time of day display.

• After 3 minutes without operation Aladin returns to the time of day display.

English

II UWATEC Aladin TEC 2G

2 Operation

2.10 Active backlight

The display of Aladin can be illuminated both on the surface and underwater. The backlight can be activated by pushing . The light will turn off automatically. The default duration is 6 seconds. The duration can be changed in "

set 1" (->47) or with SmartTRAK between 2 and 12 seconds. It can also be set to "push on / push off", in which case the light stays on until you turn it off by pressing again. The backlight can only be activated if the computer display is on.

Repeated activation of the backlight will reduce battery life.

Battery warning appears. Backlight deactivated. Replace the battery! ->51

Battery performance high enough for diving.

Diving not possible, dive planner and settings are disabled

Flashing battery warning. Audible alarms and attention messages disabled! Backlight deactivated! Risk of computer malfunction. Do not let the battery reach this condition!

WARNING

Bar graph interpretation

2.9 Checking the battery condition

From the

time of day display you can check the battery condition by pushing

2x or 3 x (depending on whether there is desaturation time left).

Aladin displays the estimated remaining battery performance for 5 seconds as

a bar graph. If the bar graph shows 3 segments the battery warning appears

->19 and the battery has to be replaced ->51.

• If the bar graph shows 2 segments, the battery symbol will blink, on the surface and in dive mode, to alert the diver of a dangerous situation: the battery may not have enough energy to finish a dive.

• Replace the battery when the steady battery symbol appears (3 segments)!

The temperature influences the battery performance. In cold water it is lower than in warm water. If the battery shows 4 segments on the surface, it is possible for it to drop to 3 segments during the dive. If this is the case, the backlight will be temporarily disabled. See below.

Aladin

marks dives started with 3 or less segments in the logbook with the

battery symbol.

Logbook information is not lost even when the battery is removed for a long

time.

Battery condition /

performance

WARNING

2.8 Displaying the date

From the

time of day display you can display the date by pushing 1x or 2x

(depending on whether there is desaturation time left).

The display switches back to the time of day display after 5 seconds without

operation.

Date

II UWATEC Aladin TEC 2G

2 Operation / 3 SOS mode

3 SOS mode

Activation: automatic If the diver remains above a depth of 0.8m (3ft) for more than three minutes without observing a prescribed decompression stop, the computer will automatically switch into SOS mode after the dive.

Push to see the "SOS" sign and the remaining length of the SOS mode. The dive will be entered in the logbook with "SOS".

The SOS mode will be unlocked after 24 hours.

While in SOS mode, the computer cannot be used for diving. The computer can however be used in gauge mode ->30. All segments in the nitrogen loading bar will flash throughout the dive.

Diving within 48 hours after the end of an SOS mode will result in shorter no stop times or longer decompression stops.

• Serious injury or death may result if a diver does not seek immediate treat

ment should any signs or symptoms of decompression sickness occur after a dive.

• Do not dive to treat symptoms of decompression sickness!

• Diving in SOS mode is extremely dangerous and you must assume full responsibility for such behaviour. UWATEC will assume no liability.

A diving accident can be analyzed at any time in the logbook and downloaded to a PC by means of the infrared interface (IrDA) and SmartTRAK software.

Time remaining until

SOS mode switches

off automatically

DESAT

WARNING

2.11 Switching off the display

From the time of day display you can switch off Aladin by pushing .

On the surface Aladin switches off automatically after 3 minutes without operation.

2.12 Alarm clock

The alarm clock goes off only at the surface. If the alarm clock is "on", the time of day display shows .

When alarm is triggered: flashes and special attention beeps are played for 30 seconds or until the user presses a button.

Setting the alarm clock: ->48 ("set 2")

Keeping the backlight permanently on represents a severe strain on the battery. In warm waters (20 °C/68 °F and above), a new battery can sustain 20-40 1-hour dives with the backlight always on. In cold waters (4 °C/40 °F and below) the low battery warning may come on within the first dive. For temperatures between 4 °C/40 °F and 20 °C/68 °F the life of a new battery will be somewhere between 1 and 20 1-hour dives. Aladin monitors the battery level throughout every dive, and if the available energy drops below the warning threshold, Aladin will automatically disable the backlight to prevent a computer shut down.

English

III Diving with Aladin

III UWATEC Aladin TEC 2G

III

1 Terminology / Symbols

The information on the display of Aladin varies depending on the kind of dive and the dive phase.

For information about diving with microbubble (MB) levels see chapter V ->32.

Specific features of "Diving with two gas mixtures", are described in chapter VI

->37.

1.1 General terminology / Display during no-stop phase

37min dive time

Elapsed bottom time

No-stop time

24min

Current depth

26.2m

Decompression phase

Dive phase during which surfacing is allowed only after decompression stops are completed.

No-stop phase

Dive phase during which surfacing is allowed without stop.

Time

Depth

Ascent rate

(Only while ascending)

Current depth

In metres (feet)

Max depth

Max depth reached during the dive

No-stop time

Remaining time at a given depth during which ascent is allowed without decompression stop (min).

Nitrogen loading bar

Oxygen toxicity

CNS O2%

Dive time

Duration of the dive (min)

CNS O2%

DEPTH

NO STOP

DIVE TIME

Max depth

Total ascent time to surface (7min)

35.7m

Decompression range No-stop range

Time

Depth

Decompression stop depth

Deepest stage is displayed.

Decompression stop duration

Prescribed duration of the decompression stop at the displayed decompression stage (minutes).

Total ascent time

Including decompression stops in minutes.

Decompression stop

All required decompression stops must be observed.

Deepest decompression stop depth

2min

Decompression

stop duration

STOP

DECO

CNS O2%

DEPTH

DIVE TIME

1.2 Display during decompression phase

(Max depth >) Temperature

> Temperature , O2 mix and time of day > (Max depth)…

1.3 Nitrox information (O2 information)

For dives with compressed air in normal recreational diving, nitrogen is the decisive gas for the decompression calculations. When diving with Nitrox, the risk of oxygen toxicity rises with the increase of the fraction of oxygen and the increase of depth and can limit dive time and the max depth. Aladin includes this in the calculations and displays the necessary information:

O2% mix Fraction of oxygen: The fraction of oxygen in the Nitrox mixture can be set

between 21% (normal compressed air) and 100% in 1% increments. Your selected mix will be the basis for all calculations.

ppO2 max Maximum allowed partial pressure of oxygen: the higher the fraction of oxygen

in the mixture, the shallower the dive depth at which this value of the partial pressure of oxygen is reached. The depth at which ppO2 max is reached is called Maximum Operating Depth (MOD).

When you enter the settings for the gas mixture, Aladin will display the

ppO2 max limit setting and the cor

responding MOD. Aladin warns you audibly and visually once the depth is reached at which the ppO2 reaches the maximum allowed value ->25.

•

Default setting of

ppO2 max

is 1.4bar.

The value of

ppO2 max can be set by means of SmartTRAK or with "set 1" between

1.2 and 1.6bar (->46). It can also be changed at the time of setting the gas mixture (->20).

• The CNS O2% value/alarm is not influenced by the selected ppO2 max setting.

CNS O2% Oxygen toxicity: With the increased percentage of oxygen, the oxygen in the

tissues, especially in the central nervous system (CNS), becomes important. If the partial pressure of oxygen rises above 0.5bar, the CNS O2 value increases, if the partial pressure of oxygen is below 0.5bar, the CNS O2 value decreases. The closer the CNS O2 value is to 100%, the closer the limit where symptoms of oxygen toxicity can occur.

Nitrox diving may only be attempted by experienced divers after proper training from an internationally recognized agency.

1 Terminology / Symbols

III UWATEC Aladin TEC 2G

CNS O2%

increases

ppO

Depth

at which ppO

reaches 0.5bar

for three commonly used mixes

0.5bar

21% 13m (43ft) 32% 6m (20ft) 36% 4m (13ft)

CNS O2%

decreases

0.21bar

WARNING

English

2 Attention messages and alarms

III UWATEC Aladin TEC 2G

Aladin draws the diver’s attention to certain situations and warns the diver of unsafe diving practices. Attention messages and alarms are visual and / or audible.

• The audible attention messages can be switched off in "set 1" ->47 or SmartTRAK. With SmartTRAK they can be switched off selectively.

• In addition, the sound can be turned off completely in "set 2" ->50.

If you turn off the sound you will have no audible warnings. Without audible

warnings you could inadvertently get into potentially hazardous situations which could result in death or serious injury.

III

2.1 Attention messages

Attention messages are communicated to the diver visually by symbols, letters or flashing figures. In addition, two short audible sequences can be heard (in an interval of 4 seconds) in two different frequencies under water.

Attention messages come up in the following situations (more information can be found on the listed pages):

Page

• Maximum Operating Depth / ppO

max

is reached 25

• Set max depth is reached 23

• Oxygen toxicity reaches 75% 25

• No-stop time less than 3 minutes 26

• Prohibited altitude (surface mode) 29

•

Entering decompression

(when diving with L0)

• Half of set dive time is reached 22

• Set dive time is reached 22

•

Depth for tank switch has been reached 40

Diving with MB levels (L1-L5):

• MB no-stop time = 0 34

• MB level stop ignored 35

• MB level reduced 35

• Entering decompression when diving with MB level L1-L5 35

2.2 Alarms

Alarms are given to the diver visually by flashing symbols, letters or figures. In addition, an audible sequence in one frequency can be heard during the whole duration of the alarm.

An alarm occurs in the following situations (more information can be found on the listed pages):

Page

• Oxygen toxicity reaches 100% 25

• Ignored decompression 27

• Exceeding the prescribed ascent rate 24 (Particular scale of beeps, ->24)

• Altitude alarm 29

• Low battery alarm (without audible alarm): the battery icon appears if the battery has to be replaced. 51

(can be switched off)

WARNING

Serious injury or death may result from failing to immediately respond to alarms given by Aladin.

3 Preparation for the dive

III UWATEC Aladin TEC 2G

until

3.1 Setting the gas mixture and ppO2 max

Before every dive and after changing the tank, make sure that the settings for the gas mixture correspond with the current mixture used. An incorrect setting causes Aladin to miscalculate this particular dive. If the fraction of oxygen is set too low this can lead to oxygen poisoning without warning. If the value is set too high decompression sickness may occur. Inaccuracies in the calculations are carried over to repetitive dives.

For dives with two gas mixtures please read page 37 for further reference.

To set the gas mixture, Aladin must be in user mode (

time of day display).

1. Push

or until the GAS 1 O

menu appears.

Confirm that you wish to change the oxygen fraction of gas 1 by pushing .

3. Change the oxygen fraction in increments of 1% by pushing or . Aladin will display the current fraction of oxygen, the maximum partial

pressure limit (ppO2 max) and the MOD.

4. Confirm the selected percentage with .

5. By pushing

or you can change the ppO2 max for the chosen fraction of oxygen down to 1.0bar. Aladin will now display the corresponding MOD for the new ppO2 max.

6. Confirm your ppO2 max settings with .

•

Without confirmation the display will disappear after 3 minutes and your entries will not be accepted.

• Automatic reset of the O2% mix to 21% can be set with "set 1" ->46 or SmartTRAK between 1 and 48 hours or to "no reset" (default).

Max Operating Depth MOD

Change the ppO2 max by

(+) and (–)

You have to check the settings of Aladin especially before the first dive. All settings can be checked and changed directly at Aladin or via SmartTRAK.

WARNING

Change the O2% mix by

(+) and (–)

ppO2max

English

3 Preparation for the dive

III UWATEC Aladin TEC 2G

III

STOP



S L O W

DECO

CNS O2%

DEPTH

NO STOP

DIVE TIME

DESATAMPM

WARNING

3.2 Setting the MB level See chapter V, ->34

3.3 Preparation for diving with two gas mixtures See chapter VI, ->37

3.4 Preparation for the dive and function check

Switch on Aladin by pushing and check the test display: Are all elements of the display activated? Do not use Aladin if the display does not show all elements. When switching on Aladin with

, the test display will not appear.

Check the battery capacity before each dive ->15.

4 Functions during the dive

III UWATEC Aladin TEC 2G

4.1 Immersion If the water contacts are deactivated (->47), switch on Aladin before immersion.

If you have chosen the option "Water contacts off" ("set 1" or SmartTRAK), Aladin will turn on with a delay of up to 1 minute into the dive. This will affect functioning of the computer. Make sure that the computer is on before starting the dive.

After immersion, starting at a depth of about 0.8m (3ft), all diving functions are monitored, i.e. depth and dive time displayed, max depth stored, saturation of tissues calculated, no-stop time or decompression prognosis determined, ascent rate controlled and displayed and the correctness of the decompression procedure supervised.

4.2 Setting bookmarks

During the dive you can create bookmarks in your dive profile by pressing . The logbook icon appears for 4 seconds and an audible signal confirms the creation of the bookmark. These bookmarks will be graphically displayed in the dive profile of SmartTRAK.

4.3 Dive time

The whole time spent below a depth of 0.8m (3ft) is displayed as dive time

in minutes. The time above 0.8m (3ft) is counted as dive time only if the diver descends again below 0.8m (3ft) within 5 minutes.

While the dive time is running, the colons on the right of the figures are flashing

in one second intervals. Maximum dive time displayed is 199 minutes.

If a dive lasts longer than 199 minutes the dive time display starts again at 0 minutes.

4.4 Current depth / O2% mix

Current depth is given in 10cm increments in metric setting and 1ft increments in imperial setting.

At a diving depth of less than 0.8m (3ft) the display shows " – – – ".

The O2% mix is diplayed as long as CNS O2% = 0 and no ascent speed is indicated.



DEPTH

NO STOP

DIVE TIME

S L O W

DEPTH

NO STOP

DIVE TIME

DEPTH

DIVE TIME

Current depth

Dive time

O2% mix

WARNING

Nitrogen loading bar

Half time alarm (turn around alarm) ->46 If half of the set maximum dive time has elapsed, an audible signal goes off and flashes for 1 minute.

Set dive time has elapsed ->46 An audible signal goes off and the dive time starts flashing.

English

4 Functions during the dive

III UWATEC Aladin TEC 2G

III

WARNING

4.5 Max depth / Temperature

Max depth is only displayed if it exceeds the current depth by more than 1m (3ft) (maximum indicator function). If max depth is not displayed, Aladin shows the temperature.

Set max depth reached

If the max depth set with SmartTRAK or "set 1" has been reached (default 40m/130ft) and the depth alarm is turned on, the depth display will flash.

Ascend until the depth stops flashing.



CNS O2%

DEPTH

NO STOP

DIVE TIME

DEPTH

NO STOP

DIVE TIME

Max depth

CNS O2%

> Temperature, O2 mix > Temperature , Time , O2 mix > Max depth

4 Functions during the dive

III UWATEC Aladin TEC 2G

4.6 Ascent rate

Optimal ascent rate varies depending on depth between 7 and 20m/min (23

and 67ft/min). It is displayed as a percent of the reference variable ascent rate. If the ascent rate is greater than 100% of the set value, the black arrow "SLOW" appears. If the ascent rate exceeds 140%, the arrow starts flashing.

Aladin provides an audible alarm if the ascent rate is 110% or greater. The

intensity of the alarm increases in direct proportion to the degree that the prescribed ascent rate is exceeded.

The prescribed ascent rate must be observed at all times! Exceeding the prescribed ascent rate can lead to microbubbles in the arterial circulation which can lead to serious injury or death due to decompression sickness.

• In case of an improper ascent Aladin may require a decompression stop even within the no-stop phase because of the danger of microbubble formation.

• The decompression duration necessary for the prevention of microbubbles can increase massively if the ascent rate is exceeded.

• From great depth a slow ascent may cause heightened saturation of tissues and an extension of both decompression duration and total ascent time.

At shallow depth, a slow ascent may shorten the decompression duration.

• Display of the ascent rate has the priority over "CNS O2".

Reduce ascent rate

Excessive ascent rates for longer periods are entered in the logbook.

The following ascent rates correspond to the 100% value in Aladin.

Ascent rate Visual

alarm

Audible alarm

S L O W

S L O

WARNING

S L O

DEPTH

NO STOP

DIVE TIME

Ascent rate

depth (m) <6 <12 <18 <23 <27 <31 <35 <39 <44 <50 >50

speed (m/min) 7 8 9 10 11 13 15 17 18 19 20

depth (ft) <20 <40 <60 <75 <88 <101 <115 <128 <144 <164 >164

speed (ft/min) 23 26 29 33 36 43 49 56 59 62 66

English

4 Functions during the dive

III UWATEC Aladin TEC 2G

III

4.8 Oxygen toxicity (CNS O2%)

Aladin calculates oxygen toxicity based on depth, time and the gas mixture

and displays it in the location of the ascent rate. The toxicity is expressed in 1% increments of a maximum tolerated value (O2 clock).

The symbol "CNS O2" is displayed together with the percentage.

An audible attention signal goes off if oxygen toxicity reaches 75%. The symbol "CNS O2" flashes. Ascend to shallower depth to decrease oxygen loading and consider terminating the dive.

When oxygen toxicity reaches 100%, an audible

alarm goes off every 4 seconds. "CNS O2" and the percentage value flash. Danger of oxygen toxicity!

Start procedure for terminating the dive.

• During an ascent and if the CNS O

% value does not increase anymore (due

to a lower partial pressure of oxygen), the audible warning is suppressed.

• During the ascent, the display of the oxygen toxicity is replaced by the ascent rate. If the ascent is stopped, the display changes back to the indication of the CNS value.

• Aladin will display CNS O2% values exceeding 199% with 199%.

CNS O2%

DEPTH

NO STOP

DIVE TIME



CNS O2%

DEPTH

NO STOP

DIVE TIME



CNS O2%

DEPTH

NO STOP

DIVE TIME

WARNING

Oxygen toxicity

Max Operating Depth MOD

4.7 Partial pressure of oxygen (ppO2 max

) / Maximum Operating Depth (MOD)

The

maximum partial pressure of oxygen

ppO2 max

(default 1.4bar) determines the Maximum Operating Depth (MOD). Diving deeper than the MOD will expose the diver to oxygen partial pressures higher than the set maximum level.

The ppO2 max

and consequently the MOD can be reduced manually (->20, setting the gas mixture, point 5). In addition the maximum allowed ppO2 can be set by means of SmartTRAK or with "set 1" between 1.2 to 1.6bar ->46.

The MOD is a function of ppO2 max

and the mixture used. If during the dive the MOD is reached or exceeded Aladin sends an audible attention message and the MOD is displayed (flashing) in the lower left corner.

Ascend to a depth shallower than the displayed MOD in order to diminish the danger of oxygen poisoning.

The MOD should not be exceeded. Disregarding the warning can lead to oxygen poisoning.

CNS O2%

DEPTH

NO STOP

DIVE TIME

WARNING

4.9 Nitrogen loading bar graph

The nitrogen loading bar gives a graphical representation of how close to decompression you are. As you absorb nitrogen during the dive, more and more segments of the bar will light up. Depending on your depth, the segments can light up more or less rapidly.

** Depending on your profile, the no-stop time may drop below 3 minutes before the upper 5 segments are lit. In this case, only those seg-

ments that are lit will flash.

If you have entered decompression, the 6th segment will turn off as soon as you complete your last decompression obligation to indicate that you are no longer in decompression.

4.10 Decompression information

NO STOP and the no-stop time (minutes) are displayed if no decompression stops are necessary.

• No-stop display "99:" means remaining time of 99 minutes or more.

• No-stop time is influenced by the water temperature.

If no-stop time drops below 3 minutes, an audible

attention signal is activated, the no-stop value and the nitrogen loading bar begin to flash.

If no-stop time is less than 1 minute, the no-stop

display shows the flashing value "0". In order to prevent a decompression dive, ascend slowly until the no-stop time is 5 minutes or more.

Dives that require decompression stops are not recommended.

4 Functions during the dive

III UWATEC Aladin TEC 2G

DEPTH

NO STOP

DIVE TIME

CNS O2%

No-stop time

Nitrogen loading bar

No-stop time less

than 1 minute

WARNING

CNS O2%

DEPTH

NO STOP

DIVE TIME

Decompression values On entering the decompression phase, "NO STOP" disappears, the

STOP

DECO

symbol appears and an attention beep goes off. The nitrogen loading bar stops flashing and the 6th segment lights up (red area). The deepest decompression stage in metres (feet) is displayed and the decompression stop duration of the displayed stage appears in minutes. The display "7: 3m (10ft)" means that a decompression stop of 7 minutes at a depth of 3m (10ft) has to be made.

When a decompression stop has been completed, the next (shallower)

decompression stop is displayed. When all decompression stops have been completed, the

STOP

DECO

symbol extinguishes, "NO STOP" and no-stop time reappear.

Deco stop depths deeper than 27m (90ft) are displayed as " – – : – – ".

CNS O2%

DEPTH

DIVE TIME

STOP

DECO

Decompression depth

Decompression stop duration

Decompression obligation

1-3 segments (green area): you are safely within the no-stop range

4-5 segments (yellow area): you are approaching decompression. When the no-stop time drops below 3 minutes the 5 segments will start flashing.**

6 segments (red area): you now have mandatory decompression obligation(s) which you must observe before reaching the surface.

English

4 Functions during the dive

III UWATEC Aladin TEC 2G

III

The decompression alarm is activated if the

decompression stop is ignored. The arrow

STOP

DECO

the decompression stop duration and decompression stop depth begin to flash and an audible alarm goes off.

Due to the formation of microbubbles, decompression can increase massively

if a decompression stop is ignored. When the surface is reached

during the decompression alarm, the arrow

STOP

DECO

, the decompression

stop

duration and decompression stop depth

continue flashing, in order to point to the risk of a decompression accident. The SOS mode is activated 3 minutes after the dive if corrective action is not taken (->16). If the total (cumulative) duration of the decompression alarm is longer than one minute, it is entered in the logbook.

Descend to the prescribed decompression stop depth immediately!

Total time of ascent

As soon as decompression stops are necessary

Aladin

shows the total time of ascent. This includes the ascent time from the current depth to the surface and all decompression stop obligations.

The total time of ascent is calculated on the basis of the prescribed ascent rate. Total time of ascent can be subject to change if the ascent rate is not ideal (100%). Ascent time greater than 99 minutes is displayed as " – – ".

On all dives with Aladin, make a safety stop for at least three minutes at a depth of 5m (15ft).

STOP

DECO

CNS O2%

DEPTH

DIVE TIME

STOP

DECO

CNS O2%

DEPTH

DIVE TIME

Total ascent time

4.11 Safety stop timer

The safety stop timer displays the time span a diver should spend at the safety stop depth at the end of the dive. The timer is activated by the diver and counts back from 3 minutes (default) to zero. It can be restarted any number of times. The duration of the timer can be set between 1 and 5 minutes.

The safety stop timer can be activated under the following conditions:

depth

<6.5m

(21ft)

, no-stop display 99min, gauge mode is switched off.

Activate the safety stop timer by pressing . The timer begins to count backwards and a bookmark will be created in the dive profile. If you press again, the timer will start again from the full value.

The safety stop timer will switch off automatically if the depth exceeds 6.5m (21ft) or the no-stop phase is shorter than 99 minutes.

Safety stop icons

Remaining time span

STOP

CNS O2%

Minutes

Seconds

DEPTH

DIVE TIM E

Ignored decompression

alarm

Depth less than

0.8m (3ft)

WARNING

5 Functions at the surface

5.1 End of a dive

After reaching the surface (<0.8m/3ft) Aladin remains in dive mode for 5 minutes. The delay allows for surfacing for a short period for orientation. After 5 minutes the dive is closed and it is entered into the logbook. The time of day is then displayed for 3 minutes, after which the computer turns off.

For the calculations of the desaturation and no-fly time it is assumed that the diver breathes air while on the surface.

DEPTH

DIVE TIME

CNS O2%

WARNING

5.3 Desaturation time, No-fly time and No-dive warning

5 minutes after a dive Aladin shows the time of day, the "do not fly time", the no-dive warning (if applicable), the current altitude range and the prohibited altitude range (->29).

No-fly time is the time in hours that should pass before a flight and is displayed and adjusted until the value becomes 0 hours.

Flying while Aladin displays "do not fly" may lead to serious injury or death from decompression sickness.

If the "no-dive" warning is visible during the surface interval, the diver should not undertake another dive.

If Aladin detects a situation of increased risk (due to the potential of microbubble accumulation from previous dives or a CNS

O2 level above 40%), the no-dive symbol will appear on the display. The duration of the no-dive warning is visible in the dive planner menu. Aladin recommends this as minimum surface interval in order to reduce the number of microbubbles and/or to reduce the CNS

O2 level

below 40%.

You should not undertake a dive as long as the no-dive warning message is

displayed on the computer screen. If the warning is prompted by microbubble accumulation (as opposed to CNS O2 over 40%) and you dive anyway, you will have shorter no-stop times or longer decompression times. Moreover, the duration of the no-dive warning at the end of the dive can increase considerably.

5 Functions at the surface

III UWATEC Aladin TEC 2G



S

L O W

Time of day

Residual nitrogen bar Ascent to altitude range 4 prohibited

Surface interval

WARNING

Residual nitrogen bar



S L O W

CNS O2%

DESAT

Do not fly icon

No-fly time

Oxygen toxicity

Desaturation time

No-dive warning

To check the remaining desaturation time and oxygen toxicity press .

To check the elapsed surface

interval press .

Desaturation time is determined either by

oxygen toxicity, nitrogen saturation or the regression of microbubbles, depending on which requires the longer time.

5.2 Residual nitrogen bar graph

The segments in the residual nitrogen bar graph will gradually turn off as Aladin follows the offgassing of

your tissues during your surface interval. There is a 1:1 equivalence in the meaning of the segments between diving and surface. Thus, on a repetitive dive the bar will resume from its status on the surface just prior to the dive. There are two exceptions however:

• the uppermost segment will stay lit until the desaturation time is completely extinguished. This is done

to show that there is desaturation time left and that a dive started at this point will be logged as a repetitive dive. If the remaining desaturation time is very short, this segment could however at first disappear during the dive;

• during the 24 hours of an SOS-lock, all segments will stay on.

English

6 Diving in mountain lakes

III UWATEC Aladin TEC 2G

III

Altitude range 2

Altitude icon

Altitude ranges

6.3 Prohibited altitude

Aladin shows via flashing alti

tude segments while at

the surface to which altitude

the diver may not rise.

The ascent prohibition can also be displayed together with an altitude range:

Example: You are at 1200m (3937ft) (altitude range 1) and you may ascend to range 2 only (2650m / 8694ft). You may not rise to the altitude range 3 or 4.

If an ascent to a prohibited altitude is detected, an audible alarm goes off for 1 minute (patent pending). Descend to a lower altitude.

Ascent to altitude range 3

and 4 prohibited.

Max allowed altitude:

2650m (8694ft).

6.4 Decompression dives in mountain lakes In order to assure optimal decompression even at higher altitudes, the 3m

(10ft) decompression stage is divided into a 4m (13ft) stage and a 2m (7ft) stage in altitude ranges 1, 2 and 3. The prescribed decompression stop depths are, in sequence, 2m / 4m / 6m / 9m… (7ft / 13ft / 20ft / 30ft…).

If atmospheric pressure is below 620mbar (8.99psi) (altitude higher than 4100m / 13450ft above sea level), Aladin switches automatically to gauge mode and no decompression data is calculated and displayed.

In addition, the dive planner is not available anymore.

DEPTH

DIVE TIM E

Dive at altitude range 4:

• no deco data (gauge mode)

WARNING

Max altitude: 850m 1650m 2650m 4000m 2790ft 5413ft 8694ft 13120ft

4000m 13120ft

2000m 6560ft

1000m 3280ft

3000m 9840ft

905mbar

13.12psi

815mbar

11.82psi

725mbar

10.51psi

610mbar

8.85psi

Switching

at approx. No deco data gauge mode

6.1 Altimeter

The altitude adjustment ->45 does not affect altitude ranges nor any calculations.

6.2 Altitude ranges Aladin measures the atmospheric pressure every 60 seconds even while the display is switched off. If the computer detects a sufficient increase in altitude, it switches on automatically and indicates the new altitude range (1-4) and the desaturation time. Desaturation time indicated at this moment refers to adaptation time at this altitude. If the dive starts within this adaptation time, Aladin treats it as a repetitive dive, since the body is offgassing. Altitude is divided into five ranges, which are influenced by barometric pressure. That is why the defined altitude ranges overlap on their fringes. If a mountain lake is reached, the altitude range is indicated at the surface (time of day display), in the logbook and in the dive planner by a stylised mountain and the current altitude range.

Sea level to an altitude of approximately

1000m (3300ft) is not indicated. In the following diagram, you can see the approximate breakdown of the altitude ranges

IV Gauge mode

IV UWATEC Aladin TEC 2G

In gauge mode ALL audible and visual alarms and attention messages are turned off.

In gauge mode Aladin will display depth, dive time and max depth. By pressing you can

scroll

from the max depth to the temperature, to the average depth, to the time of day

and back to the max depth. By pressing you can restart the stopwatch. This generates a bookmark. Gauge mode does not support the calculation of no-stop time or the supervision of decompression. Supervision of ppO2 max and CNS O2% will also be switched off. Aladin will display no information about microbubble development. The settings for the gas mixture, MOD and microbubble level cannot be set and the dive planner cannot be selected.

Switching the gauge mode on and off

Gauge mode can be switched on and off at the surface, when there is no desaturation and no-dive in gauge mode has been made in the last 48 hours.

• Dives in gauge mode are performed at your own risk!

• After diving in gauge mode you must wait for at least 48 hours before using a decompression computer.

After diving in gauge mode, Aladin can not be used as dive computer for 48 hours.

Procedure:

1. From the time of day display push or until the gauge symbol and "on" or "off" are displayed.

(If Aladin shows " – – – " the gauge mode cannot be switched "on" or "off".

Aladin shows " – – – " for 48 hours after a dive in gauge mode and as long as there is remaining desaturation after a dive in computer mode.)

2. Confirm with that you wish to activate or deactivate the gauge mode. The "on" or "off" starts flashing.

3. By pushing

or the gauge mode is switched on or off.

4. Confirm your settings with

Without confirmation the display will disappear after 3 minutes and your entries will not be accepted.

Diving in gauge mode

The following information is displayed in gauge mode:

The average depth is continuously updated and represents the time averaged depth since the beginning of the dive. You can reset the average depth at any time by pushing . This generates also a bookmark.

Dive time

Gauge icon

Max depth / Temperature /

verage depth (AVG)

Current depth

Stopwatch

DEPTH

DIVE TIM E

WARNING

>Temperature >Average depth (AVG) >Temperature , Time >Max depth

English

Stopwatch

In gauge mode, after immersion, Aladin will automatically monitor the dive time and at the same time activate the stopwatch. The stopwatch will run for a maximum of 24 hours.

Resets time and starts stopwatch from zero.

Each start (restart) of the stopwatch creates a bookmark.

After diving in gauge mode

Aladin shows the remaining time span during which it cannot be used in computer mode. Once the waiting period is over, the gauge mode can be switched off manually ->30.

The no-fly time after diving in gauge mode is 48 hours.

Desaturation time will not be displayed.

IV Gauge mode

IV UWATEC Aladin TEC 2G

Hours Minutes Seconds

Stopwatch icon

Timing

DEPTH

DIVE TIM E

Remaining time during which Aladin cannot be used in computer mode

V Diving with microbubble (MB) levels

V UWATEC Aladin TEC 2G

The following chapter deals with the characteristics of diving with microbubble (MB) levels. For general information about displays and features of diving with Aladin see chapter III.

Microbubbles are tiny bubbles that can build up inside a diver's body during any dive and normally dissipate naturally during an ascent and on the surface after a dive. Dives within no-stop time and observance of decompression stops do not prevent the formation of microbubbles in the venous blood circulation. Dangerous microbubbles are those migrating into the arterial circulation. The reasons for the migration from the venous blood circulation to the arterial circulation can be a great many microbubbles collecting in the lungs. UWATEC has equipped

Aladin dive computers with a new technology to protect from microbubbles. The diver chooses – according to his/her needs – an MB level and influences through it the level of protection from microbubbles.

Diving with MB levels requires additional ascent stops (level stops), the ascent is slowed down and the body gets more time to desaturate. This works contrary to the formation of the microbubbles and increases safety

. Aladin features 6 microbubble levels (L0-L5). Level L0 corresponds to UWATEC's well-known decompression model ZH-L8 ADT and does not require level stops due to microbubble formation. Levels L1 to L5 offer additional protection from microbubble formation with level L5 offering the highest protection. Similar to the display of information during decompression dives or dives within no-stop time,

Aladin

displays depth and duration of the first level stop as well as the total time of ascent as soon as the MB no-stop time has run out. As the MB no-stop time is shorter than the ordinary no-stop time a diver will be required to carry out a stop (level stop) sooner than a diver using level L0. If a diver ignores a required level stop, Aladin will cascade to a lower MB level and the dive can not be completed with the initially chosen MB level. E.g. if a diver sets level L4 on Aladin prior to the dive and during the dive ignores the recommended stops Aladin will automatically adjust the setting to level L3 or lower.

1 Comparison of dives with MB level L0 and MB level L5

When two Aladin are used simultaneously, one unit is set for example to MB level L5, the other to L0, the no-stop time will be shortened and level stops will be required before the diver has the obligation of a decompression stop. These additional level stops help dissipate the microbubbles.

NO STOP

3m/10ft

6m/20ft

9m/30ft

12m/40ft

15m/50ft

Depth

Stop depth

MB level

NO STOPNO STOP

STOP

DECO

STOP

DECO

NO ST OP

Microbubble accumulation at the end of dive

Time

Decompression values

Level stop values

Decompression obligation, ->35

English

Lowest level stop depth

Total ascent time (14min)

3min Level stop duration

MB no-stop phase

Time

Depth

Level stop duration

The duration of a level stop at a given level stop depth is displayed.

Level stop depth

The deepest level stop is displayed.

Total ascent time

including level stops

Level stop phase

To complete the dive without cascading to a lower MB level all requested level stops must be observed.

35.7m

9m/30ft

6m/20ft

3m/10ft

STOP

S L O W

CNS O2%

DEPTH

DIVE TIM E

Nitrogen loading bar

relative to LO

->26

V Diving with microbubble (MB) levels

V UWATEC Aladin TEC 2G

2 Terminology

This chapter will exclusively deal with terminology and display features used while diving with MB levels. All other features are described in chapter III (->17).

2.1 Display during MB no-stop phase

(Max depth >) Temperature

> MB level active

> No-stop time relative to L0 > Temperature

and time of day

> (Max depth)…

16min Dive time MB no-stop time

9min

Current depth

Max depth

35.7m

Level stop phase

MB no-stop phase

Dive phase during which surfacing is possible without MB level stop.

Time

Depth

MB level

activated Level L2 is active

Nitrogen loading bar

relative to LO

->26

MB no-stop time

Remaining time at a respective depth allowing ascent without level stop.

CNS O2%

2 x

DEPTH

NO STOP

DIVE TIME

2.2 Display during level stop phase

(Max depth >) Temperature

> MB level active

> No-stop time or deco information relative to L0 > Temperature and time of day > (Max depth)…

Whereas the quantitative information relative to L0 can be seen by pressing the right button, qualitative information is always visible on the display in form of the nitrogen loading bar. In particular, when the L0 no-stop time is less than three minutes, the nitrogen bar will flash ->26. This will help you avoid entering inadvertently into decompression.

3 Preparation for a dive with MB levels

V UWATEC Aladin TEC 2G

3.1 Setting the MB level

To change the MB level Aladin must be in user mode (time of day display).

1. Push or until the symbol for MB levels appears.

Confirm that you wish to change the displayed MB level by

pushing .

3. Change MB level by pushing or .

4. Confirm the selected MB level with .

Without confirmation the display will disappear after 3 minutes and your entries will not be accepted.

Aladin will display the symbol to confirm that an MB level beyond L0

(L1-L5) has been chosen. During the dive the MB level is shown by pressing 2x

. If however a level stop is ignored, the new MB level is shown (->35).

MB levels have an influence on the dive planner.

4 Functions during the dive with MB levels

4.1 Level stop information

MB no-stop time

While diving with MB levels L1 to L5 Aladin will display the MB no-stop time instead of the ordinary no-stop time. Within the MB no-stop time no level stops are required. "NO STOP" and the MB level symbol are visible. The remaining MB no-stop time is shown in minutes.

• Information and alarms for MB no-stop time and ordinary nostop time are the same (->26).

• No-stop time relative to L0 is shown by pressing 3x

(see )

• Regardless of the MB level, we generally recommend to perform a slow ascent during the last few metres / feet.

Level stop

On entering the level stop phase,

"NO STOP"

disappears and the arrow

STOP

appears. The

STOP

arrow flashes for 8 seconds and an audible attention beep goes off. To complete the dive without cascading to a lower MB level, all requested level stops must be observed.

The deepest level stop is displayed in metres (feet). The display "2: 3m "

("2: 10ft") means that a level stop of 2 minutes at a depth of 3 metres (10 feet) has to be observed. Deco information relative to L0 is shown on an alternate display (see ).

When a level stop has been finished, the next higher level stop – if present

– is displayed. When all level stops have been observed, the arrow

STOP

extinguishes and "NO STOP" reappears. The indication of time shows the MB no-stop time again.

DEPTH

NO STOP

DIVE TIME

STOP

CNS O2%

DEPTH

DIVE TIME

MB no-stop time

Deepest level stop depth

Total time of ascent

Level stop duration

Level stop icon

until

Nitrogen loading bar

relative to L0

English

4 Functions during the dive with MB levels

V UWATEC Aladin TEC 2G

The attention message "Level stop ignored" is

activated if the requested level stop is not observed. An attention beep* goes off and the arrow

STOP

the depth and duration of the ignored level stop begin flashing. To complete the dive without being reduced to a lower MB level, you must descend to the prescribed depth immediately!

The warning "MB level reduced" is activated if

the diver ascends more than 1.5m (5ft) above the required level stop. Aladin reduces the MB level, an attention beep* goes off and the new MB level is shown in the lower left corner.

To complete the dive without being further reduced

to an even

lower

MB level the new level stop must

be observed.

* Attention beeps can be suppressed with

set 1" (->47) or via

SmartTRAK.

STOP



CNS O2%

DEPTH

DIVE TIME

STOP



DECO

CNS O2%

DEPTH

4.2

Total time of ascent

Aladin displays the level stop information and the total time of ascent. This

includes the time of ascent as well as all level stops.

The total time of ascent is calculated on the basis of the prescribed ascent rate. Total time of ascent can be subject to change if the ascent rate is not ideal (100%)

4.3 Decompression obligation

Aladin calculates and displays level stops to reduce microbubble formation, but

it also calculates the diver's decompression data.

Avoid decompression dives when diving with MB levels.

How to avoid decompression stops:

• Check ordinary no-stop time by pushing until L0 appears.

• Observe the nitrogen loading bar (it is relative to L0) ->26, ->33

• If the nitrogen loading bar flashes (less than 3 minutes to deco): ascend slowly a few metres/feet.

At the beginning of a decompression phase an

attention beep goes off and the

DECO

symbol

flashes for 8 seconds.

In order to prevent a dive with long decompression stops it is recommended that you ascend a few metres/feet on seeing this message.

If decompression stops become obligatory, the

DECO

symbol will be displayed.

The total ascent time will now also contain a decompression stop.

STOP



DECO

CNS O2%

DEPTH

DIVE TIME

Level stop ignored

STOP



CNS O2%

DEPTH

DIVE TIME

MB level reduced

Total ascent time

Decompression obligation

New MB level

STOP



CNS O

DEPTH

DIVE TIME

WARNING

Level stop information



S L O

4 Functions during the dive with MB levels

V UWATEC Aladin TEC 2G

5 Complete a dive with MB levels

A dive with MB levels is completed the same way as a dive without MB levels

(L0) (->27), save for the following exceptions:

If the MB level has been reduced during the dive, Aladin will display a flashing

MB level symbol and the current MB level for five minutes after reaching the surface. The dive is then completed and Aladin changes to user mode with the MB level switching back to the original MB setting.

Repetitive dives and MB levels: If during a dive a level stop is being ignored and the diver starts another descent shortly afterwards, Aladin might immediately request level stops. To complete the dive with the initially set MB level all level stops must be observed.

4.4 Level stop and deco stop

When the level stop depth equals the depth of the first obligatory decompression stop and if you are within 1.5m /5ft of the stop depth itself, Aladin shows

STOP

DECO

and

STOP

(level stop). The indicated duration

refers to level stop duration.

Since level stops are more restrictive than decompression stops, when all decompression obligations have been observed the display changes from

STOP

DECO

STOP

only.

MB level

3m/10ft

Deco stop duration

Level stop duration

Depth

Time

STOP

DECO

STOP

DECO

STOP

NO STOP

Level stop duration

Decompression stop depth = level stop depth

English

100%

O2 fraction

Range of O2 fraction

21%

VI Diving with two gas mixtures

The following chapter deals with the characteristics of diving with two gases.

Aladin enables you to use two different Nitrox mixtures during the same dive.

Tank 1 contains the bottom mix (gas 1) and tank D contains the deco mix (gas D).

Bottom mix (gas 1)

Switching depth (MOD gas D)

Deco mix (gas D)

Time

Depth

1 D

Diving with 2 gas mixtures

Switching the deco gas option on and off

In order to enable two-gas diving you must turn on the deco gas option in the

SET 1 menu ->46.

Setting the gas mixture and the depth for changing the gas mixture

During dives with two gas mixtures the bottom mix (gas 1) contains the lower

fraction of oxygen. Aladin will only accept settings corresponding with this order.

For gas mixtures having an oxygen percentage of 80% or greater the pp

O2 is fixed at 1.6bar and

cannot be altered in any way.

Procedure:

1. Enter the setting for the fraction of oxygen and the pp

O2 max (MOD) for gas 1

(bottom mix) according to the instructions on page 20 (points 1-6).

Repeat the process in the GAS D

O2 menu to set the oxygen fraction and

O2 max for gas D. Note that in this case the resulting MOD corresponds to the depth at which you plan to switch from gas 1 to gas D during the ascent phase (switch depth).

3. If you set gas D

to "– –

O2%

", Aladin will compute the dive considering gas 1

only.

Aladin will only accept a gas switch depth (MOD gas D) as input where the maximum partial pressure of oxygen (pp

O2 max), as pre-set manually (->20

point 5) or by means of SmartTRAK, is not exceeded.

• During the ascent an audible and visual attention message will indicate that you have reached the depth which requires the change to gas D ->40.

• Without confirmation with the display will disappear after 3 minutes and your entries will not be accepted.

• If the deco gas option is turned on and the oxygen fraction of gas D is set to a value other than "--

O2%

", in surface mode and up to a depth of 0.8m Aladin will display "2G" in the lower right corner of the display instead of a percentage value.

WARNING

Depth for change of

gas mixture, MOD

ppO2 max

VI UWATEC Aladin TEC 2G

Alternate displays during a dive with two gases

All displays time out after 5 seconds and the default display is shown again. (Only exception is the temperature, screen 2 below.)

The default display shows the predictive decompression prognosis, which assumes the diver will

switch to the deco gas at the specified switch depth. In the bottom left corner the temperature is displayed unless the current depth is 1m/3ft shallower than the max depth, in which case the max depth is displayed.

Upon pressing the right button, the temperature and the current O

% are shown in the lower row.

O2% will time out after 5 sec while the temperature remains.

Upon pressing the right button, "GAS 1" or "GAS d" appears in the middle row to indicate the cur

rently active gas and the MOD appears in the bottom left corner. "GAS 1" or "GAS d" will time out after 5 seconds unless the right button is pressed again.

In case that gas 1 is the active gas, pressing the right button one more time shows O

% of gas 1 in the bottom right corner and the decompression information in case the deco gas is not used (decompression information relative to gas 1 only). This is the calculation that Aladin would switch to in case, having reached the switch depth, the diver did not confirm the switch. The decompression information and the O2% blink.

If an MB level greater than L0 is active, pressing the right button one more time shows the predictive

decompression information and in the bottom left corner the currently active MB level.

Pressing the right button again shows the predictive decompression information relative to L0 togeth

er with the L0 symbol at the bottom left.

One more right button push shows the decompression information relative to L0 if only gas 1 is used,

with the decompression information and the O2% of gas 1 blinking.

Upon pressing the right button again, the time of day appears in the middle row.

• The time to reset the

O2% mix to air can be set with SmartTRAK between

1 hour and 48 hours or to "no reset" (default).

After the reset, the oxygen fraction of gas 1 is set to 21% and gas D is set to

"– – O2%" (single gas dive).

Switching between single-gas and two-gas diving

If gas D is not going to be used during the next dive you can either set it to

"– – O

%" (->37, point 2) or you can turn off the deco gas option in SET 1. When you turn off the deco gas option in SET 1, the setting in the GAS D O2 menu remains but Aladin calculates the dive using gas 1 only.

If the deco gas option is turned off, the GAS D O2 menu will display OFF in the

lower left corner (instead of an MOD) and the ppO

setting will not appear.

VI Diving with two gas mixtures

Predictive decompression prognosis

The calculation of decompression data is based on the assumption that the change of gas mixture will be performed at the previously selected switch depth (MOD gas D). If a diver ignores the required change or changes the mixture belatedly, Aladin will readjust the decompression calculation accordingly. In case of an ignored switch the dive computer will then base its calculations on the assumption that the diver will ascend to the surface with gas 1.

WARNING

Functions during a dive with two gas mixtures

Diving with more than one gas mixture represents a much higher risk than diving with a single mixture, and mistakes by the diver may lead to serious injury or death.

During dives with several gas mixtures, always make sure you are breathing from the tank you intended to breath from. Mark all your tanks and regulators, so they can under no circumstances be mixed up! Before every dive and after changing a tank, make sure that each gas mixture is set to the correct value for the corresponding tank.

VI UWATEC Aladin TEC 2G

English

VI Diving with two gas mixtures

CNS O2%

DEPTH

DIVE TIME

STOP

DECO

DEPTH

DIVE TIME

DEPTH

DIVE TIME

O2 mix of the

currently active tank

Max depth Time

STOP

DECO

DEPTH

DIVE TIME

Decompression information assuming that you finish the dive with gas 1

1 3 84

Gas 1 active, MB level L0

Predictive decompression information

CNS O2% O2 mix

gas 1

Gas d active, MB level L1-L5

CNS O2%

DEPTH

DIVE TIME

DECO

STOP

DEPTH

DIVE TIME

MOD gas d

O2 mix of the

currently active

tank

Max depth

DEPTH

DIVE TIME

DECO

STOP

Active MB level

Predictive decompression

information relative to

active MB level

STOP

S L O W

DECO

DEPTH

DIVE TIME

Predictive decompression information

relative to L0

DEPTH

DIVE TIME

Time

CNS O2%

Predictive decompression information relative to active MB level

CNS O2%

DEPTH

DIVE TIME

STOP

DECO

DEPTH

DIVE TIME

DEPTH

DIVE TIME

3 8

Gas d active, MB level L0

MOD gas dMax depth

CNS O2%

Time

Predictive decompression information

Gas 1 active, MB level L1-L5

CNS O2%

DEPTH

DIVE TIME

DECO

STOP

DEPTH

DIVE TIME

DEPTH

DIVE TIME

Max depth

DECO

DEPTH

DIVE TIME

STOP

Decompression information assuming that you finish the dive with gas 1

3 4

DEPTH

DIVE TIME

DECO

STOP

S L O W

DECO

DEPTH

DIVE TIME

STOP

DECO

DEPTH

DIVE TIME

7 8

Predictive decompression information relative to active MB level

CNS O2% MOD gas 1

DEPTH

DIVE TIME

STOP

DECO

Temperature

MOD gas 1

DEPTH

DIVE TIME

STOP

DECO

Temperature

DEPTH

DIVE TIME

DECO

STOP

Temperature

O2 mix gas 1

CNS O2%

DEPTH

DIVE TIME

DECO

STOP

Temperature

3 5 6 82

Time Predictive decompression

information relative to L0

Decompression information relative to L0, assuming that you finish the dive with gas 1

Active MB level

Predictive decompression

information relative to

active MB level

VI UWATEC Aladin TEC 2G

O2 mix of the

currently active tank

O2 mix of the

currently active

tank

Changing the gas mixture

After immersion, Aladin automatically selects gas 1.

When during an ascent the switch depth is

reached (MOD gas D), an audible warning goes off and "GAS d", its MOD and O2% blink for 30 seconds.

Procedure:

1. Switch to the regulator with gas D and start breathing.

2. Confirm the change by pressing

within 30 seconds. "GAS d" and the

oxygen fraction of gas D is displayed for 5 seconds without blinking.

To interrupt the switch process at any point, press

VI Diving with two gas mixtures

Switch depth

WARNING

S L O

DEPTH

DIVE TIM E

Switch to gas D

S L O

DEPTH

DIVE TIM E

Change to gas D confirmed

S L O

DEPTH

DIVE TIM E

Switching process initiated

Failed or interrupted switch

S L O

DEPTH

DIVE TIM E

No change of gas mixture: If a diver fails to confirm the change of gas mixture or interrupts the switching

procedure by pressing , Aladin displays "GAS 1", the MOD and the oxygen fraction for 5 seconds. Aladin continues to calculate with gas 1 only and adapts the decompression calculation accordingly.

If after the decompression calculation has readjusted itself to reflect the failed switch the diver goes again below the switch depth (MOD of gas D), Aladin will revert to the decompression calculation that considers gas D also, since upon ascending again the diver will have a renewed opportunity to perform the switch once the switch depth is reached.

Belated change of gas mixture: A diver can catch up on a required change to gas D until he reaches the sur

face.

1. Initiate the switching process by pressing . Aladin displays "GAS d", MOD and the oxygen fraction of gas D blinking for 30 seconds.

2. Switch to the regulator with the deco gas mixture and start breathing.

3. Confirm the change by pressing

. "GAS d" and the oxygen fraction of the deco gas is displayed for 5 seconds without blinking. The decompression calculation will readjust accordingly. (Press to interrupt the switch process at any time.)

Submerging again after a change to gas D:

If after a change to gas D the Maximum Operating Depth (MOD) of gas D is exceeded, the ppO2 max warning will appear ->25.

Change back to gas 1, which is suited for this depth, or rise to the Maximum

Operating Depth of gas D. Failure to do so can result in oxygen poisoning.

1. Initiate the switching process by pressing . Aladin displays "GAS 1", MOD and the oxygen fraction of gas 1 for 30 seconds.

2. Switch to the regulator with gas 1 and start breathing.

onfirm the change by pressing . "GAS 1" and the oxygen fraction of gas 1 is displayed for 5 seconds without blinking. Afterwards the decompression calculation will readjust accordingly.

MOD gas d

VI UWATEC Aladin TEC 2G

MOD gas 1

MOD gas d

English

VII Dive planner

VII

Aladin

has a dive planner which allows the planning of no-stop dives and decompression dives.

• selected fraction of oxygen and MOD

• selected water type

• selected MB level

• water temperature of the most recent dive

• altitude range (if any)

• status of saturation at the time the dive planner is selected

• assuming a normal workload of the diver and observance of the prescribed

ascent rates

• assumption: the change to gas D is performed at the selected MOD of

gas D.

1 Planning a no-stop dive

To select the dive planner Aladin must be in user mode (time of day display). Push or until the symbol for the dive planner appears. (The dive planner cannot be selected in gauge mode.)

The no-dive warning and its duration are displayed if Aladin

detects an increased risk due to the accumu-

lation of microbubbles.

Enter the dive planner with .

The input window for the time interval is displayed if there was a remaining desaturation (DESAT) before the dive planner has been selected. This surface interval between now and the beginning of the dive can be changed with and in steps of 15 minutes. Aladin displays the CNS O2% value and the altitude section to which you may not rise at the end of the selected surface interval.

If the no-dive warning and its duration has been

displayed, Aladin proposes this time – rounded up to the next 15 minutes – as surface interval. If the proposed interval is shortened, the no-dive warning appears.

Confirm the displayed interval with

(if applicable).

With

and set

the depth for which you want to know the

no-stop

time.

If an MB level has been selected (L1-L5), the MB no-stop time is shown.

Depths deeper than the MOD for the selected gas (O2 mix) are not displayed.

If the deco gas option is turned on, only the depth between the MOD of

gas 1 and the MOD of gas D are displayed.

On page 28 you will find further information and safety considerations

regarding the no-dive warning.

Input of the surface interval by pushing

DEPTH

NO STOP

DEPTH

DIVE TIM E

CNS O2%

Icon for MB level L1-L5

Enter the dive planner

No-stop time or MB no-stop time

Set desired depth ( and )

No-dive warning (Do Not Dive)

Duration of the warning

CNS O2%

Dive planner icon

Basis of the planning:

Select dive planner

until

if rep. dive

CNS O2%

VII UWATEC Aladin TEC 2G

VII Dive planner

2 Planning a decompression dive

1. Activate the dive planner for a no-stop dive ->41.

2. Set the desired depth with and , then switch into decompression planning by pushing . Aladin shows the bottom time (no-stop time + 1 minute) and the appropriate decompression information or level stop data respectively.

"Add" asks that you set the bottom time. This is done with and .

Aladin calculates the decompression information for this set bottom time. If an MB level (L1-5) is selected, Aladin calculates the level stop data.

CNS O

% values higher than 199% will be displayed as 199 %. Ascent time greater than 99 minutes is displayed as " – – " Deco stop depth deeper than 27m (90ft) is displayed as " – – : – – " CNS O2 equal or greater than 75%: CNS O2% symbol starts flashing CNS O2 equal or greater than 100%: CNS O2% symbol and CNS O2% value are flashing. MB level stop deeper than 27m (90ft): MB level will be reduced.

3 Leaving the dive planner

By pushing once or twice you can exit the dive planner. This also occurs after three minutes without operation.

STOP



DECO

CNS O2%

DEPTH

DIVE TIME



CNS O2%

DEPTH

NO STOP

DIVE TIME

Confirm the desired depth with

Set desired bottom time with

and

VII UWATEC Aladin TEC 2G

English

VIII Logbook

VIII UWATEC Aladin TEC 2G

VIII

2 Operation

From the time of day display you can select the logbook with .

If there was a remaining desaturation time (DESAT) before selecting the logbook, the time since the last dive (surface interval) is displayed.

With you enter the logbook. The most recent dive is displayed (dive number 1). There are 3 pages for each dive.

Push to get more information about the dive.

1 Survey

A dive is entered in the logbook if the dive time is longer than 2 minutes. Aladin records the profiles of about 25 hours of diving. This information can be transferred to a PC with the standard infrared interface (IrDA) and the Windows® software SmartTRAK. All dives in the memory can be displayed directly on the dive computer.

until

Surface interval

Dive time

Dive number

Date of the dive

Logbook icon

Repetitive dive number

S L O

DEPTH

DIVE TIM E

b) select other dives. Each time you push or

causes a jump to the next or previous dive.

At the end of the logbook Aladin

displays statistic information ->44.

a) get more information about the

displayed dive by pushing (see below)

From here you can:

CNS O2%

Starting time

CNS value at the end of the dive

Aladin displays further information about the selected dive.

Max depth

Page 1

Page 2

Battery performance

O2 mix

Minimum temperature

Altitude range (if >0)

Further possible information about the dive:

Too fast ascent* (page 1)

Ignored decompression stop* (page 1)

Ignored decompression stop* (page 3)

Diving in SOS mode (gauge mode) (page 3)

Altitude range (page 2)

MB level dive (L1-L5) (page 3)

Ignored MB level stop* (page 1)

DESAT Desaturation was reset before the dive

(in "set 1") (page 1, 2)

Statistic information

From the time of day display you can get the following statistic information

over all dives. Push , and :

VIII Logbook

VIII UWATEC Aladin TEC 2G

Duration of surface interval (only with repetitive dives)

SOS if applicable

S

L O W

STOP

DECO

STOP

If a dive is started within adaptation time (after a

change of altitude), the adaptation time is displayed

instead of the surface interval.



S L O W

DEPTH

DIVE TIME

DESAT Desaturation was reset before the

dive by removing the battery

(page 1, 2)

Battery quality factor has been 3 bars or less during the dive (page 1, 2, 3)

Diving in gauge (page 1, 2, 3)

AVG

Average depth (gauge mode)

(page 3)

No-dive warning after the dive (page 1)

*Alarms during the dive

gets you back to the dive list (first level screen within logbook). From here you can advance to the

next dive of interest and press to retrieve more information about that dive etc.

Page 3

MB level (at the beginning of the dive)

O2 mix deco gas (if a switch

has taken place during the dive)

Deepest dive

Longest dive

Cumulative bottom time

Number of dives

Leaving the logbook

By pushing once or twice you can exit the logbook. The logbook closes automatically after 3 minutes without operation.

English

IX Settings

IX UWATEC Aladin TEC 2G

1 Altitude adjustment

The altitude adjustment does not affect altitude ranges nor any calculations.

Adjust the altitude indication to your current altitude.

1. Starting from the time of day display push or until the mountain symbol and the altitude appear.

2. Confirm that you wish to change the displayed altitude by pushing

The altitude starts to flash.

3. Change the altitude in increments of 10m / 50ft by pushing or .

4. Confirm the selected altitude with

DEPTH

DIVE TIME

Alarm depth

Status

Starting from the time of day display push or until "set 1" appears.

Confirm that you wish to enter into the menu of "set 1" by pushing . Once entered into the menu you can scroll with and through the

menu.

Setting the depth alarm

1. Confirm that you wish to change the depth of the alarm or to switch it on or off by pushing . The depth starts to flash.

2. Change the depth in increments of 1 m/5 ft by pushing or .

3. Confirm the selected depth with . "On" or "Off" starts to flash.

4. "On" indicates "activated", "Off" indicates "deactivated".

switches between "On" and "Off". Confirm the selected status with

Scubapro-uwatec ALADIN TEC2G User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
