SCUBAPRO-UWATEC Aladin Square User Manual

Aladin Square

User manual

ALADIN SQUARE USER MANUAL

SQUARE DIVING COMPUTER - DESIGNED BY DIVING ENGINEERS

Welcome to SCUBAPRO dive computers and thank you for purchasing Square. You are now the owner of an extraordinary partner for your dives. This manual provides you easy access to SCUBAPRO state of the art technology and Square’s key features and functions. Should you wish to know more about SCUBAPRO diving equipment, please visit our website www.scubapro.com.

WARNING

• Square has 120m/394ft operation depth.

• If 120m is exceeded, -- will be shown in the depth  eld and decompression algorithm does not calculate correctly.

• Diving with oxygen partial pressures higher than 1.6 bar (corresponding to a depth of 67m/220ft when breathing compressed air) is extremely dangerous and could lead to serious injury or death.

Aladin Square dive instrument is a personal protective equipment in compliance with the essential safety requirements of the European Union directive 89/686/EEC. RINA SpA,Via Corsica 12, I-16128 Genoa, notified body no. 0474, have certified the conformity with the European Standard EN 13319:2000.

EN13319:2000 Diving accessories - Depth gauges and combined depth and time measuring devices - Functional and safety requirements, test methods. Any information on decompression obligation displayed by equipment covered by this standard is explicitly excluded from its scope.

English

ALADIN SQUARE USER MANUAL

TABLE OF CONTENTS

1. Introduction to Square ......................................................................................... 6

1.0.1 Buttons .................................................................................... 6

1.0.2 Display ..................................................................................... 7

1.0.3 Heart Rate Option .................................................................... 7

1.0.4 Battery ..................................................................................... 7

1.0.5 Square operation ..................................................................... 8

1.0.6 Surface display ........................................................................ 8

1.0.7 Surface interval counter ............................................................ 8

1.0.8 Checking the Altitude ............................................................... 9

1.0.9 Planning a dive ......................................................................... 9

1.0.10 Reading the Logbook ............................................................. 10

1.0.11 SCUBA log’s .......................................................................... 11

1.0.12 Apnea log’s ............................................................................ 12

1.0.13 Gauge log’s ............................................................................ 12

1.0.14 Checking the battery status ................................................... 13

1.0.15 Settings ................................................................................. 13

1.0.16 Settings Lock ......................................................................... 14

1.0.17 Time set menu ....................................................................... 15

1.0.18 Setting the alarm clock ........................................................... 15

1.0.19 Setting the UTC .......................................................................16

1.0.20 Setting the time ...................................................................... 16

1.0.21 Set the AM/PM or 24h mode ................................................. 16

1.0.22 Setting the date ..................................................................... 16

1.0.23 Setting the sound mode (silent modes) .................................. 17

1.0.24 Setting the user preferred units .............................................. 17

1.0.25 Setting the Backlight on duration ........................................... 17

1.0.26 Deactivating the water contacts ............................................. 18

1.0.27 Checking the device ID .......................................................... 18

1.1 Settings at the dive mode ...................................................................... 19

1.2 Gas settings .......................................................................................... 19

1.2.1 Set Gas 1 ............................................................................... 20

1.2.2 Set Gas D .............................................................................. 20

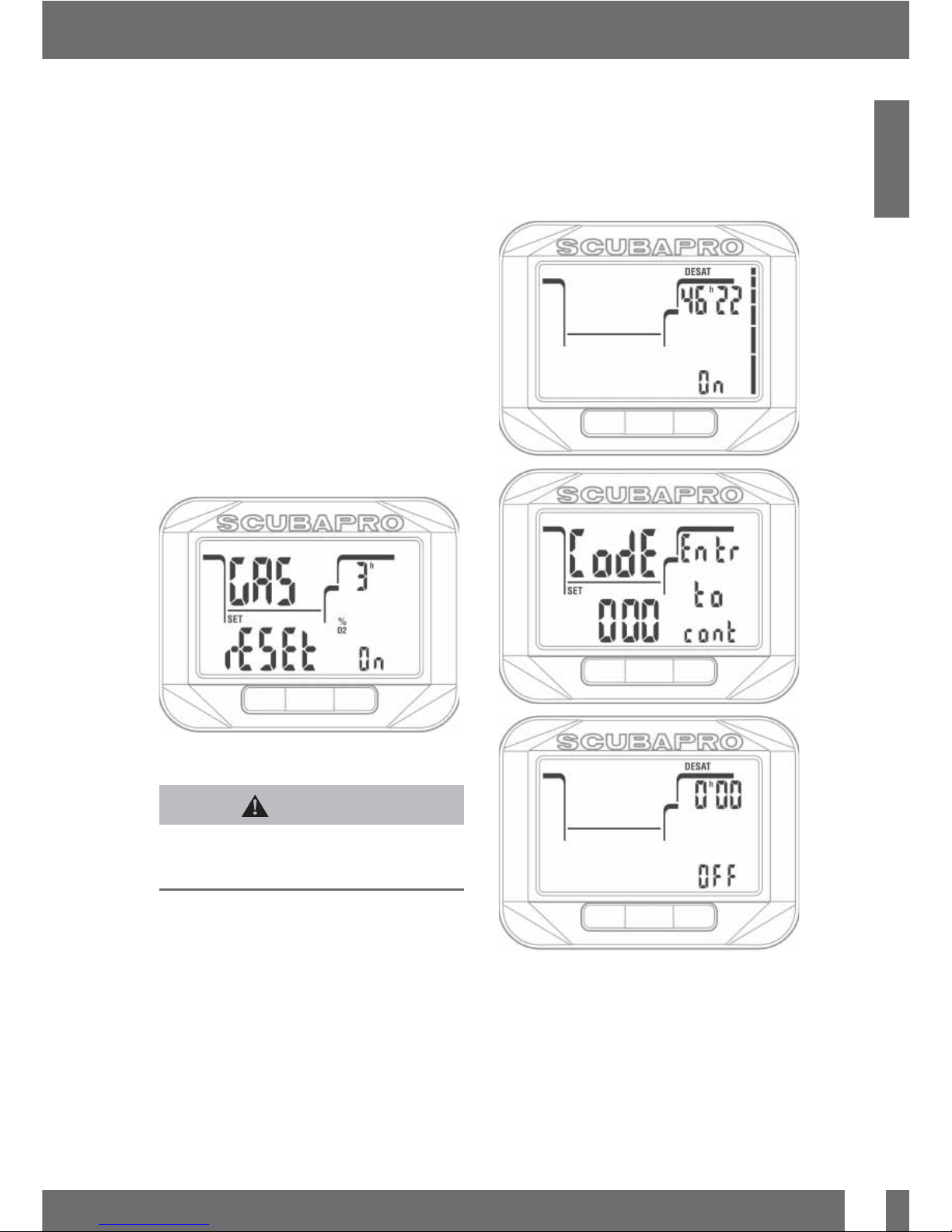

1.2.3 Nitrox reset time ..................................................................... 21

1.2.4 Desaturation reset .................................................................. 21

1.3 SCUBA settings .................................................................................... 22

1.3.1 Maximum dive depth alarm .................................................... 22

1.3.2 Maximum dive time alarm ...................................................... 22

1.3.3 Setting the Micro Bubble level ................................................ 22

1.3.4 Setting the Safety stop timer .................................................. 23

1.3.5 Set HR limits (Workload settings) ............................................ 23

1.3.6 Set the PDI Stop .................................................................... 23

1.3.7 Selecting the salt (ocean) or fresh water ................................. 24

1.4 Apnea Settings ...................................................................................... 25

1.4.1 Setting the dual depth alarm .................................................. 25

1.4.2 Setting the depth incremental alarm ....................................... 25

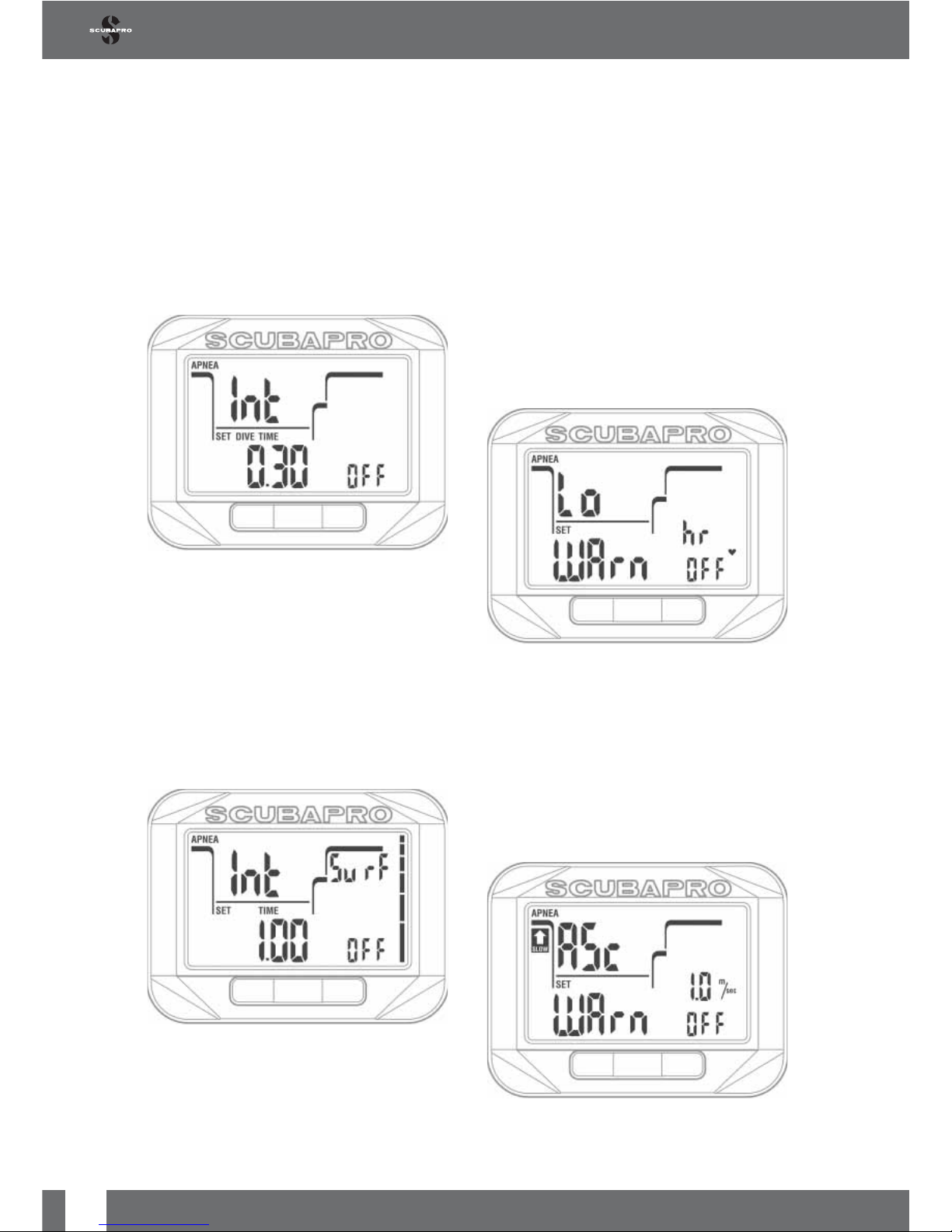

1.4.3 Setting the dive time interval alarm ......................................... 26

1.4.4 Setting the surface interval alarm ............................................ 26

1.4.5 Setting the low Heart Rate limit alarm ..................................... 26

1.4.6 Setting the Ascent speed alarm ............................................. 26

1.4.7 Setting the water density ........................................................ 27

ALADIN SQUARE USER MANUAL

1.5 Set Up/Down Time Counter for the dive ................................................ 27

1.6 Algorithm selection ................................................................................ 27

1.7 HR enable ............................................................................................. 28

2. Square as a dive computer ................................................................................ 28

2.1 Diving with Square ................................................................................. 28

2.2 Altitude diving ........................................................................................ 29

2.2.1 Altitude classes, altitude warning and no-ﬂ y time after a dive. . 29

2.2.2 Altitude and the decompression algorithm .............................. 30

2.2.3 Prohibited altitude .................................................................. 30

2.2.4 Decompression dives in mountain lakes ................................. 31

2.3 No-dive warning after a dive .................................................................. 31

2.4.1 Desaturation reset ................................................................. 31

2.5 Diving with nitrox or with another decompression gas ........................... 32

2.5.1 Diving with more than one gas mix ......................................... 33

2.5.1.1 Switching gas mixture during the dive .........................33

2.5.1.2 Switching back to a gas mixture with lower oxygen

concentration ..............................................................34

2.5.1.3 Gas switch not carried out at the planned depth .........34

2.5.1.4 Delayed gas switch .....................................................34

2.5.1.5 Manual gas switch at a depth deeper than its MOD ....34

2.5.1.6 Submerging below the MOD after a gas switch ...........34

2.6 Warnings and alarms ............................................................................. 34

2.6.1 CNS O

= 75% ....................................................................... 35

2.6.2 No-Stop time = 2 minutes ...................................................... 35

2.6.3 Entering decompression ........................................................ 35

2.6.4 Entering level stops ................................................................ 35

2.6.5 L0 no stop time = 2 minutes when diving an MB level ............ 36

2.6.6 Entering deco when diving an MB level .................................. 36

2.6.7 Ascent rate ............................................................................ 36

2.6.8 MOD/ppO2 ............................................................................. 37

2.6.9 CNS O2 = 100% ..................................................................... 37

2.6.10 Missed decompression stop .................................................. 38

2.6.11 Low battery ............................................................................ 38

2.7 Display information ................................................................................ 38

2.7.1 Display conﬁ guration during the dive ...................................... 39

2.7.2 Setting bookmarks ................................................................. 39

2.7.3 Safety stop timer .................................................................... 40

2.7.4 Activating the backlight .......................................................... 40

2.7.5 Diving with MB levels ............................................................. 40

2.7.6 Display information ................................................................. 40

2.7.7 Display of underlying L0 decompression information .............. 41

2.7.8 Cascading MB levels .............................................................. 41

2.7.9 Level stop ignored/MB level reduced ...................................... 41

2.7.10 PDI Stops .............................................................................. 41

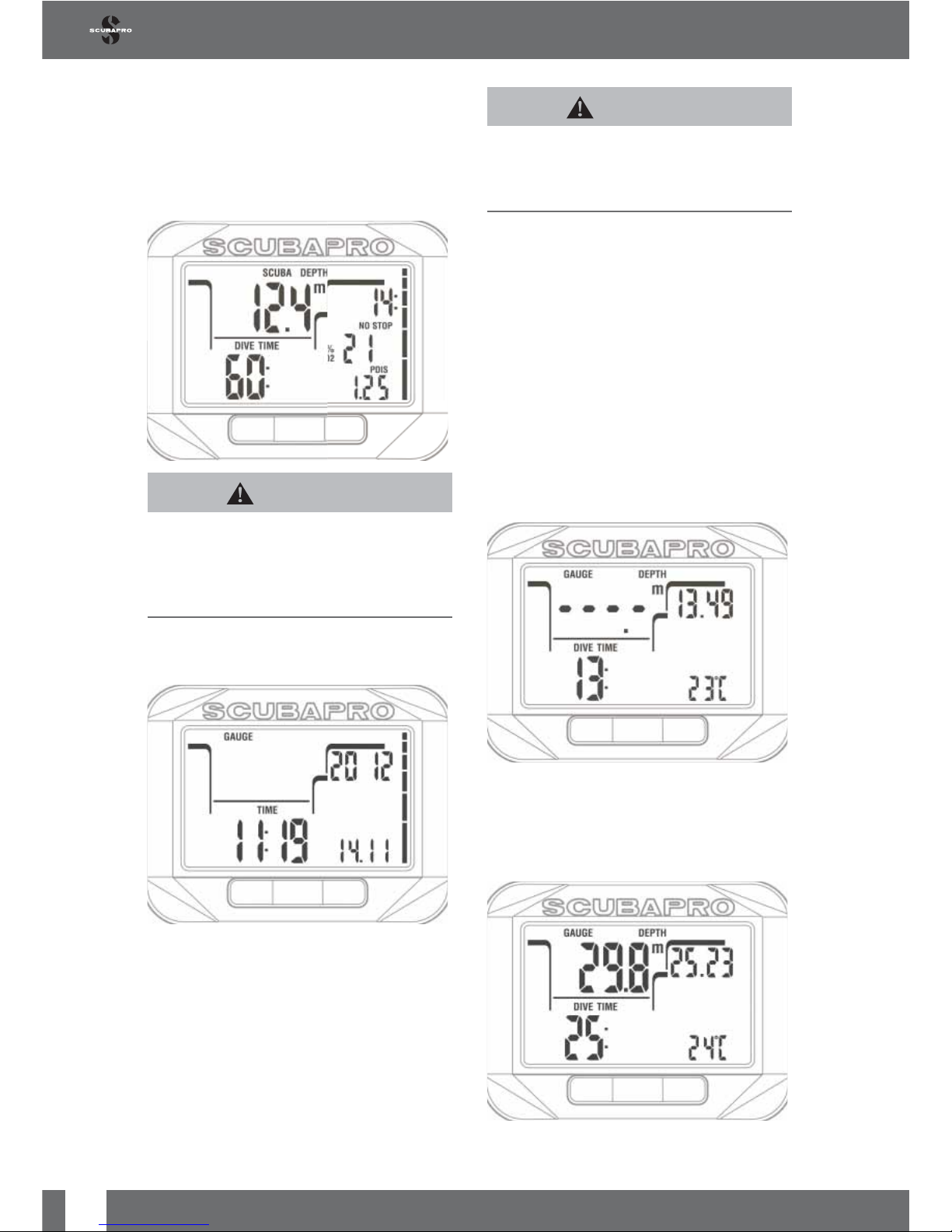

2.8 Gauge mode ......................................................................................... 42

2.9 Apnea mode ......................................................................................... 43

3. Square accessories ............................................................................................ 44

3.1 HR belt .................................................................................................. 44

English

ALADIN SQUARE USER MANUAL

4. Square PC interface ............................................................................................ 45

4.1 Shark .................................................................................................... 45

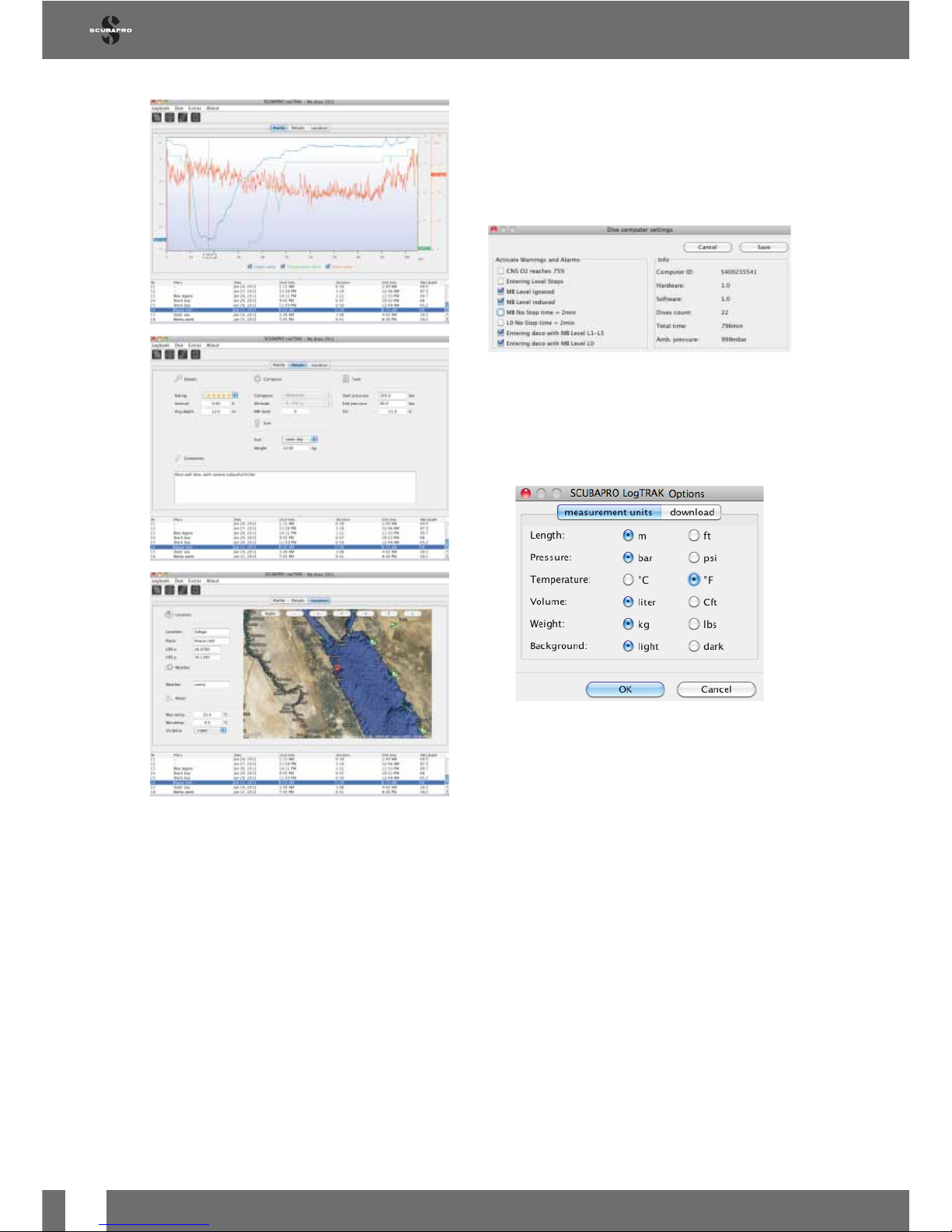

4.2 Introduction to SCUBAPRO LogTRAK ................................................... 45

4.2.1 Download dive proﬁ les ........................................................... 45

4.2.2 Change warnings/settings of the Square and reading computer

info ......................................................................................... 46

5. Taking care of Square ......................................................................................... 47

5.1 Technical information ............................................................................. 47

5.2 Maintenance ......................................................................................... 47

5.3 Replacing the battery in Square ............................................................. 48

5.4 Warranty ................................................................................................ 48

6. Glossary ............................................................................................................... 49

7. Index ..................................................................................................................... 51

ALADIN SQUARE USER MANUAL

1. INTRODUCTION TO SQUARE

Your Square User Manual is divided into ﬁ ve main chapters.

1 Introduction to Square. This chapter provides an overview of the Square computer and describes its operating modes and functions when on the surface.

2 Square as a dive computer. This chapter describes all settings and functions of Square as a dive computer and takes you underwater with Square. It’s about everything Square can and will do to enhance your safety and fun underwater.

3 Square accessories. This chapter describes brieﬂ y the Square extras that you can purchase to get maximum out of your dive computer in all conditions.

4 Square PC interface. This chapter is about personalization and customization. It describes how to change settings, to download and manage your logbook.

Square is a technologically-advanced instrument that can accompany you during your underwater adventures while providing you with accurate depth, time and decompression information.

The buttons allow operating functions, access menus and changing settings while on the surface. During the dive they set bookmarks; show further information on the computer screen, change the gas and activate the backlight.

Square has been designed for easy use from the ﬁ rst day on for the beginner with standard factory settings but the selections and features allow the advanced user to customize according to their speciﬁ c needs. So, it is recommended to study and understand this manual before diving with your Square.

It is time to dive into the details now. We hope you will enjoy getting to know your new computer and we wish you many happy dives with Square.

1.0.1 Buttons

Square has one navigation button. It can be pressed from left or right side. The shape has been selected so that even with thick neoprene gloves you can follow the button from left to right with your ﬁ nger without loosing the touch of the button. Both left and right ends of the navigation button have different functions when pressed short or pressed and hold (long press). Generally the buttons operate as follows: Left short = scroll left at the menu “left”, “L” Left long = escape “ESC” Right short = scroll right at the menu “right”, “R” Right long = select or conﬁ rm the setting “SEL”

English

ALADIN SQUARE USER MANUAL

1.0.2 Display

The display information has been divided in a pattern of a dive proﬁ le.

Various situations like ascent, descent, stops can be easily located from the proﬁ le.

1.0.3 Heart Rate Option

Square ﬁ rmware may be delivered without the heart rate option. In this case please ignore the user manual descriptions referring to heart rate functions.

1.0.4 Battery

Square uses a battery of the type CR2450 which is available from your SCUBAPRO dealer. Square will shortly test the battery status after each activation (switch on) and indicate only the state if the battery is too low. In addition, you can verify the status of the battery by providing the check at the main menu: Checking the battery status.



NOTE: A battery level indication

LO means that battery has some reserve left but battery change is recommended before a dive. Also, with LO level battery the backlight and alarm tones are not activated.

WARNING

Starting a dive when the battery LO is indicated can cause the computer to fail during the dive! Replace the battery before any diving activity if the battery LO appears. When the ‘do not dive symbol’ appears with the text change battery Square can not be used for diving before a fresh battery is replaced.

Please refer to chapter Checking the battery status for details how to check

your Square battery status.

WARNING

Replacing the battery requires opening the electronic compartment of Square. You must take extreme care when performing the battery change operation in order to ensure the water tightness of the dive computer. Failing to do so will cause the dive computer to  ood during your next dive and permanently ruin it. Damage to Square due to an improper battery replacement is not covered by warranty. We strongly recommend having the battery change operation be carried out by your SCUBAPRO appointed dealer.

See chapter Replacing the battery in Square for information on how to replace

the battery.

ALADIN SQUARE USER MANUAL

By simply pressing buttons right or left from the time of day display you can scroll through the various menus in SQUARE. The chart above shows the sequence of the menus. Note that when you ﬁ rst reach a menu, you are “outside” of it. You must press SEL to enter the actual menu.



NOTE: When Square has wet contacts

activated and they detect moisture in between, the Square goes automatic to Surface display.

1.0.6 Surface display

When you have not been diving with your Square for a while (no desaturation left) the surface mode may appear as shown below, indicating settings like the operation mode (scuba, gauge, apnea), water type, heart rate, MB level and gas mix:

After a dive the display may appear as shown below, indicating maximum allowed elevation where diver may ascent, desaturation time and no repetitive dive symbol (too short interval):

1.0.7 Surface interval counter

After a dive you can check your surface interval by pressing SEL at the surface display. The text Int and a time appears to the display. The surface interval counter counts until desaturation is complete, after that this display cannot be selected.

1.0.5 Square operation

The diagram below shows the main menu logic in a chart form. The diving functions are described detailed at chapter Square as a dive computer.

TIME & DATE + no dive / ﬂ y

symbols (during

desaturation)

Press SEL will

switch

Square off

DESAT

(until

complete)

Surface

Interval

DIVE SET summary

LOG

Logbook

pages

Planner

Check battery

Altitude

meter

Set

Set dive

number

Set time

lock

Dive

settings

Clock

settings

ESC

ESC ESC

SEL

SEL SEL

RRRRRRR

LLLLLLL

LLLL

Planner

pages

The reference point for any description of Square is the main time of day display. This is the display that appears after waking the Square up from sleep mode by pressing the right button and in which the current time and date are shown.

English

ALADIN SQUARE USER MANUAL

1.0.8 Checking the Altitude

At the altitude menu the current altitude is calculated from the barometric pressure and shown at the bottom row left. The current altitude class is shown at middle row right and this is used as ambient pressure for diving algorithm calculations. At the bottom row right the current temperature is shown.



NOTE: barometric pressure is a variable

changing with weather and atmospheric pressure at that elevation. Dive algorithm uses Altitude Classes which are directly derived from the barometric pressure. Altitude is counted from the current barometric pressure and it is therefore a relative value.

The altitude can be adjusted when current elevation is known by pressing the SEL. The altitude value will start blinking. By pressing right or left the value can be adjusted in 10m/50feet steps. By pressing SEL you can conﬁ rm the altitude value. Adjusting the altitude elevation has no effect on altitude class. More about diving in altitudes is explained in chapter Altitude diving.



NOTE: Different combinations m&˚C,

Ft&˚C, m&˚F or Ft&˚F can be selected from the dive mode menu: Units.

1.0.9 Planning a dive

Planner

Surface

Interval

Depth/

time

ESC

SEL

You can plan your next dive based on your body’s nitrogen saturation. The planner is also using following information:

1. Selected oxygen concentration and active tanks

2. Selected water type

3. Selected MB level

4. Water temperature of the most recent dive

5. Altitude range

6. Status of tissue saturation at the time the planner is started

7. A normal workload of the diver and observance of the prescribed ascent rates.

By pressing SEL at the planner menu you will get into the planner directly or to the surface interval setting (repetitive dive).



NOTE: When Square is in Gauge or

Apnea modes the Planner is disabled and Planner OFF is shown in this menu.

ALADIN SQUARE USER MANUAL

In case you have done a dive and you plan to make another dive during the desaturation phase, you must start a plan by giving the time you would still stay at the surface. By pressing the right or left you can step the time in 15 minutes steps. In case Square is displaying the no-dive warning, the duration of the warning itself is displayed as recommended surface interval for planning purposes (rounded up to the nearest ﬁ fteen-minute increment).

When surface interval is given or if you have no remaining desaturation left, the planner depth value starts blinking. By pressing right or left you can set the depth in 3m/10feet steps. The no decompression dive time is shown for that depth at the top row right.

Minimum depth for planning is 9m/30feet. The planner allows only depths according to maximum ppO

given to the GAS1. If GAS1 MOD is shallower than 9m/30feet, planning is not allowed and information LO ppO2 is shown.

The gas oxygen content and maximum ppO

settings are given at the dive mode

menu: SET GAS.

WARNING

If you have set ppO2max to OFF, the planner will allow depths up to maximum of 120m/394ft. Air/nitrox dives with high ppO2 are extremely dangerous and can lead to death. Be aware that exposures to high ppO

will lead CNS clock value to

exceed maximum recommended 100%.



NOTE: The dive planner considers all

programmed gas mixtures to be used at the planned dive when computing nostop times or decompression schedules.

By pressing SEL for planned depth the dive time appears at bottom row. Start point (minimum now) is the no decompression time. By pressing right or left you may change the time in 1 minute steps. When no decompression time is exceeded the planner gives the deepest decompression depth and time on top of the black DECO STOP symbol. MB level stops (if selected) are shown at the same place just with symbol STOP. Total Ascent Time (TAT) is shown at the middle right. Total Ascend Time (TAT) is shown at the middle right. If the plan reaches CNS clock limit of 75% the symbols CNS O2% starts blinking and replaces the TAT value at middle right.

By pressing SEL or ESC the planner will exit and you will get to the main menu.

1.0.10 Reading the Logbook

History

Dive

Log

Dive 1 Dive 2

Dive 1

In time

Dive 1

Out time

Dive n

ESC

SEL

LLLL

English

ALADIN SQUARE USER MANUAL

You can check the main information about your dives from the logbook by pressing SEL at the log menu. The ﬁ rst page shown is the dive history.

The computer with display shown above has logged the deepest dive of 30.8 meters and longest dive time of 35 minutes. In total 8 hours of diving and 6 dives has been done with this Square. History cannot be erased. By pressing right or left you can scroll the dives in the memory.

1.0.11 SCUBA log’s

In SCUBA mode there is a main page showing depth, dive time, log number, Gas 1 content, temperature and possibly symbols like no repetition dive.

By pressing SEL you will select the dive and get to the sub display which shows in SCUBA mode the dive start time and date.

By pressing right you will get to next sub display that shows surfacing time and average depth.

By pressing right you will get to next sub display that shows heart rate data:

ALADIN SQUARE USER MANUAL

1.0.12 Apnea log’s

In Apnea mode the main page shows max dive session depth, total dive session time, log number, amount of dives at the session and max dive time at the session:

By pressing SEL you will select the dive and get to the sub display which shows in Apnea mode the dive start time and date:

By pressing right you will get to next sub display that shows surfacing time, maximum ascent rate of the session and the deepest water temperature:

By pressing right you will get to next sub display that shows the water density and lowest heart rate of the session:

1.0.13 Gauge log’s

In Gauge mode the main page shows depth, dive time, log number and temperature:

By pressing SEL you will select the dive and get to the sub display which shows in Gauge mode the dive start time and date.

English

ALADIN SQUARE USER MANUAL

By pressing right you will get to next sub display that shows surfacing time and average depth:

1.0.14 Checking the battery status

The battery status menu shows how much energy is left in the CR2450 battery. A fresh battery shows high.

Square is periodically measuring the battery status and you can manually trigger a measurement by pressing SEL in battery status menu.

The intelligent battery algorithm will limit some functions towards the end of the lifetime. See the table below for the status and functions.

Indicator in

battery status

display

Battery status Function

limitations

High Fresh battery none

Medium Battery ok for

diving

none

Low Weak battery,

change to fresh

Acoustic alarms

and Backlight not operating,

diving not

recommended



NOTE: The battery capacity and voltage

at the end of the lifetime may vary between battery manufacturers. Generally operation at low temperatures decreases the battery capacity. Therefore, when the battery indicator drops to Low, change the battery to a fresh one before next dive.

1.0.15 Settings

By pressing SEL at the Set menu (and if settings lock is deactivated) you come to time set selection.

If the setting lock is activated Square will request the lock pin number before the settings can be edited.

ALADIN SQUARE USER MANUAL

1.0.16 Settings Lock

Square is delivered with factory settings for easy start on normal air diving. As a default the setting lock is deactivated. If you wish to lock the settings for example to prevent the value changes for rental use then the lock can be activated at settings main menu by selecting Code on and giving a personal 3 digit pin number. By pressing left after selecting the set menu the code off is shown. By pressing SEL the state on or off starts blinking and you may change this by pressing right or left.

By pressing SEL you will conﬁ rm the setting. If you enabled the code the next page will appear blinking the ﬁ rst digit. By pressing right or left you may select any number between 0 and 9. By pressing SEL the ﬁ rst digit is set and next digit starts blinking. After the 3rd digit is conﬁ rmed by pressing the SEL the code will be set.



NOTE: At battery change the lock pin

number will be reset and lock will be deactivated.

English

ALADIN SQUARE USER MANUAL

Set

Lock code

Set dive

ESC

SEL

Set time

Clock

settings

Dive settings

ESCESC

SELSEL

number

All segments

SEL

lock

Lock pin

number

SEL

if enabled

Settings are divided into two main categories namely clock settings and dive settings.

1.0.17 Time set menu

By pressing SEL at the set time menu the following selections can be scrolled by pressing right or left button.

Alarm

clock

Set

Time

UTC

Set

Clock

Set

12/24h

mode

Set Date

Set

Sound

Units

Light on duration

Wet

contacts

ESC/L

SEL

RRRRRR R R

LLLLLLLL

1.0.18 Setting the alarm clock

By pressing the SEL at alarm menu the hours of the alarm will start blinking. You can scroll the hours setting by pressing right or left.

By pressing SEL the minutes will start blinking and by pressing right or left you can scroll them. By pressing SEL the state of alarm will start blinking and can be selected either on or off by pressing right or left. Pressing SEL button will conﬁ rm the settings.



NOTE: Sound off setting does not affect

the alarm clock. However, intelligent battery stretching algorithm disables all warning tones when the battery indication is showing “LO”.

ALADIN SQUARE USER MANUAL

1.0.19 Setting the UTC

UTC setting will change the shown time compared to Greenwich 0-Meridian. This feature is practical when traveling through different time zones. By pressing SEL at UTC menu, the hours will start blinking. You may edit them in range of -13..+14 hours by pressing right or left. By pressing SEL the minutes will start blinking and you may edit them in 15 minutes steps by pressing right or left. By pressing SEL will save the UTC setting.

1.0.20 Setting the time

In set time menu the current time is shown on the menu. By pressing SEL the time setting will be activated and hours start blinking. You may change the hours by pressing right or left. By pressing the SEL the minutes start blinking and you may now edit them by pressing right or left. By pressing SEL the new time will be set.



NOTE: seconds cannot be edited;

they always start counting from 0 when minutes are con rmed by pressing SEL.

1.0.21 Set the AM/PM or 24h mode

By pressing SEL at the time mode menu the numbers 24h or alternatively AM/ PM start blinking. By pressing right or left you may change between the modes. By pressing SEL the mode will conﬁ rmed.



NOTE: the AM/PM selection will

change the day format to following: Month.Date.Year. This change takes place in main time & date display and in dive computer log book.

1.0.22 Setting the date

By pressing SEL at the date menu the ﬁ rst two digits of the day/month ﬁ eld start blinking and they can be changed by pressing right or left (in 24h mode the ﬁ rst digit is days, in 12h mode the month is ﬁ rst). Pressing SEL will conﬁ rm the setting and next two digits start blinking. Again, by pressing SEL these are conﬁ rmed and the year will start blinking. By pressing right or left the year can be edited. By pressing SEL the year will be conﬁ rmed.

+ 36 hidden pages

SCUBAPRO-UWATEC Aladin Square User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
