Page 1
Instruction Manual

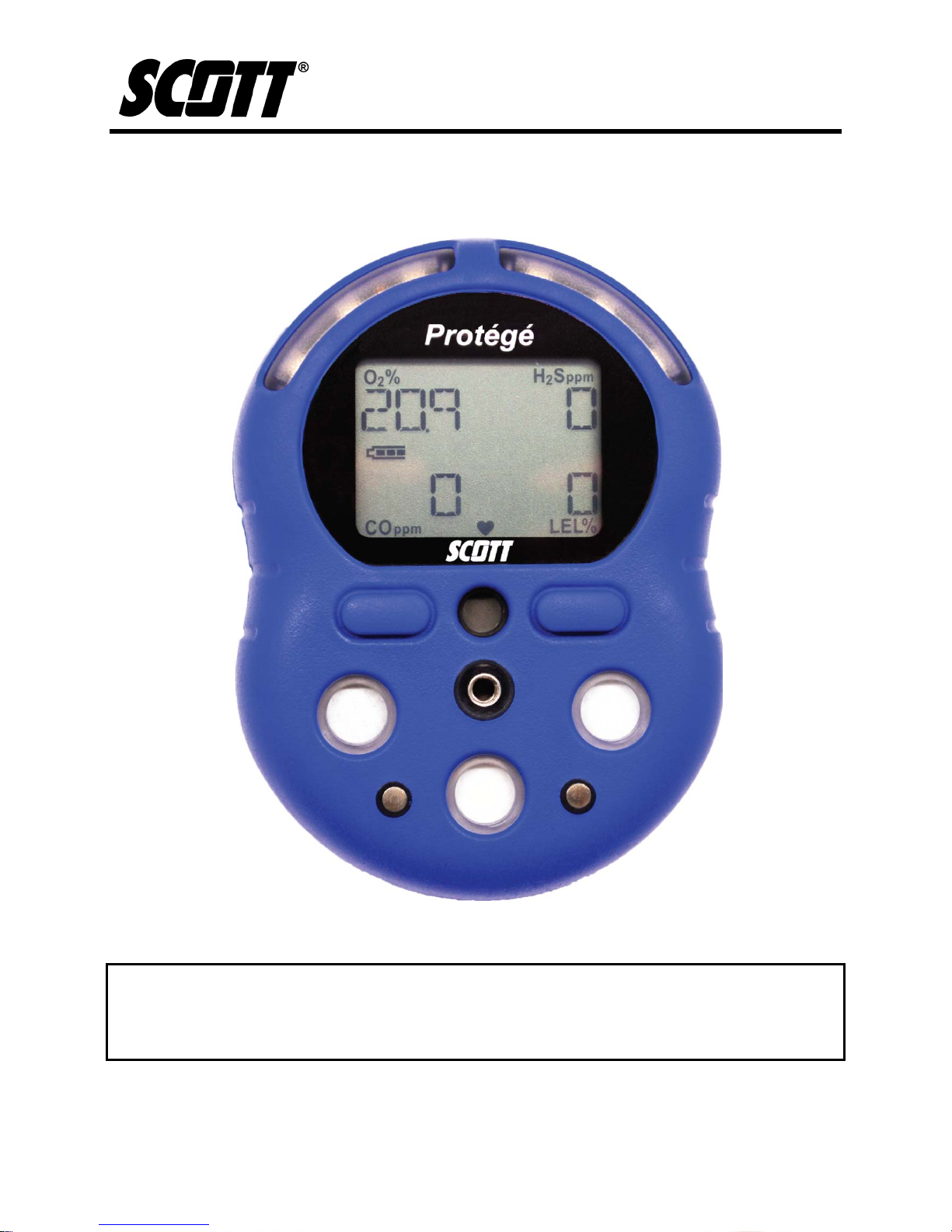

Protégé™
Portable Gas Monitor
READ AND FOLLOW THE ENTIRE CONTENT OF THIS MANUAL PRIOR TO
USE. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.
COPYRIGHT © 2010, SCOTT, ALL RIGHTS RESERVED
WARNING
P/N 087-0038 Rev. J 02/10
Page 2
Protégé Portable Gas Monitor
Instruction Manual
This Page Left Intentionally Blank
P/N 087-0038 Rev. J 02/10
ii
Page 3
Protégé Portable Gas Monitor
Instruction Manual
Table of Contents
1. Safety and General Information .................................................................... 1
1.1. Important Notices ................................................................................. 1
1.2. Certifications and Approvals ................................................................. 2
1.3. Warnings, Cautions, and Notes ............................................................ 3
1.3.1. General Warnings and Cautions .......................................................... 4
1.3.2. Combustible Sensor Warnings and Cautions ....................................... 5
1.3.3. Battery Warnings and Cautions ............................................................ 6
1.4. General Rules for Use of the Protégé .................................................. 7
1.5. Warranty Statement ............................................................................. 8
1.5.1. Contacting Scott Health & Safety ......................................................... 8
1.6. Acronyms Quick Reference .................................................................. 9
2. Introduction ................................................................................................. 11
2.1. Sensor Specifications ......................................................................... 14
2.2. LCD Display ....................................................................................... 15
3. Setup ........................................................................................................... 17
3.1. Battery ................................................................................................ 17
3.1.1. Charging the Battery .......................................................................... 17
3.1.1.1. Charging the Battery with the Multi-Charger (Optional) ...................... 18
3.1.2. Replacing the Battery ......................................................................... 18
3.2. Protégé Software ............................................................................... 19
3.2.1. Gas Monitor Software Installation ...................................................... 19
3.2.2. JAVA Software Installation ................................................................. 24
4. Operation .................................................................................................... 27
4.1. Powering Protégé On and Off ............................................................ 27
4.1.1. Powering On ...................................................................................... 27
4.1.2. Powering Off ...................................................................................... 28
4.2. LCD Alerts and Displays .................................................................... 30
4.2.1. Gas Warning and Alarm Alerts ........................................................... 30
4.2.2. Low Battery ........................................................................................ 30
4.2.3. Over-Range Conditions ...................................................................... 30
4.2.4. Low Flow Pump Warning ................................................................... 30
4.2.5. Sensor Failures .................................................................................. 30
4.3. Protégé Calibration and Bump Test ................................................... 31
4.3.1. Zero Calibration .................................................................................. 32
4.3.2. Span Calibration ................................................................................. 33
4.3.3. Bump Testing ..................................................................................... 35
P/N 087-0038 Rev. J 02/10
iii
Page 4
Protégé Portable Gas Monitor
Instruction Manual
4.4. Optional Pump Operation ................................................................... 37
4.4.1. Installing Optional Pump with Protégé Powered Off ........................... 37
4.4.2. Installing Optional Pump with Protégé Powered On ........................... 39
4.4.3. Disconnecting Optional Pump ............................................................ 39
4.5. Gas Interferences ............................................................................... 40
4.6. Gas Monitor Software Usage ............................................................. 41
4.6.1. Connecting Protégé to a PC ............................................................... 41
4.6.2. Software Description .......................................................................... 43
4.6.3. Changing Alarm Settings.................................................................... 44
4.6.4. Setting Date and Time ....................................................................... 46
4.6.5. View Data Log .................................................................................... 47
4.6.6. Software Settings ............................................................................... 48
5. Maintenance ............................................................................................... 51
5.1. Battery ................................................................................................ 51
5.2. Sensor Replacement .......................................................................... 51
5.3. Pump Troubleshooting ....................................................................... 54
5.4. Pump Cleaning Procedure ................................................................. 55
5.5. Parts and Accessories List ................................................................. 60
5.6. Scott Repairs ...................................................................................... 60
Appendix ............................................................................................................ 61
P/N 087-0038 Rev. J 02/10
iv
Page 5
Protégé Portable Gas Monitor
Instruction Manual
List of Figures

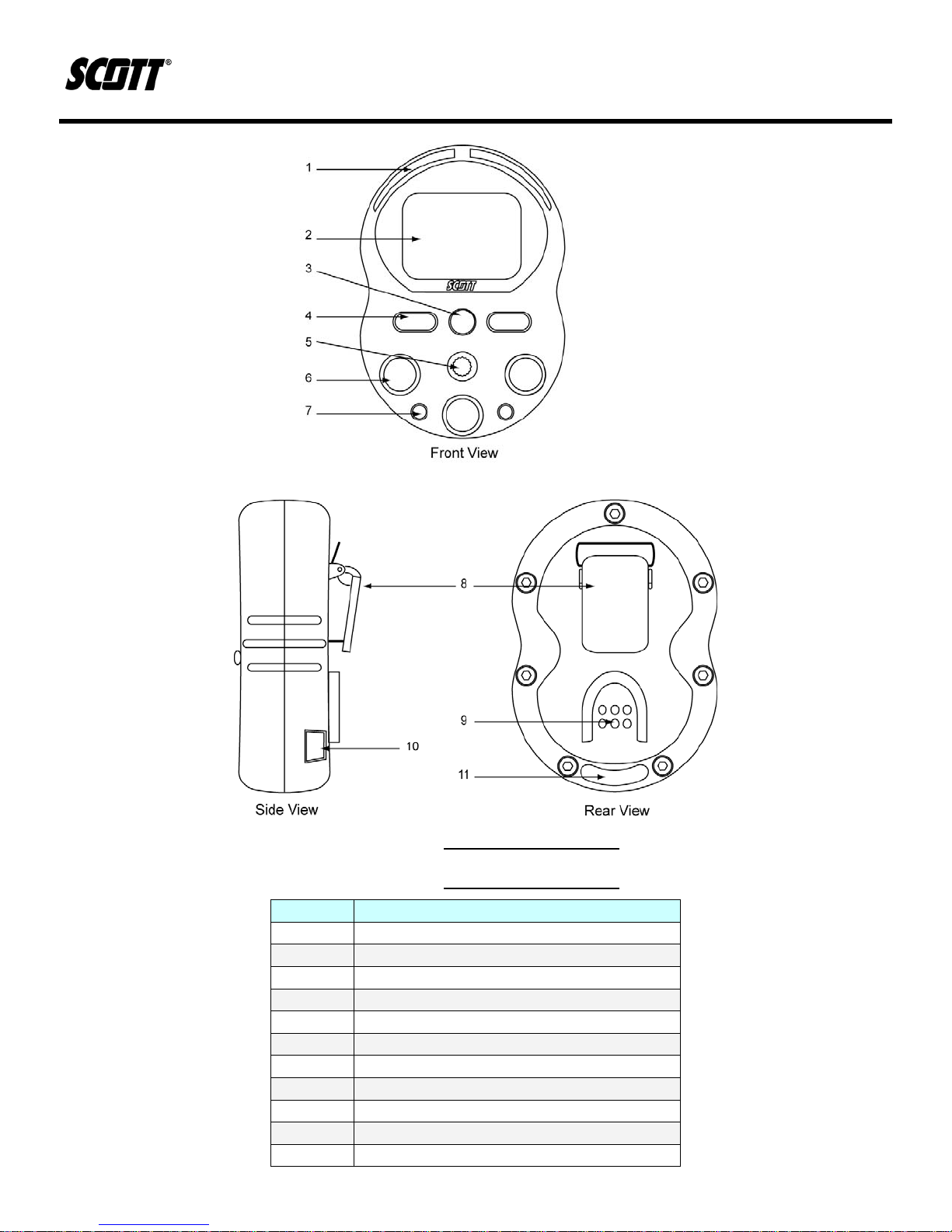

Figure 2-1. Protégé Components 12

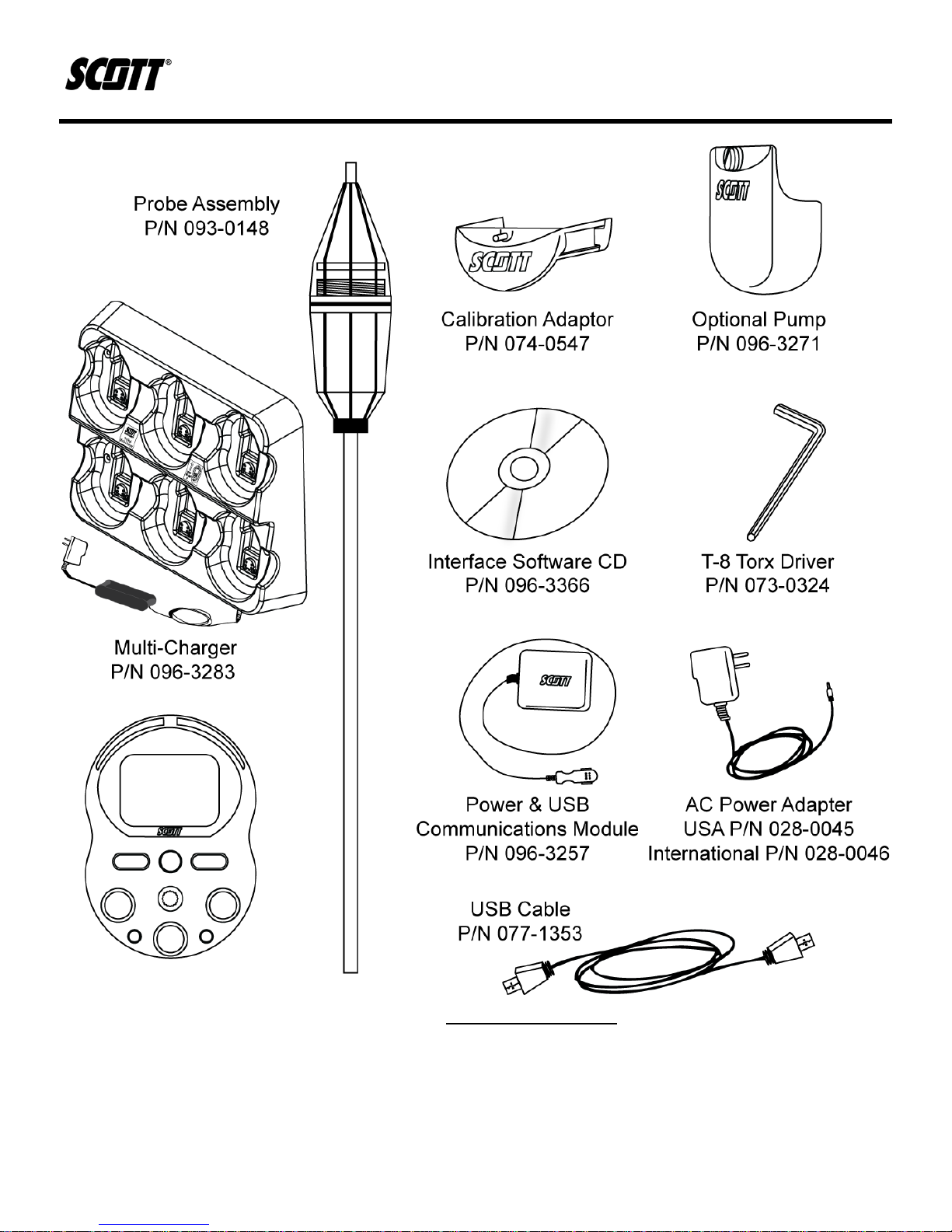

Figure 2-2. Protégé Accessories 13

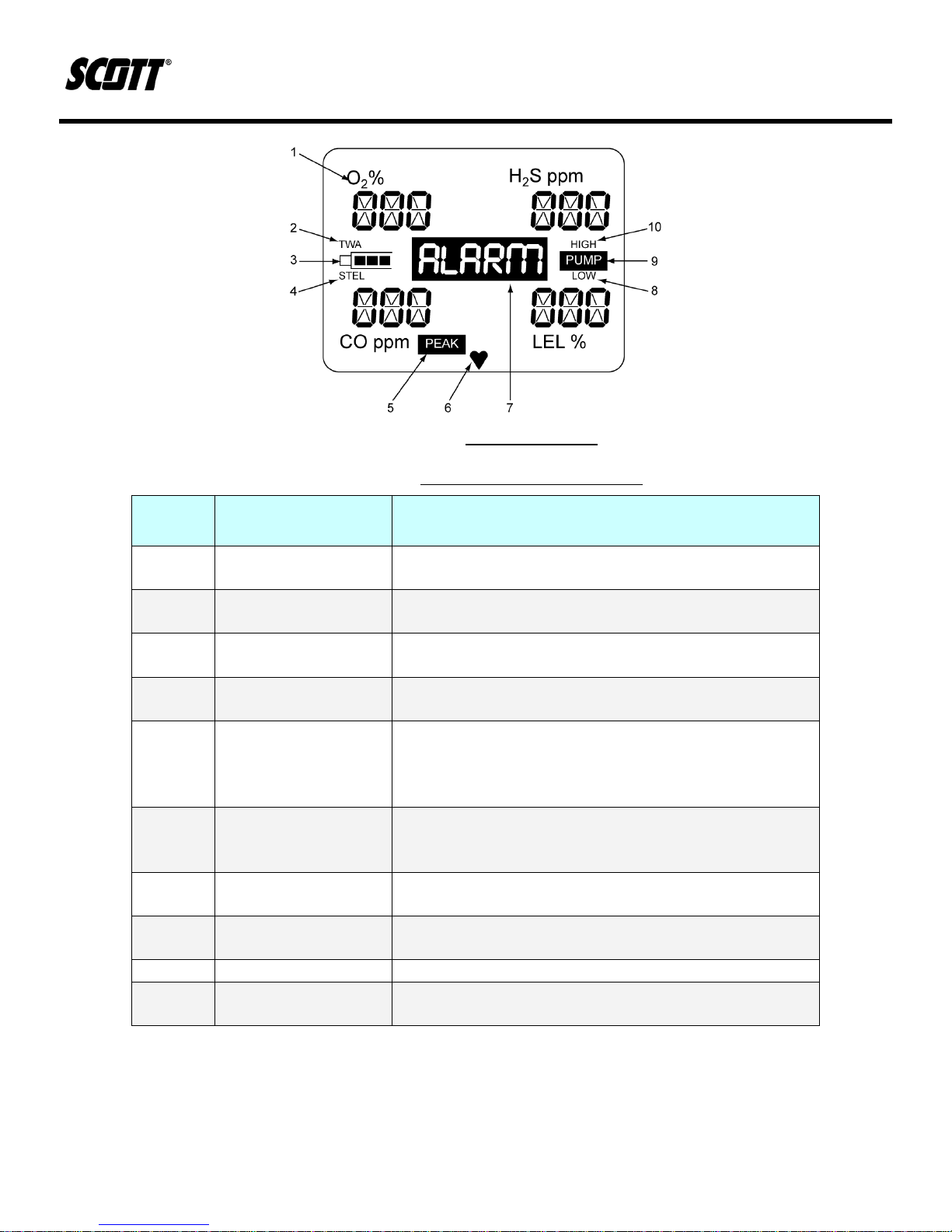

Figure 2-3. LCD Indications 16

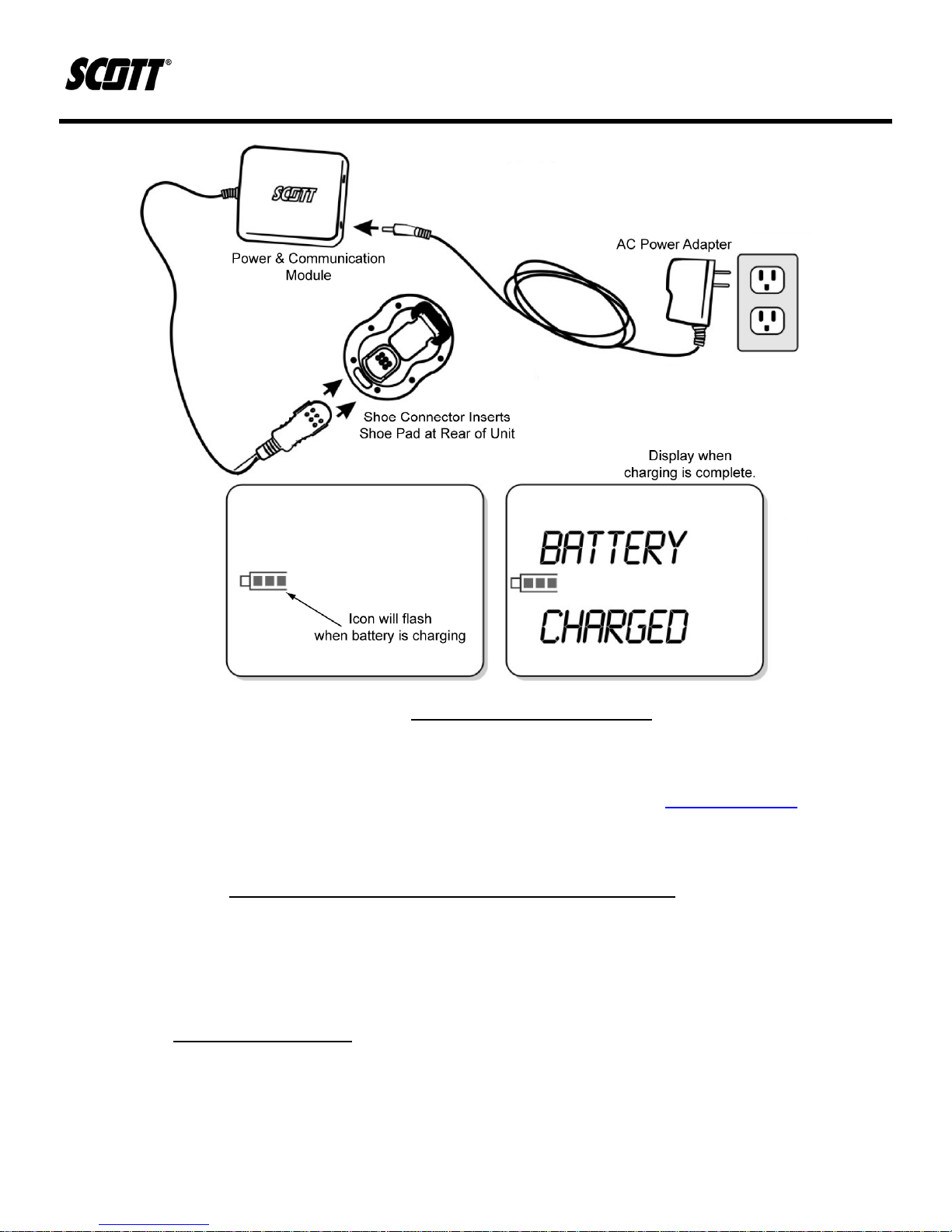

Figure 3-1. Charging the Protégé Battery 18

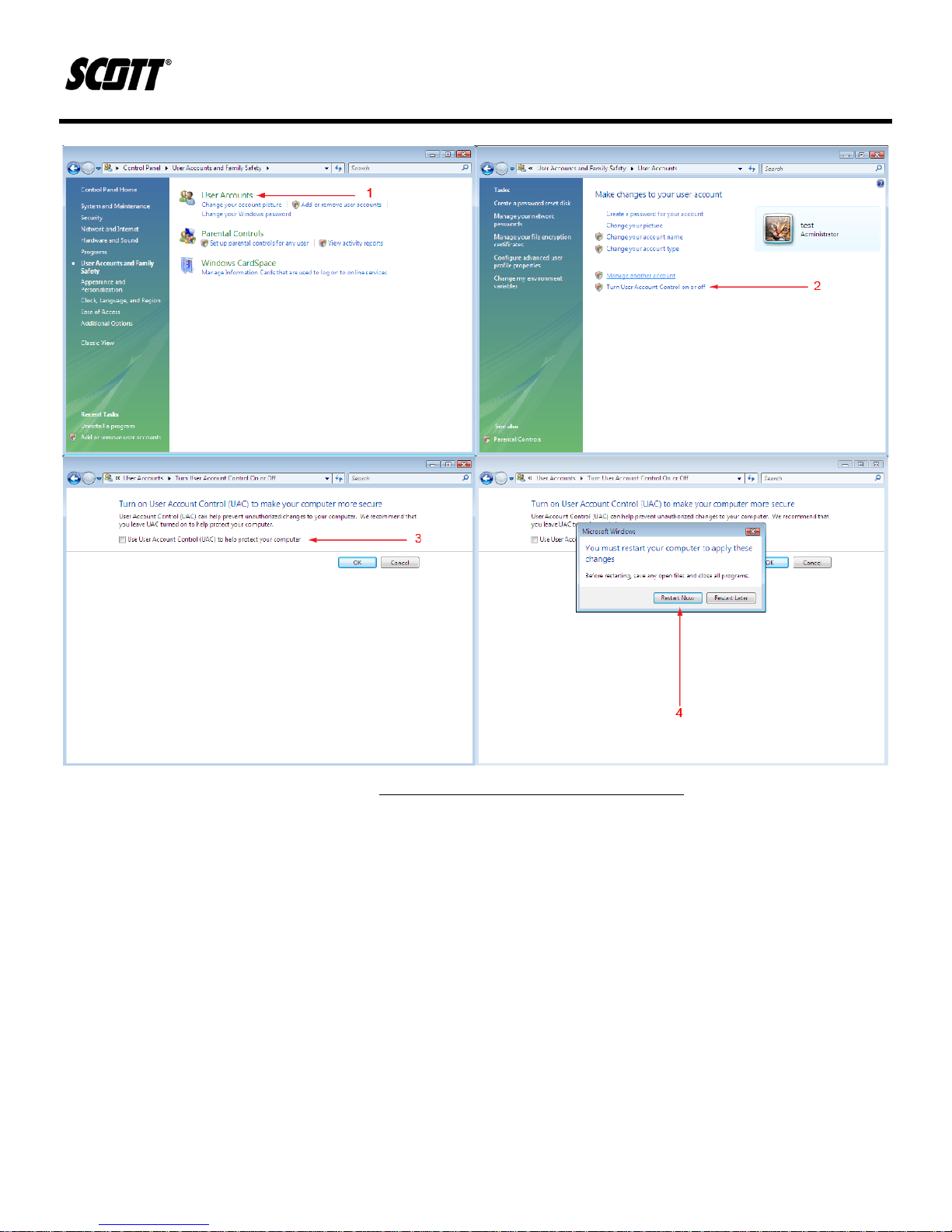

Figure 3-2. Windows Vista User Account Control 20
Figure 3-3. Gas Monitor Software Installation 21

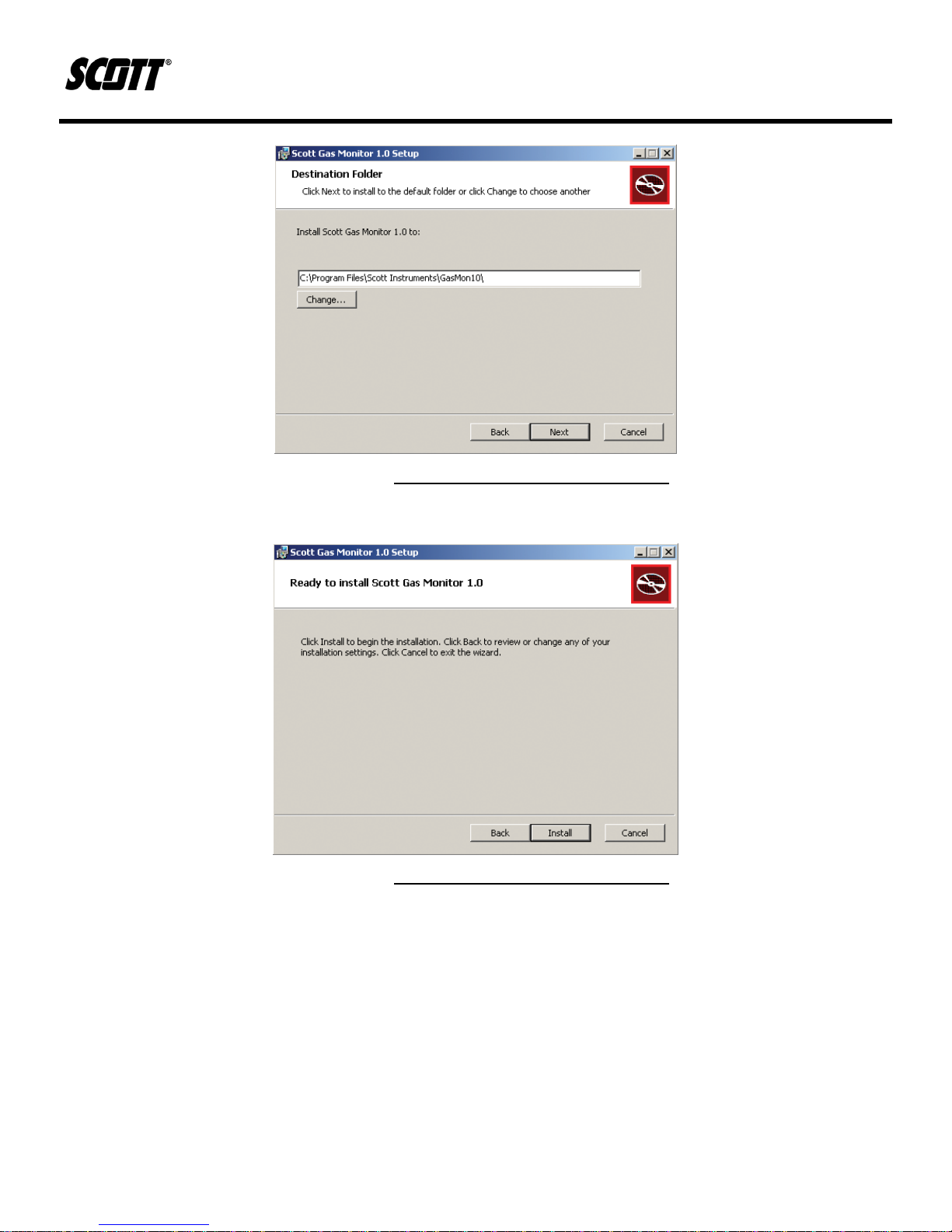

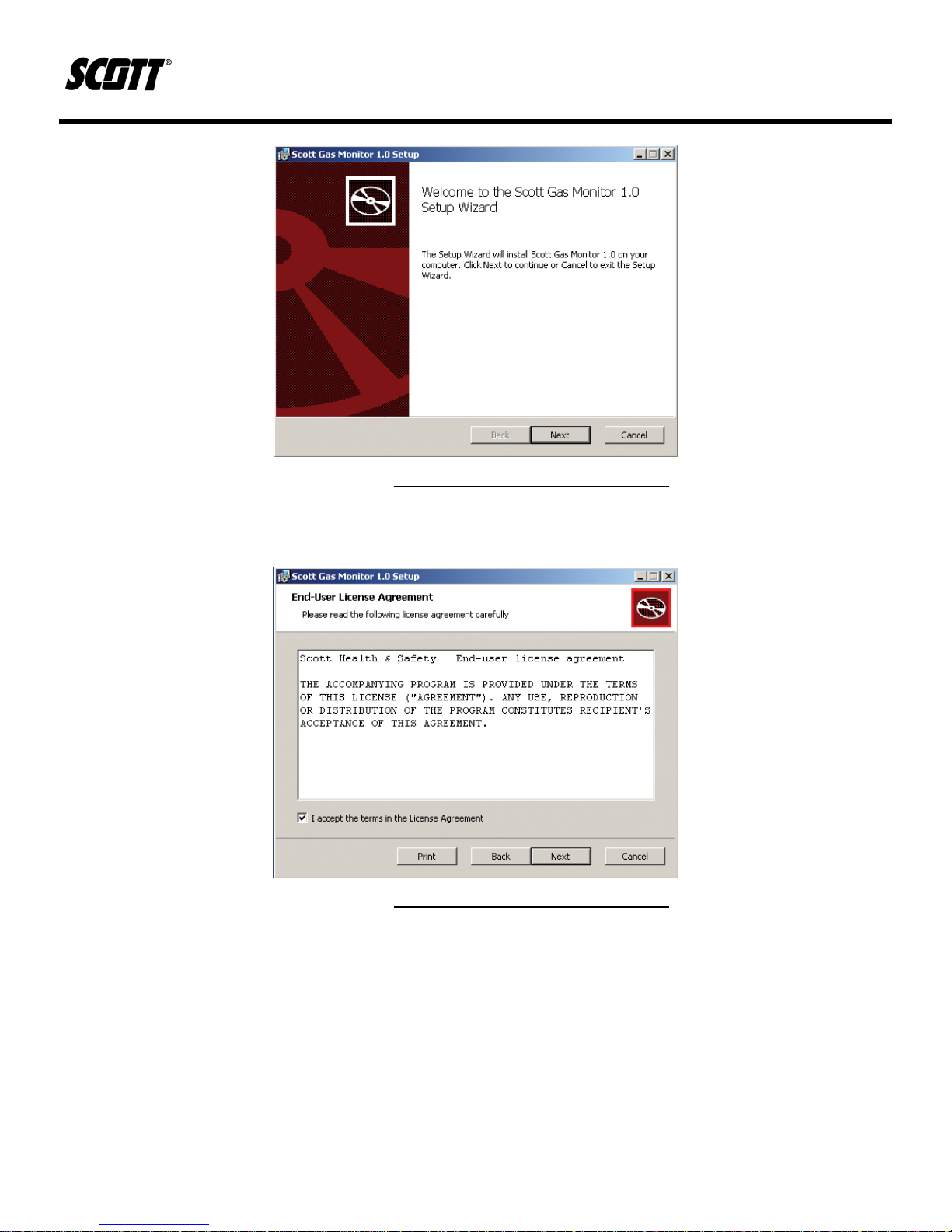

Figure 3-4. Gas Monitor Software Installation 21
Figure 3-5. Gas Monitor Software Installation 22
Figure 3-6. Gas Monitor Software Installation 22
Figure 3-7. Gas Monitor Software Installation 23

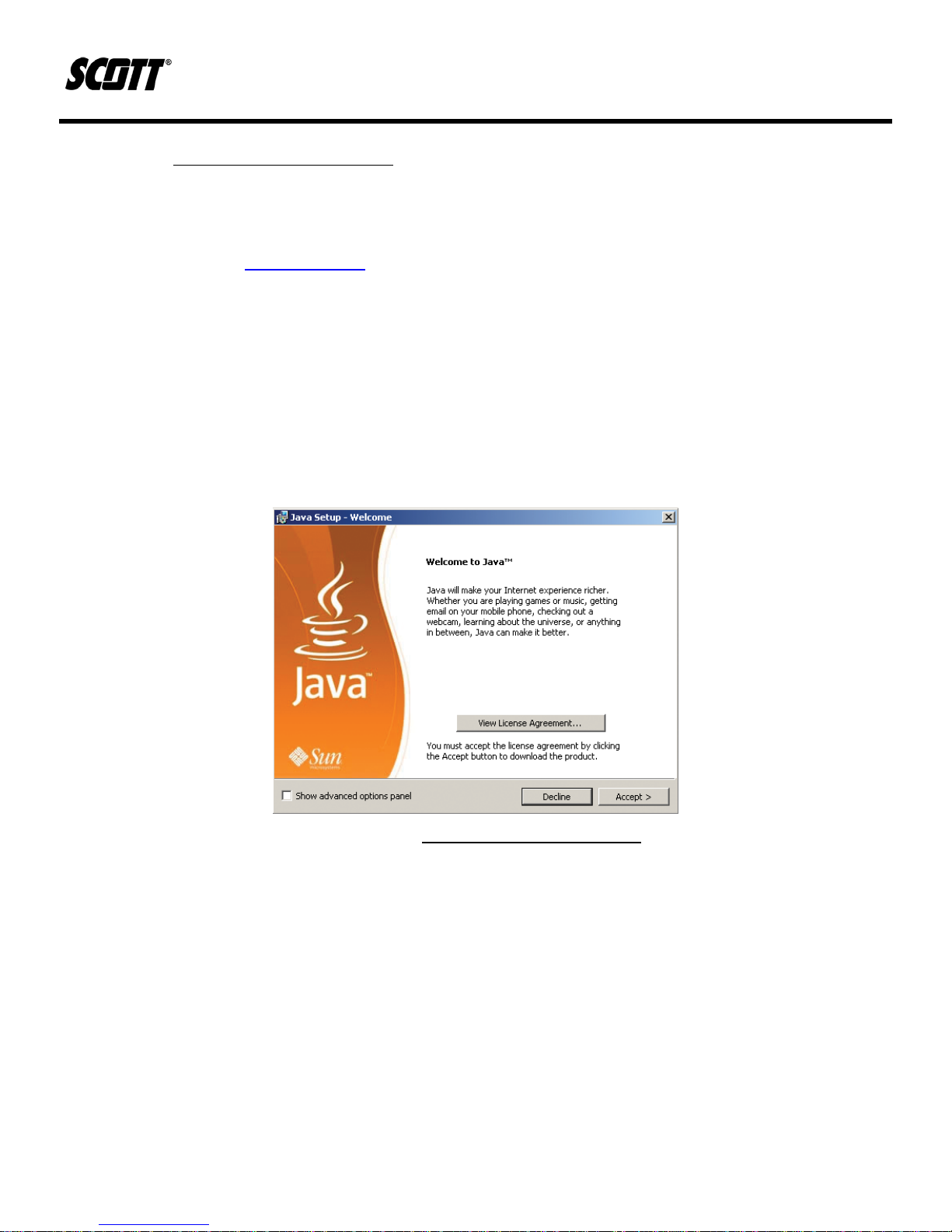

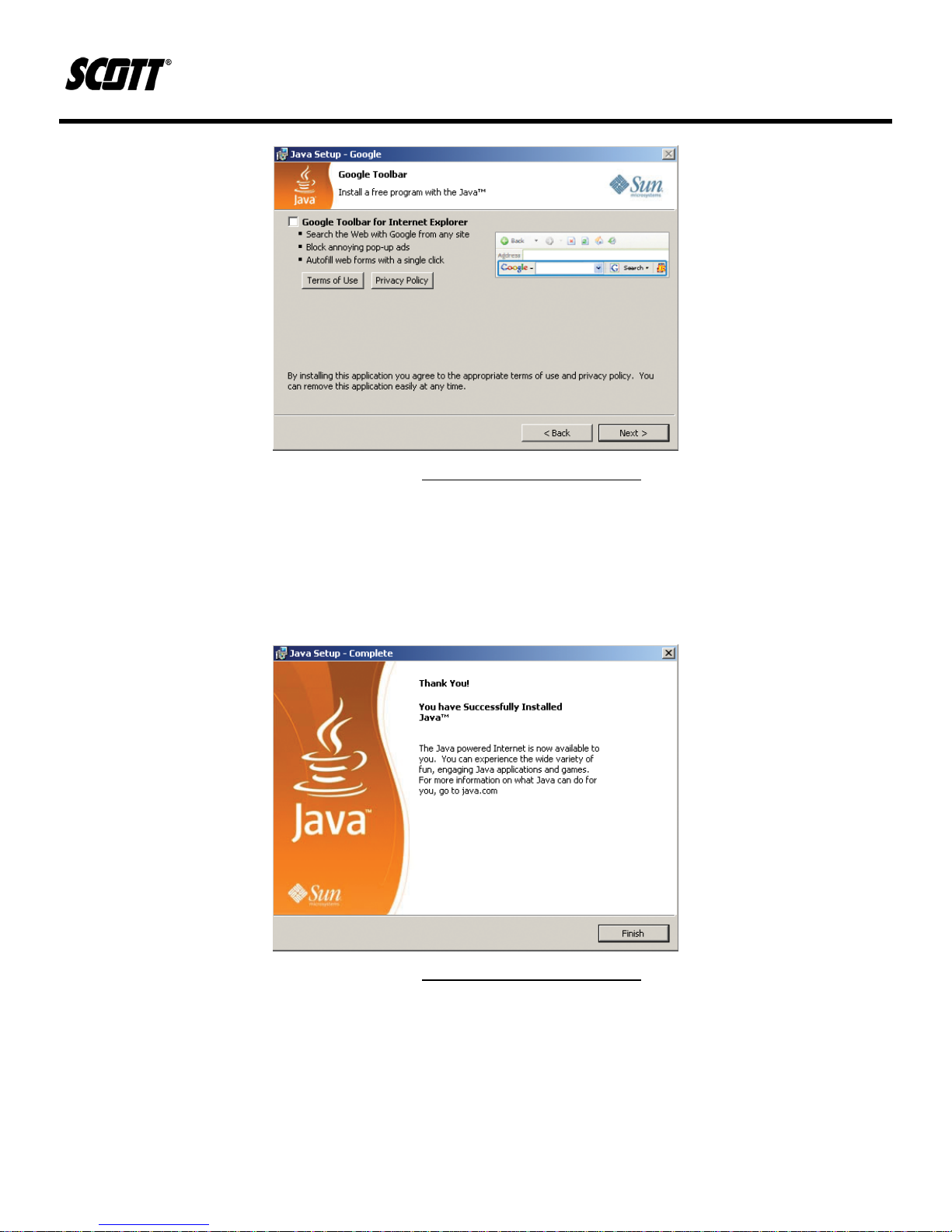

Figure 3-8. JAVA Software Installation 24
Figure 3-9. JAVA Software Installation 25
Figure 3-10. JAVA Software Installation 25
Figure 4-1. Powering On the Protégé 27
Figure 4-2. Powering Off the Protégé 29
Figure 4-3. Zero Calibration 33

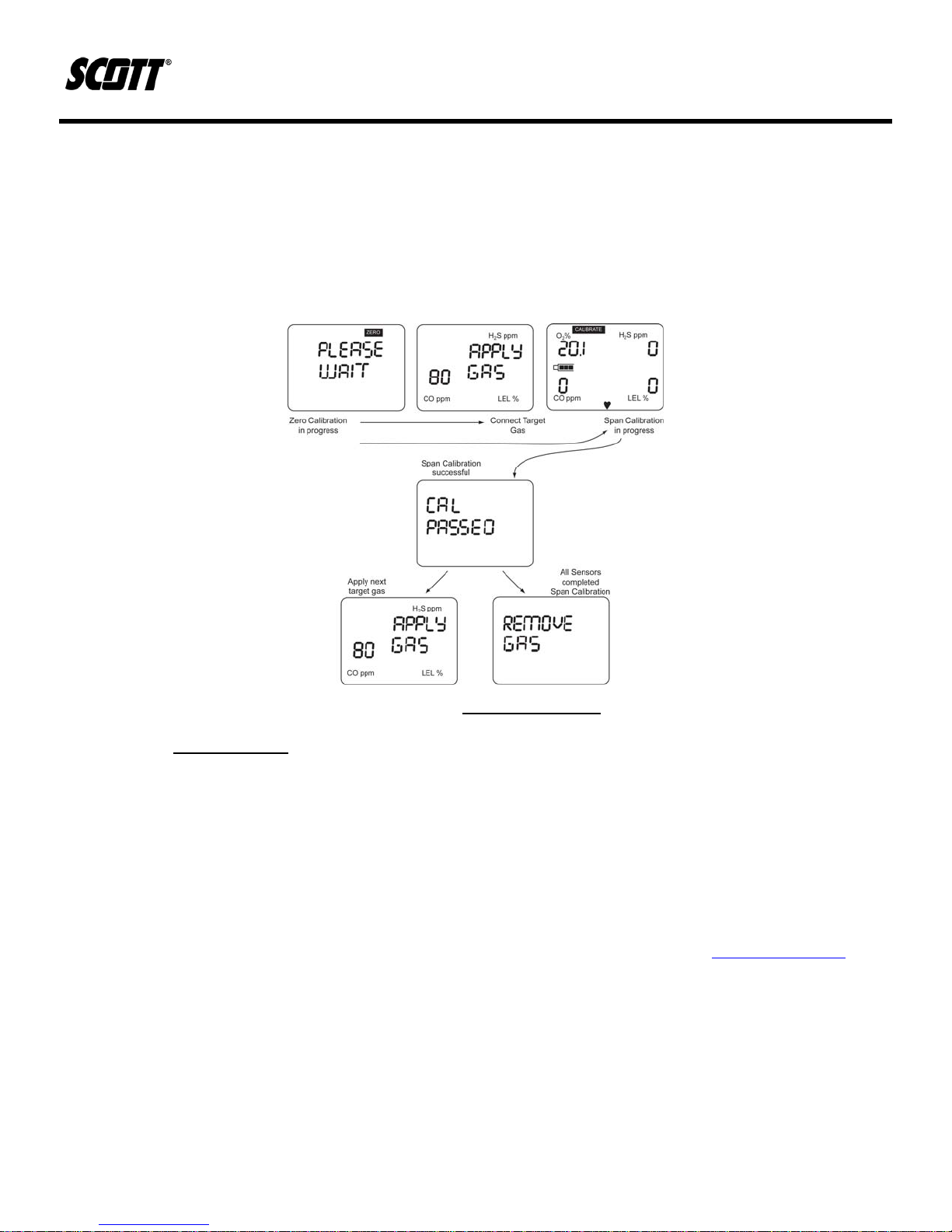

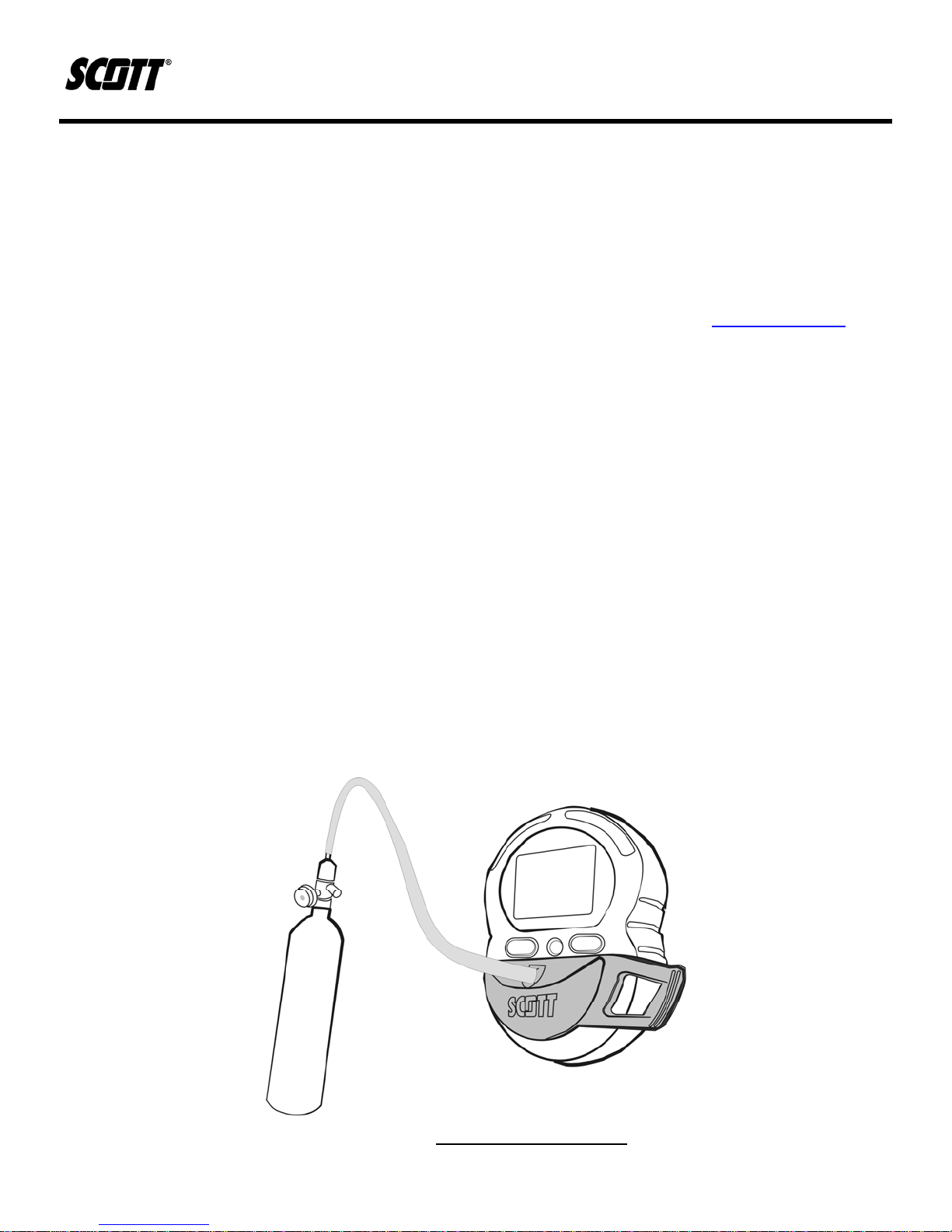

Figure 4-4. Span Calibration Setup 34
Figure 4-5. Span Calibration 35
Figure 4-6. Bump Test Setup 36

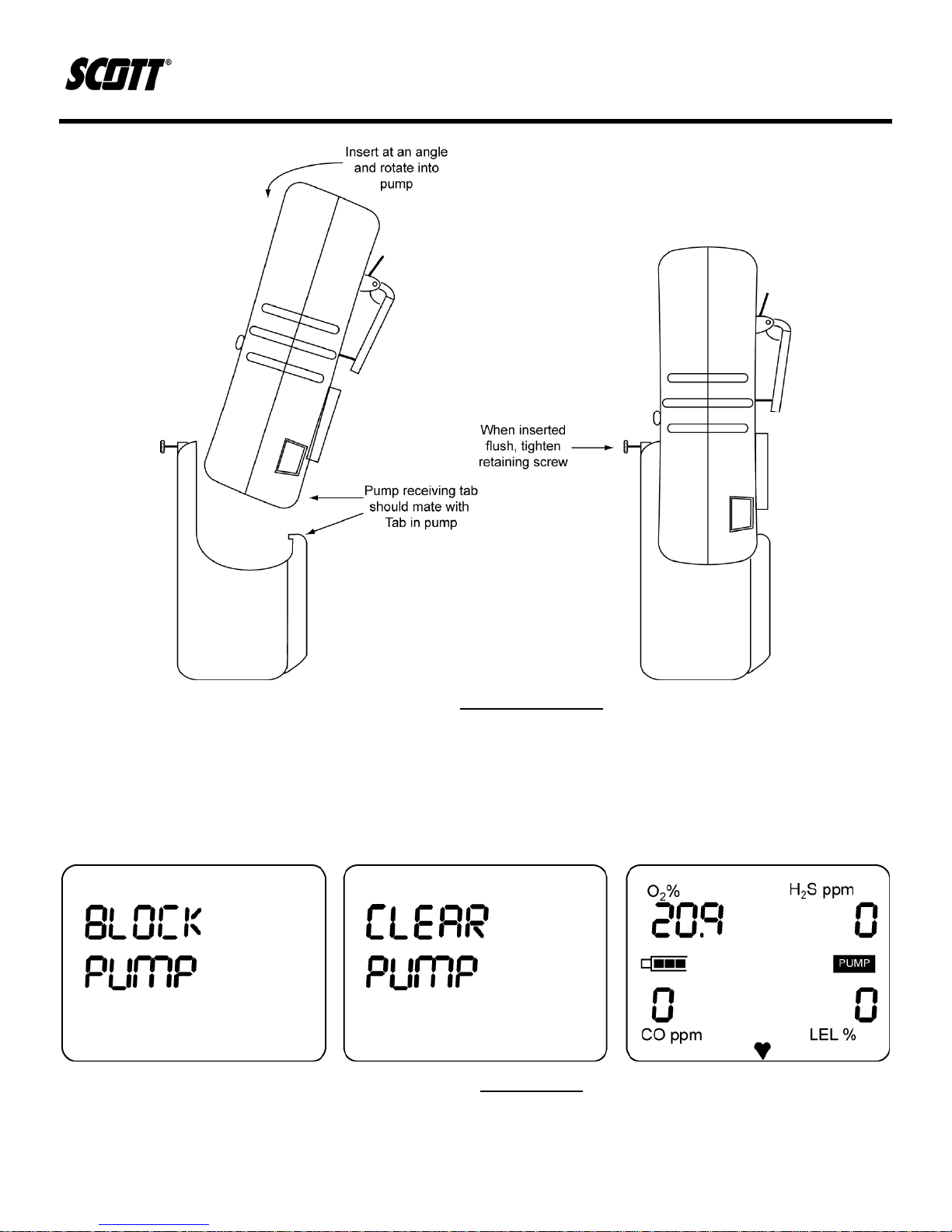

Figure 4-7. Pump Installation 38
Figure 4-8. Pump Setup 38
Figure 4-9. Protégé / PC Connection 42
Figure 4-10. Gas Monitor Software Tabs 43
Figure 4-11. Settings Tab 44

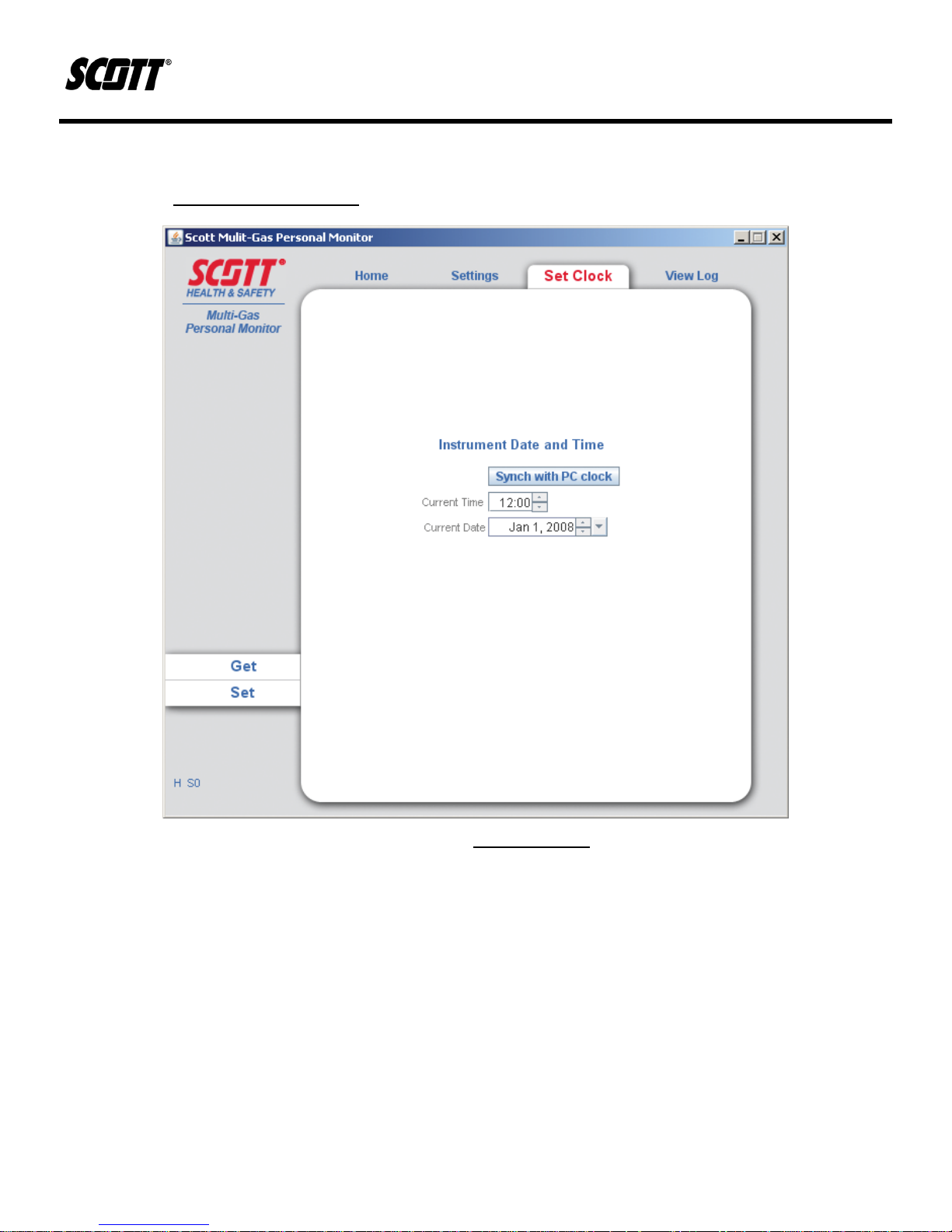

Figure 4-12. Set Clock Tab 46

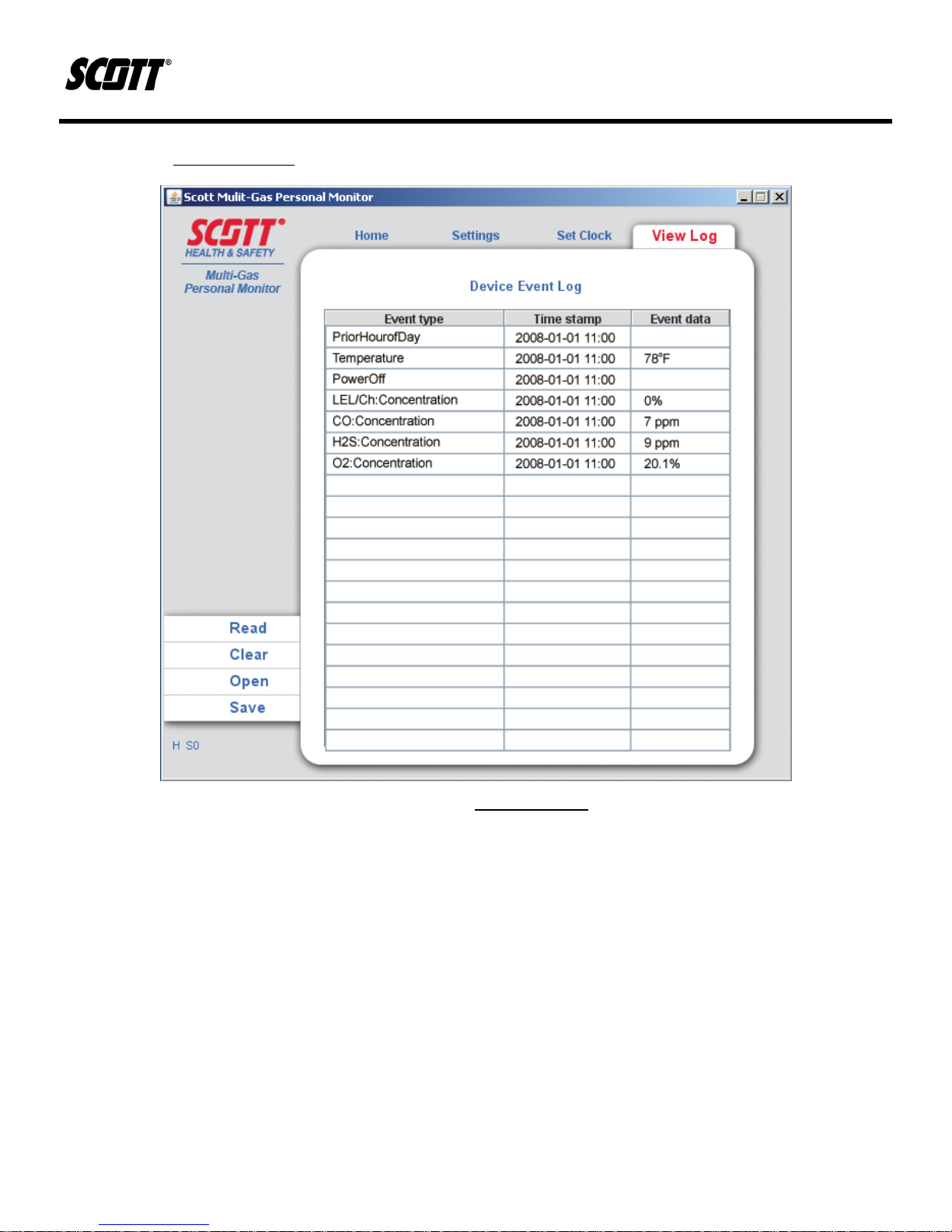

Figure 4-13. View Log Tab 47
Figure 5-1. Removing Protégé Cover 51
Figure 5-2. Removing Sensor 52

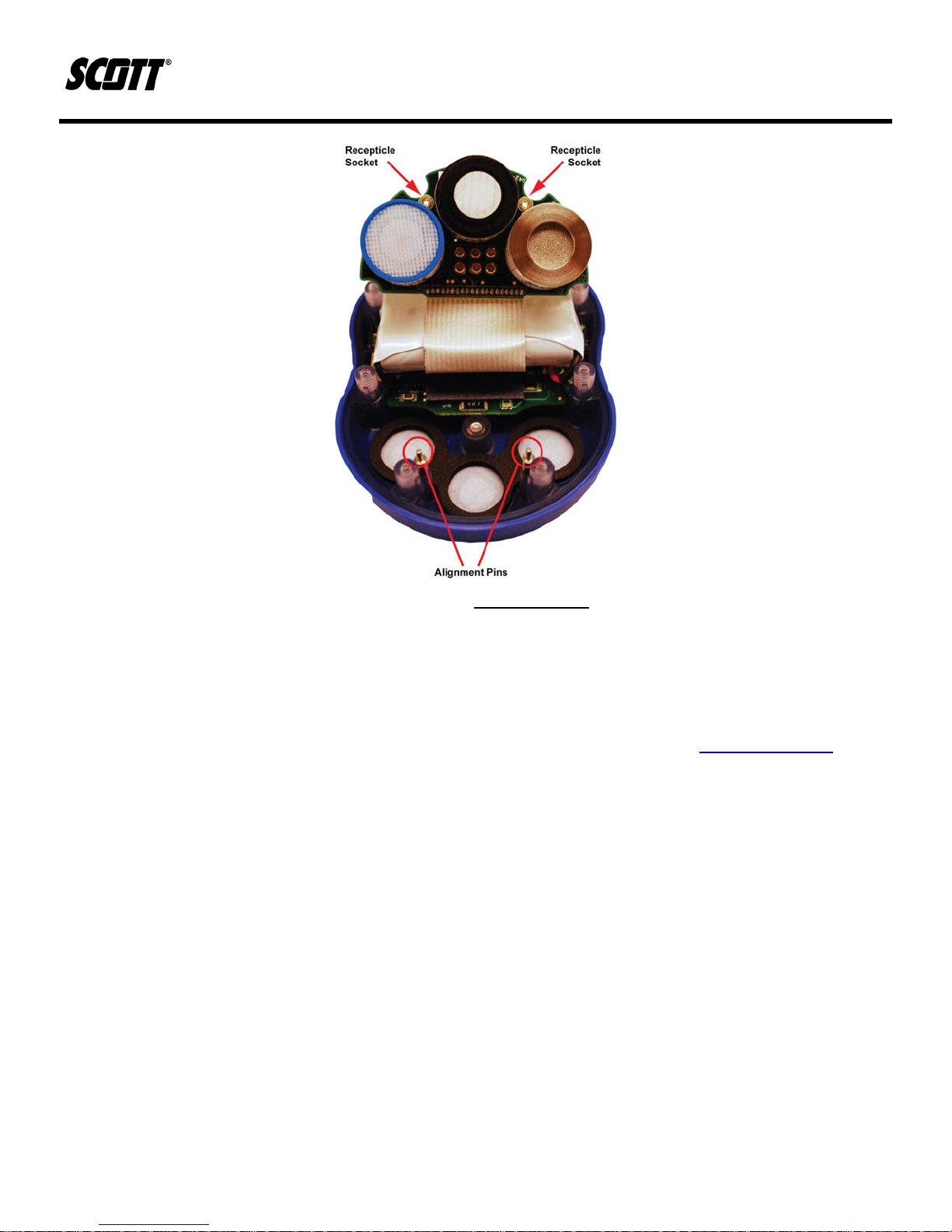

Figure 5-3. Pin Alignm ent 53
Figure 5-4. Pump Screws 55
Figure 5-5. Pump Disassembly 56
Figure 5-6. Pump Ports and Hoses 57
Figure 5-7. Syringe Set-up 58
Figure 5-8. Pump Wiring 59
Figure 5-9. Pump Reassembly 59
P/N 087-0038 Rev. J 02/10
v
Page 6
Protégé Portable Gas Monitor
Instruction Manual
List of Tables
Table 1-1. Acronym Quick Reference List .................................................................. 9
Table 2-1. Protégé Components ............................................................................... 12
Table 2-2. LCD Indicator Descriptions ...................................................................... 16
Table 4-1. When to Perform Calibration or Bump Testing ........................................ 32
Table 4-2. Toxic Gas Interference ............................................................................. 40
Table 4-3. Software Settings ..................................................................................... 48
Table 5-1. Pump Troubleshooting ............................................................................. 54
P/N 087-0038 Rev. J 02/10
vi
Page 7
Protégé Portable Gas Monitor
Instruction Manual
1. Safety and General Information
WARNING
ALL INDIVIDUALS WHO HAVE OR WILL HAVE RESPONSIBILITY FOR USING OR TESTING THIS PRODUCT MUST READ
AND UNDERSTAND THE CONTENTS OF TH IS MANUAL. THE PRODUCT WILL PERFORM AS DESIGNED ONLY IF USED
AND TESTED IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. FAILURE TO FOLLOW
MANUFACTURER’S INSTRUCTIONS WILL RENDER THE WARRANTY AND APPROVALS NULL AND VOID . FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY ALSO RESULT IN SERIOUS INJURY OR DEATH.
1.1. Important Notices
Scott Health and Safety can take no responsibility for use of its equipment if it is not used in
accordance with the instructions. If further operational or maintenance details are required but not
provided in this manual, contact Scott Health and Safety or their agent. Scott Health and Safety
shall not be liable for any incidental or consequential damages in connection with any modifications,
errors or omissions in this manual. While every effort has been made to ensure accuracy in this
owner’s manual, no responsibility can be accepted for errors or omissions. This publication is not
intended to form the basis of a contract, and the company reserves the right to amend the design,
content, and specifications of the detector without notice. Additionally, industry standards, codes,
and legislation are subject to change. Updated copies should be obtained by users to ensure the
most recently issued regulations, standards and guidelines are available.
The Protégé detector can be configured with multiple gas sensors in order to provide gas specific
protection for the user's application and compliance requirements.
P/N 087-0038 Rev. J 02/10
1 of 61
Page 8
Protégé Portable Gas Monitor
Instruction Manual
1.2. Certifications and Approvals
The Protégé has been tested and complies with the following directives, standards, or standardized
documents:
UL913 EN 60079-0 IEC 60079-0
EN 60079-1 IEC 60079-1
EN 60079-11 IEC 60079-11
USA
CLASS I DIVISION 1 GROUPS A B C D
Ambient temperature: -20° C to +50°C
INTERNATIONAL
Ex d ia IIC T4
DEMKO 08 ATEX 0813482X
Ambient temperature: -20° C to +50°C
P/N 087-0038 Rev. J 02/10
2 of 61
Page 9
Protégé Portable Gas Monitor
Instruction Manual
1.3. Warnings, Cautions, and Notes
Throughout this document, warnings, cautions, and notes have been interspersed to draw attention
to potentially unsafe, hazardous, or unique situations that require user attention. Each warning,
caution, or note is labeled and quickly identified using an icon.
WARNING - INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED, COULD RESULT
IN DEATH OR SERIOUS INJURY
.
CAUTION
- INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT, IF NOT AVOIDED, MAY
RESULT IN MINOR OR MODERATE INJURY. IT MAY AL SO BE USED TO ALERT AGAINST UNSAFE PRACTICES.
NOTE - HIGHLIGHTS VARIOUS INSTANCES WHERE AN ATTENTION TO DETAIL IS CRITICAL TO PRODUCT
PERFORMANCE
.
P/N 087-0038 Rev. J 02/10
3 of 61
Page 10
Protégé Portable Gas Monitor
Instruction Manual
1.3.1. General Warnings and Cautions
The following list of warnings and cautions pertain to the general use and care of the Protégé.
Failure to follow these warnings and cautions may result in death, injury, or poor equipment
performance.
WARNINGS
TO PREVENT IGNITION OF AN EXPLOSIVE ATMOSPHERE, READ AND ADHERE TO THE MANUFACTURER’S LIVE
MAINTENANCE PROCEDURES.
READ THIS MANUAL FOR INTRINSIC SAFETY PRECAUTIONS. SUBSTITUTION OF COMPONENTS MAY IMPAIR
INTRINSIC SAFETY, RESULTING IN SERIOUS IN JURY OR DEATH.
A HIGH OFF-SCALE READING MAY INDICATE EXPLOSIVE CONCENTRATION.
TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE PROTÉGÉ MUST BE CHARGED IN AN AREA KNOWN
TO BE NONHAZARDOUS.
PUMP ACTIVATION IS VERIFI ED AFTER THE BLOCK PUMP, CLEAR PU MP COMMANDS HAVE BEEN COMPLETED.
CONNECTING A PUMP TO THE PROTÉGÉ WHEN THE PROTÉGÉ IS ALREADY POWERED ON REQUIRES PUSHING THE
LEFT BUTTON TO BEGIN ACTIVAT ION.
CAUTIONS
VERIFY THE GAS INLET PORTS ARE FREE OF DIRT AND DEBRIS PRIOR TO USE.
NO GAS WILL BE DETECTED WHILE IN THE SET-UP MODE.
DO NOT EXPOSE THE DETECTOR TO SEVERE MECHANICAL OR ELECTRICAL SHOCK. ALWAYS CONDUCT MONITOR
STARTUP AND BUMP TEST PROCEDURES AFTER SUCH EXPOSURE TO VERIFY THE MONITOR’S OPERATION AND
ACCURACY.
P/N 087-0038 Rev. J 02/10
4 of 61
Page 11
Protégé Portable Gas Monitor
Instruction Manual
1.3.2. Combustible Sensor Warnings and Cautions
The following list of warnings and cautions pertain to the general use and care of the sensors within
the Protégé.
Failure to follow these warnings and cautions may result in death, injury, or poor equipment
performance.
WARNINGS
EXTENDED EXPOSURE OF THE D ETECTOR TO HIGH CONCENTRATIONS OF TOXIC OR COMB USTIBLE GASES MAY
RESULT IN DEGRADED SENSOR PERFORMANCE. IF AN ALARM OCCURS DUE TO HIGH CONCENTRATION OF
COMBUSTIBLE GASES, RECALIBRATE THE MONITOR OR, IF NEEDED, REPLACE THE SENSOR.
THE COMBUSTIBLE SENSOR REQUIRES 10% OXYGEN IN THE ATMOSPHERE TO OPERATE. IF YOU ARE UNAWARE
OF THE OXYGEN CONCENTRATION OR IF THE OXYGEN CONCENTRATION IS BELOW 10% DO NOT USE THE
PROTÉGÉ TO MONITOR FOR COMBUSTIBLE G AS CONCENTRATIONS.
CAUTIONS
DO NOT USE ANY SOLVENTS, CHEMICALS, OR POLISHES CONTAINING SILICON COMPOUNDS TO CLEAN THE
DETECTOR AS THESE CAN CAUSE DAMAGE TO THE SENSOR.
SENSITIVITY OF THE COMBUSTIBLE GAS SENSOR CAN BE ADVERSELY AFFECTED BY EXPOSURE TO SULFUR
COMPOUNDS, HALOGENS, SILICONE OR LEAD CONTAINING COMPOUNDS, OR PHOSPHORUS CONTAINING
COMPOUNDS. AVOID EXPOSURE TO THESE SUBSTANCES. SHOULD THE DETECTOR BE SUSPECTED OF BEING
EXPOSED TO SUCH SUBSTANCES, PERFORM A GAS T EST TO VERIFY ITS ACCURACY AND THAT IT IS CALIBRATED
ACCORDINGLY.
P/N 087-0038 Rev. J 02/10
5 of 61
Page 12
Protégé Portable Gas Monitor
Instruction Manual
1.3.3. Battery Warnings and Cautions
The following list of warnings and cautions pertain to the general use and care of the rechargeable
battery installed within the Protégé.
Failure to follow these warnings and cautions may result in death, injury, or poor equipment
performance.
WARNINGS
DO NOT ATTEMPT TO CHARGE THE BATTERY CELLS IN POTENTIALLY HAZARDOUS AREAS.
CAUTIONS
NO ATTEMPT SHOULD BE MADE TO ALTER OR REPAIR THE CHARGER.
DO NOT ATTEMPT TO REPLACE THE MONITOR’S BATTERY. RETURN TO SCOTT HEALTH AND SAFETY FOR
REPLACEMENT OR REPAIRS.
A FULLY DISCHARGED BATTERY CAN LEAD TO THE LOSS OF MONITOR DATE AND TIME RESULTING IN THE
POTENTIAL FOR ERRONEOUS EVENT LOGGING DATA. RECHARGE BATTERY IMMEDIATELY WHEN BATTERY
WARNING IS ENCOUNTERED.
BATTERY LIFE (INSTRUMENT RUN TIME) WILL BE REDUCED AT LOW TEMPERATURES.
RECHARGE BATTERY PACK AS SOON AS THE DET ECTOR INDICATES A LOW BATTERY ALARM.
P/N 087-0038 Rev. J 02/10
6 of 61
Page 13
Protégé Portable Gas Monitor
Instruction Manual
1.4. General Rules for Use of the Protégé
It is critical that this gas detector be used and maintained properly. Failure to do so could jeopardize
the people whose lives depend on its operation and cause injury or death.
• USE THE MONITOR CORRECTLY! Only use the Protégé to monitor the atmosphere for the
gases and concentrations for which it is set-up to detect.
• POWER MUST BE ON TO WORK. The Protégé will only detect gases while powered on and
not while connected to the PC or in Calibration mode. Immediately charge battery when a low
battery alarm occurs.
• PERFORM A DAILY FUNCTIONAL BUMP TEST Before each day’s use, test the sensors
using a known concentration of calibration gas. The monitor should indicate a gas
concentration within 10% of the actual gas listed on the calibration cylinder label. When the
gas indication is outside the 10% limit span calibration should be performed.
WARNING
PERFORM A BUMP TEST EVERY DAY. FAILURE TO PERFORM A DAILY FUNCTIONAL TEST COULD LEAD TO SERIOUS
INJURY OR DEATH.
• BE AWARE OF Poisoned Combustible Sensors! Operation of catalytic type combustible
gas sensors may be seriously affected by silicones, free halogens, halogenated
hydrocarbons and metallic oxides present in the ambient air being monitored. If the presence
of any of these substances is suspected, increased frequency of calibration verification is
recommended.
• WHEN IN DOUBT – LEAVE THE AREA IMMEDIATELY! Users should leave the area
immediately should the Protégé indicate a warning or alarm condition. Users should know
and understand their company’s safety protocols.
• CALIBRATION IS CRITICAL! Calibration should be performed periodically that takes into
account monitor use and environment conditions.
o Additionally, the Protégé should always be re-calibrated:
After exposure to high concentrations of toxic or combustible gases or vapors.
If the monitor is dropped, or the monitor is drenched in water or submerged.
After a change in monitor custody.
• ALARMS AND OUT-OF-RANGE CONDITIONS! Operators should be aware of conditions
where the concentration of the gas is outside the detectable range of the monitor. If the
monitor indicates an over-range condition, leave the area immediately. If an over-range
condition is encountered, perform a Bump Test to ensure monitor functionality. If the monitor
fails the Bump Test, perform a full calibration procedure.
P/N 087-0038 Rev. J 02/10
7 of 61
Page 14
Protégé Portable Gas Monitor
Instruction Manual
1.5. Warranty Statement
SCOTT HEALTH & SAFETY
TM
LIMITED WARRANTY ON Protégé
Scott Health & Safety (SCOTT), a division of Scott Technologies Inc. warrants it's Protégé
PORTABLE GAS DETECTION PRODUCTS (THE PRODUCTS) to be free from defects in
workmanship and materials for a period of two (2) years from the date of original manufacture by
SCOTT. This warranty applies to all components of THE PRODUCTS supplied at the time of original
sale of THE PRODUCTS, EXCEPT pump and consumable filters. SCOTT warrants pump supplied
with THE PRODUCTS to be free from defects in workmanship and materials for one (1) year from
the date of original manufacture by SCOTT. SCOTT’s obligation under this warranty is limited to
replacing or repairing (at SCOTT’s option) THE PRODUCTS or components shown to be defective
in either workmanship or materials.
Only personnel of SCOTT or, when directed by SCOTT, authorized SCOTT agents are permitted to
perform warranty obligations. This warranty does not apply to defects or damage caused by any
repairs of or alterations to THE PRODUCTS made by owner or any third party unless expressly
permitted by SCOTT product manuals or by written authorization from SCOTT. To obtain
performance under this warranty, and as a condition precedent to any duty of SCOTT, the
purchaser must return such products to SCOTT, a SCOTT authorized distributor or a SCOTT
authorized service center. Any product returned to SCOTT shall be sent to “SCOTT HEALTH &
SAFETY” (Attn: Warranty Claim Dept.), P.O. Box 569, Monroe, NC 28111.
Gas Monitor
This warranty does not apply to any malfunction of or damage to THE PRODUCTS resulting from
accident, alteration, misuse, or abuse.
THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIEDINCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN ADDITION, SCOTT
EXPRESSLY DISCLAIMS ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN ANY WAY CONNECTED WITH THE SALE OR USE OF SCOTT PRODUCTS, AND
NO OTHER FIRM OR PERSON IS AUTHORIZED TO ASSUME ANY SUCH LIABILITY.
P/N 087-0038 Rev. J 02/10
8 of 61
Page 15
Protégé Portable Gas Monitor
Instruction Manual
1.6. Acronyms Quick Reference
Throughout the duration of this manual, several acronyms are used. Provided in Table 1-1 is a quick
reference chart to quickly identify any acronym that may be unfamiliar to users.
Table 1-1. Acronym Quick Reference List
Acronym Definition
AC Alternating Current
CO Carbon Monoxide
°C Degrees Celsius
°F Degrees Fahrenheit
H2S Hydrogen Sulfide
ID Inside Diameter
JRE Java Runtime Environment
LCD Liquid Crystal Display
LED Light Emitting Diode
LEL Lower Explosive Limit
O2 Oxygen
PC Personal Computer
ppm Parts per million
RH Relative Humidity
STEL Short Term Exposure Limit
TWA Time Weighted Average
USB Universal Serial Bus
P/N 087-0038 Rev. J 02/10
9 of 61
Page 16
Protégé Portable Gas Monitor
Instruction Manual
This Page Left Intentionally Blank
P/N 087-0038 Rev. J 02/10
10 of 61
Page 17
Protégé Portable Gas Monitor
Instruction Manual
2. Introduction
The Protégé unit comes installed with a re-chargeable lithium ion battery and sensors already
installed and ready for use. A CD-ROM containing the Protégé Gas Monitor software comes with the
unit and must be installed to modify Protégé settings or capture data from the unit.
Depending on the sensors it is equipped with, the Scott Protégé personal multi-gas monitor is
designed for monitoring the atmosphere for potentially hazardous levels of combustible gases,
oxygen enrichment or depletion, carbon monoxide, and hydrogen sulfide.
Gas indication is displayed to users by a direct reading backlit LCD, multiple bright LEDs, a loud
audible alarm, and a vibratory alarm. The Protégé includes a downloadable data log for up to 4000
events and records STEL / TWA / PEAK exposures, calibrations, and gas values. A built-in USB
port on the charging module allows the monitor’s data log to be downloaded and, when used with
the Protégé’s interface software (included), allows users to quickly configure its operating and alarm
parameters.
The Protégé is powered by a long life rechargeable lithium-ion battery. An optional sample draw
pump is available for remote sampling. Additionally, an optional multi-charger is available that will
charge up to six Protégé units simultaneously.
Refer to Figure 2-1
and Figure 2-2.
P/N 087-0038 Rev. J 02/10
11 of 61
Page 18
Protégé Portable Gas Monitor
Instruction Manual
Number Component
1 LED alarms (2)
2 LCD Display
3 Audible Alarm Port
4 Operation Button (2)
5 Threaded Port for Pump
6 Gas Inlet Port (3)
7 Power Contacts for Pump
8 Alligator Clip
9 Charge/Communication Shoe Pad
10 Calibration Adapter Receiving Pad
11 Pump Receiving Tab
P/N 087-0038 Rev. J 02/10
Figure 2-1. Protégé Components
Table 2-1. Protégé Components
12 of 61
Page 19
Protégé Portable Gas Monitor
Instruction Manual
P/N 087-0038 Rev. J 02/10
Figure 2-2. Protégé Accessories
13 of 61
Page 20
2.1. Sensor Specifications
Hydrogen Sulfide Sensor Specifications
Range: 0 to 500 ppm
Response Time: T90 < 30 sec
Operating Temp: -4.0° F to +122° F / -20° C to +50° C
Humidity: 15% to 90% RH, Non-Condensing
Storage Temp: +32° F to +68°F / 0° to 20° C
Sensor Cross Sensitivity:
Carbon Monoxide at 300 ppm: < 2 ppm
Sulfur Dioxide, 5 ppm: approx. –1 ppm
Nitric Oxide, 35 ppm: < 1 ppm
Hydrogen, 10,000 ppm: < 10 ppm
Protégé Portable Gas Monitor
Instruction Manual
Nitrogen Dioxide, 5 ppm: approx. 1 ppm
Carbon Monoxide Sensor Specifications
Range: 0 to 999 ppm
Response Time: T90 < 25 seconds
Operating Temp: -4° to +122° F / -20° to +50° C
Humidity: 15 to 90% RH, Noncondensing
Storage Temp: +32° to +68° F /0° to 20° C
Sensor Cross Sensitivity:
Filtered against H2S, 15 ppm: < 0.5 ppm
Filtered against SO2, 5 ppm: approx. 0 ppm
Nitric Oxide, 35 ppm: < 3 ppm
Nitrogen Dioxide, 5 ppm: approx. –1 ppm
Chlorine, 1 ppm: approx. 0 ppm
Hydrogen, 100 ppm: < 40 ppm
Ethylene, 100 ppm: < 50 ppm
Ethanol, 200 ppm: approx. 0 ppm
P/N 087-0038 Rev. J 02/10
14 of 61
Page 21
Oxygen Sensor Specifications
Range: 0.0 to 25.0 %
Response Time: T95 = 15 seconds
Operating Temp: -4° to +122° F / -20° to +50° C
Humidity: 0 to 99% RH, Non-condensing
Storage Temp: +32° to +68° F / 0° to 20° C
Combustible Sensor Specifications
Range: 0 to 80% LEL
Response Time: T50 = 10 seconds
Operating Temp: -40° to + 392° F / -40° to 200° C
Protégé Portable Gas Monitor
Instruction Manual
0 to 5.0% v/v Gas
T90 = 30 seconds
Humidity: 0 to 99% RH, Non-condensing
Storage Temp: +32° to +68° F / 0° to 20° C
2.2. LCD Display
Primary operator interface of the Protégé is via the LCD Display. During operation, continuous data
on gas concentrations and alarm conditions will be displayed. Users will also be able to monitor
peak values of gas concentrations.
At start up, the display shows current alarm set points for each sensor installed, current date and
time, software version installed, and when the next required calibration is due.
WARNING
IF PROTÉGÉ FAILS TO RESPOND PROPERLY UPON START UP, OR IF CALIBRATION IS OUT OF DATE, DO NOT USE
MONITOR UNTIL IT HAS BEEN PROPERLY SERVICED OR CALIBRATED. FAILURE TO DO SO COULD RESULT IN
DEATH OR INJURY.
Refer to Figure 2-3 and Table 2-2 for more information on LCD Indications.
P/N 087-0038 Rev. J 02/10
15 of 61
Page 22
Protégé Portable Gas Monitor
Instruction Manual
Figure 2-3. LCD Indications
Table 2-2. LCD Indicator Descriptions
Number Indicator Description
1
2
3
4
Gas Type Label
TWA
Battery Charge
STEL
Indicates the type gas being detected. Label will
blink if an alarm is associated with that gas type.
Indicates TWA displayed when alarm set points
have been reached.
Battery charge depletion is indicated as bars
disappear to the left.
STEL displayed when STEL alarm set points
have been reached.
Indicates highest gas exposure encountered
5
PEAK
since turning on the instrument for LEL and toxic
sensors; and high and low value for oxygen
sensor. Press and release the left button to view.
Blinks to indicate instrument is in monitoring
6
Heart Beat
mode. Will not blink during start-up routine or
calibration.
7
8
9
10
Alarm
Low Alarm
PUMP
High Alarm
Displayed when alarm set points have been
reached.
Indicates low alarm point settings or when low
alarms point reached.
Displayed when pump is activated.
Indicates high alarm point settings or when high
alarms point reached.
P/N 087-0038 Rev. J 02/10
16 of 61
Page 23
Protégé Portable Gas Monitor
Instruction Manual
3. Setup
The Protégé unit comes installed with a re-chargeable lithium ion battery and one, two, or three
sensors already installed and ready for use. A CD-ROM containing the Protégé Gas Monitor
software comes with the unit and must be installed to modify Protégé settings or capture data from
the unit.
CAUTION
THE PROTÉGÉ’S BATTERY MUST BE CHARGED PRIOR TO FIRST USE AND DAILY AFTER USE. FAILURE TO DO SO
COULD LEAD TO A SHORTAGE OF BATTERY LIFE AND FAILURE OF THE UNIT TO OPERATE.
3.1. Battery
The Protégé is powered by a re-chargeable lithium ion battery. Typical run time is 18 hours with no
pump; however, alarming conditions will reduce operating times. Typical charge time is between 4-6
hours. Verify battery is fully charged prior to use.
NOTE
BATTERY LIFE VARIES DEPENDING ON MONITOR USE, ENVIRONMENTAL CONDITIONS, AND BATTERY AGE.
3.1.1. Charging the Battery
To charge the battery, perform the following. Refer to Figure 3-1.
WARNING
DO NOT ATTEMPT TO CHARGE THE BATTERY CELLS IN POTENTIALLY HAZARDOUS AREAS. FAILURE TO DO SO
COULD RESULT IN DEATH OR INJURY.
Plug-in the Power and Communications module and connect the Protégé by sliding the connector
shoe into the Protégé pad. The monitor’s LCD backlighting will illuminate briefly and the battery
charge indication icon will begin to blink. The LCD will indicate BATTERY CHARGED on the display
when the battery is fully charged.
NOTE
I
F A BATTERY VOLTAGE BECOMES VERY LOW, THE BACKLIGHT WILL ILLUMINATE WHEN PLUGGED INTO THE
CHARGER
, HOWEVER, THE BATTERY CHARGING ICON MAY NOT APPEAR RIGHT AWAY.
P/N 087-0038 Rev. J 02/10
17 of 61
Page 24
Protégé Portable Gas Monitor
Instruction Manual

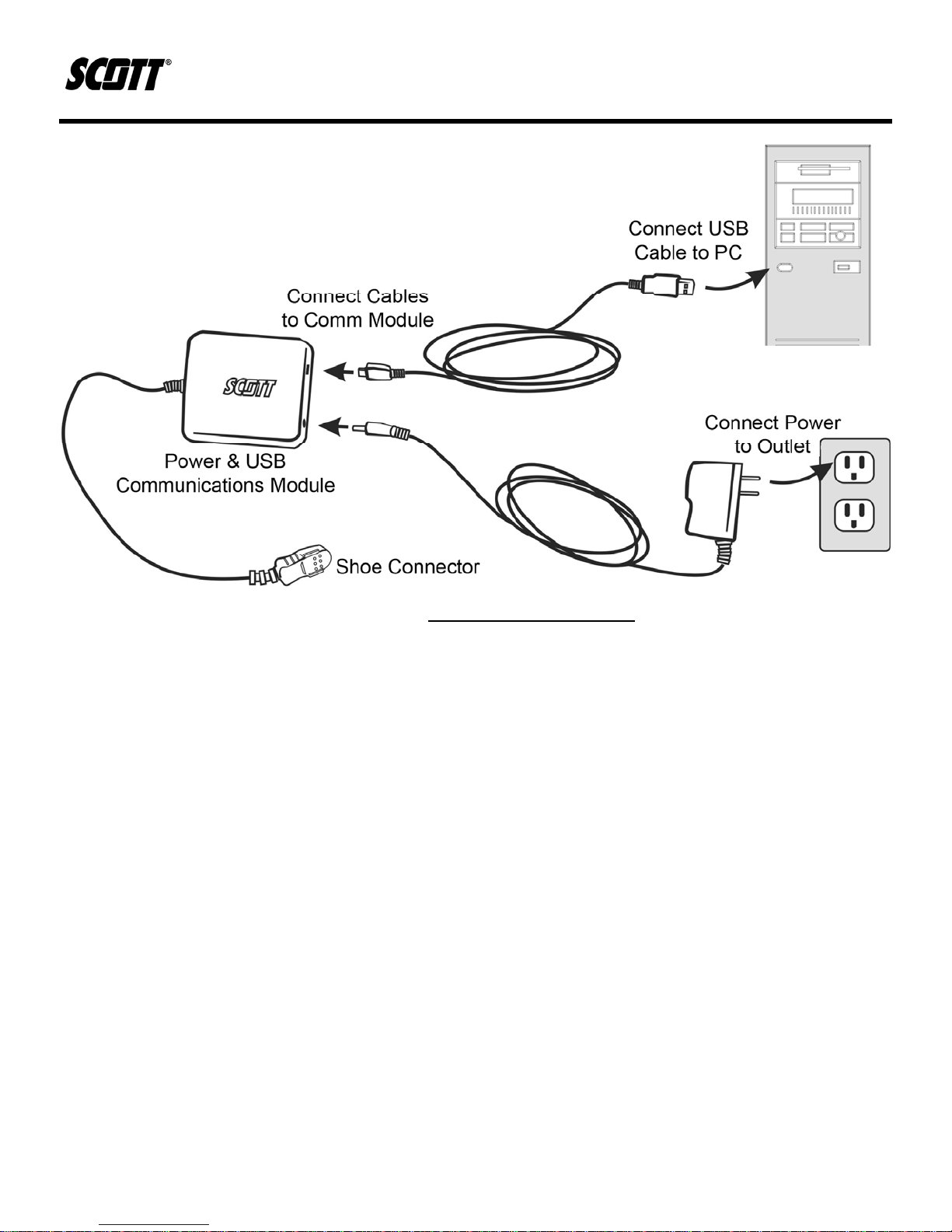

Figure 3-1. Charging the Protégé Battery
NOTE
FULLY DISCHARGED BATTERY CAN LEAD TO LOSS OF THE MONITOR’S DATE AND TIME SETTINGS CAUSING
A
ERRONEOUS LOGGING OF GAS EVENTS
. IF DATE AND TIME ARE LOST, REFER TO PARAGRAPH 4.6.4.
Recharge battery pack as soon as the detector indicates a low battery alarm.
3.1.1.1. Charging the Battery with the Multi-Charger (Optional)
The Protégé Multi-Charger (P/N 096-3283) can be used to charge up to six Protégé units
simultaneously. Unlike the single Power and Communication module, the Multi-Charger can not be
connected to a PC. The only function is charging Protégé units.
For more information on the Multi-Charger, refer to the Multi-Charger quick guide (P/N 062-0027).
3.1.2. Replacing t he Battery
The installed lithium ion battery is a rechargeable unit that is not replaceable or serviceable by users
of the product. If the battery no longer holds its charge, it must be replaced at the factory. Do not
attempt to replace the monitor’s battery pack. Return unit to Scott Health and Safety for replacement
or repairs.
P/N 087-0038 Rev. J 02/10
18 of 61
Page 25
Protégé Portable Gas Monitor
Instruction Manual
3.2. Protégé Software
The Protégé comes with a CDROM that includes Scott Monitors proprietary Gas Monitor software
application that enables users to modify the Protégé’s settings and access the data log.
The Gas Monitor application requires the installation of Sun Microsystems® JAVA runtime
application. If not previously installed on the PC, JAVA runtime can be installed on the PC after
installation of the Gas Monitor Software.
PC System Requirements:
• Operating Systems: Windows XP or Windows Vista
• JAVA Version 5 or greater
• USB port
3.2.1. Gas Monitor Software Installation
To install the PCI Gas Monitor software, perform the following.
NOTE
DO NOT CONNECT THE PROTÉGÉ CHARGER TO THE PC UNTIL AFTER THE INSTALLATION IS COMPLETE.
NOTE
FOR WINDOWS® VISTA, PERFOR M STEP 1 PRIOR TO BEGINNING INSTALLATION. FOR WINDOWS XP PROCEED TO
2.
STEP
1) For Windows Vista users only, navigate to USER ACCOUNTS AND FAMILY SAFETY using
the control panel and proceed to remove USER ACCOUNT CONTROL (UAC) as shown in
Figure 3-2. The checkbox must be unchecked for UAC. Restart the PC as necessary.
P/N 087-0038 Rev. J 02/10
19 of 61
Page 26
Protégé Portable Gas Monitor
Instruction Manual
Figure 3-2. Windows Vista User Account Control
2) Insert the CD-ROM that came with the Protégé unit into the PC’s CD-ROM device.
3) If the PC has the auto run enabled, the install program will begin. If the CD-ROM auto run
feature is disabled, navigate to the “gasmon.msi” file on the CD-ROM and double click it to
begin the installation procedure.
4) When prompted, click NEXT to proceed with installation.
P/N 087-0038 Rev. J 02/10
20 of 61
Page 27
Protégé Portable Gas Monitor
Instruction Manual
Figure 3-3. Gas Monitor Software Installation
5) When prompted, check the box to accept the terms of the License Agreement. Click NEXT to
proceed.
Figure 3-4. Gas Monitor Software Installation
6) If desired, select a custom location to install the software or use the default location. Click
NEXT to proceed.
P/N 087-0038 Rev. J 02/10
21 of 61
Page 28
Figure 3-5. Gas Monitor Software Installation
7) Click INSTALL and monitor installation progress.
Protégé Portable Gas Monitor
Instruction Manual
Figure 3-6. Gas Monitor Software Installation

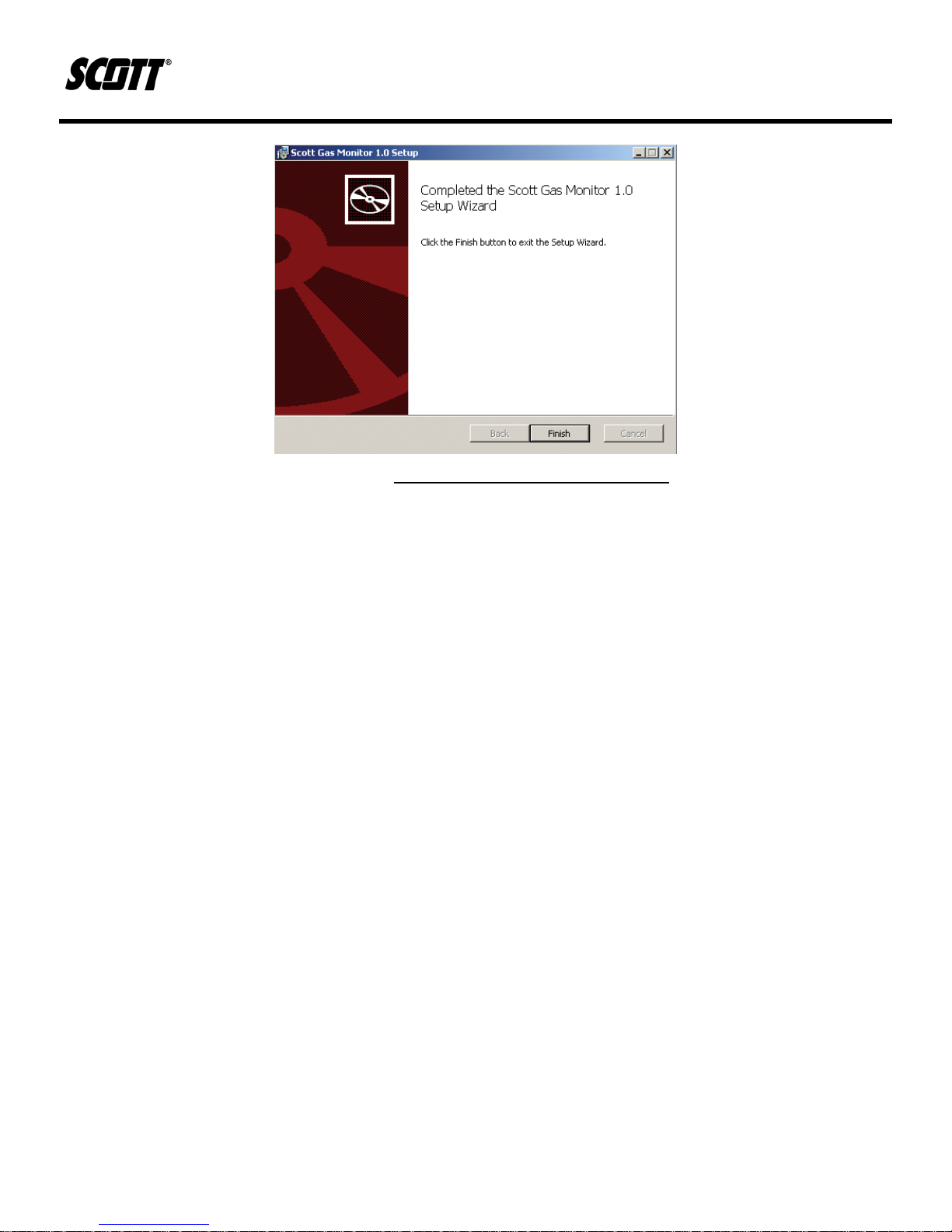

8) When prompted, click FINISH to complete the installation.
P/N 087-0038 Rev. J 02/10
22 of 61
Page 29
Protégé Portable Gas Monitor
Instruction Manual
Figure 3-7. Gas Monitor Software Installation
P/N 087-0038 Rev. J 02/10
23 of 61
Page 30
Protégé Portable Gas Monitor
Instruction Manual
3.2.2. JAVA Software Installation
JAVA software must be installed to use the Scott Gas Monitor Software. The installation software is
available on the same CD-ROM provided with the Protégé as the Gas Monitor software.
Advanced users with internet access may choose to download and install JAVA runtime from the
application website at www.java.com.
To install JAVA from the CD-ROM, perform the following.
1) Navigate to the Java folder and select the JAVA installation file for the appropriate operating
system of the PC.
2) Double click the file to begin the installation process:
3) Observe the Java Runtime Environment (JRE) installation begins. Installation files may be
unpacked during an automated process.
4) When prompted, select ACCEPT to agree to the User License Agreement and proceed with
the installation.
Figure 3-8. JAVA Software Installation
5) When prompted, either select or uncheck any of the third party software applications, such as
Google Toolbar, that Sun Microsystems provides bundled with the JAVA software installation.
ONLY JAVA SOFTWARE IS REQUIRED TO RUN THE SCOTT GAS MONITOR SOFTWARE. INSTALLING OR NOT
INSTALLING ANY OPTIONAL SOFTWARE ON THIS SCREEN WILL NOT AFFECT OPERATION OF THE
MONITOR.
P/N 087-0038 Rev. J 02/10
NOTE
SCOTT GAS
24 of 61
Page 31
6) Click NEXT to proceed.
Protégé Portable Gas Monitor
Instruction Manual
Figure 3-9. JAVA Software Installation
7) Observe the installation progress screen progresses through the installation. Installation
times will vary depending on PC performance, but should never take a large period of time.
8) When prompted upon successful completion of software installation, click FINISH to complete
JAVA software installation.
Figure 3-10. JAVA Software Installation
P/N 087-0038 Rev. J 02/10
25 of 61
Page 32
Protégé Portable Gas Monitor
Instruction Manual
This Page Left Intentionally Blank
P/N 087-0038 Rev. J 02/10
26 of 61
Page 33
Protégé Portable Gas Monitor
Instruction Manual
4. Operation
4.1. Powering Protégé On and Off
The Protégé monitor comes with a rechargeable lithium-ion battery pack installed. If the monitor fails
to turn on after initiating the following steps, connect the monitor to its recharging base until fully
charged. Operators should charge the monitor prior to its first use and on a daily basis before
operation. The monitor display will indicate BATTERY CHARGED when fully charged.
4.1.1. Powering On
Press and hold either the left or right operation button until the countdown timer has completed and
RELEASE is displayed on the LCD. If the operation button is held for 5 seconds after RELEASE is
displayed the monitor will not turn on.
NOTE
IF BATTERY VOLTAGE BECOMES VE RY LOW WHILE POWERED OFF, THE UNIT MAY DISPLAY PLEASE CHARGE
WHEN ATTEMPTING TO POWER ON UNIT
. ALWAYS FULLY CHARGE BATTERY PRIOR TO USE.
NOTE
THE COUNTDOWN TIMER PARAMETER WILL VARY AS SET USING THE SCOTT GAS MONITOR SOFTWARE. REFER
PARAGRAPH 4.6.3 FOR INFORMATION O N HOW TO ADJUST THIS PARAMETER.
TO

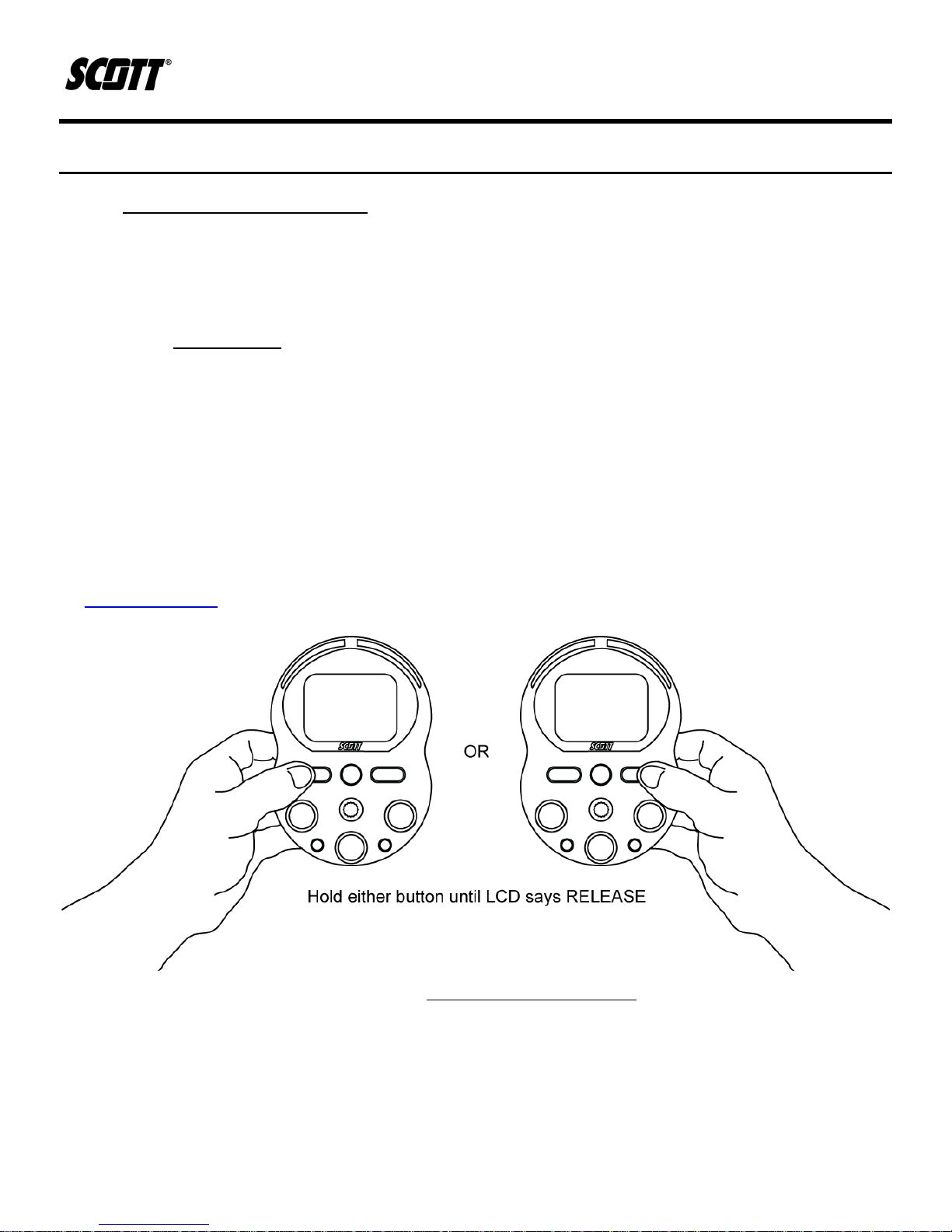

Figure 4-1. Powering On the Protégé
The Protégé will begin its Power-Up Self Test Sequence once the operation button has been
released. This sequence consists of the following.
1) LED, vibrating, and Audible Alarm Check – All LED’s are lighted, audible alarm is sounded,
and vibrating alarm is activated.
2) Software - The current version is displayed.
P/N 087-0038 Rev. J 02/10
27 of 61
Page 34
Protégé Portable Gas Monitor
Instruction Manual
3) Date is displayed.
4) Time is displayed.
5) Low Alarm settings displayed.
6) High alarm settings displayed.
7) STEL alarm setting displayed.
8) TWA alarm setting is displayed.
9) Cal Due – indicates when next calibration is due in days.
WARNING
OPERATING A PROTÉGÉ MONITOR THAT HAS EXCEEDED ITS CALIBRATIO N DATE CAN C AUSE FALS E READINGS OF
DETECTED GASES. DO NOT TRUST INVALID READINGS OBTAINED WHILE UNIT IS OUT OF CALIBRATION.
OPERATING A PROTÉGÉ THAT IS OUT OF CALIBRATION MAY NOT ACCURATELY INDICATE ENVORONMENTAL
CONDITIONS WHICH CAN LEAD TO DEATH OR INJURY .
WARNING
IF CAL EXPIRED IS DISPLAYED UPON POWER ON START UP SEQUENCE INDICATING THE UNIT DOES NOT HAVE
VALID CURRENT CALIBRATION, PRESS THE RIGHT OPERATIONAL BUTTON TO OVERRIDE AND IMMEDIATELY
CALIBRATE THE MONITOR. A PROTÉGÉ THAT HAS NOT BEEN PROPERLY CALIBRATED CAN LEAD TO DEATH OR
INJURY.
WARNING
NEVER OPERATE A PROTÉGÉ MONITOR IN GAS MONITORING MODE WITH THE CALIBRATION ADAPTER
ATTACHED. THIS CAN CAUSE FALSE READINGS OF DETECTED GASES. FAILURE TO DO SO CAN LEAD TO DEAT H OR
INJURY.
After this sequence is complete, the Protégé will resume typical monitoring.
4.1.2. Powering Off
Press and hold both operational buttons simultaneously until the countdown timer has completed
and the LCD is blank. If the buttons are held for 5 seconds after the LCD goes blank, the Protégé
will attempt to power back on.
T
HE TIMING PARAMETER WILL VARY AS SET USING THE SCOTT GAS MONITOR SOFTWARE. REFER TO
PARAGRAPH 4.6.3 FOR INFORMATION ON HOW TO ADJUST THIS PARAMETER.
NOTE
P/N 087-0038 Rev. J 02/10
28 of 61
Page 35
Protégé Portable Gas Monitor
Instruction Manual

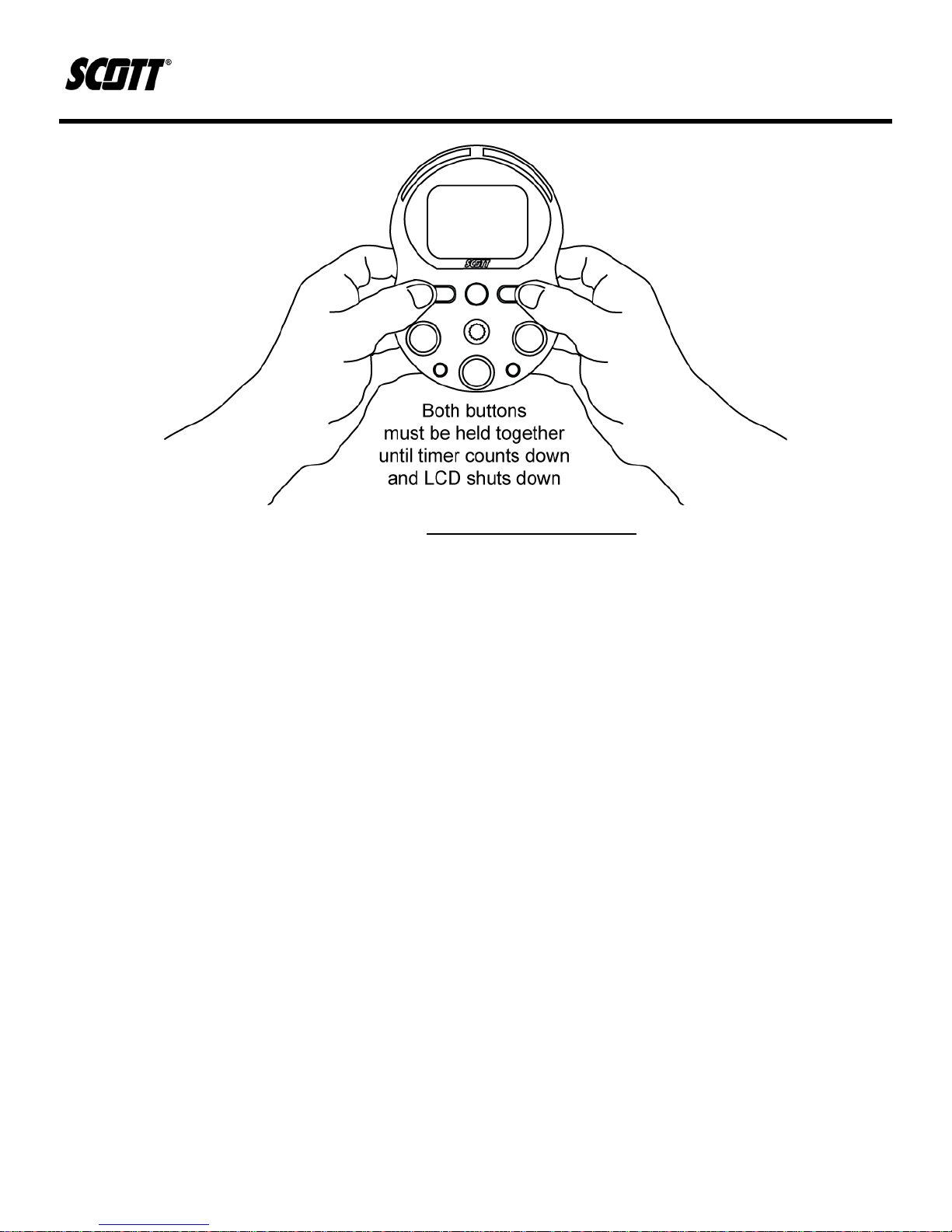

Figure 4-2. Powering Off the Protégé
P/N 087-0038 Rev. J 02/10
29 of 61
Page 36
Protégé Portable Gas Monitor
Instruction Manual
4.2. LCD Alerts and Displays
4.2.1. Gas Warning and Alar m Alerts
Both gas warnings and alarms will blink the specific gas type that is in alert. Audible, visual, and
vibrating alarms will activate and the concentration / value of the sensor in alarm will be indicated.
If a Gas Type Label blinks with no alarm present, the sensor is detecting a negative drift. Perform a
Zero Calibration to clear the drift.
If the option to Operate with Failed Sensors has been enabled using the Gas Monitor Software, the
Protégé will display FAL in place of the reading for that particular sensor. This option is not
recommended for use unless careful consideration is given to the reduced monitoring capabilities of
the Protégé and follows locally established practices.
4.2.2. Low Battery
The battery charge icon will blink and monitor will activate the visual, audible, and vibratory alarms
when a battery becomes low. Low battery conditions can be silenced by pressing the left button.
Users should immediately exit the environment and charge the Protégé as soon as a low battery
alarm is indicated.
4.2.3. Over-Range Conditions
If a sensor within the monitor is exposed to a target gas concentration that exceeds the sensor’s
range, the Protégé will activate its visual, audible, and vibratory alarms and display +++ at the
sensor’s location on the LCD. Alarms conditions will clear when the gas concentration has subsided.
WARNING
IF AN OVER-RANGE CONDITION IS ENCOUNTERED, PERFORM A BUMP TEST TO ENSURE MONITOR
FUNCTIONALITY. IF THE MONITOR FAILS THE BUMP TEST, PERFORM A FULL CALIBRATION PROCEDURE.
FAILURE TO DO SO COULD RESULT IN INACCURATE MONITORING BY THE UNIT AND CAUSE DEATH OR INJURY.
4.2.4. Low Flow Pump Warning
Low Flow Pump Warning is displayed when airflow through the pump is diminished or restricted and
could compromise accurate readings. Protégé shuts down the pump and the monitor goes into
audible, visual, and vibratory alarm while the PUMP icon flashes. After the cause of the low pump
flow is cleared, reset the pump by pressing and releasing the Left or Right button.
4.2.5. Sensor Failures
FAL will be indicated for each sensor that fails to zero or span calibrate. Should this occur,
recalibrate the monitor. If a sensor continues to fail, replace the sensor and recalibrate or contact an
authorized service center.
P/N 087-0038 Rev. J 02/10
30 of 61
Page 37
Protégé Portable Gas Monitor
Instruction Manual
4.3. Protégé Calibration and Bump Test
WARNING
OPERATING A PROTÉGÉ MONITOR THAT HAS EXCEEDED ITS CALIBRATIO N DATE CAN C AUSE FALS E READINGS OF
DETECTED GASES. READINGS OBTAINED WHILE UNIT IS OUT OF CALIBRATI ON ARE INVALID AND COULD L EAD TO
DEATH OR INJURY.
CAUTION
IF CAL EXPIRED IS DISPLAYED UPON POWER ON START UP SEQUENCE INDICATING THE UNIT DOES NOT HAVE
VALID CURRENT CALIBRATION, PRESS THE RIGHT OPERATIONAL BUTTON TO OVERRIDE AND IMMEDIATELY
CALIBRATE THE MONITOR. FAIL URE TO DO COULD RESULT IN INACCURATE MONITORING BY THE UNIT SENOSRS.
Scott Health & Safety recognizes the potential of the Protégé as a life saving device when operated
and maintained correctly. As such, verifying proper operation of the Protégé in the form of Span
calibration and daily Bump Testing is essential to ensure the Protégé performs as intended in a
potentially hazardous environment.
The frequency at which Span calibration and Bump Testing occur is best determined based on local
regulatory standards, company policies, and industry best practices. Scott Health & Safety is not
responsible for setting policies or practices.
Calibration of the Protégé occurs in two stages. Zero calibration is performed to establish baseline
readings of atmospheres that are known to be free of toxic or combustible gases. Span calibration is
performed to ensure the monitor detects target gases within specified operating parameters.
Span calibration is the adjustment of the Protégé’s response to match a known concentration of gas.
Sensors can lose sensitivity through normal degradation, exposure to high gas concentrations, or
sensor poisoning. Accurate calibration can be achieved only if specific concentrations of the correct
gases are used. Span calibration should be performed when a new sensor is installed or when the
Protégé displays CAL EXPIRED. Span calibration must be performed anytime a daily Bump Test
fails.
Bump Testing verifies the Span calibration by subjecting the Protégé to a known exposure of gas,
verifying the response is within 10% of actual concentration and verifies that all alarms work
properly. Scott Health & Safety recommends a daily Bump Test be performed prior to each day’s
use and whenever the sensor has been exposed to a high gas concentration, submerged in water,
or exposed to mechanical shock such as being dropped.
Scott Health & Safety recommends a daily Zero calibration be performed prior to each day’s use
and when the monitor displays a reading other than its baseline reading in an atmosphere known to
be free of any toxic or combustible gases. When an atmosphere is not known to be free of toxic or
combustible gases, a Zero Air calibration cylinder may be used.
P/N 087-0038 Rev. J 02/10
31 of 61
Page 38
Protégé Portable Gas Monitor
Instruction Manual
Table 4-1. When to Perform Calibration or Bump Testing
Calibration or
Test
Perform When
• Daily
Zero Calibration
• When baseline readings are incorrect or suspect
• Prior to a Span Calibration
• CAL EXPIRED is displayed
Span Calibration
• After installing new sensors
• When a Bump Test fails
• Daily
• When a sensor is exposed to a high
Bump Test
concentration of gas
• When submerged in water
• When exposed to mechanical shock, such as
being dropped
4.3.1. Zero Calibration
1) Verify ambient air is free of toxic or combustible gases. If air is not free or can not be verified
free, obtain a Zero Air gas cylinder.
2) Power on the Protégé.
3) Press and hold the right operational button until PLEASE WAIT is displayed.
WARNING
TO PREVENT AN ERRONEOUS ZERO CALIBRATION FROM OCCURRING, THE PROTÉGÉ WILL DISPLAY IS AIR
CLEAR? IF THE MONITOR IS INDICATING A GAS READING THAT IS 50% OR HIGHER OF AN ALARM SET POINT FOR
ANY OF THE GASES IT IS EQUIPPED TO DETECT. THE USER HAS 20 SECONDS TO ACKNOWLEDGE THE ALERT. IF
THE ALERT IS NOT ACKNOWLEDGED WITH IN 20 SECONDS, THE PROTÉGÉ WILL POWER OFF. DO NOT CONTINUE
WITH ZERO CALIBRATION UNTIL AIR HAS BEEN VERIFIED FREE OF TOXIC AND COMBUSTIBLE GASES. FAILURE
TO PROPERLY PERFORM A ZERO CALIBRATION MAY RESULT IN INJURY OR DEATH.
NOTE
B
ASELINE READINGS FOR A ZERO CALIB RATION ARE 0 FOR H
4) If display indicates IS AIR CLEAR?, and atmosphere has been verified free, press the right
button to start the Zero calibration.
5) Wait for Protégé to complete Zero calibration. If passed, the LCD will display APPLY GAS. If
failed, the LCD will display FAILED and the appropriate failing sensor(s).
S, CO, AND LEL, AND 20.9% FOR O2.
2
P/N 087-0038 Rev. J 02/10
32 of 61
Page 39
Protégé Portable Gas Monitor
Instruction Manual

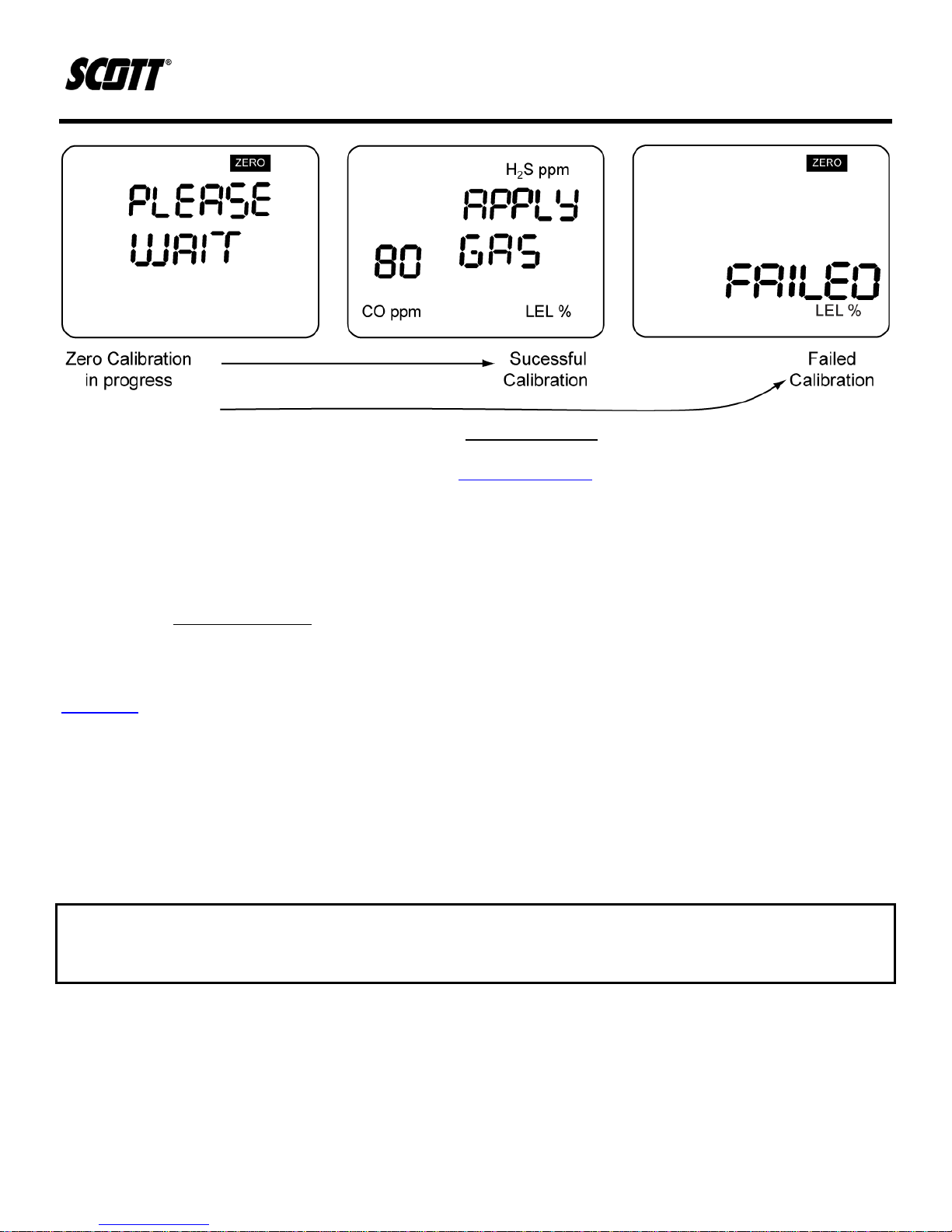

Figure 4-3. Zero Calibration
6) If Span calibration is desired, continue to Paragraph 4.3.2.
7) If Span Calibration is not desired, push either the left operational button to exit or allow 80
second timer to expire.
8) When the LCD displays CAL STOPPED, push either the left or right operational button to exit
calibration mode.
4.3.2. Span Calibration
NOTE
FOR PRECISE K-FACTORS WHEN PERFORMING A SPAN CALIB RAT ION OF A CO MBUST IB LE SENS OR, REFER TO THE
APPENDIX.
Equipment required:
• Calibration gas - verify concentration level matches detection set points of monitor and
expiration date of cylinder has not passed.
• Tygon™ tubing - 2 feet of 3/16" ID
• Regulator - set to provide flow at 0.5 liter/min
• Calibration Adapter - Included with Protégé
GAS MUST BE APPLIED AT A FLOW RATE OF 0.5 LITERS/MIN TO PERFORM SPAN CALIBRATION. FAILURE TO APPLY
GAS AT THE PROPER FLOW RATE WIL L RESULT IN FAILED OR INACCURATE CALIBRATION.
T
HE PROTÉGÉ CAN BE SPAN CALIBRATED USING EITHER INDIVIDUAL CALIBRATION GAS CYLINDERS THAT
CONTAIN ONE SPECIFIC TARGET GAS FOR THE SENSOR BEING CALIBRATED OR A GAS MIXTURE
THAT CONTAINS A MIXTURE OF EACH OF THE TARGET GASES REQUIRED TO CALIBRATE EACH OF THE SENSORS
THE INSTRUMENT IS PRESENTLY CONFIGURED TO DETECT
CALIBRATE
, THE FOLLOWING PROCEDURE MUST BE C OMPLETED FOR EACH SENSOR.
P/N 087-0038 Rev. J 02/10
CAUTION
NOTE
CYLINDER
. IF USING INDIVIDUAL GAS CYLINDERS TO SPAN
33 of 61
Page 40
Protégé Portable Gas Monitor
Instruction Manual
NOTE
THE PROTÉGÉ HAS AN AUTOM ATIC 80 SECOND TIMER WHEN T HE APPLY GAS SCREEN IS DISPLAYED. IF USERS
ARE UNABLE TO APPLY GAS TO THE SENSORS WITHIN THE
PRESSING THE RIGHT OR LEFT OPERATIONAL BUTTON WILL EXIT CALIBRATION MODE AND THE PROCEDURE
MUST BE REPEATED
.
1) Verify the concentration level of the target gas in the cylinder match the settings of the
Protégé as set using the Scott Gas Monitor software. If needed, refer to Paragraph 4.6.3 for
information on how to adjust or verify the settings.
2) Attach the regulator to the gas cylinder and verify cylinder pressure.
3) Connect Tygon tubing to both the regulator and calibration adapter.
4) With the Protégé powered on, and if not already accomplished, press and hold the right
operational button until the Zero calibration completes and APPLY GAS or the optional
password entry screen is displayed on the LCD.
NOTE
IF OPTIONAL PASSWORD SCREEN IS DISPLAYED, PERFORM STEP 5. IF NOT, PROCEED TO STEP 6.
80 SECONDS, CAL STOPPED WILL BE DISPLAYED.
5) If needed, enter the 4 digit password using the left button to scroll through the numeric
characters and the right button to accept the entry and move to the next character.
NOTE
CAL STOPPED WILL BE DISPLAYED IF LONGER THAN 30 SECONDS HAS PASSED BETWEEN CHARACTER
ENTRIES
. PRESS EITHER THE LEFT OR RIGHT BUTTON TO EXIT CALIBRATION MODE AND RESTART PROCEDURE.
6) Attach the calibration adapter to the Protégé and apply gas from the regulator.
P/N 087-0038 Rev. J 02/10
Figure 4-4. Span Calibration Setup
34 of 61
Page 41
Protégé Portable Gas Monitor
Instruction Manual
7) For single gas cylinders, wait for the display to read CAL PASSED then APPLY GAS. Attach
Tygon tubing to next cylinder and apply gas from the regulator. When final gas has been
applied and passed calibration, REMOVE GAS will be displayed. Turn off gas cylinder and
remove calibration adapter. The monitor will automatically return to gas monitoring mode.
8) For gas mixture cylinders, wait for the display to read CAL PASSED then REMOVE GAS.
Turn off gas cylinder and remove calibration adapter. The monitor will automatically return to
gas monitoring mode.
Figure 4-5. Span Calibration
4.3.3. Bump Testing
Equipment required:
• Calibration gas - verify concentration level exceeds set points of monitor and expiration date
of cylinder has not passed.
• Tygon™ tubing - 2 feet of 3/16" ID
• Regulator - set to provide flow at 0.5 liter/min
• Calibration Adapter - Included with Protégé
1) Verify the concentration level of the target gas in the cylinder exceeds alarm settings of the
Protégé as set using the Scott Gas Monitor software. If needed, refer to Paragraph 4.6.3 for
information on how to adjust or verify the settings.
2) Attach the regulator to the gas cylinder and verify cylinder pressure.
3) Connect Tygon tubing to both the regulator and calibration adapter.
4) If installed, remove optional pump from monitor and restart the monitor.
5) Attach calibration adapter to Protégé and apply gas.
P/N 087-0038 Rev. J 02/10
35 of 61
Page 42
Protégé Portable Gas Monitor
Instruction Manual
Figure 4-6. Bump Test Setup
6) Verify Protégé quickly responds to target gas by activating the visual, audible, and vibrating
alarms.
7) Verify readings on the LCD display within 10% of actual target gas concentration.
8) Turn off gas cylinder and remove calibration adapter.
WARNING
IF THE PROTÉGÉ FAILS TO ACTIVATE ALL ALARMS IN A TIMELY MANNER, THE UNIT MUST BE SERVICED PR IO R TO
USAGE. IF THE PROTÉGÉ FAILS TO READ TARGET GAS CONCENTRATION WITHIN 10%, PERFORM A SPAN
CALIBRATION. FAILURE TO DO SO COULD L EAD TO DEATH OR INJURY.
P/N 087-0038 Rev. J 02/10
36 of 61
Page 43
Protégé Portable Gas Monitor
Instruction Manual
4.4. Optional Pump Operation
The Protégé’s automatic sample draw pump is powered by the monitor’s internal battery. Typical run
time with pump is 12 hours; however, environmental conditions and alarm conditions will shorten run
time. If the pump is fixed to the monitor when the monitor is powered on, it is automatically
recognized.
Scott Health & Safety recommends using the pump only when the tubing and sample draw system
including hydrophobic and particulate filters in the probe assembly are attached to avoid possible
contamination of the pump.
Troubleshoot a poorly performing pump using Paragraph 5.3.
CAUTION
WHEN USING THE SAMPLE DRAW PUMP, ALLOW SUFFICIENT SAMPLE TIME BASED ON THE LENGTH OF SAMPLE
TUBING YOU ARE USING. ALLOW A MINIMUM OF 1 SECOND FOR EVERY FOOT OF SAMPLE TUBING AND WAIT FOR
THE GAS READINGS TO STABILIZE. FAILURE TO DO SO COULD LEAD TO INA CCURATE READINGS.
4.4.1. Installing Optional Pump with Protégé Powered Off
1) Connect the pump by inserting, at an angle, the pump's back tab into the monitor's pump
receiving tab. Rotate the pump forward until the pump sits flush with the monitor. Screw the
pump retaining screw into the threaded hole located on the front of the monitor.
P/N 087-0038 Rev. J 02/10
37 of 61
Page 44
Protégé Portable Gas Monitor
Instruction Manual
Figure 4-7. Pump Installation
2) Power on the Protégé and allow the unit to run through its start-up routine. The pump will not
yet be running.
3) Upon completion of the start-up routine, the pump will activate and BLOCK PUMP will be
displayed. To block pump inlet, place a finger over the probe. Once the test is passed,
CLEAR PUMP will be displayed.
Figure 4-8. Pump Setup
P/N 087-0038 Rev. J 02/10
38 of 61
Page 45
Protégé Portable Gas Monitor
Instruction Manual
NOTE
IF THE MONITOR FAILS TO INDICAT E CLEAR PUMP, CHECK FOR ANY POTENTIAL LEAKS IN THE CONNECTION
OF THE PUMP TO THE MONITOR OR WITHIN THE SAMPLE DRAW SYSTEM INCLUDING HYDROPHOBIC AND
PARTICULATE FILTERS IN THE PROBE ASSEMBLY
.
4) Remove finger from probe and the monitor is ready for use.
4.4.2. Installing Optional Pump with Protégé Powered On
WARNING
PUMP WILL NOT AUTOMATICALLY ACTIVATE WHEN ATTACHED TO A POWERED ON PROTÉGÉ. USERS MUST PR ESS
THE LEFT BUTTON TO BEGIN PUMP ACTIVATION. FAILURE TO ACTIVATE A PUMP WILL LEAD TO UNRELIABLE
MONITORING THAT COULD LEAD TO DEATH OR INJURY.
1) Connect the pump by inserting, at an angle, the pump's back tab into the monitor's pump
receiving tab. Rotate the pump forward until the pump sits flush with the monitor. Screw the
pump retaining screw into the threaded hole located on the front of the monitor. Refer to
Figure 4-7.
2) The pump will not yet be running. Push and hold the left button to activate the pump. Release
the left button when BLOCK PUMP is displayed.
3) To block pump inlet, place a finger over the probe. Once the test is passed, CLEAR PUMP
will be displayed. Refer to Figure 4-8.
NOTE
IF THE MONITOR FAILS TO INDICAT E CLEAR PUMP, CHECK FOR ANY POTENTIAL LEAKS IN THE CONNECTION
OF THE PUMP TO THE MONITOR OR WITHIN THE SAMPLE DRAW SYSTEM INCLUDING HYDROPHOBIC AND
PARTICULATE FILTERS IN THE PROBE ASSEMBLY
.
4) Remove finger from probe and the monitor is ready for use.
4.4.3. Disconnecting Optional Pump
1) Unscrew the pump retaining screw while continuing to hold the pump against the monitor.
2) If unit is powered on, press and hold the left button until the monitor starts displaying the
PEAK exposures.
NOTE
I
F THE PUMP ALARM SOUNDS, ACKNOWL EDGE BY PRESSING AND REL EASING THE LEFT OR RIGHT BUT TON THEN
PRESS AND HOLD THE
LEFT BUTTON UNTIL THE MONITOR STARTS DISPLAYING PEAK EXPOSURES. PEAK
EXPOSURES WILL FLASH BRIEFLY BEFORE RETURNING TO A NORMAL MONITORING DISPLAY.
3) Rotate the pump backwards until it comes off the monitor.
P/N 087-0038 Rev. J 02/10
39 of 61
Page 46
Protégé Portable Gas Monitor
Instruction Manual
4.5. Gas Interferences
There are known gas interferences to a limited number of chemical compounds. Scott H & S
attempts to identify possible gas interferences to which gas sensors may be exposed; however, not
all chemical compounds that presently exist have been tested.
Table 4-2 displays known toxic gas interferences.
NOTE
ABLE 4-2 DOES NOT SHOW, NOR SHOULD IT BE IMPLIED, THAT NO ADDITIONAL INTERFERENCES MAY OCCUR.
T
THESE SELECTIVITY RATIOS ARE USED AS GU IDES ONLY. THEY ARE NOT TO BE USED AS CALIBRATION FACTO RS.
THE GAS SPECIES’ ACTUAL CROSS-SENSITIVITIE S MAY VARY FROM THE VALUES SHOWN.
Table 4-2. Toxic Gas Interference
All values in PPM
Sensor Types
~ Approximate
< Less than
Dual Tox Sensors
</= Less than
or equal to
CO H2S H2S CO
CO </= 0.5 ~ 1 100
H2S < 3 100 100 -20
SO2 0 ~ 20 ~ 2 < 1
NO < 10 < 2 < 10 ~ 15
NO2 </= -20 ~ -20 ~ -20 ~ -25
CL2O 0 ~ -5 ~ -5
H2 < 40 < 0.2 ~ 30
HCN
HCL
P/N 087-0038 Rev. J 02/10
40 of 61
Page 47
Protégé Portable Gas Monitor
Instruction Manual
4.6. Gas Monitor Software Usage
4.6.1. Connecting Protégé to a PC
1) Start the Gas Monitor software by double-clicking the Protégé PCI icon. The icon is loaded
onto the Desktop during a typical install of the Gas Monitor Software. The Protégé PCI icon
may be located in another location if a custom installation was performed.
2) If not already accomplished, connect the AC Power Adaptor cable to the Communications
Module, connect the USB cable to the Communications Module, and connect the USB cable
to your PC USB cable port.
NOTE
IF THIS IS THE INITIAL INSTALL OF T HE COMMUNICATIONS MODULE, ALLOW THE PC TO LOAD AND RECOGNIZE
THE COMMUNICATIONS MODULE BE FORE PROCEEDING
.
3) Connect the Protégé to the communications module by sliding the connector shoe into the
back of the Protégé.
P/N 087-0038 Rev. J 02/10
41 of 61
Page 48
Protégé Portable Gas Monitor
Instruction Manual
Figure 4-9. Protégé / PC Connection
The Gas Monitor software application confirms connection between the PC and the Protégé via the
HOME tab. Displayed underneath the picture of the Protégé will be CONNECTED or PLEASE
CONNECT YOUR INSTRUMENT. Navigate through the software using the PC mouse and
keyboard.
P/N 087-0038 Rev. J 02/10
42 of 61
Page 49
Protégé Portable Gas Monitor
Instruction Manual
4.6.2. Software Description
The Scott Gas Monitor software provides a PC interface to the Protégé to download the data log,
adjust settings, and establish alarm set points. Navigation of the software is accomplished using the
PC mouse and keyboard. The four tabs located at the top of the interface are HOME, SETTINGS,
SET CLOCK, and VIEW LOG.

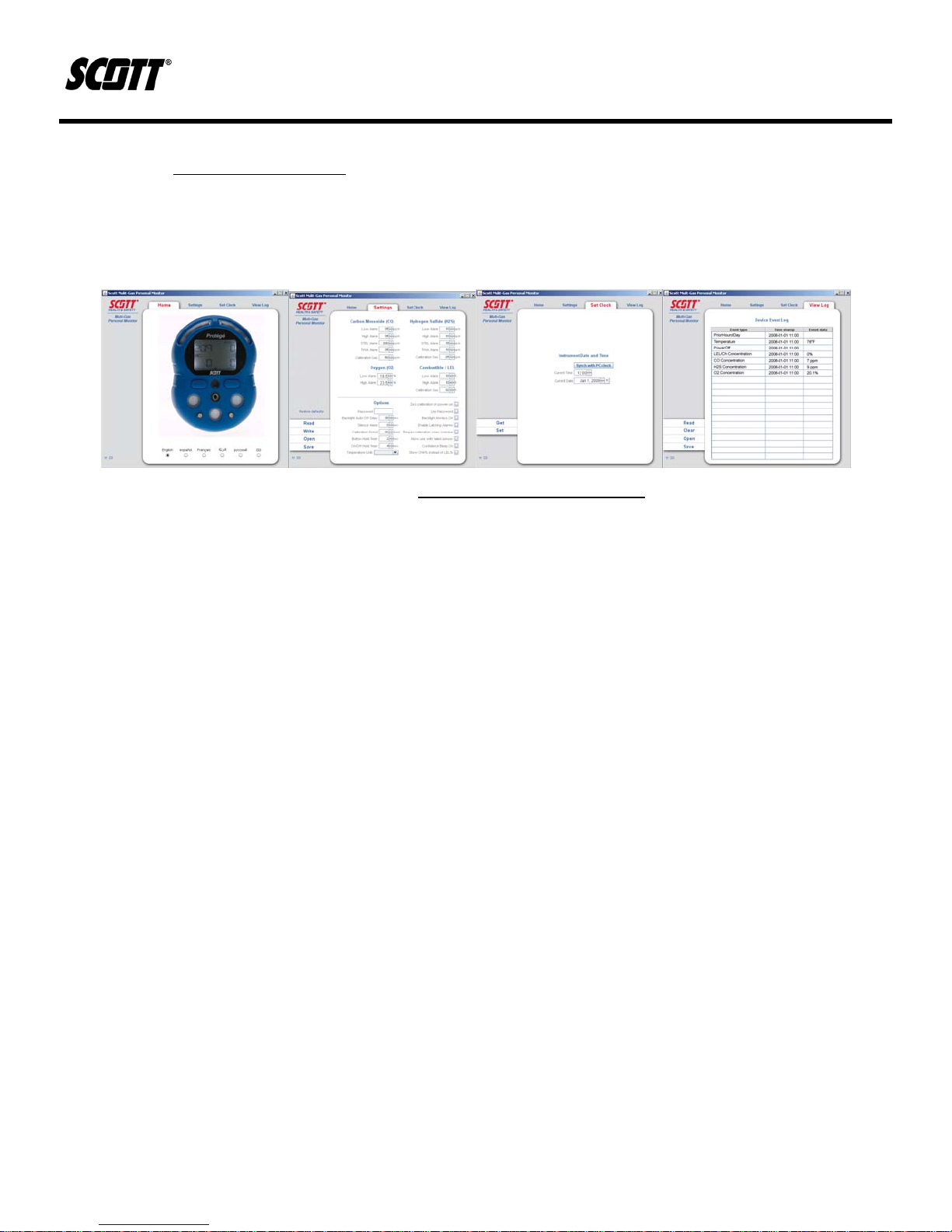

Figure 4-10. Gas Monitor Software Tabs
The HOME tab is the default screen that appears when starting the Gas Monitor software. Users
may select the language to display and see the status of the connection to the Protégé from this tab.
The SETTINGS tab provides a number of different options for the user. Alarm set points can be
changed, a password can be inserted, timers can be defined and the length of the LCD backlight
can be configured all from the settings tab.
The SET CLOCK tab is used to set the date and time of the Protégé. There is an option to
synchronize the time of the Protégé with the PC for accurate time keeping ability.
The VIEW LOG tab does not have any configurable user options. It displays the internal data log of
events from the Protégé. This data can be read, saved, cleared, and recalled from previously saved
files.
P/N 087-0038 Rev. J 02/10
43 of 61
Page 50
Protégé Portable Gas Monitor
Instruction Manual
4.6.3. Changing Alarm Settings
Access the SETTINGS tab to change alarm settings. The following options are available to users.
RESTORE DEFAULT - Restores all monitor settings to the factory default.
READ - Uploads current monitor settings for review or modification.
WRITE - Downloads parameter changes made within the Gas Monitor software to the connected
Protégé.
C
HANGING SETTINGS WITHIN THE GAS MONITOR SOFTWARE DOES NOT CHANGE THE SETTINGS ON THE
PROTÉGÉ UNTIL WRITE HAS BEEN ACCOMPLISHED.
OPEN - Opens and displays previously saved Protégé parameter setting profiles.
SAVE - Saves Protégé parameter setting profiles.
P/N 087-0038 Rev. J 02/10

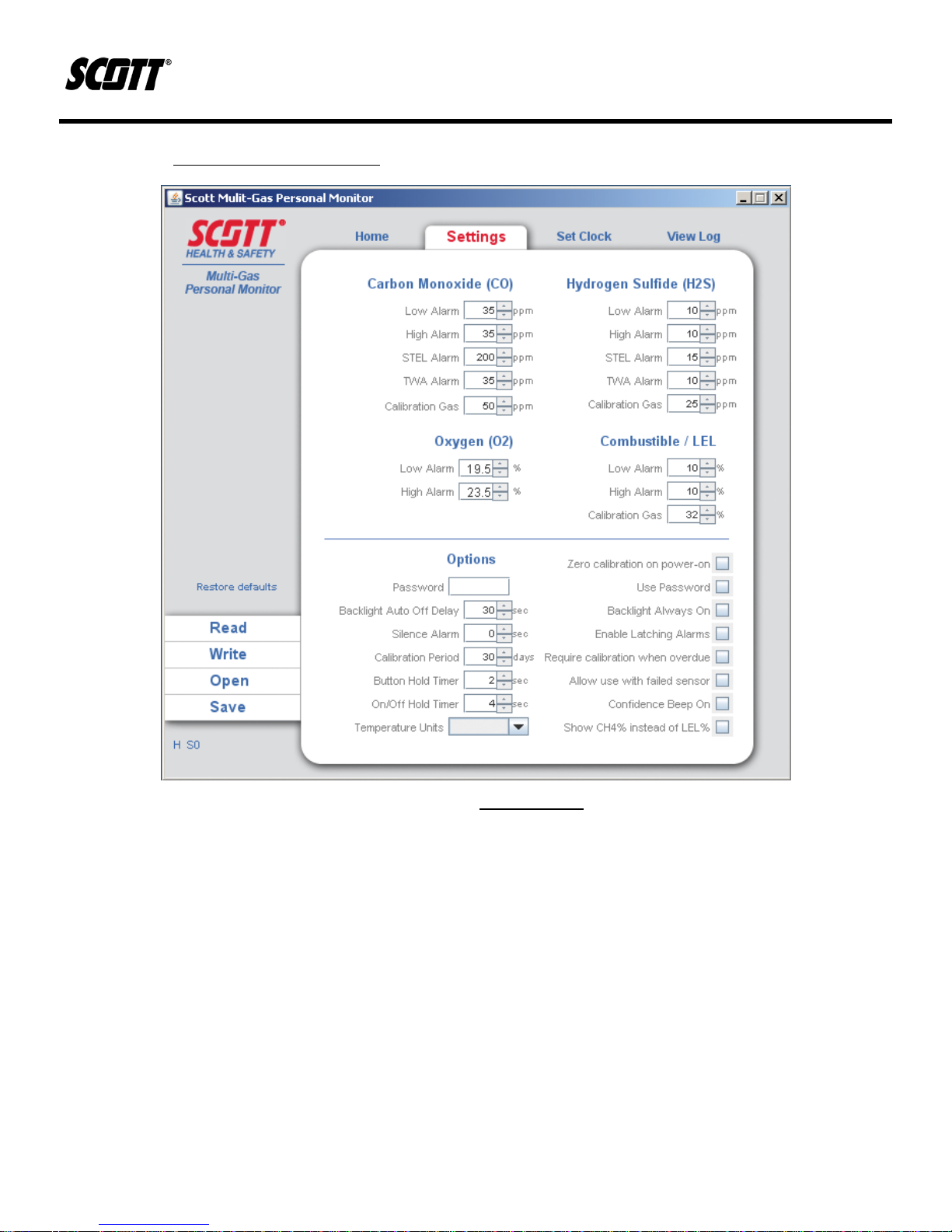

Figure 4-11. Settings Tab
NOTE
44 of 61
Page 51
Protégé Portable Gas Monitor
Instruction Manual
CO, H2S, O2, and Combustible / LEL - Use the up and down arrows to adjust set points for each
alarm as desired.
OPTIONS -
Password - A 4 digit password may be used to limit entry into the Span Calibration of the
Protégé. Select the checkbox that says USE PASSWORD and enter a 4 digit number into the box.
Once written to the Protégé, all users who attempt to Span Calibrate the unit will require this
password. The default setting is unchecked.
Enable Latching Alarms - When checked, this option requires the user to acknowledge all
alarms even when the target gas concentration returns to a non-alarm concentration level. The
default setting is unchecked.
On/Off Hold Timer - sets the required time in seconds for users to hold the operational
buttons when powering on and off the Protégé. The default setting is 4 seconds.
Refer to Table 4-3 for all default settings and ranges of each optional setting.
P/N 087-0038 Rev. J 02/10
45 of 61
Page 52
Protégé Portable Gas Monitor
Instruction Manual
4.6.4. Setting Date and Time
Access the SET CLOCK tab to change alarm settings. The following options are available to users.
Synch with PC Clock - Allows users the option to synchronize the Protégé’s internal clock with the
PC clock.
Get - Reads the time setting of the Protégé presently connected and displays it on the Gas Monitor
Set Clock dialogue box.
Set - Uploads the time displayed on the Gas Monitor Set Clock dialogue box to the Protégé
presently connected.
P/N 087-0038 Rev. J 02/10
Figure 4-12. Set Clock Tab
46 of 61
Page 53
Protégé Portable Gas Monitor
Instruction Manual
4.6.5. View Data Log
Access the VIEW LOG tab to view downloaded log data from the Protégé. The following options are
available to users.
Read - Reads the data log of the Protégé presently connected.
Clear - Clears the data log in the Protégé presently connected.
Open - Opens previously saved data log text files.
Save - Saves data log data to a text file for future use.
P/N 087-0038 Rev. J 02/10
Figure 4-13. View Log Tab
47 of 61
Page 54
Protégé Portable Gas Monitor
Instruction Manual
4.6.6. Software Settings
Table 4-3 provides the available and default software settings for the Scott Gas Monitor Software.
Table 4-3. Software Settings
Range
Factory
Default
Carbon Monoxide Hydrogen Sulfide
CO Low Alarm
CO High
Alarm
CO STEL
Alarm
CO TWA
Alarm
CO Calibration
Gas
Concentration
0 to 500
ppm
0 to 500
ppm
0 to 250
ppm
0 to 100
ppm
0 to 999
ppm
35 ppm
35 ppm
200 ppm
35 ppm
50 ppm
Oxygen Combustible
O2 Low Alarm 0 to 25% 19.50%
O2 High Alarm 0 to 25% 23.50%
Range
H
S Low
2
Alarm
H2S High
Alarm
H2S STEL
Alarm
H2S TWA
Alarm
H2S
Calibration
Gas
Concentration
LEL Low
Alarm
LEL High
Alarm
LEL
Calibration
Gas
Concentration
Factory
Default
0 to 200 ppm 10 ppm
0 to 200 ppm 10 ppm
0 to 15 ppm 15 ppm
0 to 15 ppm 15 ppm
0 to 500 ppm 25 ppm
0 to 60% 10.00%
0 to 60% 10.00%
0 to 70% 32% LEL
Password 1234
Backlight Auto
Off/Delay
0-255 secs 30 secs
Silence
Latching
Yes/No No
Alarms
Calibration
Period
1-180 days 30 days
Button Hold 1-4 secs 2 secs
P/N 087-0038 Rev. J 02/10
Options
Zero
Calibration
upon Power
On/Off Off
On
Use Password Yes/No No
Back Light
Always On
Yes/No No
Enable
Latching
Yes/No No
Alarms
Require
Calibration
Yes/No No
when Overdue
48 of 61
Page 55
Protégé Portable Gas Monitor
Instruction Manual
Range
Factory
Default
Range
Factory
Default
Allow Use with
On/Off Hold 0-9 secs 2 secs
Failed
Yes/No No
Sensor**
Temp Units
Fahrenheit/
Celsius
Fahrenheit
Confidence
Beep On
Yes/No No
Show CH4%
Instead of
Yes/No No
LEL% (Methane)
**-WARNING
USE OF THIS OPTION IS DISCOURAGED. OPERATING THE PROTÉGÉ WITH A FAILED SENSOR WILL NOT PROVIDE
FULL MONITORING CAPABILITIES. USE THIS OPTION ONLY AFTER CAREFUL CONSIDERATION AND
UNDERSTANDING OF THE MONITOR’S REDUCED MONITORING CAPABILITIES AND FOLLOWING LOCAL
REGULATIONS. FAILURE TO UNDERSTAND HOW OPERATING THE PROTÉGÉ WITH A FAILED SENSOR MAY LEAD TO
DEATH OR INJURY.
P/N 087-0038 Rev. J 02/10
49 of 61
Page 56
Protégé Portable Gas Monitor
Instruction Manual
This Page Left Intentionally Blank
P/N 087-0038 Rev. J 02/10
50 of 61
Page 57
Protégé Portable Gas Monitor
Instruction Manual
5. Maintenance
5.1. Battery
The Protégé comes installed with a rechargeable lithium ion battery that must be replaced at the
factory if needed. Contact Scott Health & Safety if needed.
5.2. Sensor Replacement
Protégé units will come installed in one of four sensor configurations.
A single unit will come installed with an LEL sensor.
A 2 gas unit will come installed with an O2 sensor and an LEL sensor.
A 3 gas unit will come installed with an O2 sensor, LEL sensor and either a CO or H2S sensor.
A 4 gas unit will come installed with an O2 sensor, LEL sensor, and a dual tox H2S/CO sensor.
Sensors may be replaced with like sensors or dummy plug with another dummy plug. Dummy plugs
and sensors are not interchangeable.
Using a dummy plug, the Protégé can be configured with an O2 sensor and LEL sensor, or just an
LEL sensor.
To replace a sensor, perform the following.
Equipment Required
• Replacement Sensor or Dummy Plug
• T8 Torx Driver
1) Set or verify the Protégé is turned off.
2) Unscrew and remove the 7 Torx head screws from the back of the Protégé. Refer to Figure
5-1.

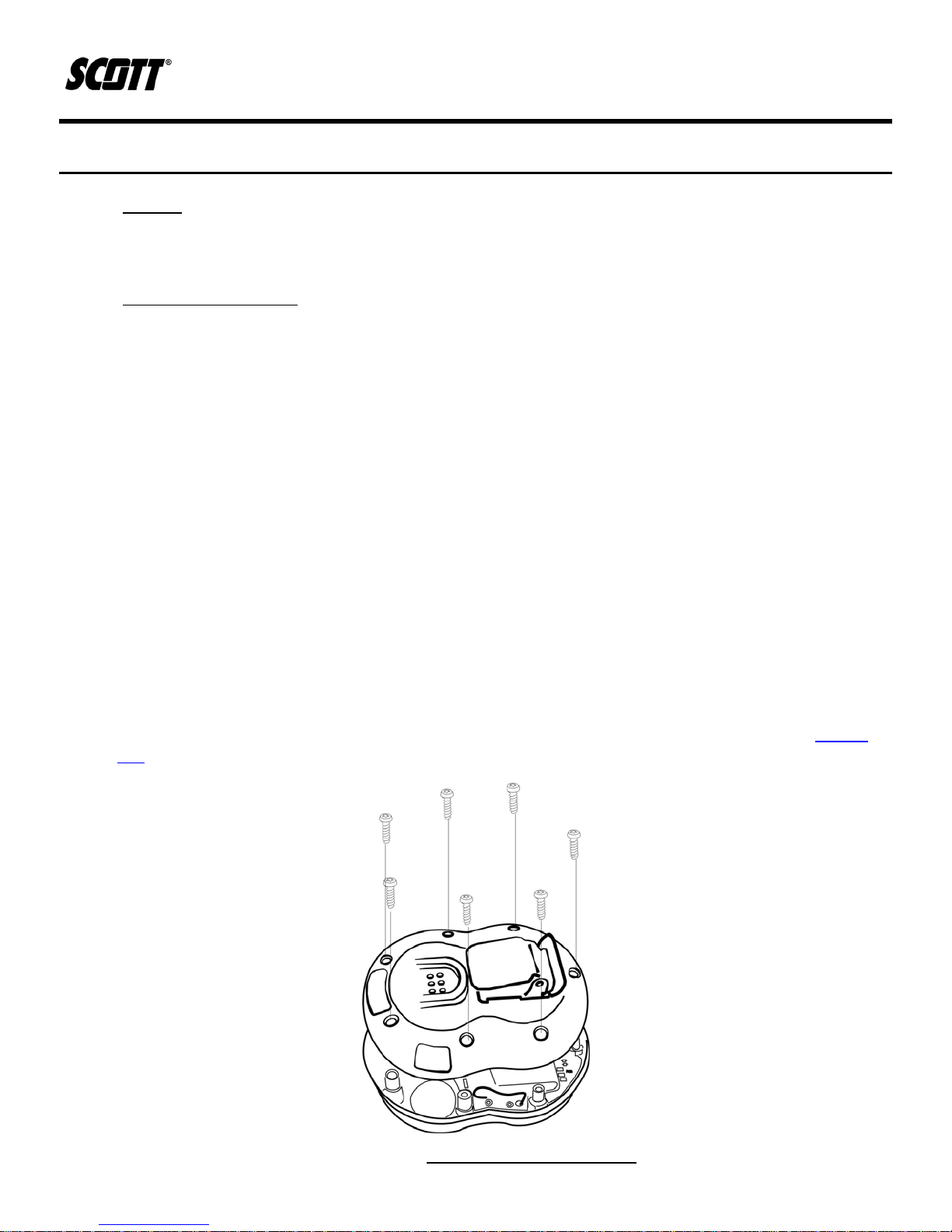

Figure 5-1. Removing Protégé Cover
P/N 087-0038 Rev. J 02/10
51 of 61
Page 58
Protégé Portable Gas Monitor
Instruction Manual
3) Lift and firmly pull housing cover apart. Do not pull apart at an angle or by twisting.
4) Rotate the sensor PC board over to expose the three sensors.
5) Unplug desired sensor and replace with new sensor. Refer to Figure 5-2
.
NOTE
E
ACH SENSOR TYPE HAS A UNIQUE POSITION AND PIN LOCATIONS TO PREVENT SENSORS BEING INSTALLED IN
WRONG LOCATIONS
.

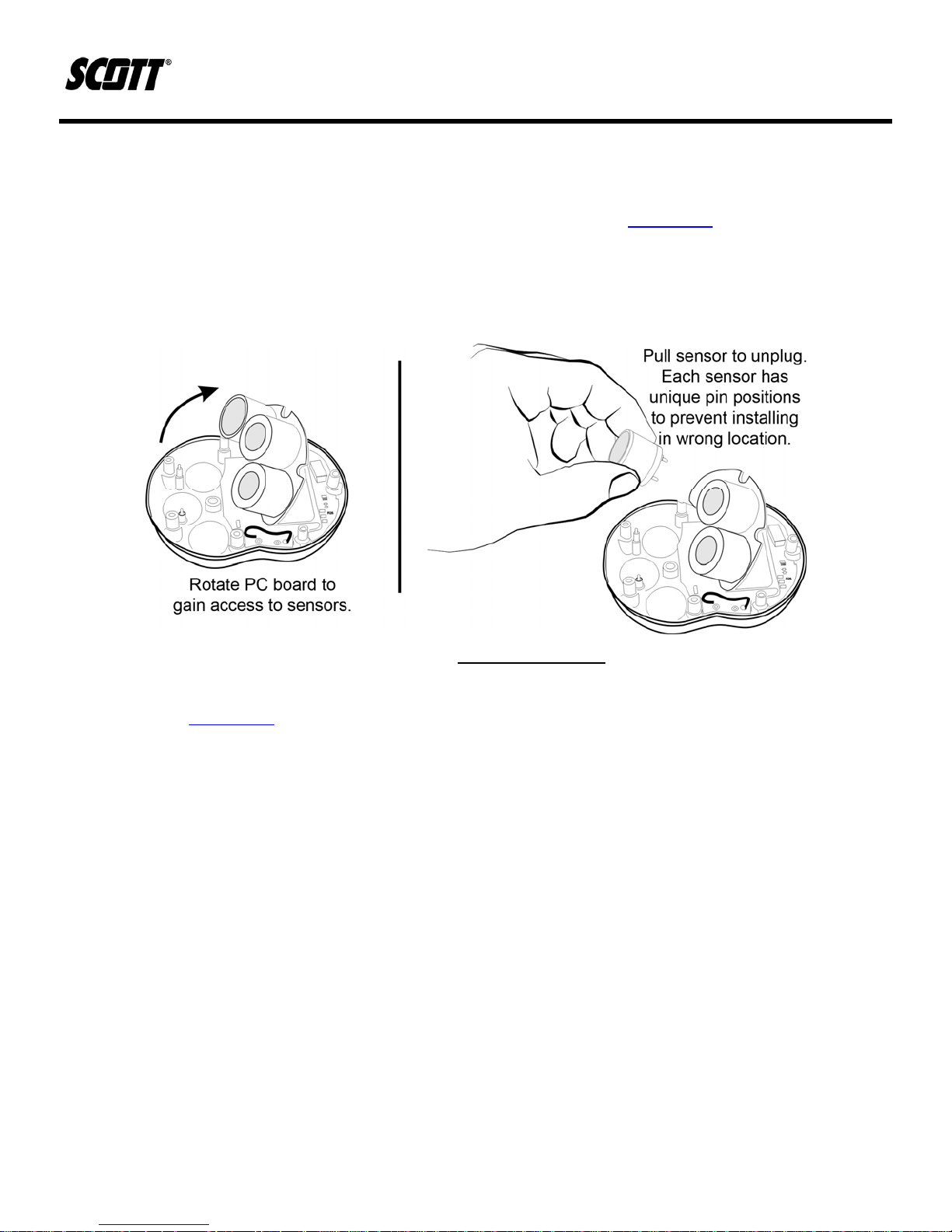

Figure 5-2. Removing Sensor
6) Rotate PC board back to its original position aligning the 2 pins to their receptacle socket.
Refer to Figure 5-3.
P/N 087-0038 Rev. J 02/10
52 of 61
Page 59
Protégé Portable Gas Monitor
Instruction Manual
Figure 5-3. Pin Alignment
7) Replace back cover and install 7 Torx screws. Hand tighten the screws taking care not to
over torque as this can cause damage to the Protégé housing.
8) Use the Scott Gas Monitor software to set or verify settings for the newly installed sensor.
Refer to Paragraph 4.6.3 for changing alarm set points.
9) Perform Zero and Span calibrations of the Protégé in accordance with Paragraph 4.3.1.
P/N 087-0038 Rev. J 02/10
53 of 61
Page 60
•
•
•
5.3. Pump Troubleshooting
Condition Suggested Actions
Low flow alarm
Unexpected noise coming from
pump
Pump does not run when activated
Protégé Portable Gas Monitor
Instruction Manual
Table 5-1. Pump Troubleshooting
Check for obstructions, kinks in the hose,
or other blockage
• Verify no moisture has entered the hose or
pump
• Unscrew probe assembly and replace
filter(s) in probe
• Clean pump per Paragraph 5.4
Verify no moisture has entered the hose or
pump
• Clean pump per Paragraph 5.4
• Replace pump
Verify no other alarms are active. Active
alarms may inhibit pump from powering on
• Replace pump
P/N 087-0038 Rev. J 02/10
54 of 61
Page 61
Protégé Portable Gas Monitor
Instruction Manual
5.4. Pump Cleaning Procedure
The Protégé’s pump requires periodic cleaning to ensure optimum performance. The pump may be
cleaned as part of a preventative maintenance schedule, which will depend on the frequency of
usage and the environmental conditions under which the pump is used.
Perform the pump-cleaning procedure if:
• The pump fails the start-up flow test.
• The instrument periodically goes into Low Flow Alarm without apparent reason.
• The pump makes a chattering noise during operation.
• The sample draw reading indicates less than 300 cc/min (0.3 Lpm).
To clean the optional pump assembly, perform the following.
Equipment Required:
• 10ML Syringe (077-0422)
• Tygon Tubing (40011392)
• T8 Torx head screw driver (073-0324)
• Isopropyl Alcohol (IPA)
• Canned compressed air (Electronic Grade)
1) Using the T8 Torx head driver, remove the four Torx head screws located on the back of the
pump assembly.
P/N 087-0038 Rev. J 02/10

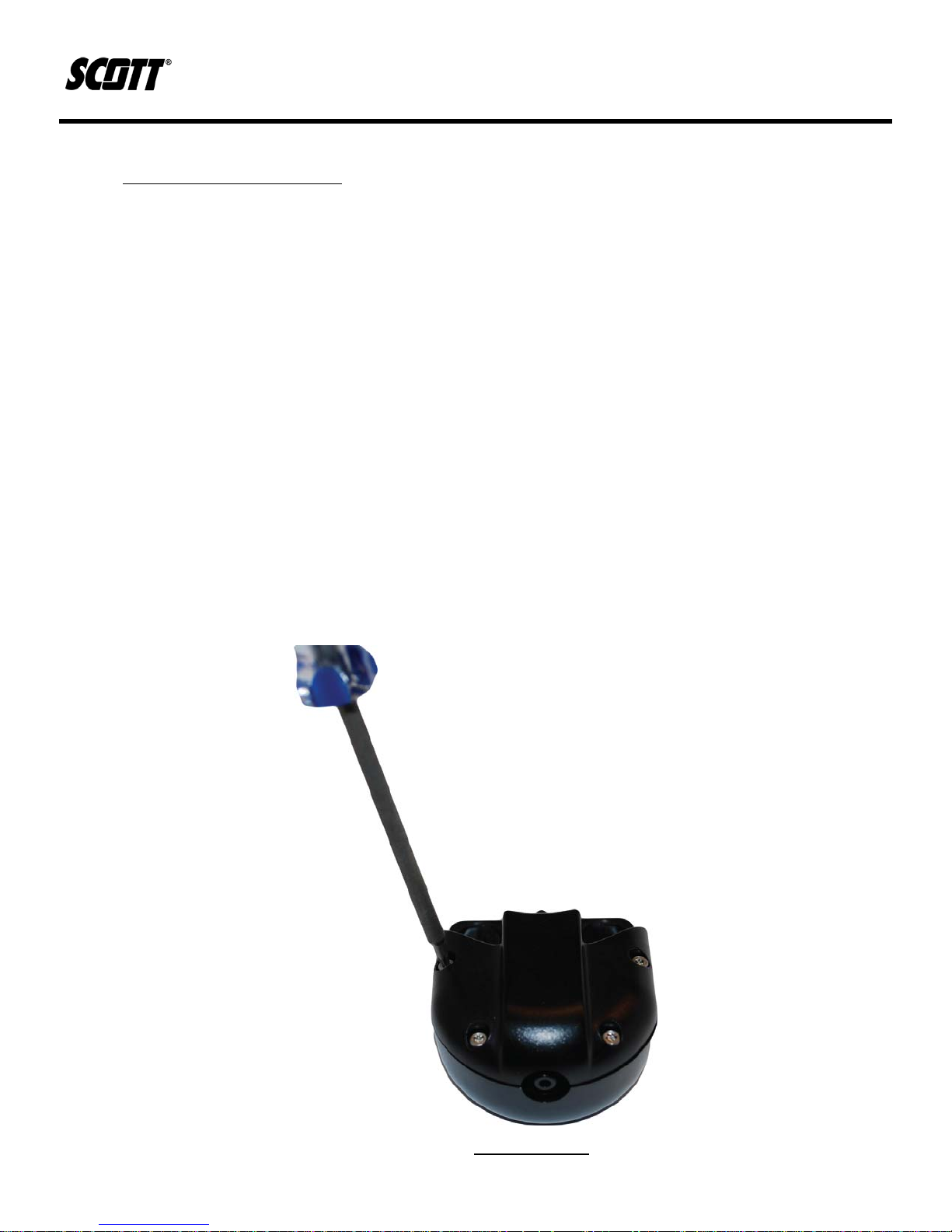

Figure 5-4. Pump Screws
55 of 61
Page 62
Protégé Portable Gas Monitor
Instruction Manual
2) Lift the back cover off the pump enclosure and remove the pump retaining plate. This allows
access to the pump. Gently lift the pump out of the pump enclosure.

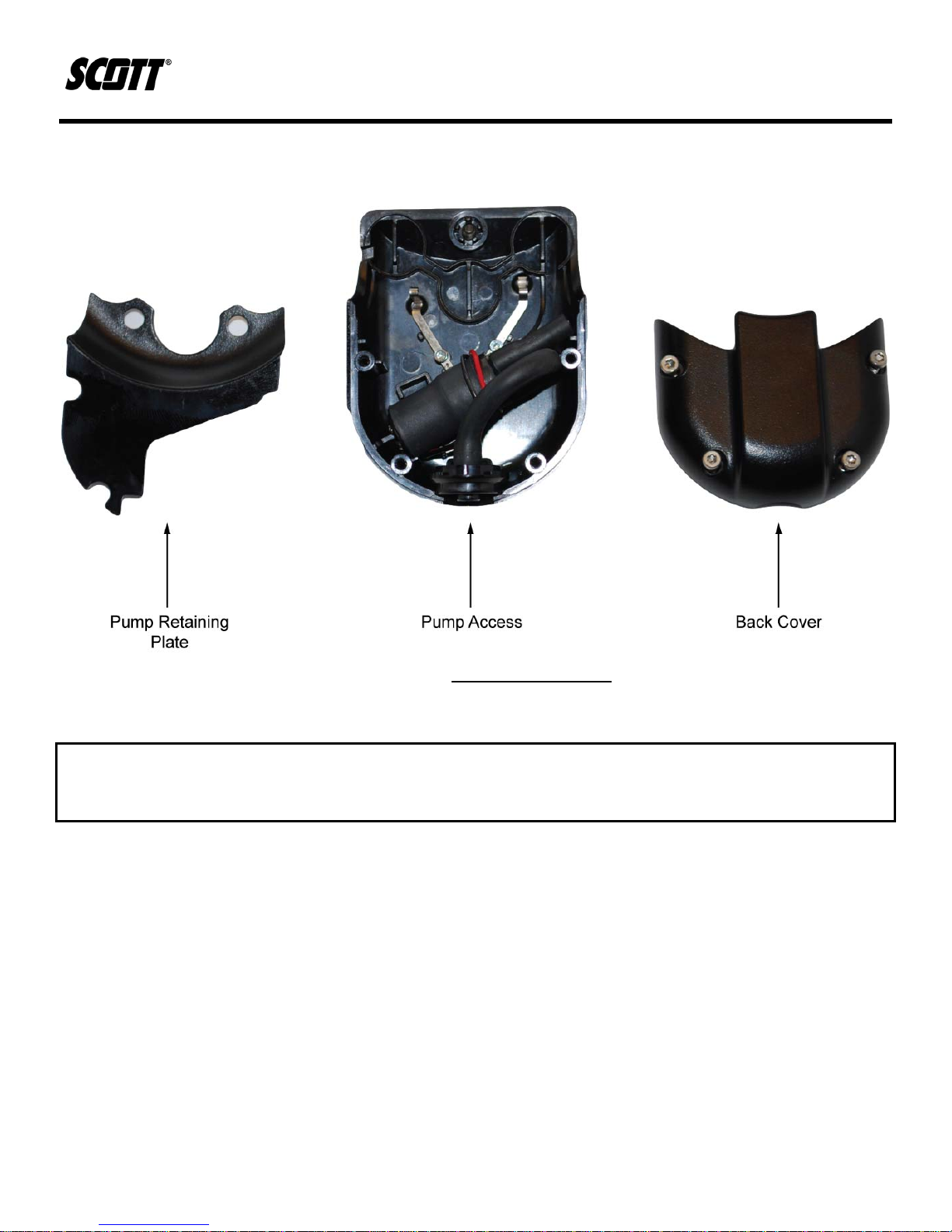

Figure 5-5. Pump Disassembly
3) Carefully remove the tubing from the pump ports.
CAUTION
USE ONLY THE MINIMUM FORCE NE CESSARY TO REMOV E HOSES FROM PORTS . PUMP PORTS WILL BREAK EASILY
IF EXCESSIVE FORCE IS USED.
NOTE
TO EASILY IDENTIFY HOSES FOR REINSTALLATION, ATTACH LOCALLY GENERATED LABELS TO THE HOSES. THE
SHORT HOSE IS THE OUTLET AND THE LONG HOSE IS THE INLET
.
P/N 087-0038 Rev. J 02/10
56 of 61
Page 63
Protégé Portable Gas Monitor
Instruction Manual

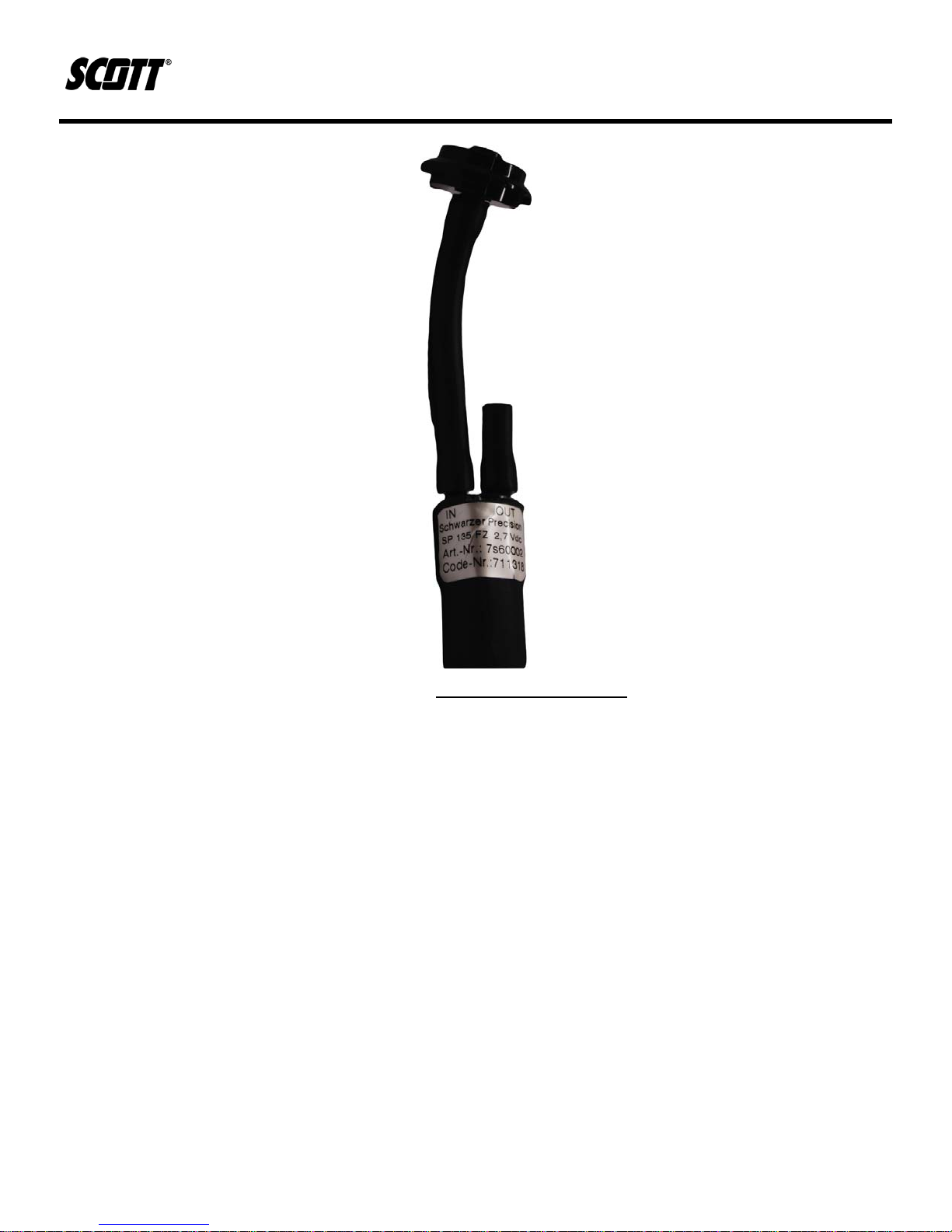

Figure 5-6. Pump Ports and Hoses
4) Connect a piece of the Tygon tubing to the syringe and draw about 3ml of isopropyl alcohol
into the tubing and syringe.
5) Connect the syringe and Tygon tubing to the INLET port.
6) Connect another piece of Tygon tubing to the OUTLET port and run the Tygon tubing to a
catch basin such as a small cup or trashcan.
P/N 087-0038 Rev. J 02/10
57 of 61
Page 64
Protégé Portable Gas Monitor
Instruction Manual

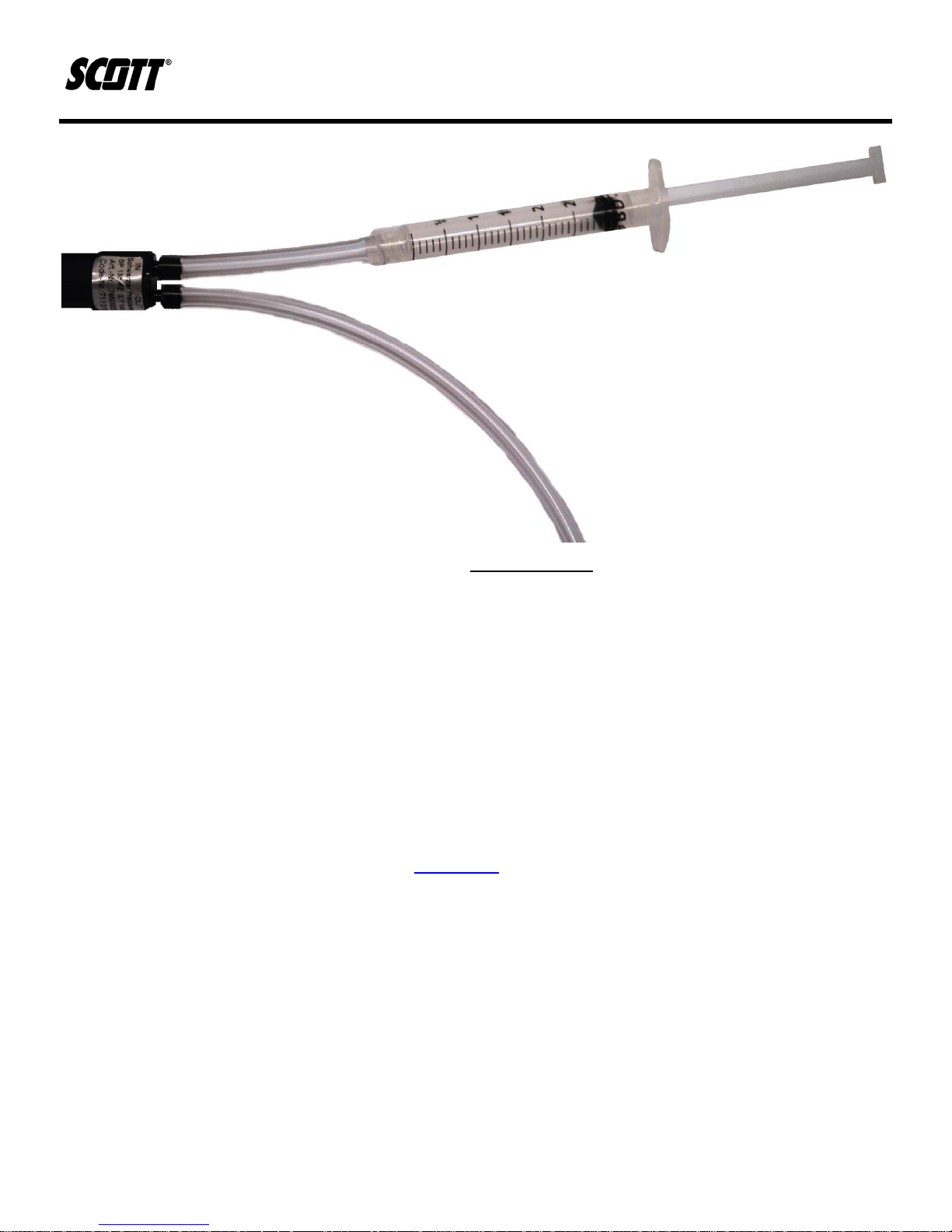

Figure 5-7. Syringe Set-up
7) Slowly inject the alcohol through the pump by pressing the plunger on the syringe.
8) Once the alcohol is inside the pump and tubing, pump the syringe plunger in and out 5-7
times. Then depress the syringe plunger completely to eject the alcohol from the pump.
9) Carefully disconnect the Tygon tubing from the pump ports.
10) Use the can of compressed air to blow the excess alcohol from the pump. The thin tube that
comes with the can of air may be helpful in directing the air stream into the pump ports. The
pump should make an audible whir as it spins.
11) Re-attach the pump tubing to the INLET (long) and OUTLET (short) ports.
12) Place the pump assembly into the enclosure with the ports positioned over top of one
another. The INLET port should be higher than the OUTLET port. Verify the wires are routed
on top of the assembly as shown in Figure 5-8
.
P/N 087-0038 Rev. J 02/10
58 of 61
Page 65
Protégé Portable Gas Monitor
Instruction Manual
Figure 5-8. Pump Wiring
13) Insert the pump retaining plate.
14) Place the pump inlet barb into the pump enclosure groove.
Figure 5-9. Pump Reassembly
15) Gently place the back cover onto the pump enclosure and install the four (4) Torx head
screws. Follow an X pattern to ensure that the enclosure halves are seated together evenly.
DO NOT OVER TIGHTEN THE SCREWS. OVER TIGHTENING THE SCREWS WILL STRIP THE HOLES IN THE
ENCLOSURE.
16) Install pump onto an operational Protégé and verify proper flow rate is achieved.
P/N 087-0038 Rev. J 02/10
CAUTION
59 of 61
Page 66
Protégé Portable Gas Monitor
Instruction Manual
5.5. Parts and Accessories List
Description Part#
Combustible Sensor 093-0231
Oxygen Sensor 093-0232
CO/H2S sensor 093-0230
CO sensor 093-0470
H2S sensor 093-0471
Combustible sensor (E2V) 093-0524
Filter Replacement Pack 096-3249
Foam pads - battery 023-0022
O-ring 009-0050
Foam Pad-LCD 023-0024
LCD Replacement Assembly 096-3247
Pump 096-3259
Calibration Cup 074-0547
Torx Tool #8 073-0324
Dummy Plug 074-0558
Portable Gas Detection CD 096-3366
Quick Guide 062-0026
Pump Kit 096-3271
Alligator Clip and screw 096-3278
Multi-Charger 096-3283
5.6. Scott Repairs
For quick and effective service of your instrumentation, and to reduce time spent on repairs, the
SCOTT Instruments Service Department requires a Return Maintenance Authorization number be
issued prior to any product being shipped for service repairs.
P/N 087-0038 Rev. J 02/10
60 of 61
Page 67
Protégé Portable Gas Monitor
Instruction Manual
Appendix
Combustible Sensor K-Factors
The table lists K-factors referenced to methane calibration. The factors are the typical ratios of the
response to the listed gases relative to the response to methane. The values are typical, but will
vary from sensor to sensor and over the lifetime of a given sensor. When a gas other than the
calibration gas is detected, divide the reading by the corresponding factor to estimate the actual gas
concentration. For example, propane may be detected by a Protégé calibrated with methane. If the
reading is 32% LEL: 32% LEL Methane indicated/0.65 = 49% LEL of propane, estimated. Generally,
if there is a potential for methane in the operating environment, the instrument should be calibrated
with methane. If there also is a potential for other gases in the operating environment, the LEL alarm
level should be adjusted according to the lowest K-factor of the expected gases. For example, if
either methane or propane may be present, and the desired alarm is 25% LEL, calibrate the
instrument with methane and set the alarm level at (25% x 0.65 = 16% LEL). For best accuracy,
calibrate the Protégé with a gas similar to the monitored target gas.
Known Gas Present K-Factor
n-Butane 0.6
Methanol 1.04
Ethane 0.8
Hydrogen 1.1
Methane 1
Propane 0.65
n-Pentane 0.5
n-Hexane 0.45
n-Octane 0.4
Ethanol 0.8
Isopropanol 0.69
Acetone 0.7
Ammonia 1.3
Toluene 0.35
Gasoline 0.6
Isobutanol 0.53
Xylene 0.49
Styrene 0.46
P/N 087-0038 Rev. J 02/10
61 of 61
Page 68
Thank you for reading this data sheet.
For pricing or for further information, please contact us at our UK Office, using the details
below.
UK Office
Keison Products,
P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England.
Tel: +44 (0)330 088 0560
Fax: +44 (0)1245 808399
Email: sales@keison.co.uk
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the
suitability of this product.
Loading...
