Scotsman Ice Machine CME500 Parts List

Download
CME500 SERVICE PARTS
This section contains the parts illustrations and parts lists for the CME500.
CME500 ice machines are manufactured in both 115 volt, 60 cycle and 220 volt, 50 cycle. When ordering electrical parts, be certain to match the voltage to the ice machine.
Example: CME500AE-1A is a 115 volt, 60 cycle machine.
Beginning with 1994 production, the fan motor bracket and condenser shroud were changed.
When ordering parts, to avoid costly delays and errors, give the part number, the complete description as shown in the list, and the quantity of each part or assembly required.
TABLE OF CONTENTS
Exterior Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Interior Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Air Cooled Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Water Cooled Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Water System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CME500 SERVICE PARTS
CABINET ASSEMBLY
ITEM PART NUMBER NUMBER DESCRIPTION
1 A32159-001 Top Panel, Painted
A32159-002 Top Panel, S. S. 2 03-1417-03 Lockwasher 3 03-1531-01 Screw 4 A32162-001 Right End Panel, Paint
A32162-002 Right End Panel, S.S.
5. 03-1417-03 Lockwasher 6 03-1531-01 Screw 7 03-1417-03 Lockwasher 8 03-1404-12 Screw 9 A32161-001 Service Panel, Painted
A33946-002 Service Panel, gray 10 03-0271-00 Speed Nut 11 15-0711-01 Emblem 12 A32160-001 Front Panel, Painted
A32160-002 Front Panel, S.S.
ITEM PART NUMBER NUMBER DESCRIPTION
13 03-1406-04 Nut 14 15-0411-00 Strike 15 A32169-001 Front Support 16 02-0836-00 Cabinet Catch 17 A32163-001 Left End Panel, Paint
A32163-002 Left End Panel, S.S. 18 03-1417-03 Lockwasher 19 03-1531-01 Screw 20 A32161-001 Service Panel, sandalwood
A33946-002 Service Panel, gray 21 03-1404-12 Screw 22 03-1412-03 Lockwasher 23 03-1417-03 Lockwasher 24 03-1531-01 Screw 25 A32202-001 Back Panel, painted
A32202-002 Back panel, stainless
February 1994
Page 2
CME500 SERVICE PARTS
CABINET INTERIOR
ITEM PART NUMBER NUMBER DESCRIPTION
1 A32166-015 Junction Box Bracket 2 03-1645-01 Screw 3 A32210-001 Support Brace 4 A32158-001 Retainer 5 02-2867-01 Splash Panel 6 A35671-001 Evaporator Bracket, Left 7 A32172-001 Evaporator Bracket, Right 8 02-3246-01 Evaporator Plate Cover 9 03-0727-09 Thumbscrew 10 A32153-001 Base 11 A32262-001 Bin Thermostat Bracket 12 03-0727-09 Thumbscrew 13 03-1531-02 Screw
December 2003
Page 3
r
CME500 SERVICE PARTS
AIR COOLED REFRIGERATION
ITEM PART NUMBER NUMBER DESCRIPTION
1 11-0479-21 Fan control 2 02-3333-01 Fan motor bracket
18-3739-01 Fan motor bracket (-12L only)*
3 18-5105-11 115v Fan Motor
18-5105-04 220v 50 Hz Fan motor 4 18-3732-01 Fan Blade 5 A35932-001 Fan shroud 5a A35939-001 Fan shroud top
A32170-001 Fan shroud (-12L only)* 6 18-3709-01 Condenser 7 03-1404-07 Screw, #6 x 3/8 8 03-1645-01 Screw, 1/4 - 20 x 1/2
03-1410-03 Lockwasher
03-1407-05 Washer 9 02-3231-01 Hot gas valve filter (-12L only)* 10 12-2300-03 Hi Temp Cut Out 11 12-2417-21 115v Hot Gas Valve with coil
12-2417-23 220v, 50 Hz Hot gas valve coil
*Only used on units with serial numbers ending in -12L.
February 1994
Page 4
ITEM PART NUMBER NUMBER DESCRIPTION
12 18-8721-21 115v Compressor, includes drie
18-8711-50 Overload for 60 Hz 18-8721-22 220-240/50/1 Compressor
18-8721-50 Overload for 50 Hz 13 A30296-020 Evaporator 14 18-2200-28 Grommet 15 18-2200-27 Sleeve 16 03-1407-07 Washer 17 03-1405-20 Screw 18 16-0832-20 Lo side access valve (w/caps) 19 16-0832-21 Hi side access valve (w/caps) 20 16-0832-02 Stem cap
16-0832-03 Core cap 21 02-3319-02 Drier 22 A32975-001 Foam Filter 23 A36067-001 TXV insulation 24 16-0867-21 TXV 25 11-0485-21 Hi Pressure Cut Out Switch 26 16-0843-01 Distributor
CME500 SERVICE PARTS
WATER COOLED REFRIGERATION
22
12
26
10
24
23
18,20
25
1
5
2
11
9
13
3
4
8
19,20
21
14,15,16,17
6
7
ITEM PART NUMBER NUMBER DESCRIPTION
1 16-0401-00 Brass elbow 2 A32244-001 Drain assembly 3 A35588-001 Bracket for valves 4 03-0571-02 Screw 5 03-1403-14 Screw 6 18-3306-25 Condenser 7 03-1682-01 Clamp 8 03-1645-01 Screw, 1/4 - 20 x 1/2
03-1417-08 Lockwasher 9 02-3231-01 Hot gas valve filter (-12L only)* 10 12-2300-03 Hi Temp Cut Out 11 12-2417-21 115v Hot Gas Valve with coil
12-2417-23 220v, 50 Hz Hot gas valve 12 18-8721-21 115v Compressor, includes drier
18-8711-50 Overload for 60 Hz comp.
18-8721-22 220/240/50/1 Compressor
ITEM PART NUMBER NUMBER DESCRIPTION
13 A30296-020 Evaporator 14 18-2200-28 Grommet 15 18-2200-27 Sleeve 16 03-1407-07 Washer 17 03-1405-20 Screw 18 16-0832-20 Lo side access valve (w/caps) 19 16-0832-21 Hi side access valve (w/caps) 20 16-0832-02 Stem cap
16-0832-03 Core cap 21 02-3319-02 Drier 22 11-0478-01 Water regulating valve 23 A36067-001 TXV insulation 24 16-0867-21 TXV 25 11-0486-21 Hi Pressure Cut Out Switch 26 16-0843-01 Distributor
December 2003
Page 5

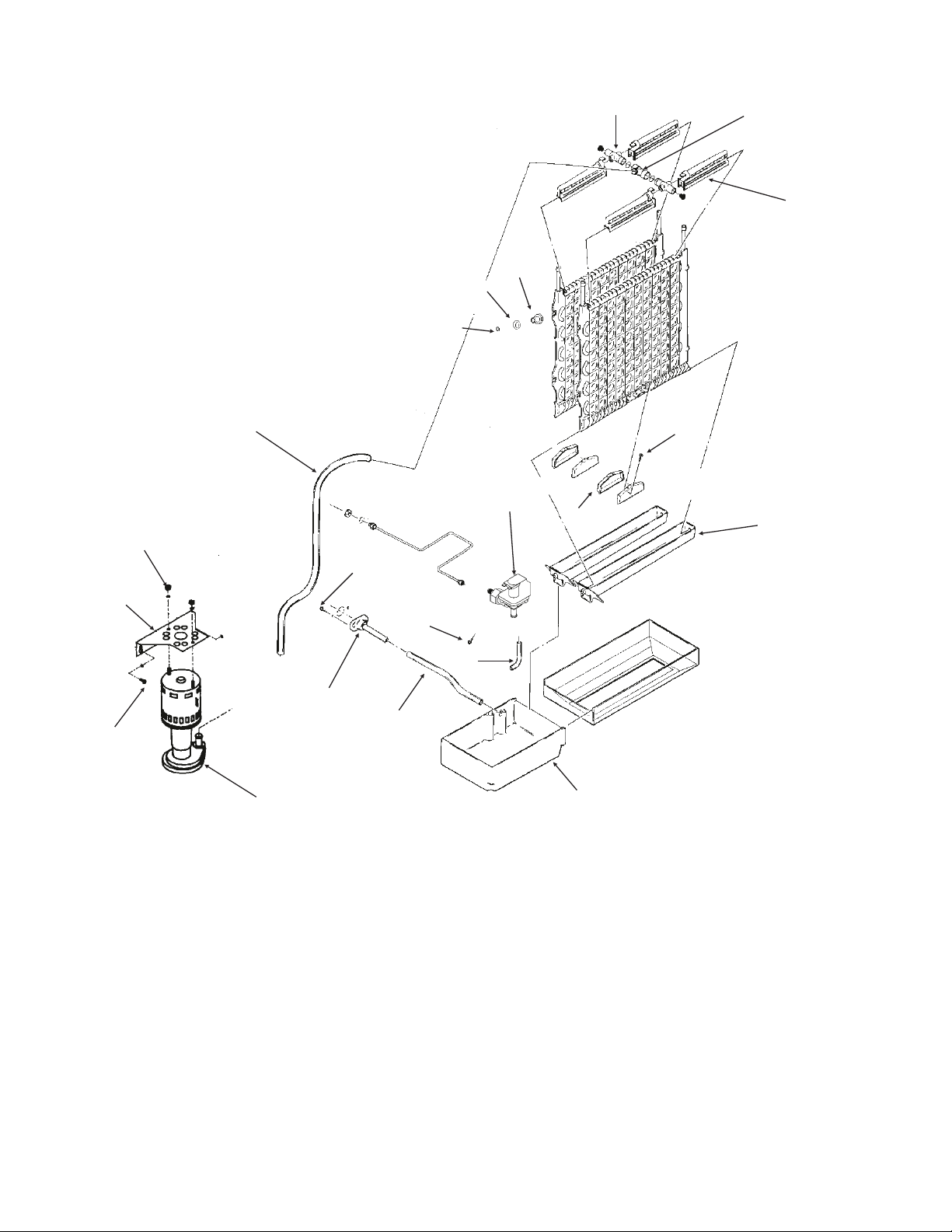

CME500 SERVICE PARTS
11
13
WATER SYSTEM
20
21
15
16
19
1
3
4
18
2
5
9
14
10
8
ITEM PART NUMBER NUMBER DESCRIPTION
1 A29703-001 Manifold 2 02-2527-01 Water distributor tube 3 03-1531-01 Screw 4 02-2878-01 End cover 5 02-2868-01 Drain trough 6 02-2869-01 Reservoir 7 13-0674-07 Drain hose, 8"
02-2814-11 Hose clamp
8 12-2265-21 115v Water pump
12-2265-22 220v 50 Hz water pump 9 A35554-015 Pump bracket 10 03-1531-01 Screw 11 03-1406-05 Nut
10
17
7
6
ITEM PART NUMBER NUMBER DESCRIPTION
12 03-1417-06 Lockwasher 13 13-0674-07 Pump hose, 33" 14 A32282-003 Drain assembly 15 03-1645-01 Screw 16 12-2446-23 115v Inlet water valve
12-2446-24 220v, 50 Hz water valve 17 A30918-001 Water inlet tube 18 02-2519-01 Tee 19 02-2642-01 Plate mount 20 03-1408-34 Washer 21 03-1394-03 Pal nut
December 2003
Page 6
21
14
7
5
24
23
20
20
CME500 SERVICE PARTS
CONTROL BOX
1
2
6
3
5
4
6
19
1
5
9
25
ITEM PART NUMBER NUMBER DESCRIPTION
1 12-1213-17 Snap bushing 2 12-1213-10 Snap bushing 3 11-0437-21 Cube size thermostat 4 03-1403-17 Screw 5 03-1417-27 Lockwasher 6 12-0426-01 Toggle switch 7 11-0427-22 Bin thermostat 8 03-1531-01 Screw 9 A32168-001 Control Box Cover 10 03-1638-03 Screw 11 12-2317-21 115v Timer & Switch
12-2317-26 220v 50 Hz Timer & Switch
12 12-1879-02 Relay, 115 V
12-1879-03 Relay, 220v, 50 Hz 13 12-1912-01 Circuit Board 14 03-1403-02 Screw 15 03-1403-05 Screw
18
17
10
10
February 1994
4
13
8
12
11
ITEM PART NUMBER NUMBER DESCRIPTION
16 03-1417-03 Lockwasher 17 18-1903-50 115v Potential relay
18-1903-29 220v 50Hz Potential relay
18 12-2048-01 115v Contactor
12-2048-02 220v 50 Hz contactor 19 12-1213-04 Snap bushing 20 18-1902-45 115v Run capacitor
18-1902-30 220v 50 Hz Run capacitor
13-0666-00 Cap for run capacitor
A32872-001 Clamp for run capacitor 21 18-1901-03 115v Start capacitor
18-1901-43 220v Start capacitor 22 18-2200-38 Cap for start capacitor 23 18-2200-39 Bracket for start capacitor 24 03-1418-06 Screw 25 03-1406-06 #10 Hex nut
Page 7
CME500 SERVICE PARTS
AIR COOLED 115v, 60 Hz WIRING DIAGRAM
February 1994
Page 8
CME500 SERVICE PARTS
AIR COOLED 115v, 60 Hz SCHEMATIC DIAGRAM
February 1994
Page 9
CME500 SERVICE PARTS
WATER COOLED 115v, 60 Hz WIRING DIAGRAM
February 1994
Page 10
CME500 SERVICE PARTS
WATER COOLED 115v, 60 Hz SCHEMATIC DIAGRAM
February 1994
