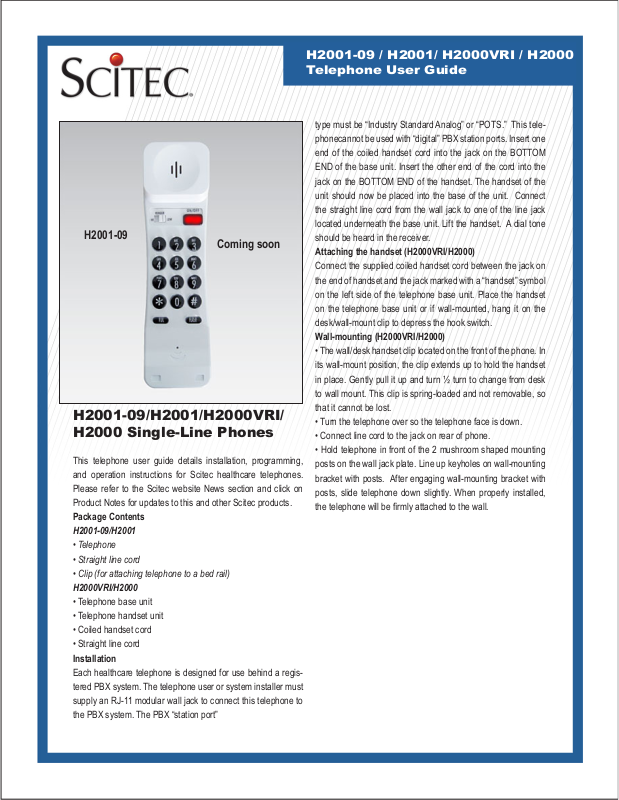

H2001-09 / H2001/ H2000VRI / H2000
Telephone User Guide
H2001-09
Coming soon
H2001-09/H2001/H2000VRI/
H2000 Single-Line Phones
This telephone user guide details installation, programming,
and operation instructions for Scitec healthcare telephones.
Please refer to the Scitec website News section and click on
Product Notes for updates to this and other Scitec products.
Package Contents
H2001-09/H2001
• Telephone
• Straight line cord
• Clip (for attaching telephone to a bed rail)
H2000VRI/H2000
• Telephone base unit
• Telephone handset unit
• Coiled handset cord
• Straight line cord
Installation
Each healthcare telephone is designed for use behind a registered PBX system. The telephone user or system installer must
supply an RJ-11 modular wall jack to connect this telephone to
the PBX system. The PBX “station port”
type must be “Industry Standard Analog” or “POTS.” This telephonecannot be used with “digital” PBX station ports. Insert one
end of the coiled handset cord into the jack on the BOTTOM
END of the base unit. Insert the other end of the cord into the
jack on the BOTTOM END of the handset. The handset of the
unit should now be placed into the base of the unit. Connect
the straight line cord from the wall jack to one of the line jack
located underneath the base unit. Lift the handset. A dial tone
should be heard in the receiver.
Attaching the handset (H2000VRI/H2000)
Connect the supplied coiled handset cord between the jack on
the end of handset and the jack marked with a “handset” symbol
on the left side of the telephone base unit. Place the handset
on the telephone base unit or if wall-mounted, hang it on the
desk/wall-mount clip to depress the hook switch.
Wall-mounting (H2000VRI/H2000)
• The wall/desk handset clip located on the front of the phone. In
its wall-mount position, the clip extends up to hold the handset
in place. Gently pull it up and turn ½ turn to change from desk
to wall mount. This clip is spring-loaded and not removable, so
that it cannot be lost.
• Turn the telephone over so the telephone face is down.
• Connect line cord to the jack on rear of phone.
• Hold telephone in front of the 2 mushroom shaped mounting
posts on the wall jack plate. Line up keyholes on wall-mounting
bracket with posts. After engaging wall-mounting bracket with
posts, slide telephone down slightly. When properly installed,
the telephone will be rmly attached to the wall.
H2001-09 / H2001/ H2000VRI / H2000
Telephone User Guide
H2000VRI/H2000 Operation
RINGER VOLUME - Adjusts ringer volume to LOW or HI.
Located on the left side of the phone near the dataport.
HEARING AID-COMPATIBLE HANDSET - ADA/HAC-compatible
HANDSET JACK - Modular jack to connect coiled handset cord
from handset to base unit.
DATA PORT - Provides access to the telephone line for optional
connection of modem, fax, or answering machine. Located on
the left side of the phone near the ringer control.
DIALING KEYS - 0 - 9 dialing keys.
VOLUME SWITCH - Volume control switch on the handset
steps through the three available handset volume levels [Normal
- Medium - High].
VISUAL RINGING INDICATOR - Indicates phone is ringing or a
message is waiting. Responds to NEON/90V message waiting
light format. (H2001-VRI model only)
To Place A Call
Lift the handset, then dial the number desired.
To Answer A Call
Lift the handset.
Adjusting Handset Volume
Press the [VOL] key. Each press of [VOL] moves to the next of
three possible settings of [Low - Medium -High], and repeats
back to Low volume on the forth press. Adjust as desired.
Adjusting Ringer Volume
The ringer volume control switch is located on the left side of the
telephone. There are two ringer volume settings, high and low.
Adjust as desired.
H2001-09/H2001 Operation
Placing A Call
Press the [PUSH FOR ON-OFF] key, then dial number as
desired.
Taking A Call
Press the [PUSH FOR ON-OFF] key.
Adjusting Phone Volume
Press the [VOL] key, each press steps through the volume settings of [Low - Medium - High - Low]. Adjust as desired.
Ringer Volume Control
Slide the [Off-Low-Hi] volume switch to adjust ringer volume. In
all ringer modes, ringing will be accompanied by a ashing light
on the telephone.
Flash Key
Enters a 600ms hook switch ash for accessing special telephone system features.
Lighted Keypad
0-9, *, and # dialing keys are Illuminated for low light conditions.
H2001-09 / H2001/ H2000VRI / H2000
Telephone User Guide
Required FCC Notice
This equipment complies with Part 68 of the FCC rules and
the requirements adopted by the ACTA. On the bottom of
this equipment is a label that contains, among other information, a product identier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company. The REN is used to determine the number of devices that
may be connected to a telephone line. Excessive RENs on a
telephone line may result in the devices not ringing in response
to an incoming call. In most but not all areas, the sum of RENs
should not exceed ve (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company. The REN
for this telephone is part of the product identier that has the
format US:AAAEQ##TXXXX. The digits represented by ## are
the REN without a decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice
isn’t practical, the Telephone Company will notify you as soon
as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is necessary. The Telephone
Company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of this telephone. If this happens, the Telephone Company will provide
advance notice in order for you to make the necessary modications in order to maintain uninterrupted service. If you experience trouble with this telephone, please contact Scitec, Inc. at
(217) 384-6041 for repair or warranty information. If the trouble
is causing harm to the telephone network, the Telephone Company may request that you
Required FCC Notice
remove this equipment from the network until the problem is
resolved. The customer can do the following repairs: replacement of cords or handset; replacement of window for telephone
number. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission or corporation commission for information. This
telephone cannot be used on Telephone Company provided
coin service. If your home has specially wired alarm equipment
connected to the telephone line, ensure the installation of the
telephone does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your
telephone company or a qualied installer. This equipment is
hearing aid compatible. If the telephone is used with a leased
system, permission of the owner of the equipment must be
obtained for connection of the telephone because modication
of the host system is often required.
Jacks
A plug and jack used to connect this equipment to the premises
wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. A
compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular
jack that is also compliant.
5025 Galley Road
Colorado Springs, CO 81915 USA
+1.719.638.8821 tel
+1.719.638.8815 fax
info@scitecinc.com
www.scitecinc.com
Scitec is a registered trademark of Scitec Inc.
© 2009 Scitec, Inc.
Specications subject to change without notice.
Refer to www.scitecinc.com for latest data.
Scitec, Inc. is a minority-owned business.
