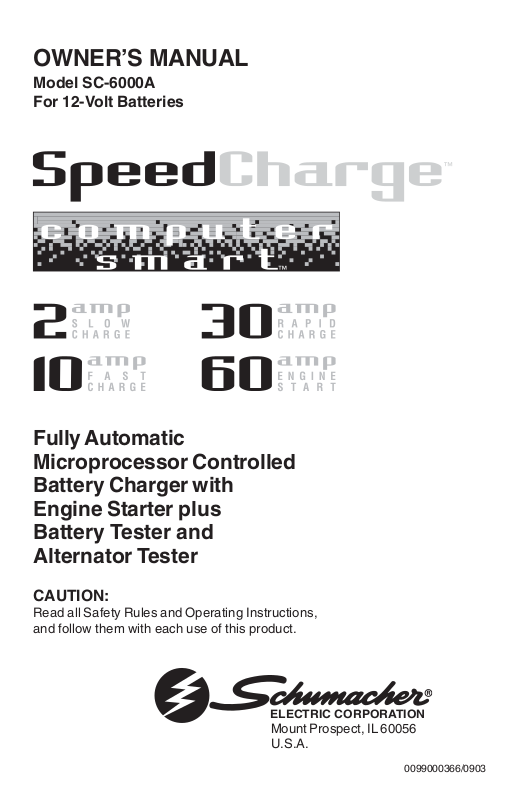

OWNER’S MANUAL
Model SC-6000A
For 12-Volt Batteries
Fully Automatic
Microprocessor Controlled
Battery Charger with
Engine Starter plus
Battery Tester and
Alternator Tester
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
ELECTRIC CORPORATION
Mount Prospect, IL 60056
U.S.A.
0099000366/0903
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................... 3
PERSONAL SAFETY PRECAUTIONS ...................................................................... 4
BEFORE USING YOUR BATTERY CHARGER ......................................................... 5
PLUGGING IT IN .................................................................................................. 5
USING AN EXTENSION CORD ........................................................................... 5
PREPARING YOUR BATTERY TO BE CHARGED ................................................... 5
OPERATING INSTRUCTIONS ................................................................................... 6
Charging Battery In The Vehicle ........................................................................... 6
Charging Battery Removed From The Vehicle ..................................................... 7
Using Engine Start................................................................................................ 7
SPEEDCHARGE CONTROLS .................................................................................... 8
CONTROL PANEL GUIDE .......................................................................................... 9
USING THE BUILT-IN BATTERY TESTER .............................................................. 10
USING THE BUILT-IN ALTERNATOR TESTER ....................................................... 11
USING YOUR ENGINE STARTER ........................................................................... 11
USING YOUR BATTERY CHARGER ....................................................................... 12
CHARGING TIPS ...................................................................................................... 13
BATTERY PERCENT AND CHARGE TIME ............................................................. 14
TROUBLESHOOTING .............................................................................................. 15
MAINTENANCE AND CARE .................................................................................... 15
LIMITED WARRANTY............................................................................................... 16
PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE.
The SpeedCharge Model SC-6000A, Fully Automatic Battery Charger/Tester and
Engine Starter, offers features to accommodate the needs for home or light commercial use. This manual will explain how to use the SpeedCharge safely and effectively.
Please read and follow these instructions and precautions carefully.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio technician for help.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING – RISK OF EXPLOSIVE GASES
WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT
EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL
AND FOLLOW THE INSTRUCTIONS EXACTLY.
To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity
of battery. Review cautionary marking on these products and on engine.
SAVE THESE INSTRUCTIONS
• WARNING: Handling the cord on this
product or cords associated with
accessories sold with this product, will
expose you to lead, a chemical known
to the State of California to cause
cancer and birth defects or other
reproductive harm.
Wash hands after
handling.
• Read all instructions and cautions
printed on the battery charger,
battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type
rechargeable batteries, such as those
used in cars, trucks, tractors, airplanes, vans, RV’s, trolling motors,
etc. This charger is not intended to
supply power to a low voltage
electrical system other than in a
starter-motor application.
• Never use charger for charging dry
cell batteries that are commonly used
with home appliances like radios,
stereos, remote controls, etc. These
batteries may burst and cause
personal injury.
• Do not disassemble charger. Take it
to a qualified service professional if
service or repair is required. Incorrect
assembly may result in fire or
electrical shock.
• To reduce risk of electrical shock,
unplug the SpeedCharge from the
outlet before attempting any maintenance or cleaning.
• Always charge battery in a wellventilated area.
• WARNING: Battery chargers get hot
during operation and must have
proper ventilation. Air needs to flow
around entire charger. Do not set
charger on flammable materials like
carpeting, upholstery, paper, cardboard, etc. Charger may damage
leather and melt plastic and rubber.
HELP US HELP YOU ——
Remember:
Place charger as far away from the
battery being charged as the charger
cables will permit.
Do not expose charger to rain or snow.
Never charge a frozen battery. If battery
fluid (electrolyte) becomes frozen, bring
battery into a warm area to thaw before
you begin charging.
Never allow battery acid to drip on
charger when reading specific gravity or
filling battery.
Never set a battery on top of the
charger.
3
Never place charger directly above
battery being charged. The gases from
the battery will corrode and damage the
charger.
Never touch the battery clamps together
when the charger is on. You could
cause a spark.
Never operate charger if it has received
a hard blow, been dropped, or otherwise
damaged. Take it to a qualified professional for inspection and repair.
PERSONAL SAFETY PRECAUTIONS
Be sure to position the charger power
cord to prevent it from being stepped
on, tripped over, or damaged.
Never pull out the plug by the cord
when unplugging the SpeedCharge.
Pulling on the cord may cause damage
to the cord or the plug.
Do not operate the SpeedCharge if it
has a damaged power cord or plug.
Have the cord replaced.
• Wear complete eye and clothing
protection when working with leadacid batteries.
• Make sure that someone is within
range of your voice to come to your
aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and
soap nearby for use in case battery
acid contacts your eyes, skin, or
clothing. If this happens, wash
immediately with soap and water.
Then get medical attention.
• Avoid touching your eyes while
working with a battery. Acid particles
(corrosion) may get into your eyes. If
this occurs, flush eyes immediately
with running cold water for at least 10
minutes. Then immediately get
medical attention.
• Never charge a frozen battery.
• Remove all personal metal items
from your body such as rings,
bracelets, necklaces and watches,
while working with a lead-acid battery.
A battery can produce a short circuit
current high enough to weld a ring (or
the like) to metal, causing a severe
burn.
• Take care not to drop any metal tool
or metal object onto the battery. This
may spark or short circuit the battery
or another electrical device that may
cause an explosion.
• Always operate the battery charger in
an open, well-ventilated area.
• Never smoke or allow a spark or
flame in the vicinity of the battery or
engine. Batteries generate explosive
gases.
• Neutralize any acid spills thoroughly
with baking soda before attempting to
clean up.
4
BEFORE USING YOUR BATTERY CHARGER
It is important to understand the charger’s requirements. This section explains the
charger’s electrical requirements and how to prepare a battery for charging.
PLUGGING IT IN
Your charger requires a 120V AC
receptacle installed according to all local
codes and ordinances.
extension cord, please make sure that
you follow these guidelines:
• Make sure that pins on plug of
extension cord are the same number,
size, and shape as those of plug on
charger.
• Check that the extension cord is
properly wired and in good electrical
condition.
• Make sure that the wire size is large
enough for its length and for the AC
ampere rating, as specified in the
chart below.
MINIMUM RECOMMENDED EXTENSION CORD
USING AN EXTENSION CORD
Length of Cord, in Feet 25 50 100 150
The use of an extension cord is not
recommended. If you must use an
AWG* Size of Cord 18 16 12 10
*AWG=American Wire Gauge
PREPARING YOUR BATTERY TO BE CHARGED
It is important that you read and follow these guidelines while you are preparing to
charge the battery.
• Make sure that you have a 12 volt
lead-acid battery. Determine voltage
of battery by referring to vehicle
owner’s manual. Charge battery
initially at charger’s lowest rate.
• Clean the battery terminals. Be careful to keep corrosion from getting in or
around your eyes.
• Wear safety glasses. See additional
“Personal Safety Precautions” on
page 4.
• For batteries with removable vent
caps, if required, add distilled water to
each cell until the battery acid reaches the level recommended by the
manufacturer. This will help purge
excessive gases from the cells. Be
careful not to overfill. If you have a
sealed battery with non-removable
• Take time to read all of the battery
manufacturer’s specific precautions,
such as removing or not removing
vent caps while charging, and
recommended rates of charge.
• Be sure that the area around the battery is well ventilated while it is being
charged. Gas can be forcefully blown
away by using a piece of cardboard or
other nonmetallic material as a fan.
• If it is necessary to remove the battery
from the vehicle to charge it, always
remove the grounded terminal from
the battery first. Turn off all vehicle
accessories to avoid sparks from
occurring.
• NOTE: A marine (boat) battery
installed in a boat must be removed
and charged on shore.
vent caps, no action is necessary.
5
