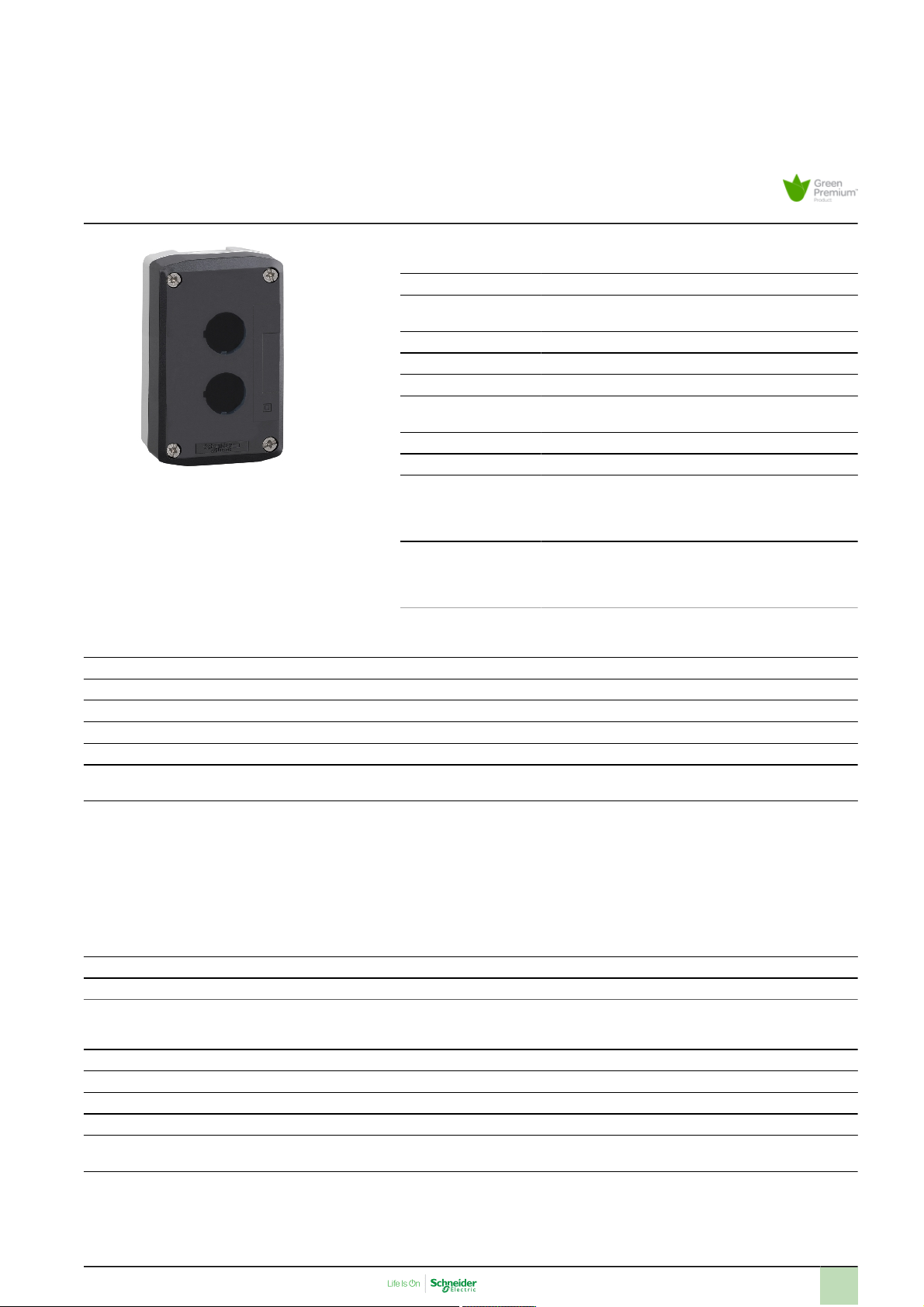

Product data sheet
Characteristics
XALD02
Harmony XALD, XALK, Empty enclosure,
plastic, dark grey lid, for push button Ø22, 2
cut-outs
Main
Range of product Harmony XALD
Product or component
type
Device short name XALD
Product destination For XB5 Ø 22 mm control and signalling units
Number of cut-out 2 cut-outs
Colour of base of
enclosure
Colour of cover Dark grey (RAL 7016)
Material Polycarbonate
Cable entry 2 knock-outs for cable entry, clamping capacity:
IP degree of protection IP66 conforming to IEC 60529
Empty control station
Light grey (RAL 7035)
14mm
2 knock-outs for Pg 13 cable gland and ISO M20,
clamping capacity: 12mm
IP67
IP69
IP69K
Complementary
Assembly style For customer assembly
Number of horizontal rows 1
Number of vertical rows 2
Net weight 0.193kg
Resistance to high pressure washer 7000000Pa at 55°C, distance : 0.1 m
Mounting of block Front mounting
Electrical composition code MF1
Main group 2 cut-outs
Group of product Standard grey
Rear mounting
MF2
PR1
SF1
SR1
MR1
SR2
PF2
PF1
SF2
Environment
Protective treatment TH
Ambient air temperature for storage -40…70°C
Ambient air temperature for operation -40…70°C
Overvoltage category Class II conforming to IEC 60536
NEMA degree of protection NEMA 13
NEMA 4X
Oct 4, 2022
1
Page 2
IK degree of protection IK03 conforming to EN 50102
Standards EN/IEC 60947-5-4
UL 508
EN/IEC 60947-5-5
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-1
CSA C22.2 No 14
JIS C8201-1
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 185.0g
Package 1 Height 8.0cm
Package 1 width 10.7cm
Package 1 Length 7.0cm
Unit Type of Package 2 P06
Number of Units in Package 2 288
Package 2 Weight 67.484kg
Package 2 Height 77.0cm
Package 2 width 80.0cm
Package 2 Length 60.0cm
Unit Type of Package 3 S03
Number of Units in Package 3 36
Package 3 Weight 7.077kg
Package 3 Height 30.0cm
Package 3 width 30.0cm
Package 3 Length 40.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
REACh free of SVHC Yes
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
End Of Life Information
Contractual warranty
Warranty 18 months
2
Page 3
Product data sheet
XALD02

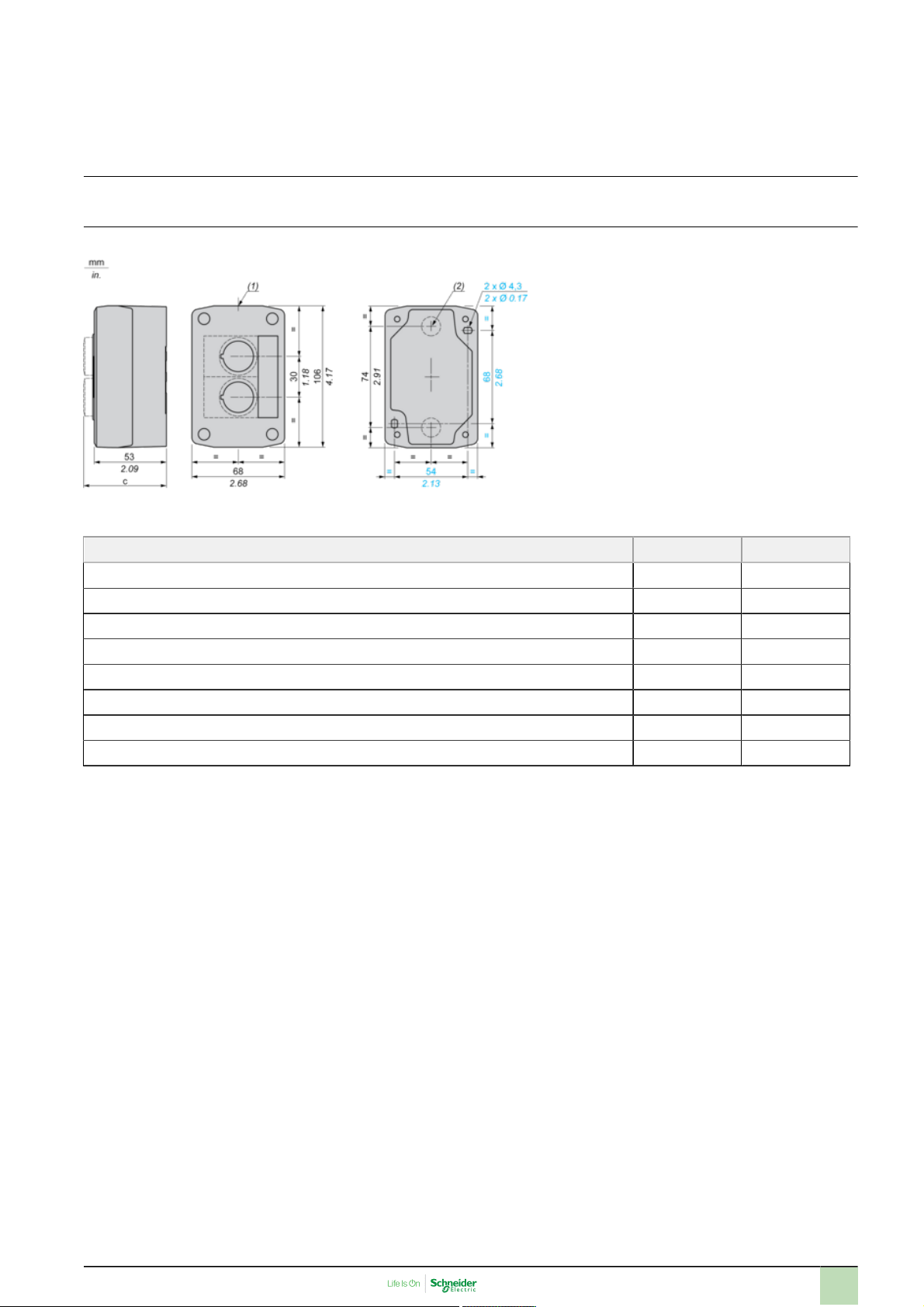

Dimensions Drawings
Dimensions
(1) 2 knock-outs for Pg 13.5 cable gland, maximum capacity 12 mm/0.47 in.
(2) Knock-out for cable entry, maximum capacity 14 mm/0.55 in.
Control station fitted with: c in mm c in in.
Flush pushbutton 62 2.44
Pilot light 64 2.52
Illuminated pushbutton 65.5 2.58
Projecting pushbutton 66 2.60
Selector switch 80 3.15
Mushroom head pushbutton 91.5 3.58
Latching mushroom head Emergency stop pushbutton wit h key 115 4.53
Key switch 105.5 4.15
