Quarter-turn latch with key lock
H
763.422.2661
763.422.2588
netWorking
Wall-Mount Cabinets
D-boX™ Wall-Mount enClosure anD aCCessories
D-boX™, type 1
UL 1863 Listed; File No. E230874
UL 508A Listed; Type 1; File Number E61997
cUL Listed per CSA C22.2 No. 182.4; File No. E230874
Ventilation complies with UL 60950
Telcordia NEBSTM Requirements: Physical Protection, GR-63-CORE,
Zone 4. Tested with 100 lb. (45.4 kg) of equipment installed.
Designed in accordance with BICSI TDMM Tenth edition, Chapter 7,
Telecommunication Enclosures (TE)
EIA 310-D
IEC 60529, IP40
appliCation
Ideal for retail applications where it is necessary to house 19-in.
network equipment in a public location, the horizontally-oriented
™
D-BOX
is a low-profile cabinet with a hinged door for convenient
front access and a combination of fixed and rotating rack angles to
accommodate varying equipment sizes.
Features
• Spring-loaded, self-retained hinge pins allow door removal
• Reversible door fits flush to body with no exposed corners
• Knockouts for 4-in. fan on top and bottom of enclosure
• Wiring knockouts (7/8 in., 1-3/8 in., and 3 in.) on top and bottom of
enclosure. Two 3-in. cable entr y knockouts on back.
• 120-degree door opening
• Multiple cable tie-down points on back of enclosure
Wall-Mount Cabinets D-BOX™ Wa ll-MOunt EnclO surE a nD acc EssOriEs
•
• Keyhole mounting slots spaced 16.00 in. (406 mm) on center for
easy enclosure mounting
• Bosses provided for mounting accessories such as cable spools
• Self-grounding mounting angles made of 12 gauge galvanized
steel
• Patch panel mounting angles rotate down for access
• Flange around door opening protects interior
• Bonding provision on door
• Ground stud on body
• EIA Universal 5/8 - 5/8 - 1/2 in. vertical mounting hole pattern
matches industry standards. Holes are tapped 10-32.
• Includes package of twenty 10-32 mounting screws
speCiFiCations
• Door manufactured from 14 gauge mild steel
• Body manufactured from 16 gauge mild steel
FinisH
Pretreated steel coated with RAL 7035 light-gray textured, lowgloss polyester powder paint. Other finishes available—contact
Hoffman Customer Service.
loaD r ating
100 lb. (45.4 kg)
Bulle tin: DWS1
EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CHANGE WITHOUT NOT ICEnet Working1
Spec-00 083 H
Page 2
Wall-Mount Cabinets D-BOX™ Wa ll-MOunt EnclO surE a nD acc EssOriEs
Standard Product
Catalog Number
DBS24248G 24.00 x 24.00 x 8.34 610 x 610 x 212 22.00 559 4
DBS36248G 36.00 x 24.00 x 8.34 915 x 610 x 212 34.00 864 4
DBS48248G 48.00 x 24.00 x 8.34 1220 x 610 x 212 46.00 1168 4
DBS242412G 24.00 x 24.00 x 12.34 610 x 610 x 313 22.00 559 6
DBS362412G 36.00 x 24.00 x 12.34 915 x 610 x 313 34.00 864 6
DBS482412G 48.00 x 24.00 x 12.34 1220 x 610 x 313 46.00 1168 6
AxBxC in. AxBxC mm H (in.) H (mm)
Rack Units
EQUIPMENT PROTECTION SOLUTIONS net Working 2
Spec-00 083 H
Page 3

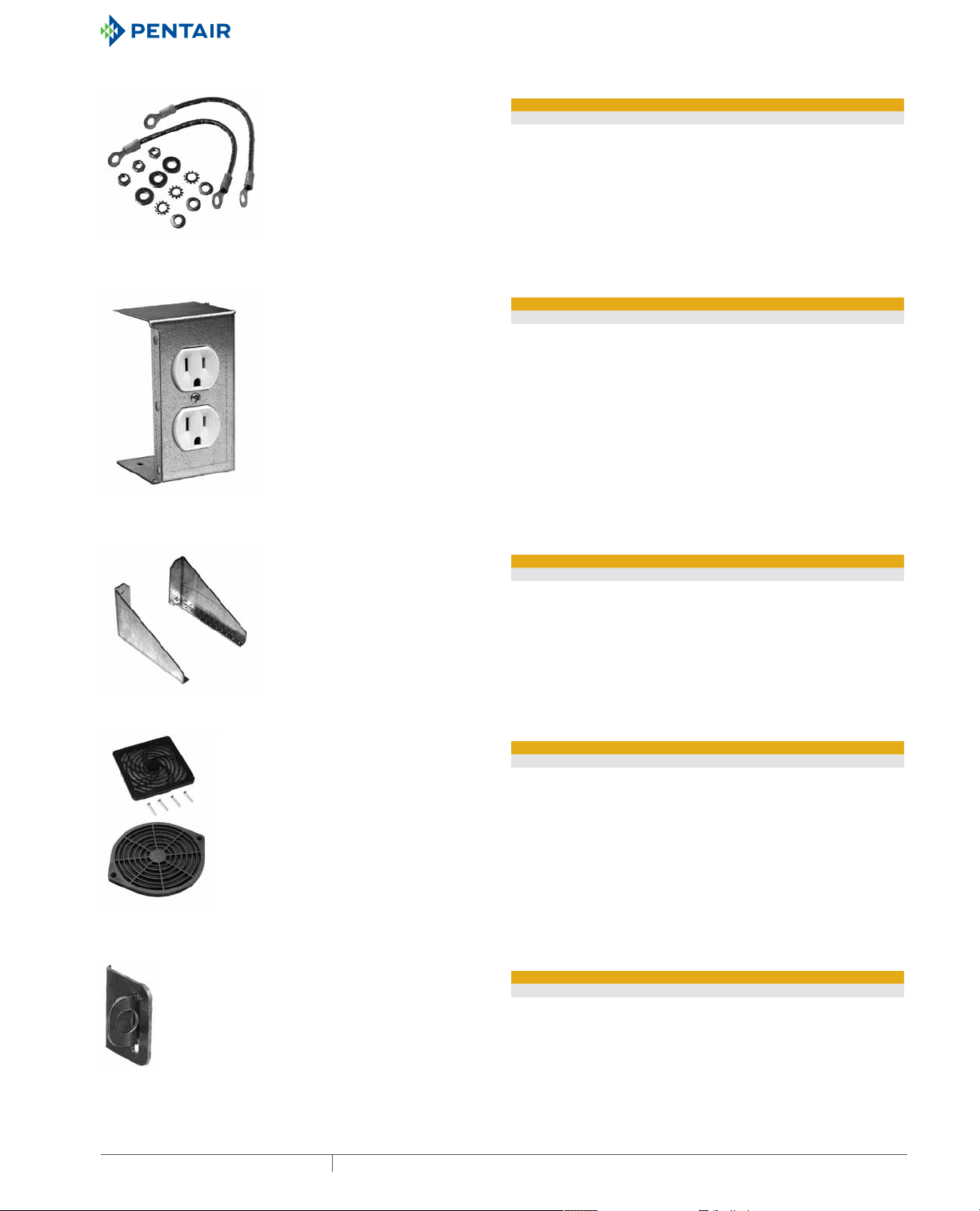

bonDing anD grounDing kit
Provides the cable and mounting
hardware required to ground
equipment to the door and the body
of the cabinet.
Bulle tin: DWS1
DupleX outlet kit
15 A duplex outlet is factor ymounted in three-sided, plated steel
enclosure. Outlet enclosure mounts
on hinge side of door in lower corner
of cabinet. Mounting hardware
provided.
Bulle tin: DWS1
Wall-Mount Cabinets D-BOX™ Wa ll-MOunt EnclO surE a nD acc EssOriEs
Catalog Number Description
DBGRDK Bonding and Grounding Kit
Catalog Number
DBDXK Duplex Outlet Kit 15 A
Description
Current Rating
equipMent r aCk angles
Fixed rack angles can be added
to 36-in. and 48-in. tall cabinets
for extra 19-in rack equipment
mounting. Made of steel with clear
zinc plating. EIA spaced holes are
tapped 10-32. Mounts to raised pads
on cabinet inside back with provided
hardware.
Bulle tin: DWS1
Fan Filter anD Finger guarD kit
Low-density filter kit for 4-in.
(102-mm) and 6-in. (152-mm) fans.
Can also be used as vent. Filter
is removable and can be cleaned
and reused. Mounting hardware
included.
Bulle tin: DtHRM, DWS1
paDloCk kit
Kit includes field installable hasp
and staple. Fits padlocks with
maximum 5/16 in. (8mm) shackle
diameter. No drilling or layout
required. Includes mounting
hardware.
Bulle tin: DWS1
Catalog Number
DBERA4U Equipment Rack Angles 4
DBERA6U Equipment Rack Angles 6
Catalog Number
AFLTR4LD Fan Filter and Finger Guard Kit 4-in. fans
AFLTR6LD Fan Filter and Finger Guard Kit 6-in. fans
Catalog Number Description
DBPDLK Padlocking Kit
Description
Description
Rack Units
Fits
EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CHANGE WITHOUT NOT ICEnet Working3
Spec-00 083 H
Page 4
Wall-Mount Cabinets D-BOX™ Wa ll-MOunt EnclO surE a nD acc EssOriEs

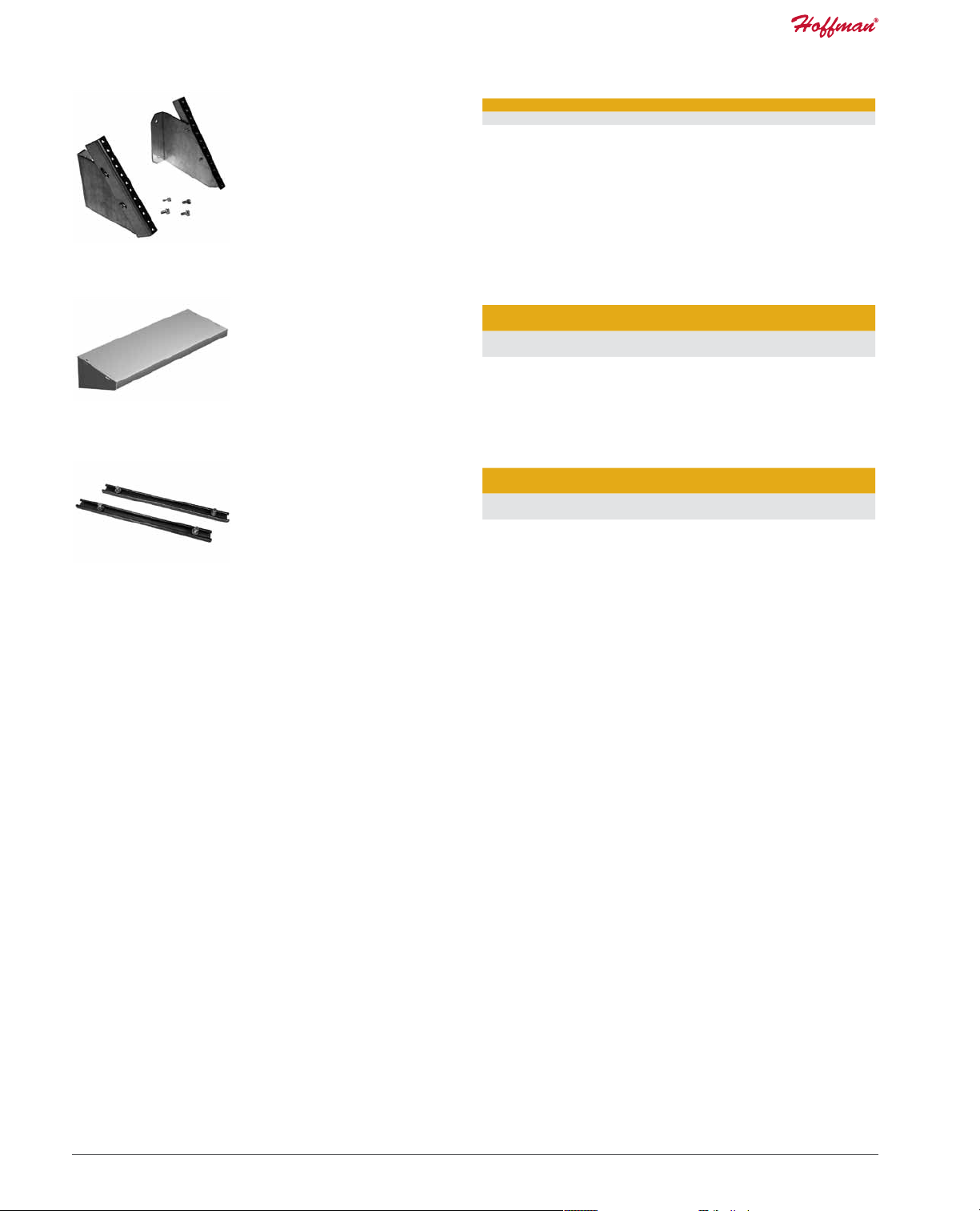

patCH panel raCk angles
Swiveling rack angles drop 45
degrees to provide convenient
access to equipment mounted on
patch panels. Provide additional
patch panel location in 36- and
48-in. (914- and 1219-mm) high
cabinets. Made of self-grounding,
plated 12 gauge steel. Mounting
hardware included. Set of two.
Bulle tin: DWS1
sHelves
Shelves provide additional storage
in 36- and 48-in. (914- and 1219-mm)
tall cabinets. Made of self-grounding
plated 16 gauge steel.
75 lb. (34.0 kg) load rating.
RAL 7035 polyester powder coat
finish.
Bulle tin: DWS1
strut Wall-Mounting kit
Provides secure mounting for
cabinet. RAL 7035 polyester powder
coat finish.
Bulle tin: DWS1
Description
Description
Description
Length
in./mm
484
484
Depth
in./mm
7.25
184
11.08
281
Rack Units
Fits Cabinet Depth
8 in.
8 or 12 in.
Length
in./mm
610
Catalog Number
DBPRA4U Patch Panel Rack Angles 4
Catalog Number
DBSHELF8 Steel Shelf 19.05
DBSHELF12 Steel Shelf 19.05
Catalog Number
DB24WMTK Strut Wall-Mounting Kit 24.00
EQUIPMENT PROTECTION SOLUTIONS net Working 4
