Field Devices Europe
VZ22, VZ32, VZ42
FLOW CAPACITIES AND CLOSE OFF PRESSURE RATINGS
Two-way valves, VZ22
Valve Close Off Pressure with Actuators (Kpa)
MZ18A, MZ18B,
DN k
VS
Part no.
MZ18L
(180 N)
15 0.16 721-0702-000 1600 600
15 0.25 721-0706-000 1600 600
15 0.40 721-0710-000 1600 600
15 0.63 721-0714-000 1600 600
15 1.00 721-0718-000 1200 180
15 1.6 721-0722-000 1200 180
20 2.5 721-0726-000 400 50*
20 4.0 721-0730-000 400 50*
*Up to 1000 kPa system pressure.
MZ10T/ MZ95 (95 N)
02
Two-way valves, VZ32
Valve Close Off Pressure with Actuators (Kpa)
DN Kvs Part no. MZ18A, MZ18B,
A AB B AB
MZ18L
(180 N)
MZ10T/ MZ95 (95 N)
15 0.25 0.16 731-0706-000 800 500
15 0.40 0.25 731-0710-000 800 500
15 0.63 0.40 731-0714-000 800 500
15 1.00 0.63 731-0718-000 250 150
15 1.6 1.00 731-0722-000 250 150
20 2.5 1.6 731-0726-000 240 -
20 4.0 2.5 731-0730-000 240 -
20 2.5 1.6 731-0727-000 100 50
20 4.0 2.5 731-0731-000 100 50
Two-way valves with bypass, VZ42
Valve Close Off Pressure with Actuators (Kpa)
DN Kvs Part no. MZ18A, MZ18B,
A AB B AB
MZ18L
(180 N)
kPa kPa
15 0.25 0.16 741-0706-000 800 500
15 0.40 0.25 741-0710-000 800 500
15 0.63 0.40 741-0714-000 800 500
15 1.00 0.63 741-0718-000 250 150
15 1.6 1.00 741-0722-000 250 150
20 2.5 1.6 741-0726-000 240 -
20 4.0 2.5 741-0730-000 240 -
MZ10T/MZ95
(95N)
Schneider Electric
003-1885-3 September 2013
© 2013 Schneider Electric. All rights rese rved.
Page 3
Field Devices Europe
VZ22, VZ32, VZ42
FUNCTION
A built-in return spring in the two-way valve
produces an opening force.
In the three-way valve and the three-way valve
with bypass, the spring produces a closing force
on the A to AB ports.
The valves are supplied with a screwed-on
adjustment cap for manual operation and for
protection of the stem.
Soft seat provides low leakage rate and high
rangeability.

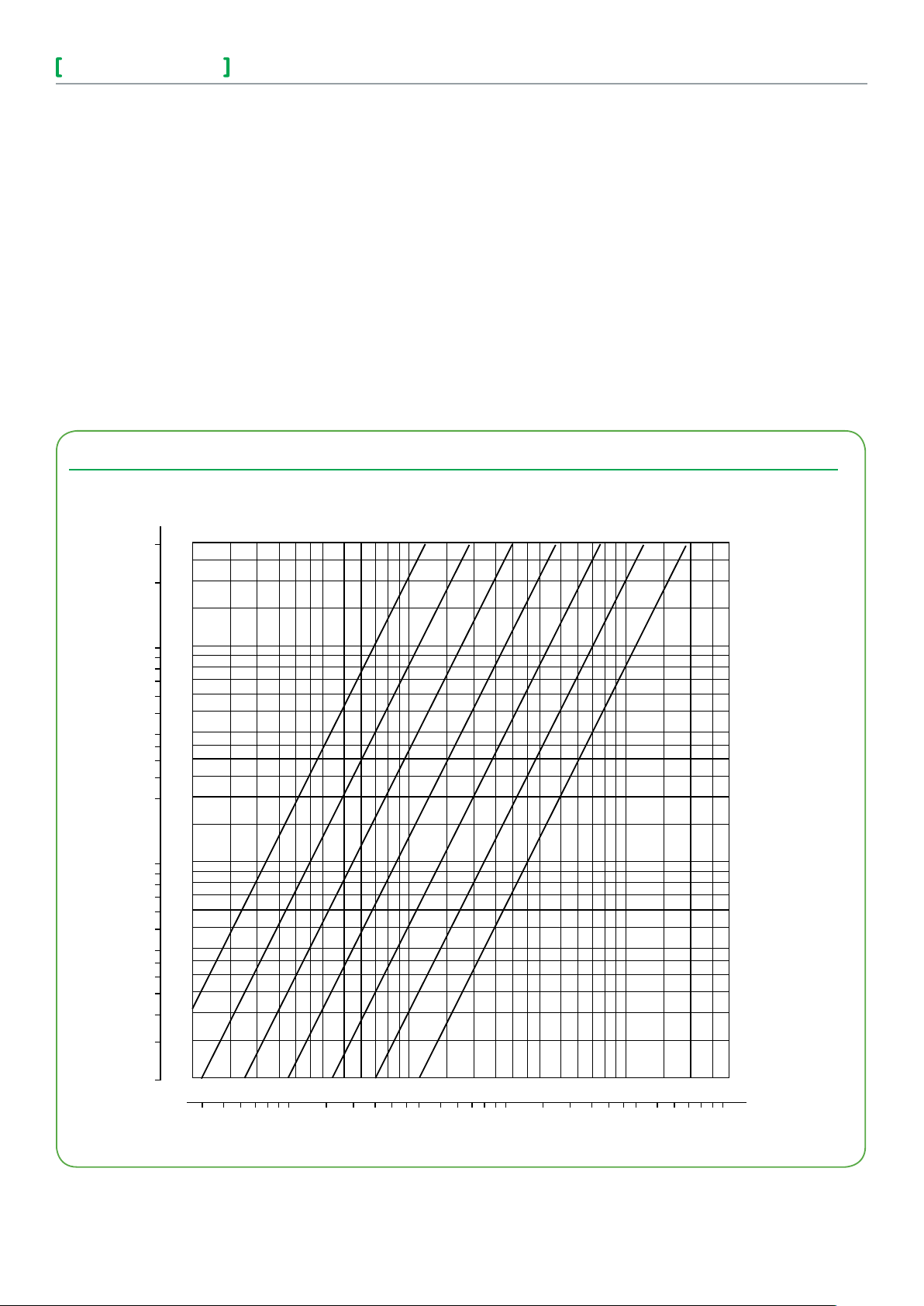

PRESSURE DROP CHART
Pressure drop
m vp kPa
300
30
3
Kv (m /h at �p=100 kPa)
03
1,0
1,6
0,63
0,40,25
2,5
4
0,8
0,7
0,6
0,5
0,4
0,3
0,2
20
10
200
100
80
8
70
7
60
6
50
5
40
4
30
3
20
2
10
1
8
7
6
5
4
3
2
0,1
Schneider Electric
003-1885-3 September 2013
1
0,01 0,02 0,03 0,04 0,06 0,08
0,04 0,06 0,08 0,1 0,2 0,3
0,1 0,2 0,3 0,4 0,5
0,4 0,5 0,6 0,8 1
0,8 123
2 3 456 78910
l/s
3
m /h
Flow
© 2013 Schneider Electric. All rights rese rved.
Page 4

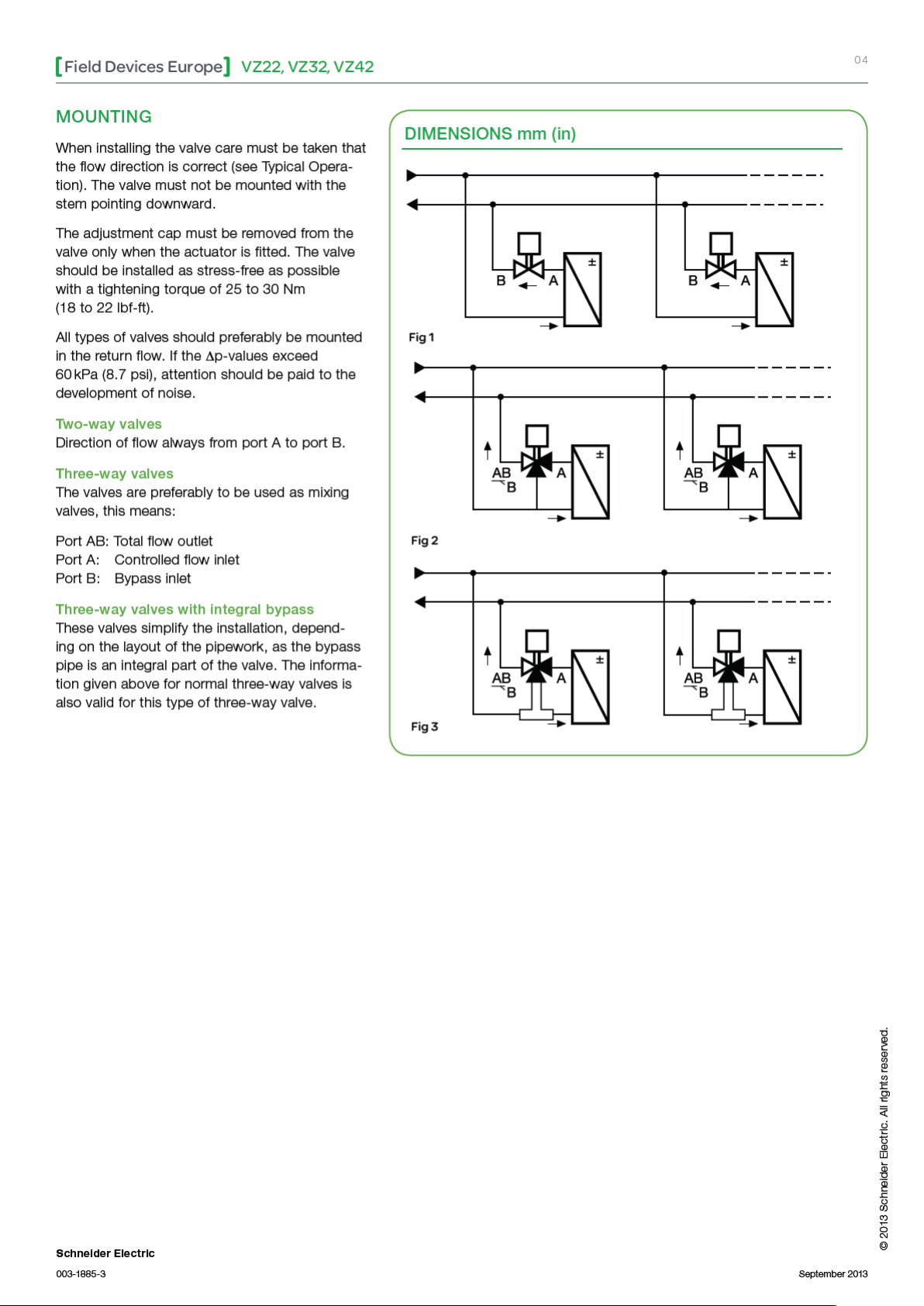

Page 5
Field Devices Europe
b
b
b
b
VZ22, VZ32, VZ42
05

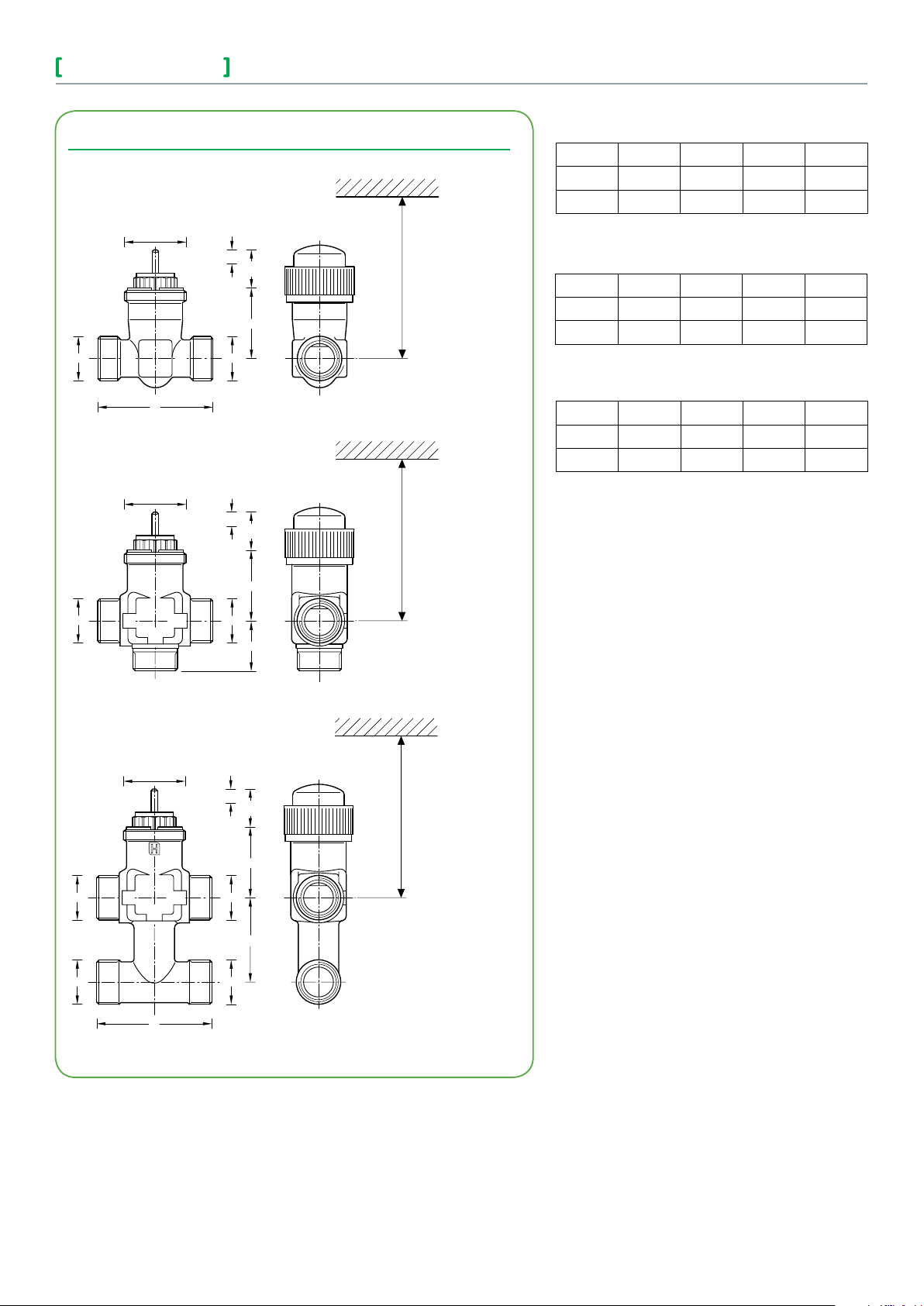

DIMENSIONS mm
Two-way valve VZ22
M 30 x 1,5
A
Two-way valve VZ32
M 30 x 1,5
B
a
18
6,5 Stroke
d
b
18
6,5 Stroke
Allow 130 mm
for the actuator
and clearance
for removal.
Allow 130 mm
for the actuator
and clearance
for removal.
VZ22
a b d
DN15 56 G ½” 34
DN20 66 G ¾” 33
VZ32
a b c d
DN15 56 G ½" 24.5 34
DN20 66 G ¾" 33 33
VZ42
a b c d
DN15 56 G ½" 40 34
DN20 66 G ¾" 40 33
d
AB
A
B
b
c
Three-way valve with integral bypass VZ42
M 30 x 1,5
18
6,5 Stroke
d
AB
A
B
a
b
c
b
Allow 130 mm
for the actuator
and clearance
for removal.
Fig 4
Schneider Electric
003-1885-3 September 2013

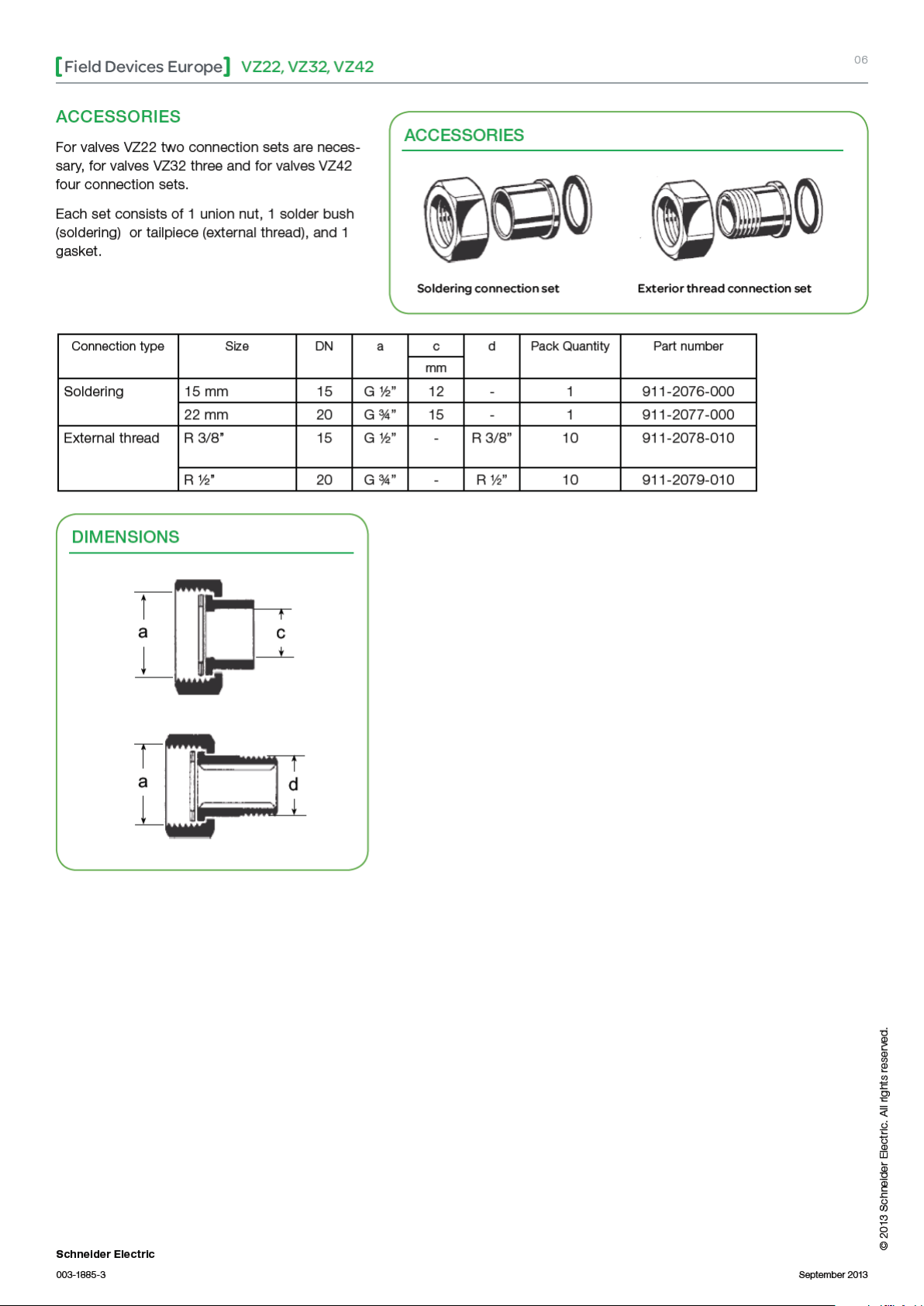

© 2013 Schneider Electric. All rights rese rved.
