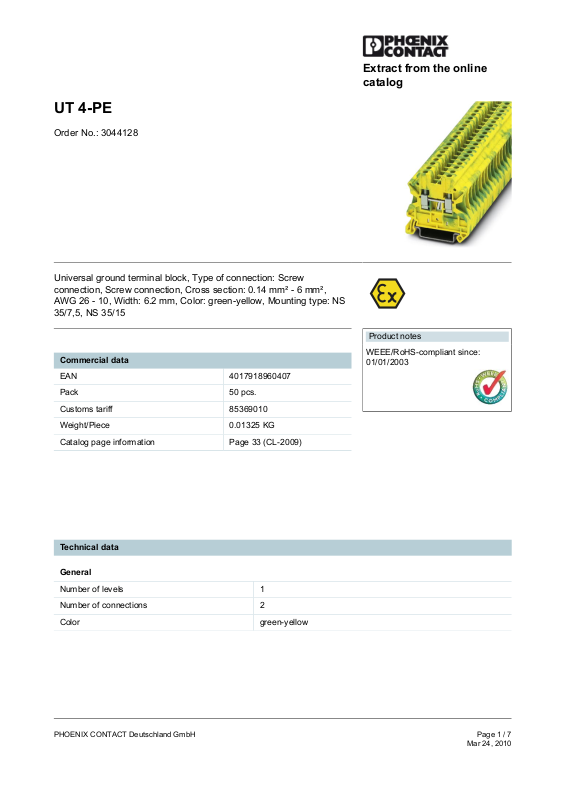

Page 1
UT 4-PE
Order No.: 3044128
Universal ground terminal block, Type of connection:Screw
connection, Screw connection, Cross section: 0.14 mm²-6 mm²,
AWG26-10, Width:6.2 mm, Color:green-yellow, Mounting type:NS
35/7,5,NS 35/15
Commercial data
EAN 4017918960407
Extract from the online
catalog
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Pack 50 pcs.
Customs tariff 85369010
Weight/Piece 0.01325 KG
Catalog page information Page 33 (CL-2009)
Technical data
General
Number of levels 1
Number of connections 2
Color green-yellow
Page 1 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 2
UT 4-PE Order No.: 3044128
Insulating material PA
Inflammability class acc. to UL 94 V0
Dimensions
Width 6.2 mm
Length 47.7 mm
Height NS 35/7,5 47.5 mm
Height NS 35/15 55 mm
Technical data
Rated surge voltage 8 kV
Pollution degree 3
Surge voltage category III
Insulating material group I
Connection in acc. with standard IEC 60947-7-2
Open side panel ja
Connection data
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 6 mm²
Conductor cross section stranded min. 0.14 mm²
Conductor cross section stranded max. 6 mm²
Conductor cross section AWG/kcmil min. 26
Conductor cross section AWG/kcmil max 10
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min. 0.14 mm²
0.14 mm²
4 mm²
0.14 mm²
4 mm²
2 conductors with same cross section, solid max. 1.5 mm²
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
0.14 mm²
1.5 mm²
Page 2 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 3
UT 4-PE Order No.: 3044128
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection Screw connection
Stripping length 9 mm
Internal cylindrical gage A4
Screw thread M3
Tightening torque, min 0.6 Nm
Tightening torque max 0.8 Nm
Certificates / Approvals
0.5 mm²
2.5 mm²
0.14 mm²
1.5 mm²
Certification CB, CSA, CUL, DNV, GL, LR, UL, VDE-PZI
Certification Ex: IECEx, KEMA-EX
CSA
AWG/kcmil 26-10
CUL
AWG/kcmil 26-10
UL
AWG/kcmil 26-10
Accessories
Item Designation Description
Assembly
3047167 ATP-UT Partition plate, Length:50 mm, Width:2 mm, Height:48 mm,
Color:gray
Page 3 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 4
UT 4-PE Order No.: 3044128
3022276 CLIPFIX 35-5 Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
3047028 D-UT 2,5/10 End cover, Length:47.7 mm, Width:2.2 mm, Height:48.4 mm,
Color:gray
0801762 NS 35/ 7,5 CU UNPERF
2000MM
1207640 NS 35/ 7,5 PERF 755MM NS 35 DIN rail, height 7.5 mm, length 755 mm
1207653 NS 35/ 7,5 PERF 955MM NS35 DIN rail, height 7.5 mm, length 955 mm
1207666 NS 35/ 7,5 PERF 1155MM NS 35 DIN rail, height 7.5 mm, length 1155 mm
0801733 NS 35/ 7,5 PERF 2000MM DIN rail, material: Steel, galvanized and passivated with a thick
0801681 NS 35/ 7,5 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
1201756 NS 35/15 AL UNPERF 2000MM DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
1201895 NS 35/15 CU UNPERF 2000MM DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
1207679 NS 35/15 PERF 755MM NS 35 DIN rail, perforated, height 15 mm, length 755 mm
1207682 NS 35/15 PERF 955MM NS 35 DIN rail, perforated, height 15 mm, length 955 mm
1207695 NS 35/15 PERF 1155MM NS 35 DIN rail, perforated, height 15 mm, length 1155 mm
1201730 NS 35/15 PERF 2000MM DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
1201714 NS 35/15 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 15 mm, width 35
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
mm, length: 2 m
material: Aluminum, height 15 mm, width 35 mm, length 2 m
mm, width 35 mm, length: 2 m
length: 2 m
mm, length: 2 m
1201798 NS 35/15-2,3 UNPERF 2000MM DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Bridges
3030336 FBS 2-6 Cross connector/bridge, Number of positions:2, Color:red
3030242 FBS 3-6 Cross connector/bridge, Number of positions:3, Color:red
3030255 FBS 4-6 Cross connector/bridge, Number of positions:4, Color:red
3030349 FBS 5-6 Cross connector/bridge, Number of positions:5, Color:red
3030271 FBS 10-6 Cross connector/bridge, Number of positions:10, Color:red
3030365 FBS 20-6 Cross connector/bridge, Number of positions:20, Color:red
3032224 FBS 50-6 Cross connector/bridge, Number of positions:50, Color:red
Marking
0811228 X-PEN 0,35 Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Page 4 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 5
UT 4-PE Order No.: 3044128
1051016 ZB 6,LGS:FORTL.ZAHLEN Zack strip, 10-section, printed horizontally: with the numbers,
1-10, 11-20 etc. up to 991-1000, color: white
5060935 ZB 6/WH-100:UNBEDRUCKT Zack strip, unprinted: For individual labeling with M-PEN, ZB-T
or CMS system, large batch, sufficient for labeling 1000 terminal
blocks, for a terminal width of 6.2 mm, color: White
1050499 ZB 6:SO/CMS Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
0201689 MPS-IH BU Insulating sleeve, for MPS metal part, Color:blue
0201676 MPS-IH RD Insulating sleeve, Color:red
0201663 MPS-IH WH Insulating sleeve, for MPS metal part, Color:white
0201744 MPS-MT Metal part
3030925 PAI-4 Test adapter, Color:gray
3030996 PS-6 Test adapter, Color:red
Tools
1205053 SZS 0,6X3,5 Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Diagrams/Drawings

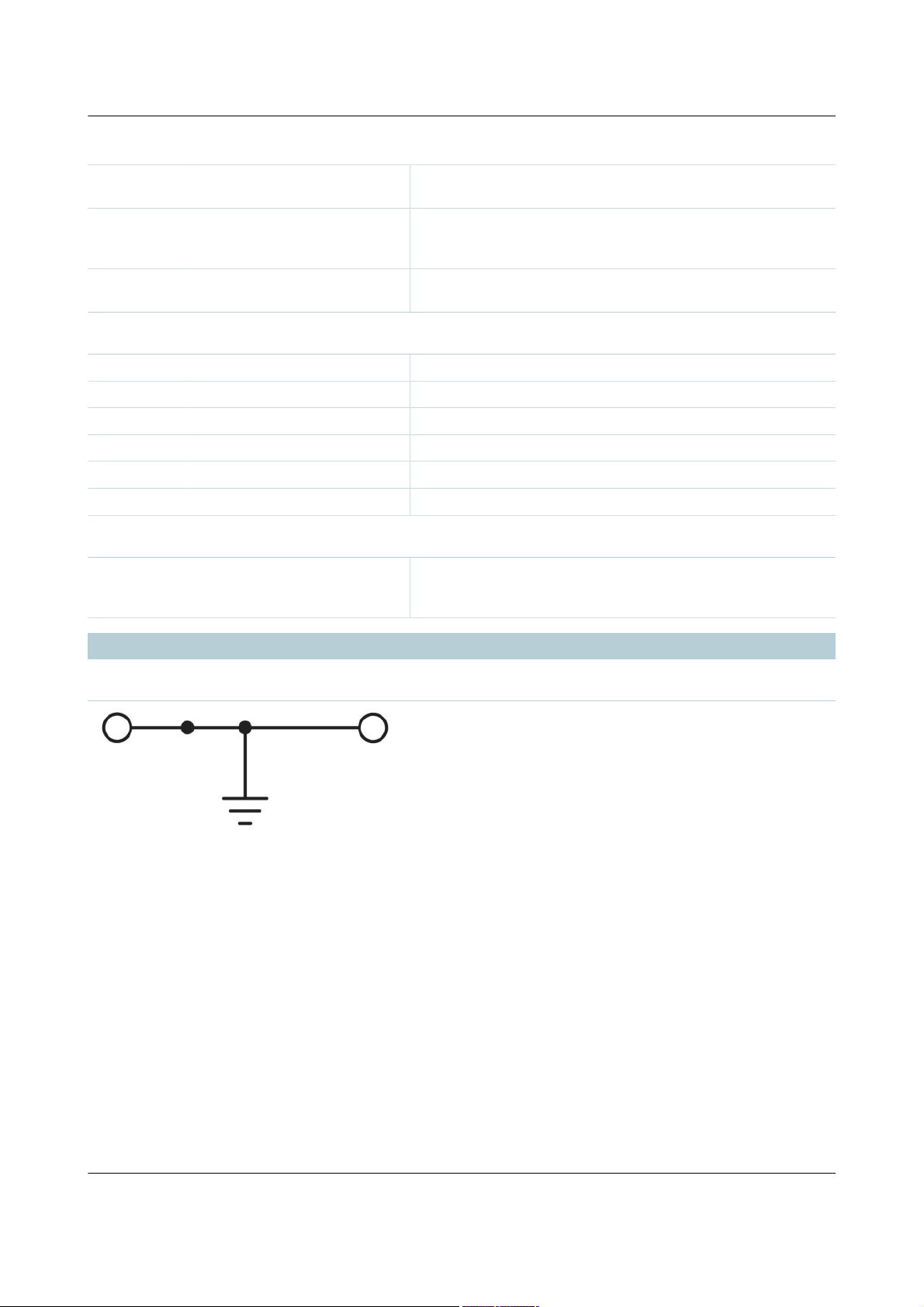

Circuit diagram
Page 5 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 6
UT 4-PE Order No.: 3044128
Approbationslogos (EX-Bereich)
Page 6 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
Page 7
UT 4-PE Order No.: 3044128
© 2010 Phoenix Contact
Technical modifications reserved;
Page 7 / 7PHOENIX CONTACT Deutschland GmbH
Mar 24, 2010
